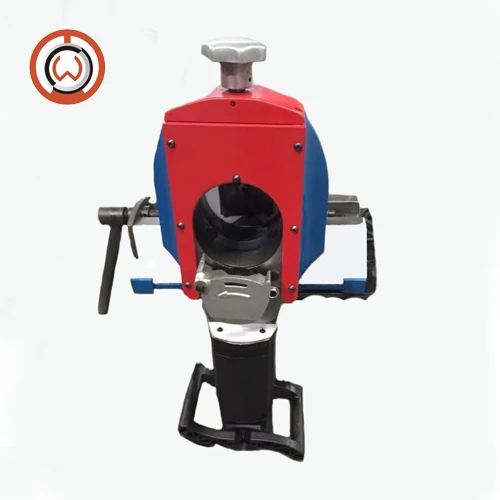

Orbital professional stainless steel pipe circular saw copper tube cutting machine

Product Overview

Description

Stainless steel pipe Cold Cutting  Beveling Automatic Machine

Product Show



  Production Description



• Orbital pipe cutting machine / saws are the cost effective and reliable solution to square cut and bevel almost all types of metal pipe, especially suitable for cutting stainless steel pipe


• All H series orbital pipe saws deliver a precise, square and clean cut, making it unnecessary to do any additional preparation work on the cutoff face for orbital welding


• The machine is a must have for fabricators working in high purity, sanitary industry, such as dairy, beverage, food, beer, and pharmaceutics


• Deliver precisely straight cut, burr-free, ideal for cutting stainless steel pipe


• Cold cut to prevent thermal distortion, the cutting solution for material like stainless pipe, copper, carbon steel


• Fast pipe clamping, deformation-free clamping system


• Easily setup regardless of the pipe diameter


• Easy to operate, almost no training is needed


• Take a few seconds to finish the cut with one single rotation around the pipe


• Simultaneous cutting and beveling with beveling blade mounted in addition to cutting blade


• Speed regulation to match wall thickness and different materials



  Technical Parameter



Model	H120	H182	H230	H325
Pipe OD	1.5"-4.5"	3"-6"	6"-9"	8.5"-12.5"
Wall Thickness	0.04"-0.22"	0.08"-0.4"	0.08"-0.4"	0.08"-0.4"
Motor	1600W	1600W	1600W	1600W
Rotation	150-250r/min	150-250r/min	150-250r/min	150-250r/min
Voltage	110-220V	110-220V	110-220V	110-220V
Frequency	50-60Hz	50-60Hz	50-60Hz	50-60Hz
Net Weight	75KG	90KG	110KG	130KG







Order Guide

Before you place order to us, please let us know the following information:

•


  Choose the right Model





•


  Confirm your electric power supply ( Voltage, frequency and phase)





•


  Confirm the welding joint required (U, V, Double V or Compound preparation)





•


  Advise your pipe material ( Carbon steel, stainless steel or others)





•


  Other special demands about machine





•


  The spare parts needed





•


  If the pipe wall thickness more than 30mm, inform us in advance (Important)
