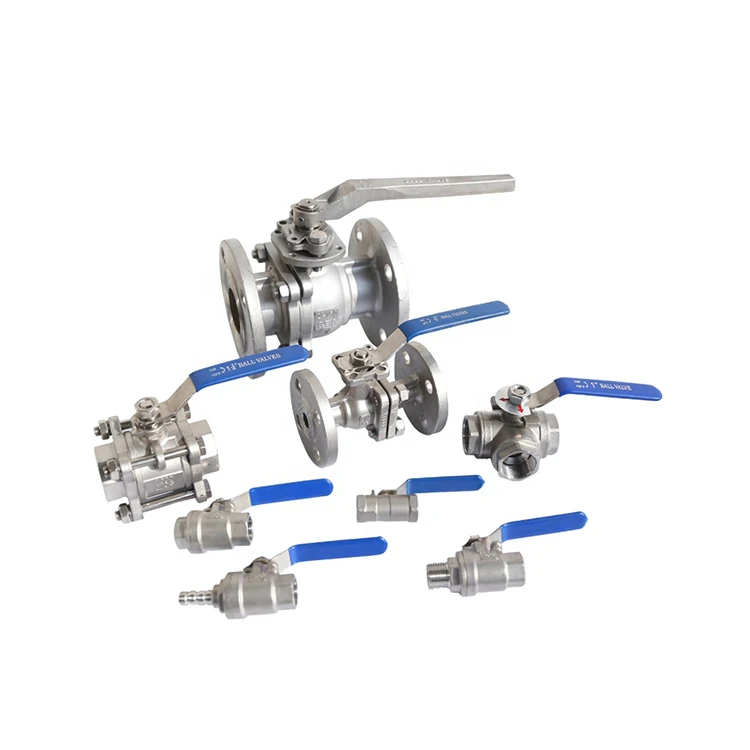

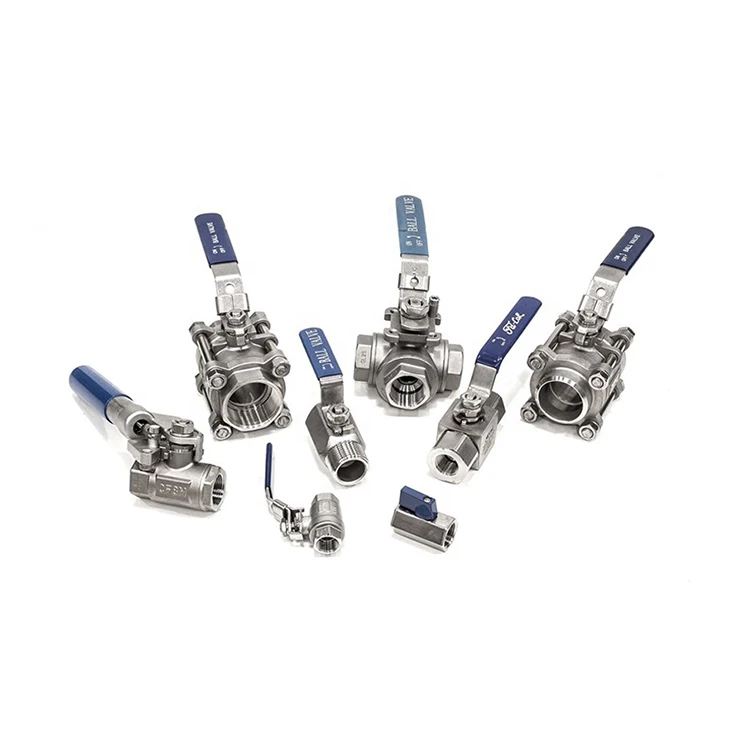

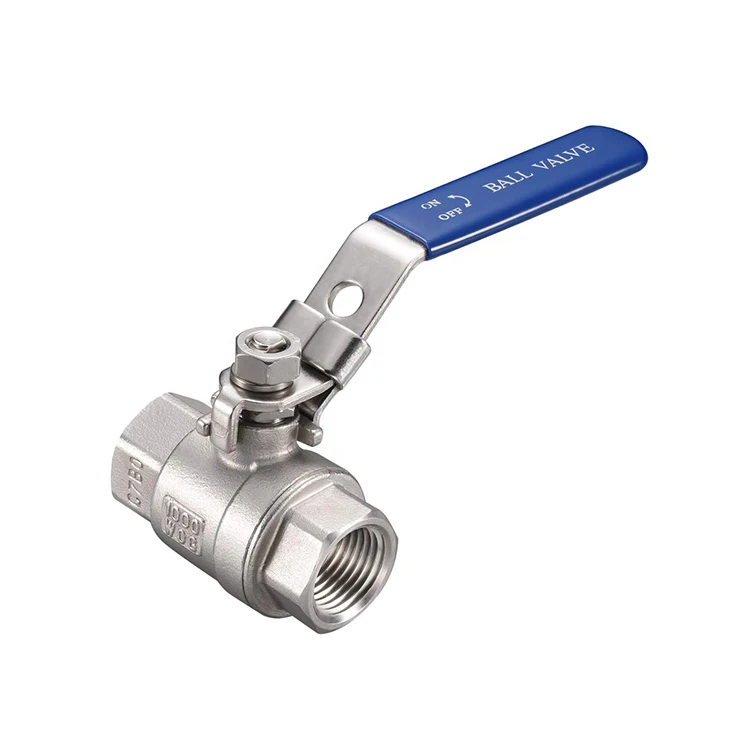

Stainless Steel Screwed Ball Valve High Pressure Cryogenic DN 100 Ball Valve
- Category: >>>
- Supplier: Wenzhou Jienuo Valve Co. Ltd.
Share on (1600545162235):
Product Overview
Description
Recommend Products
Products Description

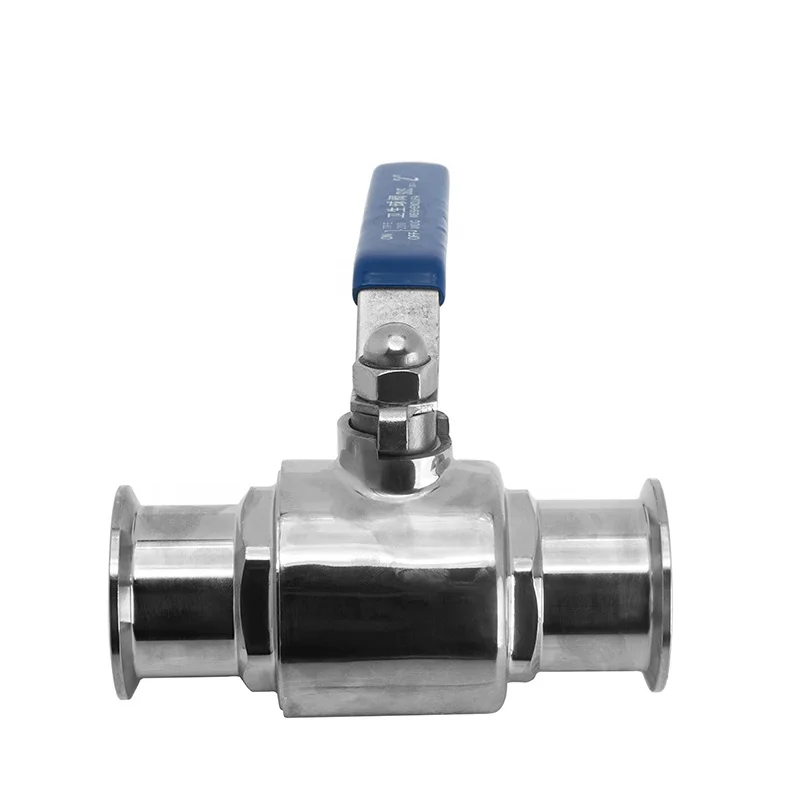

Sanitary Ball Valves
Sanitary ball valves are also called a hygienic ball valve which is opened by turning handles attached to balls inside the valves. The ball has a hole or port through the middle. When the port is in line with both ends of the valve, the flow will occur. When the valve is closed, the hole is perpendicular to the ends of the valve, and flow is blocked. A ball valve is durable and usually works to achieve perfect shutoff even after years of disuse.
Features
● Sanitary ball valves are provided in varies of sizes upon requests.
● The precision of the stainless steel helps to decrease friction and torque loss at the same time extending the life of the seat.
● The valve body and ball core materials could be SUS 304, 304L, 316 and SUS 316L materials upon request.
● The end connection can be easily butt-welded, tri-clamp, threaded, flanged, I-line, and some others upon request.
● Various flow plan options of two-way ball valve and three-way ball valve (T type and L type ball).
● The valve body can be with or without purge ports for SIP/CIP.
● Manual handle, pneumatic actuator, electric actuator are interchangeable.
● There exists cavity filled type, full port type, encapsulated PTFE type and butterfly-ball type for different applications.
Body Material | 304 or 316L |
Other Steel Parts | 304 |
Seat Material | PTFE + Silicone (default) |
Seat Options | PTFE + EPDM, PTFE +Viton(FPM) |
Max. Working Pressure | 10bar (145psi) |
Working Temperature | EPDM: 14 ~ 248°F (-10 ~ 120°C) |
Silicone: -58 ~ 356°F (-50 ~ +180°C) | |
Viton (FPM): -22 ~ 428°F (-30 ~ +220°C) | |
Sterilization Temperature | 150°C (302°F), Max. 20 min |
Internal Finish | Ra 0.4 ~ 0.8µm, Ra 0.4µm as default. |
External Finish | Ra 0.4 ~ 0.8µm, Ra 0.8µm as default. |
End Connections: | Butt-welded, Tri-clamp, Male and Female threaded, Flanged or others upon request. |
Handle Types | 4-position Pull handle; normal handle |
Pneumatic Actuator Types | Normally Closed (NC) – Air to open and spring to close; Normally Open (NO) – Air to close and spring to open; Air to Air (AA) – Air to open, air to close. |
Actuator air pressure | 5-7bar (72-102psi) |
Electric Actuator Types | Basic ON/OFF Type Intelligent Modulating Type |
Units for intelligent control and indication | Proximity Switches (position sensor) Limit Switch F-TOP C-TOP control IL-TOP control (Electropneumatic Positioner) |
Details Images
Flange Ball Valve
Tank Bottom Ball Valve

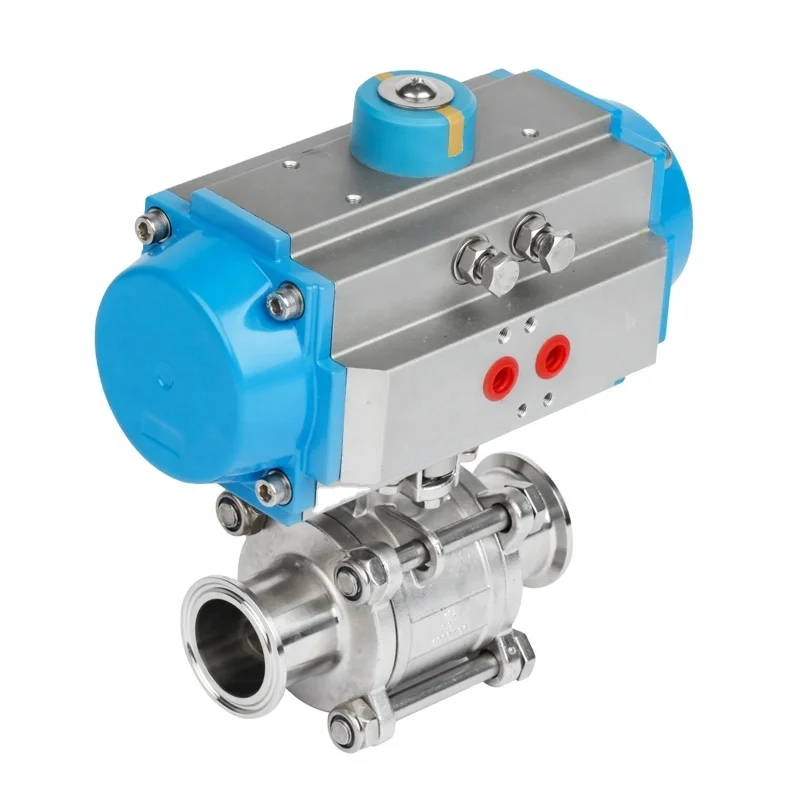

Pneumatic Ball Valve

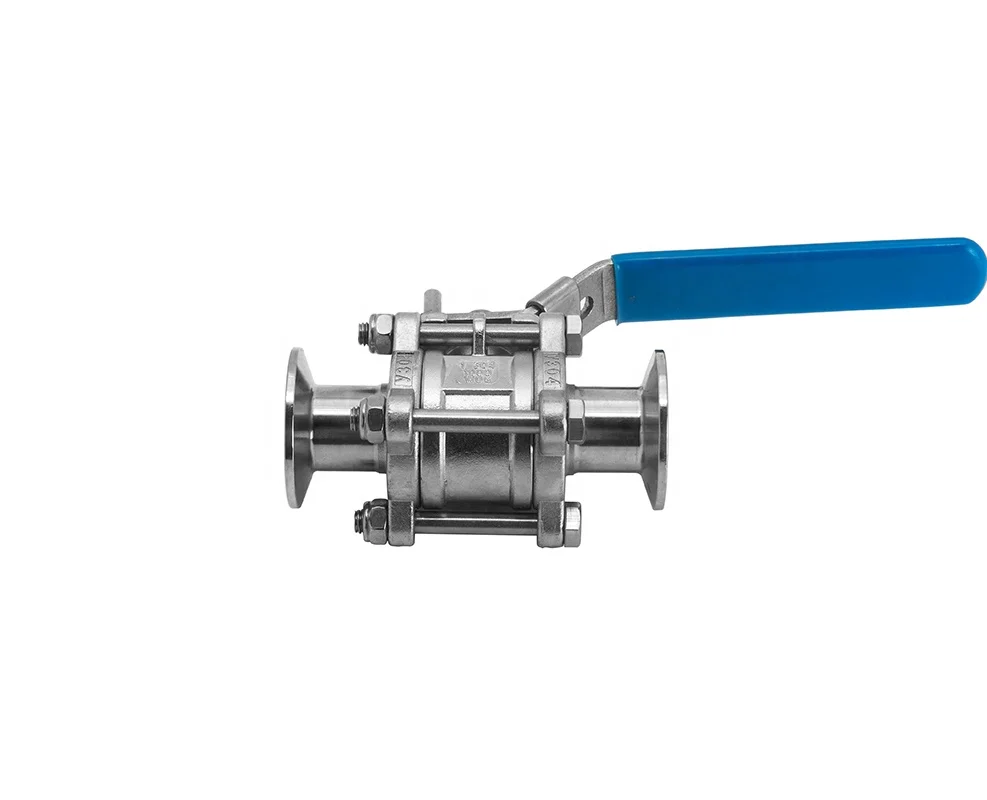

3-pc Ball Valve
What are ball valves used for?
Ball valves usually function as block valves to fully shut off or fully open flow. Ball valves are suited for conditions where on/off and/or bubble-tight service are required.
Can ball valves be used for isolation?
Ball valves are widely used for isolation purposes as they can attain positive shut off due to the soft seats.
What is the difference between ball valve and gate valve?
Ball and gate valves both function to block flow, gate is most commonly used however ball is a better choice for some particular applications. They have significant physical differences. Gate valves open by lifting a gate out of the path of the service fluid, ball valves have a stem and a ball that turn horizontally.
Can ball valves be used for throttling?
Soft-seal ball valves are not normally used for throttling service because the valve seats are subject to erosion or displacement when the valve is not fully open or fully closed.
Ball valves usually function as block valves to fully shut off or fully open flow. Ball valves are suited for conditions where on/off and/or bubble-tight service are required.
Can ball valves be used for isolation?
Ball valves are widely used for isolation purposes as they can attain positive shut off due to the soft seats.
What is the difference between ball valve and gate valve?
Ball and gate valves both function to block flow, gate is most commonly used however ball is a better choice for some particular applications. They have significant physical differences. Gate valves open by lifting a gate out of the path of the service fluid, ball valves have a stem and a ball that turn horizontally.
Can ball valves be used for throttling?
Soft-seal ball valves are not normally used for throttling service because the valve seats are subject to erosion or displacement when the valve is not fully open or fully closed.
Company Profile
APPLICATIONS
Certifications
Product packaging
FAQ
1. Are you a manufacturer?
Yes, and we have over 25 years of experiences in this industry.
2. What are the products that you provide?
3. Do you accept OEM/ODM orders?
Yes, customized solutions will be provided for special needs.
4. Can we get a FREE SAMPLE for review?
Yes, free sample is AVAILABLE, freight to be collected.
5. What is your MOQ?
1pc MOQ for all standardized items.
6. What about Lead time?
It varies for different orders, but generally around 5-10 days.
Details will be discussed before signing.
7. How long the warranty will be?
1 Year warranty provided
8. What are the payment methods you take?
T/T and L/C
9. Can we be your distributor in our country?
Yes, more discounts will be offered for our agent.
10. Can you help us with P&ID (pipeline and instrument design) of our plant?
Definitely YES! With decade of experiences in plant installation area, we are fully capable of helping you design your own plant with the most cost-efficiency way.
----------------------------------------------------------------------------------------------------------
