Products Description

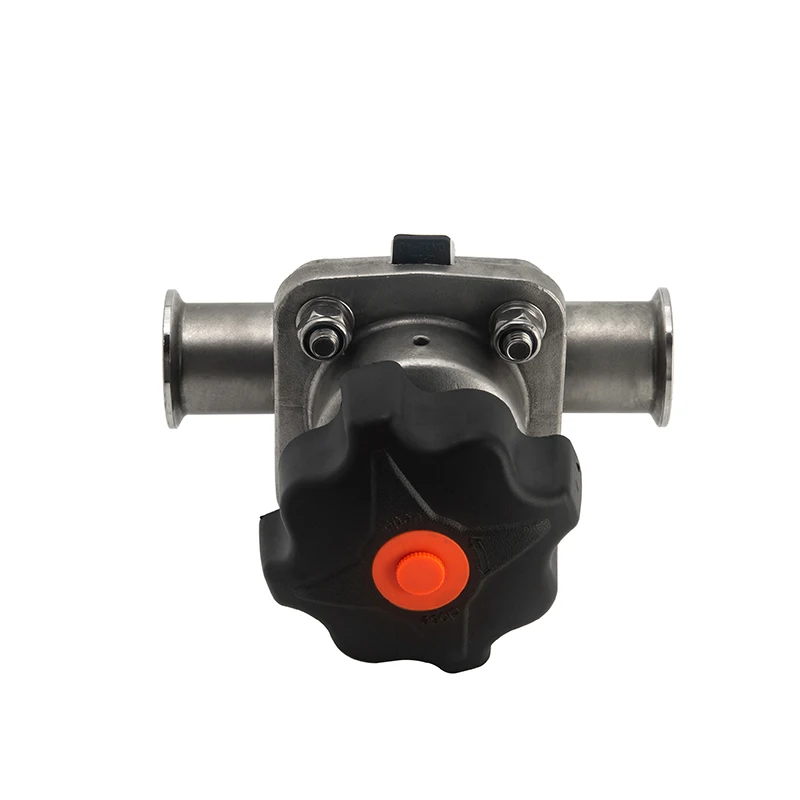

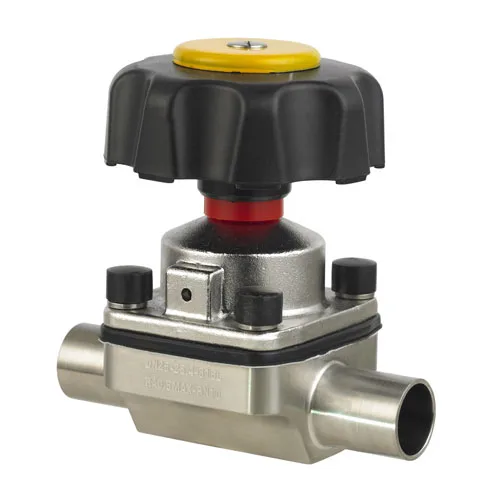

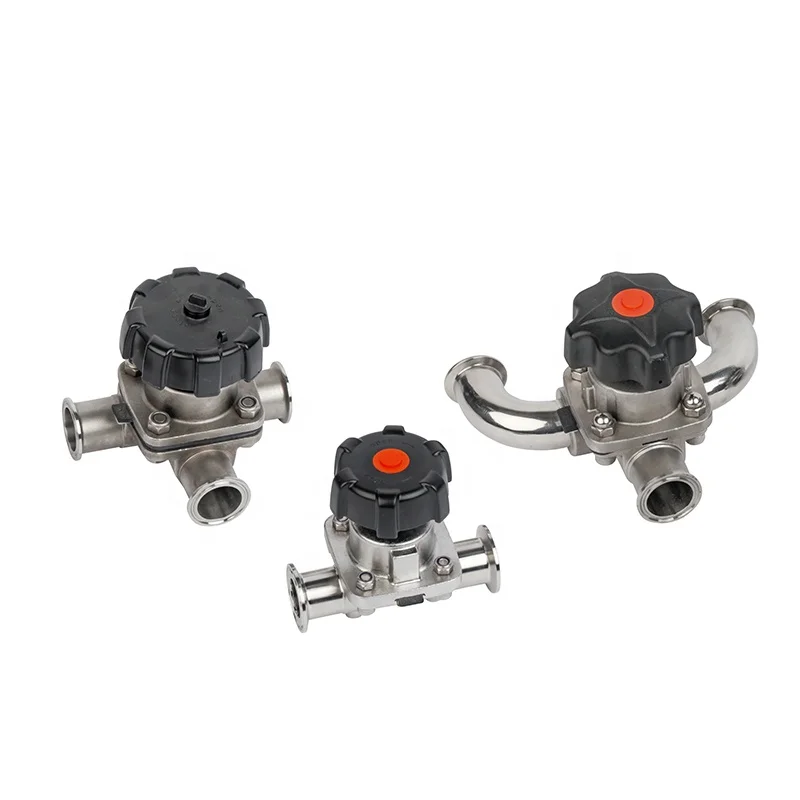

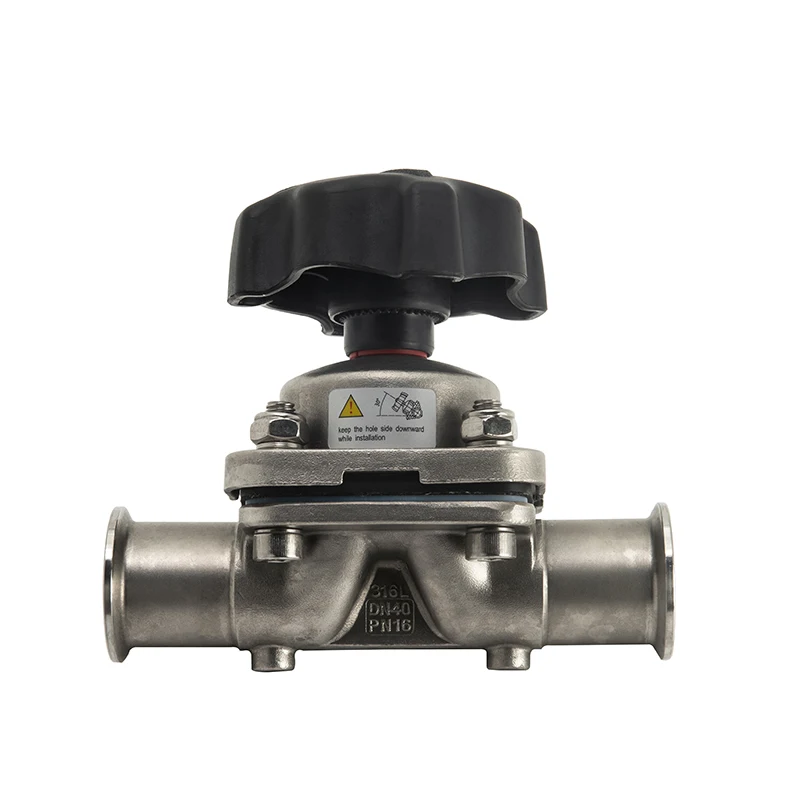

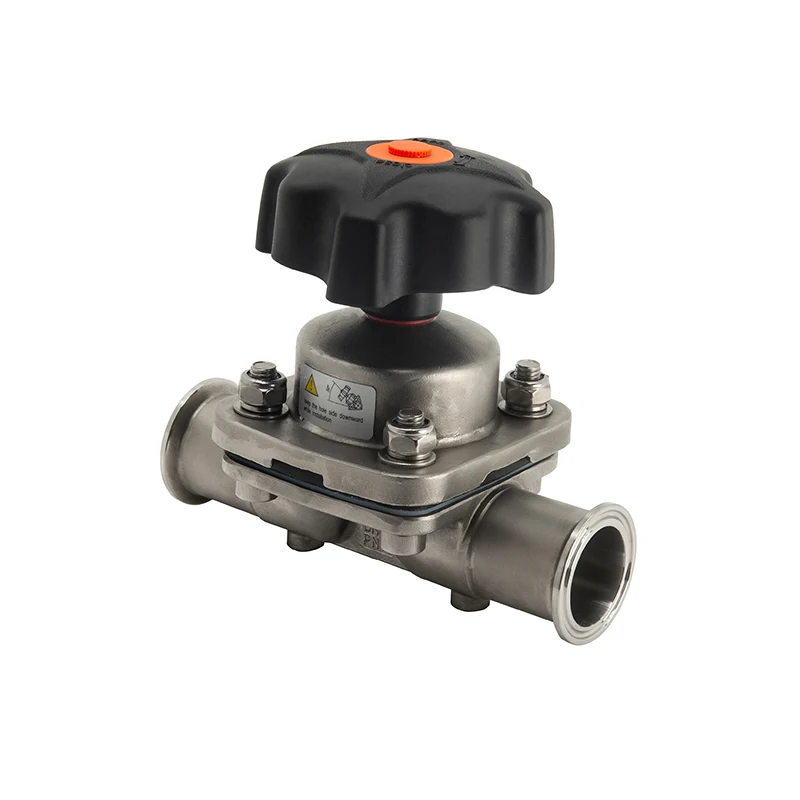

Sanitary Manual Diaphragm Valve
sanitary manual diaphragm valve with tri-clamp connections, plastic or SS handwheel. The valve is widely used in food, beverage, dairy, brewing, pharmaceutical industries.
Body Material | SUS316L |
Seat Material (diaphragm) | EPDM+PTFE |
Max. Working Pressure | 145psi (10bar) |
Working Temperature | -22 ~ 266°F (-30 ~ 130°C), or higher upon request |
Internal Finish | Ra 0.4 ~ 0.8µm, Ra 0.4µm as default. |
External Finish | Ra 0.4 ~ 0.8µm, Ra 0.8µm as default. |
End Connections | butt-welded, sanitary tri-clamp |
Handle Types | plastic handwheel or stainless handwheel |

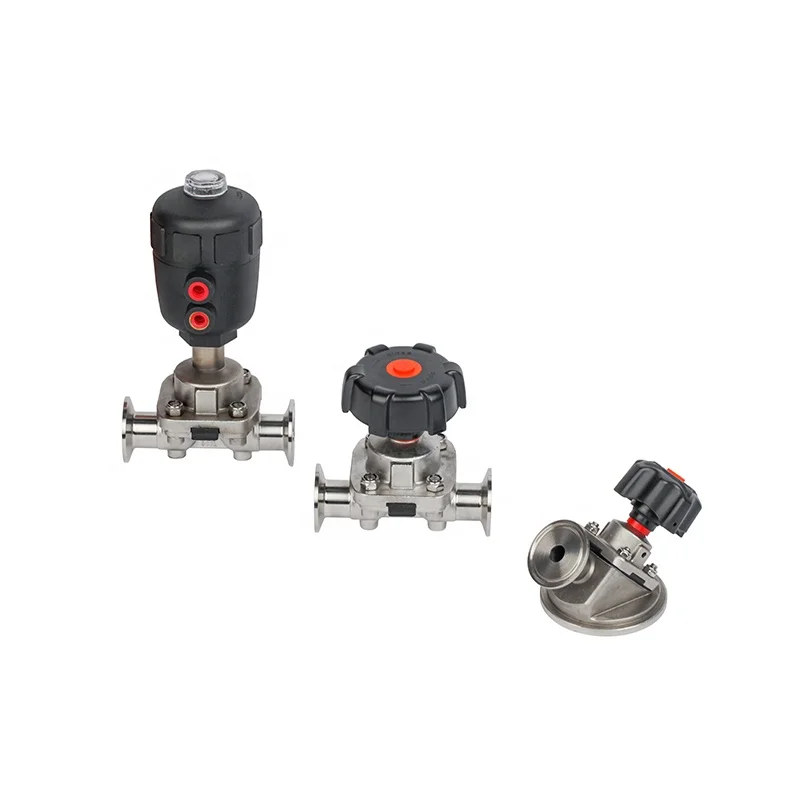

Pneumatic Actuator Types | plastic actuator or stainless actuator |
Actuator Operation Types | Normally Closed (NC) – Air to open and spring to close; Normally Open (NO) – Air to close and spring to open; Air to Air (AA) – Air to open, air to close. |
Actuator air pressure | 58 ~ 102psi (4 ~ 7bar) |
Units for intelligent control and indication | Proximity Switches (position sensor) Limit Stroker C-top control IL-top control (Positioner) |
