HY 1.5Ghz 100W customized portable RF amplifier module with signal generator for anti UAV/drone
- Category: >>>
- Supplier: ShenZhen HaiYi Science and Technology Electronics Co. LTD
Share on (1600545326644):
Product Overview
Description

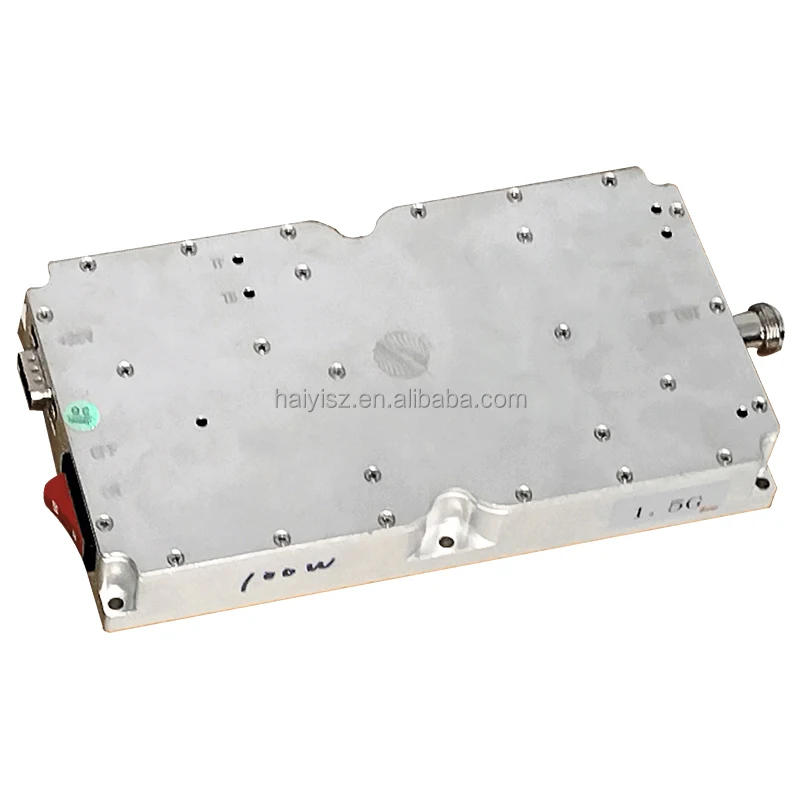

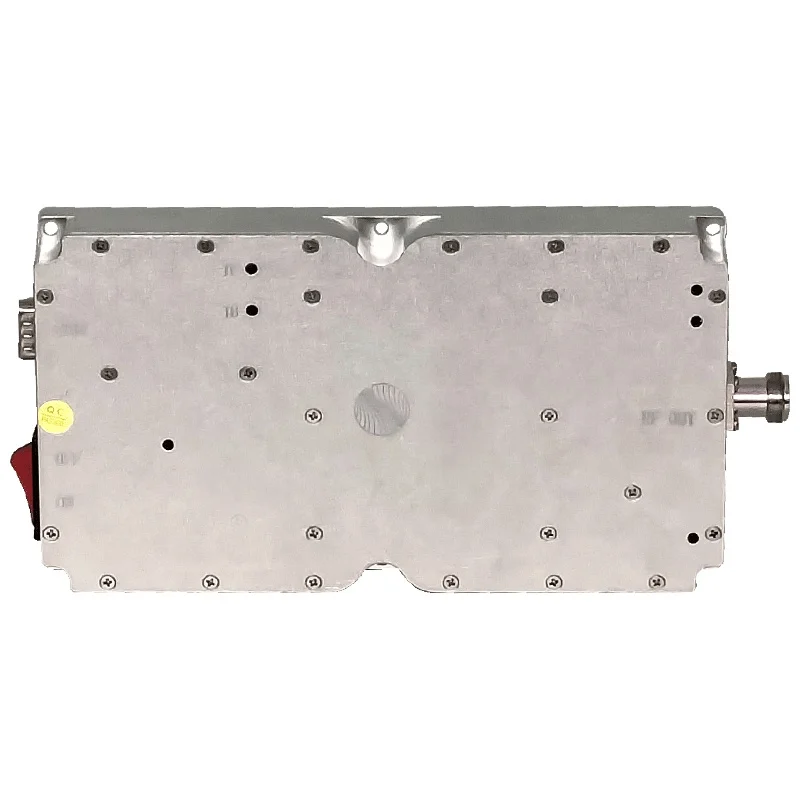

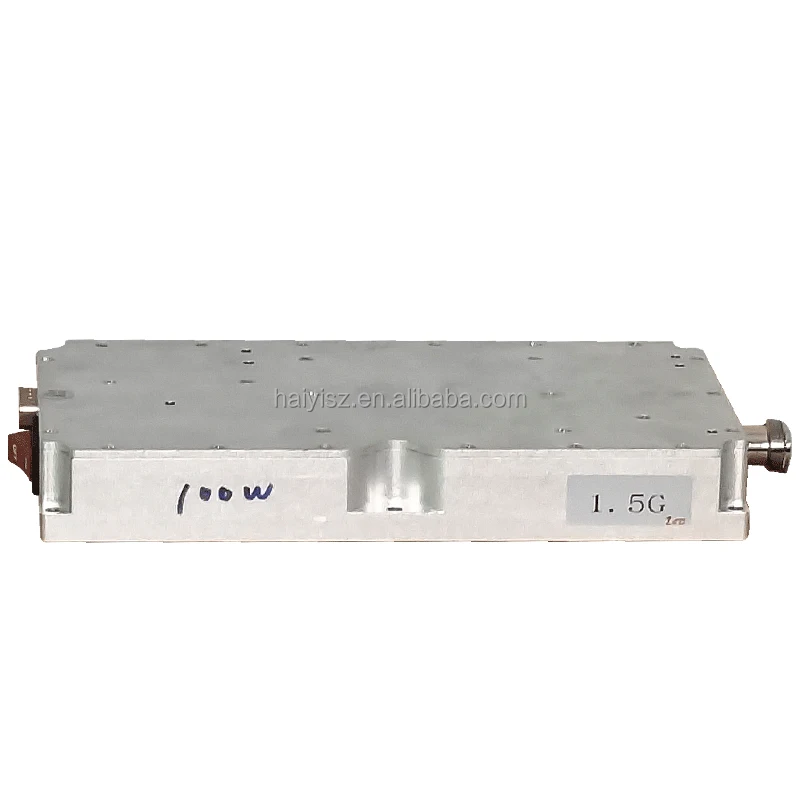

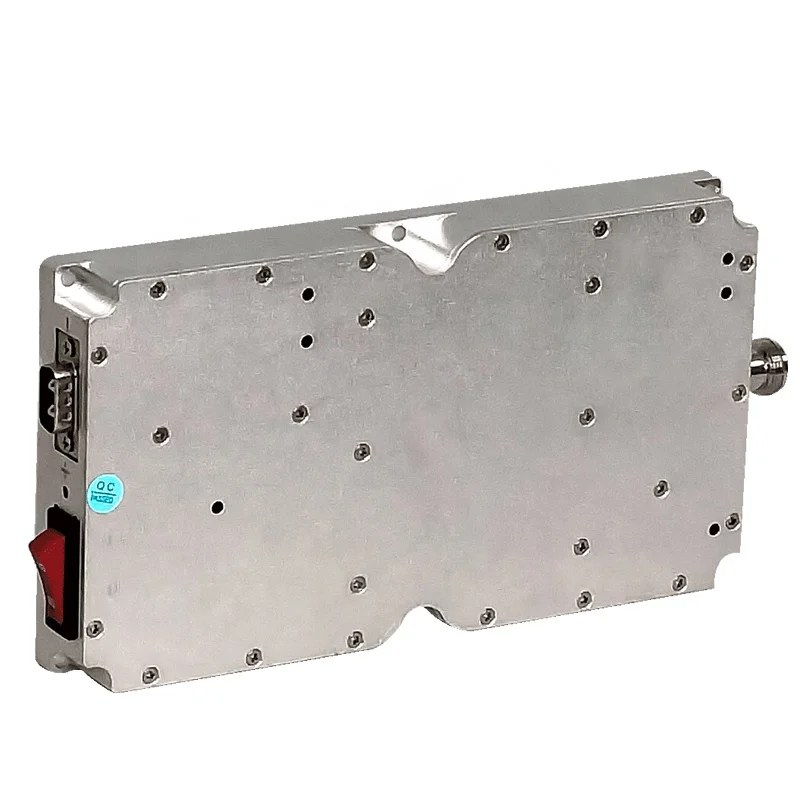

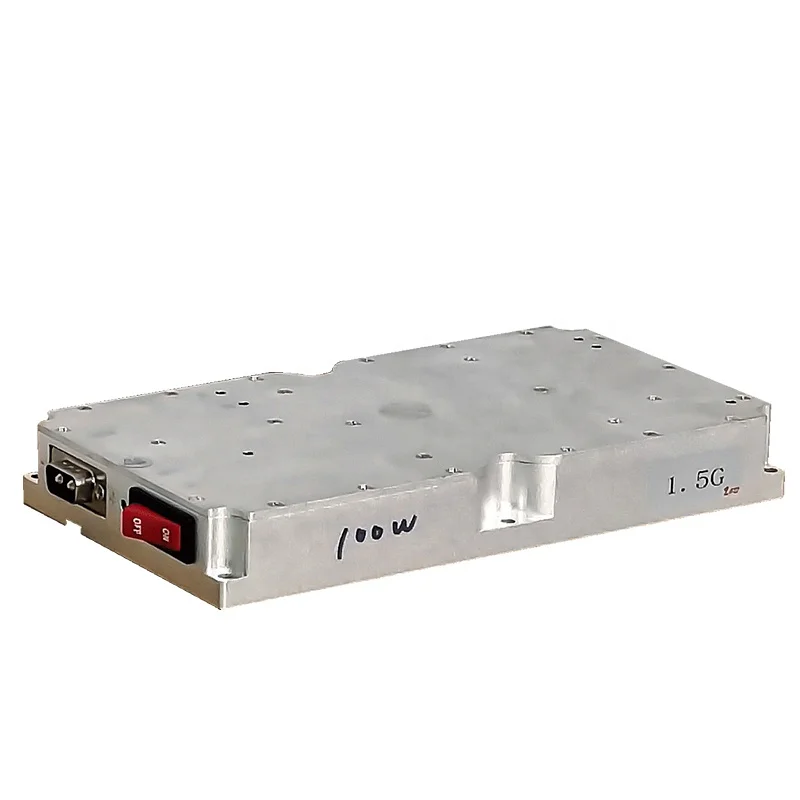

HY-1.5Ghz 100W customized portable RF amplifier module with signal generator for anti UAV/drone
Product Description

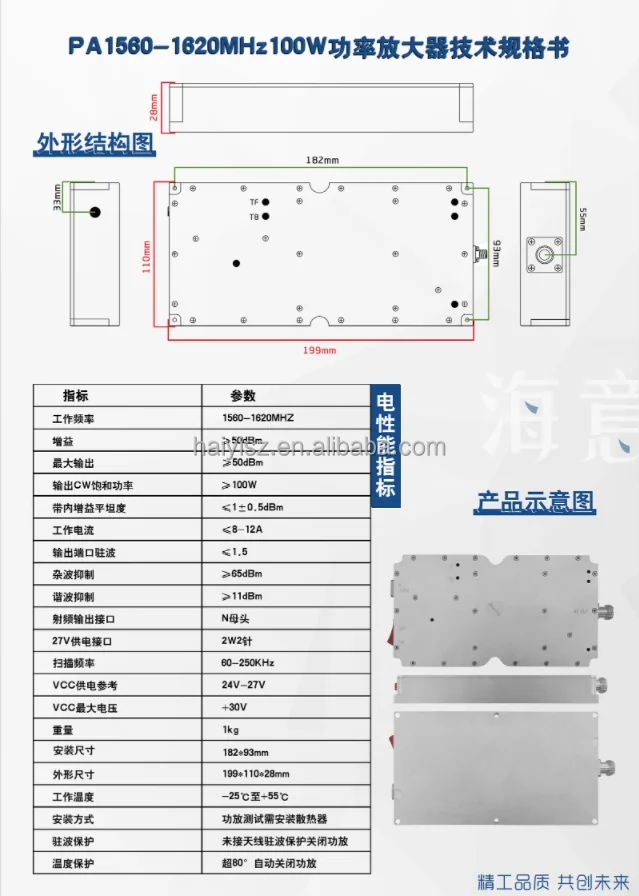

| Indicators | Parameter |
| Working frequency | 1560-1620MHz |
| Gain | ≥50dBm |
| Max output | ≥50dBm |
| Output CW saturation power | ≥100W |
| Including inside gain flatness | ≤1±0.5dBm |
| Working current | ≤8-12A |
| Output port standing wave | ≤1.5 |
| Clutter suppression | ≥65dBm |
| Harmonic suppression | ≥11dBm |
| Rf output interface | Female N |
| 27V power supply port | 2W2 pin |
| Sweep frequency | 60-250KHz |
| VCC Power supply reference | 24V-27V |
| Max Voltage | +30V |
| Weight | 1kg |
| Installation dimensions | 182*93mm |
| Overall dimensions | 199*110*28mm |
| Operating temperature | -25℃ ~ +5℃ |
| Installation | Installing radiator for testing of power amplifier |
| Standing wave protection | Turn off the power amplifier to protect standing wave when don't connected antenna |
| Temperature protection | Over 80℃ automatically turn off power amplifier |
Packaging & Shipping
Lead Time:
| Quantity(pieces) | ≤50 | ≤100 | >100 |
| Est. Time(days) | 6days | 8days | To be negotiated |
