Customize cable wire winding tie wrap and tie machine automatic cable coiling machine cable winding and tying machine
- Category: >>>
- Supplier: Sinrad Technology (shenzhen) Co. Limited
Share on (1600545354873):
Product Overview
Description
Product Description
Customize cable wire winding tie wrap and tie machine automatic cable coiling machine cable winding and tying machine
This machine is designed for winding and binding AC / DC power cord, video signal lines, network cable, data cable, headphone cable and other types cable.
Product details
| Function | Winding and Binding Wire |
| Model | SR-9035 |
| Warranty | 1 Year |

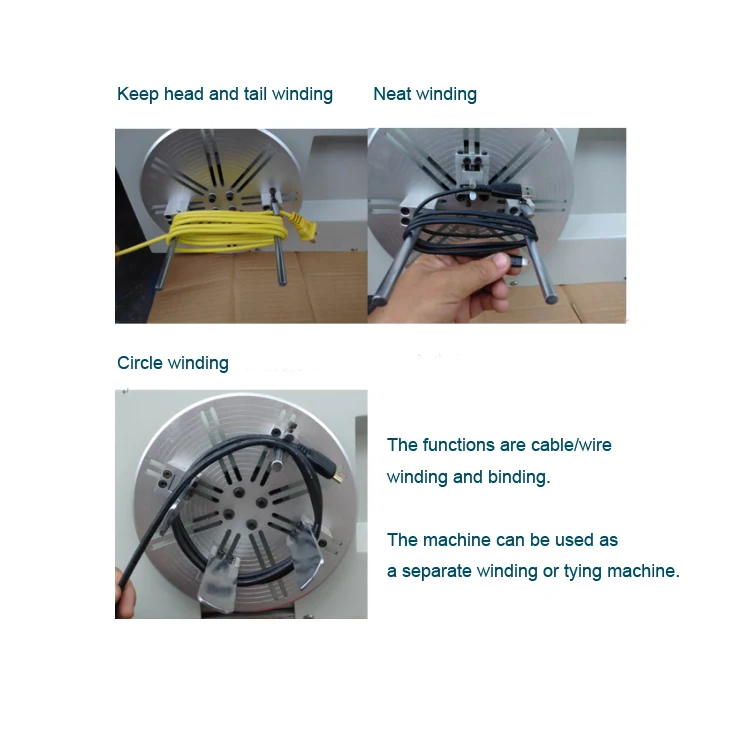

| Winding shape | circle / 8 shape |
| Winding OD | support customized (normally 6~20cm) |
| Winding Coil number | can be adjustable |
| Ribbon type | metal core with plastic skin |
| Binding wire Coil number | can be adjustable (suggest 3 circles) |
| Speed | 2-8 loops/s |
| Net Weight | 35KG |
More options:
| Model | SR-9028 | SR-9035 | SR-9050 | SR-9080 |
| Winding shape | O-shaped, 8-shaped | O-shaped, 8-shaped | O-shaped, 8-shaped | O-shaped, 8-shaped |
| Winding plate diameter | 180mm | 220mm | 220mm/300mm | 350mm |
| Binding diameter | 3-28mm | 5-35mm | 15-50mm | 40-80mm |
| Twist tie length | 50-130mm | 60-260mm | 90-300mm | Min. 210mm |
| Voltage | AC220V | AC220V | AC220V | AC220V |
| Equip with | 1 roll of twist tie | 1 roll of twist tie | 1 roll of twist tie | 1 roll of twist tie |
| Operation panel | Buttons and LCD, or Touch screen | Buttons and LCD, or Touch screen | Buttons and LCD, or Touch screen | Touch screen |
Features:
(1) Multi-function:
Winding machine with PLC program control, through the front panel text display can be quickly and easily set the production process parameters. You can set the number of windings, tie length, tie the number of coils, the target output, and production statistics can be automatically generated, the operation is simple and easy to understand.
(2)Widely used:

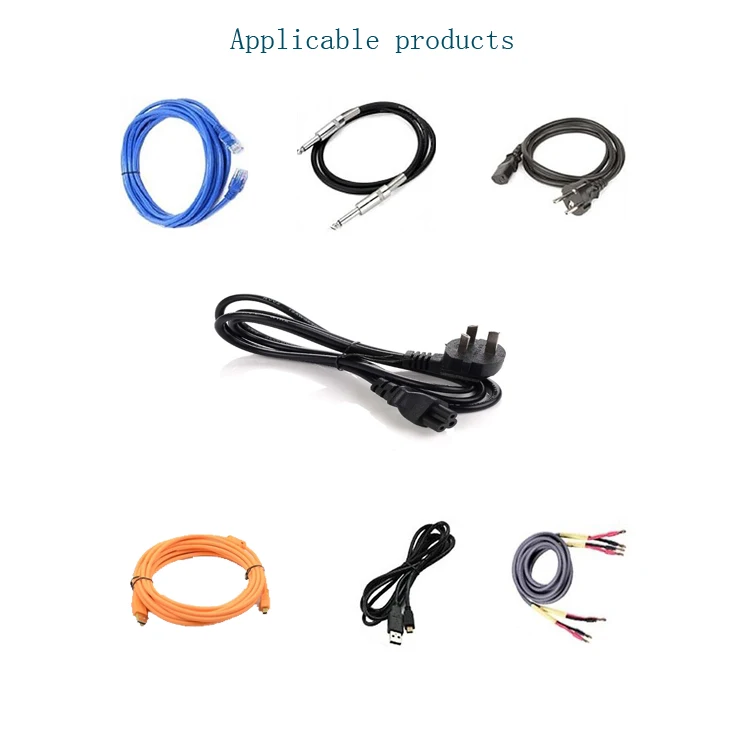

The device uses plastic coated core wire, suitable for a variety of AC / DC power cord, video signal lines, network cable, data cable, headphone cable and other types of transmission lines tied into a bunch of work.
(3) Easy to operate:
Staff first wire wound on the winding plate, and then remove the winding wire harness will be placed in the binding machine mouth, the machine automatically complete 1 second tie work.
FAQ
1 Price terms
The price is based on EWX/FOB, if you request CFR or CIF, please give us your delivery port, and we will give you CFR price or CIF price for reference.
2 Can I send samples to check the machine quality.
Yes, welcome to send us samples. We would be pleased to show you trial testing base on your samples.
3 How to learn the machine?
1) Offer free technology learning support in our factory
2) Provide detail user manual with detail video illustration
3) Support engineer service at site if clients asking for
4 How about the lead time and delivery time of order?
Standard model, can be ship out within 3~5days after confirmed order and deposit.
Customized model, normally lead time is 10~20 days, after confirmed all order detail deposit and got samples.

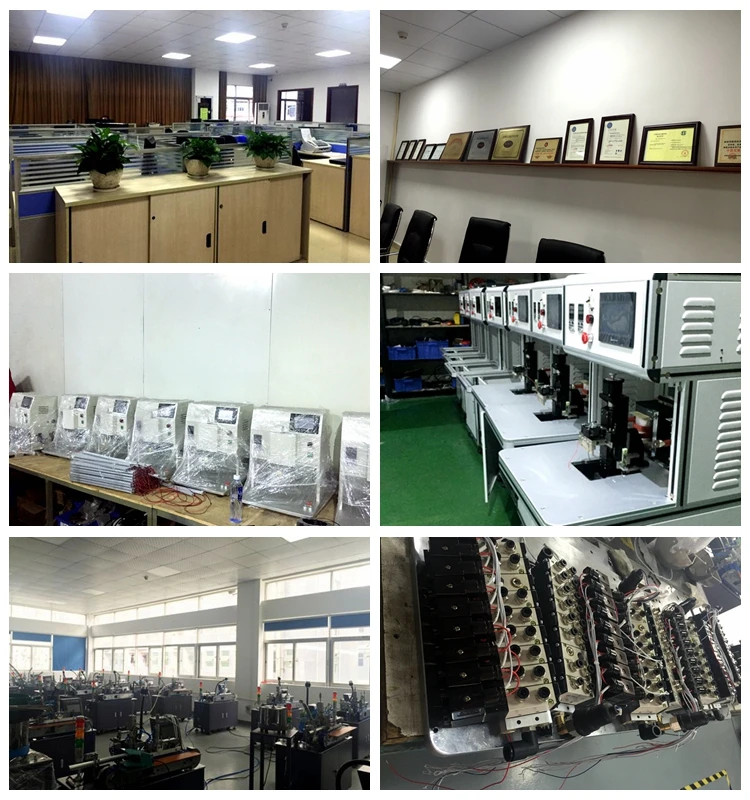

Company Information
Sinrad Technology Co.,Ltd, specialized in automation machine, customizing and manufacturing cable processing(cutting, striping, twisting, crimping, soldering, winding, etc.) machine, automatic soldering machine, intelligent soldering machine, full automatic usb soldering machine, pulse heating soldering machine,high frequency soldering machine, other soldering machine, laser marking machine, laser engraving machines, laser welding machine, welding equipment, and other production equipment.
