WS301 series sensor to guard the safety avoid theives remotely in real time
- Category: >>>
- Supplier: Xiamen Milesight IoT Co. Ltd.
Share on (1600545395498):
Product Overview
Description
Product Description

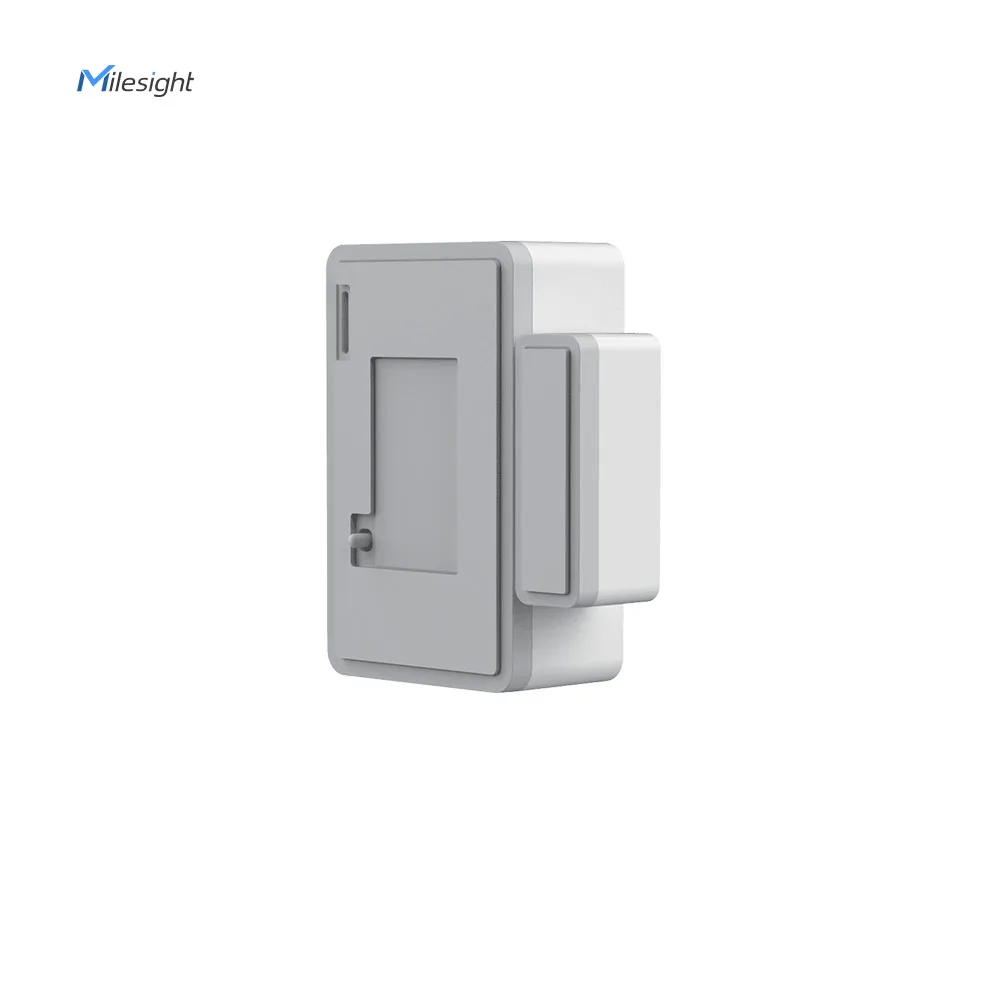

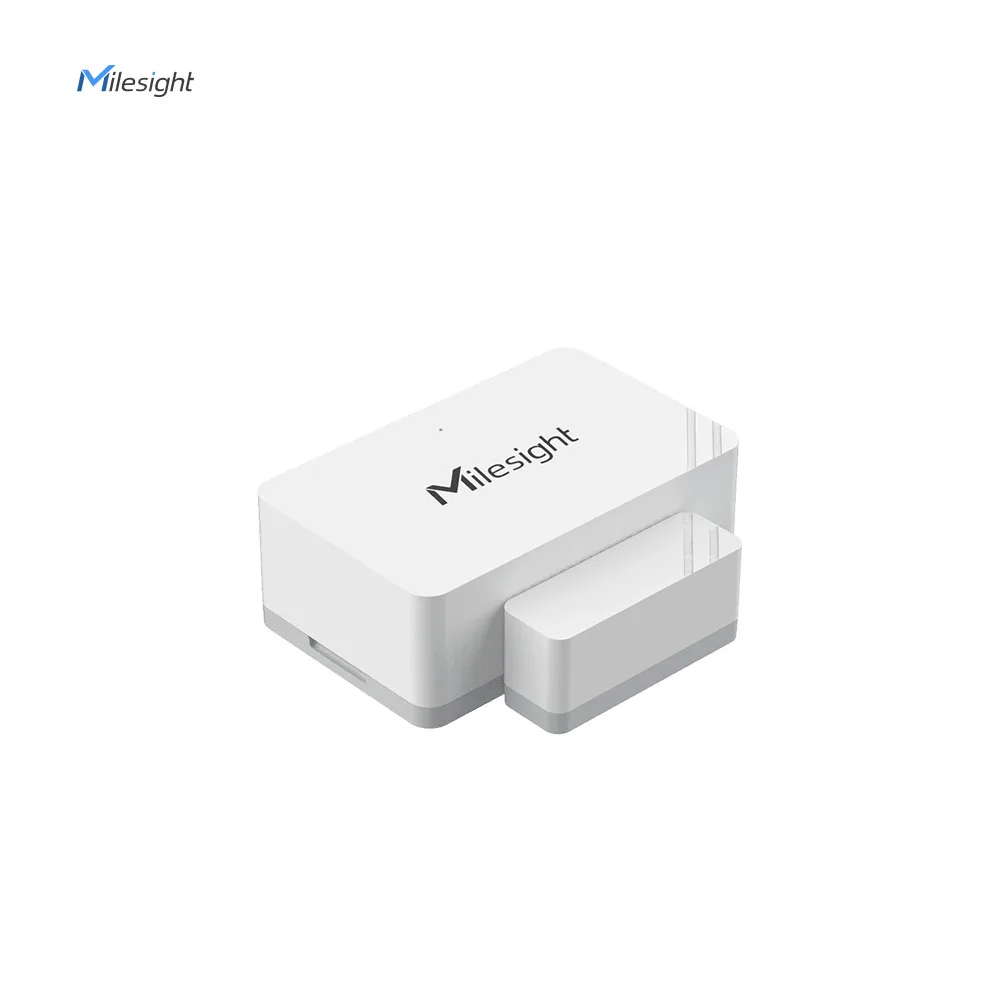

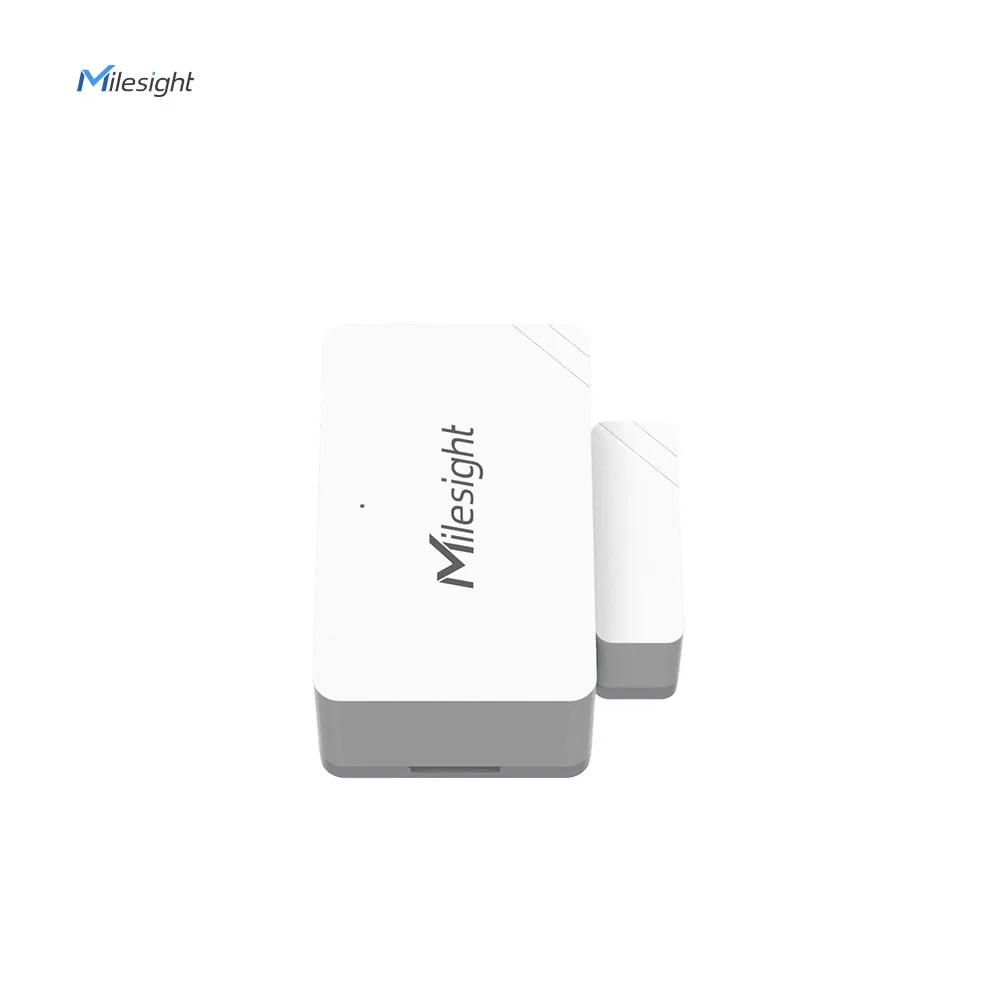

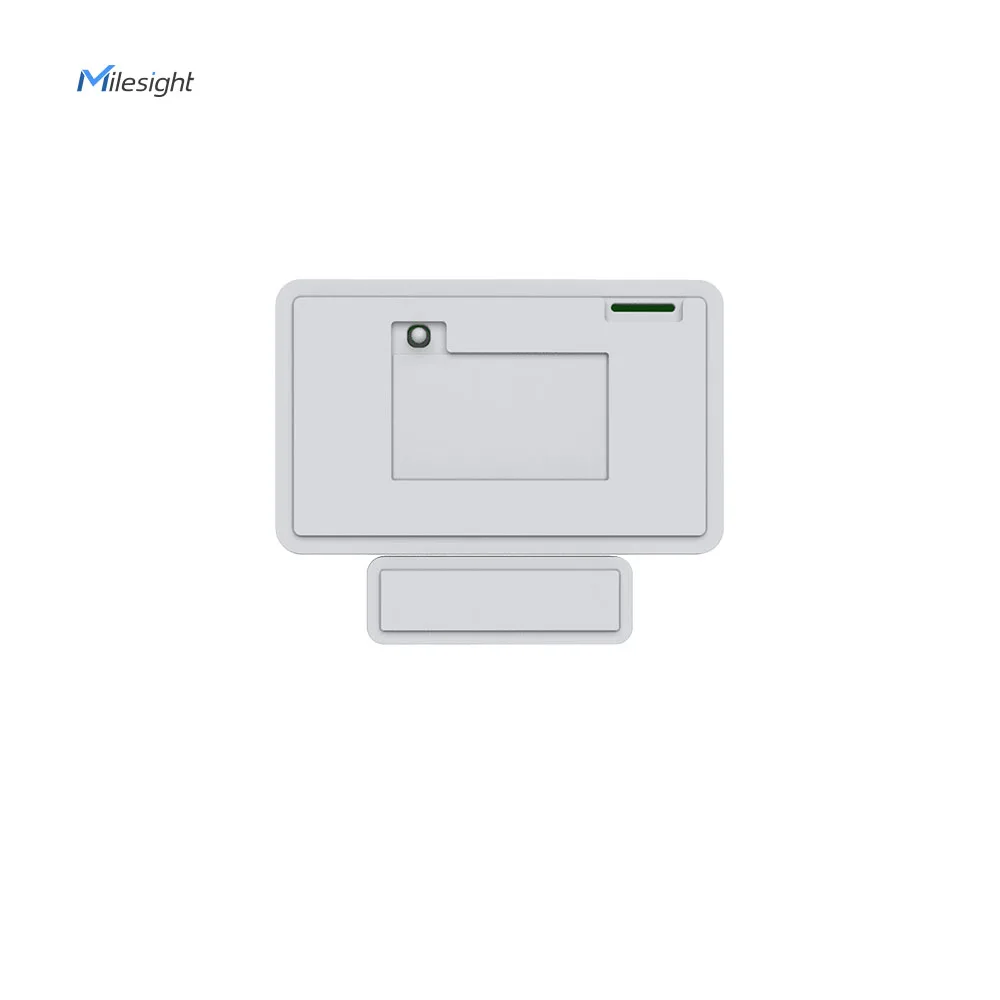

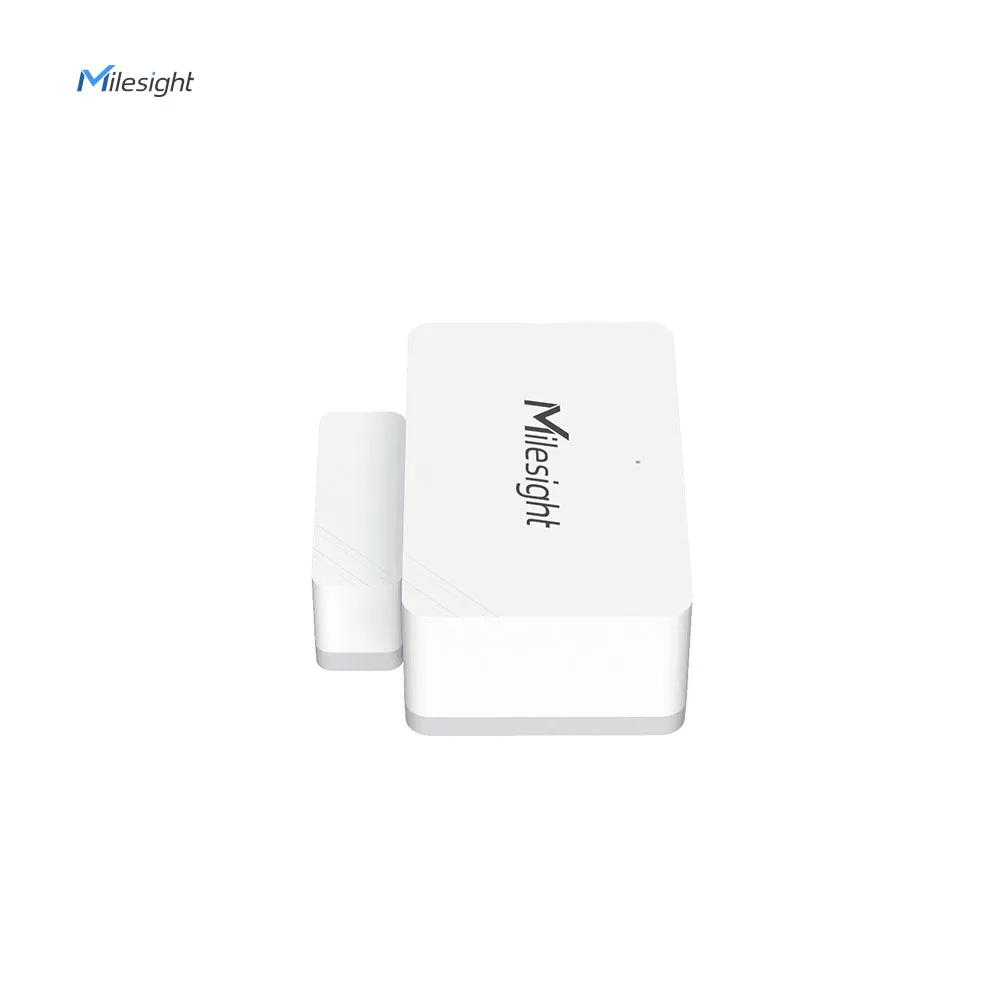

Milesight IoT WS301 LoRaWAN® Magnetic Contact Switch
WS301 simply enables you to know when someone enters the office/building through a door /window or something has been moved. The minimal magnet is placed inside the portable part, while the sensor is inside the fixed part that can be attached to door/window or other objects. WS301 can be easily mounted on the doors, panes, or cabinets, greatly providing real applications for smart homes, smart offices or smart factories.
Sensor data are transmitted in real-time using the standard LoRaWAN® protocol. LoRaWAN® enables encrypted radio transmissions over long distances while consuming very little power. The user can obtain sensor data and view the trend of data change through Milesight IoT Cloud or through the user's own Application Server.
Develop Device-to-Cloud Connection

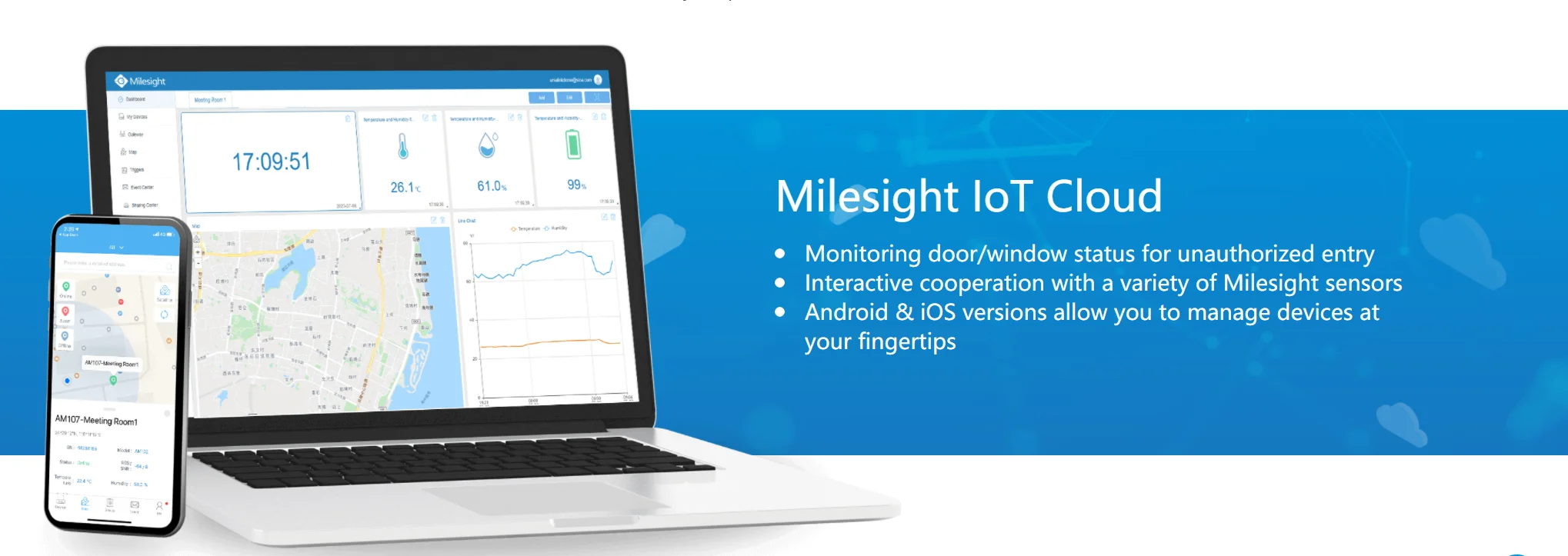

The Milesight IoT Cloud is a comprehensive cloud service provides unparalleled levels of vertical integration with Milesight LoRaWAN Gateway to link vertical, back-end applications to remote assets. The FREE Trial is ongoing. Don't miss it!
Specifications
WS301 LoRaWAN® Magnetic Contact Switch | ||||
Wireless Transmission | Technology | LoRaWAN® v1.0.2/v1.0.3/v1.1 | ||
Frequency | CN470/IN865/RU864/EU868/US915/AU915/KR920/AS923 | |||
Tx Power | 16 dBm (868 MHz)/22 dBm (915 MHz)/19 dBm (470 MHz) | |||
Sensitivity | -137 dBm @300bps | |||
Mode | OTAA/ABP Class A | |||
Measurement and Interface | Detection Distance | 15-20 mm | ||
Button | 1 × Power Button (Internal), 1 × Tampering Button | |||
Operation | Configuration | Mobile App (via NFC) or PC software (via USB Type-C) | ||
Alarms | Open/Close Status, Tamper, Low Battery | |||
Physical Characteristics | Power Supply | 1 × 1200 mAh ER14250 Li-SOCl2 battery | ||
Battery Life | 4~7 years | |||
Operating Temperature | -20°C to +60°C | |||
Relative Humidity | 90% (non-condensing) | |||
Ingress Protection | IP30 | |||

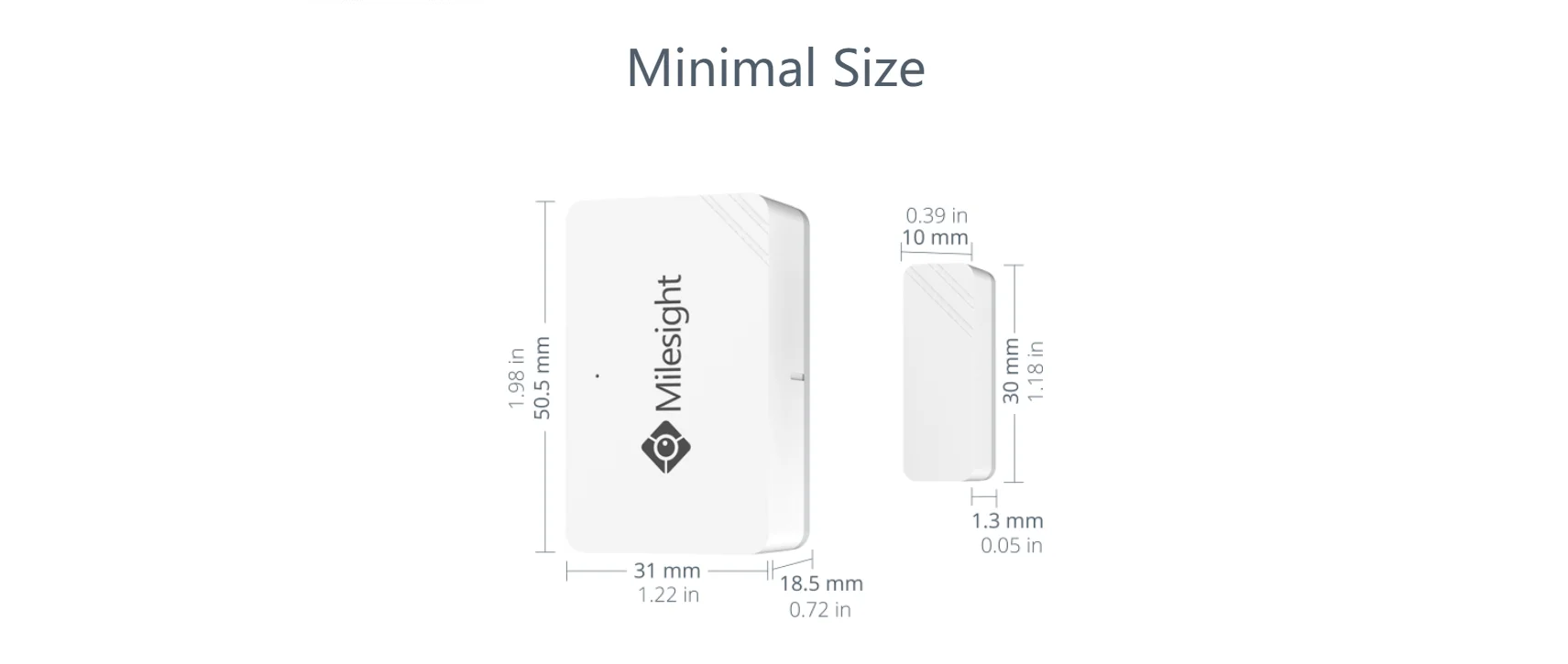

Dimension | Sensor: 50 × 30 × 17 mm (1.97 × 1.18 × 0.67 in) Magnet: 30 × 17 × 8 mm (1.18 × 0.67 × 0.31 in) | |||
Installation | On the flat surfaces with screws or 3M tapes | |||
Success Story
More Categories
Company Profile
About Milesight IoT
Milesight IoT We Connect Things to Cloud
We are passionate about the connectivity of things to the cloud. We leverage the value of the top trending technologies that transform the world we live in and are committed to our partners who share the same passion. We believe that the complexity of data collection, storage and retrieval can be simplified into the Cloud-intelligence. Our development and distribution of these appliances and services demonstrates our commitment to the digital transformation and continues to deliver compelling connectivity for IoT world.

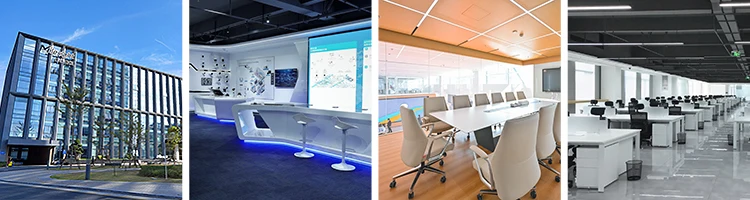

Factory
