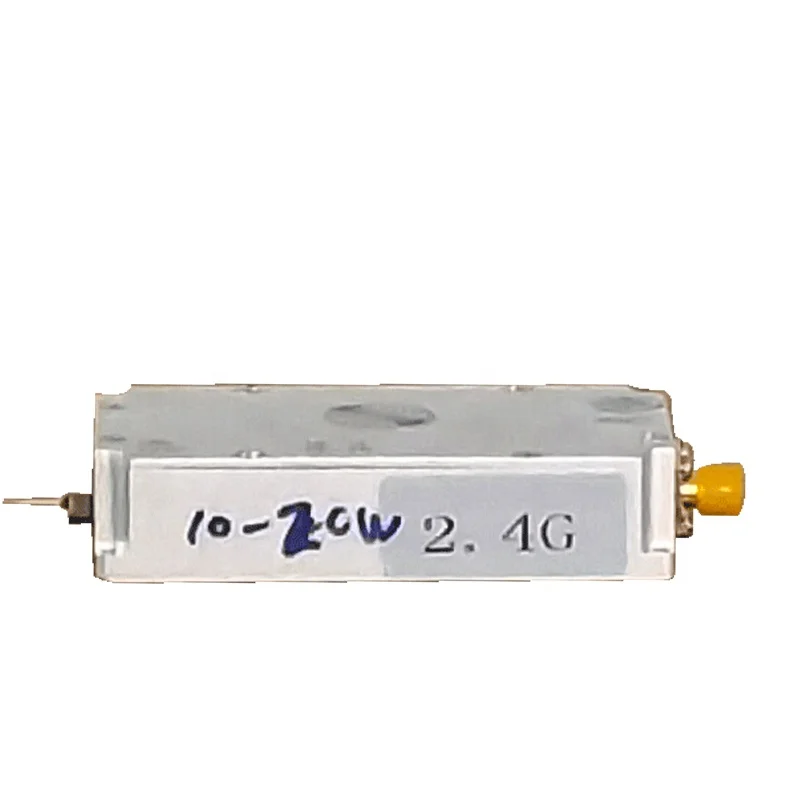

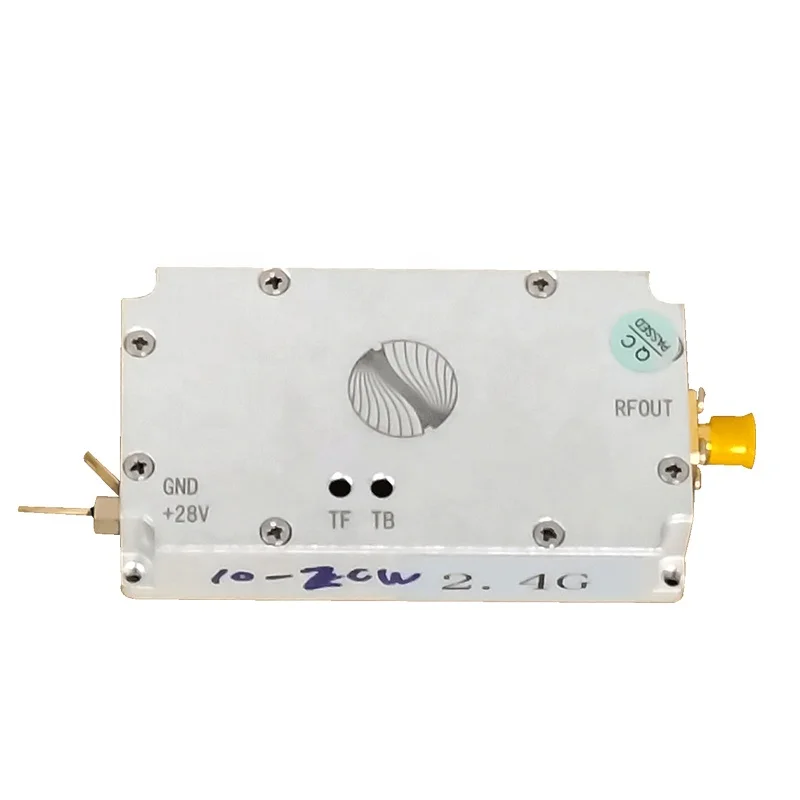

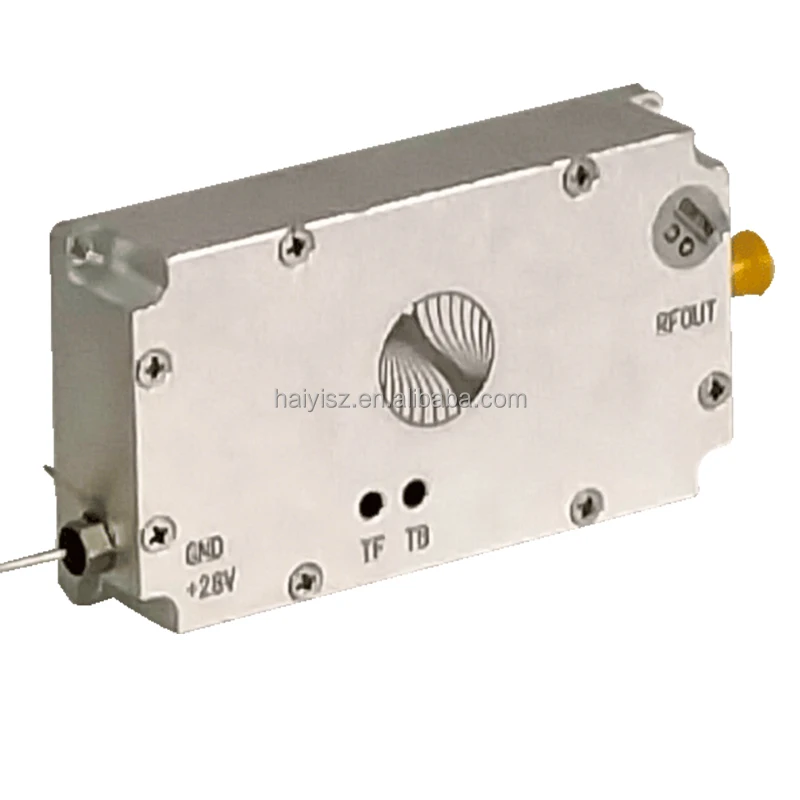

Customized portable 2.4Ghz RF power amplifier module 20W anti drone accessory
- Category: >>>
- Supplier: ShenZhen HaiYi Science and Technology Electronics Co. LTD
Share on (1600545415571):
Product Overview
Description

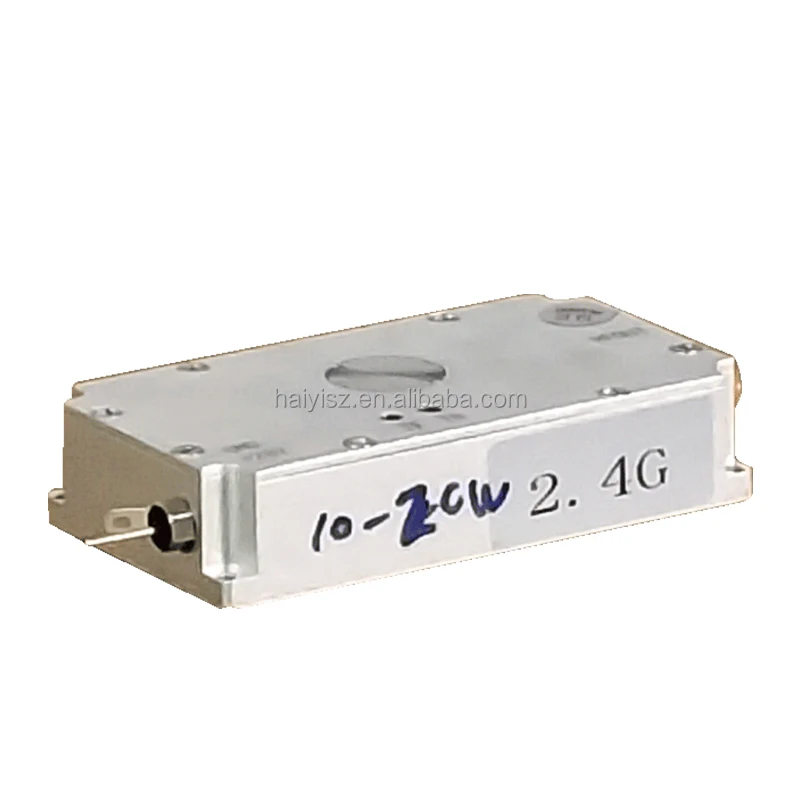

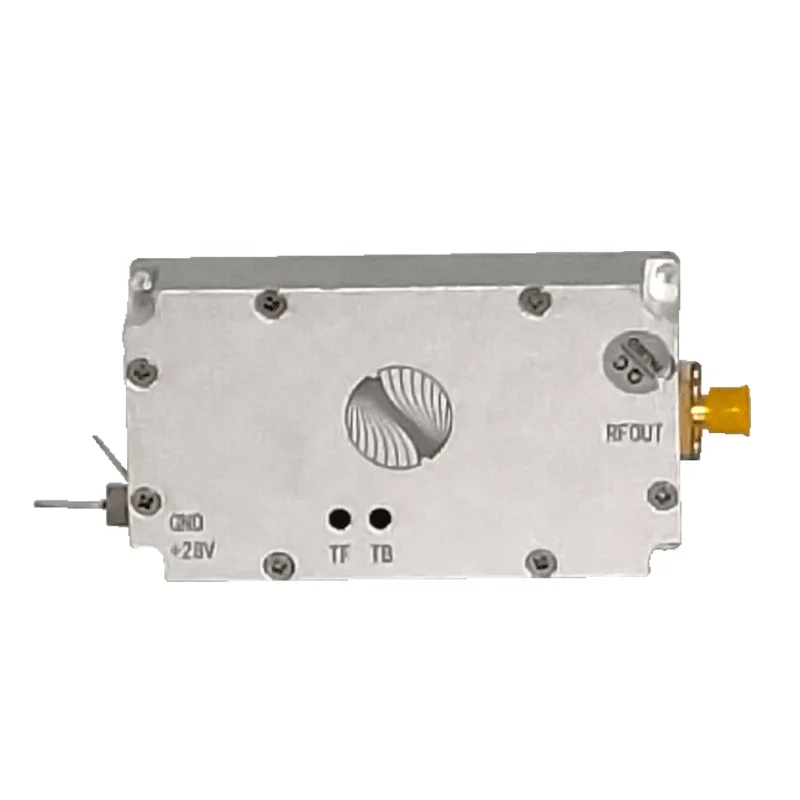

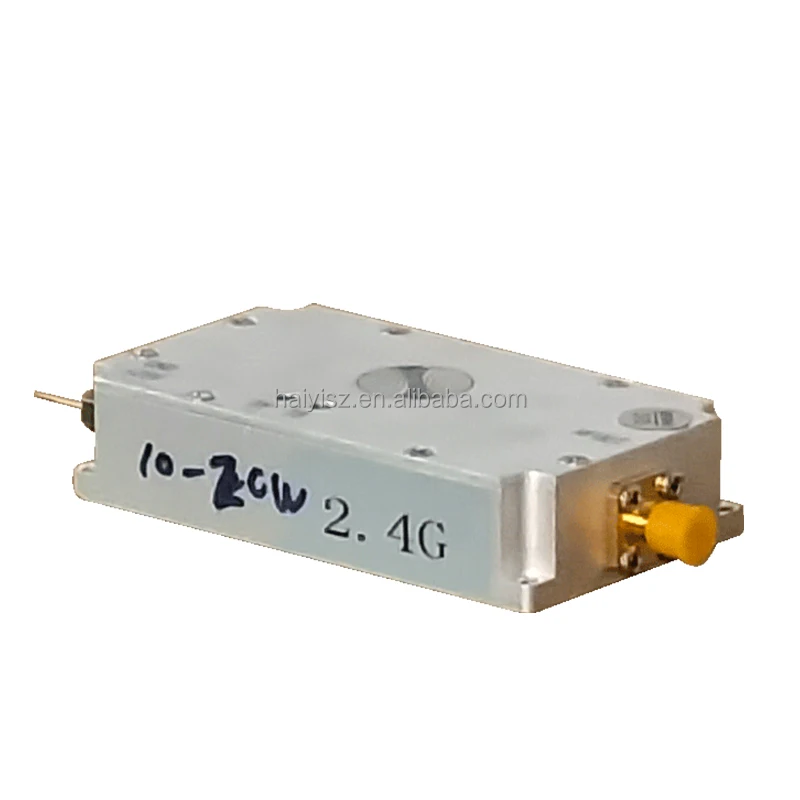

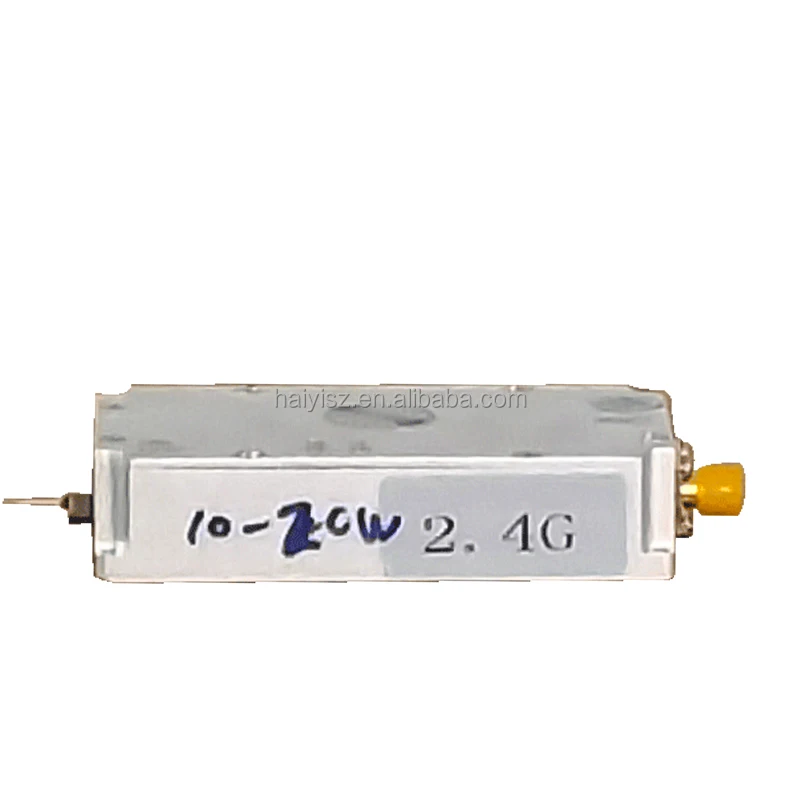

Customized portable 2.4Ghz RF power amplifier module 20W anti drone accessory

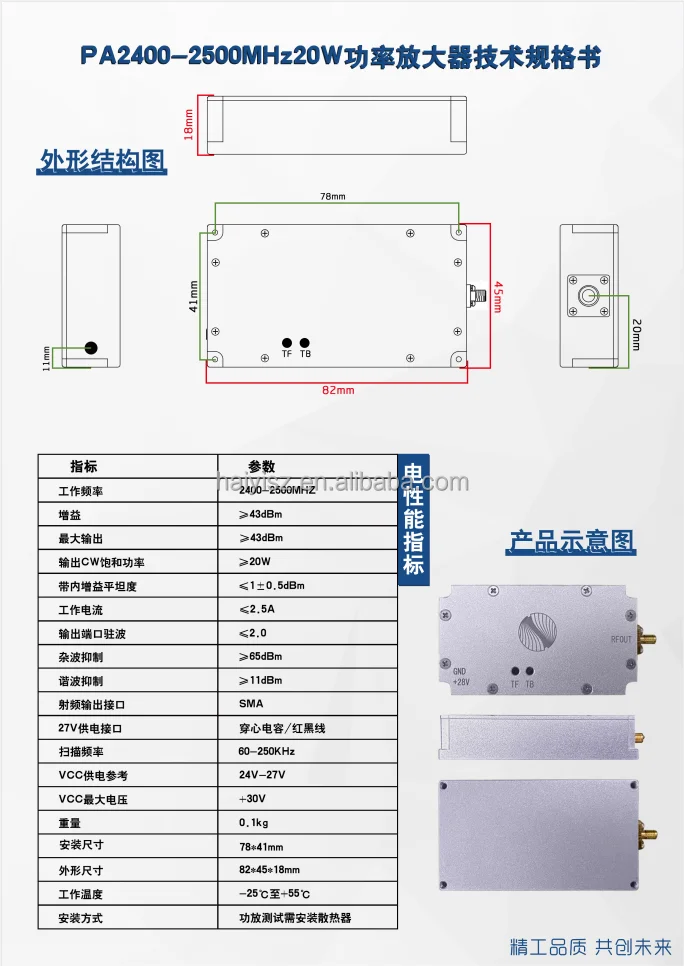

Product Description
| Indicators | Parameter |
| Working frequency | 2400-2500MHz |
| Gain | ≥43dBm |
| Max output | ≥43dBm |
| Output CW saturation power | ≥20W |
| Including inside gain flatness | ≤1±0.5dBm |
| Working current | ≤2.5A |
| Output port standing wave | ≤2.0 |
| Clutter suppression | ≥65dBm |
| Harmonic suppression | ≥11dBm |
| Rf output interface | SMA |
| 27V power supply port | Feedthru Capacitor / Red black wire |
| Sweep frequency | 60-250KHz |
| VCC Power supply reference | 24V-27V |
| Max Voltage | +30V |
| Weight | 0.1kg |
| Installation dimensions | 78*41mm |
| Overall dimensions | 82*45*18mm |
| Operating temperature | -25℃ ~ +85℃ |
| Installation | Installing radiator for testing of power amplifier |
Packaging & Shipping
Lead Time:
| Quantity(pieces) | ≤50 | ≤100 | >100 |
| Est. Time(days) | 6days | 8days | To be negotiated |
