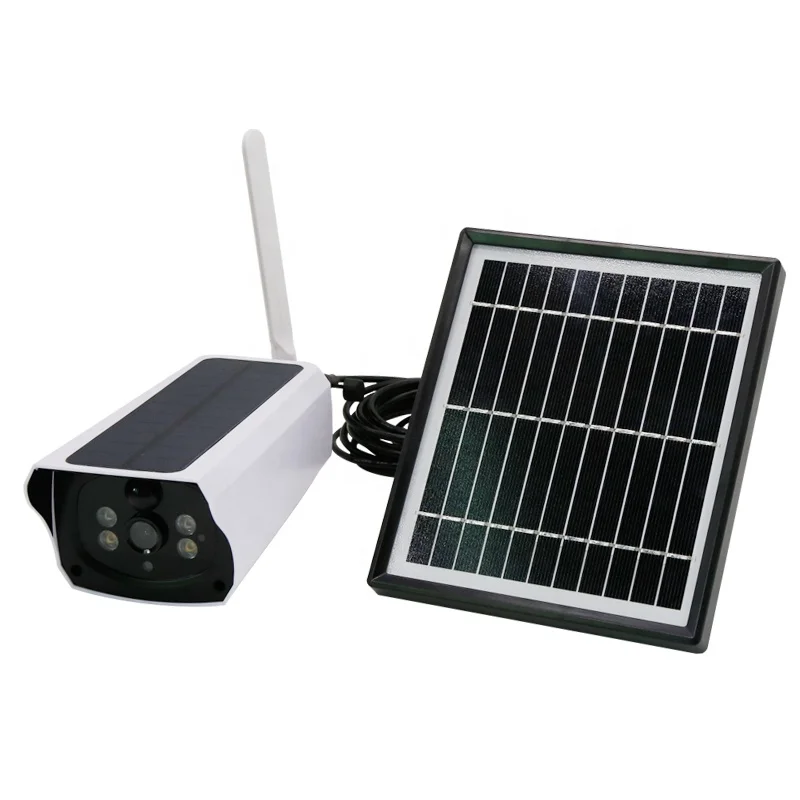

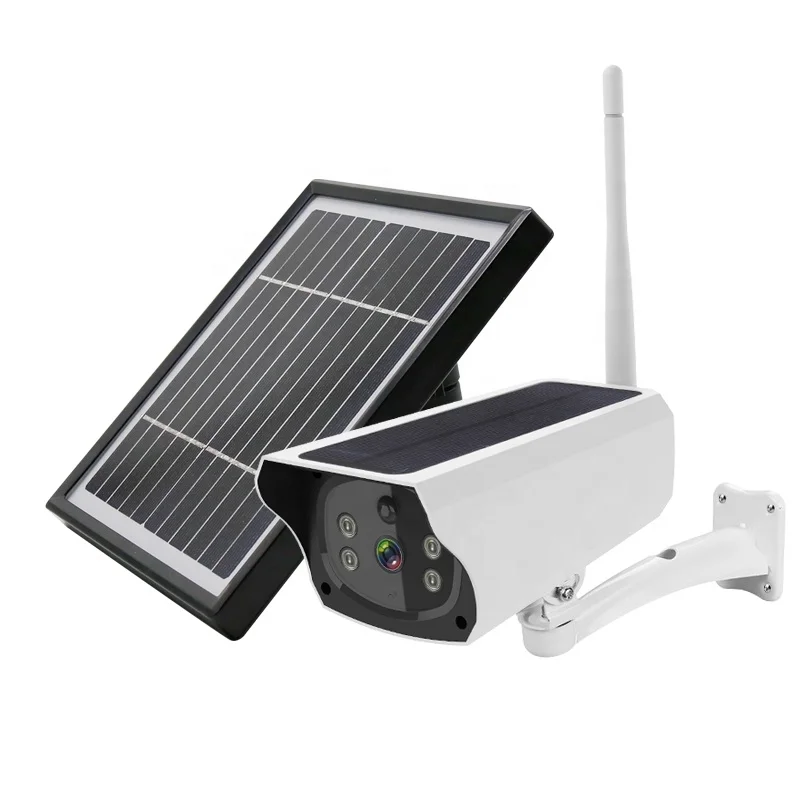

Full Color Night Vision Low Power Outdoor PTZ Camera Wireless Security WiFi 4G Network CCTV Solar Camera

Version

Band

WiFi

4G

Network

Wireless WiFi frequency

2.4 GHz

IEEE802.11b, 802.11g, 802.11n Draft

Support

Optional

5.0 GHz

N/A

N/A

N/A

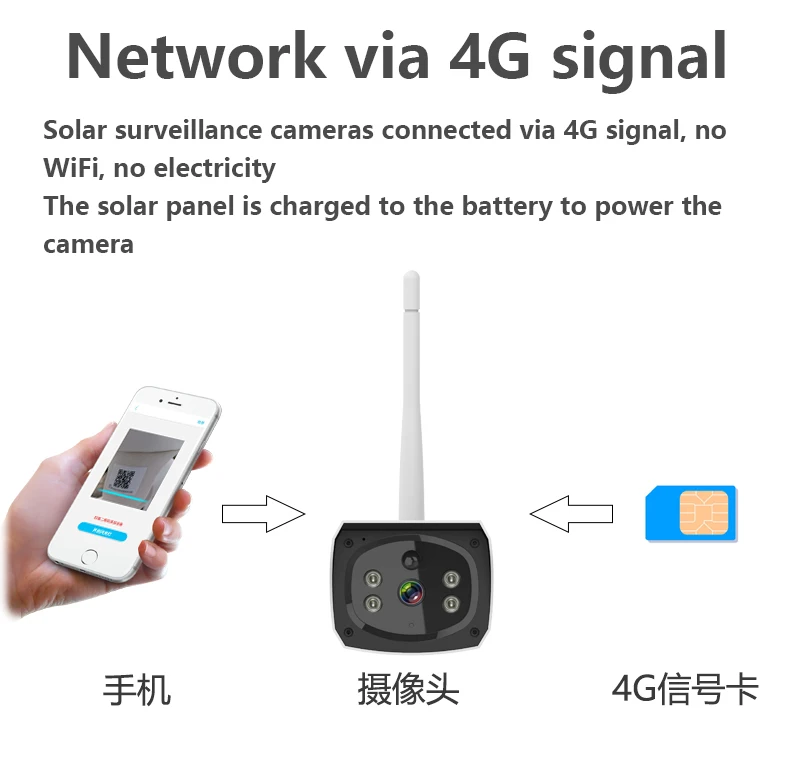

4G nano SIM card

Southeast Asia

B1/B3/B5/B8/B34/B38/B39/B40/B41

N/A

Support

Australia

B1/B2/B3/B4/B5/B7/B8/B28/B40/B66

N/A

Support

Japan

B1/B3/B8/B18/B19/B26

N/A

Support

America

B2/B4/B5/B12/B13/B14/B25/B26/B41/B66/B71

N/A

Support

Europe

B1/B3/B5/B7/B8/B20/B38/B40/B41

N/A

Support

Video

Master sensor

1080P

lngenic T31ZL+2063 2Mega Pixel

1440P

lngenic T31ZX+4653 4Mega Pixel

Resolution

2MP Main stream: 1920x1080p Max

Format

Compression format

H.265

Video file format

MP4

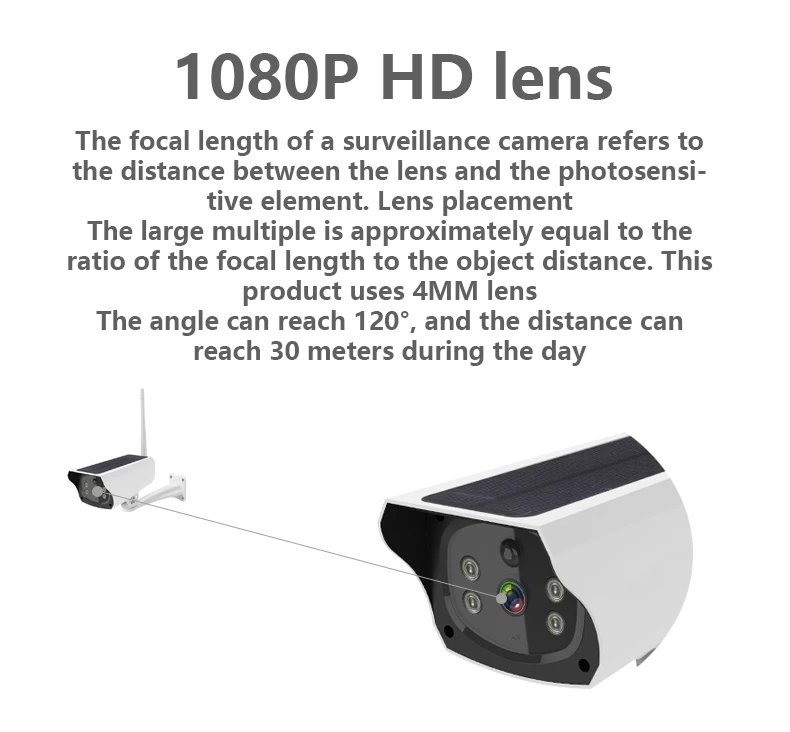

Lens

4mm F2.0 lens, Low lux., wide view angle: 120 degrees. 4X digital zoom

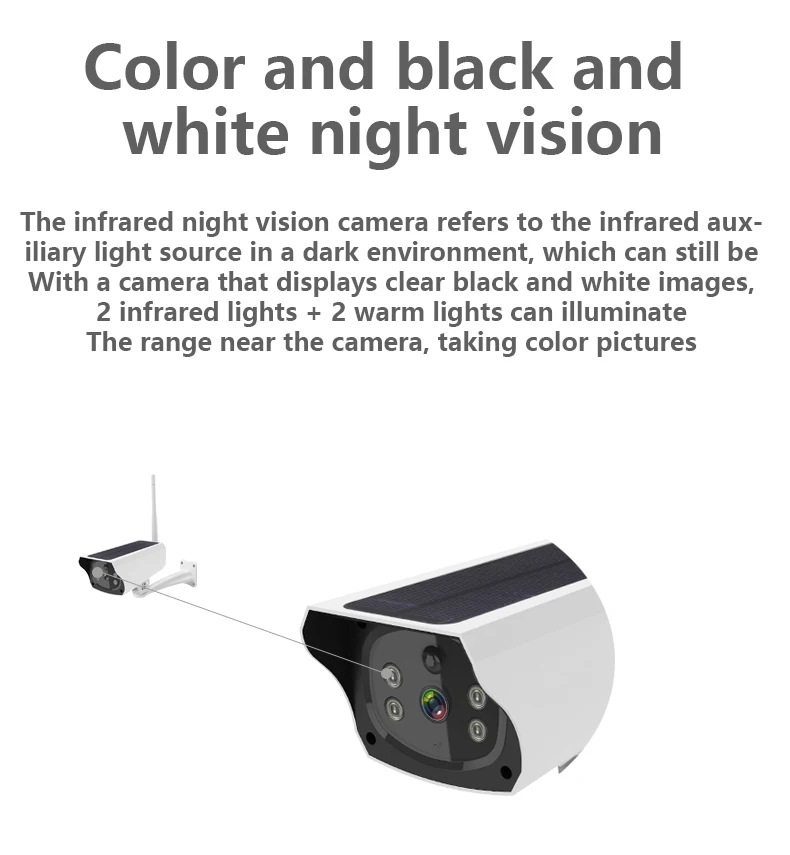

Night vision

4pcs array infrared LEDs, night vision distance 20m. Full-colorful day/night

Audio

Compression

G.726/AAC.  Audio code rate: 8Kbps, 16bit

Input/Output

Built-in MIC and Speakers, support two way audio

Alarm

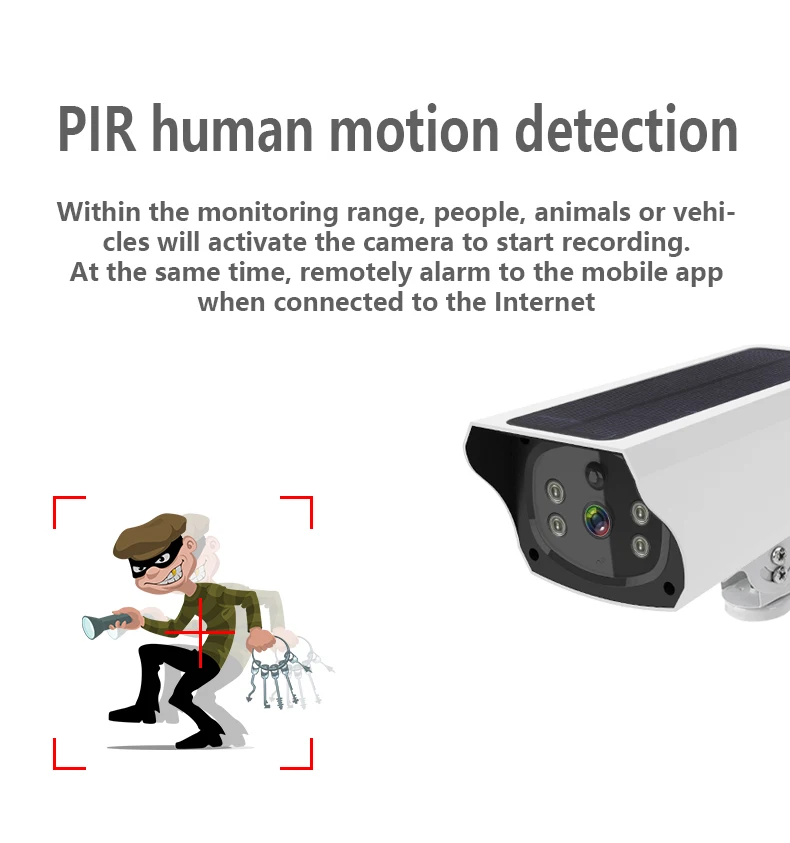

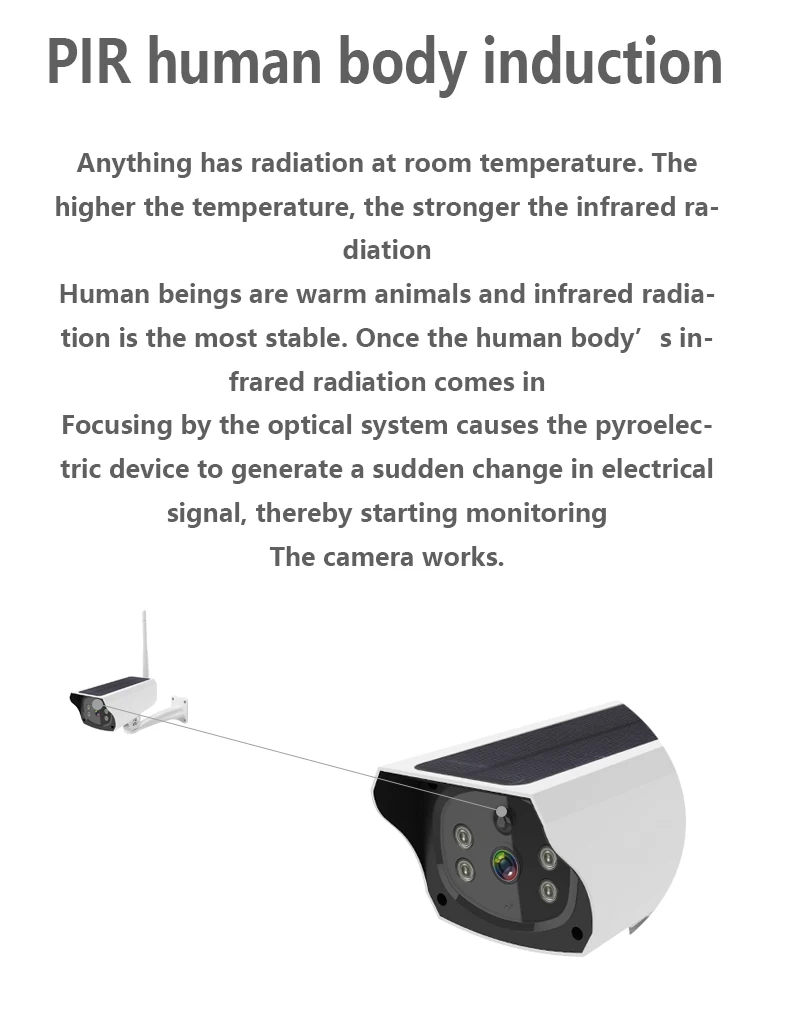

PIR motion detection

Support max 7 meters PIR detection range.

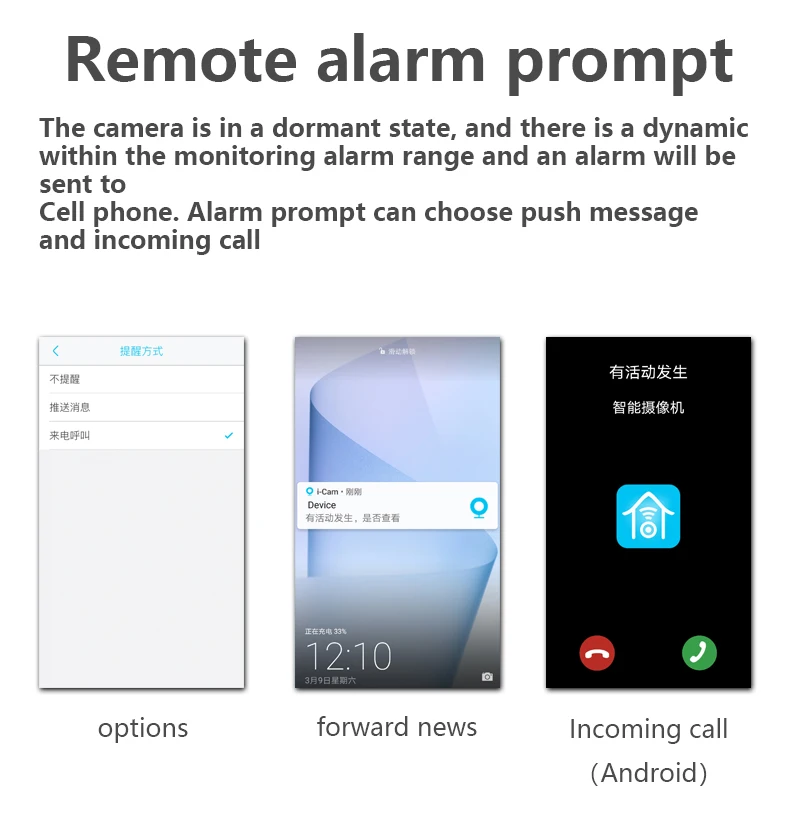

Alarm linkage

Alarm  record videos to Micro SD card;Alarm mobile phone message push

Video storage

Memory card

Support up to 128G micro SD card. Support cloud storage

Record

PIR alarm recording.

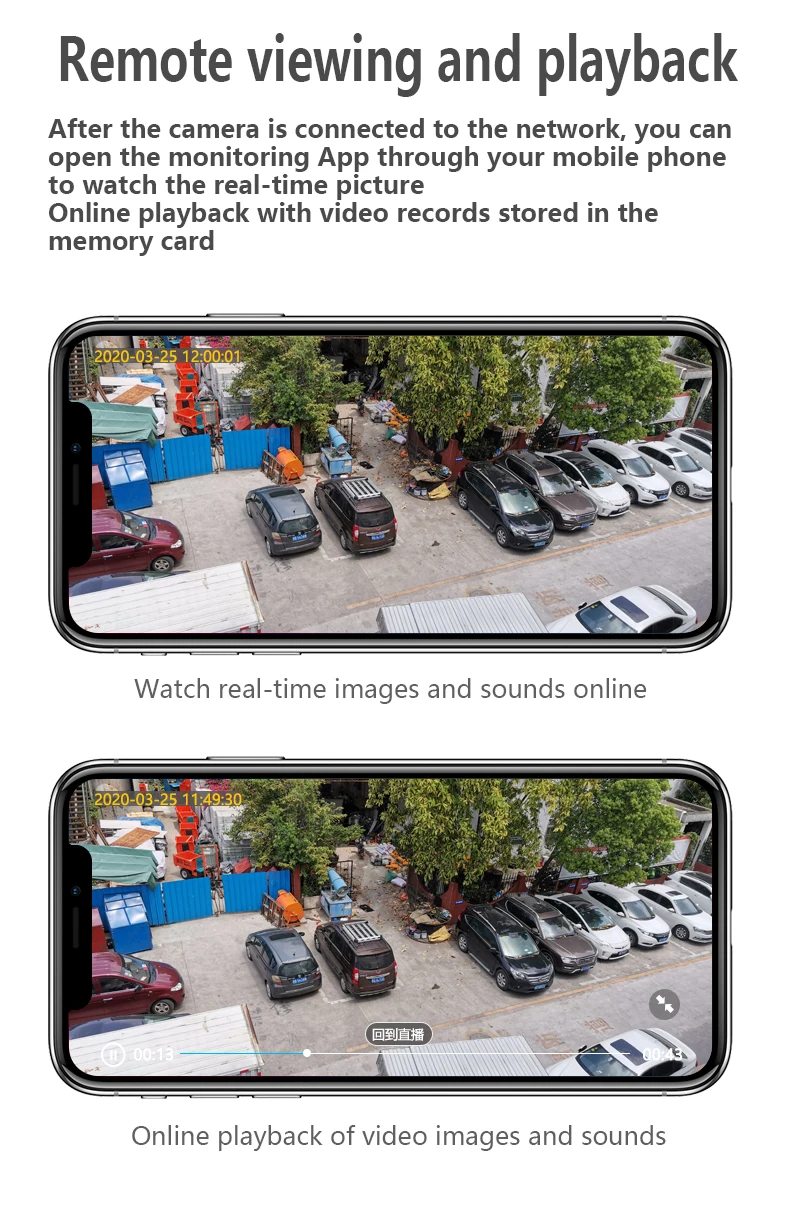

Replay

Support App remote play and download the video

Power supply

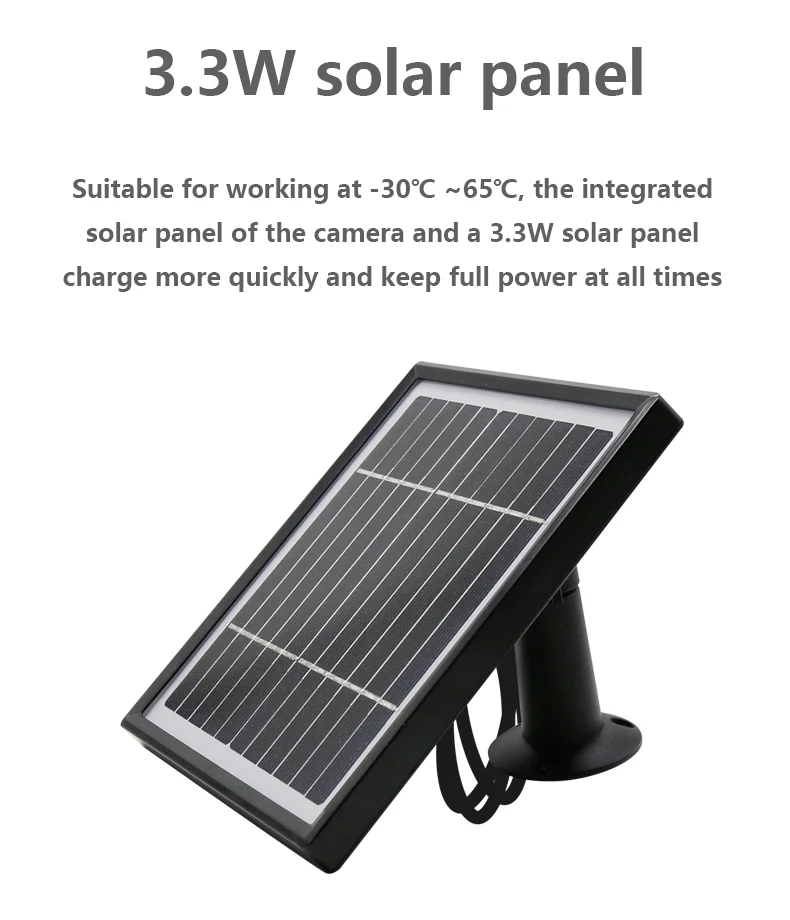

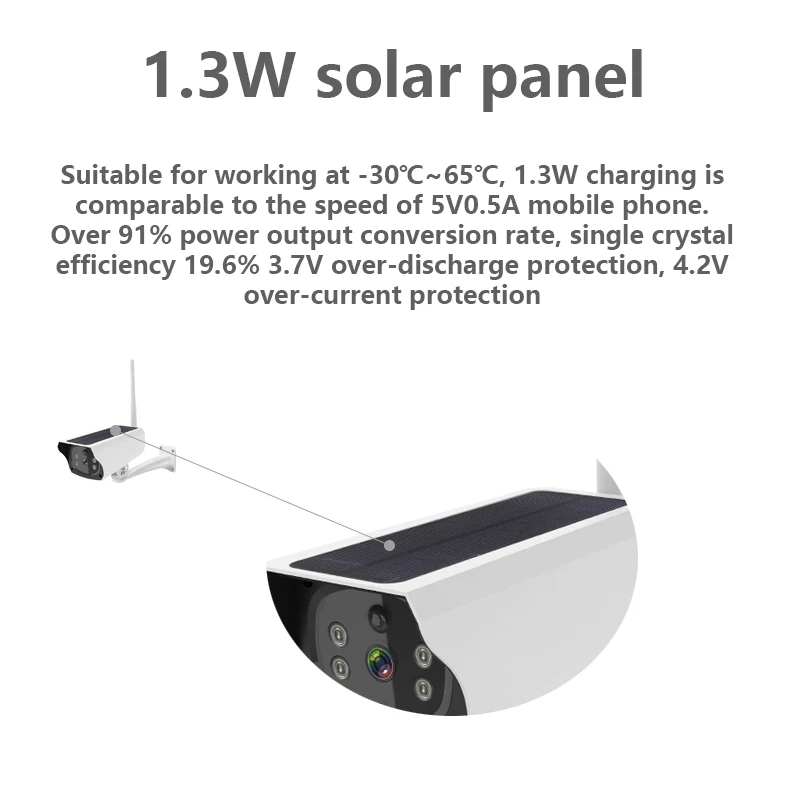

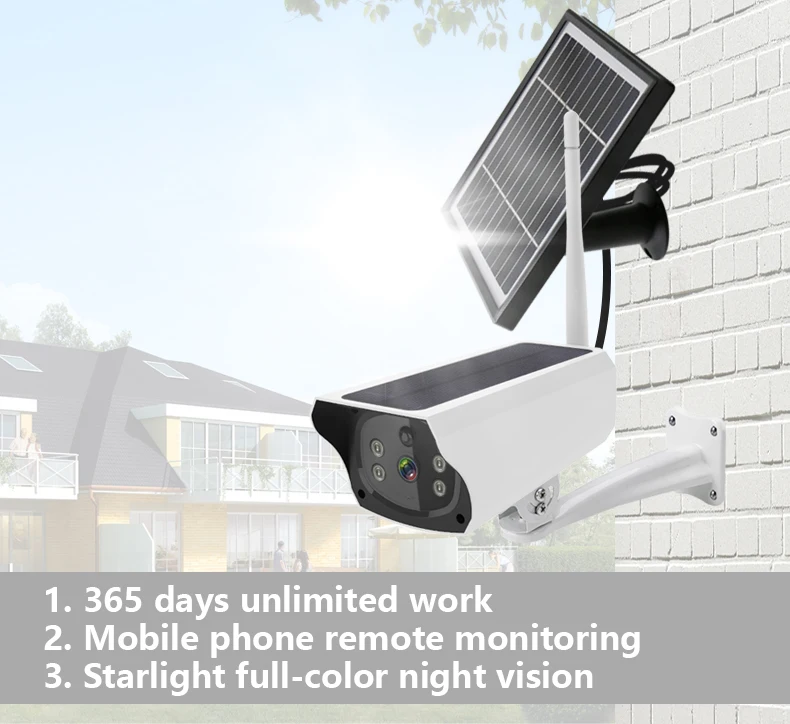

Solar panels

Camera:1.3W+Panel:3.3W monocrystalline silicon solar panel

Battery

WiFi

2pcs 18650 battery, max 6400mAh    (not include)

4G

4pcs 18650 battery, max 12800mAh  (not include)

Operating mode

Low power working mode

Wake-up method

PIR alarm wake up, remote manual wake up

Hibernation

When alarm end or remote connection disconnected.

Power consumption

Sleeping stand-by power: 0.03W;  Working: 1.3W@days/3W@night

PTZ

Rotation angle

N/A

Spinning speed

N/A

Other

Power input

DC5V 2A

Environment

Environment -20℃~+60℃(-4℉~+140℉), Humidity 10%~80%, non-condensing

Shell material

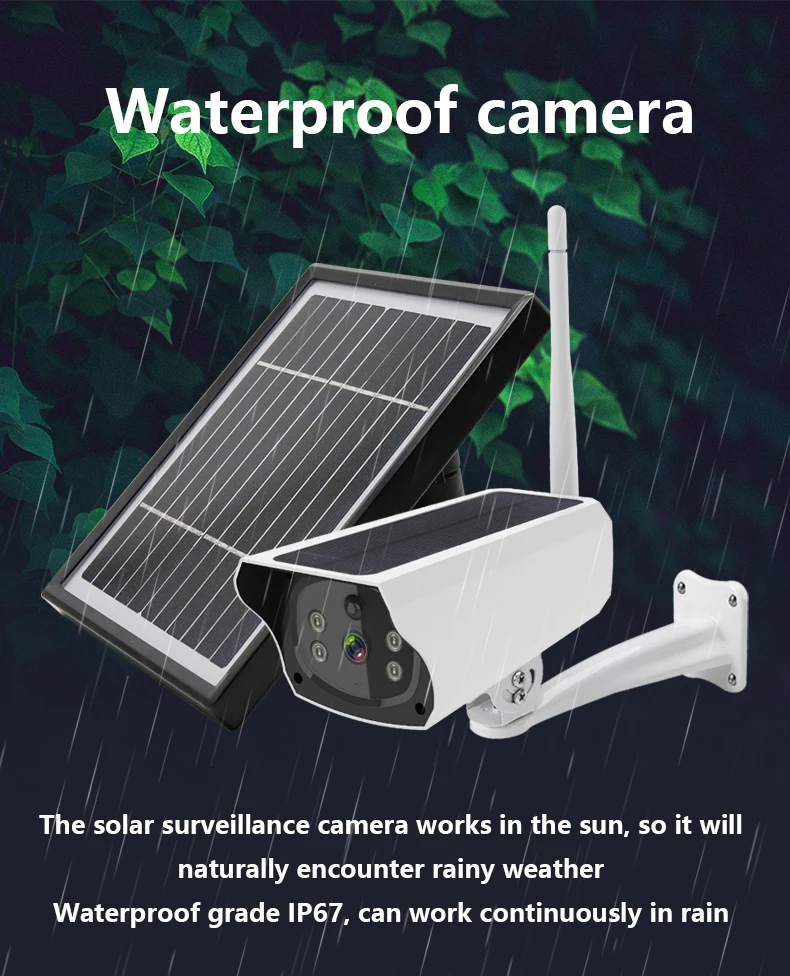

ABS fireproof plastic material, vandal-proof, waterproof level IP67

Power cable

Plate V8 interface, extension cable 3 meters

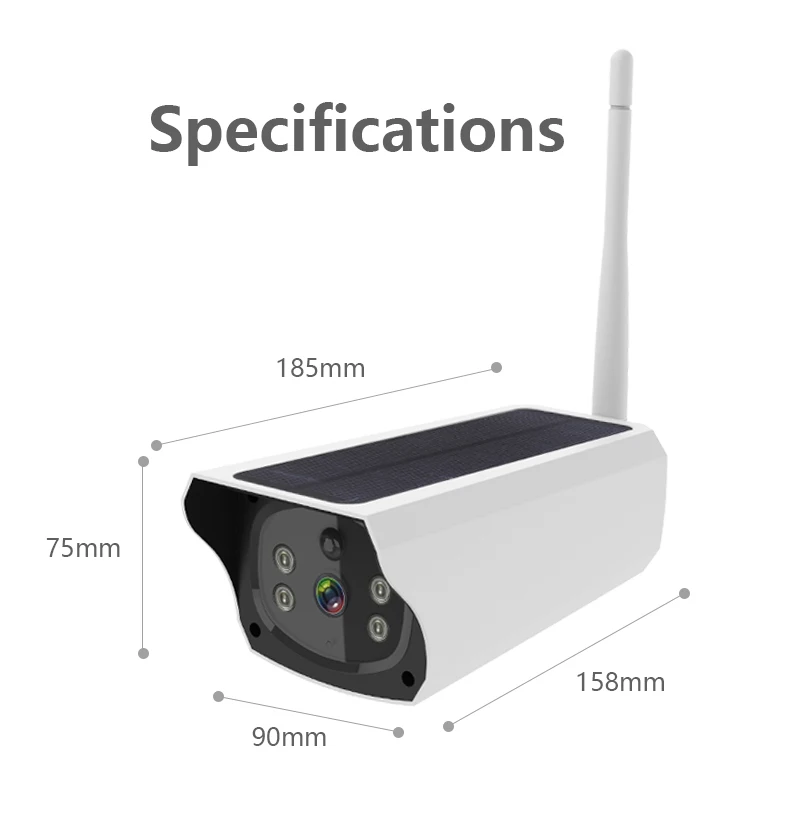

Product Size

185mm×90mm×75mm(Camera:L×W×H);178mm×153mm×15mm(Plate:L×W×H)

Package dimensions

250mmx205mmx110mm(L×W×H). Package weight: 1.2kg

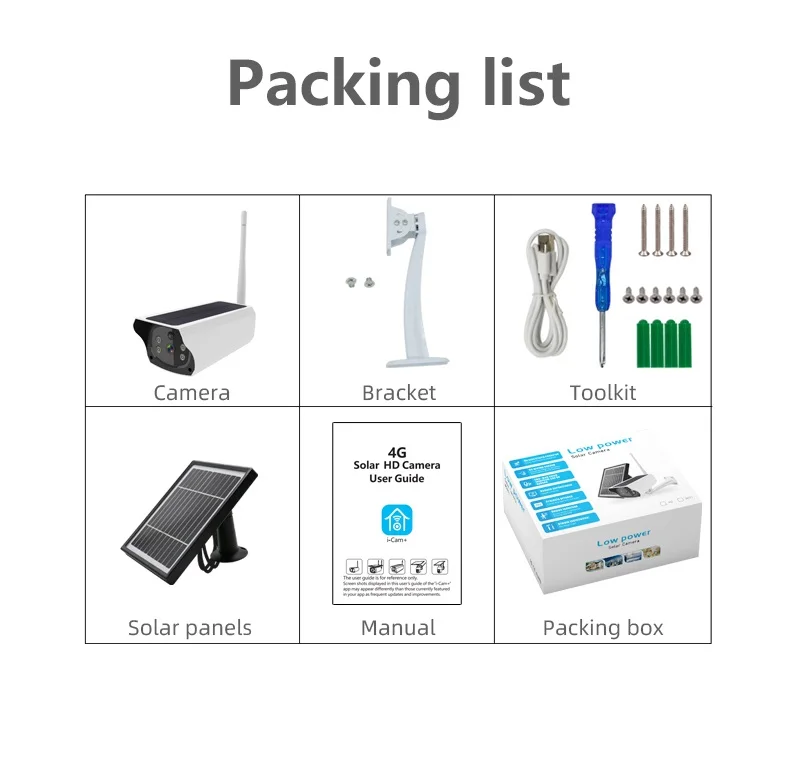

Packing list

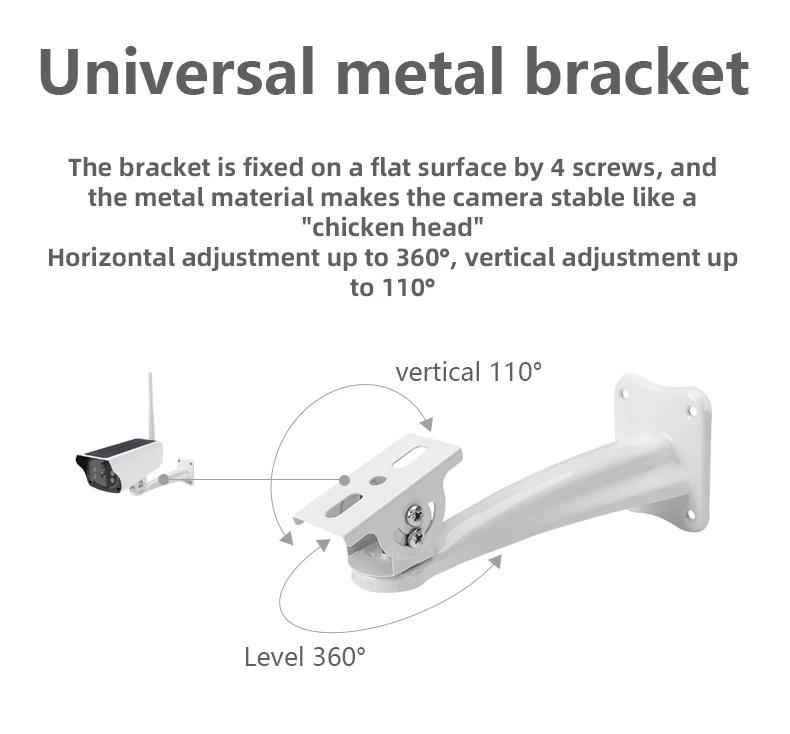

IP Camera, Antenna, Solar panel, Support, Mounting screws, Screwdriver, USB cable, Manual
