Bioevopeak Grating Spectrophotometer
- Category: Other Analysis Instruments >>>
- Supplier: BIOEVOPEAK JINAN CO. LTD.
Share on (1600545444391):
Product Overview
Description

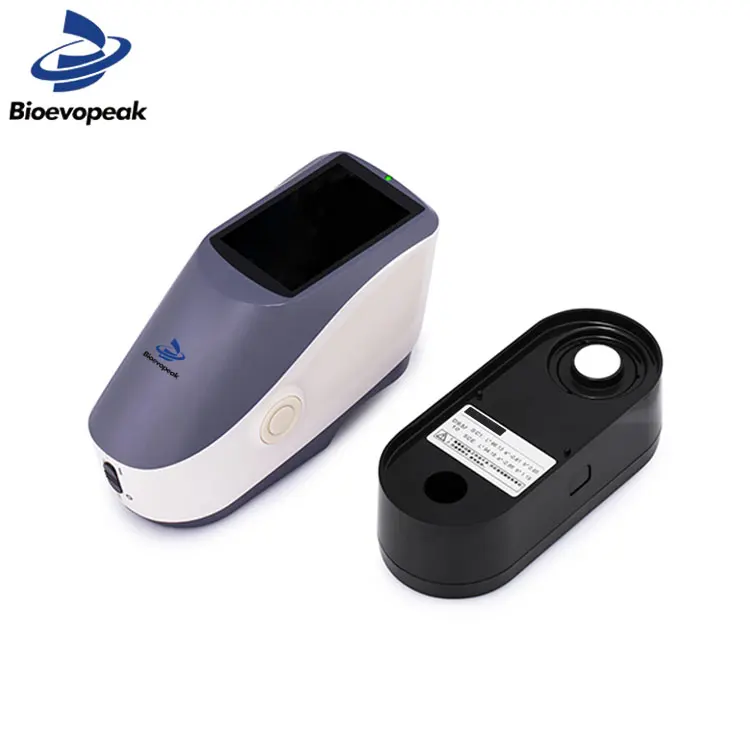

Portable Spectrophotometer Concave Grating
Features
Portable Spectrophotometer
1. Perfect combination of beautiful appearance and the human body mechanics structural design;
2. B.D/8 geometrical optics, conforms with CIE No.15,GB/T 3978,GB2893, GB/T 18833, ISO7724/1, ASTM E1164, DIN5033 Teil
3.Use long life and low power consumption combined LED light source
4. Switchable 8mm/4mm aperture, support both SCI and SCE at the same time;
5. Measure sample spectra, accurate Lab data , can be used in color matching and accurate color transmission;
6. High electronic hardware configuration: 3.5-inch TFT color LCD,Capacitive Touch Screen, concave grating, 256 Iimage Element Double Arrays CMOS Image Sensor;
7. USB port, widely useful;
8. Super stain-resistant and stable standard white calibration plate;
9. Large capacity storage space, over 20,000 measurement data;
10. Two standard observer angles, a variety of illuminant, a variety of color indexes, conforms with a variety of standard colorimetric data, meet a variety of customers’ demand for color measurement;
11. Camera Locating Function, better position;
12. PC software has a powerful function extension.
Specifications
| Model | SP-CLR306 | SP-CLR301 |
| Optical Geometry | Reflect: di:8°, de:8°(diffused illumination, 8-degree viewing angle) | |
| Integrating Sphere Size | 48mm | |
| Light Source | Combined LED Light, UV Light | Combined LED Light |
| Spectrophotometric Mode | Concave Grating | |
| Sensor | 256 Image Element Double Array CMOS Image Sensor | |
| Wavelength Range | 400-700nm | |
| Wavelength Interval | 10nm | |
| Semiband Width | 10nm | |
| Measured Reflectance Range | 0-200% | |
| Measuring Aperture | Dual Aperture: 10mm/8mm & 5mm/4mm | Single Aperture: 8mm/10mm |
| Specular Component | SCI&SCE | |
| Color Space | CIE Lab, XYZ, Yxy, LCh, CIE LUV, Hunter LAB | |
| Color Difference Formula | ΔE*ab, ΔE*uv, ΔE*94, ΔE*cmc(2:1), ΔE*cmc(1:1), ΔE*00v, ΔE(Hunter) | |
| Other Colorimetric Index | WI(ASTM E313, CIE/ISO, AATCC, Hunter), | |
| YI(ASTM D1925, ASTM 313),TI(ASTM E313, CIE/ISO), | ||
| Metamerism Index MI, Staining Fastness, Color Fastness, Color Strength, Opacity, 8° Glossiness | ||
| Observer Angle | 2°/10° | |
| Illuminant | D65, A, C, D50, D55, D75, F1, F2, F3, F4, F5, F6, F7, F8, F9, F10, F11, F12 | D65, A, C, D50 |
| Displayed Data | Spectrogram/Values, Samples Chromaticity Values, Color Difference Values/Graph, PASS/FAIL Result, Color Offset | |
| Measuring Time | 2.6s | |
| Repeatability | MAV/SCI: ΔE*≤0.03 | MAV/SCI: ΔE*≤0.06 |
| Inter-instrument Error | MAV/SCI: ΔE*≤0.15 | MAV/SCI: ΔE*≤0.4 |
| Measurement Mode | Single Measurement, Average Measurement | |
| Locating Method | Camera View Finder Locating | |
| Battery | Li-ion battery. 5000 measurements within 8 hours | |
| Dimension | L*W*H=184*77*105mm | |
| Weight | 600g | |
| Illuminant Life Span | 5 years, more than 3 million times measurements | |
| Display | 3.5-inch TFT color LCD, Capacitive Touch Screen | |
| Data Port | USB, Bluetooth 4.0 | USB |
| Data Storage | Standard 2000 Pcs, Sample 20000 Pcs | |
| Language | English, Chinese | |
| Operating Environment | 0~40℃, 0~85%RH (no condensing), Altitude < 2000m | |
| Storage Environment | -20~50℃, 0~85%RH (no condensing) | |
| Standard Accessory | Power Adapter, Built-In Li-ion Battery, User Guide, PC Software, White and Black Calibration Cavity, Dust Cover | |
| Optional Accessory | Micro Printer, Powder Test Box | |
| Notes: The specifications are subject to change without notice. | ||
Packaging & Shipping
Certifications
About us
FAQ
Q: How about quality of the goods?
A:l All the running products comply with CE standards.
l Independent quality inspection team, conducting multiple inspections and random inspections from parts supply to product dispatch.
l Well-known third-party testing service available, such as SGS, BV, and TUV, etc.
Q: What are your pre- and after-sales services?
A:l Timely reply to pre-sales enquiries
l Real-time update of manufacturing and shipment status
l Contracted third-party maintenance company in over 60 countries
Assured availability of parts supply for 10 years at least
Q: Is OEM service available.
A: Most of the running products are available for OEM customization, including logo, package and function, if attainable, customization.
Q: How long is the lead time:
A: Generally, the lead time for most stocked products is about 7~15 days, vary by models and production schedule. For those non-stocked products, the manufacturing lead time is around 20 days.
