Product Overview
Description
Product Overview
200m Portable Used Water Drilling Rig Used for Wells
XY-200T Drilling rig could drill max 200m holes in soil, sand , soft and hard rocks with different drilling bits, alloy bit for soft layer, diamond bit for hard rocks.
It is widely used for water well project, geotechnical exploration,road and building exploration, blasting hole and so on.
Features
Features of 200m XY-200T Portable Used Water Drilling Rig Used for Wells
(1). With integrative drilling tower, supported by 2-high strength oil cylinder, hydraulic controlling the rise and fall, operation is extremely convenient, saving time and labor effort,create maximum benefit for the user.
(2). The chassis used trailer type, haswheels and traction, can be pulled directly by a tractor or truck, achieve rapid turnarounds, very convenient.
(3). Chassis have 4-hydraulic legs, quick and convenient to install, while working to support reliable stability.
(4). Uses the electric-start diesel engine, greatly reduces the labor intensity of operators, especially more efficient in the cold season when the diesel engine start is difficult, showing its great advantage. (5). Equipped with a complete set of BW-160 mud pump, with high pump flow rate and pressure, convenient maintenance, convenient to buy spare and accessory parts all around.

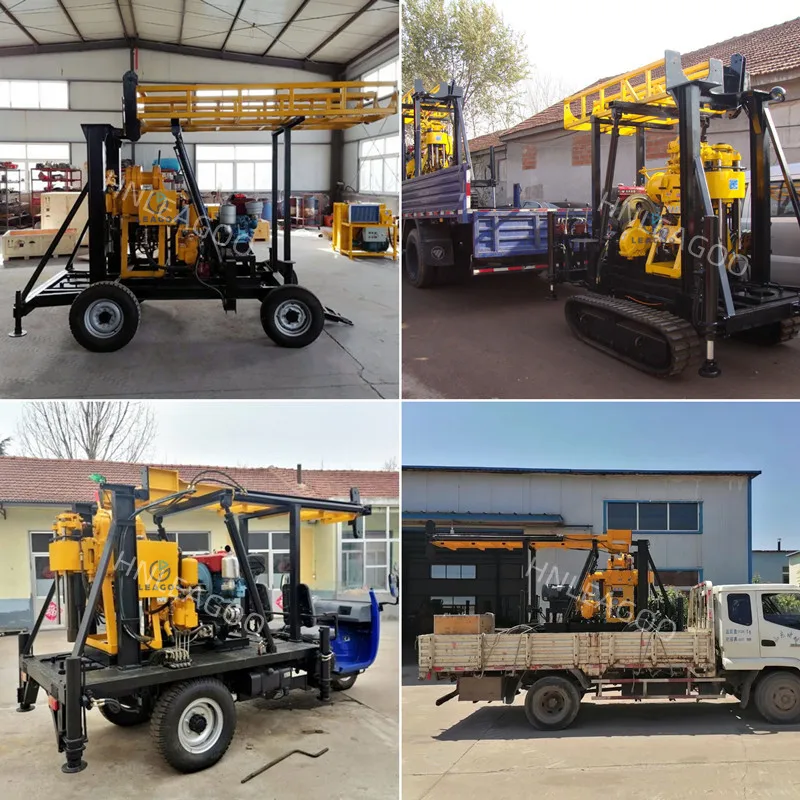

(6). There are wheels type, cralwer type, tricycle type for options .

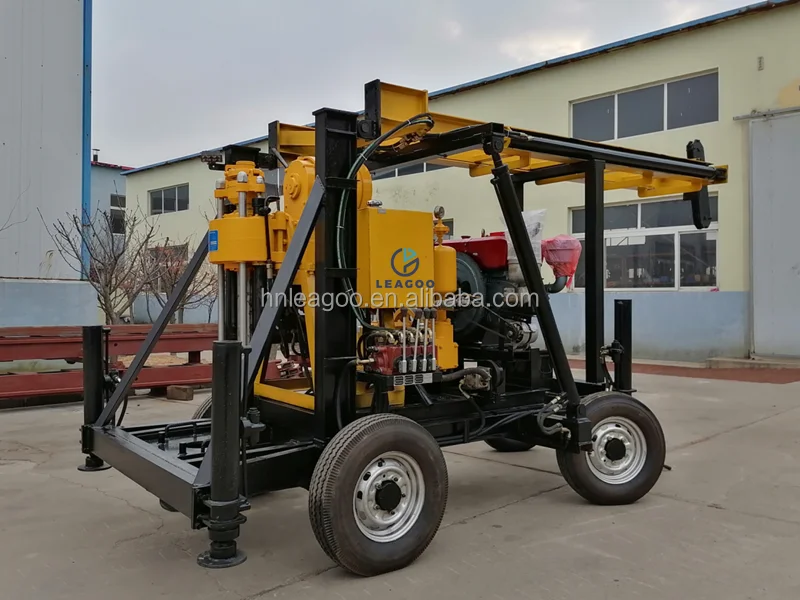

Four wheels type
Crawler type
Tricycle type
Technical Parameters
Main Parameter | ||
Drilling depth | 200m | |
Maximum borehole caliber | 400mm | |
Minimum borehole caliber | 75mm | |
Diameter of Drill pipe | 42、50、60mm | |
Drilling angle | 90°~75° | |
Weight(including diesel engine) | 1950kg | |
Unity machine dimension | 2750*950*1600mm | |
Vertical Spindle | ||
Spindle rotating speed | 64、128、287、557r/min | |
Spindle stroke | 450mm | |
Hoist | ||
Max. single line lifting capacity | 1600kg | |
Reel lifting speed | 17、35、75、151m/s | |
Steel wire rope diameter | 12mm | |
Steel wire rope volume | 26mm | |
Hug floodgate diameter | 245mm | |
Hug floodgate belt width | 70mm | |
Movable distance | 400mm | |
Mud pump | ||
Type | BW-160 Horizontal Single Cylinder | |
Max. Discharge | 160L/min | |
Pressure | 0.7-1.2Mpa | |
Power | 22HP Diesel engine or 15KW electirc motor | |
Trailer chassis | ||
Type | 4 wheels | |
Support legs | Mechanical or hydraulic type | |
Drilling Accessories

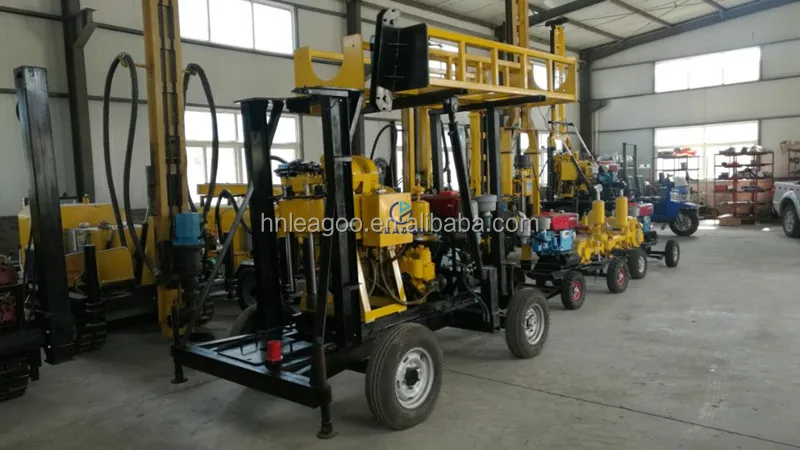

Machine at Workshop

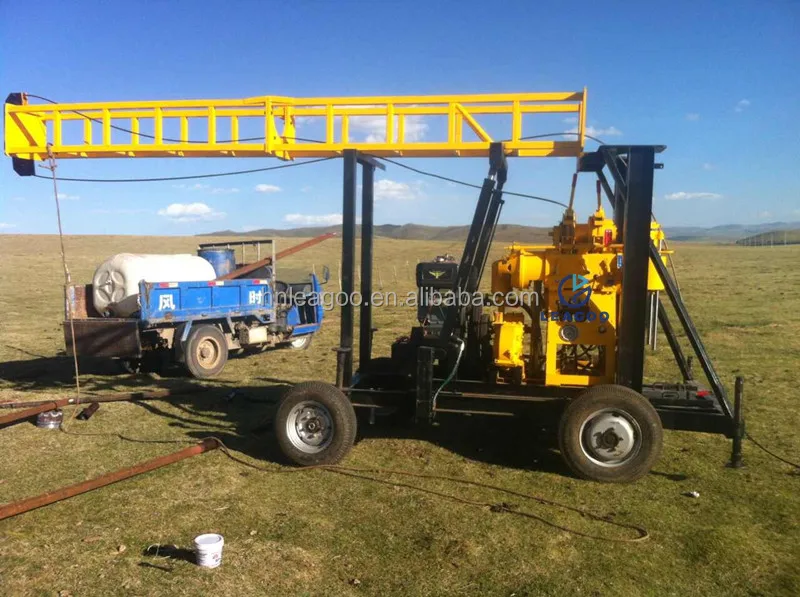

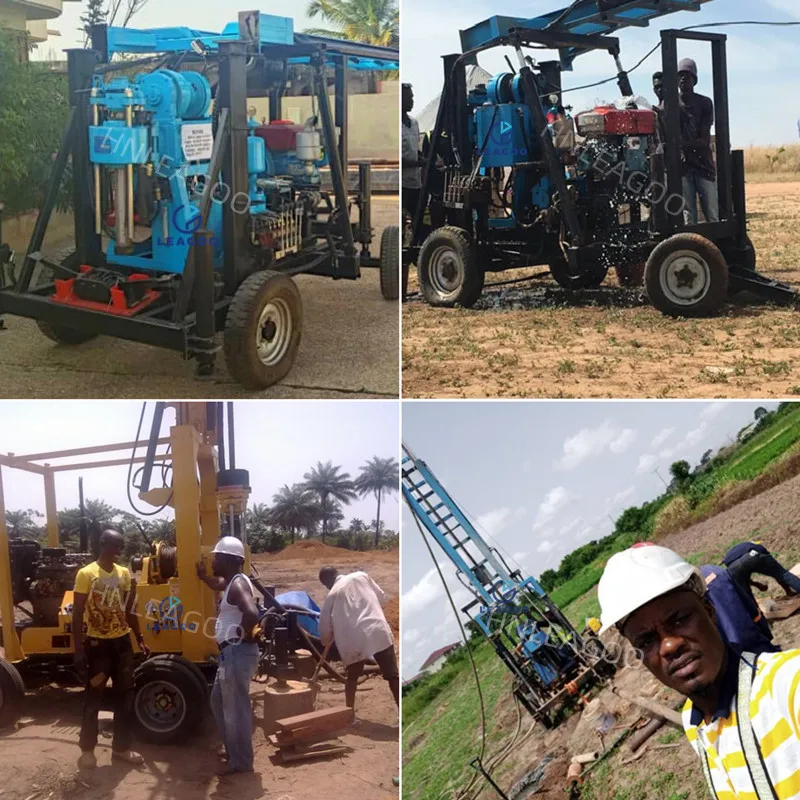

Successful Project
Service from Leagoo
-Professional pre-sale and after-sale technical support -Provide spare parts at cost price all year around.
-Online service 24 hours* 7 days
-One year guarantee for main machine
- Operation video and manual are available.
-Online service 24 hours* 7 days
-One year guarantee for main machine
- Operation video and manual are available.
