ICU Medical Equipment Emergency Ventilator CPAP Breathing Ventilator Machine for ICU with Air Compressor
- Category: >>>
- Supplier: Nanjing Puao Medical Equipment Co. Ltd.
Share on (1600545517872):
Product Overview
Description
Product Description
Product Application
ICU Medical Equipment Emergency Ventilator CPAP Breathing Ventilator Machine for ICU with Air Compressor
Features
ICU Medical Equipment Emergency Ventilator CPAP Breathing Ventilator Machine for ICU with Air Compressor
Operating Modes: Pneumatically driven & electronically controlled, closed, semi-closed and semi-open
Pneumatically driven electrically controlled ventilator, can be used for emergency clinical resuscitation and respiratory therapy
Nonhazardous environmentally friendly frame, precise construction, elegant design, equipped with automated self-checking function
during startup and an automatic self-calibrating sensor

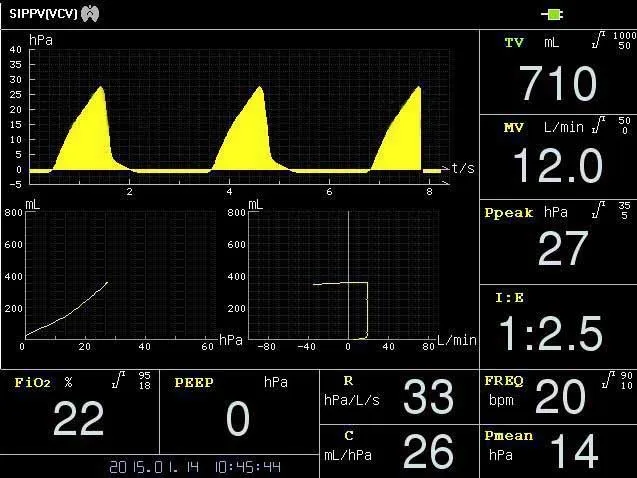

Display: Built-in 10.4 inch high visibility color TFT display, able-simultaneously display Pressure-Time and Frequency-Time
waveforms in real time
Sigh: Ability to insert 1-8 sigh breaths in every 100 breaths, ventilation should be no less than 1.5 the tidal volume
Equipped with infrared turbine flow sensor; precisely measures gas flows, stable and reliable
Power Failure Support Functions: Automatically converts-standby mode during AC power outages

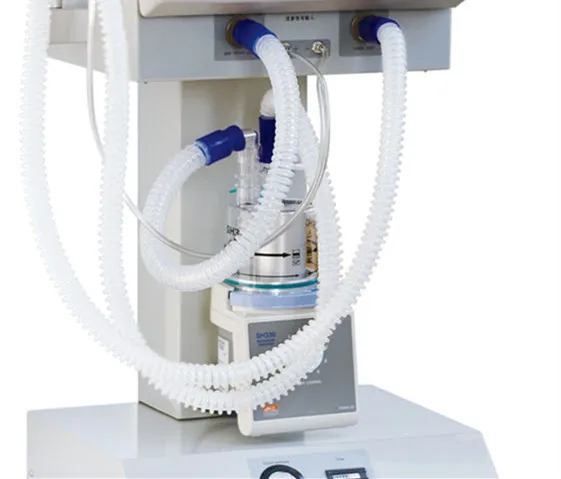

9 Level adjustable humidifier
Monitor Parameters: tidal volume, respiration rate, airway pressure, I:E ratio, inspiratory & expiratory status, inspiratory
trigger and others
Alarms: Audible and/or visual alarms for ventilation volume, tidal volume, oxygen concentration, asphyxia, airway pressure,
intubation disconnection, low oxygen, power failure and other alarms, also features a alarm history query function
Advanced Model Exclusive Features
Equipped with professional medical grade air compressor tailored for long clinical times and low noise requirements
Air Compressor
Air Compressor: 220V AC±10%, 50±1Hz, 700VA, also features good protective grounding against electrical activity
Output Gas Pressure: 0.4MPa±20%
Continuous output gas flow greater than or equal to 20L/min
Instantaneous output gas flow great than equal to 60L/min
Pneumatically driven electrically controlled ventilator, can be used for emergency clinical resuscitation and respiratory therapy
Nonhazardous environmentally friendly frame, precise construction, elegant design, equipped with automated self-checking function
during startup and an automatic self-calibrating sensor
Display: Built-in 10.4 inch high visibility color TFT display, able-simultaneously display Pressure-Time and Frequency-Time
waveforms in real time
Sigh: Ability to insert 1-8 sigh breaths in every 100 breaths, ventilation should be no less than 1.5 the tidal volume
Equipped with infrared turbine flow sensor; precisely measures gas flows, stable and reliable
Power Failure Support Functions: Automatically converts-standby mode during AC power outages
9 Level adjustable humidifier
Monitor Parameters: tidal volume, respiration rate, airway pressure, I:E ratio, inspiratory & expiratory status, inspiratory
trigger and others
Alarms: Audible and/or visual alarms for ventilation volume, tidal volume, oxygen concentration, asphyxia, airway pressure,
intubation disconnection, low oxygen, power failure and other alarms, also features a alarm history query function
Advanced Model Exclusive Features
Equipped with professional medical grade air compressor tailored for long clinical times and low noise requirements
Air Compressor
Air Compressor: 220V AC±10%, 50±1Hz, 700VA, also features good protective grounding against electrical activity
Output Gas Pressure: 0.4MPa±20%
Continuous output gas flow greater than or equal to 20L/min
Instantaneous output gas flow great than equal to 60L/min
Specifications
ICU Medical Equipment Emergency Ventilator CPAP Breathing Ventilator Machine for ICU with Air Compressor
● Display: 10.4 inch high visibility color TFT display
● Ventilation Mode: A/C, IPPV, SIPPV, IMV, SIMV, Standby, SPONT, MANUAL
● Minute Volume: Greater than or equal to 18L
● Back~up Power Supply: At least 4 hours
● Tidal Volume: Adjustable range: 50~1500ml, Display range: 0~2000ml
● Respiratory Rate: 1~99bpm
● Inspiratory/expiratory (I:E) Ratio: 4:1~1:4
● PEEP: 0~10cmH2O
● SIMV Rate: 1~20bpm
● Inspiratory Pressure Trigger: ~10~10cmH2O
● Inspiratory Plateau: Adjustable from 0~50% of inspiratory time
● Adjustable Oxygen Concentration: 45~100%
● Gas Supply Requirement: 280～600 kPa medical grade oxygen and compressed air supply
● Pressure Limit: 1.0kPa~6.0kPa
● Maximum Safe Operating Pressure: ≤6.0kPa
● Tidal Volume Alarm: Upper Limit: 10~2000ml, Lower Limit: 0~1800ml
● Airway Pressure Alarm: Upper Limit: 0.1~6kPa, Lower Limit: 0~5kPa
● Oxygen Concentration Alarm: Upper Limit: 22~100%, Lower Limit: 21~80%
● Ventilation Mode: A/C, IPPV, SIPPV, IMV, SIMV, Standby, SPONT, MANUAL
● Minute Volume: Greater than or equal to 18L
● Back~up Power Supply: At least 4 hours
● Tidal Volume: Adjustable range: 50~1500ml, Display range: 0~2000ml
● Respiratory Rate: 1~99bpm
● Inspiratory/expiratory (I:E) Ratio: 4:1~1:4
● PEEP: 0~10cmH2O
● SIMV Rate: 1~20bpm
● Inspiratory Pressure Trigger: ~10~10cmH2O
● Inspiratory Plateau: Adjustable from 0~50% of inspiratory time
● Adjustable Oxygen Concentration: 45~100%
● Gas Supply Requirement: 280～600 kPa medical grade oxygen and compressed air supply
● Pressure Limit: 1.0kPa~6.0kPa
● Maximum Safe Operating Pressure: ≤6.0kPa
● Tidal Volume Alarm: Upper Limit: 10~2000ml, Lower Limit: 0~1800ml
● Airway Pressure Alarm: Upper Limit: 0.1~6kPa, Lower Limit: 0~5kPa
● Oxygen Concentration Alarm: Upper Limit: 22~100%, Lower Limit: 21~80%
Model | 900B (Advanced Model) |
Display | 10.4 inch high visibility color TFT display |
Ventilation Mode | A/C, SIPPV, IPPV, SIMV, PSIMV, PSV, CPAP, PCV, VCV, SPONT MANUAL |
Minute Volume | Greater than or equal to 18L |
Back-up Power Supply | At least 4 hours |
Tidal Volume | Adjustable range: 50-1500ml, Display range: 0-2000ml |
Respiratory Rate | 1-99bpm |
Inspiratory/expiratory (I:E) ratio | 4:1-1:4 |
PEEP | 0-10cmH2O |
SIMV Rate | 1-20bpm |
Inspiratory Pressure Trigger | -10-10cmH2O |
Trigger Sensitivity (flow) | 1-10L/m |
Inspiratory Plateau | Adjustable from 0-50% of inspiratory time |
Adjustable Oxygen Concentration | 21-100% |
Gas Supply Requirement | 280~600 kPa medical grade oxygen and compressed air supply |
Pressure Limit | 1.0kPa~6.0kPa |
Maximum Safe Operating Pressure | ≤6.0kPa |
Tidal Volume Alarm | Upper Limit: 10~2000ml, Lower Limit: 0~1800ml |
Airway Pressure Alarm | Upper Limit: 0.1~6kPa, Lower Limit: 0~5kPa |
Oxygen Concentration Alarm | Upper Limit: 22~100%, Lower Limit: 21~80% |
Packing & Delivery
Our Service
Product Showcase
Company Information
FAQ
I) What is your Minimum Order Quantity?
Our minimum order quantity (MOQ) is generally 1 unit. The exception however is that for certain accessories (e.g. wires) the MOQ may vary. Feel free to contact us to get a exact MOQ quote.
II) Which payment methods do you accept?
We accept most forms of monetary payment such as bank transfer, T/T, direct transfer & Alibaba Secure Payment. Please get in touch with one of our sales managers to check if your payment option is acceptable.
III) What is your shipping & delivery time?
Once we have confirmation of your order we normally ship within 5 to 10 working days.
IV) What product guarantees do you offer?
All our products are Alibaba Trade Assured which means that your order will be fully protected. Hence if we fail to ship on time or can’t meet our product quality obligations, Alibaba will refund your payment.
V) Which certifications do you have?
Almost all our products are CE, ISO and RoHS certified.
VI) Can I place my company logo on your product?
Yes, baring a few exceptions. Please check with our sales team before applying.
VII) What after sales services do you provide?
We offer technical, customer service & troubleshooting support for the life time of the product.
VIII) How long is your warranty period?
We typically offer 12 to 24 months warranties for all our products, except some accessories which may have shorter warranty periods.
