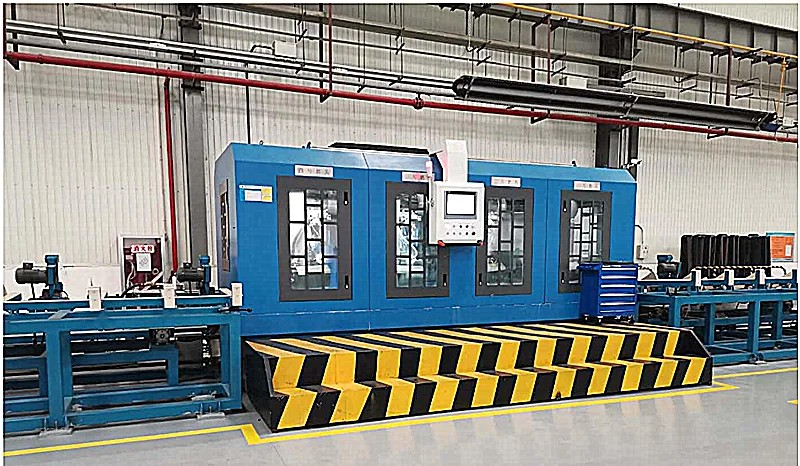

Five Grinding Head HG2M5035 5M SIX Grinding Head Centerless Grinding Machine
- Category: >>>
- Supplier: Yantai Haige International Trading Co. Ltd.
Share on (1600545537721):
Product Overview
Description
Product Description
Specification
II.
Equipment Parameters and Structure Description
* Equipment Description
Model HG2M5020WB-6B Belt polishing machine is a kind of equipment for grinding the outer round surface of steel bar. The machine
tool mainly consists of six sets of sand belt (grinding wheel) grinding head assembly, conveying wheel mechanism, drive pressure
wheel assembly, automatic loading mechanism, automatic unloading mechanism, overall shield, circulation system, pneumatic system,
electrical control system, etc. The grinding process of the equipment: the bars are laid on the loading platform, then the loading
mechanism sends the bars to the conveying wheels, the wheels convey the bar to the grinding area driven by rotating press wheels ,
pass through 2 grinding wheel heads and 4 grinding belt heads. After the whole bar enters the conveying wheels in the unloading
area, bar is discharged through the unloading mechanism. When the diameter of bar is different, adjust the spacing between
conveying wheels to adapt to different diameters.
* Main parameters of the equipment
1. Main parameters:
1.Specification of abrasive belt
4000mm×150mm(circumference×width)
2. The grit of abrasive belt
36＃~400＃(optional)
3、diameter range of material
Φ80~Φ260mm
4、length range of material
3000mm～7000mm
5.The grinding contact wheel specification
φ 400×φ 150mm(diameter*width)
7. The material of workpiece
Carbon steel, stainless steel
9、the weight of single workpiece
≤3000kg
10、Max bending of material
≤ 3/1000
11. The grinding pressure
0.3-1.5kN
12. The surface roughness
Ra ≤1.0μ m(the peeled bar before grinding Ra≤6.3μm
13.grinding allowance
≤0.25mm
13. The specification of grinding belt contact wheel
Φ 400×150mm（diameter×width)
14、linear velocity of belt
30m/s(Adjustable frequency)
16. The rotation speed of support wheel
20～50r/min（Adjustable frequency）
17. Axial feed speed of workpiece
0.1~4m/min(Stepless speed regulation, achieved by frequency conversion drive motor)
18. Grinding head Motor Power
22kw (5 set)
19. Support drive motor power
5.5kw(2sets)
20. Support Wheel specification
Φ260*60（width）
21. Grinding head lifting turning tool adjustment motor power
0.37kw(5sets)
21.Motor for synchronous movement of supporting wheel adjustment
4kw(1sets)
22.Motor power of fog absorber:
7.5KW (1 sets) Air volume: ≈6150m3/h
23.Grinding fluid pipeline pump motor power
2.2kw(1set)
24.Power supply:
AC 3-phase 415V 50Hz Input power: 140KW
25 、Air supply
Air Pressure: 0.4-0.6Mpa ； Air flux ： 0.80m3/h
26. Machine dimensions:
27000×6000×3300mm (length × width × height)
27. Machine Weight:
30T （take reference）
Equipment Parameters and Structure Description
* Equipment Description
Model HG2M5020WB-6B Belt polishing machine is a kind of equipment for grinding the outer round surface of steel bar. The machine
tool mainly consists of six sets of sand belt (grinding wheel) grinding head assembly, conveying wheel mechanism, drive pressure
wheel assembly, automatic loading mechanism, automatic unloading mechanism, overall shield, circulation system, pneumatic system,
electrical control system, etc. The grinding process of the equipment: the bars are laid on the loading platform, then the loading
mechanism sends the bars to the conveying wheels, the wheels convey the bar to the grinding area driven by rotating press wheels ,
pass through 2 grinding wheel heads and 4 grinding belt heads. After the whole bar enters the conveying wheels in the unloading
area, bar is discharged through the unloading mechanism. When the diameter of bar is different, adjust the spacing between
conveying wheels to adapt to different diameters.
* Main parameters of the equipment
1. Main parameters:
1.Specification of abrasive belt
4000mm×150mm(circumference×width)
2. The grit of abrasive belt
36＃~400＃(optional)
3、diameter range of material
Φ80~Φ260mm
4、length range of material
3000mm～7000mm
5.The grinding contact wheel specification
φ 400×φ 150mm(diameter*width)
7. The material of workpiece
Carbon steel, stainless steel
9、the weight of single workpiece
≤3000kg
10、Max bending of material
≤ 3/1000
11. The grinding pressure
0.3-1.5kN
12. The surface roughness
Ra ≤1.0μ m(the peeled bar before grinding Ra≤6.3μm
13.grinding allowance
≤0.25mm
13. The specification of grinding belt contact wheel
Φ 400×150mm（diameter×width)
14、linear velocity of belt
30m/s(Adjustable frequency)
16. The rotation speed of support wheel
20～50r/min（Adjustable frequency）
17. Axial feed speed of workpiece
0.1~4m/min(Stepless speed regulation, achieved by frequency conversion drive motor)
18. Grinding head Motor Power
22kw (5 set)
19. Support drive motor power
5.5kw(2sets)
20. Support Wheel specification
Φ260*60（width）
21. Grinding head lifting turning tool adjustment motor power
0.37kw(5sets)
21.Motor for synchronous movement of supporting wheel adjustment
4kw(1sets)
22.Motor power of fog absorber:
7.5KW (1 sets) Air volume: ≈6150m3/h
23.Grinding fluid pipeline pump motor power
2.2kw(1set)
24.Power supply:
AC 3-phase 415V 50Hz Input power: 140KW
25 、Air supply
Air Pressure: 0.4-0.6Mpa ； Air flux ： 0.80m3/h
26. Machine dimensions:
27000×6000×3300mm (length × width × height)
27. Machine Weight:
30T （take reference）

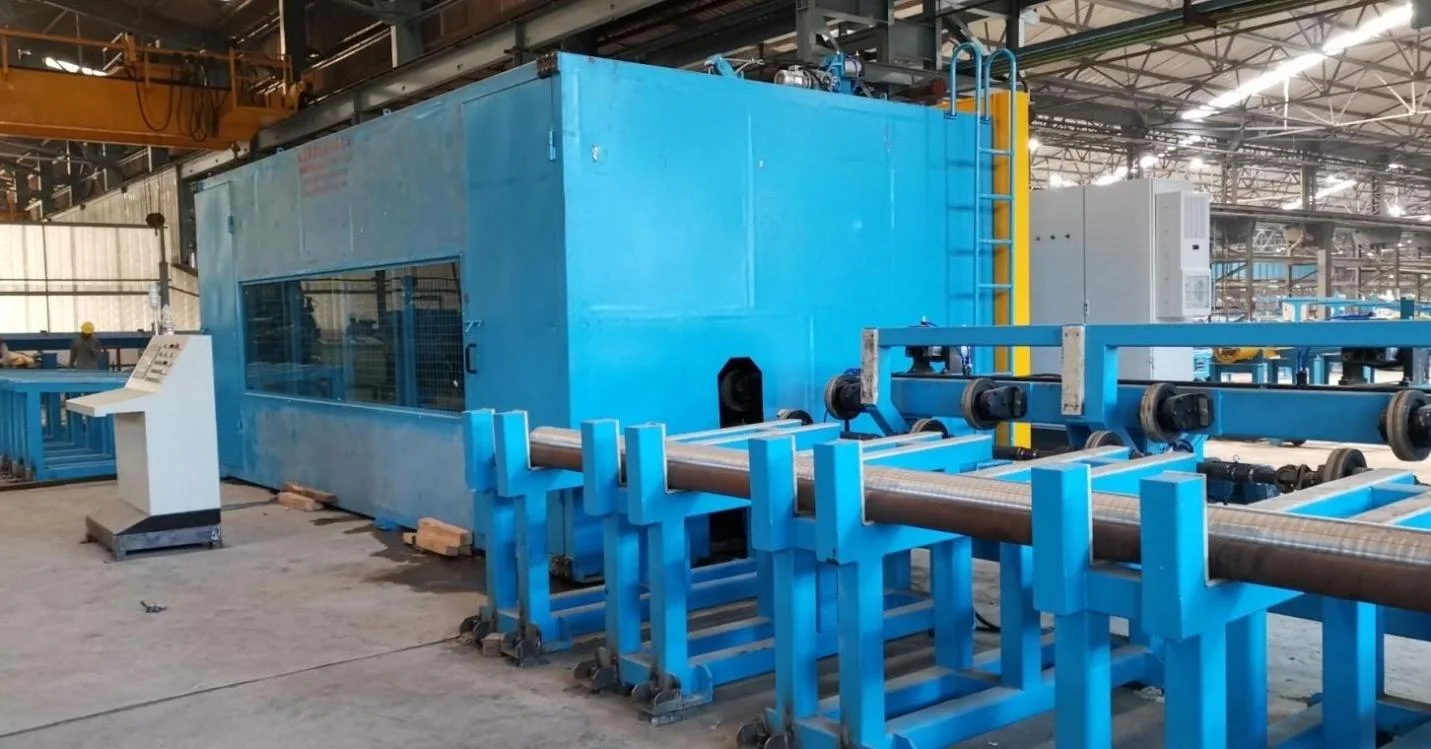

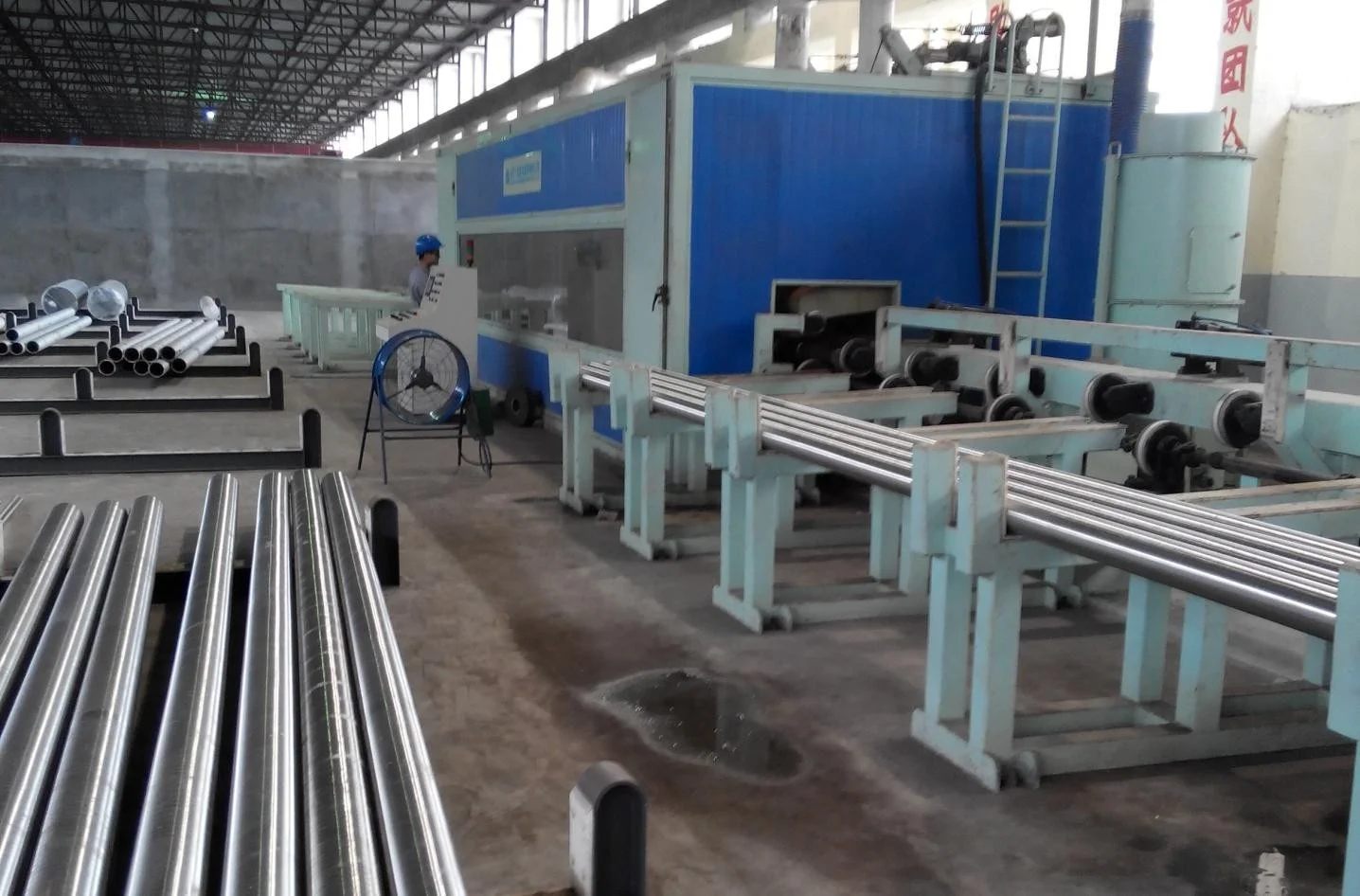

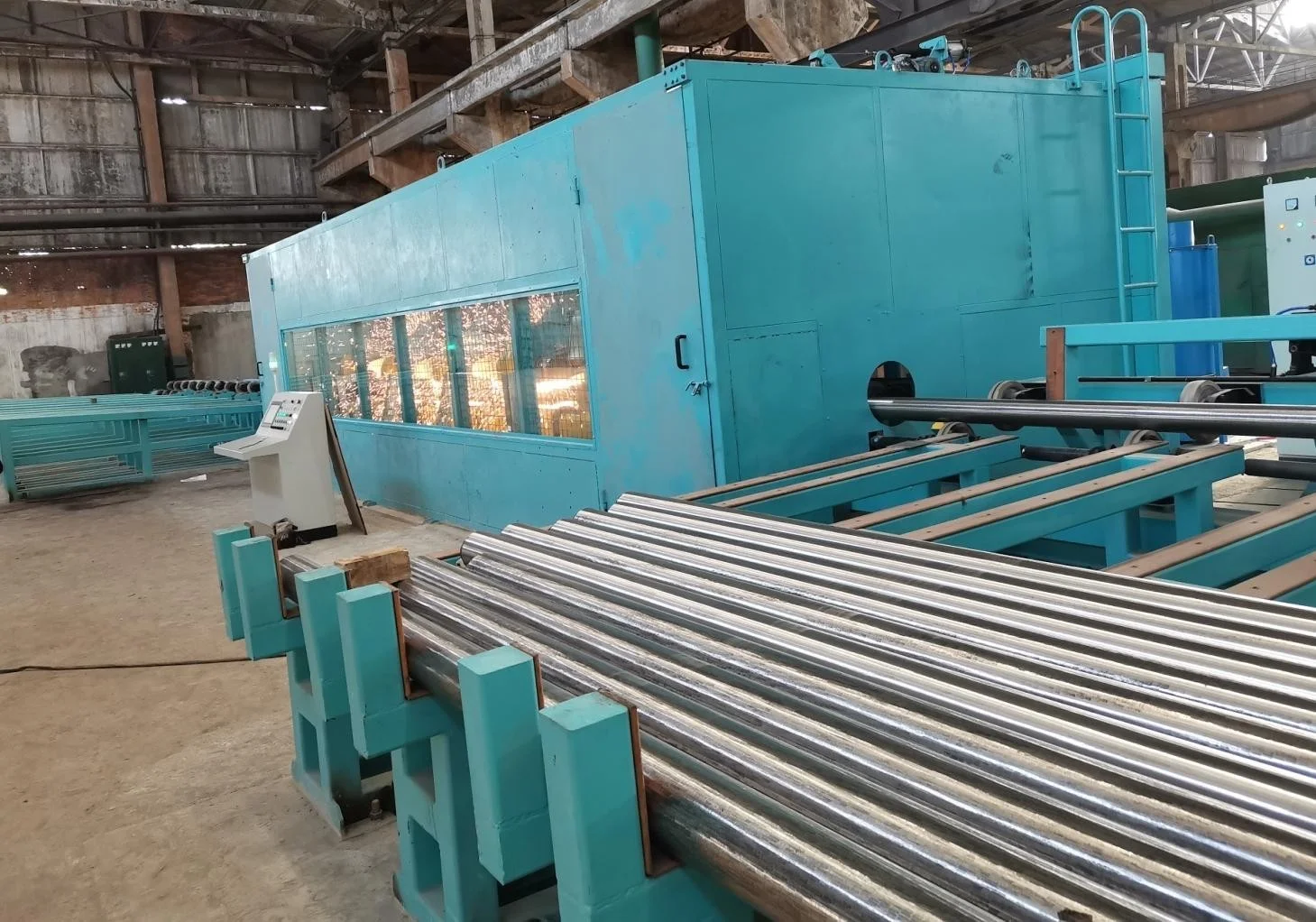

Product Display
