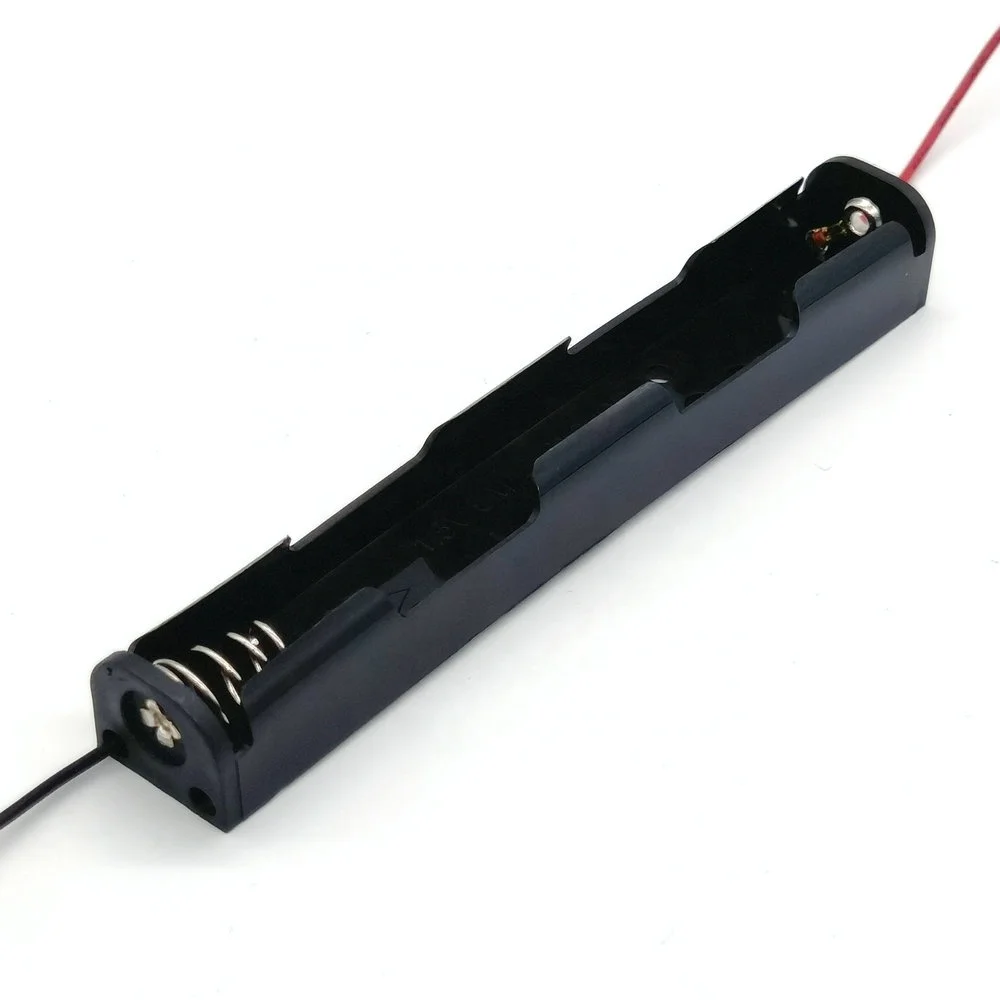

BeiLaMoo Two 2AA cell box with wire leads 150mm UM3*2 batt holder 14500 battery case
- Category: >>>
- Supplier: Haining Beilamu Electronic Co. Ltd.
Share on (1600545554806):
Product Overview
Description
FOCUS ON
THE BATTERY HOLDERS
AND
POWER SUPPLY
Product Description
Part Number | 325W |
Part Name | Two "AA" battery holder with 150mm wire leads |
Battery Size | AA, 14500, LR6, UM3 |
Number of Cells | 2 PCS |
Product Dimension | 109*17*14mm |
Connection Type | Series Connection |
Termination | Wire Leads,UL1007 AWG26#,Red and Black 150mm |
Case Material | PP Resin, Black |
Contact Material | 0.65mm 65C Spring Wire, Nickel Plated |
Operating Temperature | -40ºC to + 100ºC |
Compliance | RoHS 2.0 COMPLIANCE |
FEATURES | ADVANTAGE |
* Low section surface mount battery box body | *Save space |
* UL94-V0 grade flame retardant and heat-resistant nylon fiber material | *Provides Guarantee For High Temp Welding |
* Low Resistance Value Metal | *Carry large current discharge for a long time |
* Excellent space and structure | *Easy to install and take the battery without tools |
* Flexible welding method | *Lead-free welding and conventional welding |
* The higher strength shell has a longer service life | *Protect the battery safely and effectively |
* Close contact between the battery and the box body | *Ensures long-term trouble-free connection |
* Clear labels of positive and negative poles and directions | *Fast and accurate placement of batteries |
* Bottom screw installation | *Ensure the firmness of shell installation |
Product Usage
Product Usage Introduction
* Install the battery correctly according to the positive “+” and negative “-”poles on the holder.
Description of product use effect
* After loading the battery correctly, it can be energized normally.
Related Products
Company Introduction
BeiLaMoo was founded in 2008 which has developed various Battery Holders and the derivation products(Wire
and Connectors Processing,Metal stamping),battery snaps,Coin cell holders.
BeiLaMoo high-retention snaps are made from special phosphorous-bronze materials that maintain retention
properties longer than conventional snaps. They can be specified with leads, or attached to BeiLaMoo battery holders.
BeiLaMoo high-retention battery holders use special covers, molded lips and materials to ensure maximum
contacteven under physical duress. Constructed from standard polyethylene or ABS material, or stainless steel,
they are available in all sizes, with pre fitted mounting holes, battery snaps, lead wires, solder terminals, and PC
terminals, in black,white or metal finishes.
Complete valueadded and custom design capabilities are available. Contact BeiLaMoo for details or additional
information.
The products have gained RoHS,CCC,CE,VDE,CB and ISO9001:2000 certificate guarantee.The Company has an
established market reputation for quality control within this high volume segment.
and Connectors Processing,Metal stamping),battery snaps,Coin cell holders.
BeiLaMoo high-retention snaps are made from special phosphorous-bronze materials that maintain retention
properties longer than conventional snaps. They can be specified with leads, or attached to BeiLaMoo battery holders.
BeiLaMoo high-retention battery holders use special covers, molded lips and materials to ensure maximum
contacteven under physical duress. Constructed from standard polyethylene or ABS material, or stainless steel,
they are available in all sizes, with pre fitted mounting holes, battery snaps, lead wires, solder terminals, and PC
terminals, in black,white or metal finishes.
Complete valueadded and custom design capabilities are available. Contact BeiLaMoo for details or additional
information.
The products have gained RoHS,CCC,CE,VDE,CB and ISO9001:2000 certificate guarantee.The Company has an
established market reputation for quality control within this high volume segment.
MAIN PRODUCTS：
HOLDERS FOR DRY BATTERY：
D cell, C cell, AA cell, AAA cell ;
HOLDERS FOR LI-ION BATTERY：
CR123A（2/3A, 2/3AA, 14250（1/2AA）,CR2, 14500, 14505, 18500, 18650, 26650,21700 etc ;
HOLDERS FOR OTHER TYPE BATTERY：
6F22（9V）,N cell, AAAA cell, SC cell, 23A cell etc；
HOLDERS FOR COIN/BUTTON CELL:
12mm/16mm/20mm/23mm/24mm/30mm Dia.
RETAINERS FOR COIN/BUTTON CELL:
4.8mm/6.8mm/11.6mm/12mm/16mm/20mm/23mm/24mm Dia.
OTHER PRODUCTS：
Battery clips, Battery contacts,9 Volt battery Contacts/Sockets/Studs,Springs,
Connector straps etc.
MOUNTING TYPE：
NORMAL：Wire Leads, Solder Lugs, 9 Volt snap Fasteners, PC Pins
OTHERS：THM, SMT, DC Plug, Connector straps, Bump Plates, Custom Design etc.
HOLDERS FOR DRY BATTERY：
D cell, C cell, AA cell, AAA cell ;
HOLDERS FOR LI-ION BATTERY：
CR123A（2/3A, 2/3AA, 14250（1/2AA）,CR2, 14500, 14505, 18500, 18650, 26650,21700 etc ;
HOLDERS FOR OTHER TYPE BATTERY：
6F22（9V）,N cell, AAAA cell, SC cell, 23A cell etc；
HOLDERS FOR COIN/BUTTON CELL:
12mm/16mm/20mm/23mm/24mm/30mm Dia.
RETAINERS FOR COIN/BUTTON CELL:
4.8mm/6.8mm/11.6mm/12mm/16mm/20mm/23mm/24mm Dia.
OTHER PRODUCTS：
Battery clips, Battery contacts,9 Volt battery Contacts/Sockets/Studs,Springs,
Connector straps etc.
MOUNTING TYPE：
NORMAL：Wire Leads, Solder Lugs, 9 Volt snap Fasteners, PC Pins
OTHERS：THM, SMT, DC Plug, Connector straps, Bump Plates, Custom Design etc.
Packing&Shipping
Carton、Tray、PE Bag
FAQ
1.Can I get some samples?
Of course.A few samples are free and you only need to pay for delivery or you can provide us with your collect express account number.
2.Does the battery holders accept customization?
BeiLaMoo can design products according to your requirements and join to evaluate initial sample, we undertake various types of battery holder customization.
3.Does the battery holder connect to the connector?
The battery holder can be connected to a connector, such as DC plug, DuPont plug, 2.5mm or JST plug, etc.
4.Why should you buy from us not from other suppliers?
BeiLaMoo was founded in 2008 which has developed various Battery Holders and the derivation products,battery snaps,Coin cell holders.The products have gained RoHS,CCC,CE,VDE,CB and ISO9001:2000 certificate guarantee.The Company has an established market reputation for quality control within this high volume segment. Throughout our more than 10 years in the industry, our partners and clients spread all over the world.
Of course.A few samples are free and you only need to pay for delivery or you can provide us with your collect express account number.
2.Does the battery holders accept customization?
BeiLaMoo can design products according to your requirements and join to evaluate initial sample, we undertake various types of battery holder customization.
3.Does the battery holder connect to the connector?
The battery holder can be connected to a connector, such as DC plug, DuPont plug, 2.5mm or JST plug, etc.
4.Why should you buy from us not from other suppliers?
BeiLaMoo was founded in 2008 which has developed various Battery Holders and the derivation products,battery snaps,Coin cell holders.The products have gained RoHS,CCC,CE,VDE,CB and ISO9001:2000 certificate guarantee.The Company has an established market reputation for quality control within this high volume segment. Throughout our more than 10 years in the industry, our partners and clients spread all over the world.
