Product Overview
Description

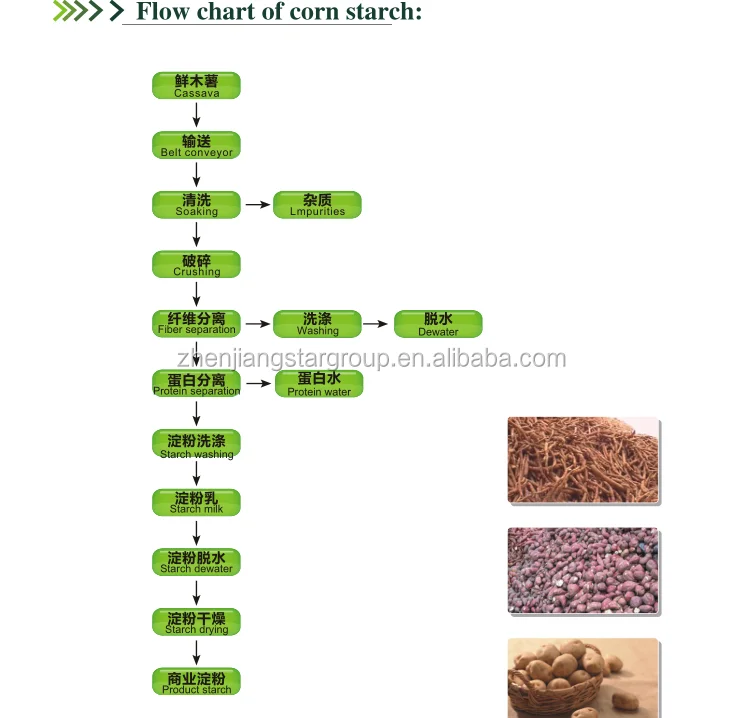

Cassava and sweet potato starch equipment
Product Description

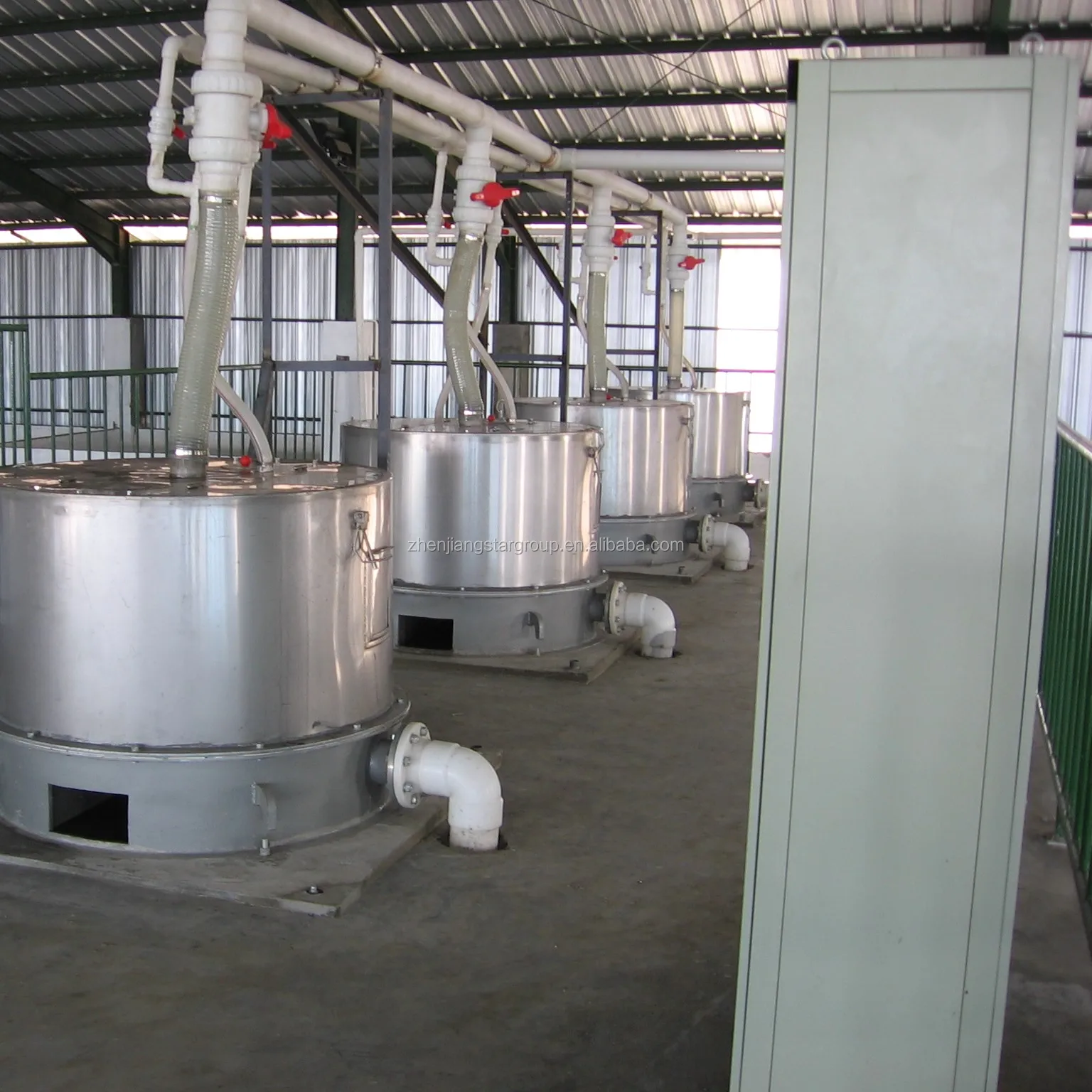

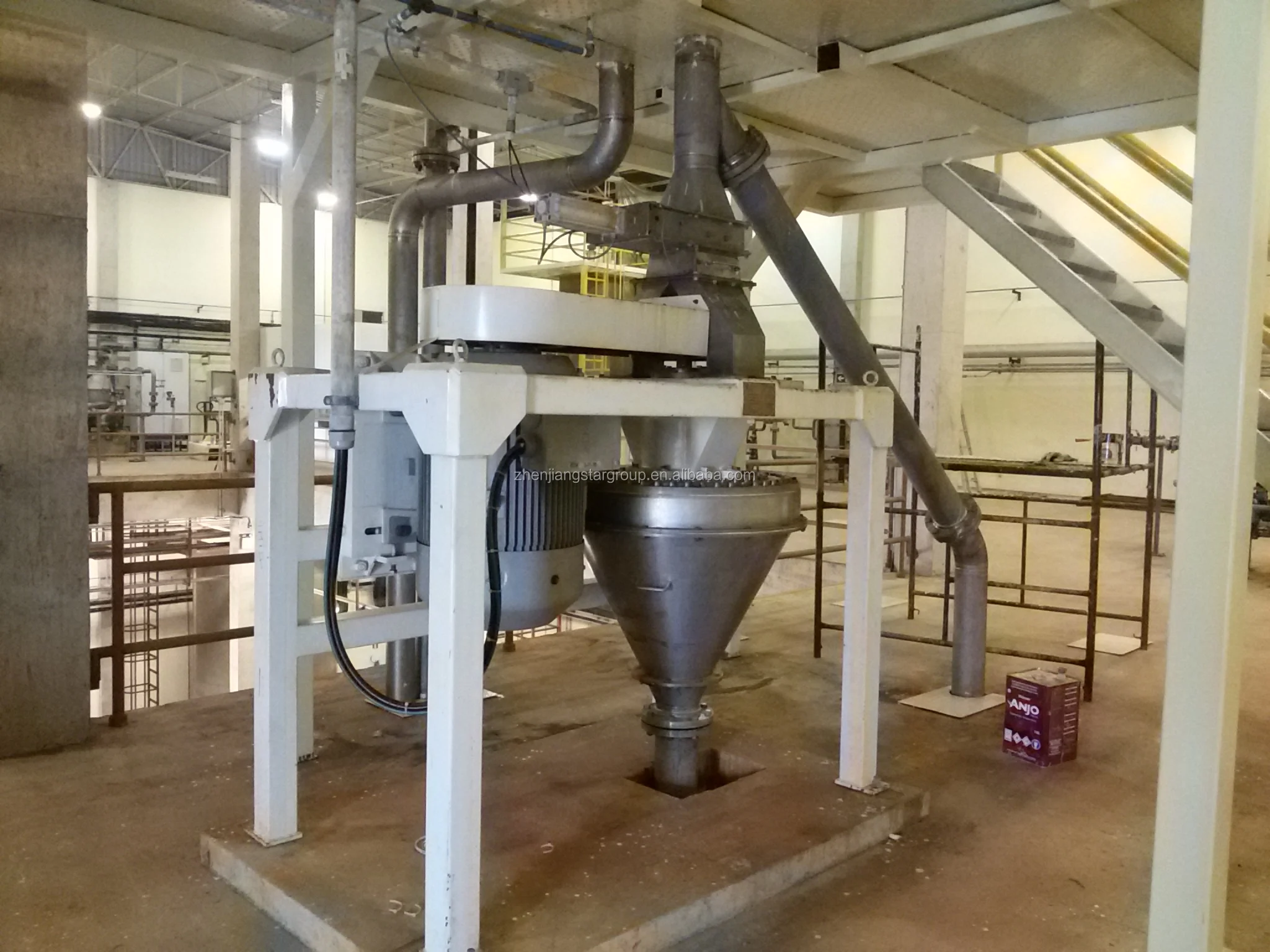

Centrifugal screen
Purpose is fiber separation\\washing and dewater
Modular installation, lower energy consumption
Vertical structure, smooth operation, the dehydration effect is good
Unique flushing device, greatly improve the recovery rate of starch
Model | LIF-800 |
Diameter | 800mm |
Capacity | 20-30m3/h |
Motor | 7.5-15kw |

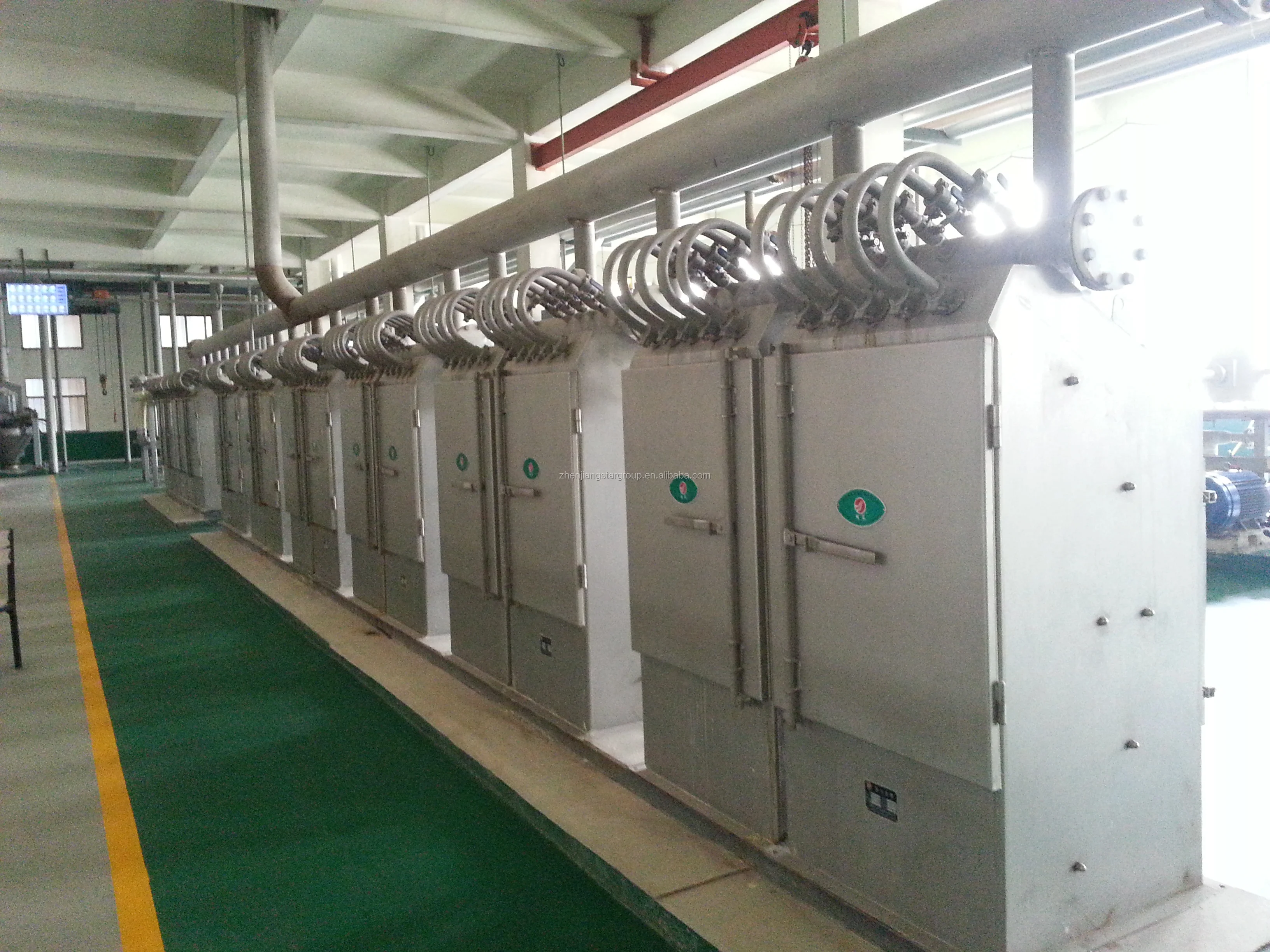

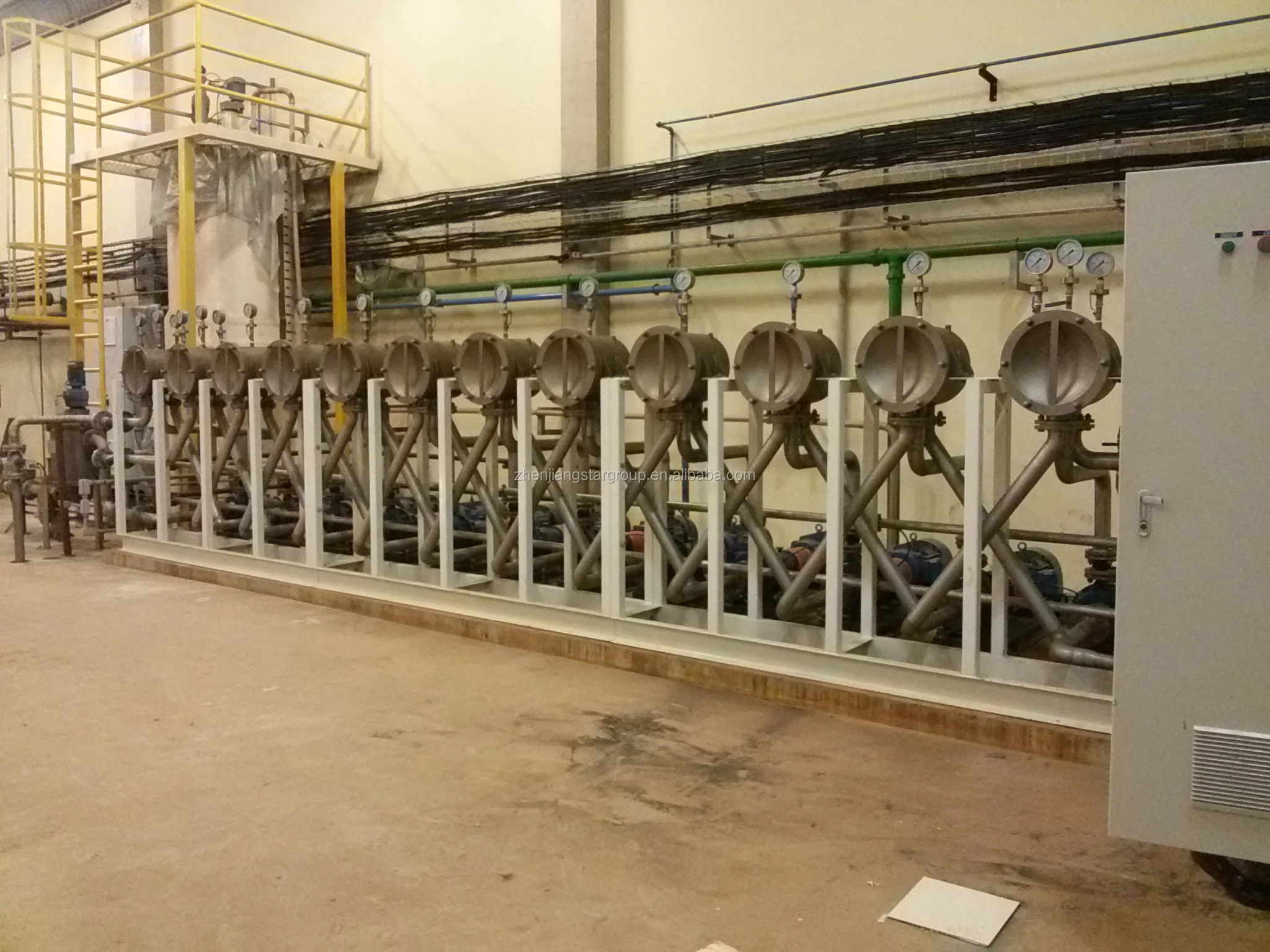

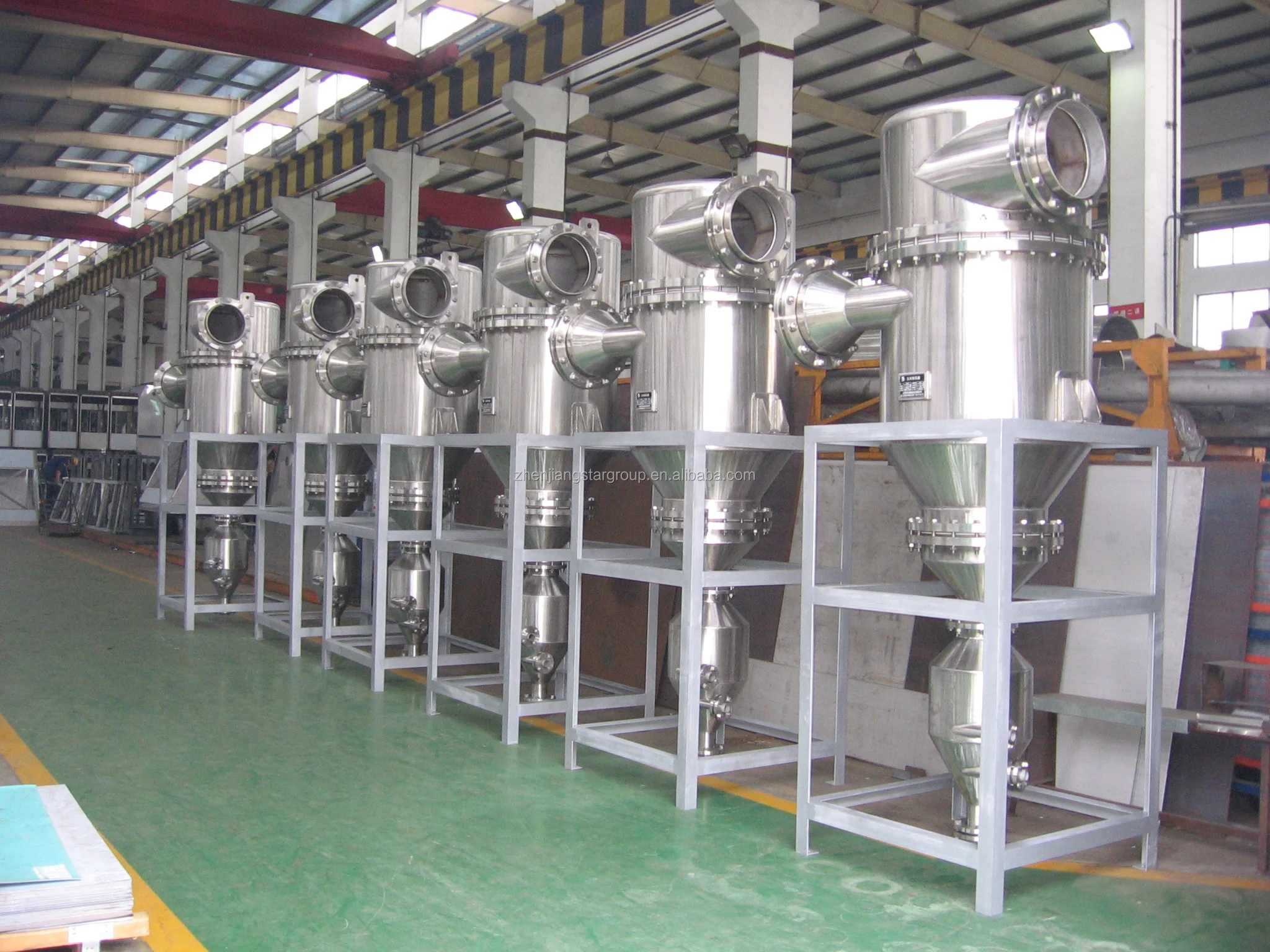

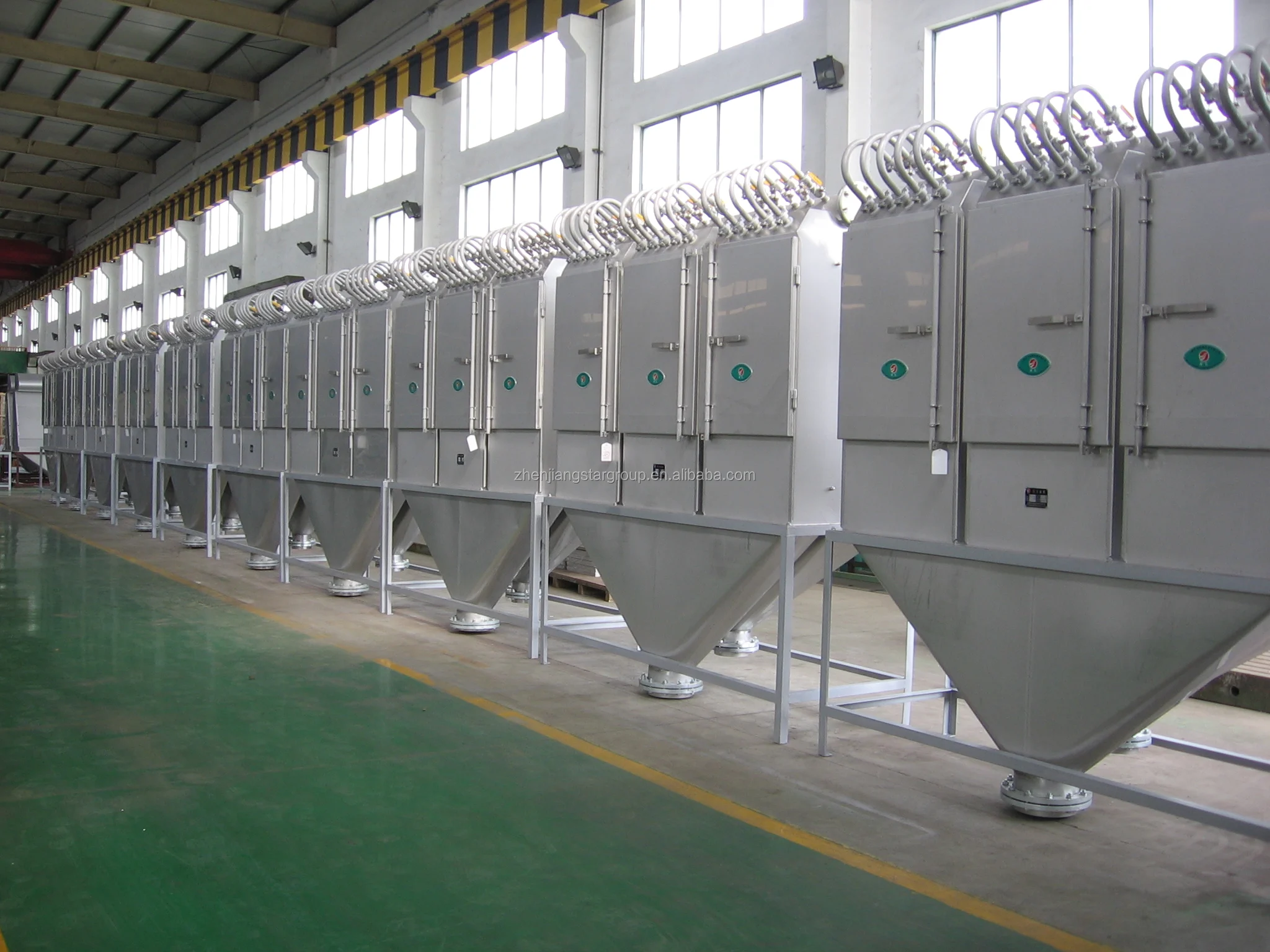

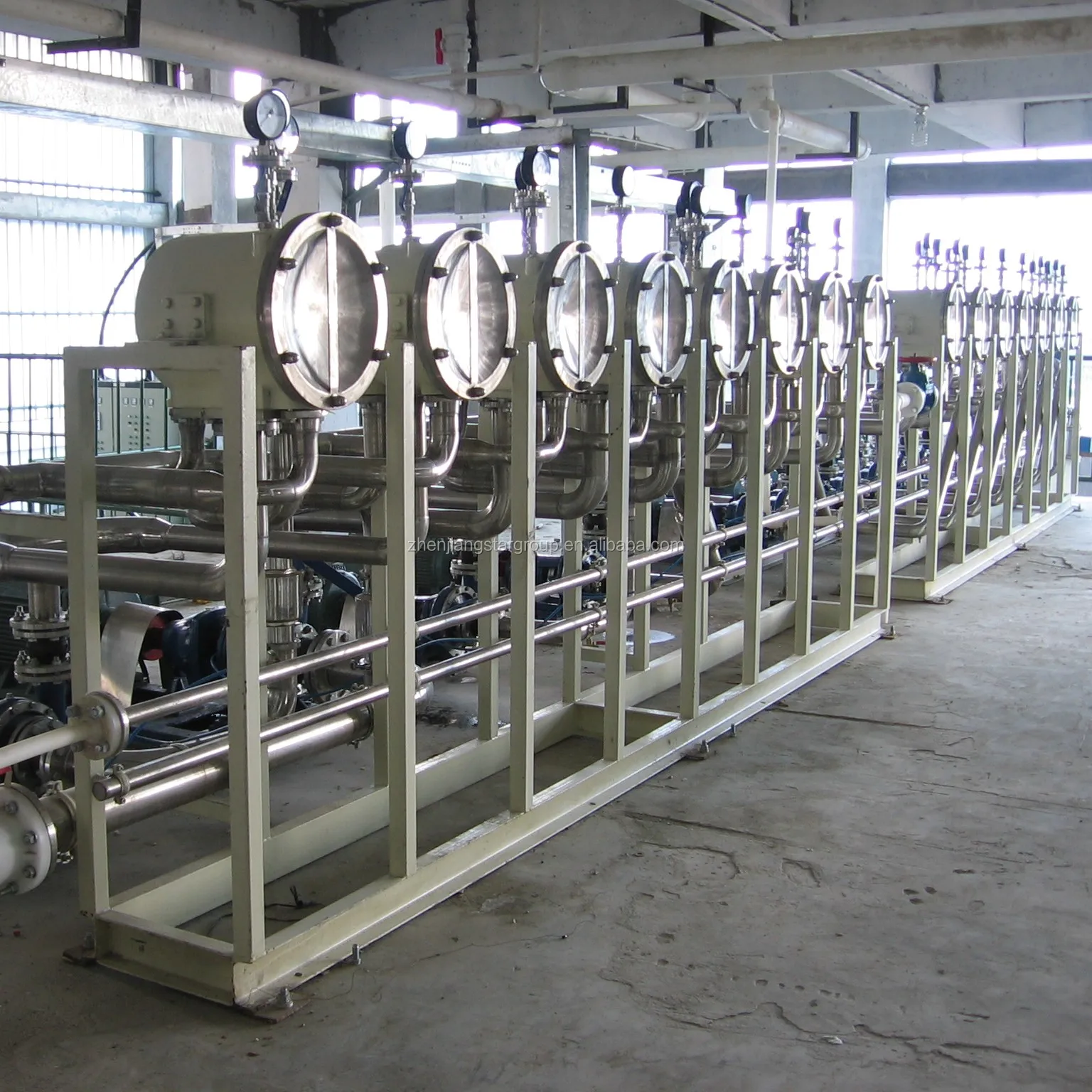

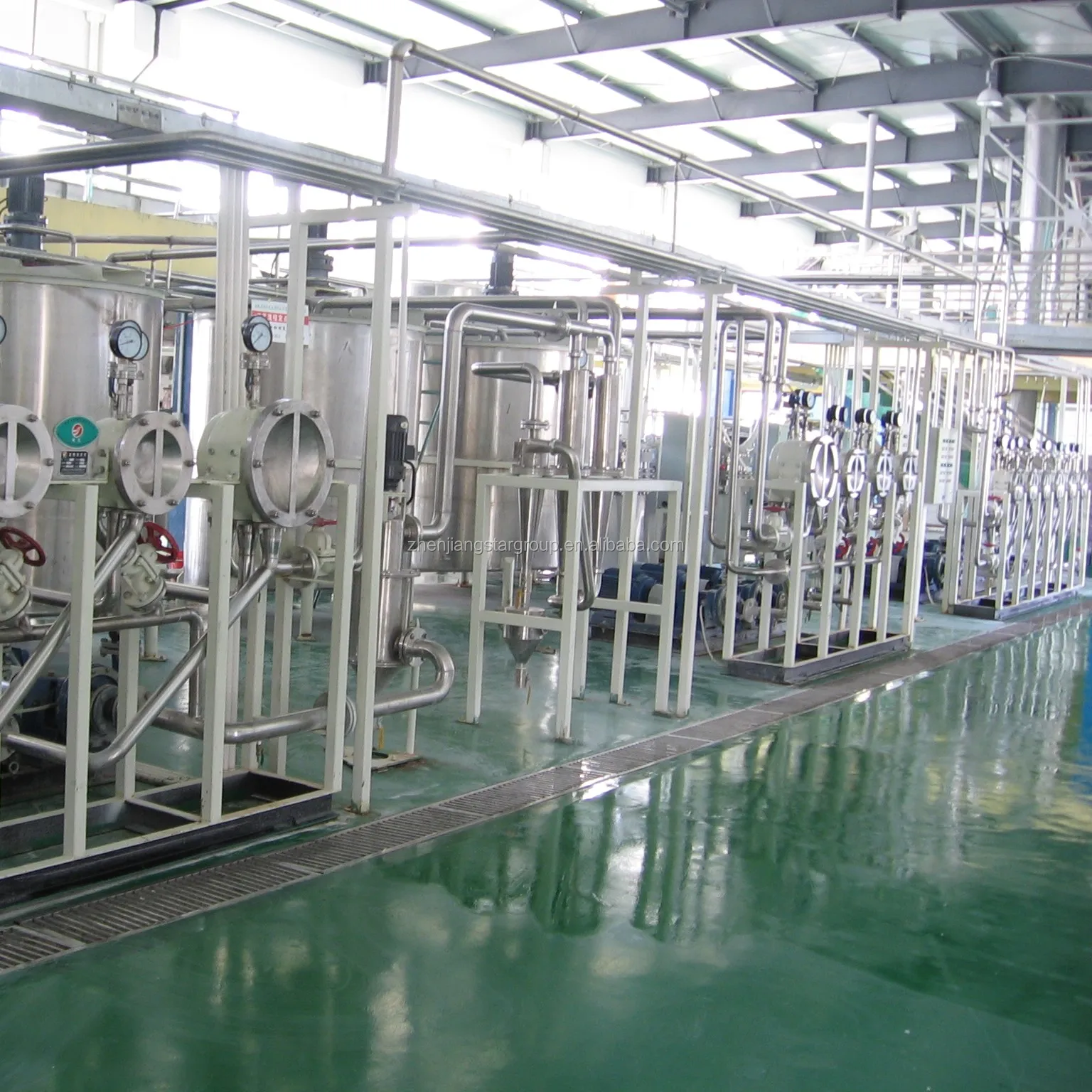

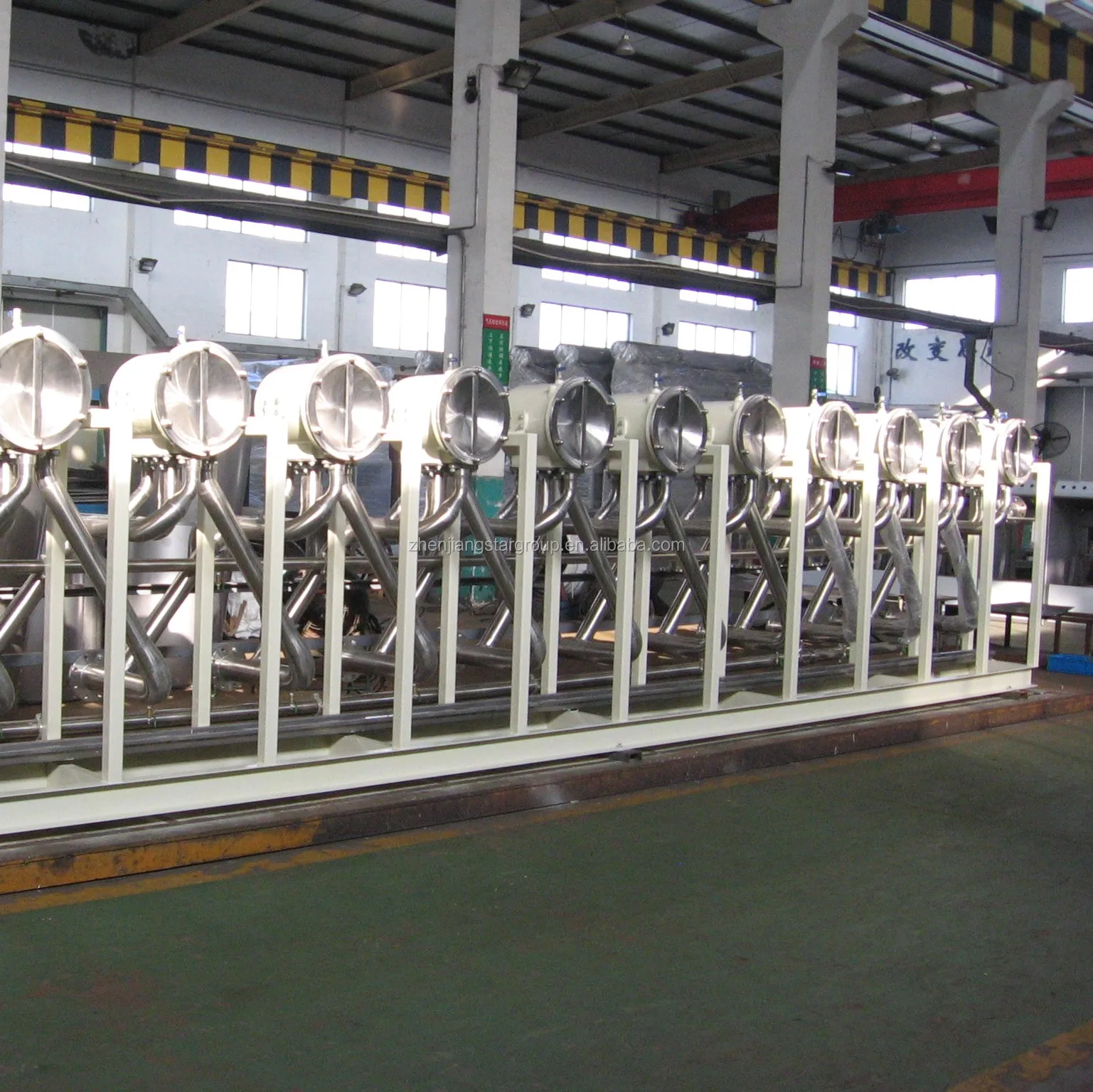

Starch hydro-cyclone
Purpose is purify and extracts starch
Including recycling equipment, starch without loss
Grade 9-12 series, ensure low protein content
Easonable structure convenient to maintain
Model | DXL-80 | DXL-170 | DXL-350 |
Capacity(t/d) | 0.6-1.5 | 1.5-3 | 3-7 |
Pressure(mpa) | 0.6-0.8 | ||
Motor(kw) | 7.5-11 | 15-18.5 | 30-37 |
Cassava washer
Purpose is potato raw material cleaning\\soaking and peeling
Simple structure, smooth operation
Model | SQX-800 | SQX-1200 | SQX-1500 |
Diameter(mm) | 800 | 1200 | 1500 |
Length(m) | 3-6 | ||
Capacity(t/h) | 5-10 | 10-20 | 15-30 |
Motor(kw) | 3-4 | 4-5.5 | 5.5-7.5 |
Disintegrator
Purpose is potato raw material crushing
Simple structure, smooth operation
Modular installation, no temperature rise, good fineness
Model | 6WSJ-456 | WSJ-556 | WSJ-55L |
Mesh(mm) | 1.4-2 | ||
Speed(r/min) | 2970 | ||
Capacity(t/h) | 5-10 | 10-20 | 15-30 |
Motor | 45-55 | 55-75 | 75-90 |
Centrifugal screen
Purpose is fiber separation\\washing and dewater
Modular installation, lower energy consumption
Vertical structure, smooth operation, the dehydration effect is good
Unique flushing device, greatly improve the recovery rate of starch
Model | LIF-800 |
Diameter | 800mm |
Capacity | 20-30m3/h |
Motor | 7.5-15kw |
Starch hydro-cyclone
Purpose is purify and extracts starch
Including recycling equipment, starch without loss
Grade 9-12 series, ensure low protein content
Easonable structure convenient to maintain
Model | DXL-80 | DXL-170 | DXL-350 |
Capacity(t/d) | 0.6-1.5 | 1.5-3 | 3-7 |
Pressure(mpa) | 0.6-0.8 | ||
Motor(kw) | 7.5-11 | 15-18.5 | 30-37 |
