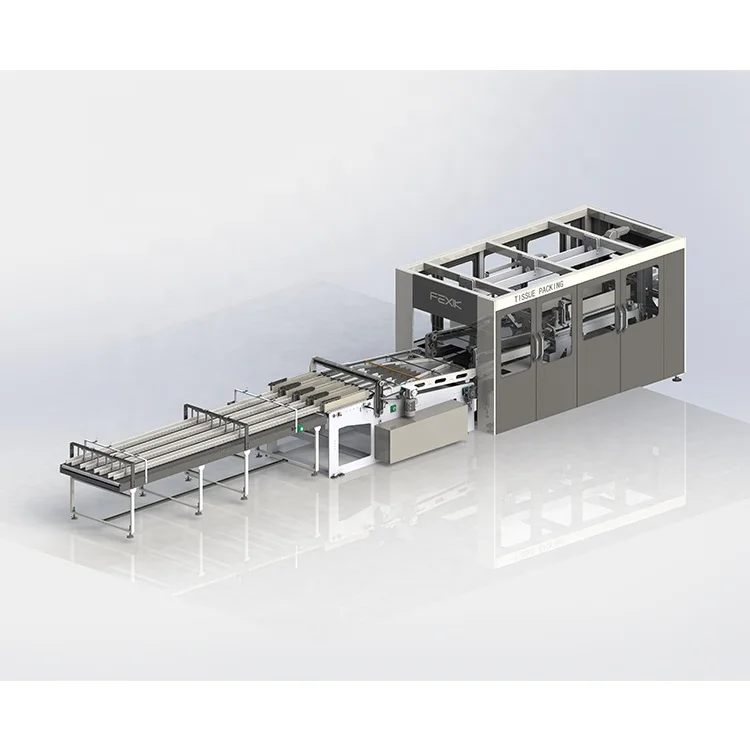

T3 toilet paper production line
- Category: >>>
- Supplier: Liuzhou Zode Machinery Sci-Tech Co. Ltd.
Share on (1600545590654):
Product Overview
Description

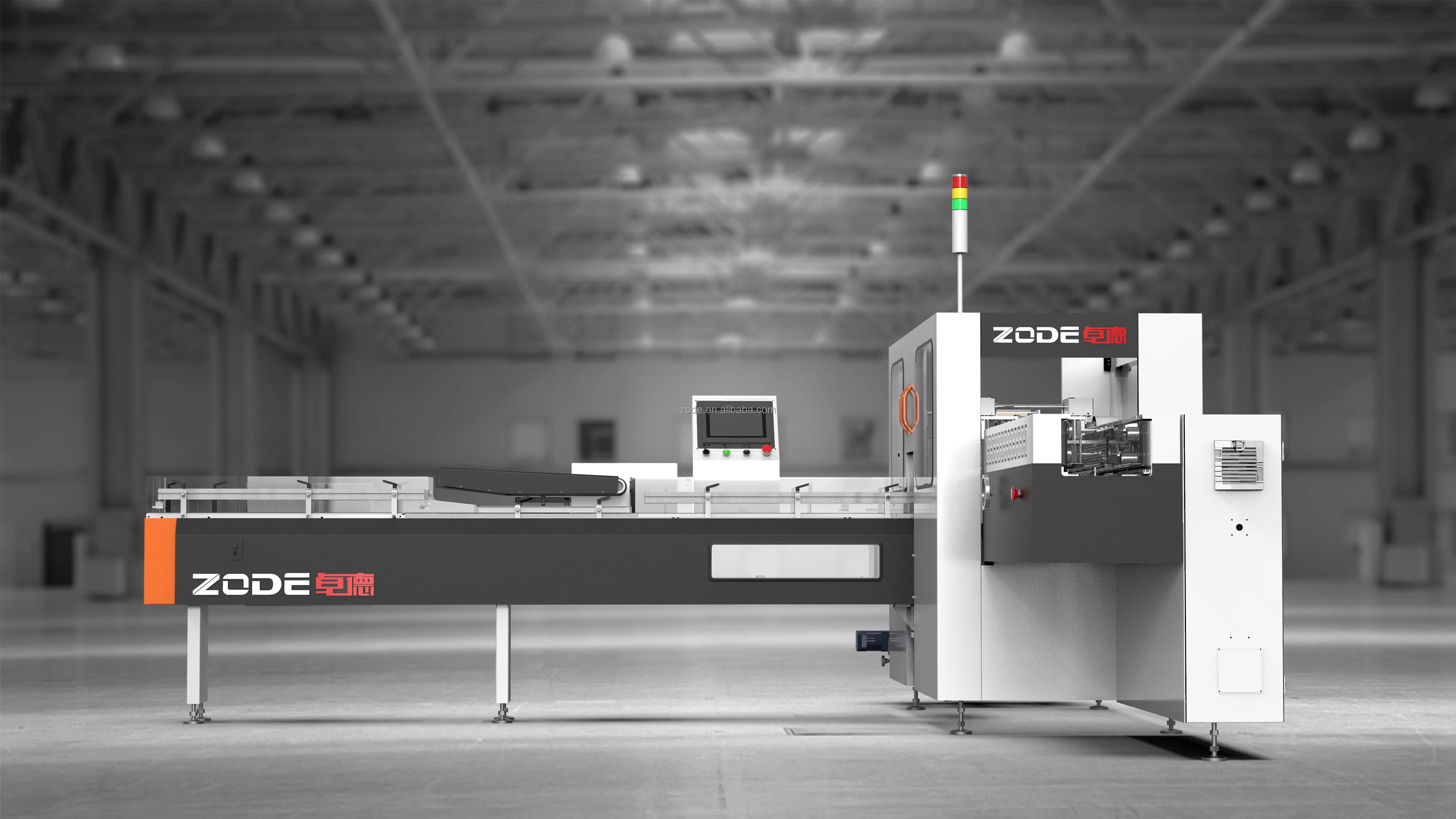

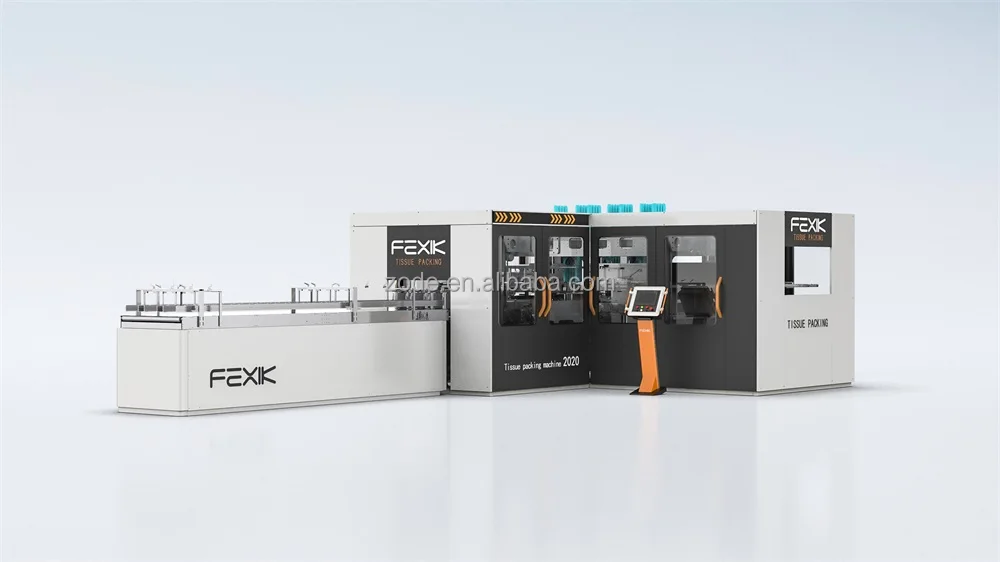

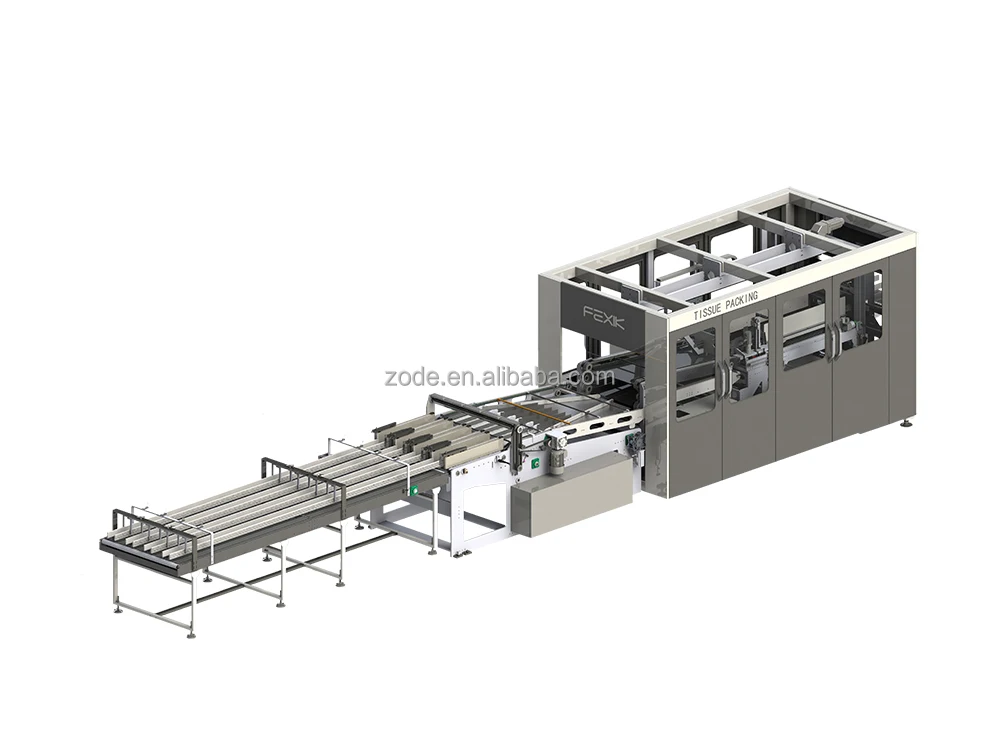

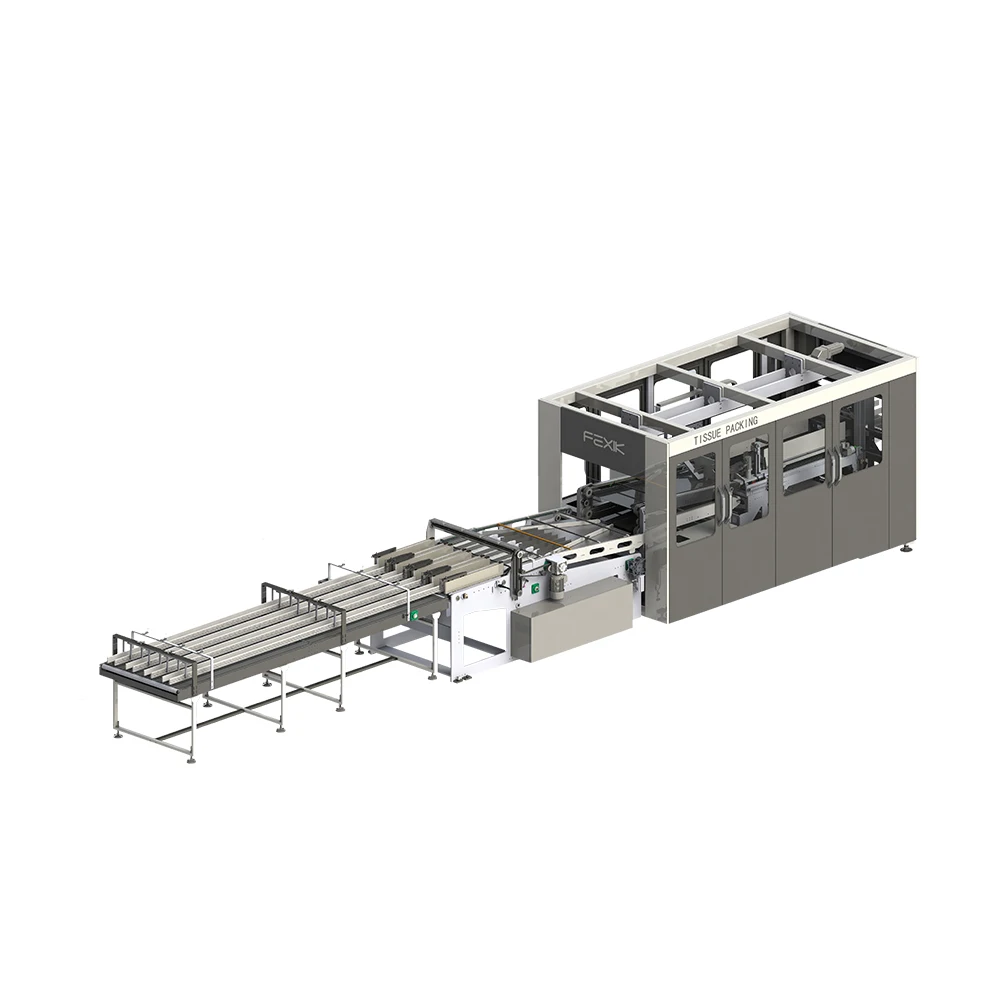

Fully automatic toilet tissue paper bundling packing machine
Product Overview
ZODE Automatic Tissue Paper Cutting And Packing Machine Paper Bundle Packing Machine
Main Features and Advantages
1) The double-layer packaging machine provides a variety of packaging configurations for toilet roll and kitchen towel, which is suitable for automatically producing toilet paper and kitchen paper in all directions with 1 layer or 2 layers.
2) Adopting automatic servo control system, all motions and functions are fully controlled by 19 independent servo axis.

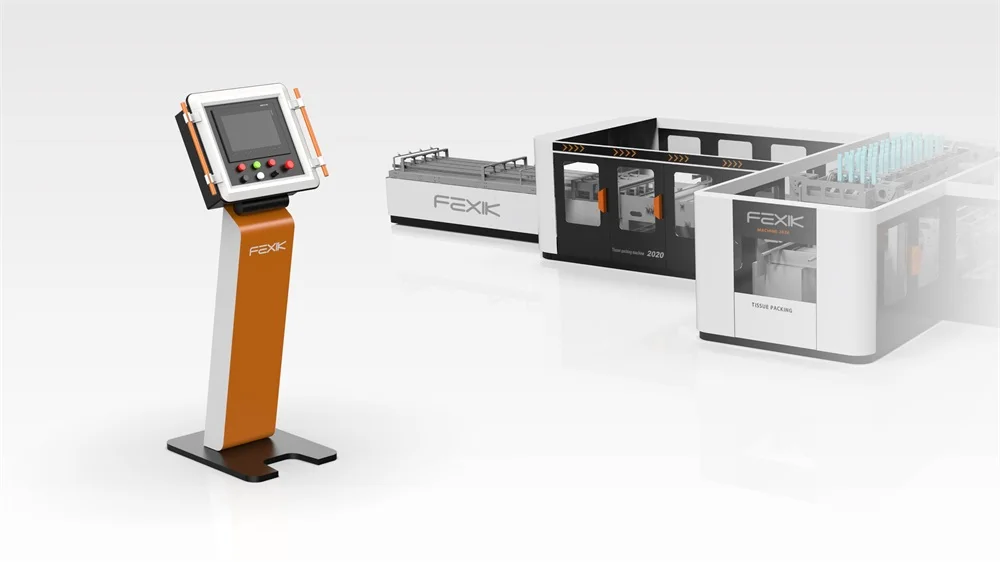

3) Humanized HMI assists the operation of machine and conversion of speed and configurations. Alternative options for many packaging configurations show on HMI.
4) The innovative design of the heat-sealing system makes the heating uniform and stable, to ensure the bag sealing in great quality.
5) The use of motor adjustment is convenient and quick. Format changing is extremely easy and fast.
6) A new and better bags loading and opening system is designed for the packaging machine to ensure that the operation speed canbe achieved more than 25 bags/min or more when packaging a large configuration. The cost of machine maintenance is very low, and the machine is small, occupying less area.
1) The double-layer packaging machine provides a variety of packaging configurations for toilet roll and kitchen towel, which is suitable for automatically producing toilet paper and kitchen paper in all directions with 1 layer or 2 layers.
2) Adopting automatic servo control system, all motions and functions are fully controlled by 19 independent servo axis.
3) Humanized HMI assists the operation of machine and conversion of speed and configurations. Alternative options for many packaging configurations show on HMI.
4) The innovative design of the heat-sealing system makes the heating uniform and stable, to ensure the bag sealing in great quality.
5) The use of motor adjustment is convenient and quick. Format changing is extremely easy and fast.
6) A new and better bags loading and opening system is designed for the packaging machine to ensure that the operation speed canbe achieved more than 25 bags/min or more when packaging a large configuration. The cost of machine maintenance is very low, and the machine is small, occupying less area.
FEATURES AT A GLANCE
Full servo control
4 channels
2 layers
5-30 bags/min

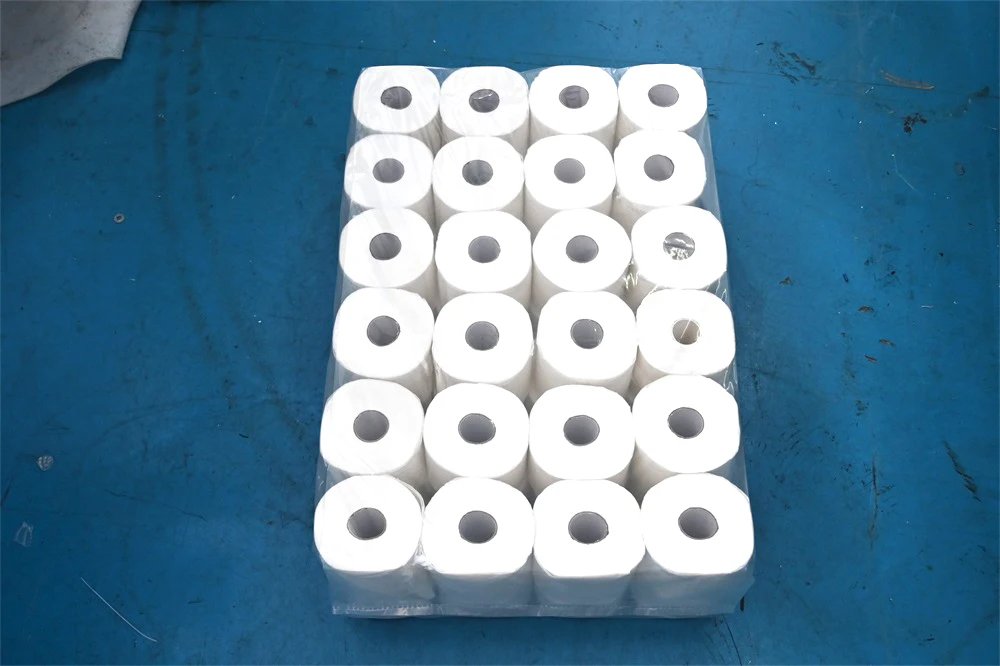

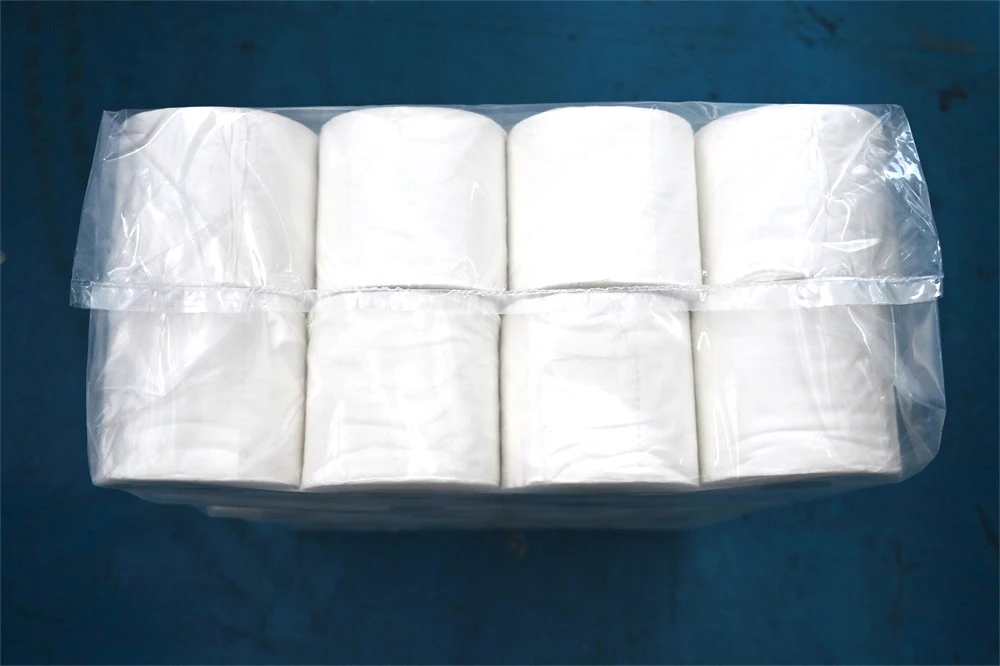

Toilet paper: 2-48 rolls pack
Kitchen towel: 2-24 rolls pack
Product Paramenters
Items | Technical Parameters |
Output | 5-30 bags/min(stable speed) |
Size range bag | Max: L720*W520*H280(mm) |
Configuration | Toilet tissue roll: 2-48 rolls Kitchen towel :2-16 rolls |
Power supply | 380V/50HZ |
Mini air pressure requirement | 0.5Mpa |
Packing material | PE, PP, PPE, OPP, CPP, PT Precast bag |
Power consumption | 18KW |
Machine size | L3900mm*W1600mm*H2200mm |
Machine weight | 4800kg |

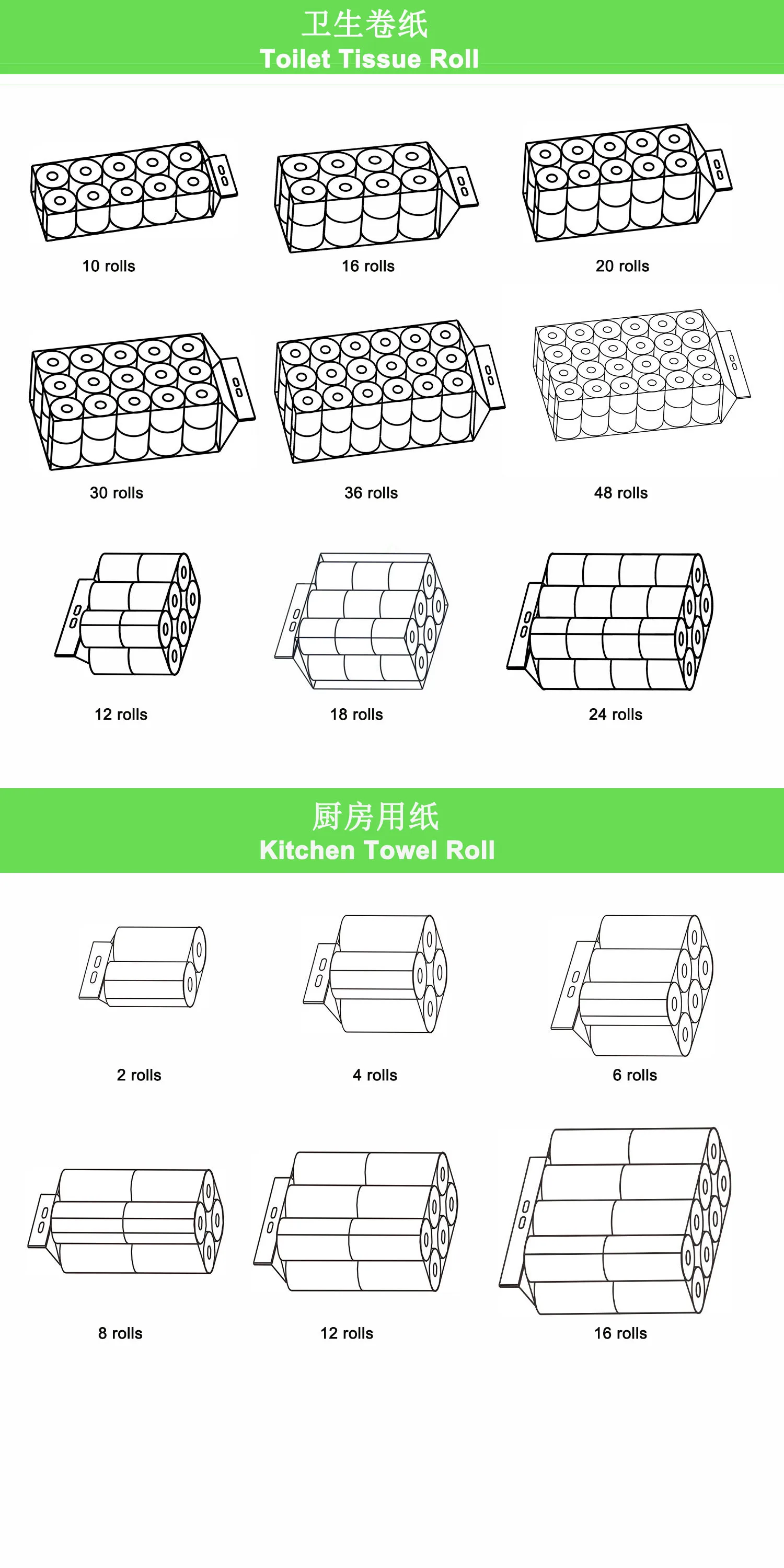

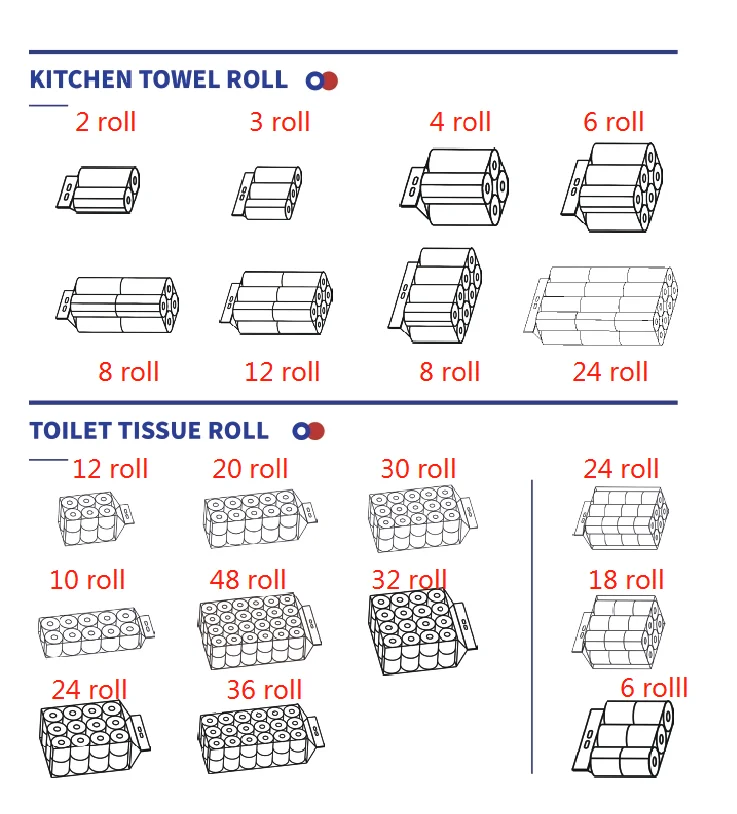

Configurations

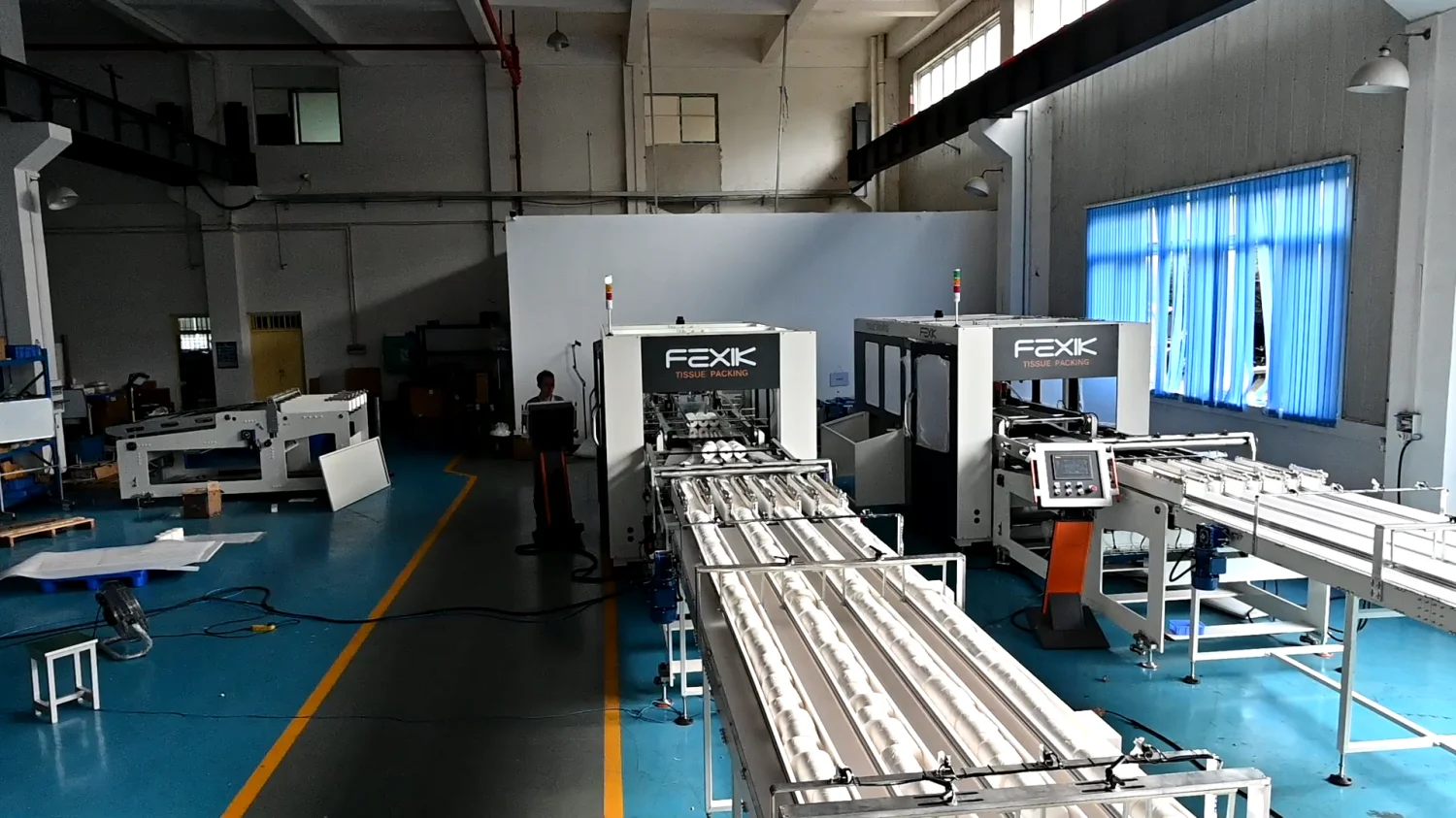

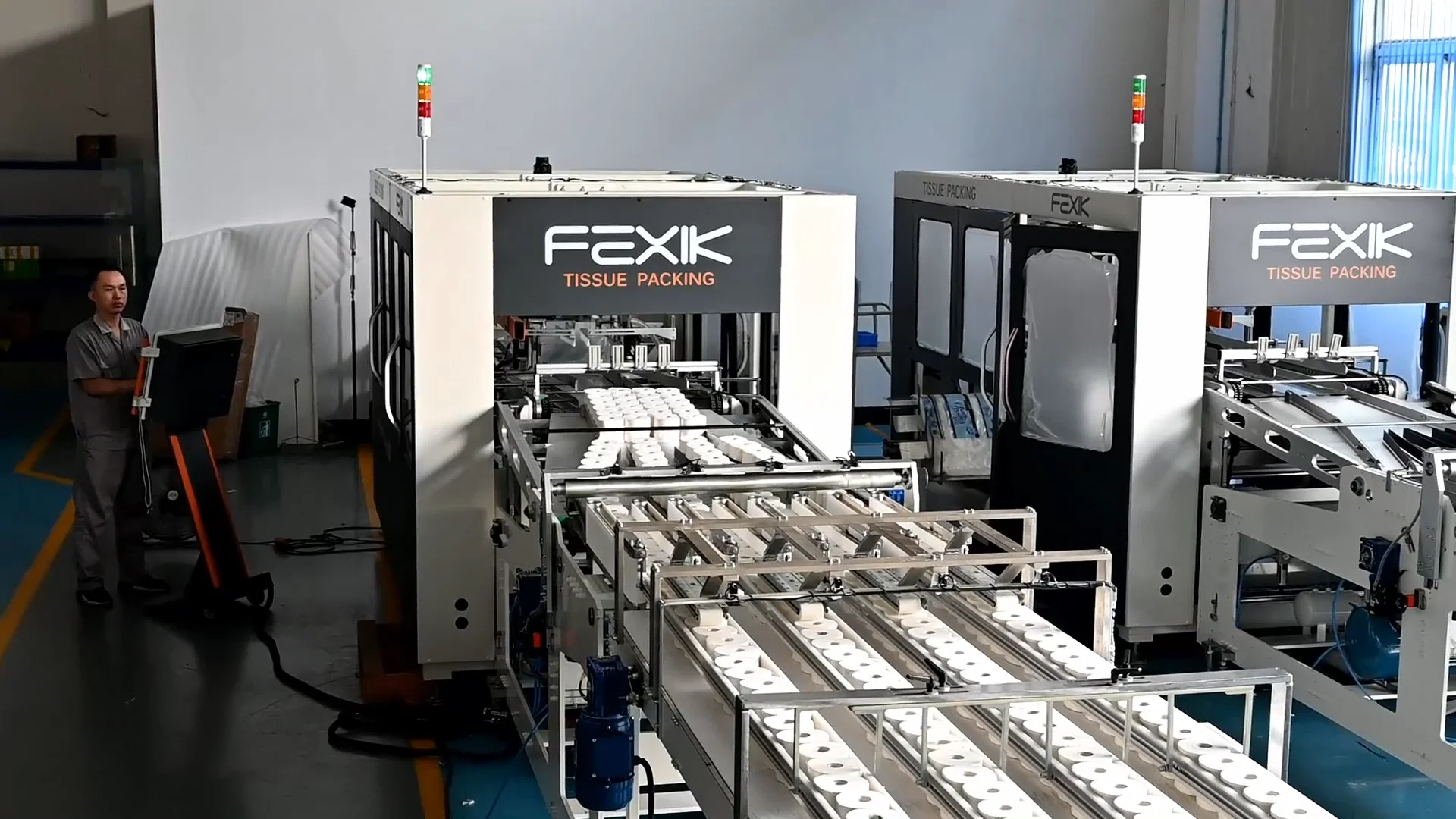

Successful Project
