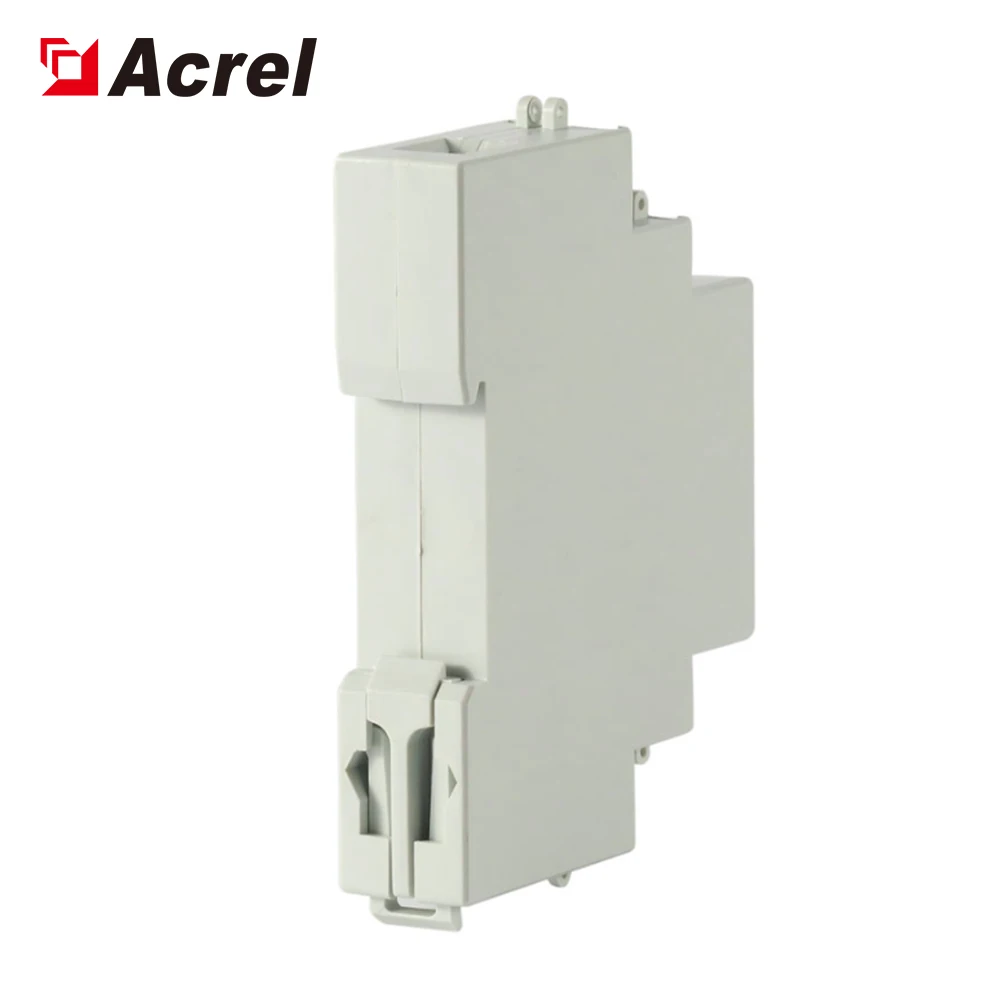

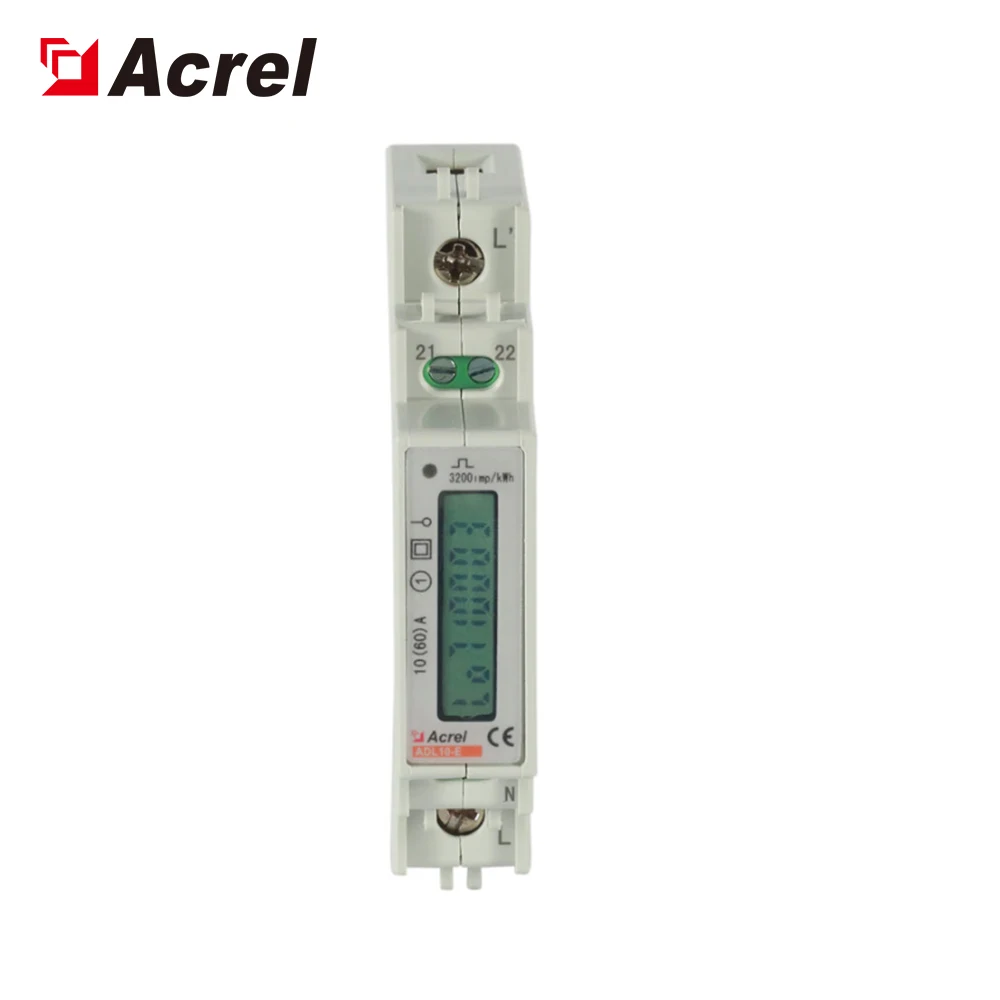

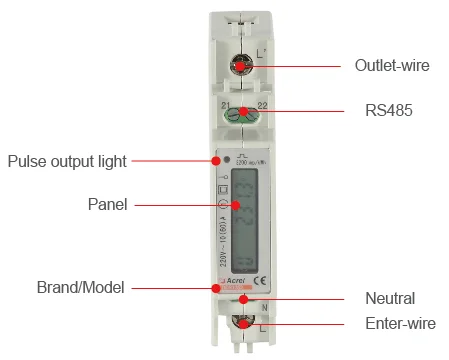

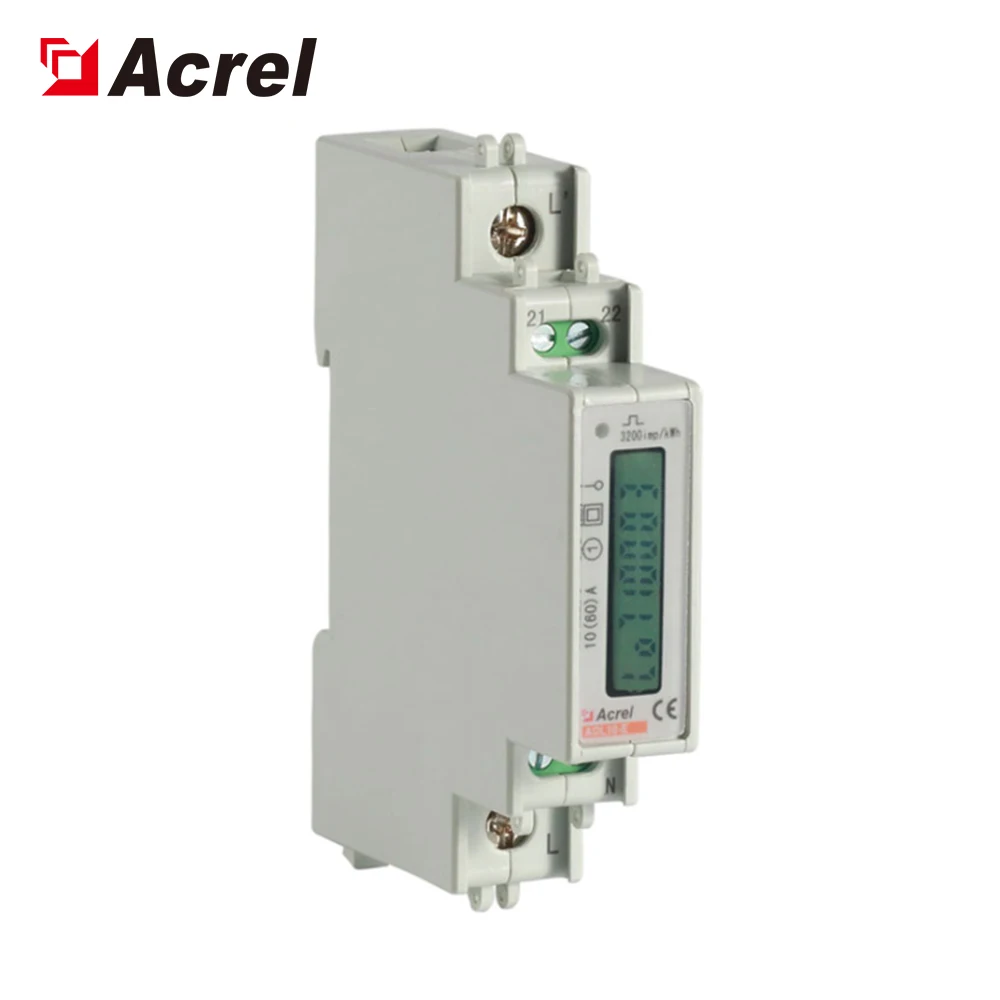

Acrel ADL10 E Single Phase 10(60)A Direct Connect Kwh Energy Meter Din Rail with LCD Display and RS485

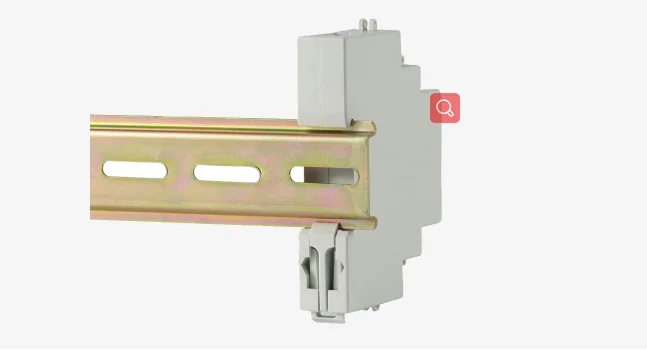

Acrel ADL10-E Single Phase 10(60)A Direct Connect Kwh Energy Meter Din Rail with LCD Display and RS485
Acrel ADL10-E Single Phase 10(60)A Direct Connect Kwh Energy Meter Din Rail with LCD Display and RS485
Acrel ADL10-E Single Phase 10(60)A Direct Connect Kwh Energy Meter Din Rail with LCD Display and RS485
Acrel ADL10-E Single Phase 10(60)A Direct Connect Kwh Energy Meter Din Rail with LCD Display and RS485
Acrel ADL10-E Single Phase 10(60)A Direct Connect Kwh Energy Meter Din Rail with LCD Display and RS485
Acrel ADL10-E Single Phase 10(60)A Direct Connect Kwh Energy Meter Din Rail with LCD Display and RS485

Acrel ADL10 E Single Phase 10(60)A Direct Connect Kwh Energy Meter Din Rail with LCD Display and RS485

Share on (1600545591338):


Price:$17.50

Quantity:


Product Overview

Description









Product Description












Specification


Type
Length
Width
Height
ADL10-E
96mm
18mm
70mm



Voltage
Reference voltage
AC 220V
Reference frequency
45-65 Hz
Consumption
<10VA( Single phase)

Current
Maximum
60A
Starting current
0.004 Ib
Consumption
<4VA(Maximum current)
Measurement performance
Accuracy of active kWH
Class 1
Standards
IEC 62053-21:2003

Pulse
Pulse width
80+20 ms
Pulse constant
3200 imp/kWH

Communication
Interface
RS485
Protocol
Modbus-RTU

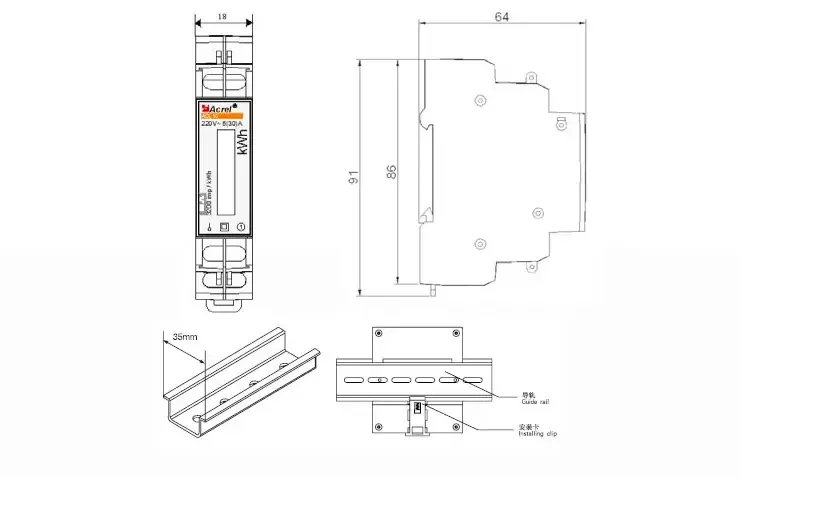

Outling
L*W*H(mm)
18*88*70


Environment
Temperature
Operating:-25℃~55℃；Storage:-40℃~70℃
Humidity
≦95% (No condensation)
Altitude
<2000m
