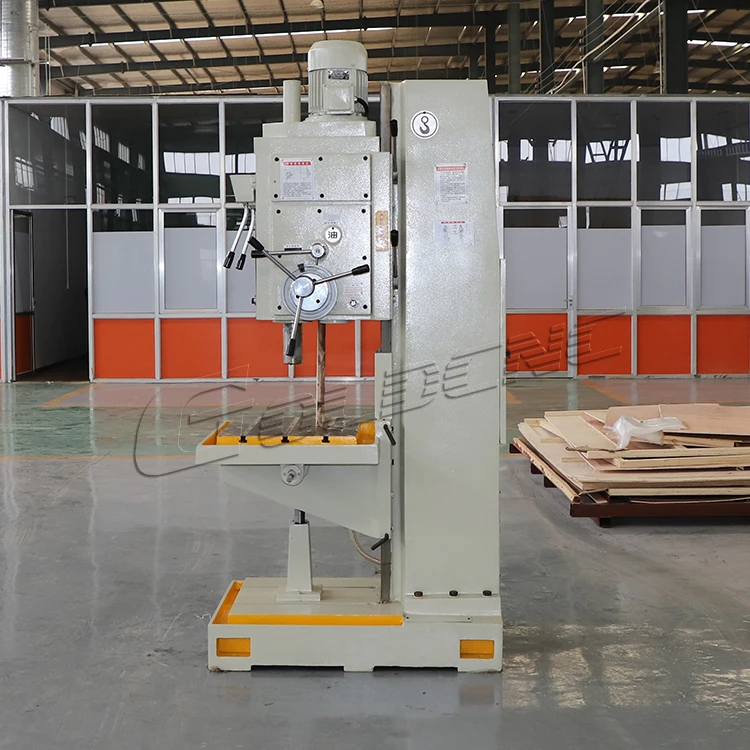

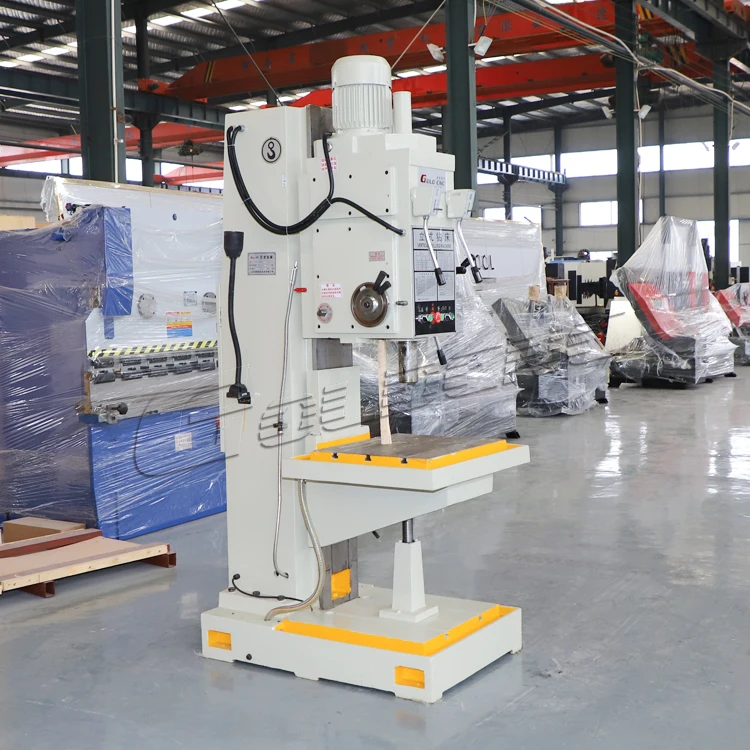

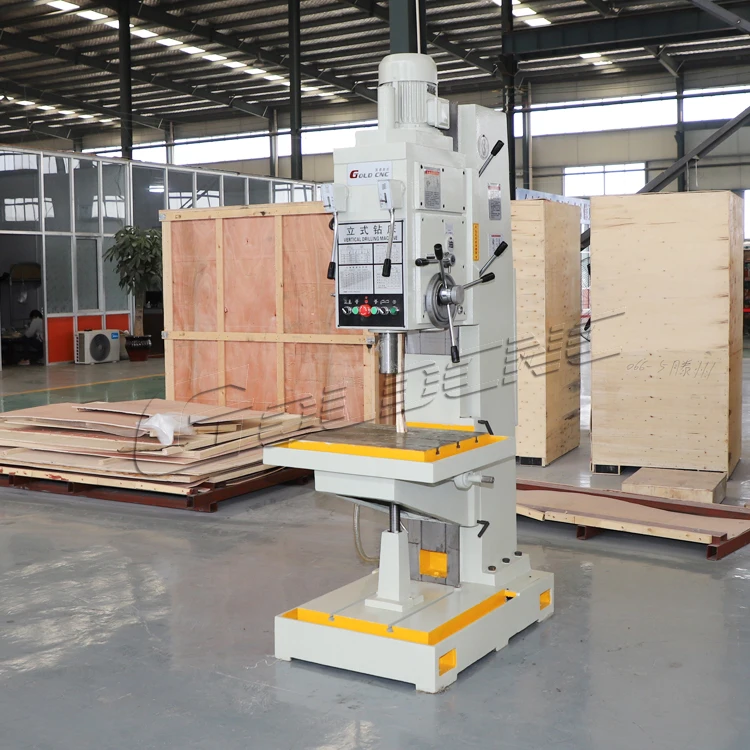

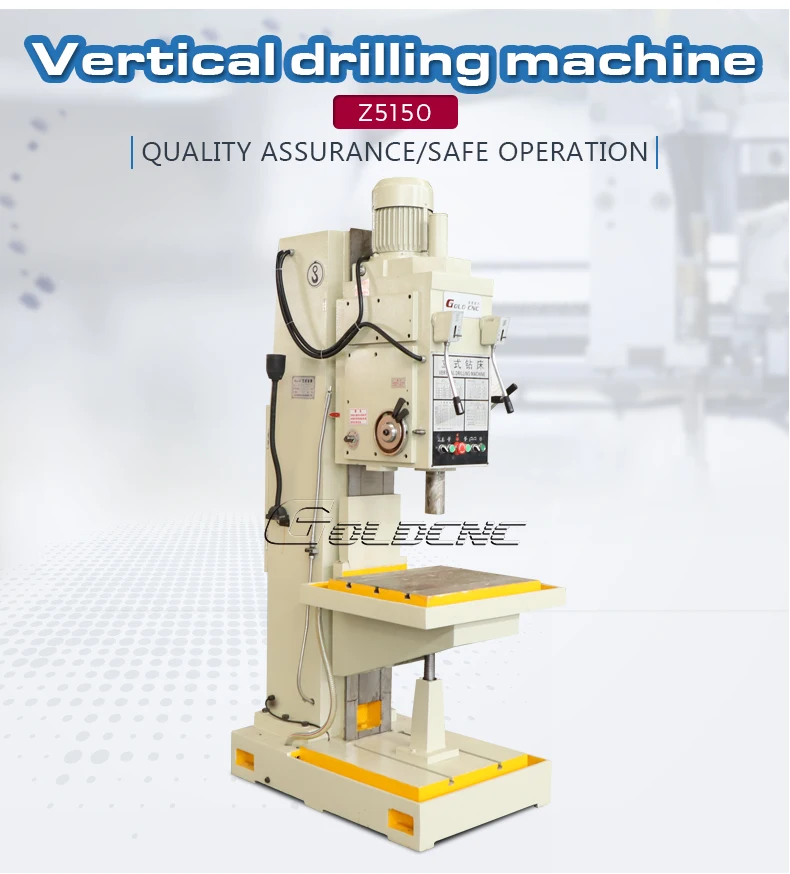

Z5150 Vertical Drill Machine Boring Machines Drilling Machine
- Category: >>>
- Supplier: Shandong Gold Cnc Machine Tool Co. Ltd.
Share on (1600545592366):
Product Overview
Description
Product Description
The base, column, and table of the vertical drilling machine are cast with gray iron, and the guide rails are quenched to ensure that the accuracy is lasting and not deformed. The spindle speed control adopts high-performance spindle motor, low-speed torque is large, and high-speed operation is stable and reliable.The column is driven by a guide rail and a screw rod, and the worktable is lifted and lowered by a large pitch screw rod, which is durable and more abrasive,and has a long service life.
Product Parameters
Specifications | Z5140 | Z5150 |
Max.drilling capacity | 40mm | 50mm |
Spindle taper | MT4 | MT5 |
Spindle travel | 250mm | 250mm |
Spindle box travel(manual) | 200mm | 200mm |
Step of speed | 12 | 12 |
Step of feeding | 9 | 9 |
Spindle speed | 31.5-1400rpm | 31.5-1400rpm |
Range of feeding | 0.056-1.80mm/r | 0.056-1.80mm/r |
Worktable size | 560x480mm | 560x480mm |
Transverse travel of worktable | 450/300mm | 450/300mm |
Lifting stroke of worktable | 300mm | 300mm |
Maximum distance from spindle end to worktable | 750mm | 750mm |
Main motor | 3kw | 3kw |

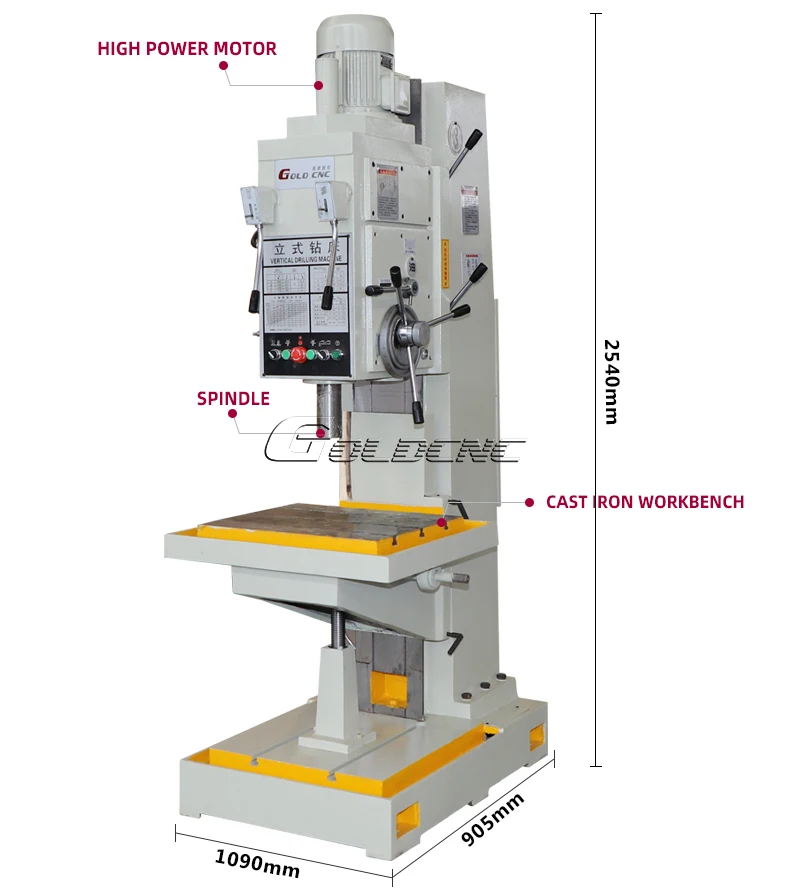

Machine Size | 1090x905x2540mm | 1090x905x2540mm |

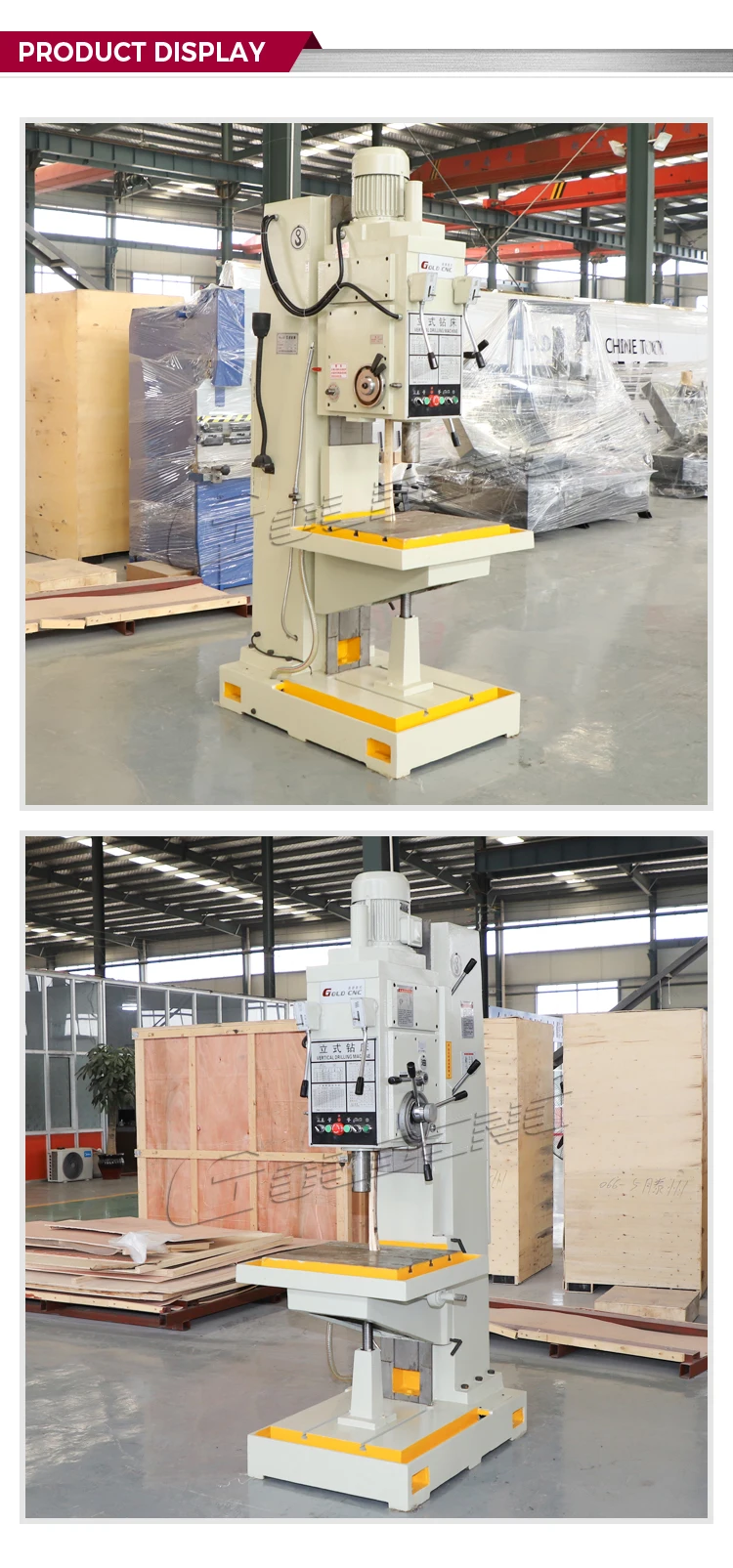

Detailed Images

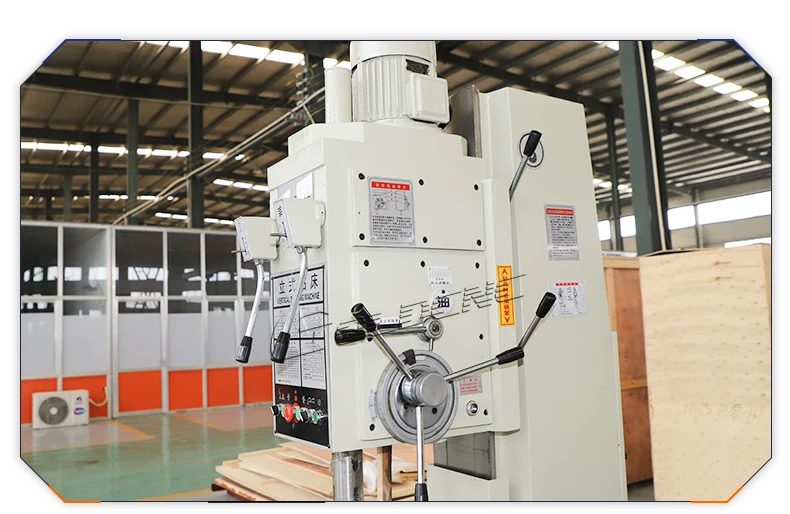

The transmission mechanism at all levels of the spindle is sensitive and reliable; the operating system is centralized, which is convenient and quick to use and convenient to maintai.

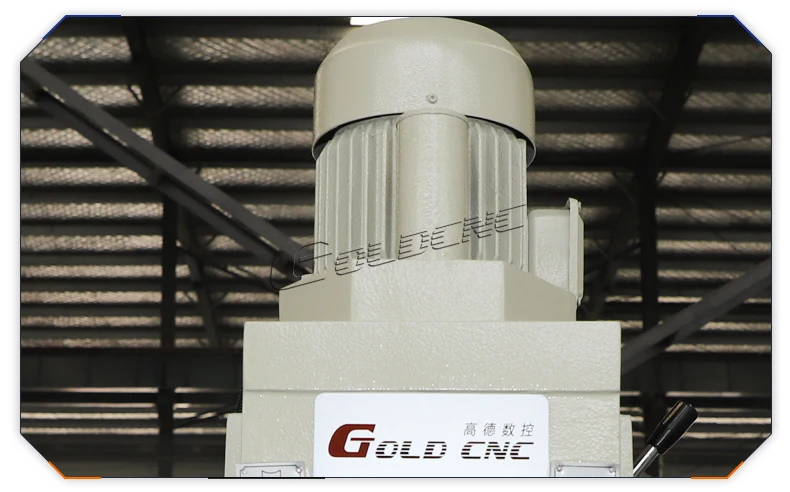

02 Copper core motor
Cast iron shell, all copper wire motor; sturdy and durable, full of power

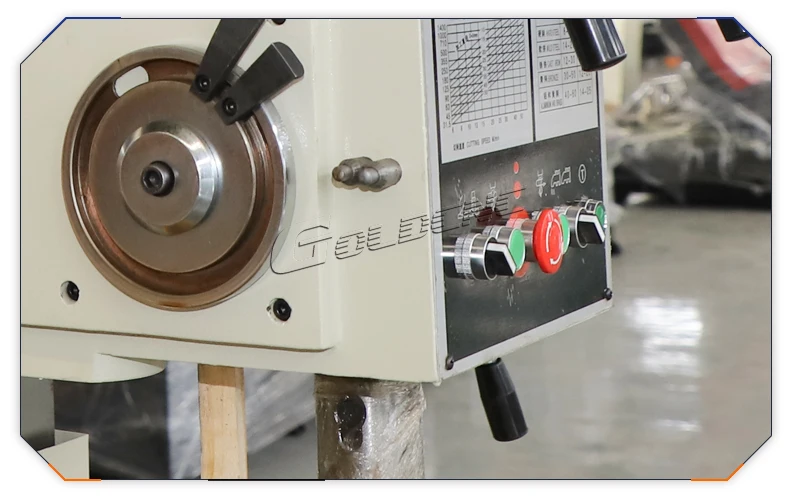

There is a dial on the hand wheel, which can accurately know the processing progress

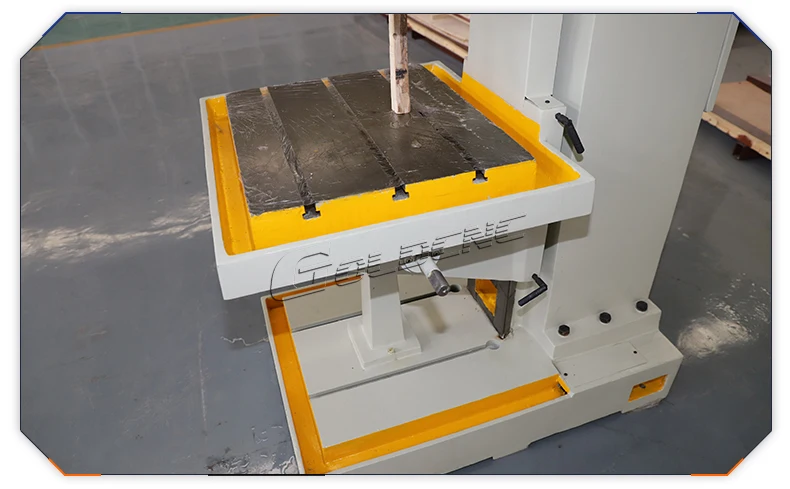

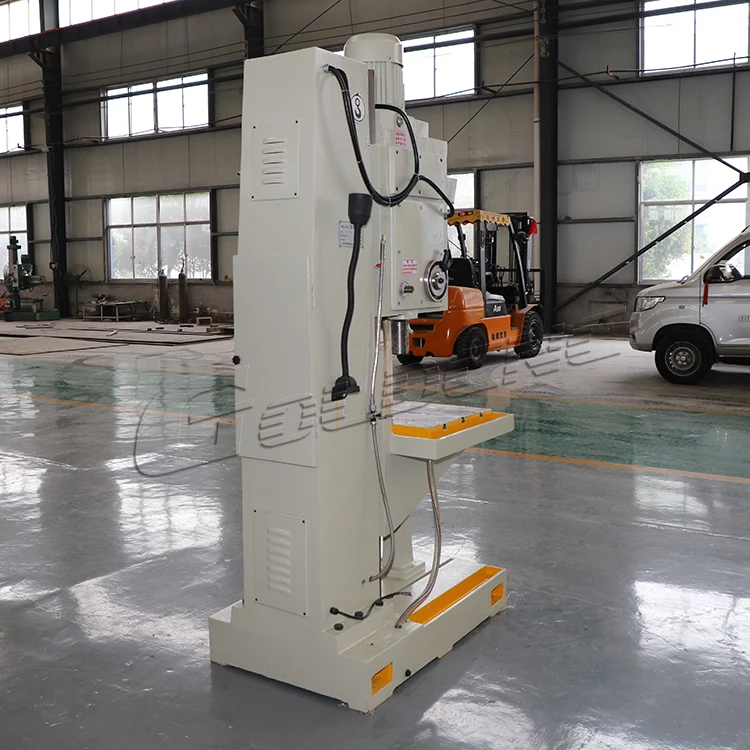

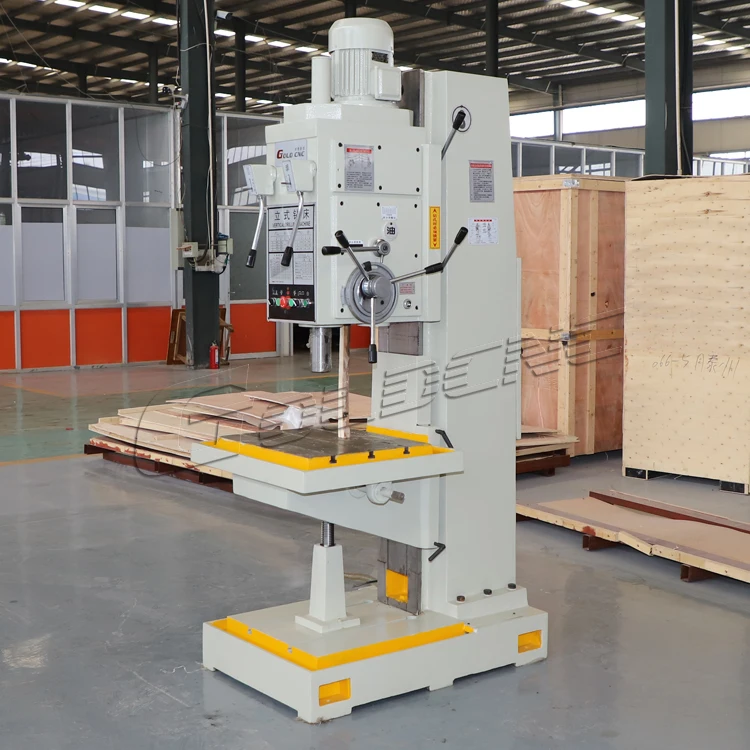

Reinforced column, stable operation; square worktable, convenient for processing needs of different workpieces.
Case of processing
GOLD CNC aims to improve the reliable service system to provide high quality products and solutions for all fields of manufacturing users. Key Components Adopt International First-class Brand.Inaddition, we have obtained certificates. Products are widely used in aerospace.automobiles, ships, electronics, mold manufacturing and other fields.
Company Introduction
Shandong GOLD CNC Machine Tool Co. Ltd. established in 1988, is a professional manufacturer engaged in the research, development, production, sale and service of CNC milling machine, CNC sawing machine, milling machine, drilling machine, lathe. We are located in Tengzhou with convenient transportation access. Dedicated to strict quality control and thoughtful customer service, our experienced staff members are always available to discuss your requirements and ensure full customer satisfaction.
Gold CNC aims to improve the reliable service system to provide high quality products and solutions for all fields of manufacturing users. Key Components Adopt International First-class Brand.Inaddition, we have obtained certificates. Products are widely used in aerospace.automobiles, ships, electronics, mold manufacturing and other fields. Golden CNC, committed to the global manufacturing of high-end equipment. Selling well in wordwide, we have obtained CE certificate, our products are also exported to clients in such countries and regions as more than 50 countries and regions, such as the United States, Germany, Japan, Greece and Korea. We also welcome O E M and O D M orders. Whether selecting a current product from our catalog or seeking engineering assistance for your application, you can talk to our customer service center about your sourcing requirements.
