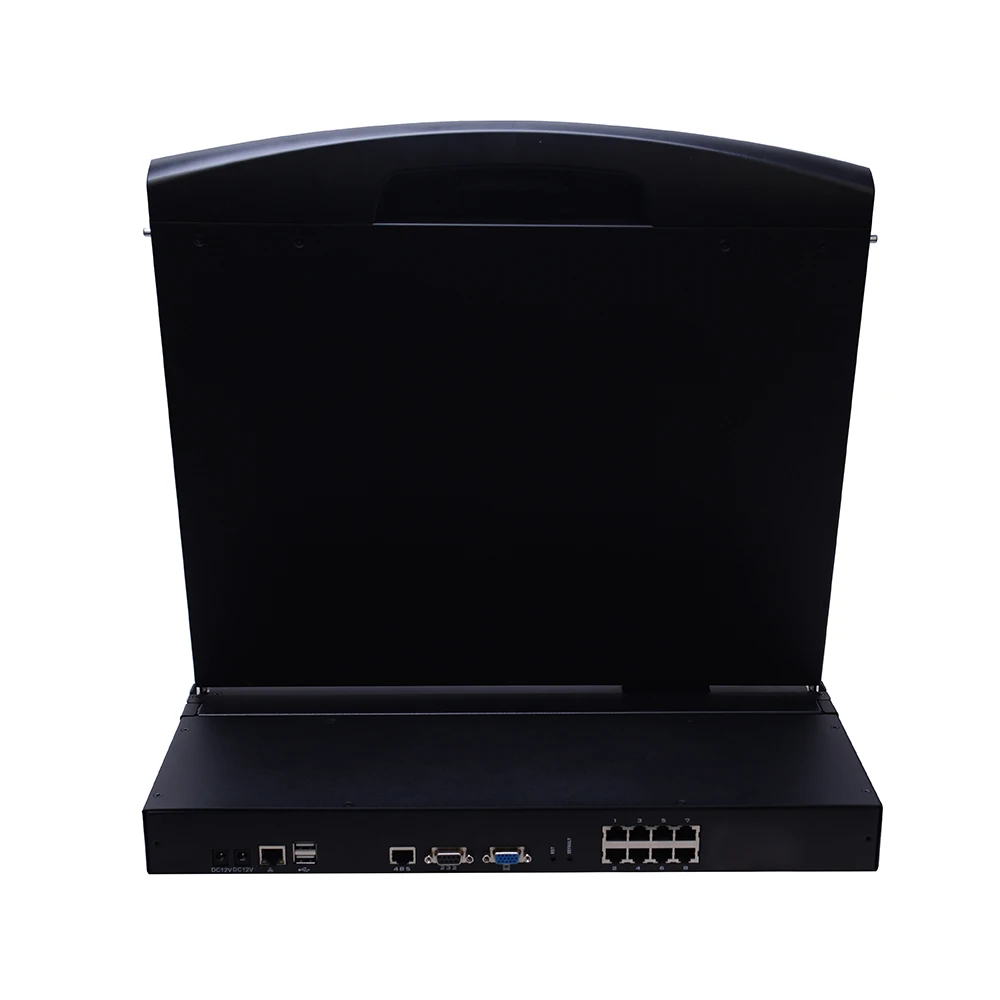

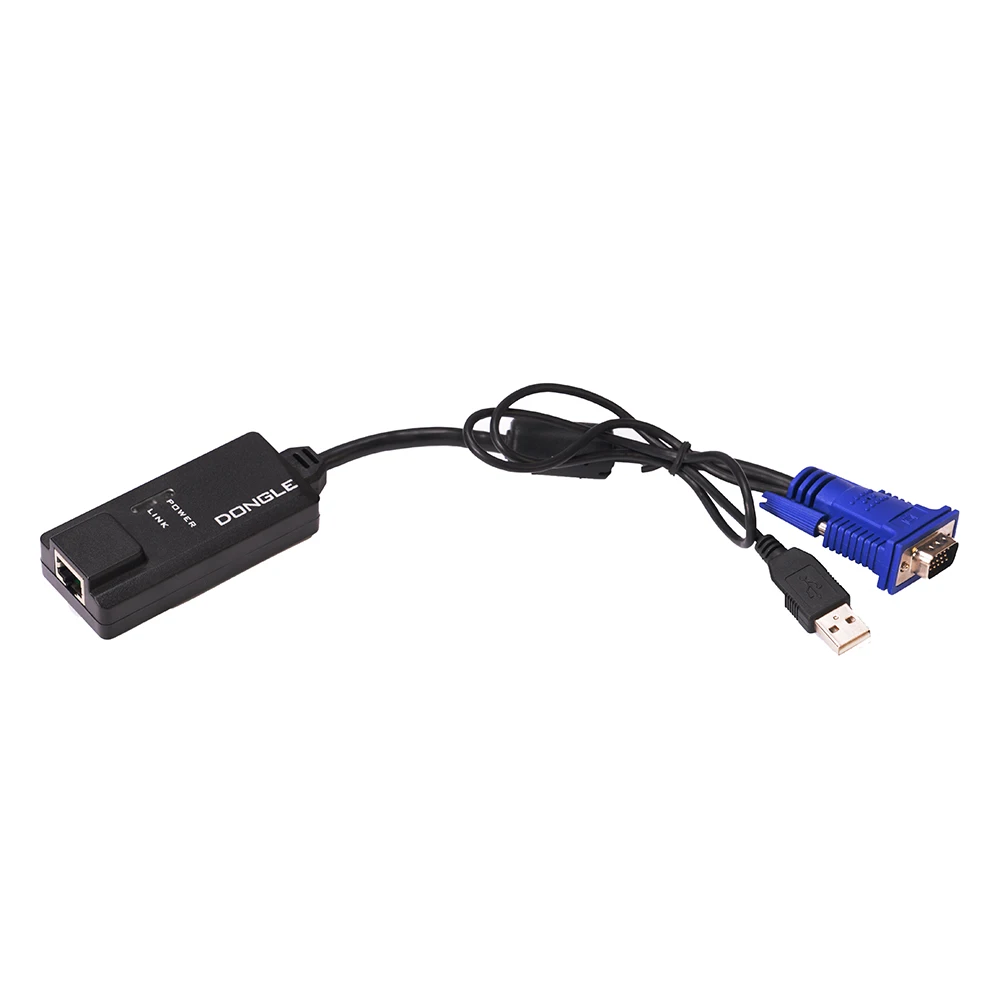

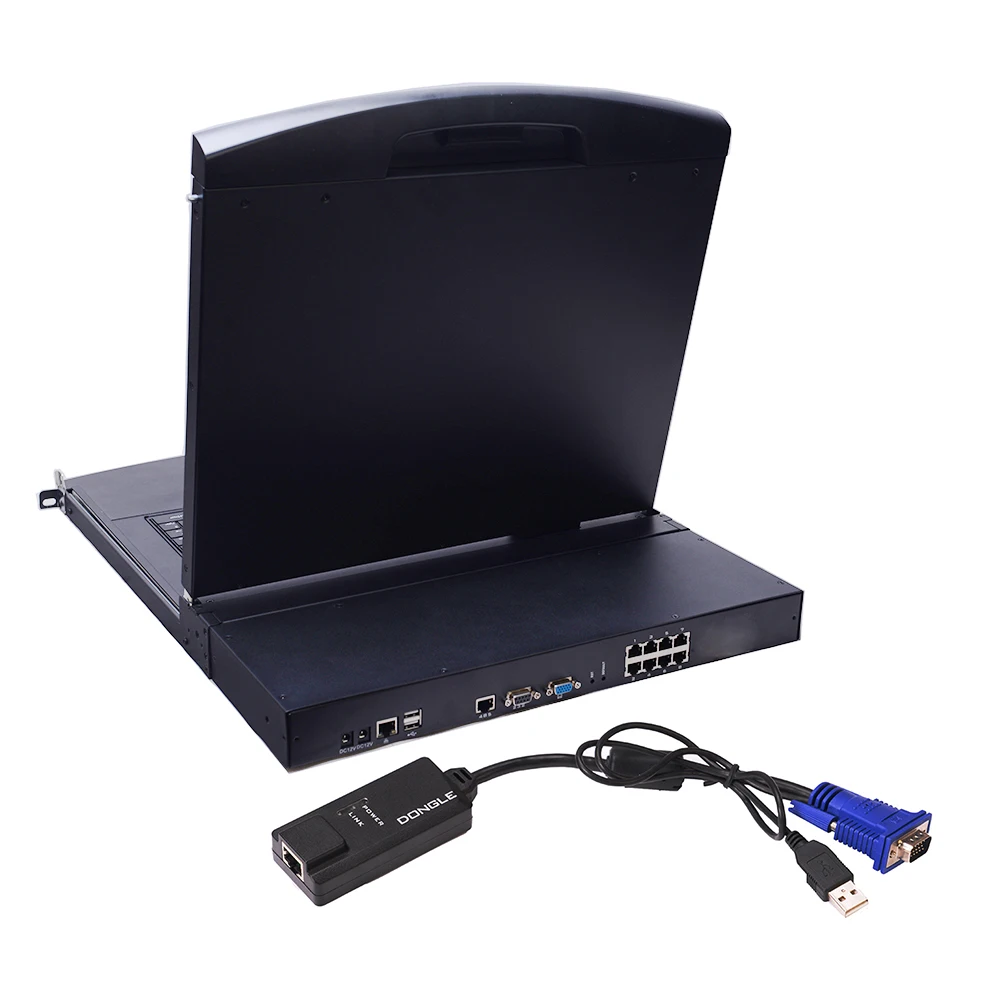

Durable 12V Input DC Jack 17 Inches Screen 8ports Smart LCD KVM Matrix With DVI Dongle
- Category: >>>
- Supplier: Suzhou Switek Electronics&Technology Co. Ltd.
Share on (1600545592700):
Product Overview
Description
1-local user, 2 Remote users Access 8 Ports Cat5 KVM over IP with Virtual Media:1920 x 1200
Hardware
*Supports one local user and 2 remote users
*High-density connection port RJ-45 connection port up to 8/16 ports on Cat 5e/6 connection
*Built-in 1000 Mbps network adapter cards with IP function
*Support USB and serial (RS-232),485, VGA/DVI/HDMI connections
*Local console supports USB or PS.2 keyboard and mouse
*Support cross-platform server environment: Windows, Mac, Sun, Linux, etc. based serial devices
*High video resolution - local console video and remote video resolution up to 1920x1200@60Hz
*Up to 8 servers can be monitored at a single level, or up to 128 servers can be managed through cascade function
*The connection port of controlled computer keyboard and mouse are with keep online technology to simulate keyboard and mouse function; switch fast, device safe and stable
*High-density connection port RJ-45 connection port up to 8/16 ports on Cat 5e/6 connection
*Built-in 1000 Mbps network adapter cards with IP function
*Support USB and serial (RS-232),485, VGA/DVI/HDMI connections
*Local console supports USB or PS.2 keyboard and mouse
*Support cross-platform server environment: Windows, Mac, Sun, Linux, etc. based serial devices
*High video resolution - local console video and remote video resolution up to 1920x1200@60Hz
*Up to 8 servers can be monitored at a single level, or up to 128 servers can be managed through cascade function
*The connection port of controlled computer keyboard and mouse are with keep online technology to simulate keyboard and mouse function; switch fast, device safe and stable
Management
*Provide up to 3000 groups of user accounts, users can be divided into 3 levels according to their permissions
*Support terminating online functions-administrators can terminate online working
*Support log generation and conditional query function of KVM device system
*Support firmware update
*Support information setting and storage function of connecting device ports and customization of device connection information
*Port sharing mode allows multiple users to access a server at the same time
*User rights and group management, users can be divided into super administrator, administrator and user
*Support permission settings, administrators can set operation rights and ports for different level users
*Embedded WEB management server makes management way fast and reliable
*Support terminating online functions-administrators can terminate online working
*Support log generation and conditional query function of KVM device system
*Support firmware update
*Support information setting and storage function of connecting device ports and customization of device connection information
*Port sharing mode allows multiple users to access a server at the same time
*User rights and group management, users can be divided into super administrator, administrator and user
*Support permission settings, administrators can set operation rights and ports for different level users
*Embedded WEB management server makes management way fast and reliable
17” LCD Console
Type | 17” LCD Console-AS7100TLS(F) | ||
LCD Monitor | Ratio | 17” Screen, 4:3 | |
Video | SXGATFT-LCD | ||
Visible Square | 337.920(H) × 270.336(V) | ||
Resolution | 1280*1024@60HZ(Opitmum)/1920*1200@60HZ(Max) | ||
Support Color | 16.7M (RGB 6 bit + Hi_FRC) | ||
Contrast | 1000 : 1 (Typ) | ||
Backlight | LED | ||
Pixel Pitch | 0.264x0.297mm | ||
LEDMTBF | 100,000 hours | ||
Input power | 12V | ||
Keyboard (Demountable Design) | Keyboard | 100Keys, detachable (9 different languages for choose) | |
Compatible IBM/AT | Microsoft Windows9, Me/NT/2000/XP, WIN7, Server2003, WIN8, WIN10 | ||
Port | Standard PS/2; USB | ||
Using life | >1,000,000 Times | ||
Mouse | Type | Touch Screen | |
Port | Standard PS/2 | ||
X/Y Resolution | >1000dots/inch, (40x40/mm) | ||
Using life | >1,000,000 Times | ||
Installation Dimension | 407*445*45mm | ||
Weight | 6.15kg | ||

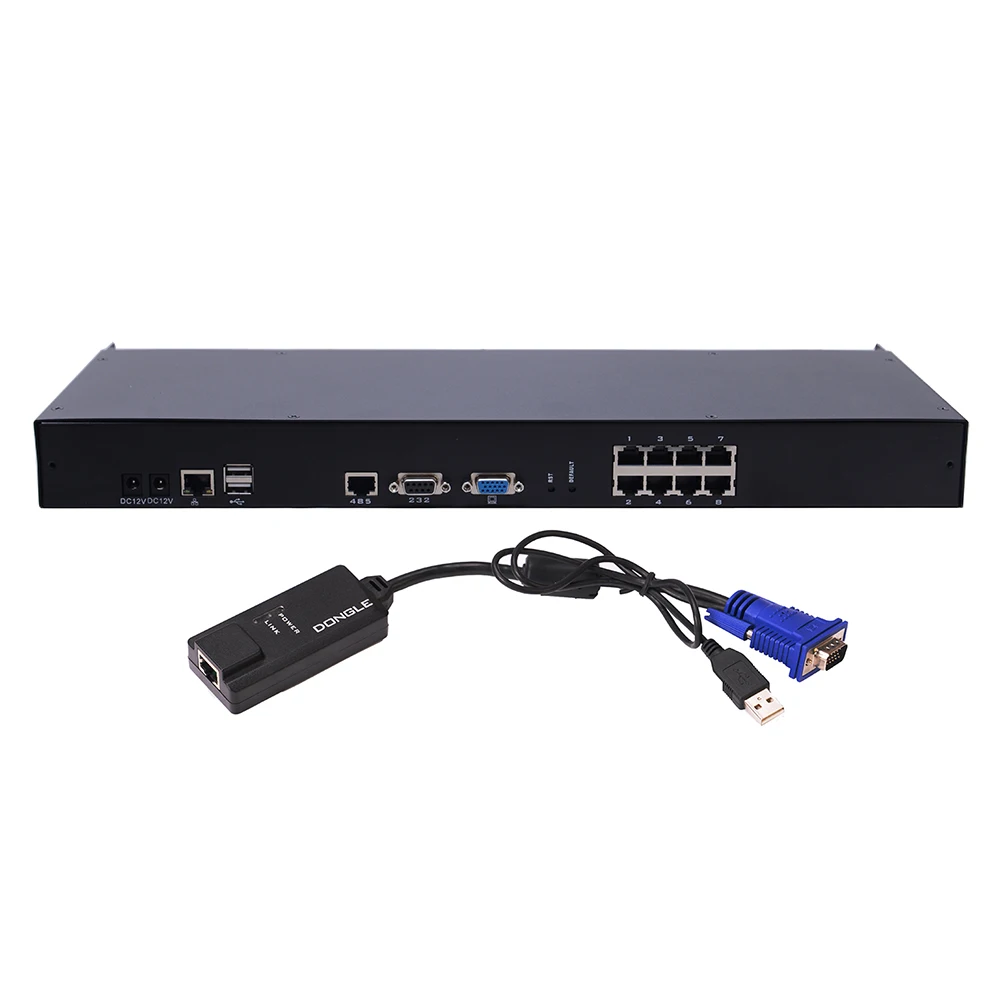

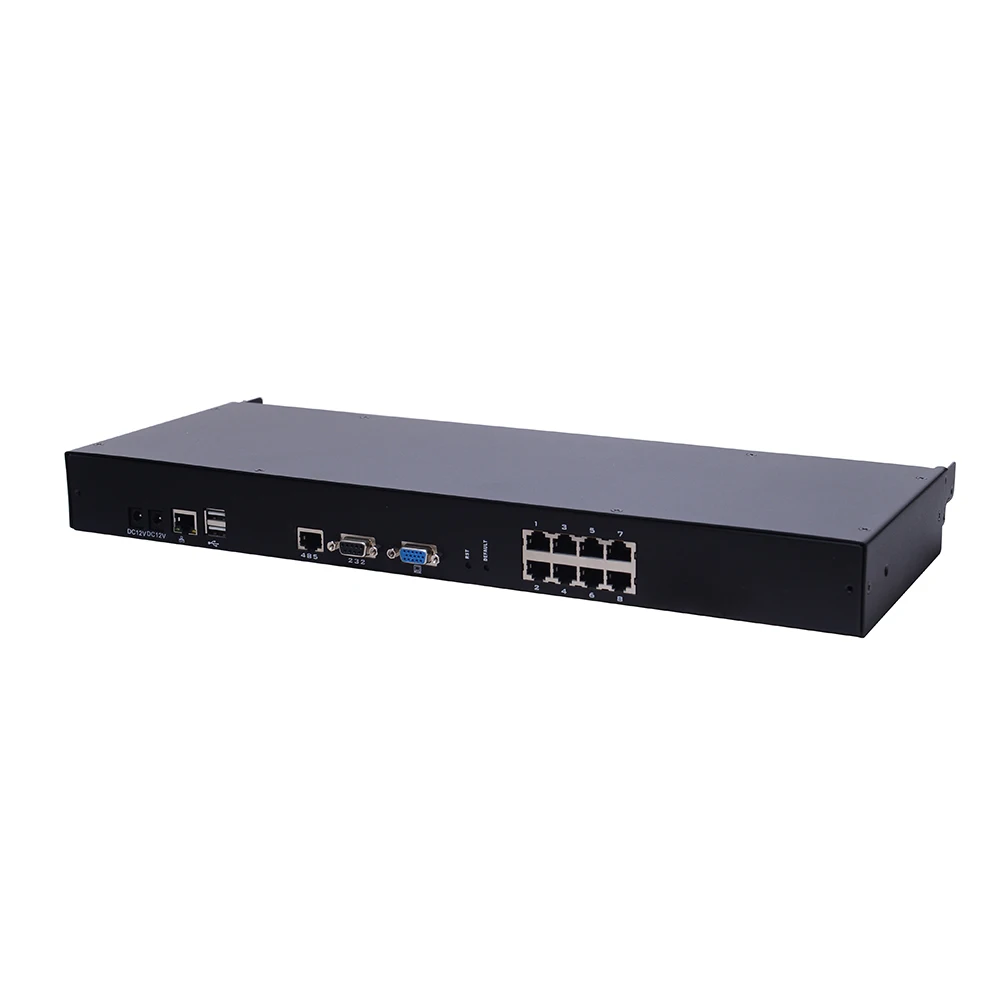

Matrix Module
Function | AS7208TLS | ||||
Computer Connection | Direct Connects | 8 | |||
Maximum Connects | 64 | ||||
Port Selection | OSD Menu、Remote IP | ||||
Connectors | Console Connector | Monitor | 1 x VGA DB15 Blue Female | ||
Keyboard | 1 x USB Type A Female、1 x PS2 purple Female | ||||
Mouse | 1 x USB Type A Female、1 x PS2 Green Female | ||||
PC Connector | Switch Module | 8 x RJ45 port | |||
Power | 2 x DC Jack | ||||
IP Network Port | 1 x RJ45 (2 / 4 Remote users) | ||||
485control port | 1 x RJ45 | ||||
Switch | KVM Reset | 1 x Semi-embedded button | |||
KVM factory reset | 1 x Semi-embedded button | ||||
Remote control | 2、4 x green LED | ||||
Analog Mode | Keyboard Mouse | USB、PS2 | |||
Maximum resolution | 1920 x 1200 @ 60HZ local & remote | ||||
Scanning interval | 3、5、10、15、20、30、40、60seconds（Default 3 seconds） | ||||
Operating environment | Operating temperature | 0-50℃ | |||
Storage temperature | -20-60℃ | ||||
Humidity | 0-80%RH，No Condensation | ||||
Physical Properties | Housing | Metal | |||
Size | 440 x 350 x 44 mm | ||||
Weight | 4.2KG | ||||
