Product Overview
Description
Product Description

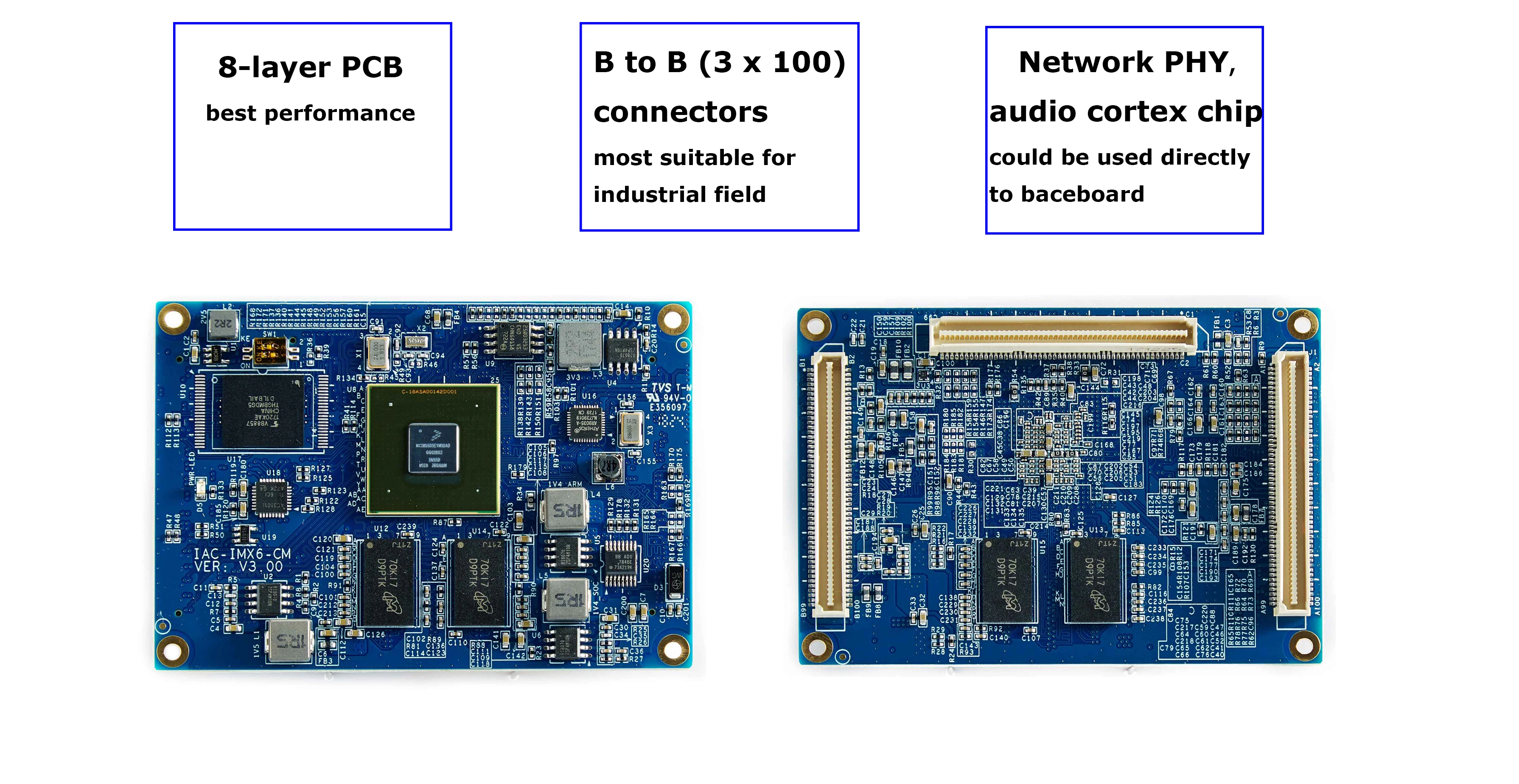

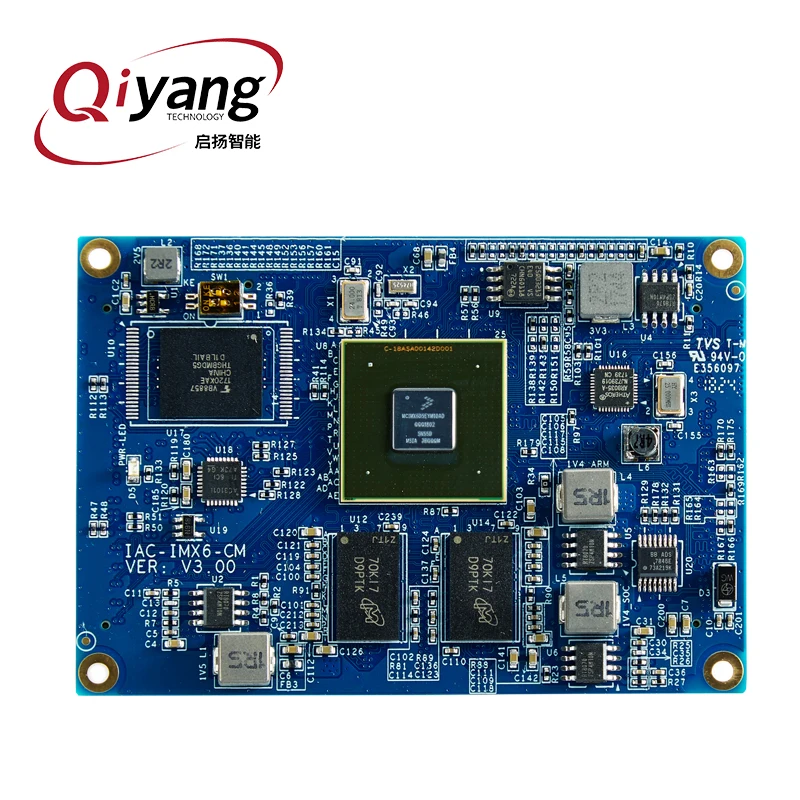

NX P i.MX6 SOM:is designed by 8-layer PCB; card size;integrated with CPU,DDR3 RAM,Flash,network;5V DC power supply,low power consumption;B to B (3 x 100 )connectors boot various commonly used interfaces;The users can choose different types of appropriate processor chip to reduce cost(only for bulk users).
Product parameters
SOM Resource
CPU | Freescale i.MX6 processor, ARM® Cortex™-A9 kernel Dual Core (Solo Core, Quad Core optional) |
Frequency | 1.0Ghz |
GPU | OpenGL® ES 2.0 and OpenVG™ 1.1 Hardware Accelerators & Multi-Format HD1080p Video Decoder and HD720p Video Encoder Engine |
RAM | 1GB (2GB optional) |
Flash | |
Telecommunication | UART, USB, CAN, MINI-PCIE, Ethernet, GPIO, I2C, EIM, MIPI, etc. |
Display | LVDS, TTL, HDMI, VGA |
Audio | audio output, MIC audio input |
Storage | SD, SATA-II |

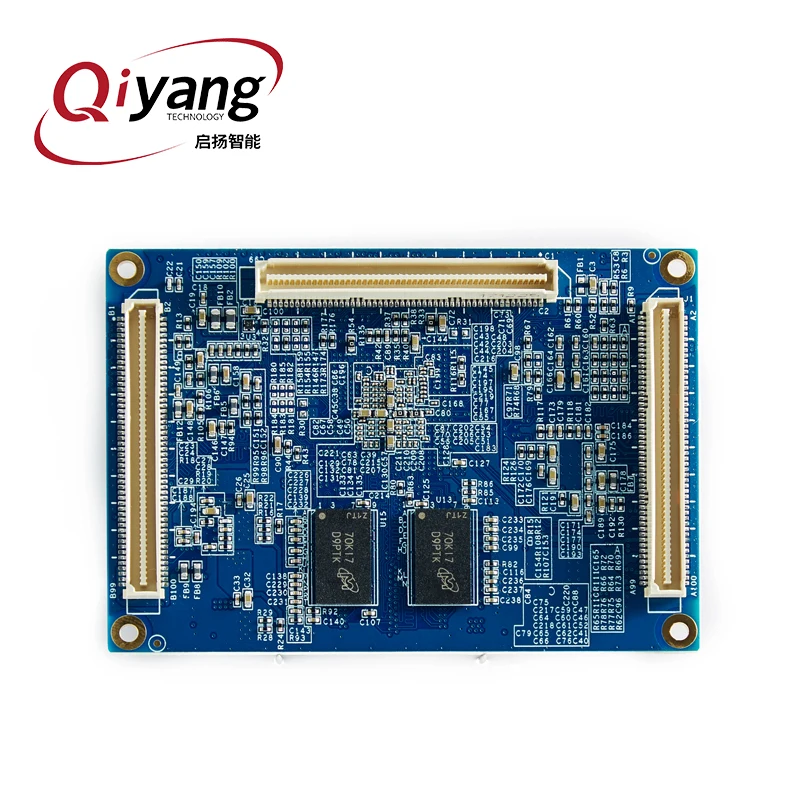

B to B Connector | FCI 3*100 pin 0.8mm spacing B to B (the connectors are 350℃ high temperature-tested and seismic-tested) |
OS Support | Linux 3.0.101/Android 4.4 |
Mechanical and Environment
PCB Specification & Size | Using 8-layer PCB high precision process, with the best electrical properties and anti-jamming performance |
86 x 60x 1.5mm | |
Working Parameters | Working temperature: -20°C~ 70°C. (Batch order could be customized to -40°C~ 85°C) |
Humidity Range: 5%~ 95%, Non-Condensing | |
Low Power Consumption | 5V DC power supply, low power consumption: <1W; Power Management Chipset, support 1.8V/3.3V/5.0V voltage input |

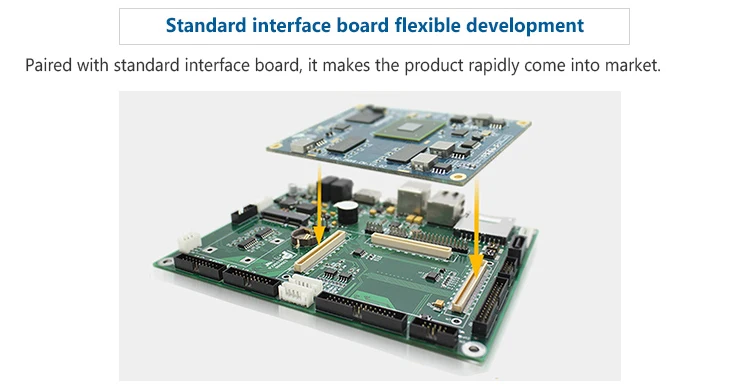

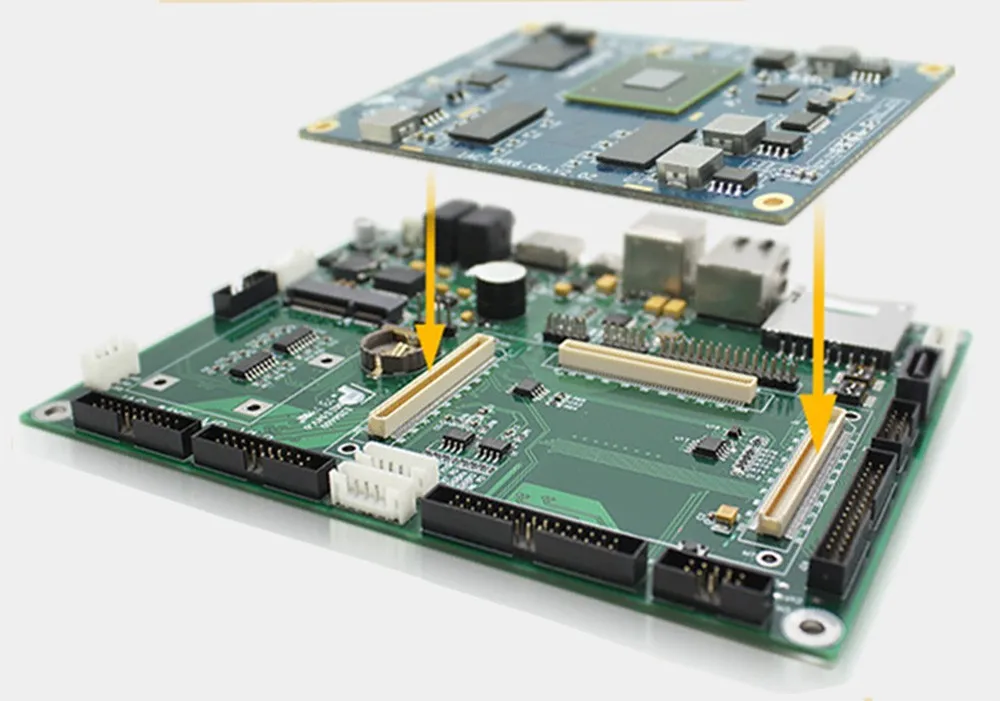

Form Factor | System on Module+ Carrier Board |
Product Feature
