Product Overview
Description

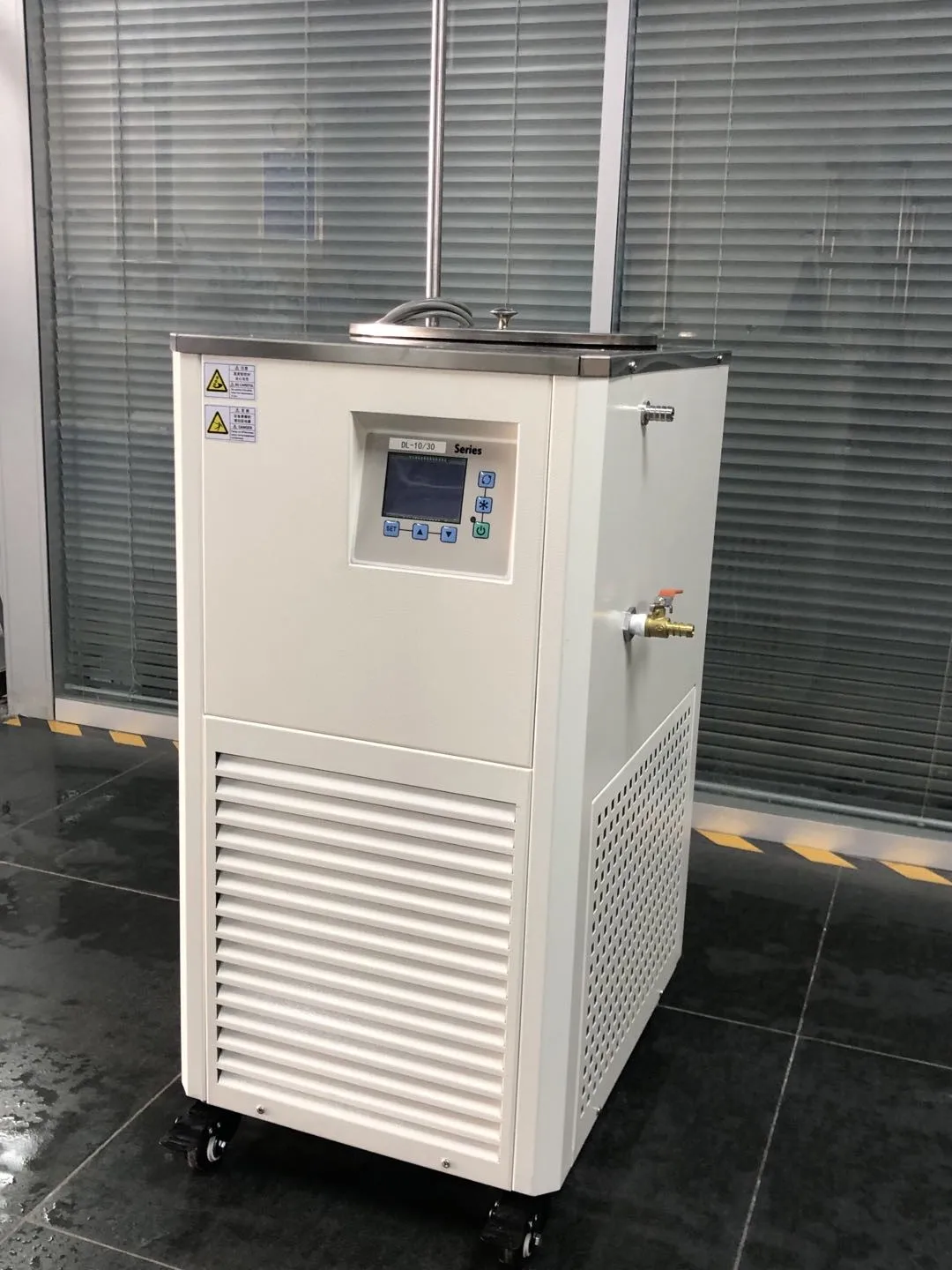

Low Temperature Coolant Pump
20L -30 Celsuis Degree Industrial Glycol Air Cooled Low Temperature Coolant Pump Circulator Wholesale Price

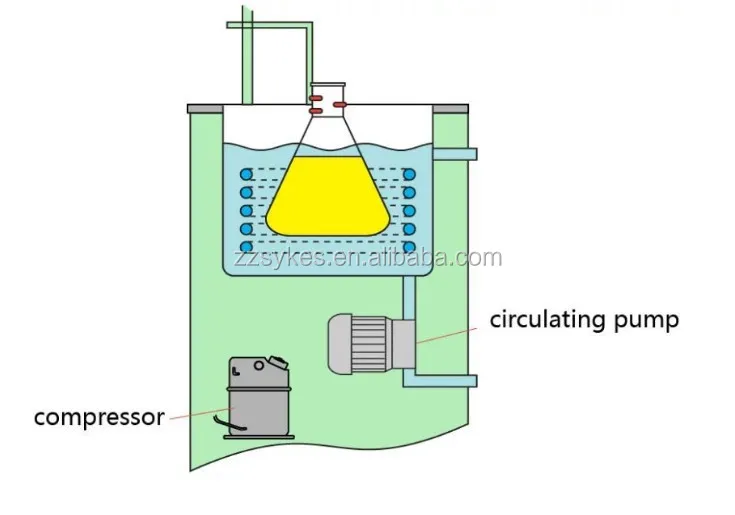

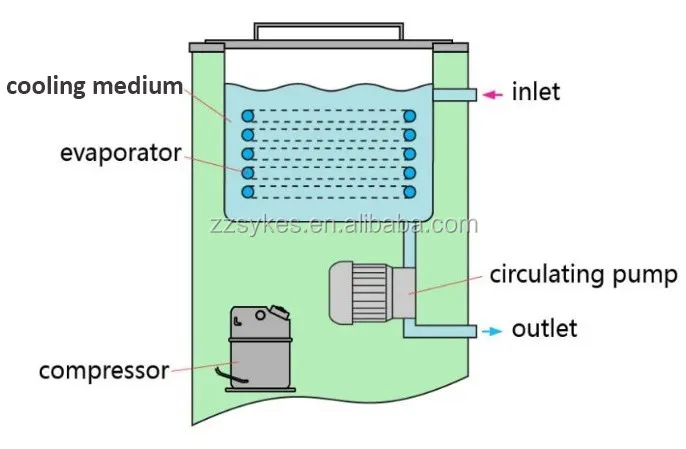

Zhengzhou Sykes Low Temperature Cooling Liquid Circulating Pump DL-20/30 ( also called Recirculating Chiller, Recyclable Cooler ) uses compressor for refrigeration and conveys cold bath fluid to other devices by the pump.
This Circulating Pump is usually used to cool down tubes and flasks which need to store solvents or carry on reactions under low temperature condition; or cool down packaging machine, printing machine, testing machine, coating machine, freezing process clamp, cooling mould, fine grinding machine, EDM device, chip cleaning device, etching machine, laser machine; or work with rotary evaporator, vacuum freeze drying oven or water jet circulating vacuum pump together.

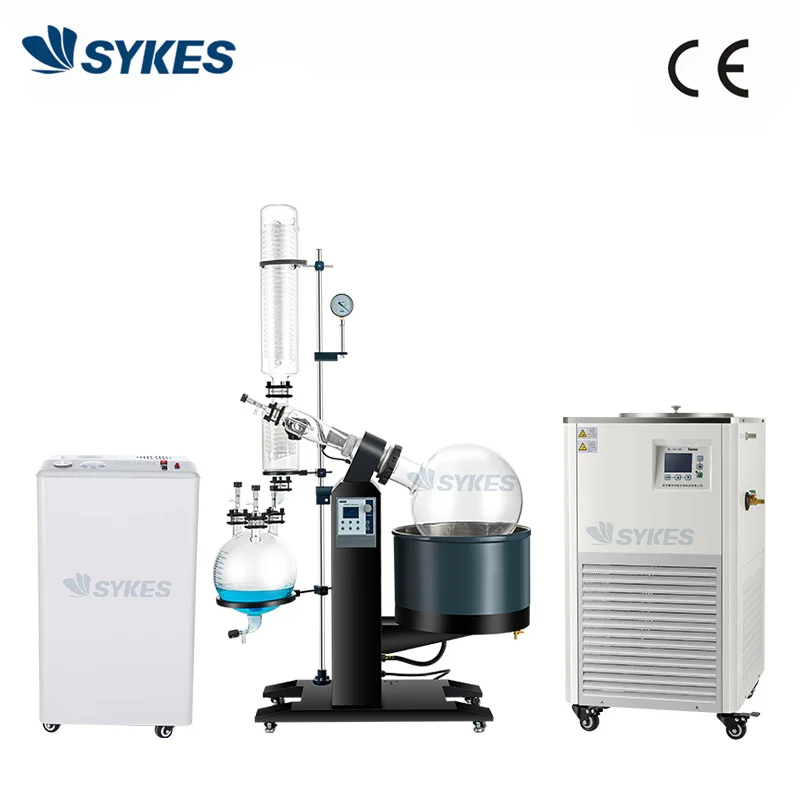

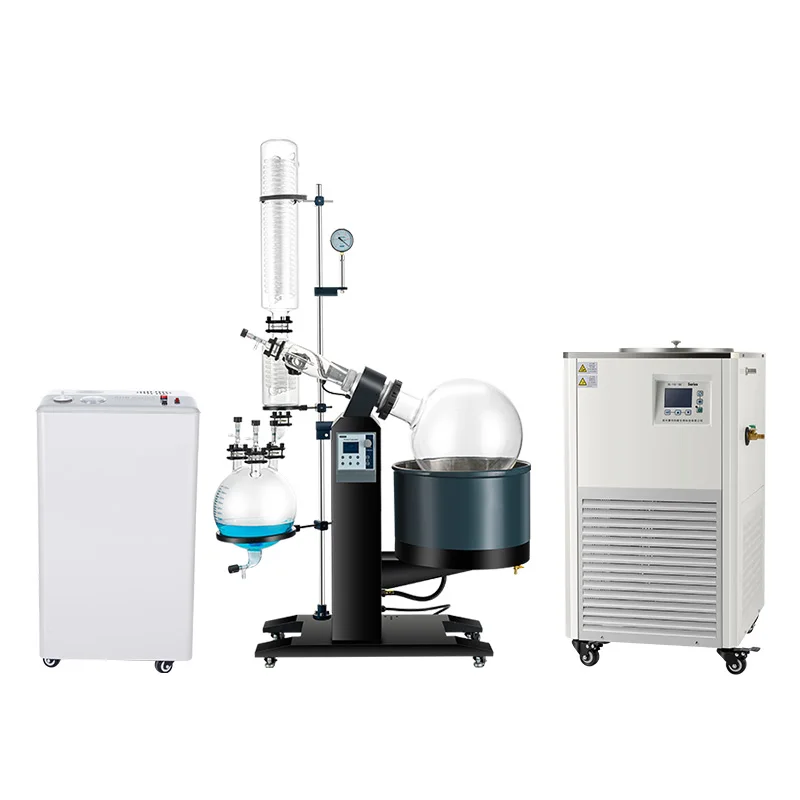

Spray Paint Teflon Water Circulating Vacuum Pump SHB-B95T + 10L Rotary Evaporator R1010 + Low Temperature Coolant Pump DL-20/30
1. Designed with large open cooling bath, powerful external circulating system, it can be used as freezing bath separately or can be used to provide cooling liquid to other devices by external circulating system.
2. Keypad setting and digital display for easy read and control.
3. Compressor and key parts are supplied by world famous manufacturer with high performance and reliability.
4. Circulating system is made of stainless steel 304 and macromolecule anti-corrosive material which is rust-proof, anti-corrosive and contamination-free.
5. Can be used as a cooling circulating pump or a cold trap.
As A Circulating Pump
As A Cold Trap
| Model | DL-20/30 | |
| Capacity of liquid storage tank (L) | 20 | |
| Minimum temperature for no-loading (℃) | -30 | |
| Using temperature range (℃) | -30 to Room Temperature | |
| Temperature stability (℃) | ±2 | |
| Ambient temperature (℃) | ≤25 | |
| Relative humidity ( % ) | ≤70 | |
| Refrigerant | R404A | |
Cooling Capacity (W) | 10℃ | 5707 |
| 0℃ | 4095 | |
| -10℃ | 2830 | |
| -20℃ | 1905 | |
| -30℃ | 1214 | |
| Rated power (W) | 1525 | |
| Circulating pump | Power (W) | 25 |
| Flow (L/min) | 16 | |
| Lift (m) | 2.5 | |
| Power Supply | Single-phase 220V±10%, 50Hz | |
| Dimension (mm) | 612*480*975 | |
| Net weight (kg) | 77 | |
