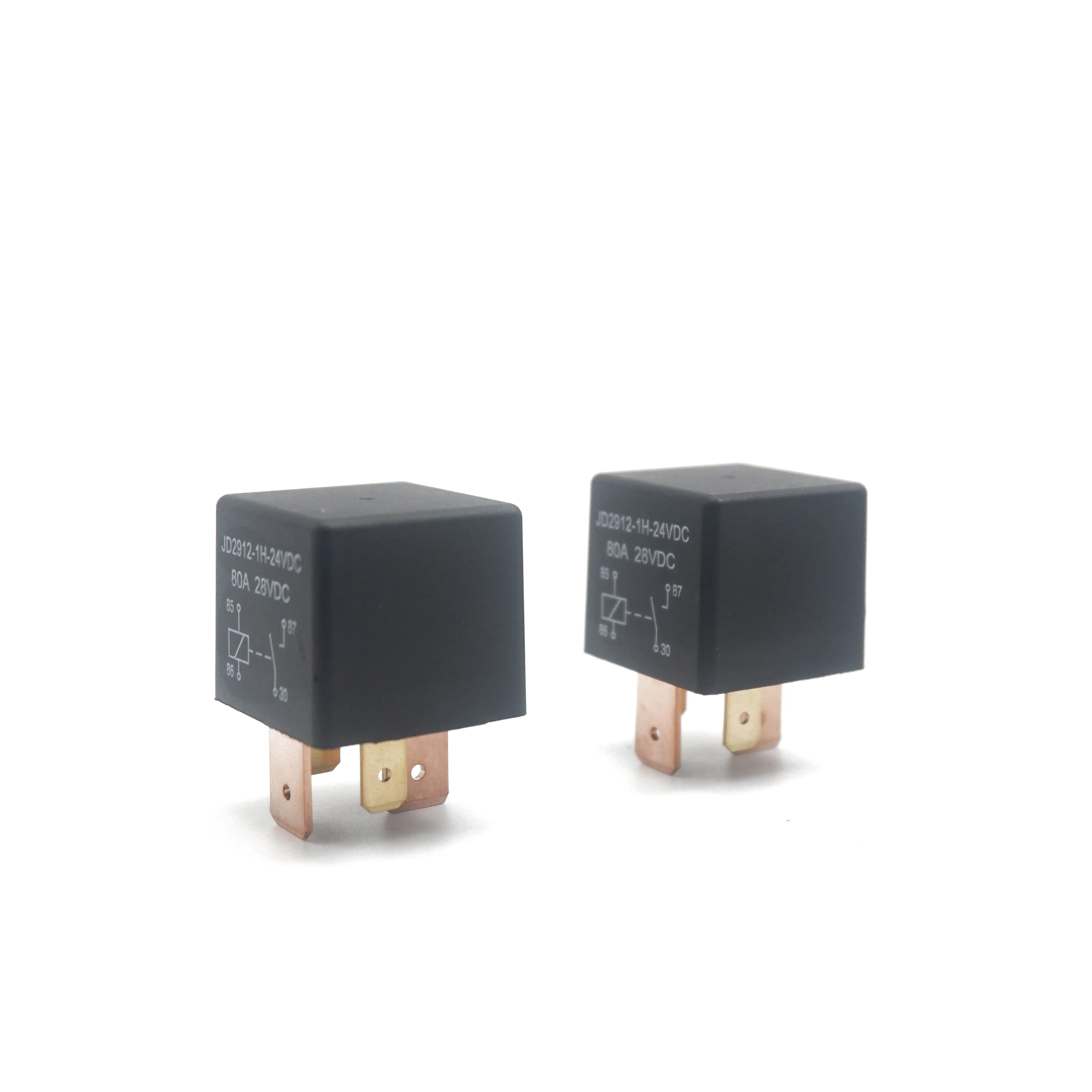

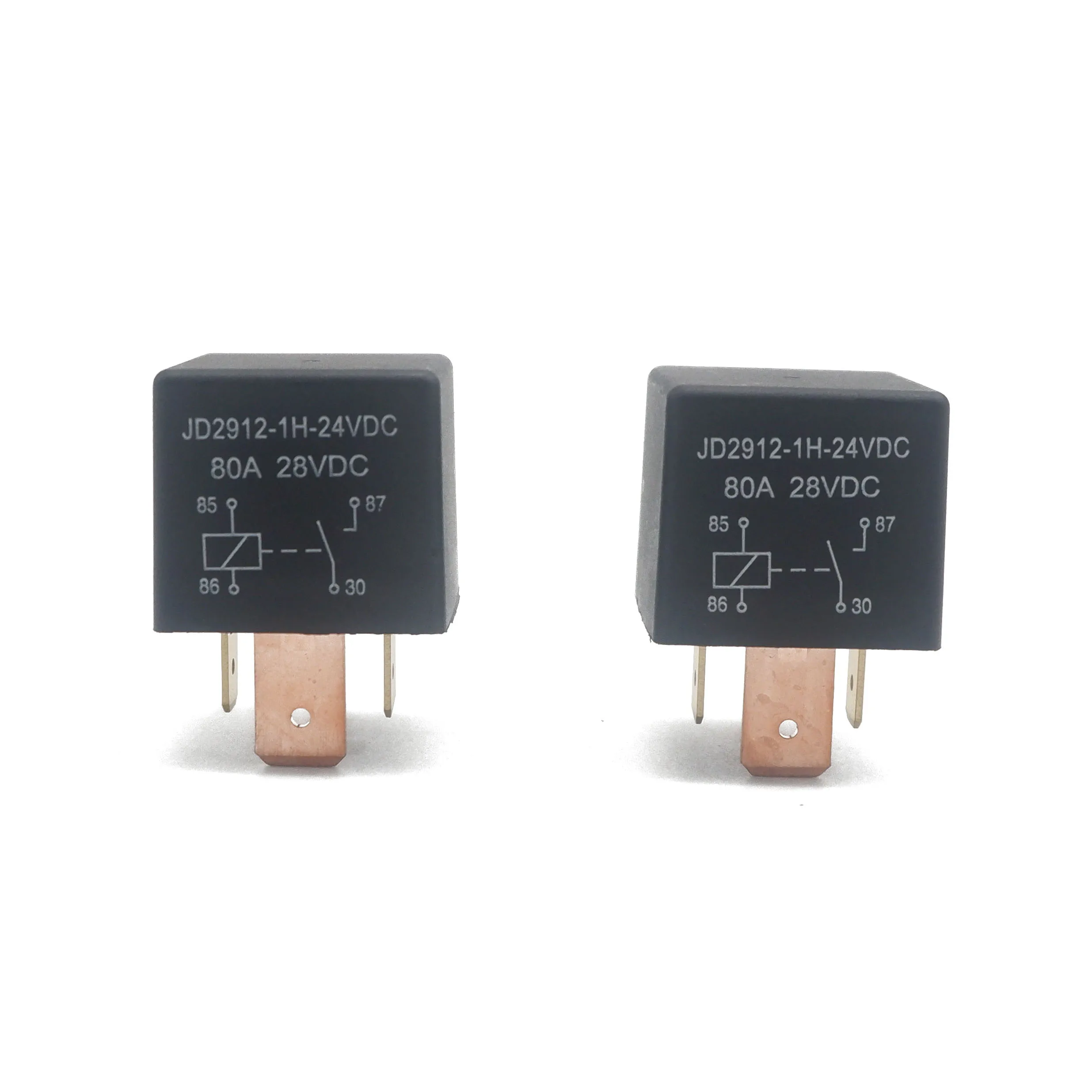

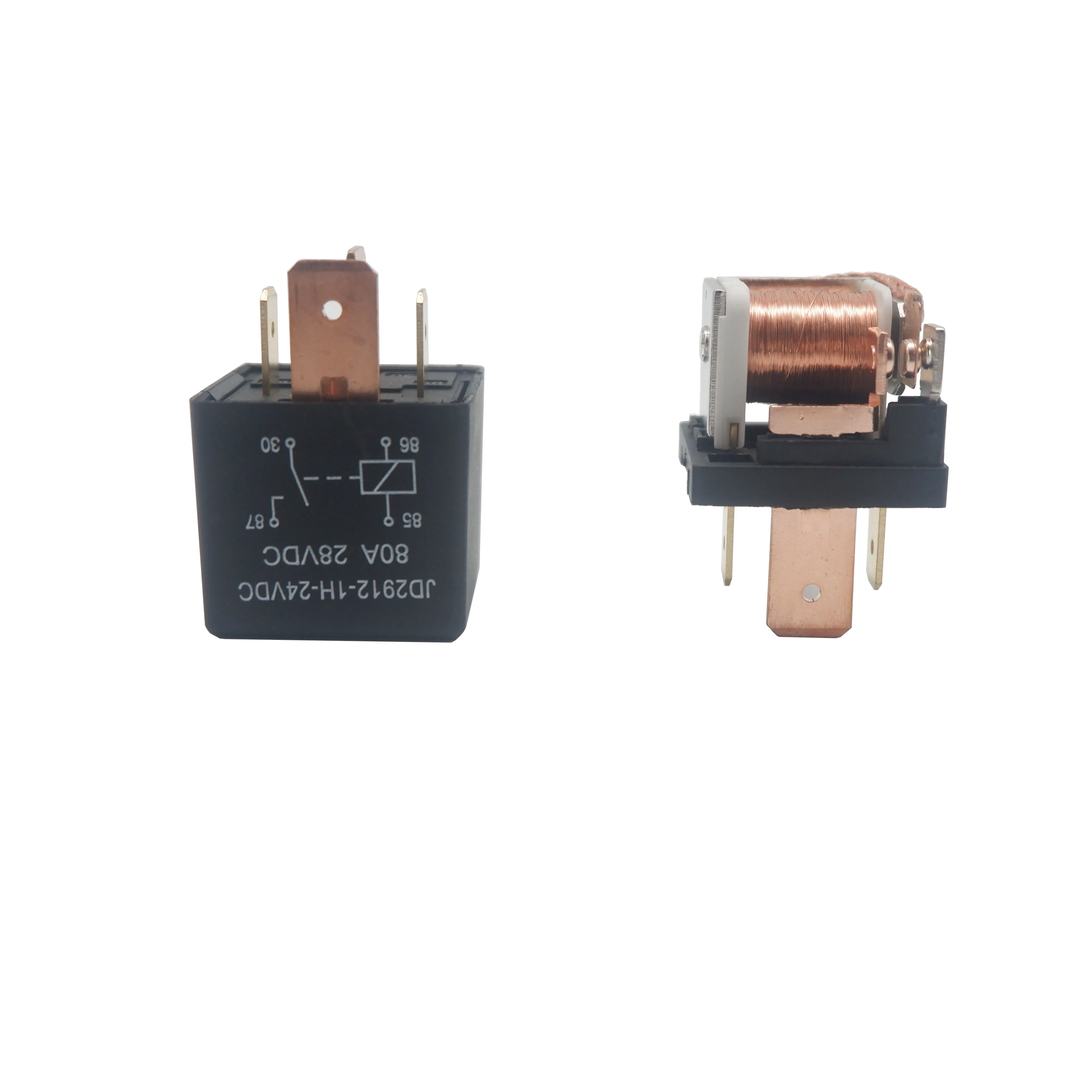

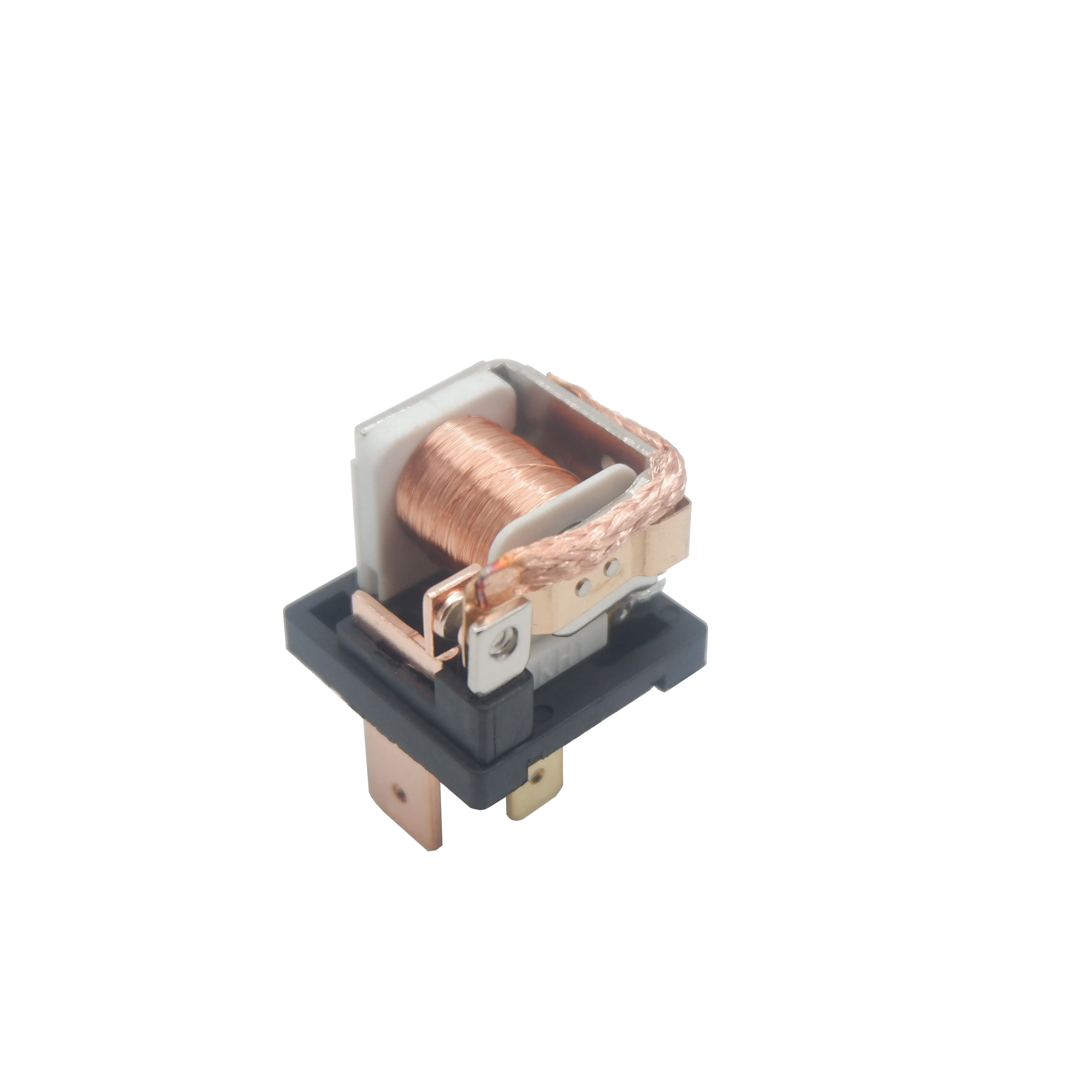

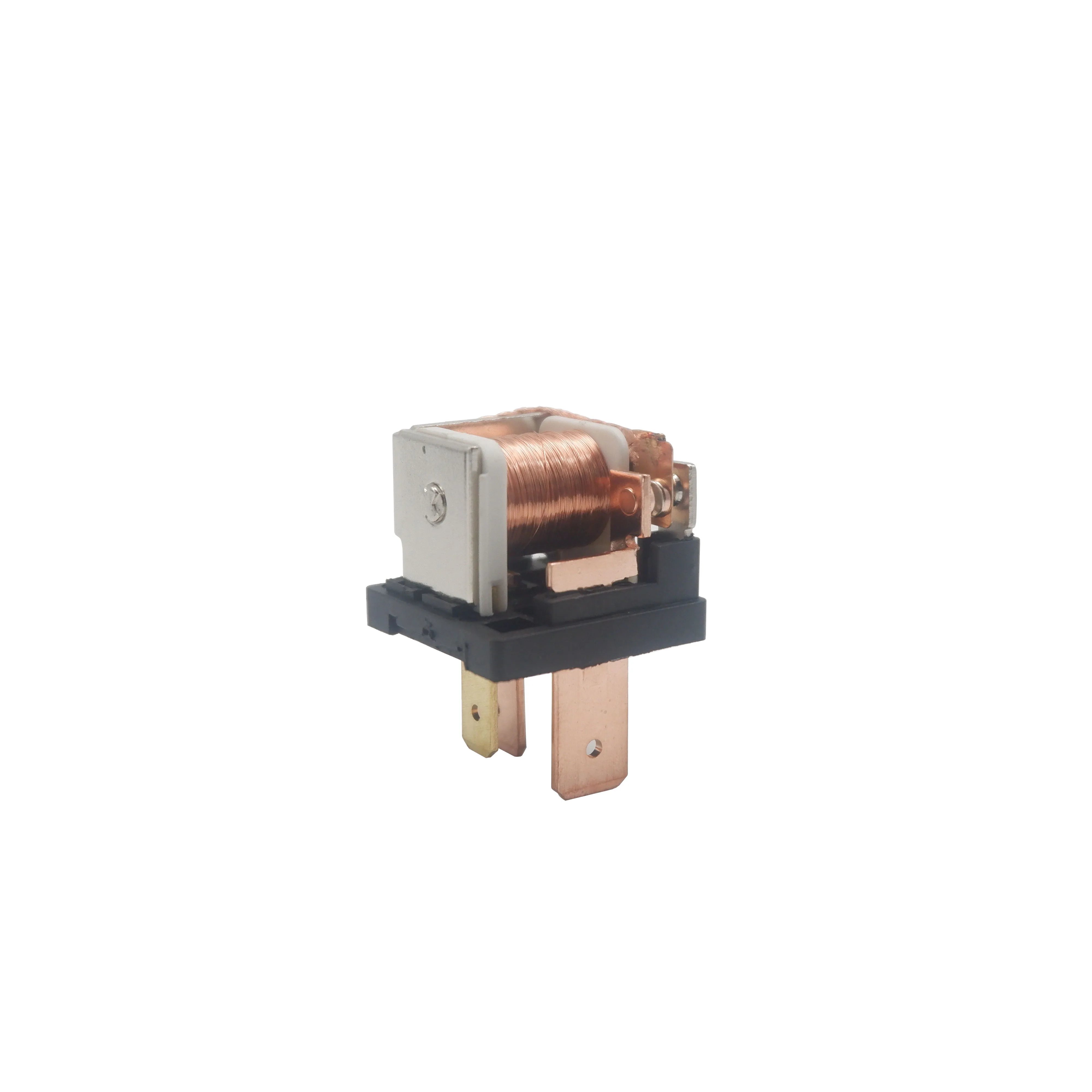

SPST Normally Open Heavy Duty Relay 24V 80A Relay High Power Relay for Car (1600545636691)

Share on:


Price:$0.70 - $0.73
Price in USD:Details

Quantity:


Product Overview

Description



Product Description


Name
Automotive Relay
Contact Material
Silver Alloy
Colour
Black
Shape
Square
Size
28.5*28.5*25.5mm
Characteristic
Voltage 24V


CONTACT DATA


Contact Material
AgSno12
Contact Form
1H(1A)
Contact Ratings
NO:80A 14VDC
Contact Resistance
100mMax at6VDC 1A
Max Switching Current
80A
Max Switching Voltage
75VDC
Max Switching Power
1120W
Life Expectancy Electrical
100,000 Operations(at 30 Operations/minute)
Life Expectancy Mechanical
100,000 Operations


COIL SPECIFICATION


Nominal Voltage(VDC)
24V
Coil Resistance(Ω)
1.8W
320
Max Operate Voltage(VDC)
12~16.8
Mix Release Voltage(VDC)
2.4~7.2
Max Applicable Voltage(VDC)
30


CHARACTERISTICS


Temperature Range
-30℃~+80℃
Vibration Resistance
10~55Hz,1.5mm
Shock Resistance
Operations Extremes
10g
 Damage Limits
100g
Humidity
40%~85%
Insulation Resistance
100mΩ Min at 500VDC
Safety Standard
CCEE
Dielectric Strength Between Open Contacts
500VAC(for one minute/sec)
Between Contact And Coil
750VAC(for one minute/sec)
Operate Time
7ms
Release Time
5ms




Specification

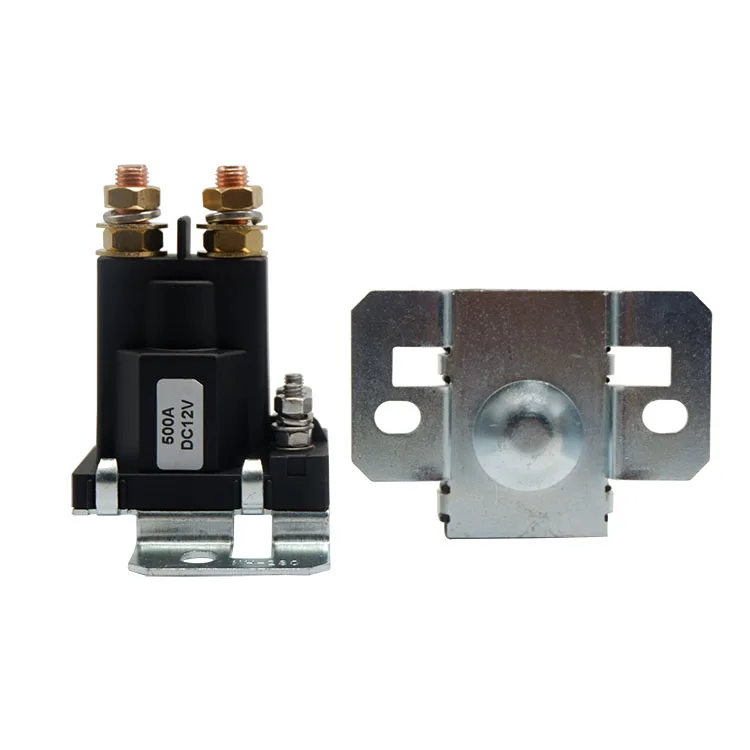

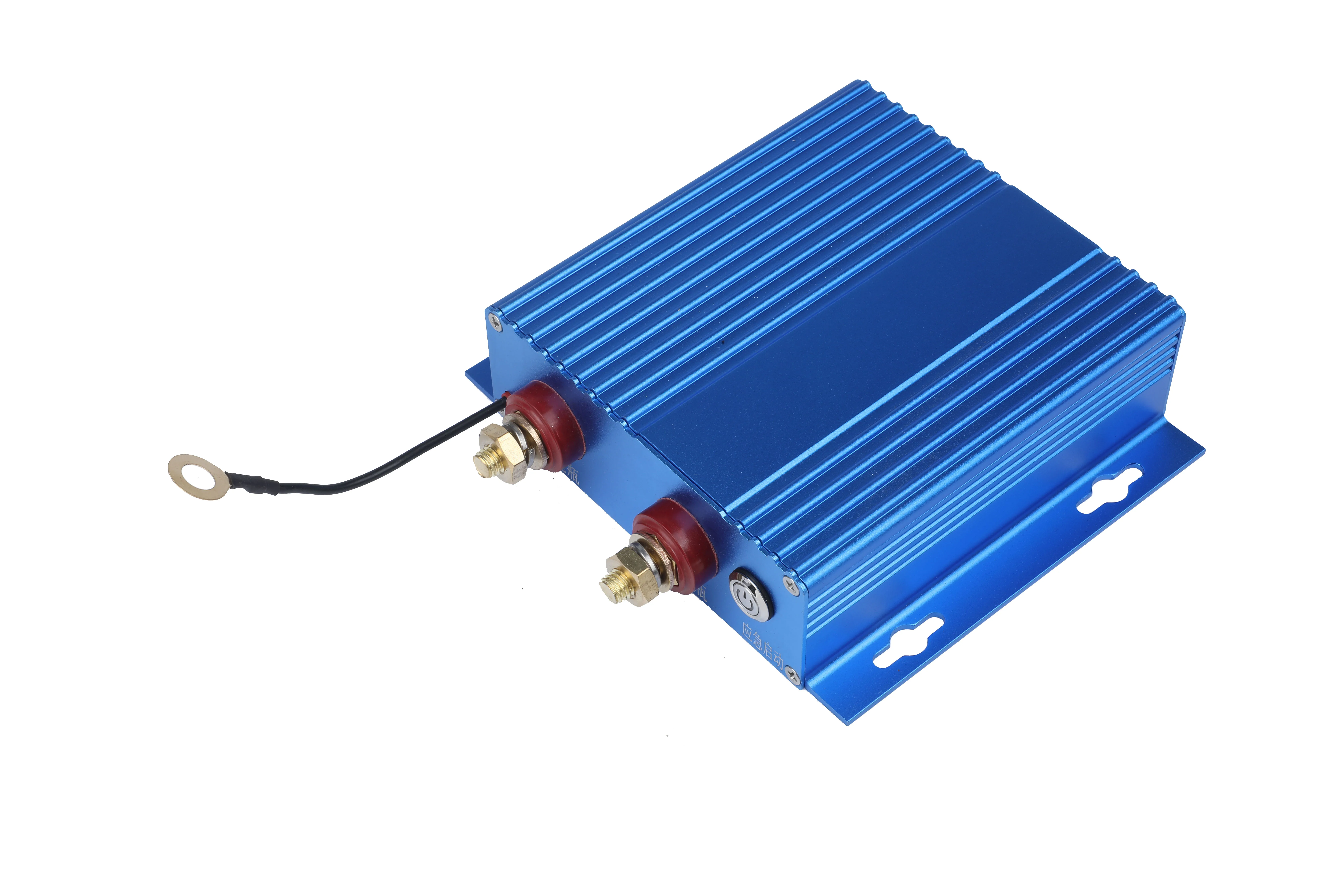

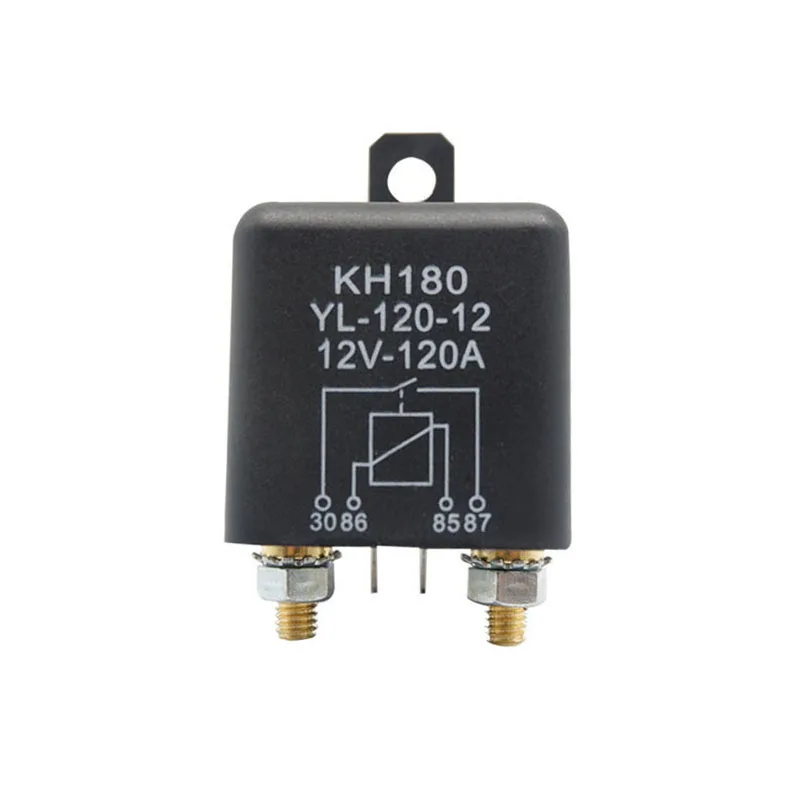

Product Recommendation






Company Profile


Company Profile
Yueqing Kuanghong Electric Technology Co., Ltd. is located in Beibaixiang Town, Wenzhou City, the electric capital of China. Close to 104 National Highway, the traffic is very convenient. Since its establishment, the company has been focusing on the development, manufacturing and sales of automotive relays and high-power relays in an integrated model. After several years of hard work, the company has accumulated rich experience in manufacturing, design and research and development. The company's main business: automotive relays, plug-in wiring harnesses, high-power relays, automotive dual battery isolators. The company has always implemented the "customer satisfaction is our eternal pursuit" quality policy. The principle of "people-oriented, customer-centric" conveys sincerity. The company is an independent manufacturer and can provide customers with OEM.ODM services. High quality and low price, to provide customers with the best cost-effective products is our company's consistent aim. Warmly welcome new and old customers to visit and guide---we sincerely cooperate with us to create brilliance together!






company advantage
1. Can provide customers with OEM.ODM services
2. Affordable price
3. Strong professionalism


Production workshop






Logistics




FAQ


Q: how strong is the company
A: Since its establishment, the company has been focusing on the development, manufacturing and sales of automotive relays and high-power relays in an integrated model. After several years of hard work, the company has accumulated rich experience in manufacturing, design and R&D
Q: What is the main product
A: The company’s main business: automotive relays, plug-in wiring harnesses, high-power relays, automotive dual-battery isolators
Q: Whether to provide customized services
A: Our company is an independent manufacturer and can provide customers with OEM.ODM services
