High Precision Surveying GNSS Antenna With GNSS Module
- Category: >>>
- Supplier: Zhejiang Jc Antenna Co. Ltd.
Share on (1600545642518):
Product Overview
Description

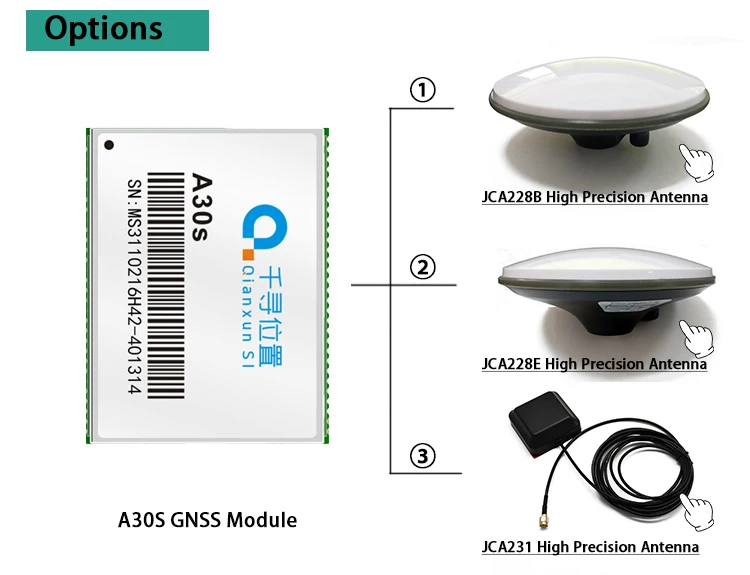

Products Description
Technical Parameters

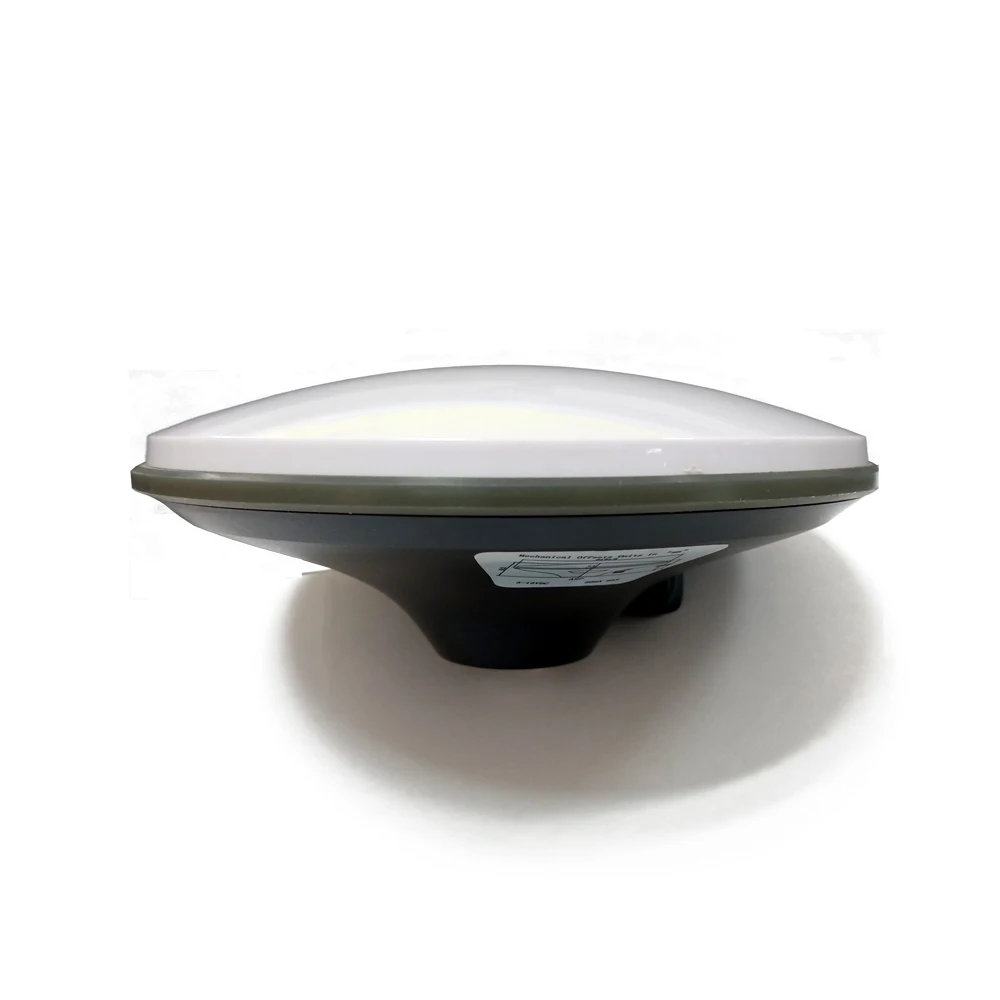

Product Portfolio——JCA228B
Item | Specifications | ||
Antenna | Frequency | GPS L1/L2 GLONASS G1/G2 COMPASS B1/B2/B3 Galileo E1/L1/E2/E5b/E6 | |
Polarization | RHCP | ||
Axial Ratio | ≤3dB | ||
V.S.W.R | ≤1.5 | ||
Peak Gain | ≥5dBi | ||
Impedance | 50Ω | ||
Phase Center Error | ±2mm | ||
Horizontal coverage angle | 360° | ||
LNA | Gain | 40±2dB | |
Noise Figure | ≤1.5dB | ||
Passband fluctuation | ±1.5dB | ||
Supply Voltage | 3~12V DC | ||
Current Consumption | ≤50mA | ||
V.S.W.R | ≤2.0 | ||
Mechanical | Connector | TNC-K | |
Radome Material | ABS | ||
Mounting Method | Screw | ||
Environmental | Operating Temperature | -40℃~+85℃ | |
Relative Humidity | Up to 95% | ||
Ingress Protection | IP67 (exclude Air vent in screwhole) | ||
Environmentally Friendly | ROHS Compliant | ||

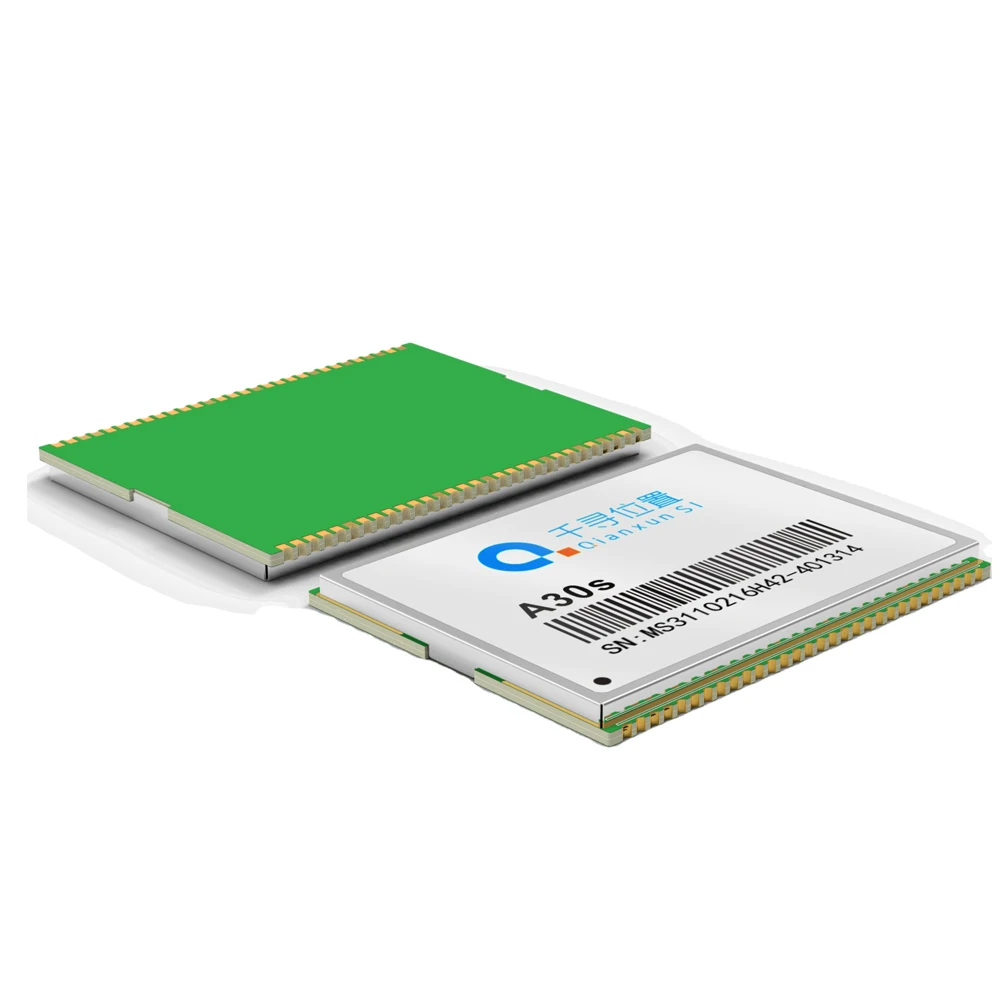

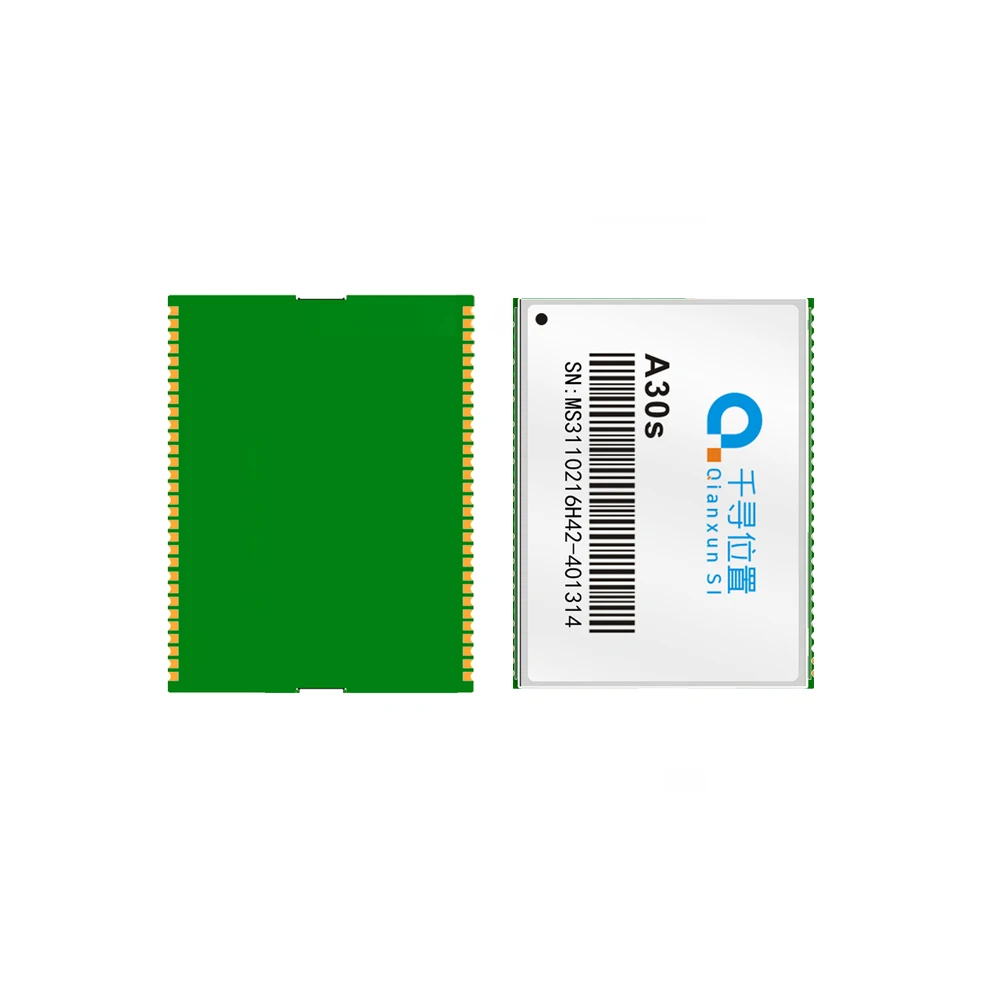

Product Portfolio——A30S module

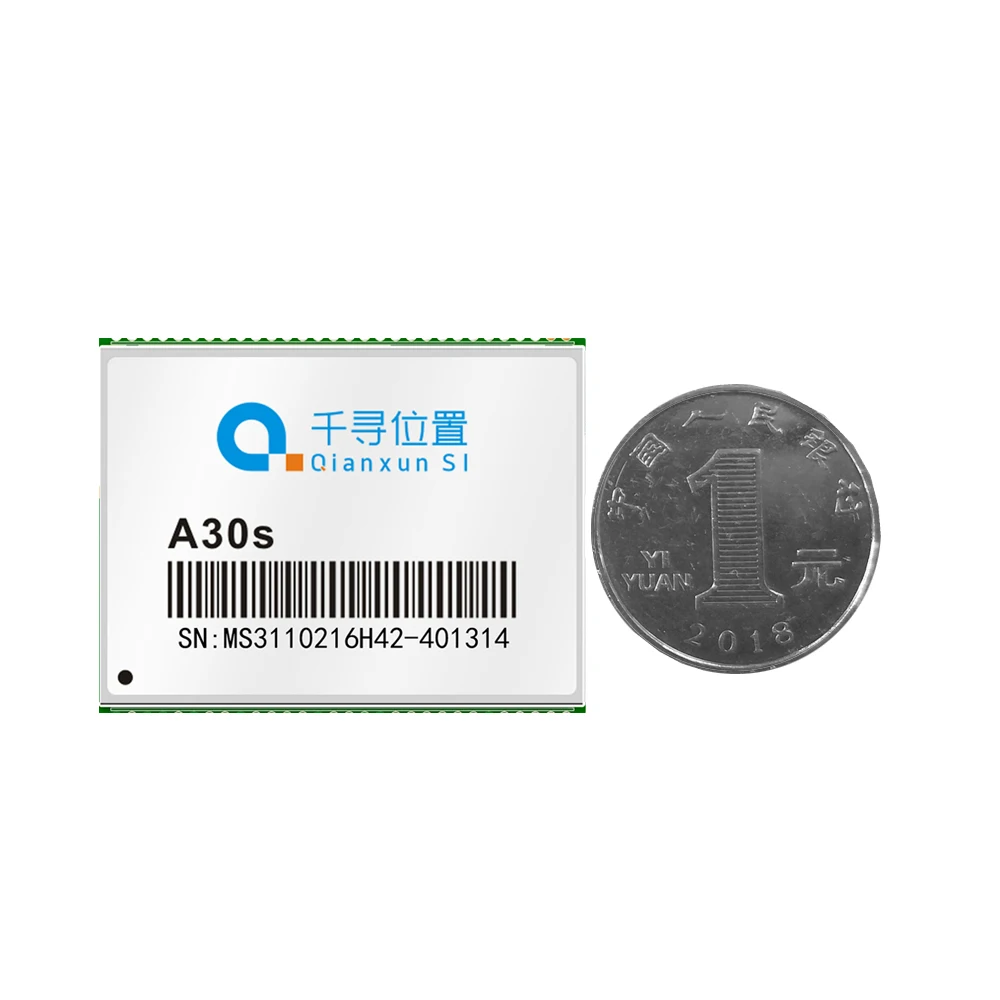

Satellite Tracking | Measurement accuracy | ||||
BDS | B1I ,B1c ,B2a ,B2I ,B3I | Single point measurement | Horizontal: 2m Vertical: 4m | ||
GPS | L1CA ,L2P ,L2C ,L5 | RTK Measurement (Single Station) | Horizontal: 0.8cm + 1ppm Vertical: 1.5cm + 1ppm Initialization time: ＜8s Confidence:≥99.9% | ||
GLONASS | L1CA ,L2CA | RTK Measurement (Network) | Horizontal: 0.8cm + 0.5ppm Vertical: 1.5cm + 0.5ppm Initialization time: ＜8s Confidence:≥99.9% | ||
Galileo | E1CA ,E5a ,E5b | PPP-AR Measurements | Horizontal: <2 cm (RMS) Vertical: <8 cm (RMS) Convergence Time: <15 min | ||
QZSS | L1CA ,L2C ,L5 | PPP-RTK Measurements | Horizontal: <2 cm (RMS) Vertical: <8 cm (RMS) Convergence Time: <2 min | ||
SBAS | L1CA ,L5 | Static Measurement | Horizontal: 2.5mm+0.5ppm Vertical: 5.0mm+0.5ppm | ||
MSS L-Band | QXSI Xstar | Output Frequency | |||
channels | 1120 | Observations | 20Hz | ||
Positioning Time | Positioning results | 20Hz | |||
Cold Start | 40s | Data Format | |||
Warm Start | 20s | Differential Data | Rtcm3.x | ||
Recapture | 1s | Locator Data | Nmea-0183 And Autonomous Formats | ||
Observation Accuracy | Communication Interface | ||||
Pseudorange | 15cm | Serial port | 3 x UART（LV-TTL） | ||
Carrier | 1mm | CAN | 2 x CAN | ||
Internal noise | 1mm | USB | 1 x USB，Host/Device | ||
Electrical Character | SPI | 1 x SPI | |||
Service Voltage | +3.3 VDC ±5% | 1PPS interface | 1 x 1PPS（LV-TTL） | ||
Power | 1.2w | Event intervention | Event Mark | ||
Enviromental Parameter | Antenna | ||||
Working Temperature | -40℃—+85℃ | Interface | MCX，50Ω | ||
Storage Temperature | -40℃—+85℃ | Output voltage | +5.0VDC±5% | ||
Vibration | GJB150.16A-2009，MIL-STD-810 | Output current | 0-200mA | ||
Shock | GJB150.18A-2009，MIL-STD-810 | Antenna gain | 15dB-50dB | ||
Physical Parameters | |||||

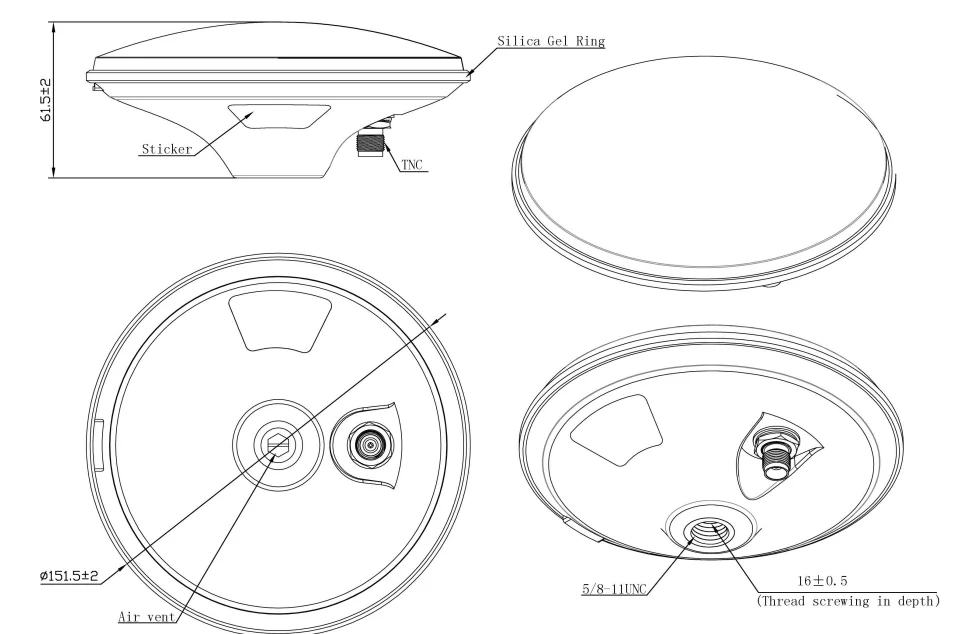

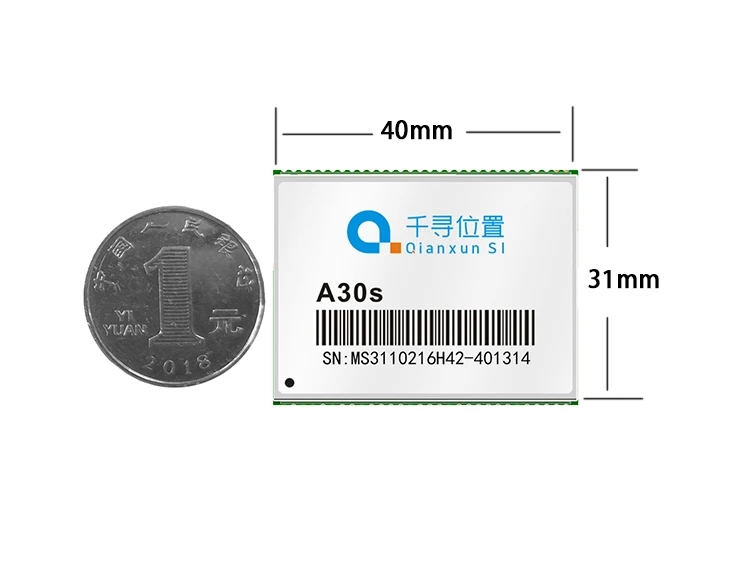

Size | 40 mm x 31 mm x 3.0 mm | ||||
Weight | ≤10g | ||||
