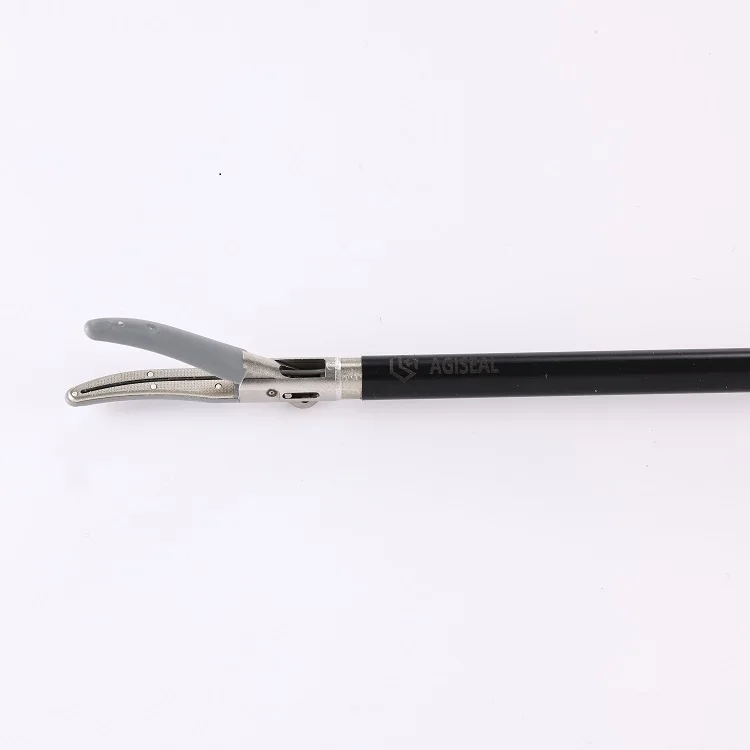

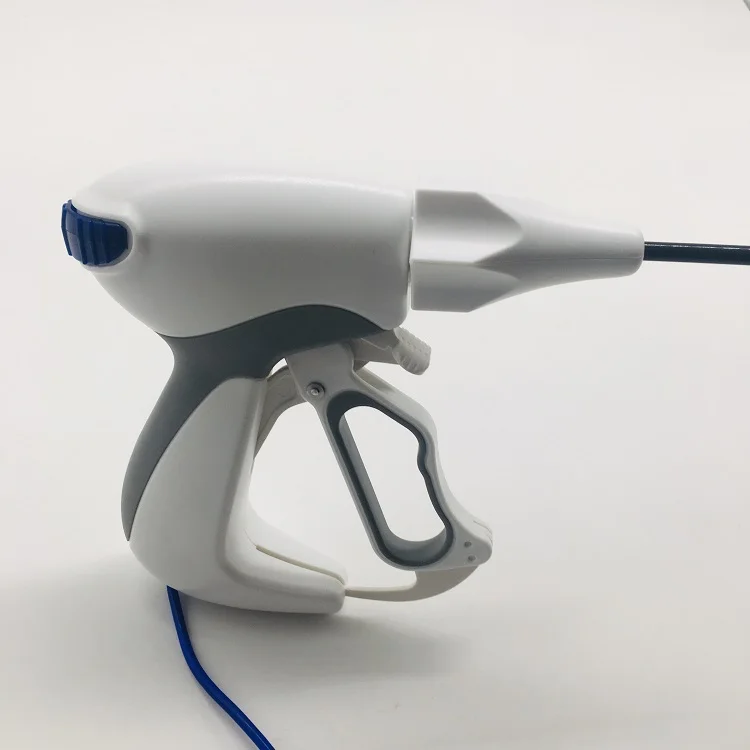

SL0520 Abdominal Surgery Equipments Enseal Ethicon Suture MIS surgery

Product Overview

Description

1.What is the Vessel Sealing Technology:

An electrosurgical technology that combines pressure and energy to create a seal.

.Reliable, consistent permanent vessel wall fusion

.Minimal thermal spread-Reduced sticking and charring

.Seal strength higher than other energy-based techniques

.Seal strengths comparable to existing mechanical-based techniques



Vessel Sealing Device is used in non-invasive surgical procedure for cutting, coagulating, separate and seal the blood vessels. Different energy type is commonly used for sealing the vessels. This includes bipolar, ultrasonic, and hybrid energy types. The vessel sealing devices have active electrodes that circuits the AC current aiming the target tissue. Various factors such as reliability, efficiency is considered while choosing the appropriate vessel sealing devices. These devices are efficient in sealing vessels up to 7 mm diameter. Some of the advantage of these device are safe to use, superior efficiency and needs lesser time for sealing the blood vessels. Additionally, using appropriate devices delivers minimum lateral spread to the peripheral cells at the time of surgery.

Technological advancement and emergence of bipolar devices and ultrasound technology in the vessel sealing is projected to deliver more uniform and stronger compression. This technology also offers monitoring the distribution of heat and energy. These landscapes work in combination to offer stronger vessel seals. The market is experiencing growth due to increasing use of vessel sealing devices in laparoscopic surgeries. It delivers lesser cut, blood loss and empower faster healing as related to open surgeries, and with administrations in many countries imitating to capitalize and increase the healthcare organization standards.

A specialized generator/instrument system has been developed that is designed to reliably seal vessels and tissue bundles for surgical ligation both in laparoscopic and open surgery

applications:

it applies a unique form of bipolar electrosurgery in combination with optimal pressure delivery by the instruments in order to fuse the vessel walls and create a permanent seal.

The output is feedback-controlled so that a reliable seal is achieved in minimal time independent of the type or amount of tissue in the jaws.

The result is reliable seals on vessels up to and including 7 mm in diameter or tissue bundles with a single activation.

The thermal spread is significantly reduced compared to traditional bipolar systems and is comparable to ultrasonic coagulation.

The seal site is often translucent, allowing evaluation of hemostasis prior to cutting.

Seal strengths are comparable to mechanical ligation techniques such as sutures and clips and are significantly stronger than other energy-based techniques such as standard bipolar or ultrasonic coagulation.

The seals have been proven to withstand more than three times normal systolic blood pressure.



Difference between Ligasure  Vessel Sealer and Harmonic Scalpel



	Vessel Sealer(Ligasure)	Harmonic Scalpel(Ethicon)
Technology	Ligasure use fusion technology is a vessel sealing system that is used in open and laparoscopic surgery,it was a  of pressure and energy to create vessel fusion.	Use ultrasound technology to cut tissue while at same time sealing them

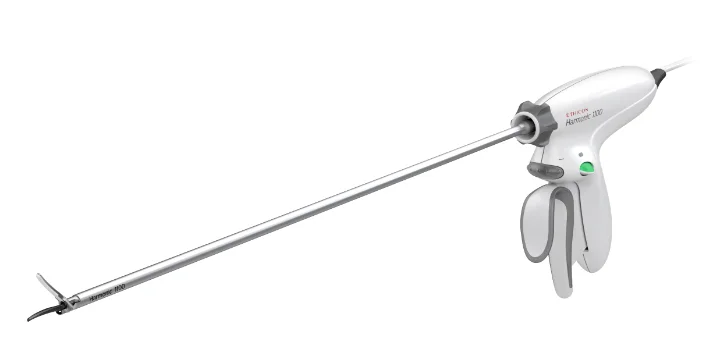

Working Principle	LigaSure (Valleylab, Bolder, CO, USA) is an electro-thermal device that is used to seal vessels up to 7 mm in diameter. Its form of energy denatures collagen and elastin of vessels and connective tissue determining vessel fusion.	Harmonic Ace (Ethicon Endo-Surgery, Inc.), instead, uses ultrasonic vibration determining effects of cutting, coaptation, coagulation, and cavitation of vessels tissues.
Application	Seal and divide vessel,tissue bundles and lymphatics up to 7 mm	Cut and seal 5mm vessels and tissue bundles up to 5 mm
Function	Cutting, sealing, coagulation, separation, grasping	Cutting,sealing,seperation
Jaw temperature	≤90℃	≤200℃
Seal and cut length	up to 22mm	up to 14.2mm
Advantage	longer sealing length less thermal spread (< 2 mm) better operation visibility cut and seal are separate compatible with multi generators	short cut time
Disadvantage	Sealing time longer than harmonic scalper(average seal cycle 2-4s)	more smoke than Ligasure cut and seal at the same time must use alternative generator

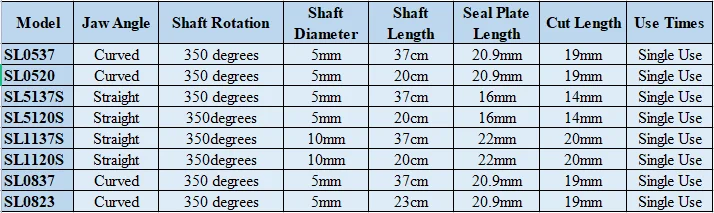

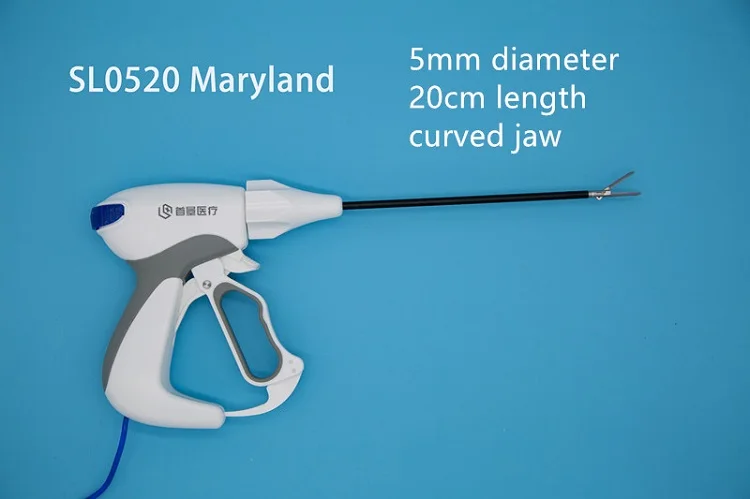

2.Product Details:

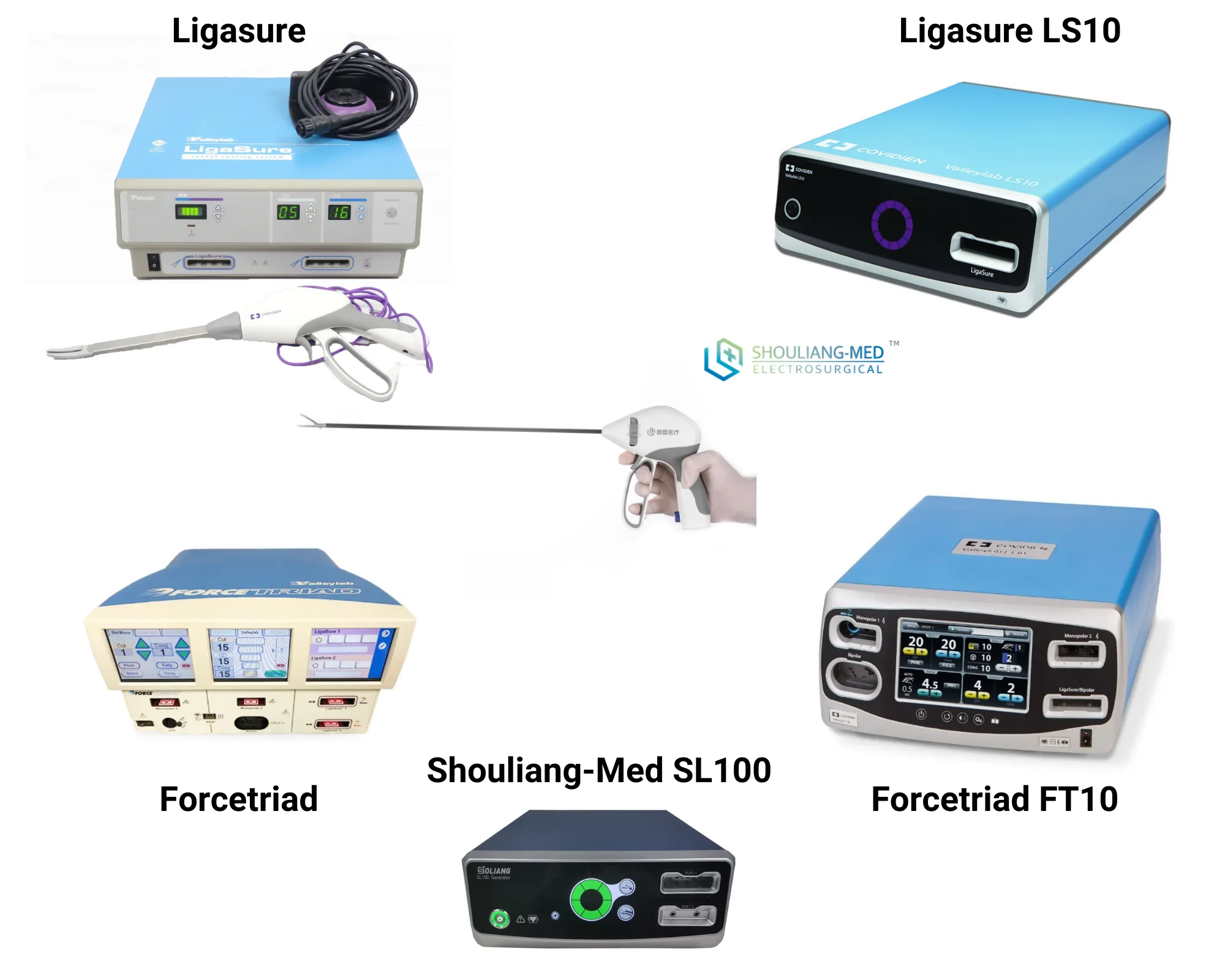

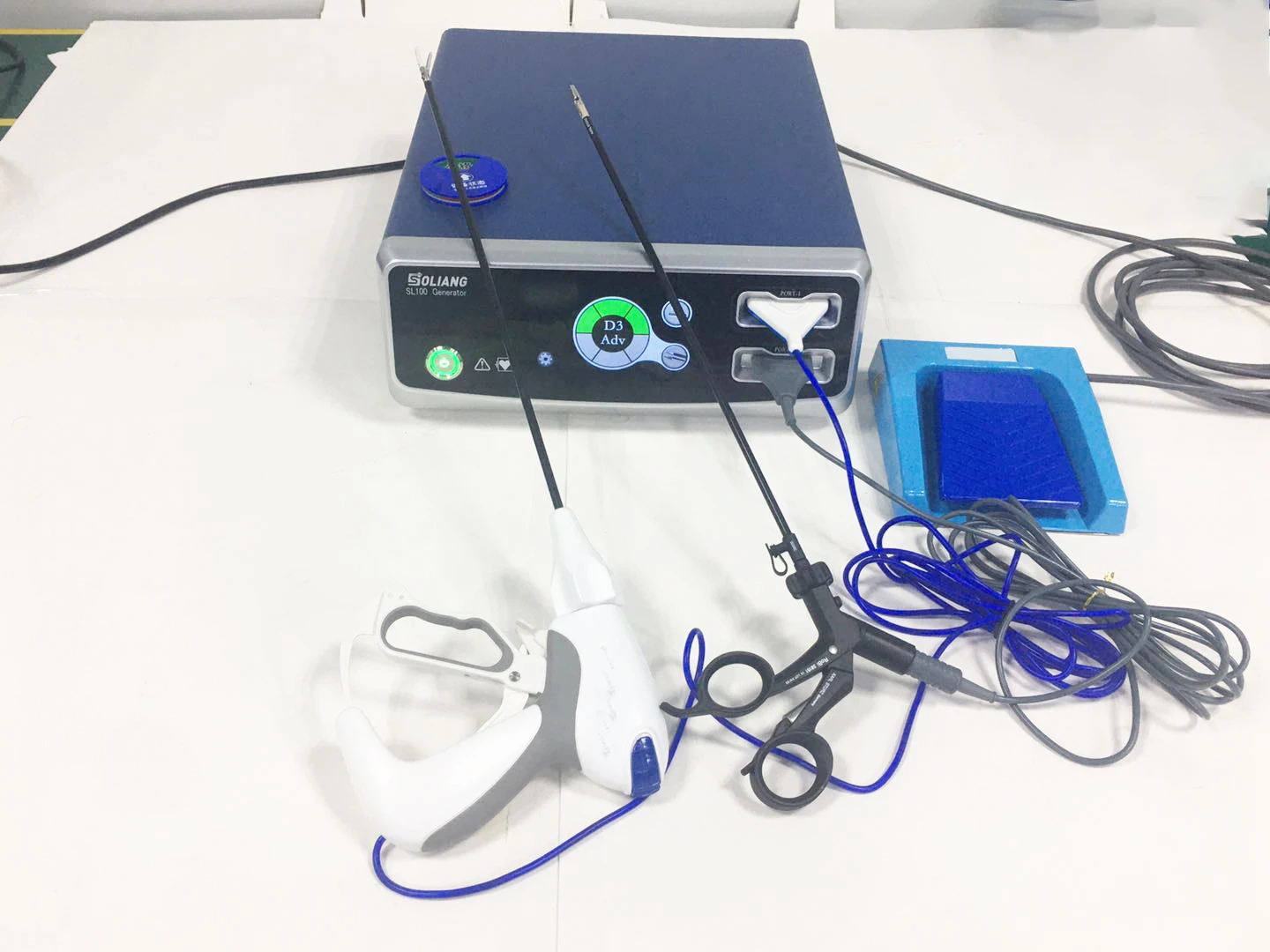

Compatible Generator:

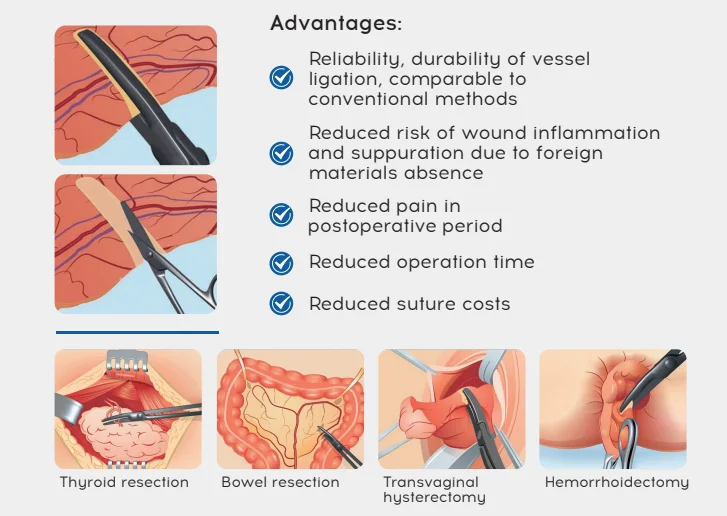

Product Advantage:

1.Seals up to and including 7 mm, lymphatics, and tissue bundles

2.Average seal cycle of 2-4 seconds in most surgical situations, Fast sealing,no smoking, clear vision

3.Seals with stand 3 times normal systolic blood pressure (over 360mmHg)

4.Low working temperature of the jaws (less than 90°C), fast down cooling, minimum thermal damage lateral thermal damage <2mm

5. 2mm of the end of the jaws do not cut tissue, preventing accidental cuts

6.Special design of the jaw electrode surface reduces tissue sticking and charring

7.Round ceramic dots on the electrode surface of the jaws for a more secure grip.

8.Reduce blood loss compared ,Reduce blood transfusions,Reduce procedure time ,Reduce patient length of stay compared

9.Plug adaptable to a wide range of energy generators such as Valleylab, ForceTriad etc.



Application:

• General Surgery

• Laparoscopic Surgery



On the basis of Application, the Global Vessel Sealing Devices Market has been segmented into General Surgery, Laparoscopic Surgery, Others. Recently the laparoscopy surgery segment accounted for the highest market share owing to the increasing use of vessel sealing instruments in minimally invasive surgery. The advantage of laparoscopic surgery is it reduces the risk of thermal damage, no smoke, and hemostasis, which makes it a preferable option. Additionally, conventional surgeries require more instruments such as sutures, bipolar graspers, and clips, to attain effectual hemostasis and vessel sealing, which promotes the adoption of non-invasive surgery.

Often used surgery operation type:



Thoracic surgery	Lobectomy , Esophagectomy
Bariatric Surgery	Sleeve Gastrectomy, gastric bypass
Gastrointestinal Surgery	Gastrectomy Anus/Colon, Appendectomy
Urology Surgery	Urology Surgery
Hepatobiliary and Pancreatic Surgery	Liver resection, Splenectomy ,Cholecystectomy , Pancreaticoduodenectomy























3.Company Profile

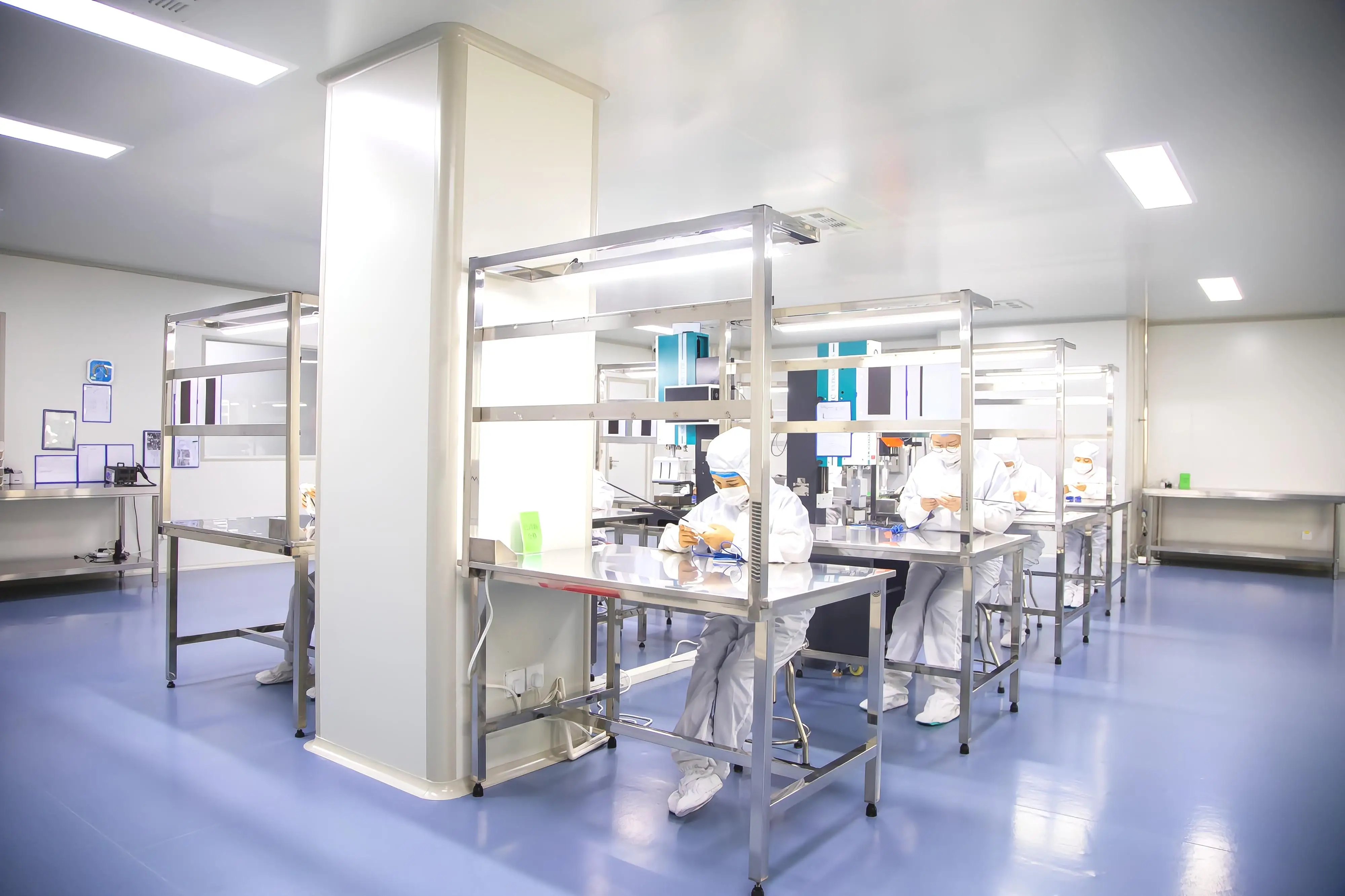

Nanjing ShouLiang-Med established in 2016 is a qualified supplier of electro-surgical instruments, one of the premier manufacturing vendors with vertical set up in China.



lWhat we do: We are mainly engaged in R&D and producing of electrosurgical instruments,

specifically surgical equipment for the closure and cutting of blood vessels, lymphatics, and tissue bundles, such as Open & Laparoscopic Vessel Sealer/Divider etc.



lMain Products: Our surgical technologies and solutions include electrosurgical energy device and vessel sealer.

The ESU generator and bipolar vessel sealer are widely used in minimally invasive surgery and general surgery.



lOur mission: To provide affordable and convenient electrosurgical solutions to the worldwide hospitals and patients.



lGlobal representative: Our products are sold to many countries in the worldwide, including Middle East, Europe, Latin America, Asia and Africa.

















4.Questions usually asked

1.How can I get a sample?

Sample order from 1 pc is welcomed. Before that we will guide you to choose the suitable model.



2.Do you have agent in my local market?

Contact our sales representative to know about our main global market, we will also share you about your local market research and give solutions for your business.



3.Can you do OEM?

We support customizing Logo, model name and package. For your personal design of the instruments, please send us your proposal for discussion.



4.Are your company trustworthy?

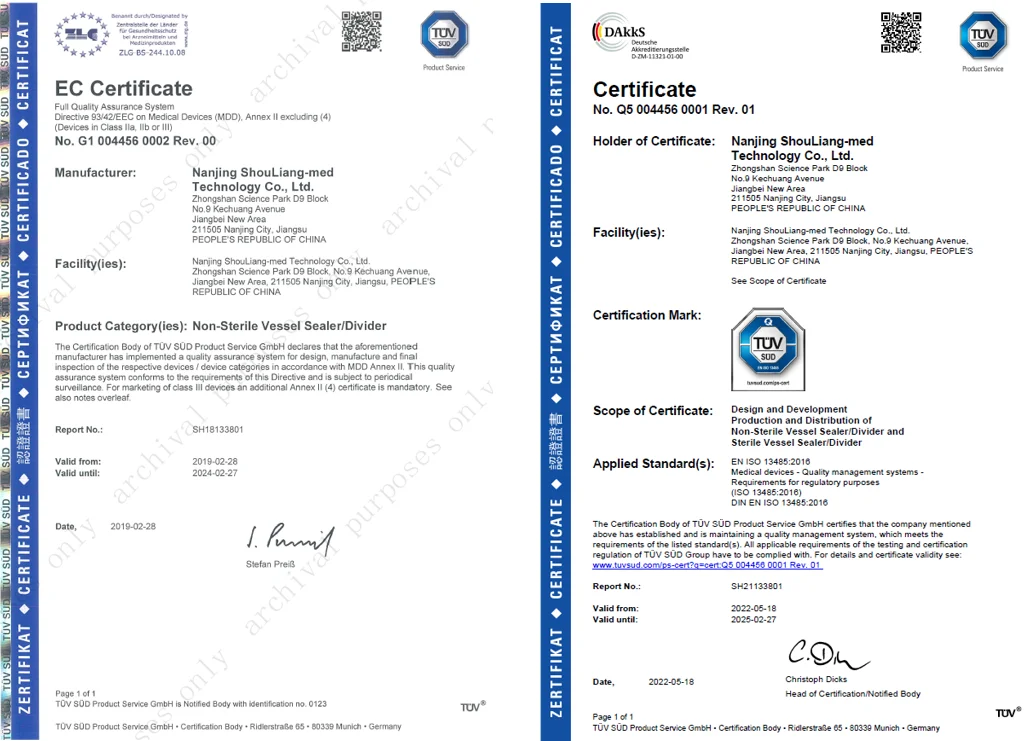

Firstly we have CE(MDR) and ISO 13485 certificates for most of our products.

Secondly we always intend to start long term business with our customers instead of one time business, therefore quality and service are always our main focus.

Finally we are always willing to sign legal contract with you to protect your business in safe, payment method can be negotiated based on your quantity too.
