XY 100 Geotechnical drill rig spt for sale
- Category: >>>
- Supplier: Henan Leagoo Electro-Mechanical Co. Ltd.
Share on (1600545655273):
Product Overview
Description
Product Description

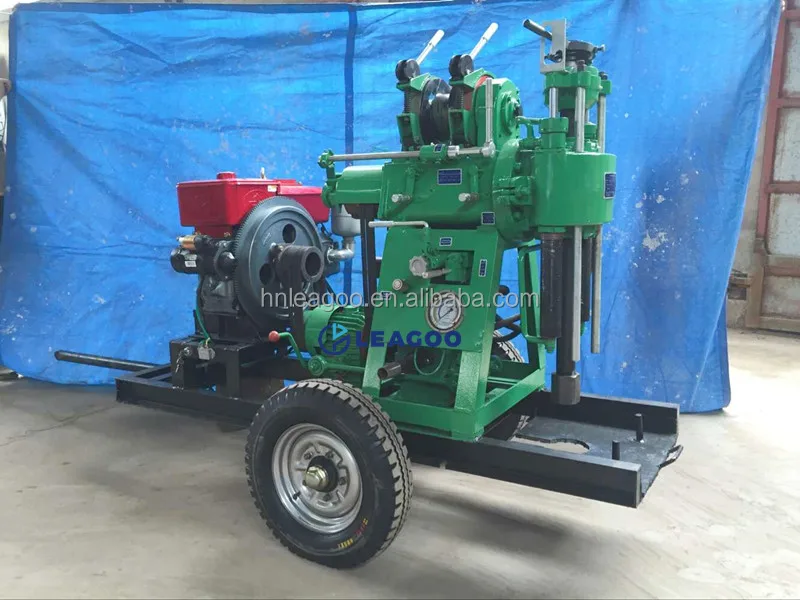

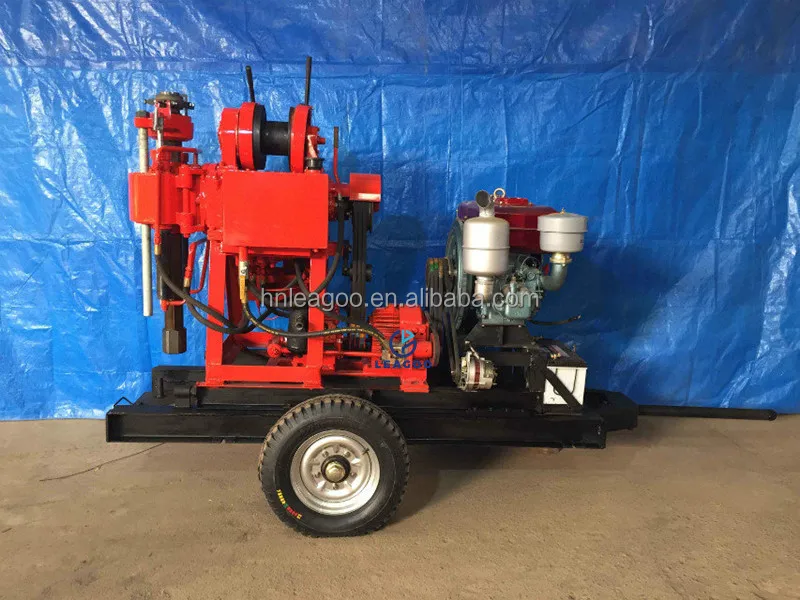

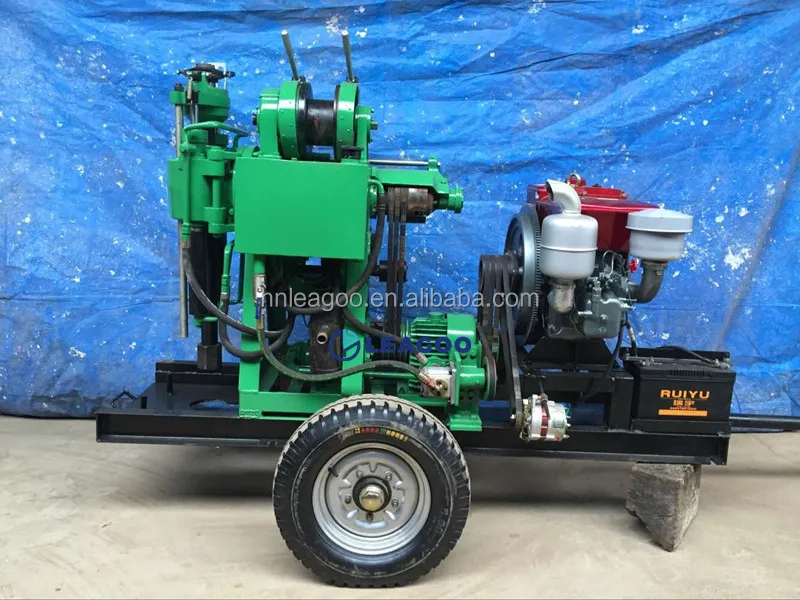

100m XY-100 Geotechnical drill rig spt for sale
1. It is a high-speed drilling rig, suitable for geotechnical exploration, water well, soil sample projects.
2. Alloy bit, diamond bit and tricone bit can be selected for drilling according to the different bottom layers.
3. Diesel engine as power, no need to use electricity, convenient for outdoor drilling.
4. BW-100 mud pump, with large water flushing rate, supply powerfully energy for working.
Technical Parameter
100m XY-100 Geotechnical drill rig spt for sale
1. Main machine parameter | |
Drilling depth | 100m |
Maximum open hole caliber | 300mm |
End hole caliber | 75mm |
Diameter of drill rod | 50mm |
Drilling angle | 90~75 |
Weight(not include power) | 520kg |
Dimension | 2000mm*900mm*1400mm |
2. Vertical shaft | |
Rotating speed | 142, 285, 570r/min |
Feeding stroke | 450mm |
3. Winch | |
Max. single line winch capacity | 1600Kg |
Diameter of wire rope | 11mm |
Volume of winding drum | 27m |
Hug floodgate caliber | 230mm |
Hug floodgate belt width | 50mm |
4. Mud pump | |
Type | Horizontal single urn twin-action |
Rate of flow | 95/77L/min |
MAX. pressure | 1.2MPa |
Working pressure | 0.7MPa |
Diameter of water inlet tube | 42mm |
Diameter of water outlet tube | 32mm |
5. Power | |
Diesel engine | 18HP, 2000r/min |
Electrical motor | 11KW, 1460r/min |

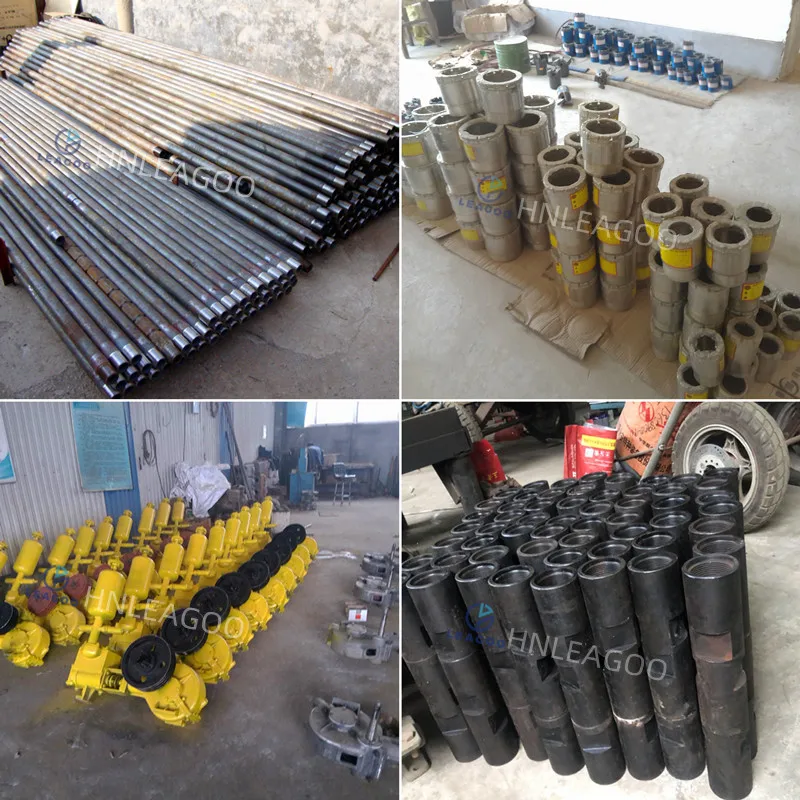

Accessories

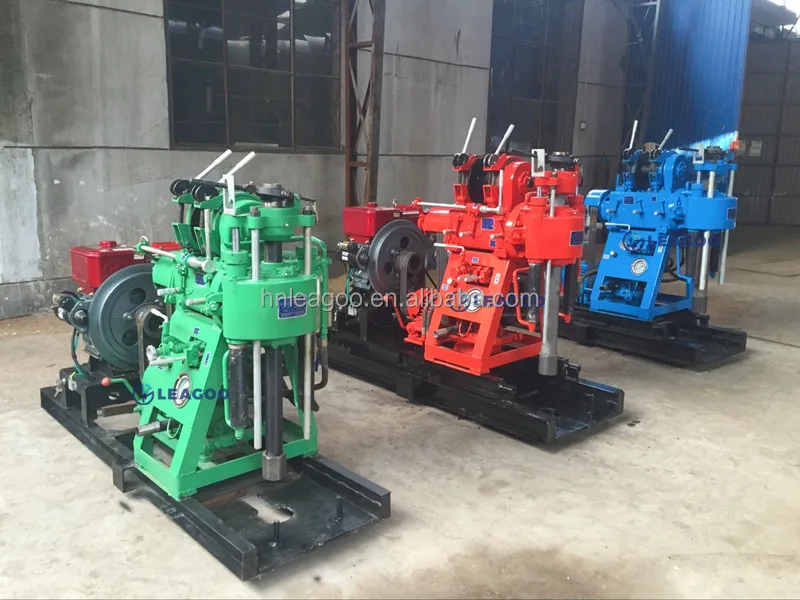

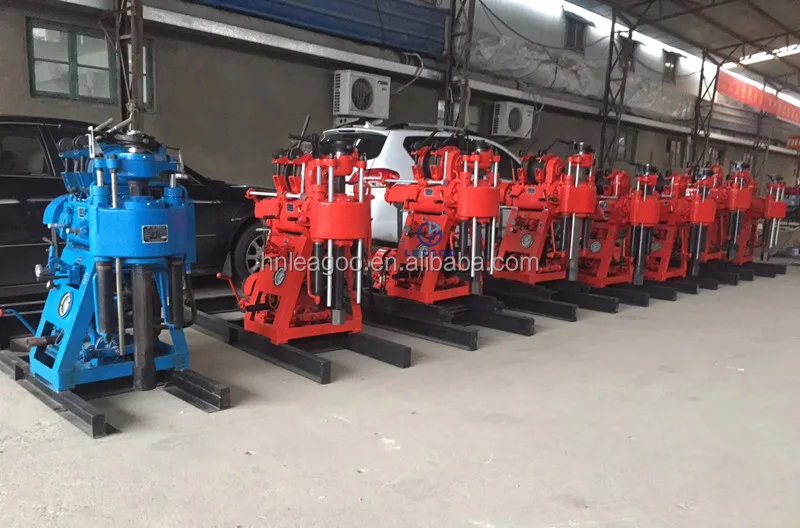

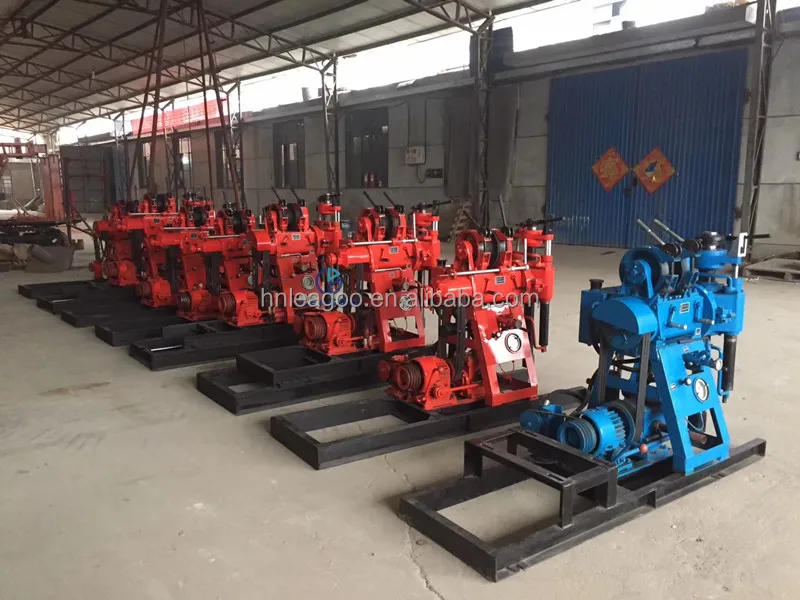

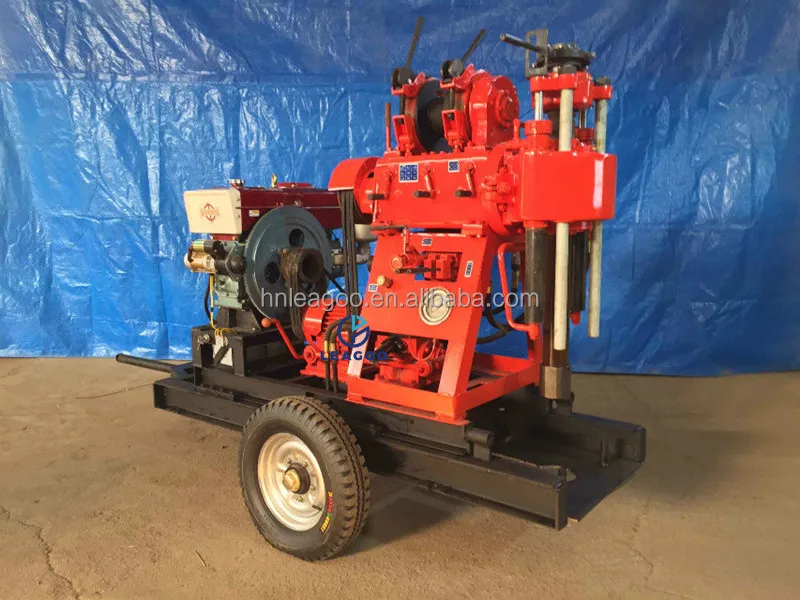

Machine at Workshop

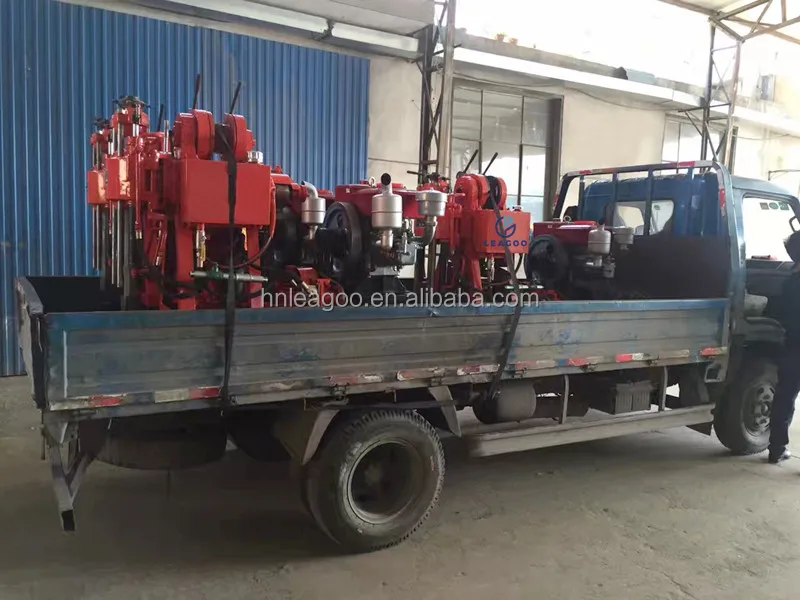

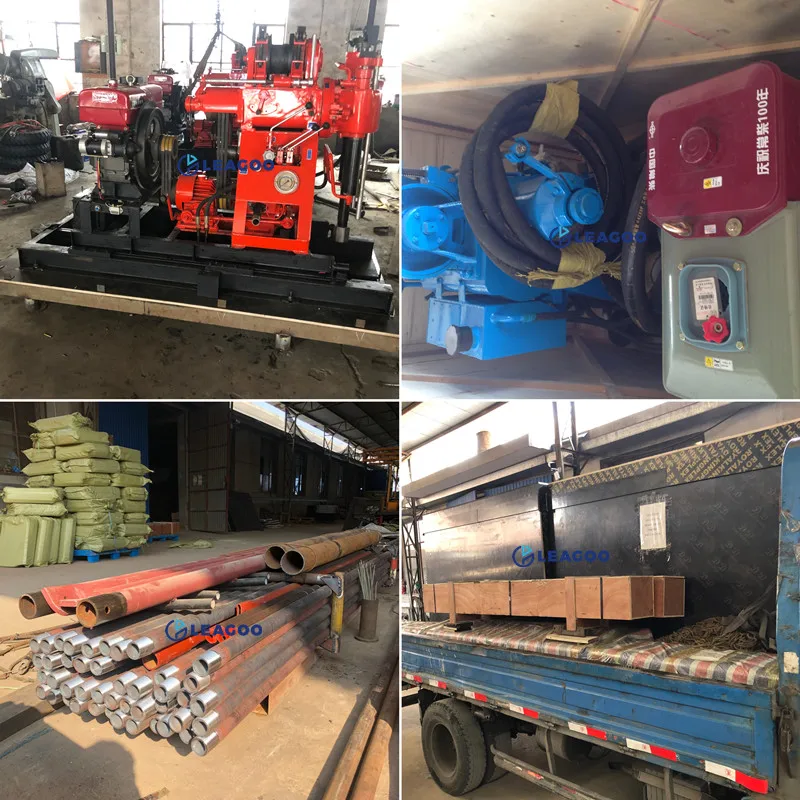

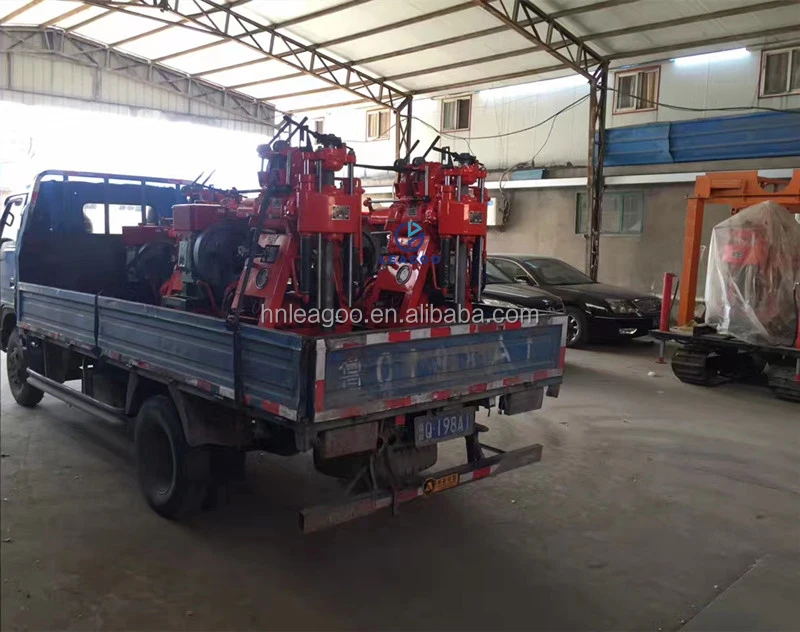

Packaging & Shipping

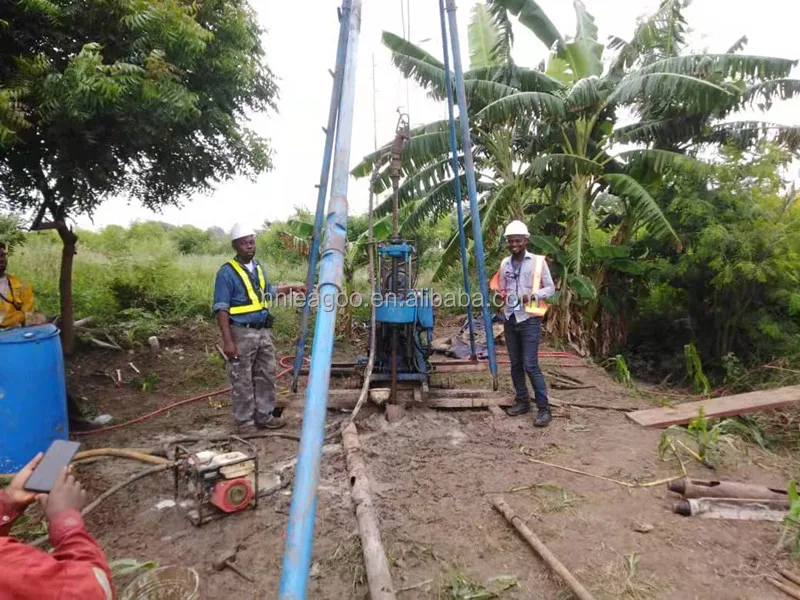

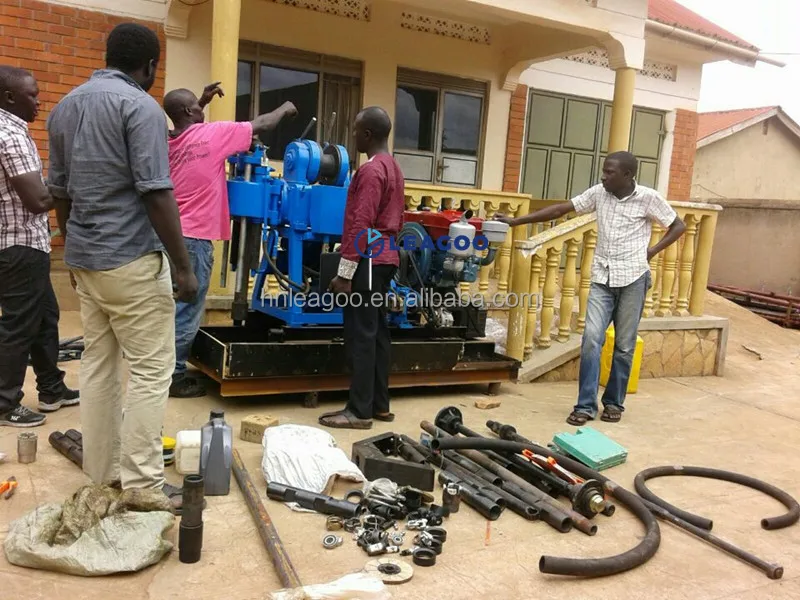

Working Site
FAQ
1. What's the capacity of the drilling rigs you have ?
0-2000m Depth for options.
2. How to ship the goods to us ?
By sea or by air shipment .
3. What's the MOQ and lead time ?
1 Set, normally need 7 days to prepare .
4. What's the payment terms ?
50% By T/T as deposit, balance 50% should be paid before goods leaves factory .
Contact Information
Sales Manager : Debbie Liu
Mobile /Whatsapp: +86-13213019085
Email: info(at)hnleagoo.com
Offering 100m-2000m drilling rigs , borehole measuring instruments and solar pumps, please contact me for more details !
