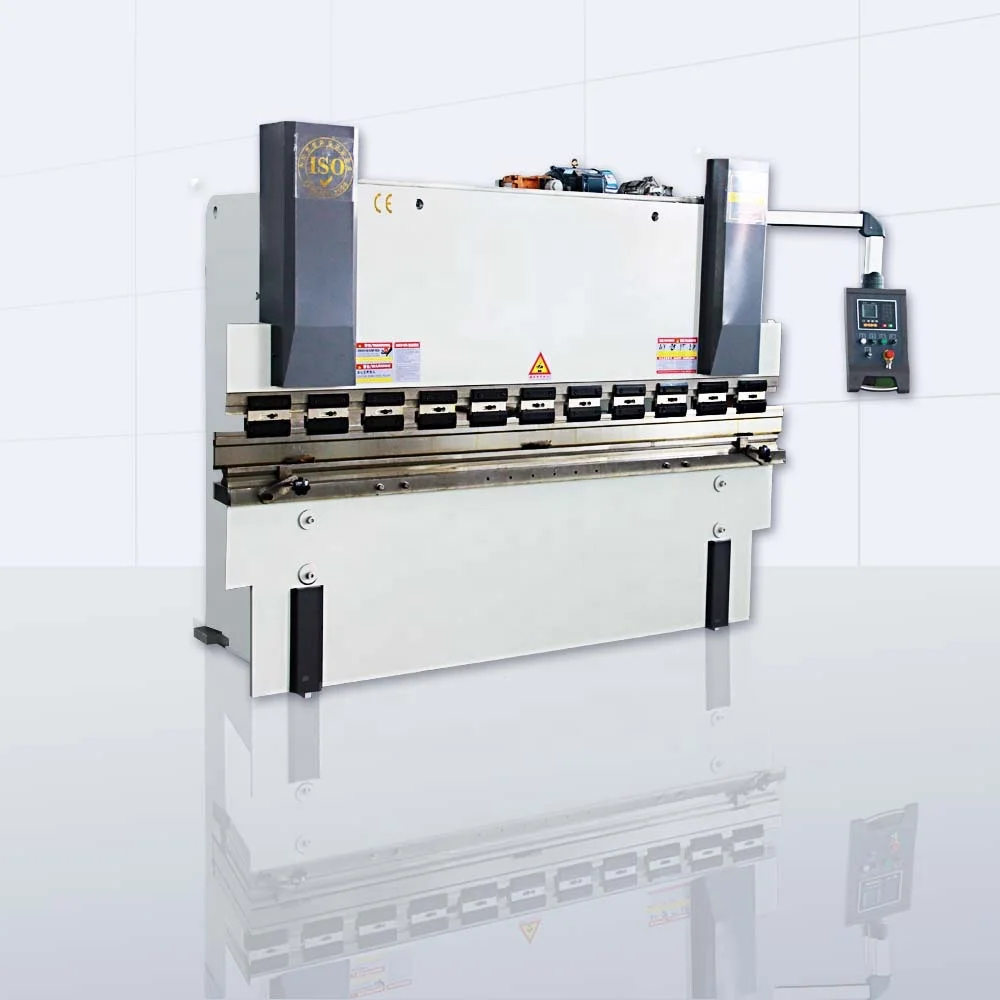

turret bend press WC67Y/K 40T electric hydraulic machine press brake
- Category: >>>
- Supplier: Anhui Zhongyi Machine Tool Manufacturing Co. Ltd.
Share on (1600545662281):
Product Overview
Description
Product Description
Multi-function iron worker goes along with Automatic Holding System and Temperature Cooling System.Hydraulic iron worker can punch,cut,notch and bend for flat bar,square bar,round bar,equal angle,channel.It is the latest product of the punching and shearing machine at home and abroad.
WC67Y/K | ||
Model | 40T/2500 | |
Nominal Force(T) | 400 | |
Worktable length(mm) | 2500 | |
Poles distance(mm) | 1850 | |
Throat Depth(mm) | 230 | |
Max.stroke(mm) | 100 | |
Open Heightr(mm) | 320 | |
Main motor power(KW) | 5.5 | |
Machine dimensions(L×W×H)(mm) | 2200×1200×2000 | |
Weight (kg) | 2100 | |
●Complete steel-welded structure, with sufficient strength and rigidity;

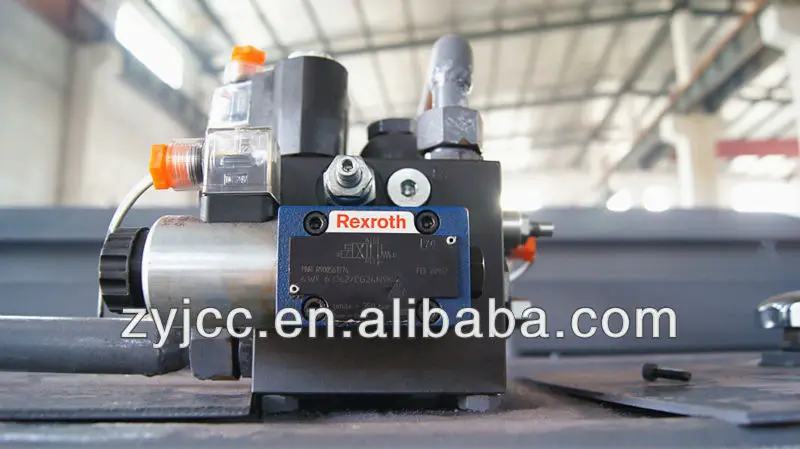

●Hydraulic down-stroke structure, reliable and smooth;
●Mechanical stop unit, synchronous torque, and high precision;

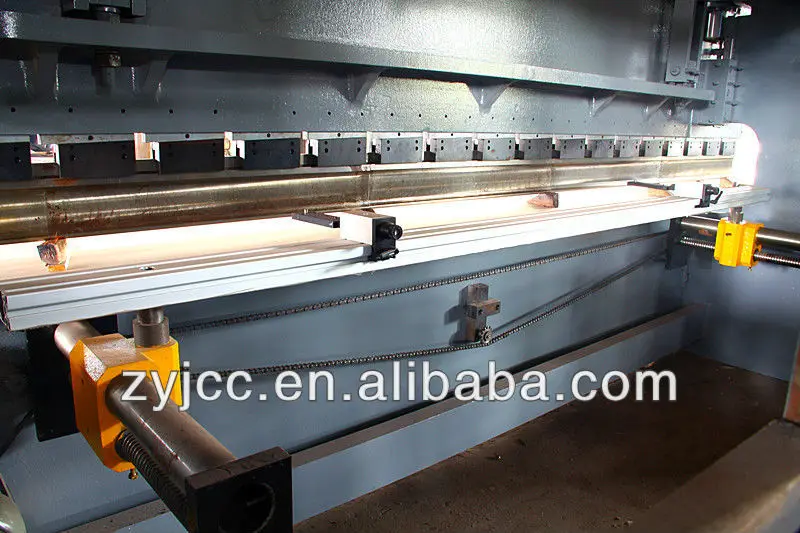

●Back-gauge distance and upper ram stroke with electric adjustment, and counter display;

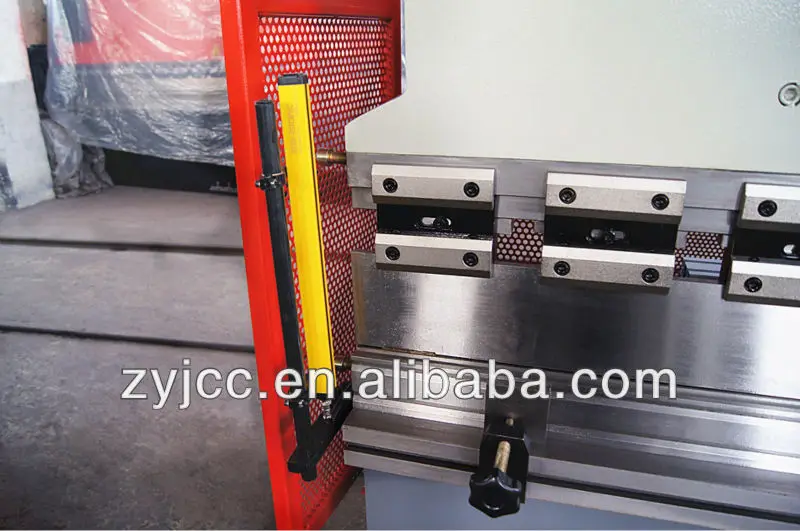

●Upper tool with tension compensating mechanism, in order to guarantee high precision of bending;
●Eston E21 NC system;
●X-axis and Y-axis drive automatic control.
Operation process:
Class talents, first-class technology, first-class equipment and first-class management constitutes a first-class production lines.
The company can ensure the operation with multi-mode and multi-channel.By cultivating technical talents to improve equipment operation and automation levels.
Improving the efficiency of every workshop,every team and every department to achieve the production of high efficiency and standards.
Details Images

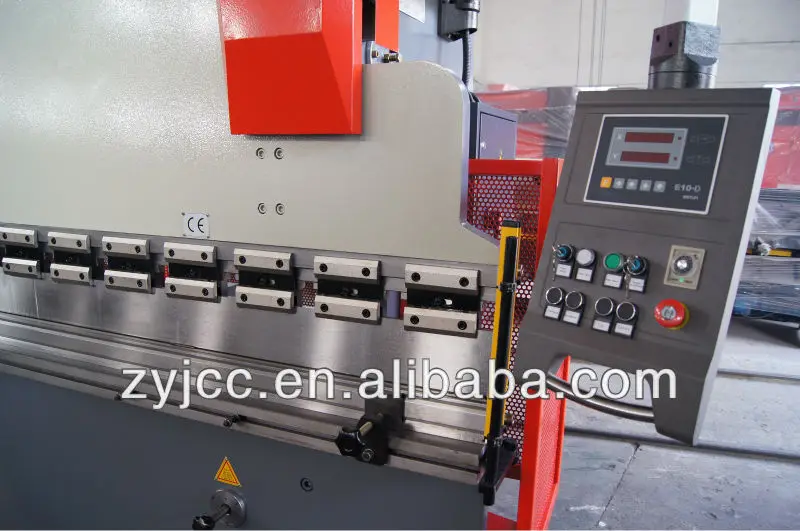

E21
■HD LCD display, with both Chinese and English optional page display programming parameters, faster and easier to write programs.
■X, Y-axis intelligent positioning, can also be manually adjusted as needed to remove the mechanical hand positioning device.
■Built-in dwell time, unloading delay setting function, the operation easier, without time relay, to reduce costs.
■With the function of one button backup and restore,always can restore parameters as required to reduce the maintenance costs.
■Support multi-step programming, complex work pieces can complete a process, improve production efficiency and machining accuracy.
■All keys on the panel are micro-switches, through EMC, high temperature, vibration and other rigorous testing to ensure product stability and service life.
■CE certified to meet the needs of overseas markets.
■X, Y-axis intelligent positioning, can also be manually adjusted as needed to remove the mechanical hand positioning device.
■Built-in dwell time, unloading delay setting function, the operation easier, without time relay, to reduce costs.
■With the function of one button backup and restore,always can restore parameters as required to reduce the maintenance costs.
■Support multi-step programming, complex work pieces can complete a process, improve production efficiency and machining accuracy.
■All keys on the panel are micro-switches, through EMC, high temperature, vibration and other rigorous testing to ensure product stability and service life.
■CE certified to meet the needs of overseas markets.
CTP2007
◎7-inch high-definition touch-screen color display
◎Menu-driven programming interface
◎Equipped with servo motors
◎CAN open field bus control mode, completely eliminate the interference positioning error
◎Support angle programming, the system automatically calculates the depth of bending sheet metal
◎Slider position control
◎Back gauge position control
◎Dwell time setting
◎20 programs, each program including 20 steps
◎Soft limit function
◎Power cut memory
◎Menu-driven programming interface
◎Equipped with servo motors
◎CAN open field bus control mode, completely eliminate the interference positioning error
◎Support angle programming, the system automatically calculates the depth of bending sheet metal
◎Slider position control
◎Back gauge position control
◎Dwell time setting
◎20 programs, each program including 20 steps
◎Soft limit function
◎Power cut memory
E210
◎High-definition 5.6 "TFT LCD display 640 x 480 pixels 0100 program memory, each program including 25 steps
◎The angle programming, automatically calculates the bending depth
◎Mold library: the upper die 15 and lower die 15
◎Back gauge tolerance compensation
01/0 port configuration flexibility custom manifolds
◎Automatic homing, power cut memory
OX-axis positioning accuracy 0.1 mm,Y axis positioning accuracy:0.01 mm
◎The angle programming, automatically calculates the bending depth
◎Mold library: the upper die 15 and lower die 15
◎Back gauge tolerance compensation
01/0 port configuration flexibility custom manifolds
◎Automatic homing, power cut memory
OX-axis positioning accuracy 0.1 mm,Y axis positioning accuracy:0.01 mm
Packing&Shipping
Packaging Details
The normal package is plastic film packaging or wooden box , we will pack it according to customers special request.
The normal package is plastic film packaging or wooden box , we will pack it according to customers special request.
Company Introduction
ZHONGYI Industrial hydraulic iron worker have been designed and built to the highest quality standards in the industry.This profitable machine will serve any grueling fabrication shop for decades to come.
The machine by the European Union CE certification and ISO quality system certification
The machine by the European Union CE certification and ISO quality system certification
Our Services & Strength
After-sales service:
Machine is simple, generally, user can understand how to operate. There is operation instruction and disc.
Welcome to our factory to learn how to operate our machine, we will give good training and it's for free.
Our engineer is available for user. If there is requirement, our engineer can go to user factory, and adjust machine, give good training to user.
Machine is simple, generally, user can understand how to operate. There is operation instruction and disc.
Welcome to our factory to learn how to operate our machine, we will give good training and it's for free.
Our engineer is available for user. If there is requirement, our engineer can go to user factory, and adjust machine, give good training to user.
Certifications
Why Choose Us
Long History
Our company was founded in 2002,has a history of nearly 20 years.
We have been in a leading position in China's machinery manufacturing industry.
We are the first enterprise in Anhui province to produce hydraulic ironworker machines.
We are the first enterprise in Anhui province to produce hydraulic ironworker machines.
Factory Direct Sale
We have a large factory and all the machines are sold directly from the factory. Ensuring the quality of each machine.
In addition,we have a complete after-sales service system.
Good Reputation
Alibaba assessed 12 years Gold Supplier for ironworker.
Inspected by the Inspection Institution of Bureau Veritas Certification.
100% QC inspection Before Shipment.
Best Quality & Best Service with Competitive price.
Inspected by the Inspection Institution of Bureau Veritas Certification.
100% QC inspection Before Shipment.
