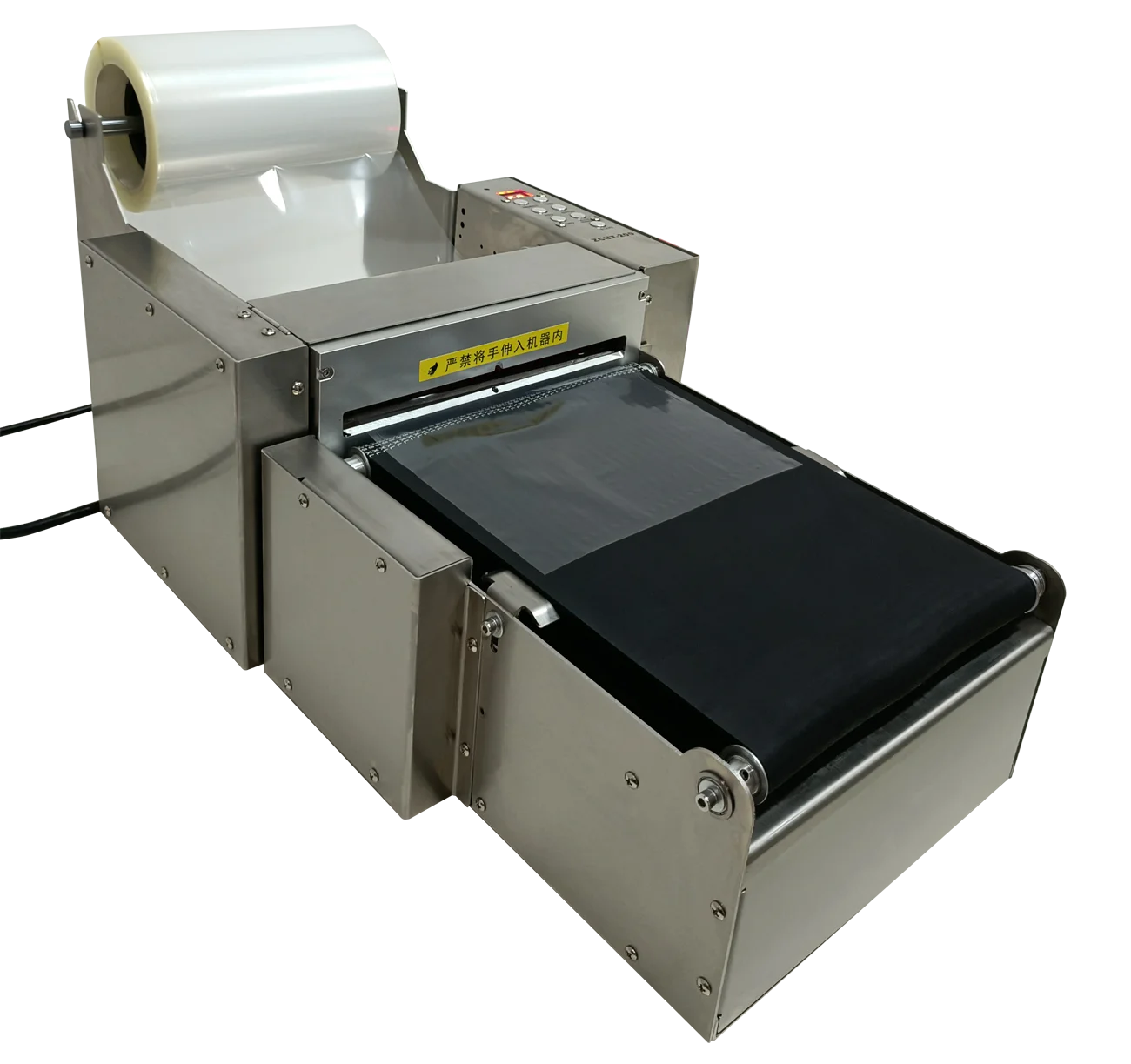

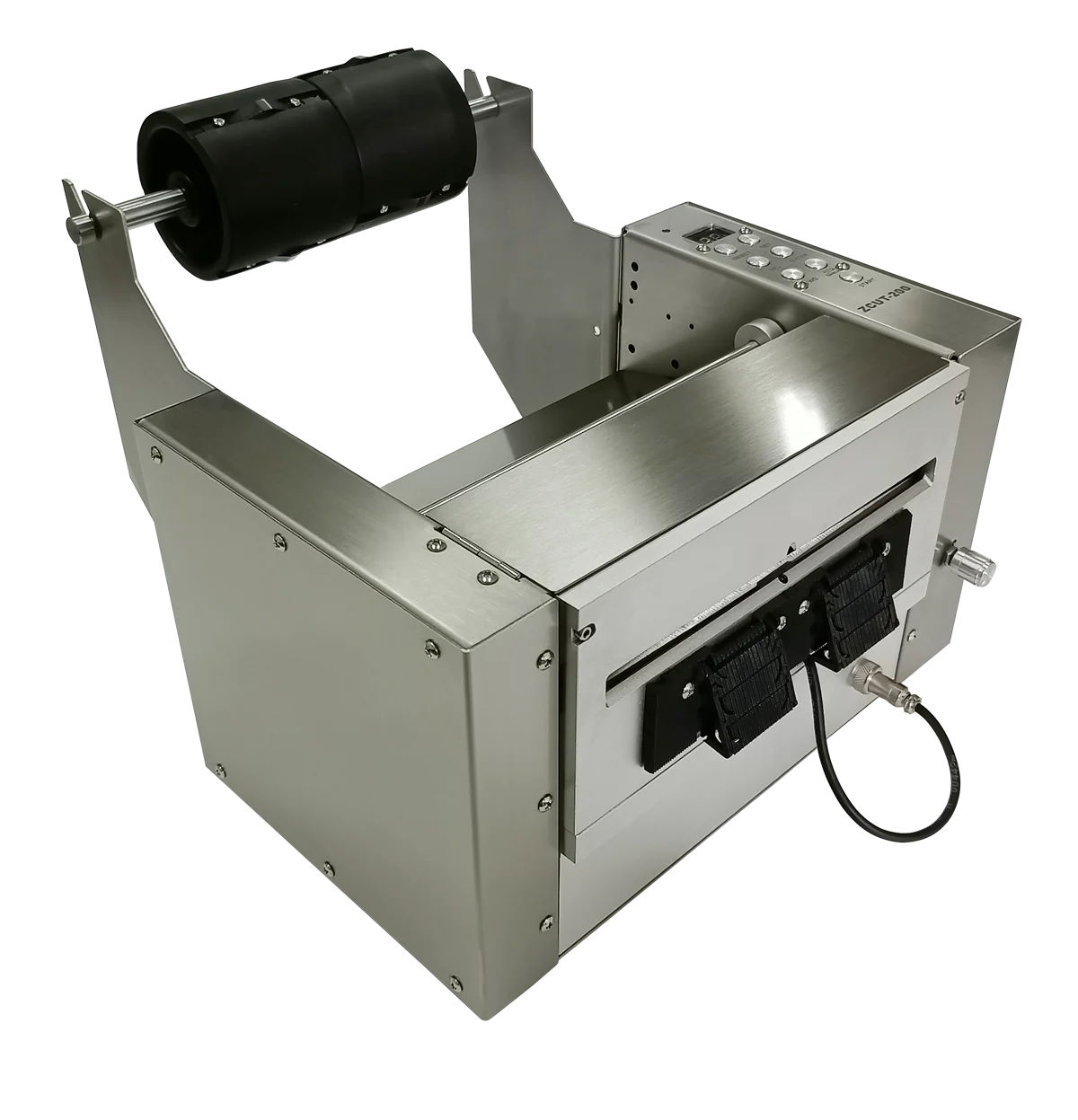

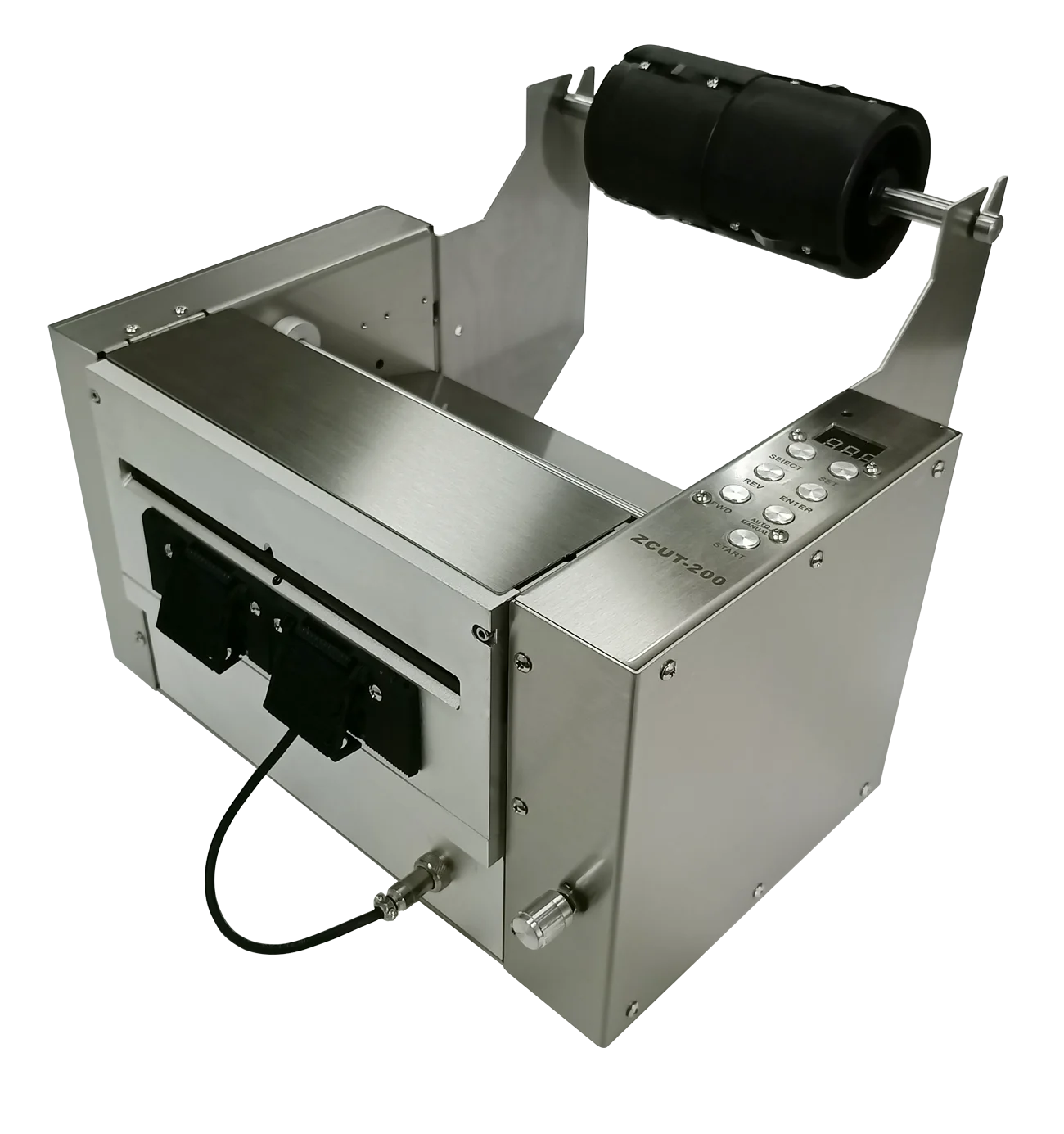

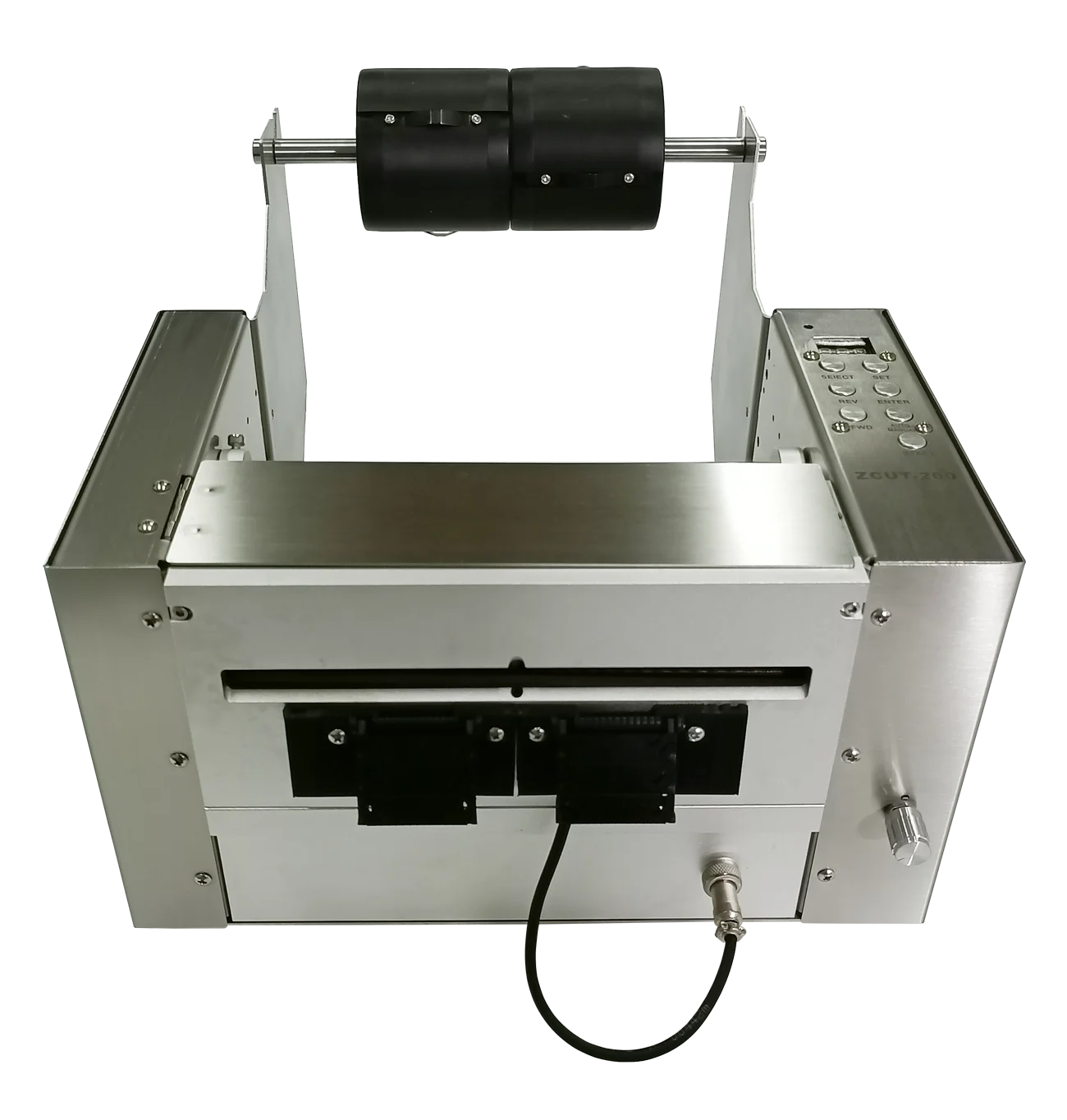

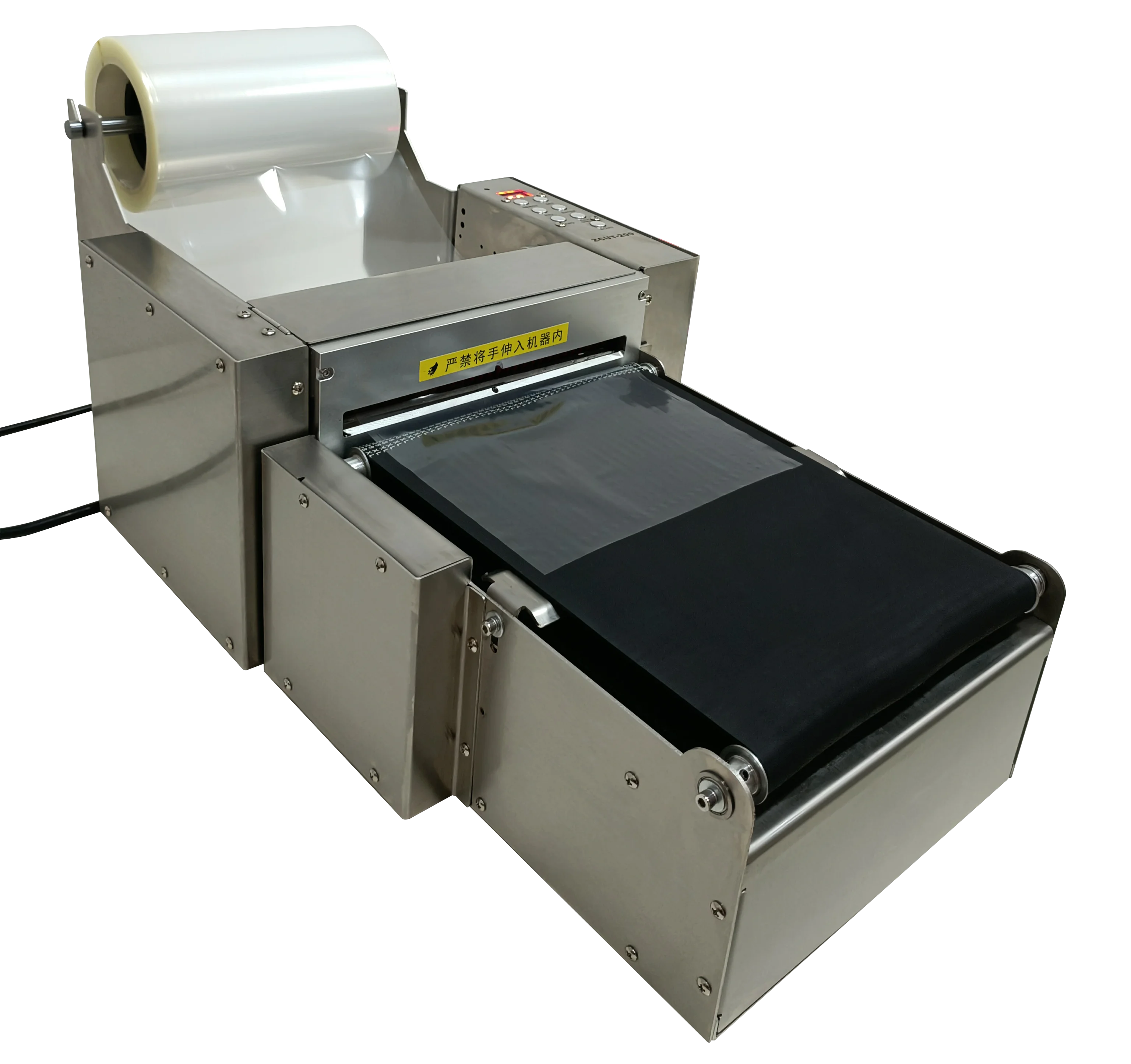

200mm Cutting Width Automatic Tape Dispenser ZCUT 200

Product Overview

Description

electric carousel tape machine dispenser



Specifications:

Specifications:
Model	ZCUT-100	ZCUT-120	ZCUT-200
Power Supply	AC110V60Hz/220V50Hz	AC110V60Hz/220V50Hz	AC110V60Hz/220V50Hz
Motor	Stepper motor	Stepper motor	Stepper motor
Cutting width	40-100mm	40-120mm	20-200 mm
Cutting length	40-999 mm	40-999 mm	20-999 mm (±1 mm)
Min inside dia	75mm	75mm	75mm
Max outside dia	130mm	130mm	300mm

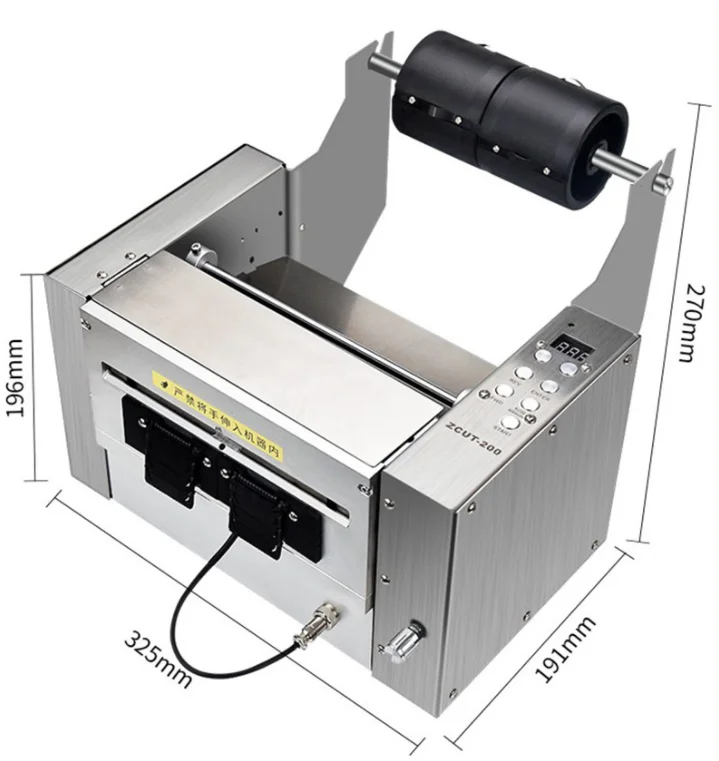

Size (mm)	185( W )*330(H) *262 ( D)	185( W)*330(H) *262( D)	325( W)*335(H) *270( D)

• 1. High speed: It can cut 100~120 cut per minute. (50mm long)
  2. Tolerance: +/- 0.5% of cutting length
  3. Cutting type: Cutting is neat due to using a cold cutter which is durable.
  4. Operation: Automatic and manual two kinds of mode switches
  5. Automatic stopper: It stops automatically if materials run out during operation
  6. Memory: Set-length, set quantity & set speed will not be erased even if power off & on
  7. Application: Belt loop, soft tube, string, plastic zipper, elastic band, small webbing, etc.
  8. Heavy duty, high speed, high accuracy, designed for cutting non-adhesive materials.







We Provide

• Best products and factory price.


• On-time delivery and the shortest delivery time.


• 1-year warranty. If our products cannot function properly within 12 months, we’ll offer spare parts for free; and you need to pay for the delivery.


• OEM and customized service.


• User manuals will go with relative machines.

Service

• QC: All products will be checked before delivery.


• Compensation: If any unqualified product is found, we’ll pay the compensation or send new qualified products to customers.


• Maintenance & Repair: In case of any maintenance or repair need, we’ll help to find out the problem and offer relative guidance.


• Operation Guidance:If you have any problem with operation, please feel free to contact us.

ZCUT-2 Electrical Tape Dispenser is electric-powered and CE-approved tape dispenser which can advance and cut tape automatically at a preset length.

Check more about this electrical tape dispenser by contact us online!



Related Automatic Tape Dispensers

Brand	Model	Cutting length	Cutting width	Outside diameter	Usable Tapes	Length Memory	Size (W×L×H) mm	Net Weight
BOJIN	M-1000	5-999mm	7-50mm	180mm	adhesive tape		137×218×150mm	2.4Kg
BOJIN	BJ-1000	5-999mm	5-50mm	180mm	adhesive tape		137x218x150mm	2.4Kg
BOJIN	BJ-2000S	5-999mm	5-50mm	180mm	adhesive tape	√	137x218x150mm	2.4Kg
BOJIN	M-1000S	5-999mm	5-50mm	180mm	adhesive tape		137x218x150mm	2.4Kg
BOJIN	ZCUT-2	13-60mm	3-25mm	130mm	adhesive tape		300×170×165mm	2.8kg
BOJIN	RT-3000	9-61mm	3-25mm	150mm	adhesive tape		120×150×250mm	2.2Kg
ELM	M-1000	20-999mm	7-50mm	180mm	adhesive tape		137x245x156mm	2.4Kg
ELM	MS-1100	30-999mm	7-50mm	180mm	adhesive tape		137×249×156mm	2.5Kg
ELM	TDA-080	40-999mm	13-80mm	230mm	adhesive tape		229×168×360mm	11.0Kg
ELM	TDA-080M	40-999mm	13-80mm	230mm	adhesive tape	√	229×168×360mm	11.0Kg
YAESU	ZCUT-7	5-999mm	6-50mm	300mm	Non/adhesive tape		116×140×213mm	2.8Kg
YAESU	ZCUT-8	9-61mm	3-25mm	150mm	adhesive tape		120×150×250mm	2.2Kg
YAESU	ZCUT-870	15-70mm	3-25mm	150mm	adhesive tape		126×150×258mm	2.2Kg
YAESU	ZCUT-9	5-999mm	6-60mm	300mm	Non/adhesive tape		116×140×213mm	1.6Kg
YAESU	ZCUT-9P	5-999mm	6-60mm	300mm	Non/adhesive tape	√	116×140×213mm	1.6Kg
YAESU	ZCUT-9RP	5-999mm	6-60mm	over 300mm	Non/adhesive tape		116×140×213mm	2.5Kg
ASUTECH	ED-100	5-999mm	7-50mm	180mm	adhesive tape		140×157×235mm	2.5Kg

....
