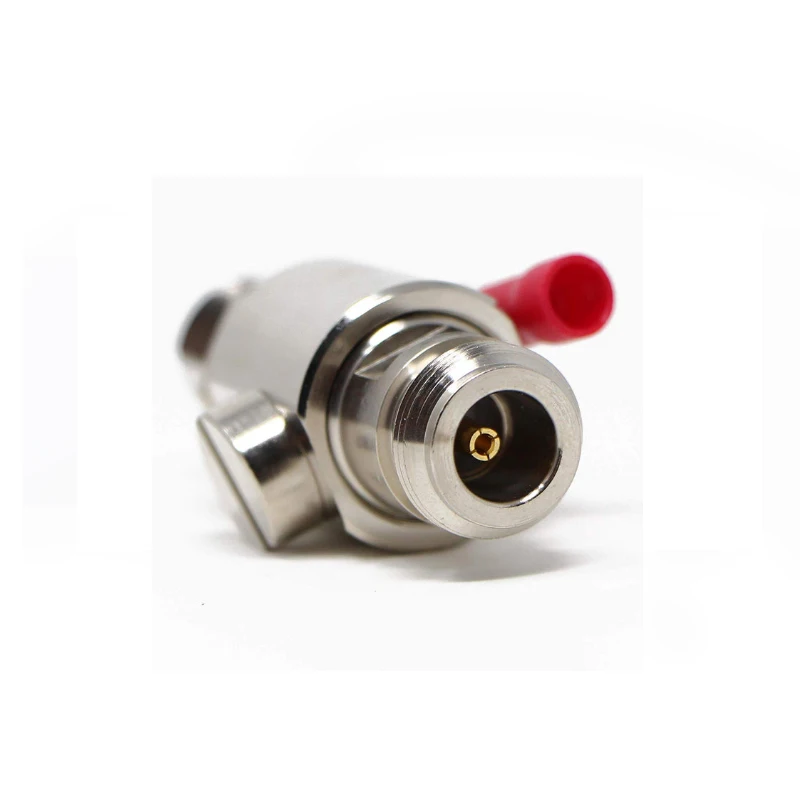

Antenna lightning arrester 0 3G n type rf surge protection device
- Category: >>>
- Supplier: Shenzhen Kailifeng Industry Co. Limited.
Share on (1600545674046):
Product Overview
Description

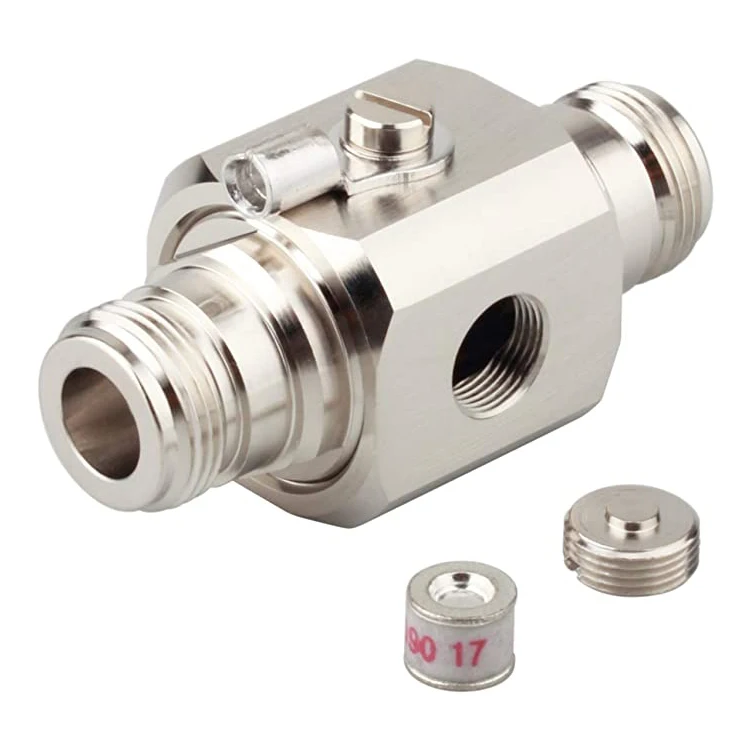

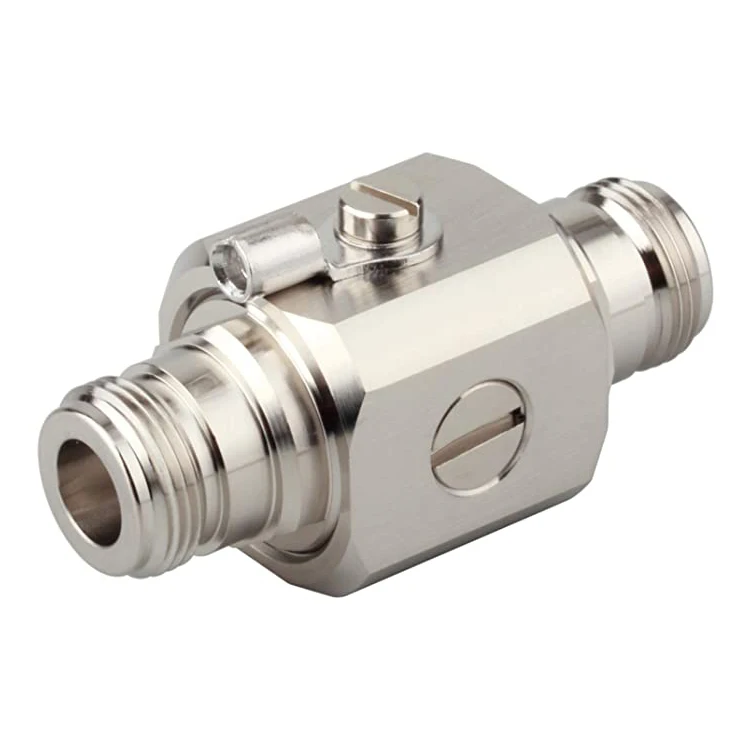

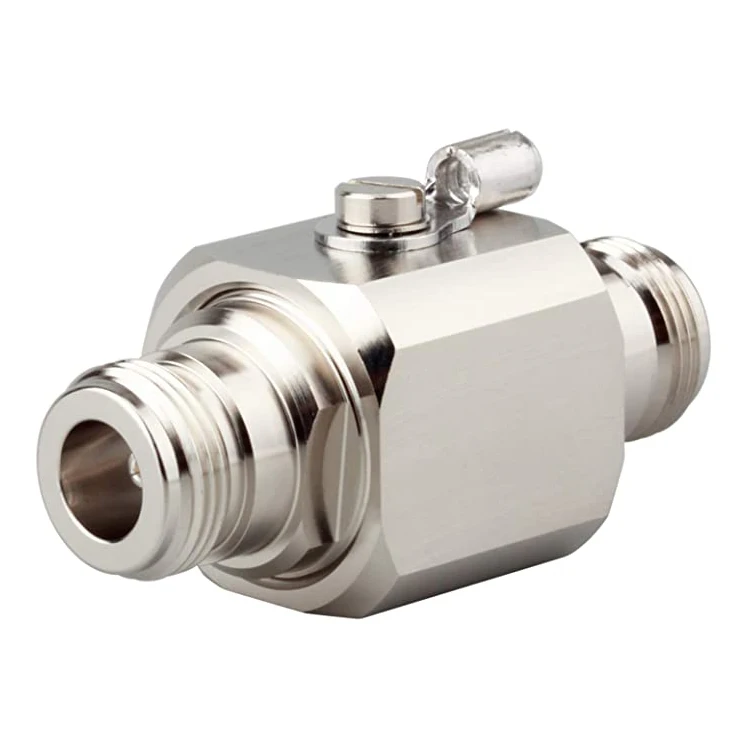

Antenna lightning arrester 0-3G n type rf surge protection device
Product Description
1.Application
This product is suitable for the lightning surge protection of antenna systems such as: short wave antenna, ultra-short wave and the intercom antennas and so on.
2.Product feature:
- Wide range of working frequency.
- Small standing wave, low insertion loss design.
- The product is elaborate designed
- Low voltage output protection, fast response, and long lifetime.
- Different interface type (BNC/N/TNC/FL10 / SL16 / SMA/SMB), user can choose any type according to the actual needs
3.Product data:
TYPE: | KLF-X-N |
Characteristic impedance(Ω): | 50 |
Working frequency(MHz) | 0~3000 |
Transmission rate (bit/s): | 300M |
Standing-wave ratio: | ≤1.2 |
Insertion Loss (dB): | ≤0.2 |
Nominal Discharge Current(8/20μs) (In): | 5KA |
Voltage Protection Level( Up): | <600V |
Interface Model: | TNC |
Working Environment: | Temperature -40°C +70°C; Relative humidity<95%; |
Weight(kg): | 0.114 |

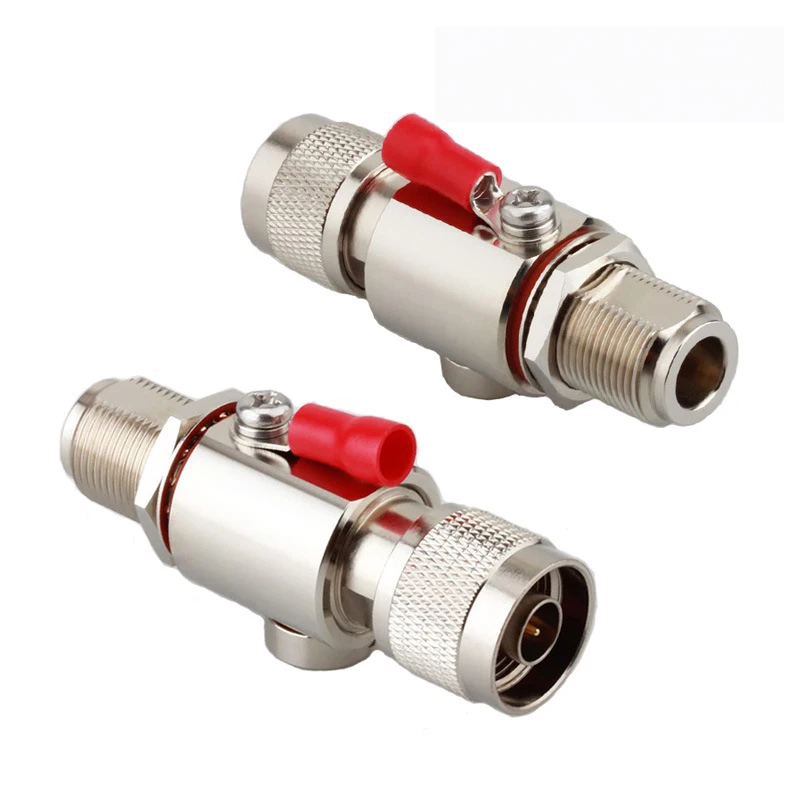

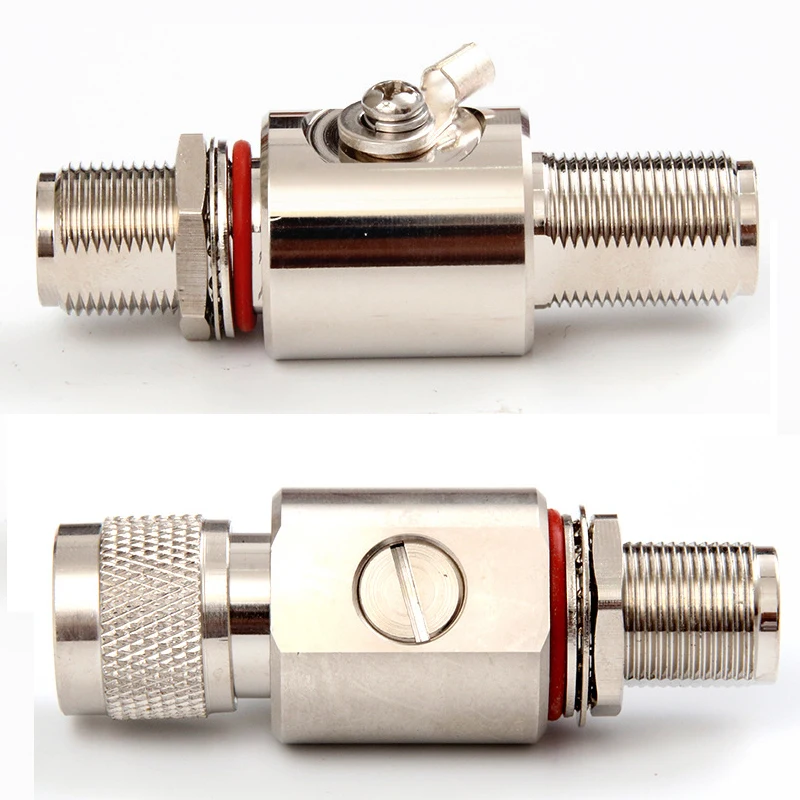

4.Main antenna surge arresters images

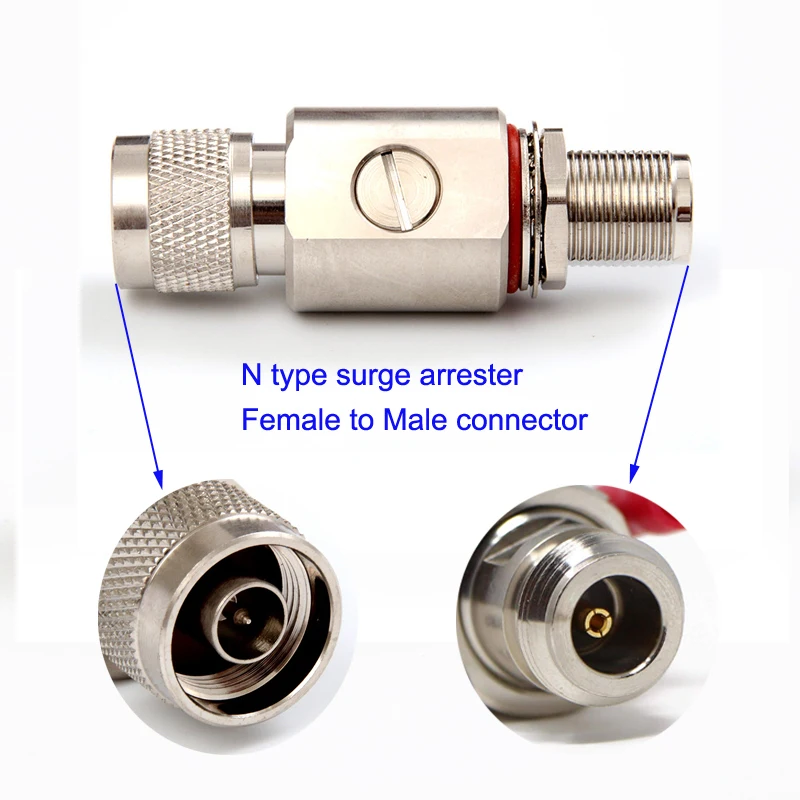

5.Female and male head difference
Related Products
Packaging & Shipping

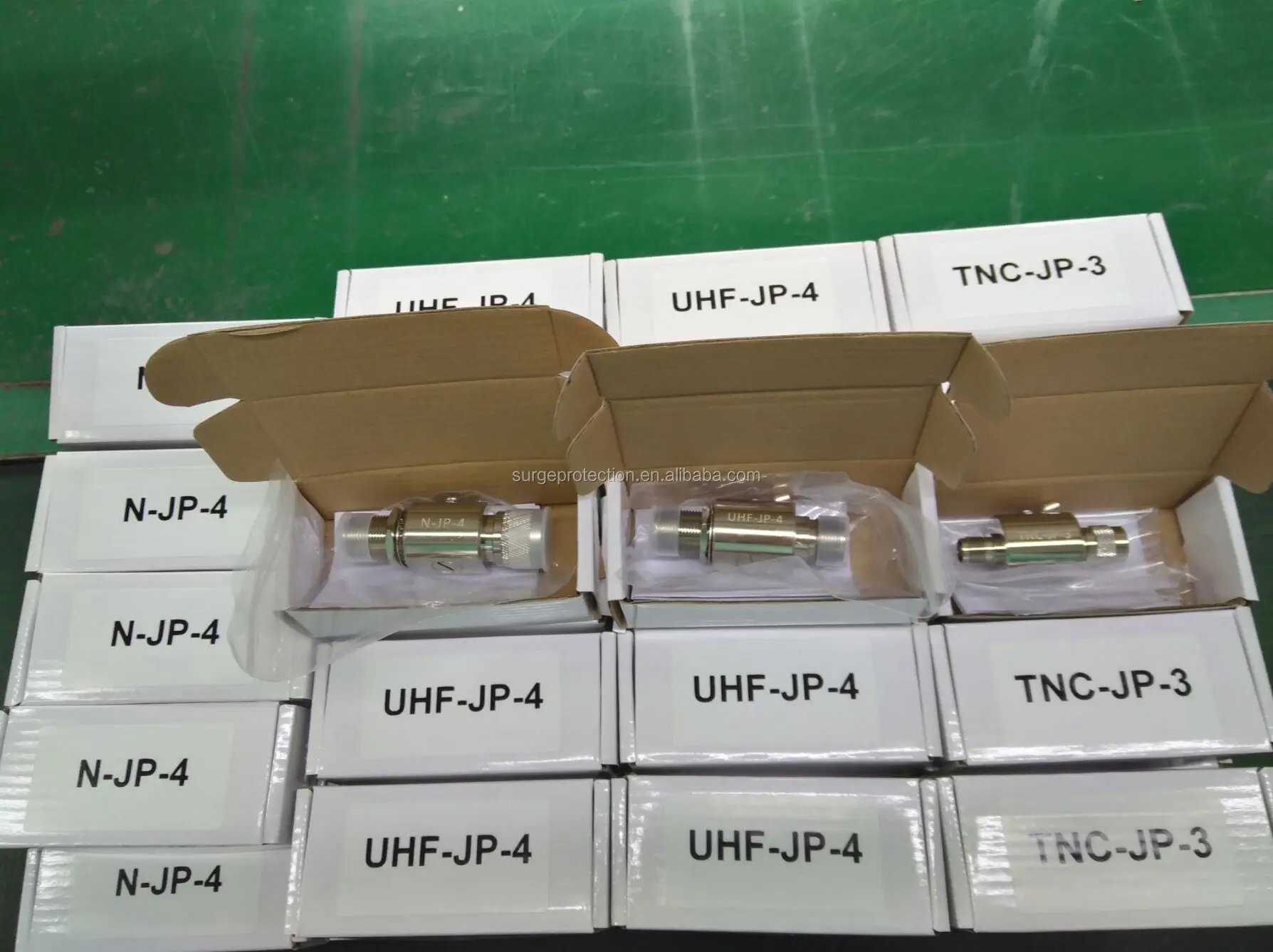

Packaging:
Our Standard is packed into a white box or mail box and bulk in brown box,
Customized box is accepted
Shipment:
We ship out the goods by Express,by Air or by Sea
Payment:
Our trade term: EXW,FOB,CIF
Payment term: T/T in advance,Wester Union,L/C,Paypal,Alipay,
Company Information
Why Choose US:

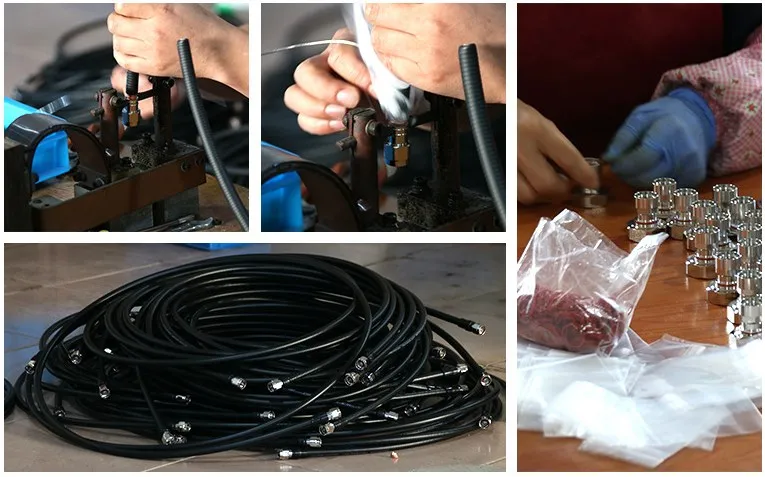

Established in 2004,KLF has over 14 years history of SPD manufactory experience,now as a professional and experienced surge protector factory,we could provide you competitive price with super quality products and satisfied service.KLF is with over 10 production lines,12 research staff,5 sets of SPD testing machines,20 specialized salesmen and reliable after-sale service department,we could provide you best shopping experience.There are 3 main kinds of SPD products produced,ie:Power Surge Protectot,Signal Surge Protector and CCTV Surge Protector.
Certification:
Full range of SPD products which has CE, RoHS,TUV certification.The company implements ISO9001 quality mangement system.
Application:
KLF has developed a wide range of products,cover in the area of low voltage lightning protection, such as SPD for power system,signal system,PV system and so on. All these products have been widely applied in electronic system, computer network and security system, protection for power industry, petroleum chemical industry and national defense industry.
