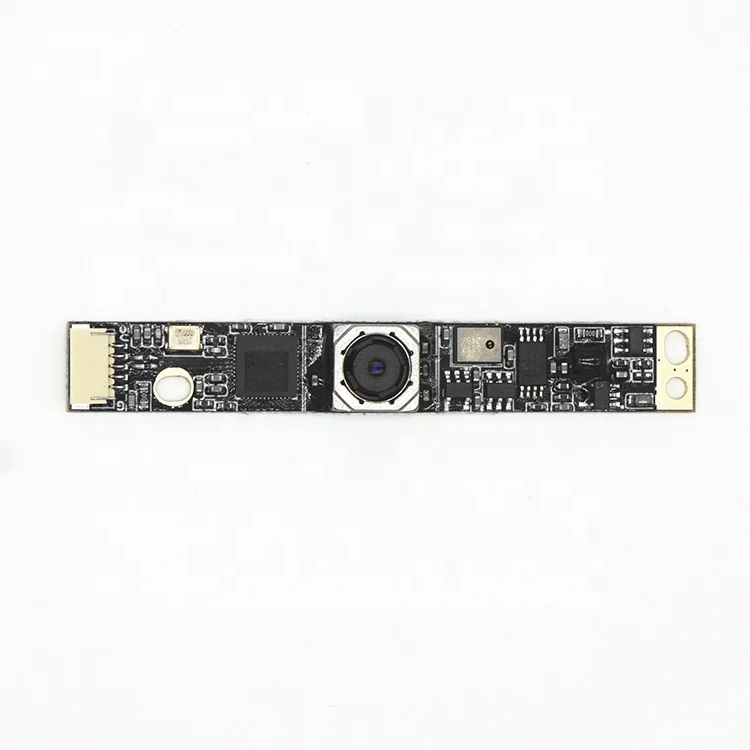

Cmos notebook Mini 12MP HD High sony imx378 usb Definition UVC 1080P 30fps 4k Free Security Drivecamera module
- Category: >>>
- Supplier: Shenzhen Wenqiao Electronics Limited
Share on (1600545679286):
Product Overview
Description
Megapixel | 12MP |
Max. Resolution | 4056(H) *3040(V) |
Focusing Type | Fixed Focus/Auto Focus(Selectable) |

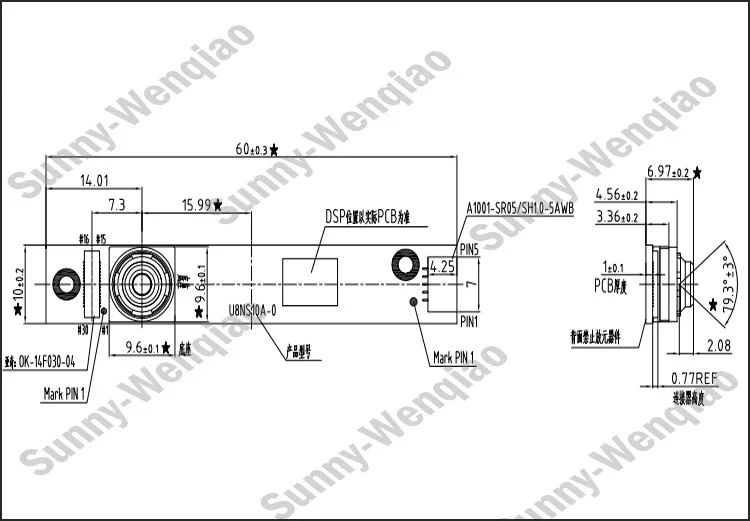

Board Size | 10mm×6.97mm×60mm |
Compression format | MJPEG / YUY2(YUYV) |
Interface | USB2.0 |
Lens Parameter | FOV: 60-120Degrees(Selectable) |
IR filter: 650±10nm/850±10nm/940±10nm(selectable) | |
2592Resolution & frame | 3840*3104@ 15fps MJPEG |
3264*2448@ 30fps MJPEG | |
2591*1944@ 15fps MJPEG | |
2048*1536@ 15fps YUV | |
1920*1080@30fps YUV | |
1280*720@30fps YUV | |
Storage Temperature | -20°C to 70°C |
Work Temperature | 0°C to 60°C |
Power Voltage | DC5V |
Power supply | USB bus power 5V |
Connector | USB 5pin 1.0 |
Operating System support | Win XP/Vista/Win7/Win8 / Linux with UVC(above linux-2.6.26) |
MAC-OS X 10.4.8 or later/Android 4.0 or above with UVC | |
AGC/AEC/Whiter Balance | Fixed Focus |
Application | Face Recognition,Laptop,Cars,Medical Devices,Industrial Devices |
Q1:Can you provide customized service?
A1: Yes.
Q2:What is the MOQ of an order?
A2: 1pcs.
Q3:How can we guarantee quality?
A3: Always a pre-production sample before mass production;
Always final Inspection before delivery;
Tow years warranty.
Always final Inspection before delivery;
Tow years warranty.
Q4:Why choose us?
A4: Our group is the top 3 manufacturer in the word in camera module industry.
