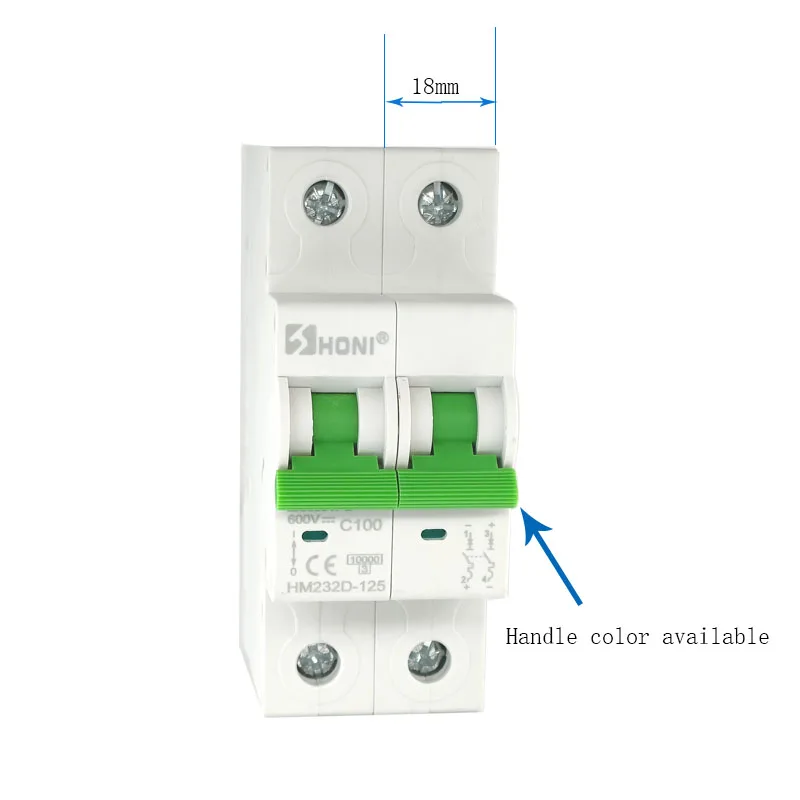

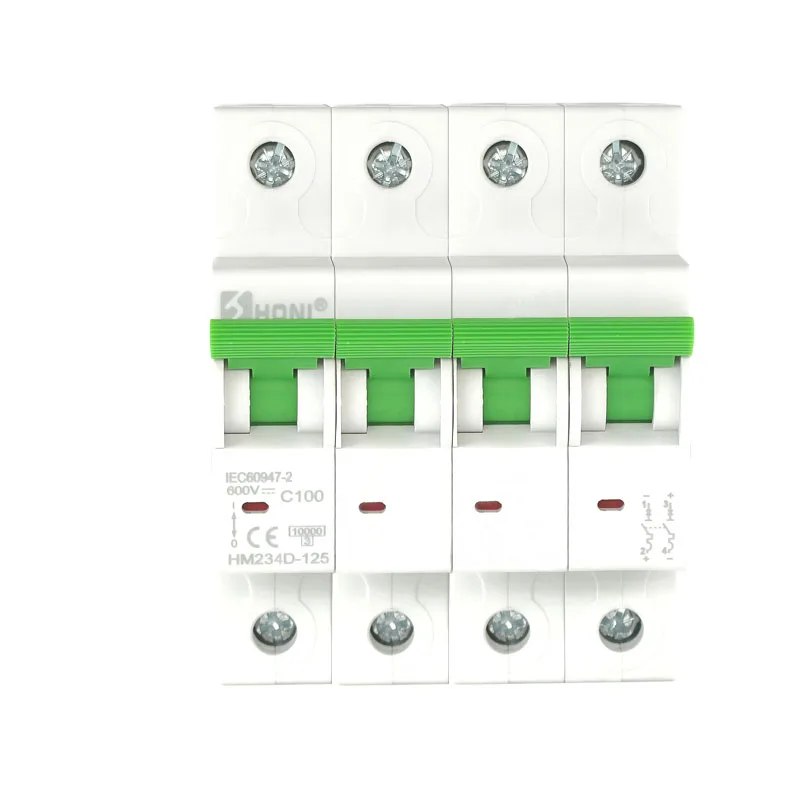

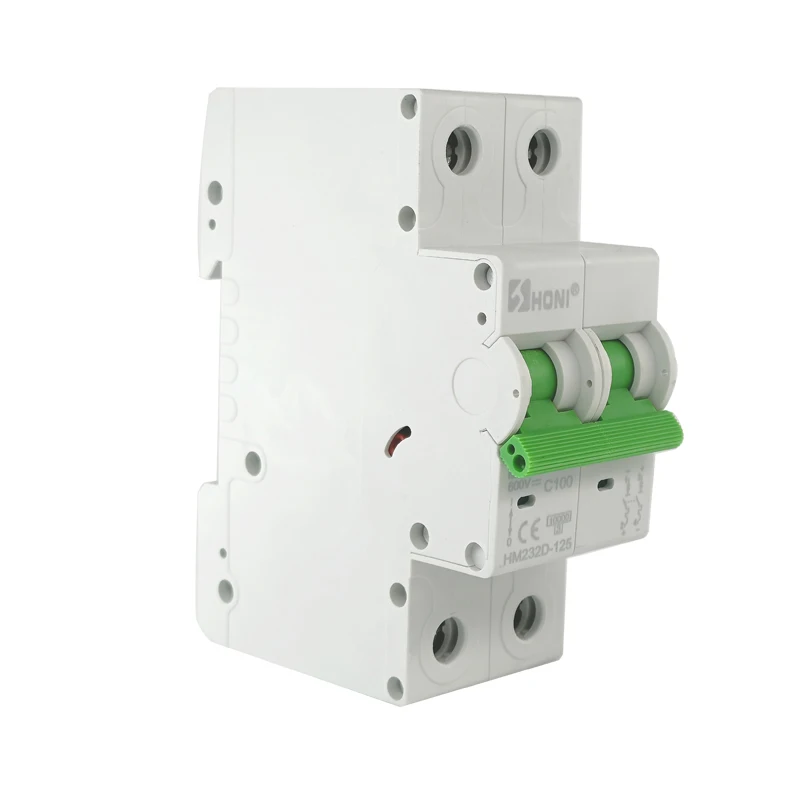

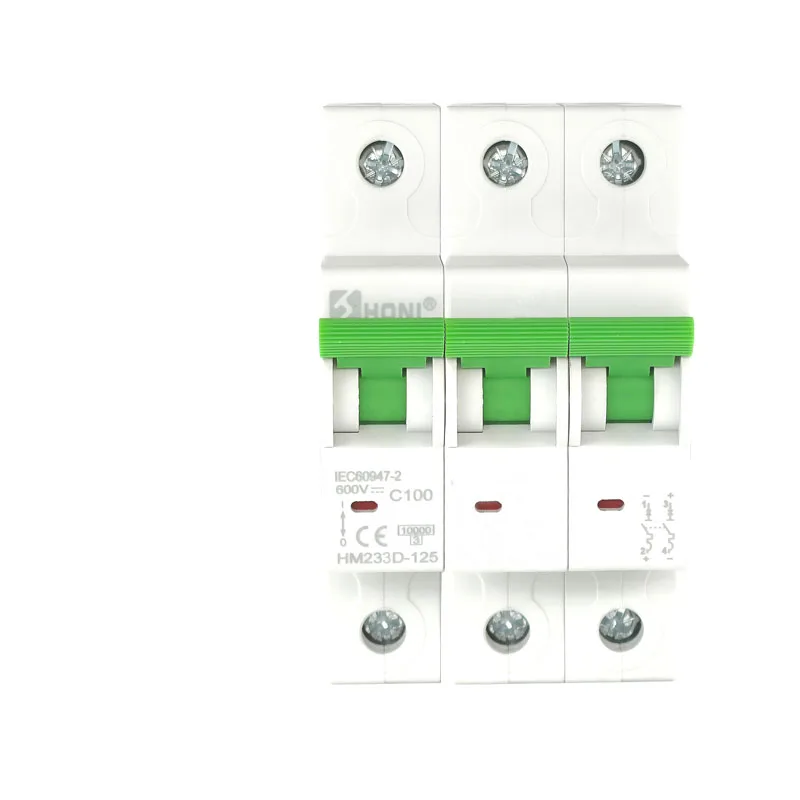

Factory Sale18mm 2p 500V 1000V 1200V 63a100a 125a ce dc mcb Solar dc circuit breaker
Factory Sale18mm 2p 500V 1000V 1200V 63a100a 125a ce dc mcb Solar dc circuit breaker
Factory Sale18mm 2p 500V 1000V 1200V 63a100a 125a ce dc mcb Solar dc circuit breaker
Factory Sale18mm 2p 500V 1000V 1200V 63a100a 125a ce dc mcb Solar dc circuit breaker
Factory Sale18mm 2p 500V 1000V 1200V 63a100a 125a ce dc mcb Solar dc circuit breaker
Factory Sale18mm 2p 500V 1000V 1200V 63a100a 125a ce dc mcb Solar dc circuit breaker
Factory Sale18mm 2p 500V 1000V 1200V 63a100a 125a ce dc mcb Solar dc circuit breaker

Factory Sale18mm 2p 500V 1000V 1200V 63a100a 125a ce dc mcb Solar dc circuit breaker

Share on (1600545682396):


Price:

Quantity:


Product Overview

Description



Product Description




Specification


This DC MCB Was designed for direct current(DC) control circuit applications,used for short -circuit and over-current protection within appliances or electrical equipment.
It provide optimization products for DC system applications such as
1.In large capacity, high voltage power system or power plants,DC system offer steady power supply for relay protection, operation control, signal and emergency lighting audio equipment .Mini dc circuit breaker will guarantee the safty of the power system
2. PV ,EPS,UPS Power system
3. Special Rapid analysis DC circuit breaker is important for rail transit and electrocar
4.In Marine power system,Dc circuit breaker is one of the most important components to ensure the safety of power supply system and electrical equipment of ships.
Construction and Feature
■Protection against both overload and short circuit
■High short-circuit capacity
■Contact position indication
■Applicable to terminal and pin/fork type busbar connection
■Easy mounting onto 35mm DIN rail


Technical Data
Pole No.
 1P ，2P， 3P， 4P
Rated voltage
DC 48V 110V，220V，250V，400V，500V，630V，800V，1000V
Rated current (A)
1, 2, 3, 4, 6, 10, 13, 16, 20, 25, 32, 40, 50, 63；
Tripping curve
B、 C
Rated short-circuit capacity (Icn)
10kA
Rated frequency
50/60Hz
Energy limiting class
3
Rated impulse withstand voltage
6.2kV
Electro-mechanical endurance
10000
Contact position indication
Connection terminal
Screw terminal
Pillar terminal with clamp
Connection capacity
Rigid conductor up to 25mm2
Fastening torque
2.0Nm
Installation
On symmetrical DIN rail 35mm
Panel mounting


production test






Packing & Delivery




CERTIFICATION




Company Profile


High Quality Electric Co.,Ltd is one of the largest Chinese companies .Specialize in High volatage and low voltage electrics production.Key advantage is 10kA series low voltage circuit breakers and strong quality high voltage products.
supporting industrial manufacturers in researching.developing and promoting also offer OEM,ODM services and custom design services of mechanical and electrical parts which is made of metals. Teflon /PTFE,plastic,rubber,silicon and custom molds,from the smallest precision parts to heavy or large parts with highest accuracy and quality and at a very competitive price anf lowest delivery time according to your technial drawings or sample








FAQ
1. Payment?
By T/T 100%
2. Samples?
If you need, we can available samples for you test. The freight cost need by freight collect.
3. Shipping way?
The shipping by the expresses (DHL, TNT, UPS, and EMS), Air or sea shipping.
4.Shipping port?
shanghai, ningbo, Mainland China.
5. Discount?
Discounts are offered based on big order quantities.
6.MOQ?
no limitation
7. Delivery time?
Small order is 1-3Days ; A big order is need 1-2 Weeks.
8. Packing?
If you have special request, it will according to your request to packing.
9. Products passed as below certifications:
* SAA Certification
* CE Certification
