Pre applied adhesive Internal Thread coating machine with Touch screen
- Category: >>>
- Supplier: Cixi Tianhao Electric Technic Co. Ltd.
Share on (1600545717712):
Product Overview
Description
Product Overview

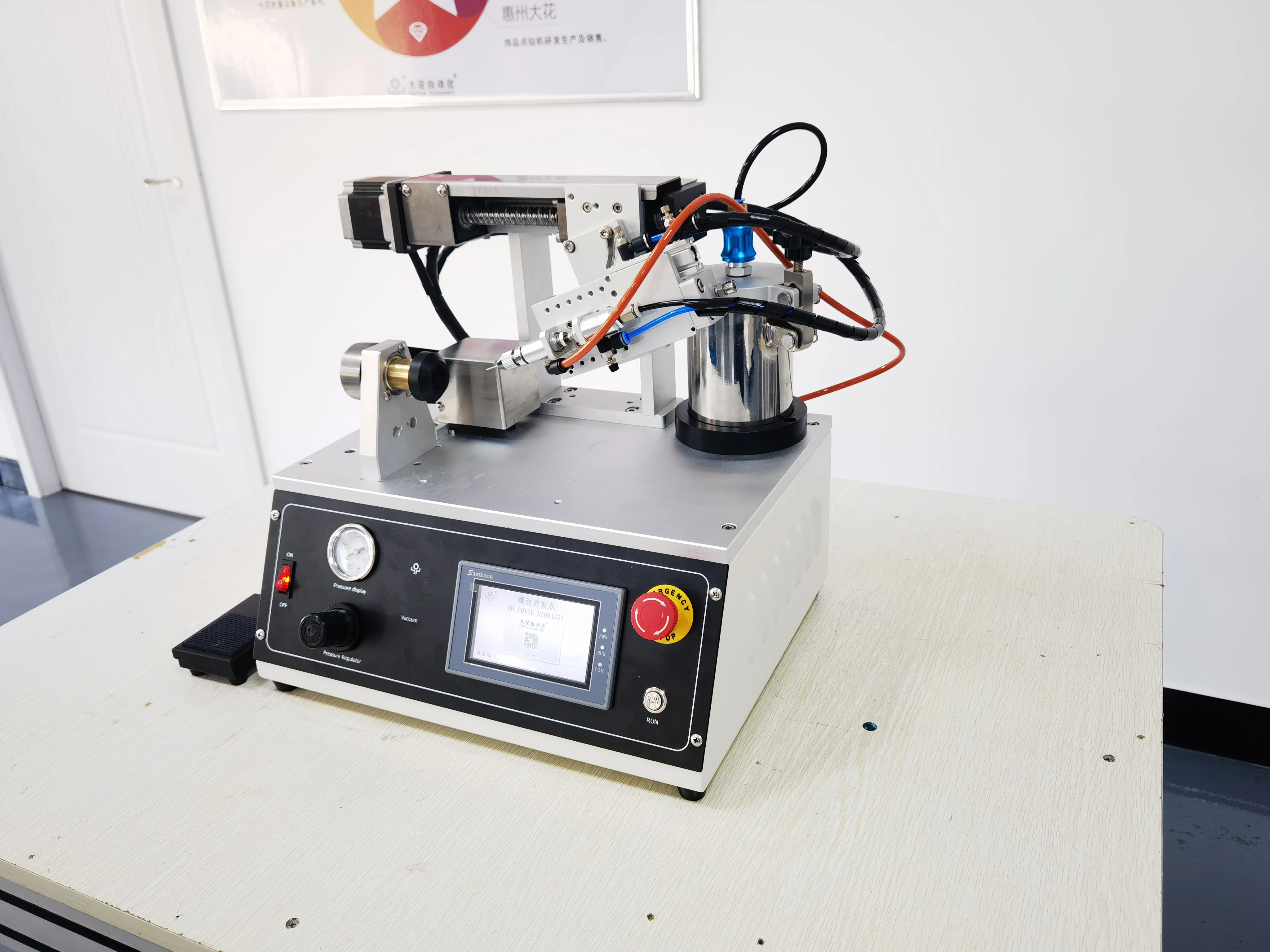

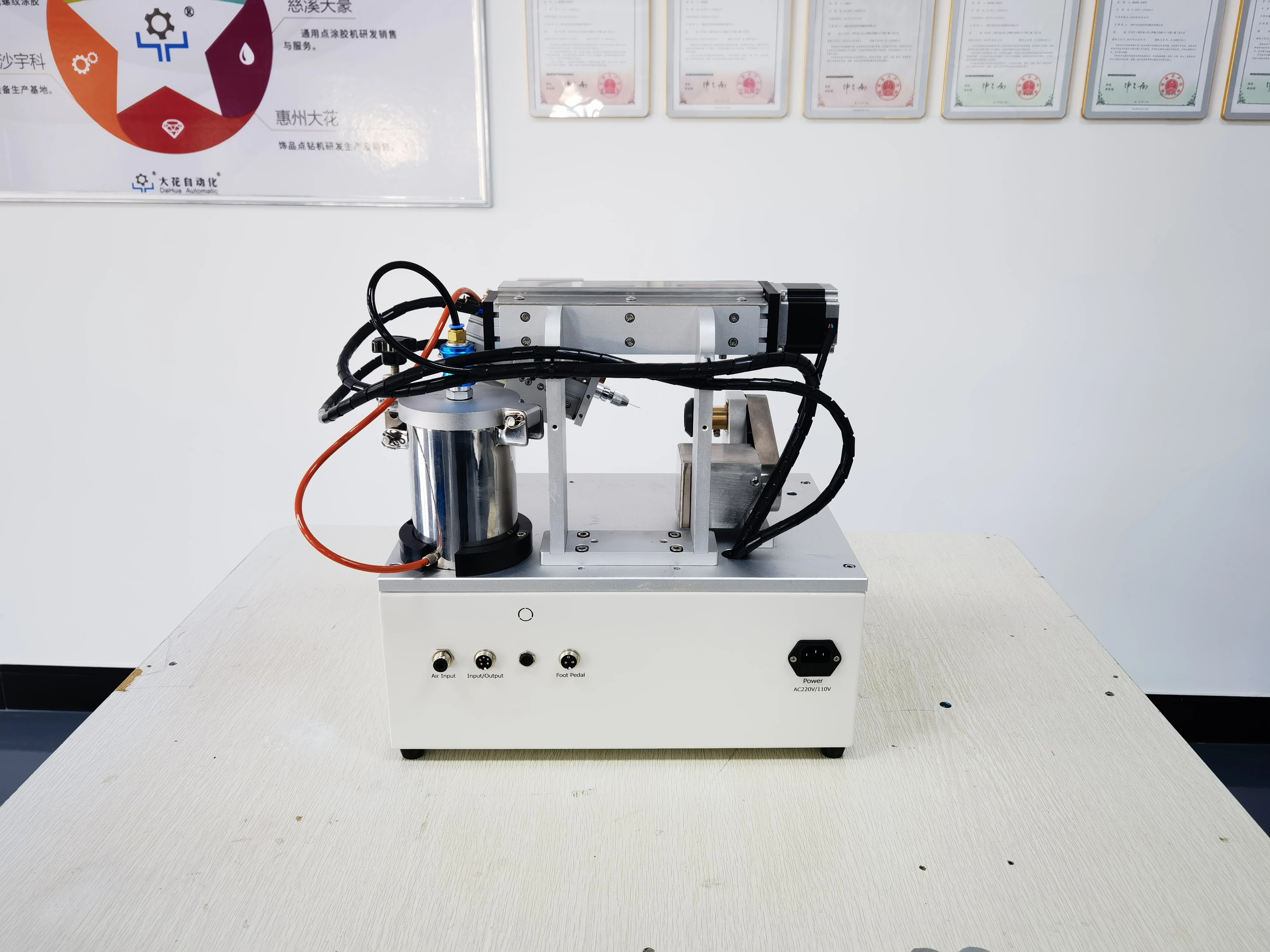

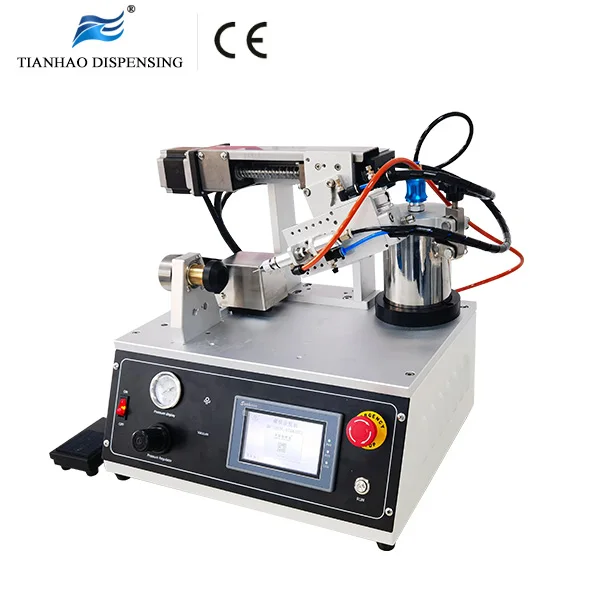

pre-applied adhesive Internal Thread coating machine with Touch screen
Product：
Good for various internal threads <M50 and externnal wall work pieces ID<50MM scre.bolt,nuts,pneumatic connector,fastener internal thread coating
Good for various internal threads <M50 and externnal wall work pieces ID<50MM scre.bolt,nuts,pneumatic connector,fastener internal thread coating
Liquid Material：
Thread locking adhesives, pre-applied adhesives, Pre-coating threadlocker adhesive,pipe thread adhesives, thread locker,
Thread locking adhesives, pre-applied adhesives, Pre-coating threadlocker adhesive,pipe thread adhesives, thread locker,
FEATURES AT A GLANCE
Feed system: 1KGS tank + special valve for Pre-coating glue + s/s needle. It is specially designed for pre-coating theadlocker
adhesive,Dispensing glue is uniform and no overflow, which can save more than 30% of glue.
The machine is equipped with a touch-screen PLC gluing control system, which makes the operation more intuitive and convenient.
adhesive,Dispensing glue is uniform and no overflow, which can save more than 30% of glue.
The machine is equipped with a touch-screen PLC gluing control system, which makes the operation more intuitive and convenient.
special s/s Tank
special precision valve
touch screen
PRODUCT SPECIFICATIONS
No | Item | Data |
1 | Speed | 0.5-0.8S/circle of thread |
2 | Internal Length | ≤50 mm(Can adjuting) |
3 | Internal Thread ID | ≤M30 |
4 | start way | Panel /foot switch/touch screen |
5 | Control way | PLC+ special software version 2.0 for thread coating machine |
6 | Drive | Precision step motor |
7 | Input voltage | 110/220VAC (Internal conversion) |
8 | Power | ≤120W |
PRODUCT CONFIGURATION
FEATURES
1..The equipment is suitable for M3-M30 different model of screw,bolt,nut, connector fastener
2. The machine suitable for lengths of inside thread within 50mm
3. Specially designed for the internal thread gluing process can freely adjust the inclination angle of the glue nozzle to
realize the application of different diameters and lengths thread
4. Professionally designed touch screen PLC gluing control system, visual operation panel, all processing parameters can be set
directly through the touch screen, such as the adjustment of gluing start and end positions and gluing length (number of
turns)
5. With external communication function, it can be connected with other devices
6. For different Products should be processed only by changing the product jig
7. It can be matched with different diameter needles according to the size of the workpiece teeth to achieve perfect gluing
effect
8. Equipped with a voltage stabilization control module, dispensing glue evenly, without drawing, dripping, and leaking glue
9.Add optional for automatic unloading, saving the time of manual unloading
10.The product be glued product by machine, greatly improves reliability and durability.sealing
2. The machine suitable for lengths of inside thread within 50mm
3. Specially designed for the internal thread gluing process can freely adjust the inclination angle of the glue nozzle to
realize the application of different diameters and lengths thread
4. Professionally designed touch screen PLC gluing control system, visual operation panel, all processing parameters can be set
directly through the touch screen, such as the adjustment of gluing start and end positions and gluing length (number of
turns)
5. With external communication function, it can be connected with other devices
6. For different Products should be processed only by changing the product jig
7. It can be matched with different diameter needles according to the size of the workpiece teeth to achieve perfect gluing
effect
8. Equipped with a voltage stabilization control module, dispensing glue evenly, without drawing, dripping, and leaking glue
9.Add optional for automatic unloading, saving the time of manual unloading
10.The product be glued product by machine, greatly improves reliability and durability.sealing
SALES AND SERVICE NETWORK
Successful Project
Project at USA
Project at INDIA
Project at Europe
