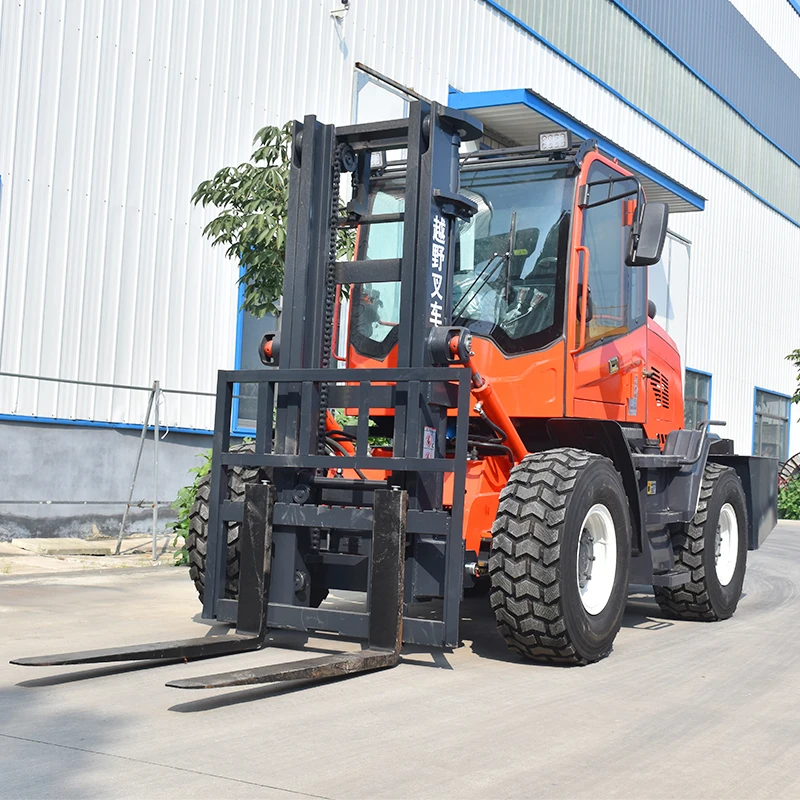

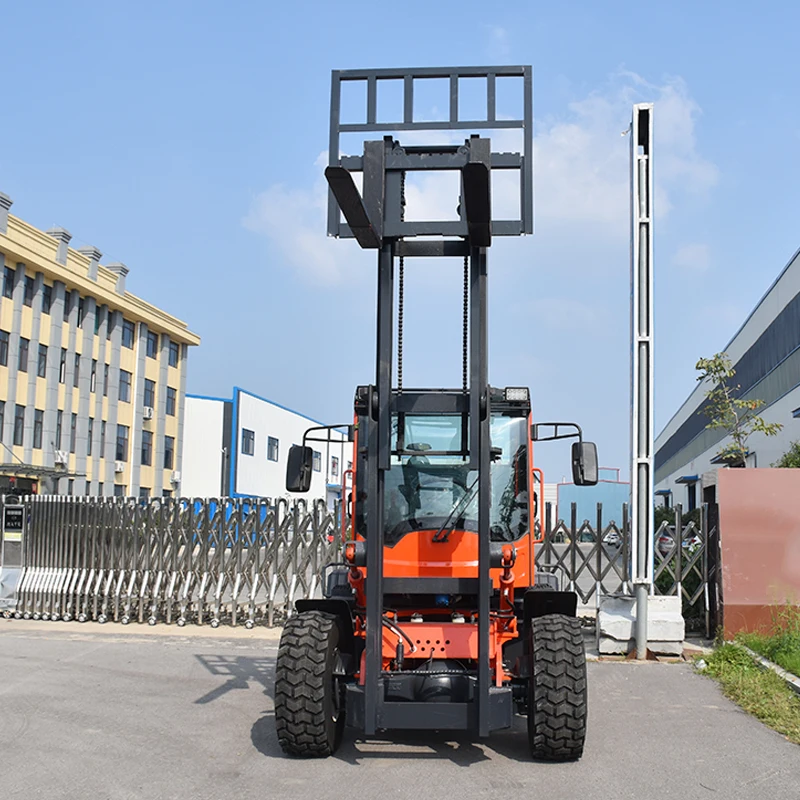

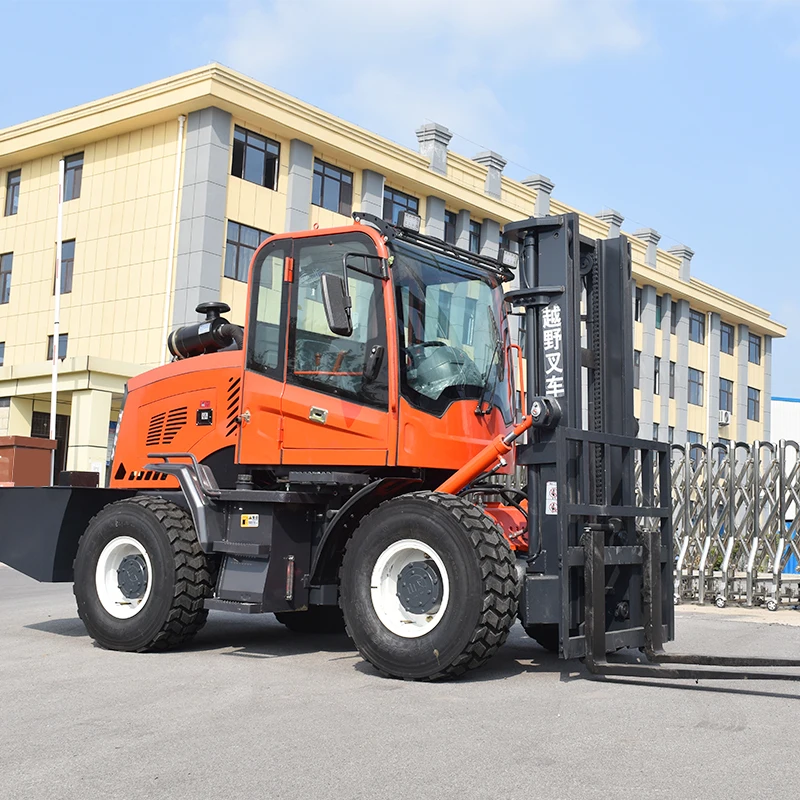

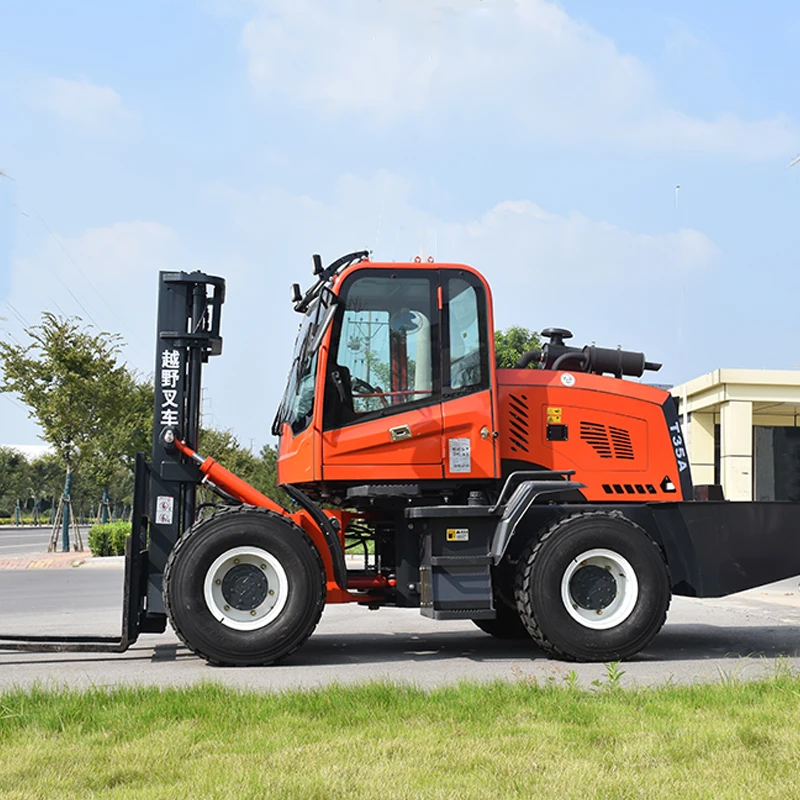

Chinese Brand Small Off Road Forklift Dhort Light Diesel Forklift Off Road Sales
- Category: >>>
- Supplier: Jining Jinwang Mechanical Equipment Co. Ltd.
Share on (1600545743817):
Product Overview
Description
Model | JWC-25T | JWC-30T | JWC-35T | ||
Rated Loading Capacity | 2,500 kg | 3,000 kg | 3,500 kg | ||
Lift Height Standard | 3m | 3m | 3m | ||
Lift Height Optional | 4 m,4.5 m | 4 m,4.5 m | 4 m,4.5 m | ||
Fork Length | 1,220 to 1,820 mm | 1,220 to 1,820 mm | 1,220 to 1,820 mm | ||
Engine Power | 36.8/54.5/55.2 kw | 36.8/54.5/55.2 kw | 36.8/54.5/55.2/61.5/66.2 kw | ||
Engine Type | Diesel, 4-cylinder | Diesel, 4-cylinder | Diesel, 4-cylinder, Turbocharger | ||
Gantry Material Width | 140 mm | 160 mm | 160 mm | ||
Gantry Width | 700 mm | 700 mm | 700 mm | ||
Hinge Thickness | 3 mm | 3 mm | 3 mm | ||
Ganty Ground Clearance | 250 to 300 mm | 250 to 300 mm | 250 to 300 mm | ||
Axle | Small Wheel Side Axle | ||||
Gearbox | 265 Double High-low Speed | ||||
Brake JWstem | Air Brake | Air Brake | Air Brake | ||
Min. Turming Radius | 3,500 mm | 3,500 mm | 3,500 mm | ||
Tire | Small 20.5/70-16 | Small 20.5/70-16 | Small 20.5/70-16 | ||
Drive | 4x4 Wheel Drive | 4x4 Wheel Drive | 4x4 Wheel Drive | ||
Gradeability | ≤40° | ≤40° | ≤40° | ||
Weight | 3,900 kg | 4,000 kg | 4,200 kg | ||
Dimensions | 4,200*1 ,800*2, 700 mm | 4,200*1 ,800*2, 700 mm | 4,200*1 ,800*2, 700 mm | ||
Model | JWC-40T | JWC-50T | JWC-60T | ||
Rated Loading Capacity | 4,000 kg | 5,000 kg | 6,000 kg | ||
Lift Height Standard | 4m | 4m | 4m | ||
Lift Height Optional | 4.5m,5m,6m | 4.5m,5m,6m | 4.5m,5m,6m | ||
Fork Length | 1,220 to 1,820 mm | 1,220 to 1,820 mm | 1,220 to 1,820 mm | ||
Engine Power | 61.5/66.2/77/74-81 kw | 61.5/66.2/77/74-81 kw | 88 kw | ||
Engine Type | Diesel, 4-cylinder, Turbocharger | ||||
Gantry Material Width | 180 mm | 180 mm | 180 mm | ||
Gantry Width | 700 mm | 700 mm | 700 mm | ||
Hinge Thickness | 3 mm | 3 mm | 3 mm | ||
Gantry Ground Clearance | 300 to 380 mm | 300 to 380 mm | 300 to 380 mm | ||
Axle | Middle Wheel Side Axle | Large Wheel Side Axle | SG30 Axle | ||
Gearbox | 265 Double High-low Speed | 280 Double High-low Speed | |||
Brake JWstem | Air Brake | Air Brake | Air Brake | ||
Min. Turning Radius | 4,500 mm | 4,500 mm | 4,600 mm | ||
Tire | 16/70-20 | 16/70-24 | 12R-22.5 | ||
Drive | 4x4 Wheel Drive | 4x4 Wheel Drive | 4x4 Wheel Drive | ||
Gradeability | ≤40° | ≤40° | ≤40° | ||
Weight | 5,000 kg | 5,500 kg | 6,200 kg | ||
Dimensions | 4,400*1,850*2,800 mm | 4,400*1,900*2900 mm | 4,400*1,900*2900 mm | ||
Standard packages:cartons cases/wooden cases/iron frame (as your as your requirement)

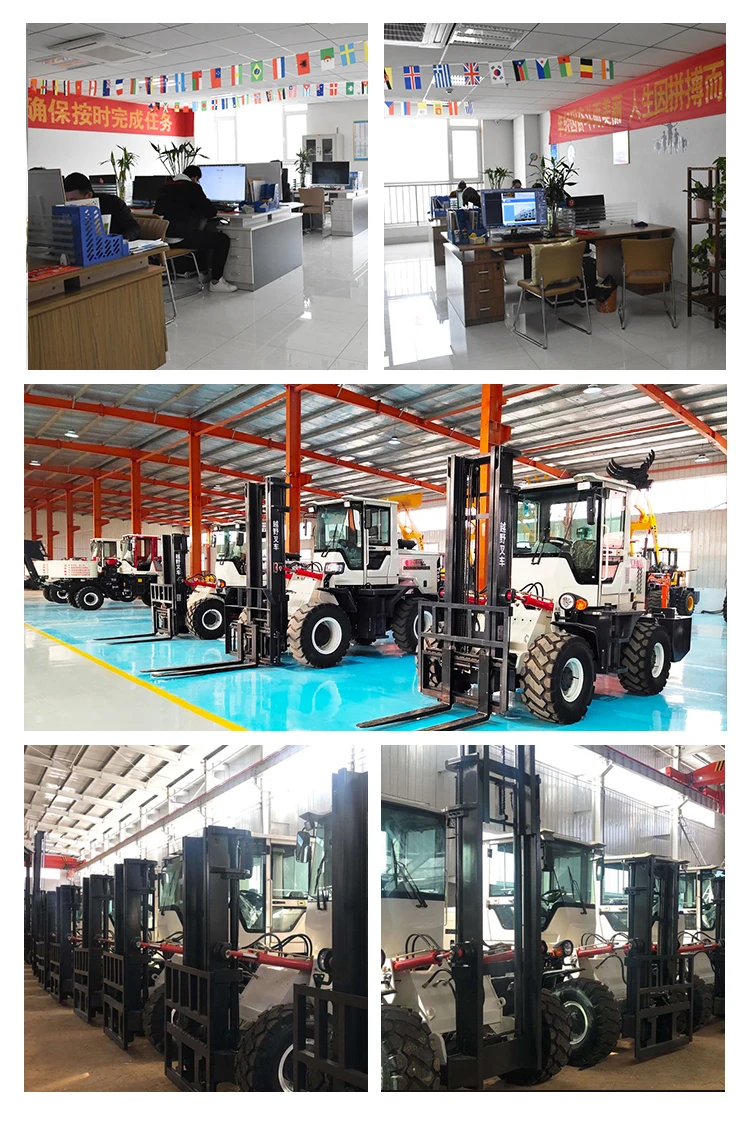

Jining Jinwang Machinery Equipment CO., Ltd. was founded in 2010 with a registered capital of 2 million yuan. The company headquarters is located in nanzhang industrial park, rencheng district. The factory covers an area of more than 30,000 square meters. Shandong southwest is a professional machinery and equipment company. The company's products mainly include general machinery equipment, mining machinery equipment, road construction machinery, artificial intelligence equipment, and other products have been sold throughout the country. Since its establishment, the company has always adhered to the enterprise concept of "integrity management, win-win cooperation", based on the present and focusing on the future, and gradually grew up in the common growth with customers, winning wide recognition and full recognition from all sectors of society. The company has established a perfect management system from pre-sale, sale and after-sale. With rich production experience, we can provide customers with standardized, complicated and humanized products and services. Perfect after-sales system, establish regular return visit system, create a safe, safe and comfortable experience for customers. The company insists on quality for survival, technology for development, service for growth, the most affordable price, the most professional service, to seek the combination of interests of both sides, to achieve the maximum value of both sides. The company relies on the good geographical position and the correct development idea, has established and improved the market step by step, the personnel structure unceasingly consummates. It is among the best in the competition among its peers. The company has more than 50 professional and technical personnel, including more than 10 senior engineers. Systematic training. We sincerely hope to communicate with all companies, cooperation, mutual promotion and common development.
FAQ
1. Who are we?
We are based in Shandong, China, start from 2015,sell to Southeast Asia(36.00%),Mid East(14.00%),Eastern Asia(10.00%),South America(10.00%),South Asia(10.00%),Central America(10.00%),North America(6.00%),Africa(4.00%). There are total about 51-100 people in our office.
2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3. What can you buy from us?
Mini excavator,MIcro excavator,Small excavator
4. Why should you buy from us not from other suppliers?
We are a comprehensive engineering machinery manufacturer integrating independent design, R&D, production and manufacturing. Our products are exported to more than 50 countries and regions overseas.
5. What services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW；
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T,L/C,Credit Card,Cash;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
We are based in Shandong, China, start from 2015,sell to Southeast Asia(36.00%),Mid East(14.00%),Eastern Asia(10.00%),South America(10.00%),South Asia(10.00%),Central America(10.00%),North America(6.00%),Africa(4.00%). There are total about 51-100 people in our office.
2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3. What can you buy from us?
Mini excavator,MIcro excavator,Small excavator
4. Why should you buy from us not from other suppliers?
We are a comprehensive engineering machinery manufacturer integrating independent design, R&D, production and manufacturing. Our products are exported to more than 50 countries and regions overseas.
5. What services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW；
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T,L/C,Credit Card,Cash;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
