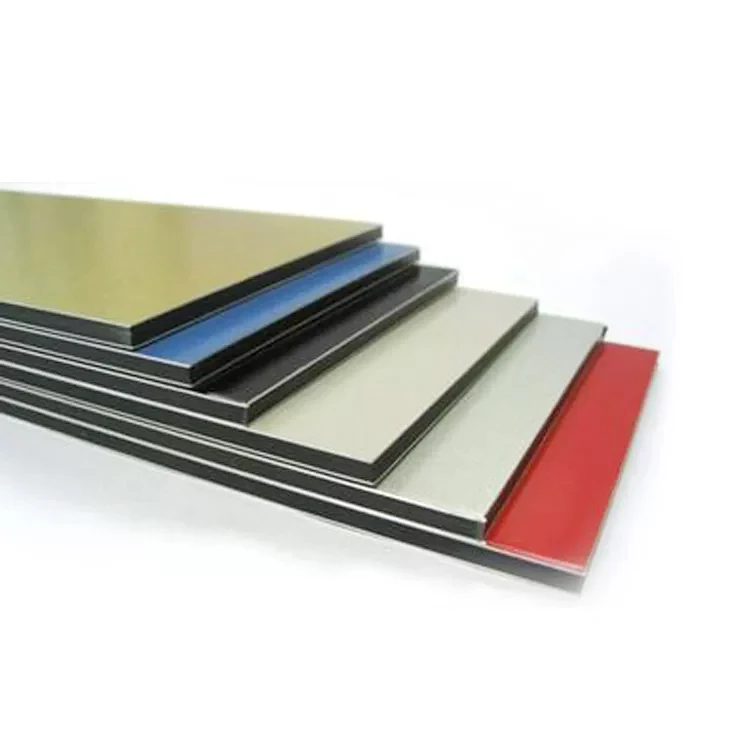

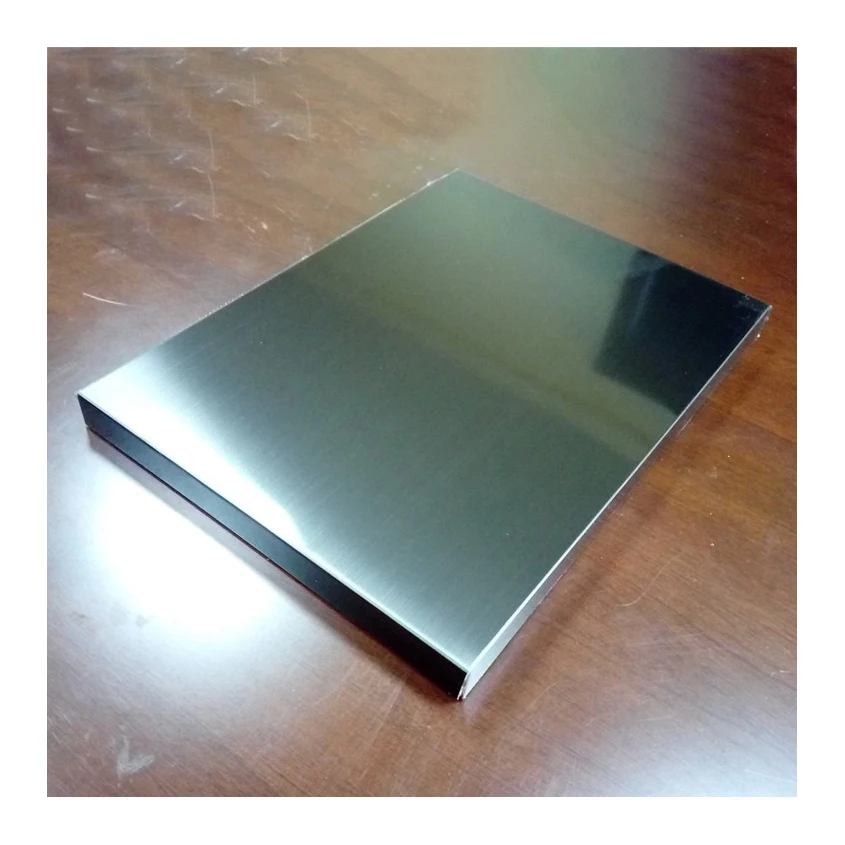

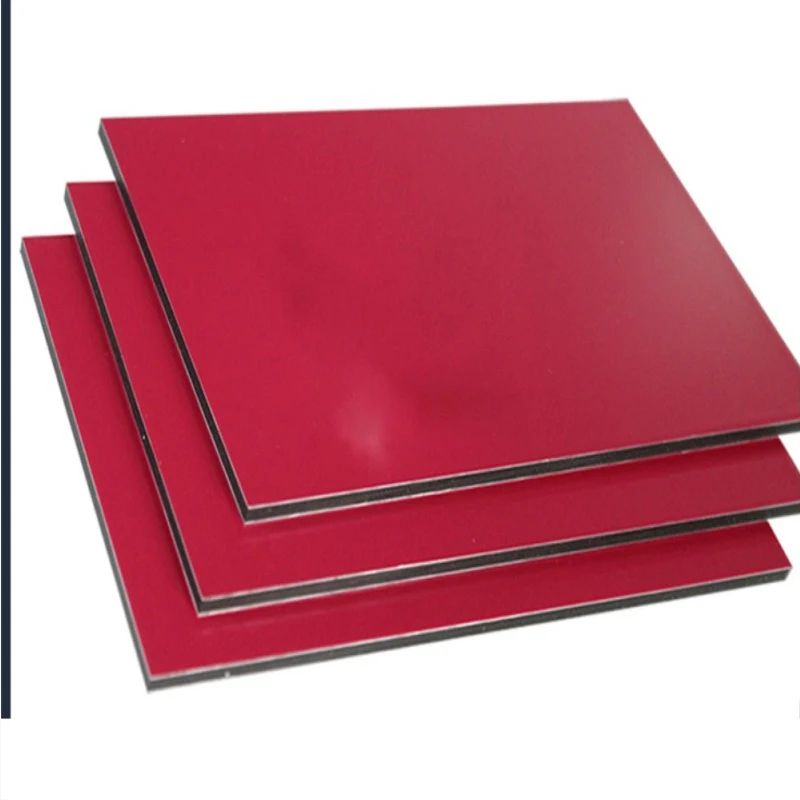

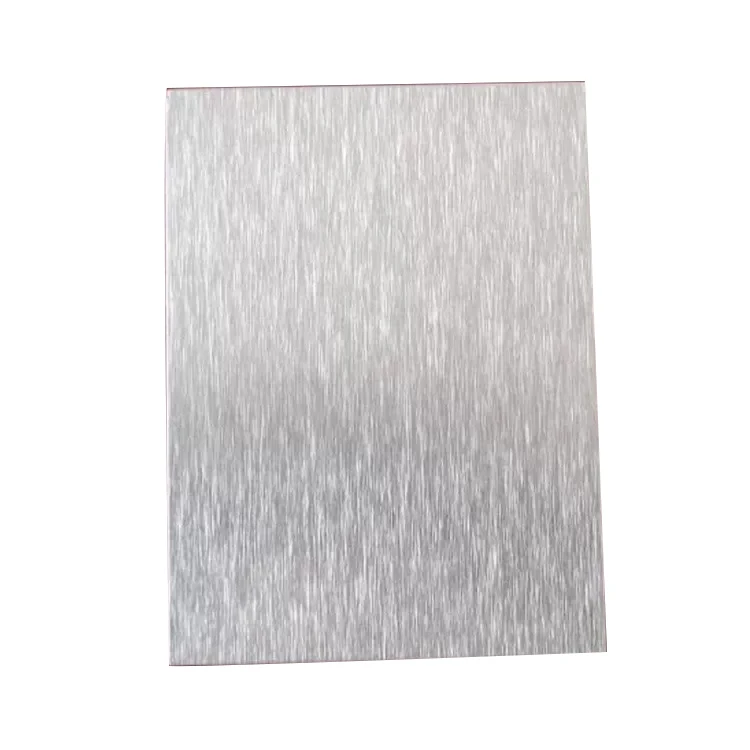

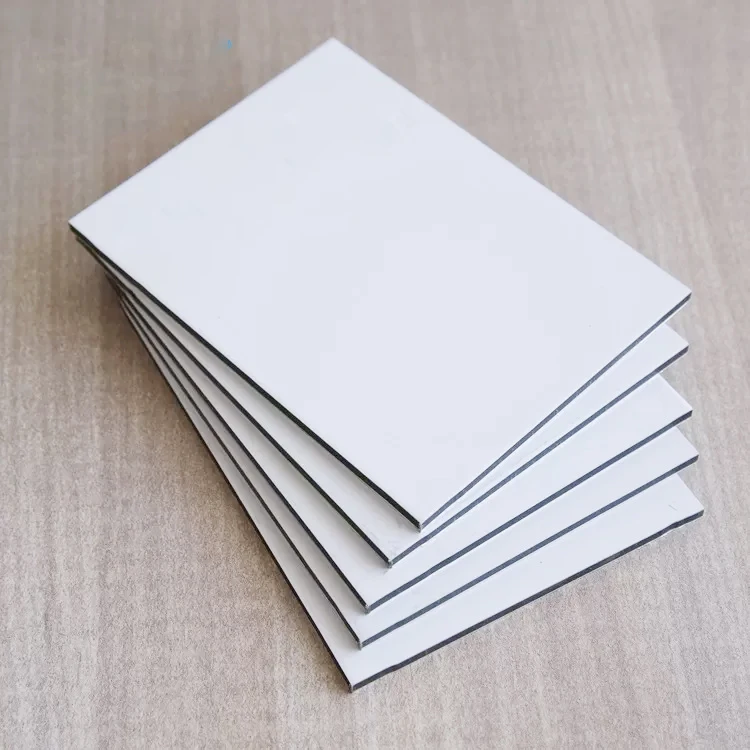

Aluminium Sandwich Panel Import Aluminum Composite Panel 4x8 Pvc Exterior Wall Cladding Panel
- Category: Building Boards >>>
- Supplier: Jiangsu Pivot New Decorative Materials Co. Ltd.
Share on (1600545837390):
Product Overview
Description
Products Description
Panel Thickness(mm) | 1.5mm-8mm |
Aluminum Skin Thickness(mm) | 0.08mm-0.5mm |
Width(mm) | 1000mm,1220mm,1250mm,1500mm,2000mm(Max) |
Length(mm) | 1000mm-8000mm |
Weight | 5.5kg/sqm based on 4mm thickness |
Surface Coating | PE, PVDF, NANO, Mirror, Brush, Wooden, Marble |
Size | 1220x2440mm,1250x2500mm,1220x2800mm,1250x3200mm or as clients requirement |
Standard | according to GB/T 17748-1999 standard |
More Services | OEM, Free Sample, Color Matching |
ALUMINIUM COMPOSITE PANEL
There is one thing we can all agree on within the construction industry, and it is that the popularity of aluminum composite panel
has not stopped growing over the past few years. Its use has been expanding under the cover of energy efficiency, low price and
construction possibilities. This type of material is specially designed for the construction of ventilated facades, their
renovation or rehabilitation. It provides solutions that can be adapted to all fields of architecture. In this post you will know
everything you need to know about the composite panel, how it is produced, its main characteristics, finishes, transformations and
its most popular uses.
Composition and elaboration of the aluminium composite panel
composite panel is composed of two aluminium sheets and an inner thermoplastic base core that can hold mineral charge.It is
specially designed for new construction ventilated facades as well as for renovation or rehabilitation. Its manufacturing standard
is composed of an outer sheet of 5005 aluminium alloy and an inner sheet of 3105.
It is divided into two groups depending on the mineral load of its core and can be incombustible or fireproof and (according to
UNE 13501-1:2007) classified as A2-s1, d0 and B-s1, d0.
The composite panel is produced by a continuous lamination process, in which a sheet of the material that will make up the core is
extruded and compacted between two aluminium sheets that are unwound at the same time. Finally, the flatness of the material is
compacted and perfected and a protective film is applied.
specially designed for new construction ventilated facades as well as for renovation or rehabilitation. Its manufacturing standard
is composed of an outer sheet of 5005 aluminium alloy and an inner sheet of 3105.
It is divided into two groups depending on the mineral load of its core and can be incombustible or fireproof and (according to
UNE 13501-1:2007) classified as A2-s1, d0 and B-s1, d0.
The composite panel is produced by a continuous lamination process, in which a sheet of the material that will make up the core is
extruded and compacted between two aluminium sheets that are unwound at the same time. Finally, the flatness of the material is
compacted and perfected and a protective film is applied.
CUSTOMISED FINISHES
How to paint the composite panel
Depending on the finish that is sought, the panel can receive multiple types of treatments and coats. Among the most commonfinishing paints there are:
Depending on the finish that is sought, the panel can receive multiple types of treatments and coats. Among the most commonfinishing paints there are:
Types of aluminum plastic plate
Advantage
Why Choose Us
Jiangsu PIVOT New Decorative Material Co., Ltd. has a well-known brand “ i·Bond”, which is highly recommended by the Aluminum Composite affiliate society of CBMIA. As a professional supplier of the application technology of aluminum-plastic panel in China, Pivot has successively won honorary titles of “Contract Abiding and Trustworthy Enterprise”, “AAA Grade Credit Enterprise” and “Quality of Trust Enterprise”.The company has established first-class testing center in China, and has developed information management subsystems such as ISO9001 quality management, quality inspection, ISO14001 management, physical and chemical analysismanagement, etc. to meet the requirements of the company's high quality management level.
FAQ
Q: 1.Where is your factory located ?
A: Our factory in Jiangyin city and only two hours to Shanghai by car, welcome to visit our factory before cooperate with us.
Q: 2.Do you provide OEM Service?
A: Yes, we offer OEM Service. We could produce your goods with your own logo or brand name. Logo and design need to be provided. We also could do color matching as per your samples.
Q: 3.What fire-rated level can you do ?
A: We can produce A2, B1 Fr level ACP.
Q: 4.What max width ACP can you produce ?
A: Max width is 2 meter.
Q: 5.What is the production time ?
A: The production time is 3-5 weeks after order confirmed.
Q: 6. Do you have any certifications?
We have too many certicates like ASTM E84, E119, DIN4102 for B1 A2, UK BR476-6 -7, France M0, M1, SGS/A2 FR certification, we also passed IRIS, UL, ISO9001: 2000 / ISO14001: 2004 / IOHSAS18001: 2007, if you need these certificates, just contact with oursales,we will send you copies.
A: Our factory in Jiangyin city and only two hours to Shanghai by car, welcome to visit our factory before cooperate with us.
Q: 2.Do you provide OEM Service?
A: Yes, we offer OEM Service. We could produce your goods with your own logo or brand name. Logo and design need to be provided. We also could do color matching as per your samples.
Q: 3.What fire-rated level can you do ?
A: We can produce A2, B1 Fr level ACP.
Q: 4.What max width ACP can you produce ?
A: Max width is 2 meter.
Q: 5.What is the production time ?
A: The production time is 3-5 weeks after order confirmed.
Q: 6. Do you have any certifications?
We have too many certicates like ASTM E84, E119, DIN4102 for B1 A2, UK BR476-6 -7, France M0, M1, SGS/A2 FR certification, we also passed IRIS, UL, ISO9001: 2000 / ISO14001: 2004 / IOHSAS18001: 2007, if you need these certificates, just contact with oursales,we will send you copies.
