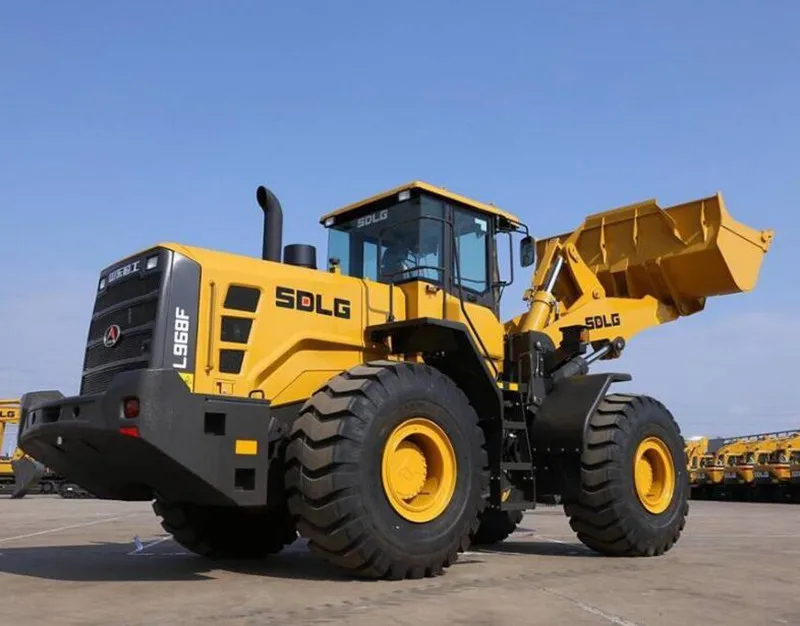

WHEEL LOADER WD10G220E23 weichai wd10
- Category: >>>
- Supplier: Jinan Sinotruk International Imp&Exp Co. Ltd.
Share on (1600545838107):
Product Overview
Description
Product Description

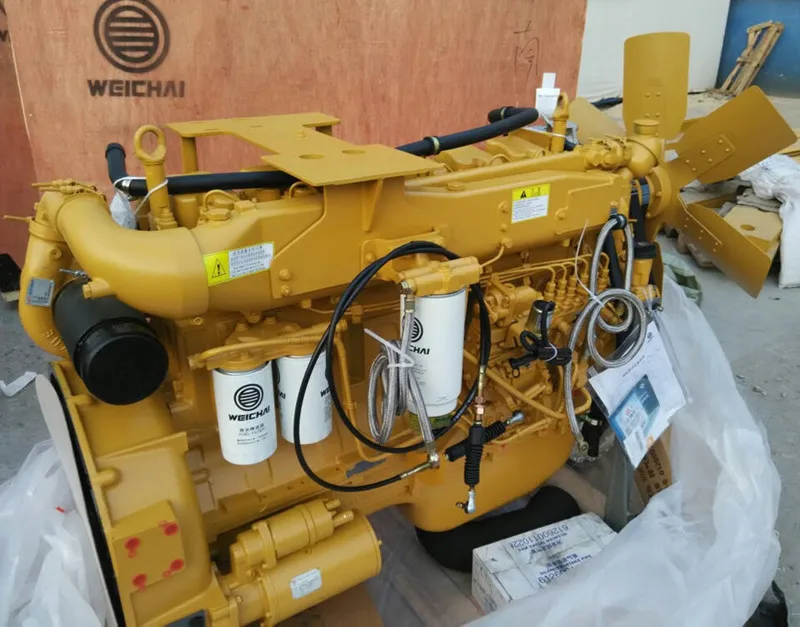

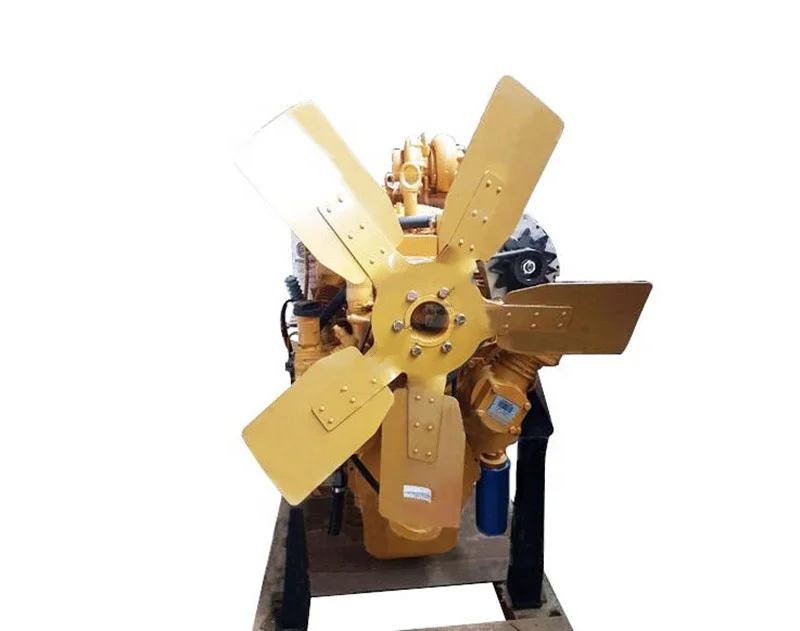

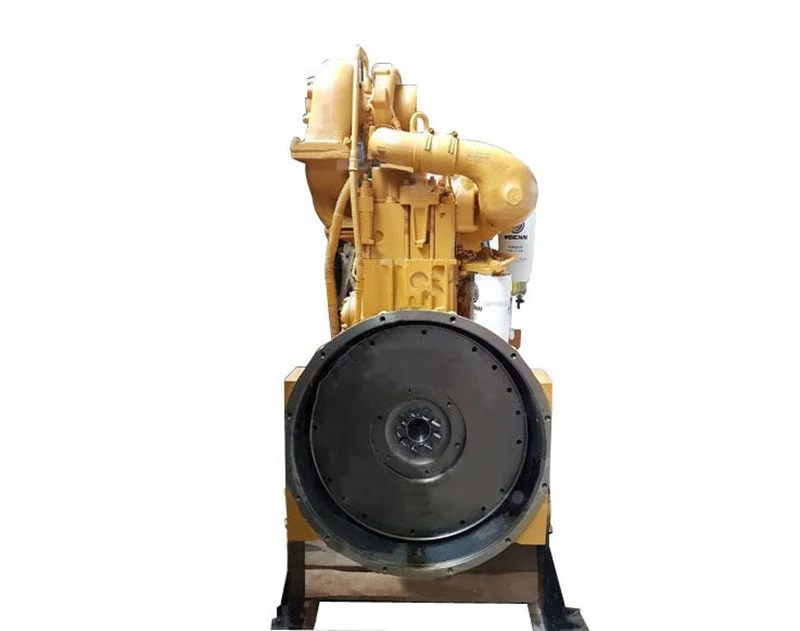

WHEEL LOADER WD10G220E23 weichai wd10
No. | Item | Unit | Type WD10G220E23 |
1 | Aspiration |
| Tubocharged&Intercooling |
2 | Cylinder | piece | 6 |
3 | Cylinder diameter*stroke | mm | 126*155 |
4 | Displacement | L | 9.726 |
5 | Compression ratio |
| 17:1 |
6 | Rated-power | KW | 279/309 |
7 | Rated-speed | r/min | 2000 |
8 | Max torque | N/m | 1650/1820 |
9 | Speed at maximum torque | r/min | 1100-1500 |
10 | Min brake specific fuel consumption | g/kw-h | ≤195 |
11 | Fuel consumption at rated condition | g/kw-h | 228/225 |
12 | Fuel/oil consumption ratio |
| ≤0.1% |
13 | Idle speed | r/min | 650+50 |
14 | Ignition sequence |
| 1-5-3-6-2-4 |
15 | Fuel delivery advance angle |
| 13+1 |
16 | Inlet/exhaust valve clearance(cold) | mm | 0.4/0.5 |
17 | Emission standard |
| EURO II |
18 | Oil pressure(rate/idle/point) | kpa | 380-550/120-250 |
19 | Lubricating oil sump capacity | L | 36 |
20 | Net weight | kg | 1100 |
21 | Crankshaft rotational direction |
| clockwise |
22 | Dimension(L*W*H) | mm | 1575*825*1090 |
Packaging & Shipping
Goods Packed by Carton or Wooden box which can be customized according to customer requirements.
Shipping by sea or by air (DHL)
OUR EXHIBTIONS
CUSTOMER VISIT
SHIPMENT
FAQ
Q1. What is your terms of packing?
A: Generally, we pack our goods in neutral white boxes and brown cartons. If you have legally registered patent, we can pack the goods in your branded boxes.
Q2. What is your terms of payment?
A: We accept payment by western union, T/T, L/C.T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
Q3.How about your delivery time?
A: Generally, it will take 10 to 30 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q4.What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
Company Information
We are SINOTRUK heavy trucks/Trailers and Genuine spare parts supplier located at Jinan,China.Sinotruk is one of the largest heavy duty truck manufacturers in China with distribution across Asia and in countries around the world.
Our complete trucks include dump trucks,tractor heads,concrete mixer trucks,tanker trucks,light trucks,bus as well as many special vehicles.Sinotruk vehicles are used in a range of industries including construction, container transportation, logistics, mining and steel production.
