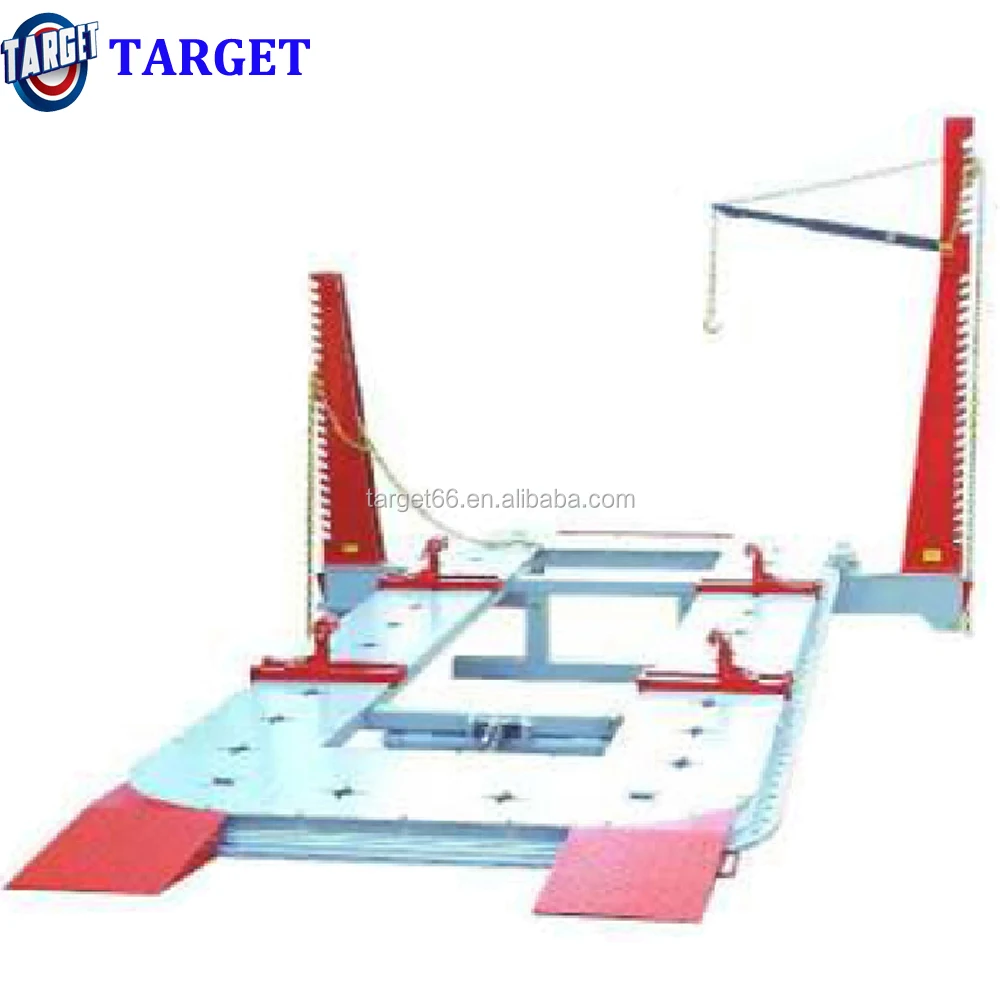

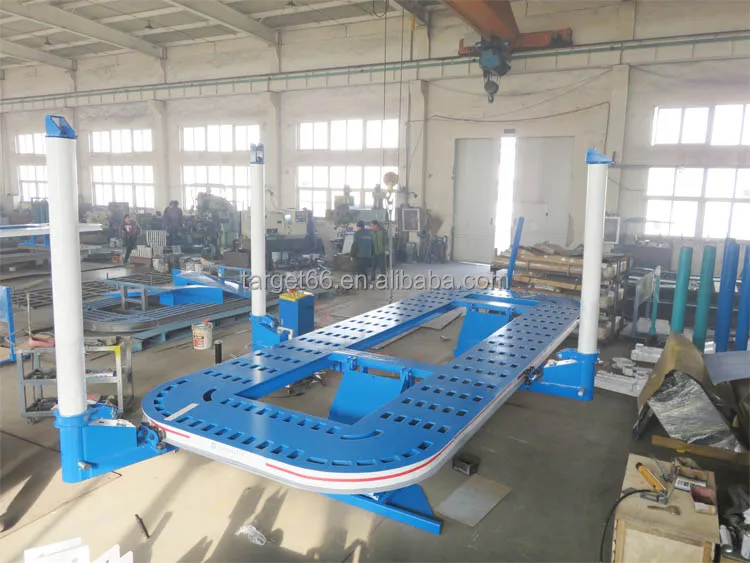

Frame machine TG 700 B Auto Car Body chassis Bench / Frame Machine / car frame straightening machine

•


  Specifications:















































  Items	data
  Bench length	5600mm / 6000mm
  Bench width	2200mm
  Working height	300--1050mm
  Post Max. Pulling tension	95KN (10tons)
  Rated voltage	220/380V
  Pneumatic pressure range	0.8MPa
  Post working range	360°
  Max. Lifting weight	4000kg
  Total weight	3500kg




•

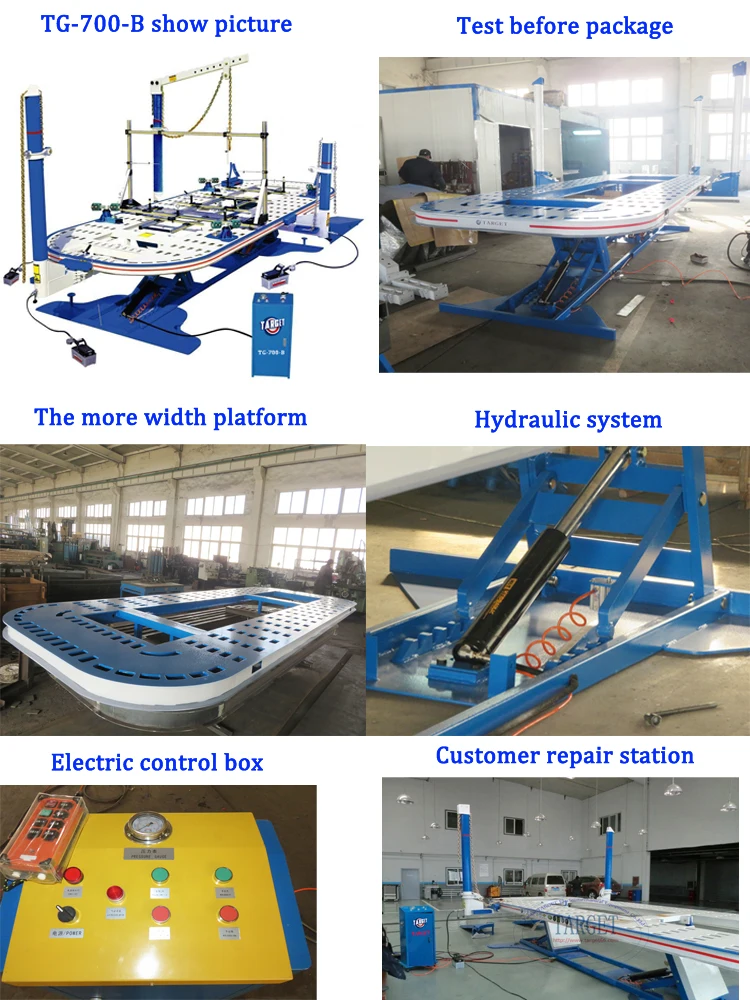

• Production detail pictures & features:


  Double cylinder lifting platformCan be raised to height of 300—1050mm that is accessible to any accident handing vehicle without cranes. Taking care of mechanics of different heights.

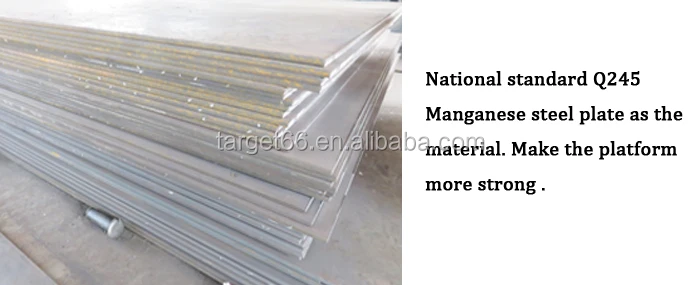

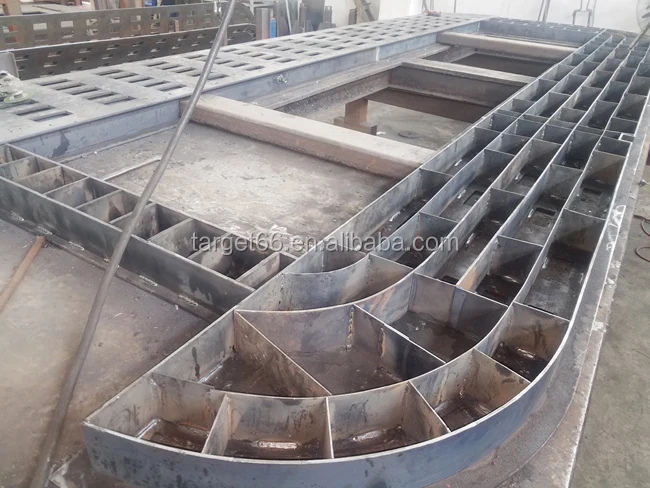

  The material is flat platewith powerfulCentral controlling system. Remote control:A key in hand, operate freely.




  Low press cylinderwith big cylinder diameter. Resistance to wear with low failure rate.




  The tower can be rotated360 degreeAlong the platform which is operated more convenient, more intensity.




  The clamps are made byHigh quality steels with forging and heat treatment, which is with high strength, great load and long service lift.




  The global data synchronization by Mitchelland the major automotive companies to provide and maintain the latest data models.




  A complete set of clamps and toolsConsidered almost any type of reshaping, which is convenient and flexible.




• Packing:


• Standard export package: Plastic film+Kraft paper packing / Plastic foam / woven bag / plywood box

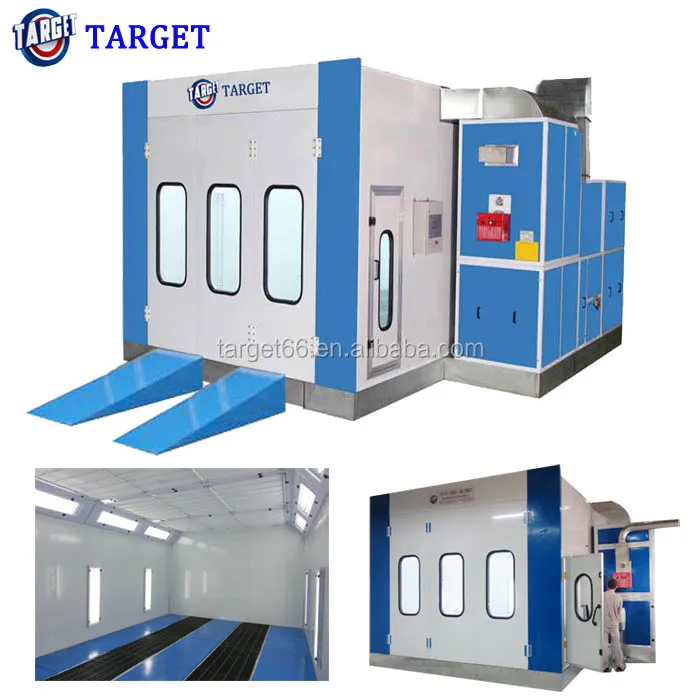

 Many models for you choose

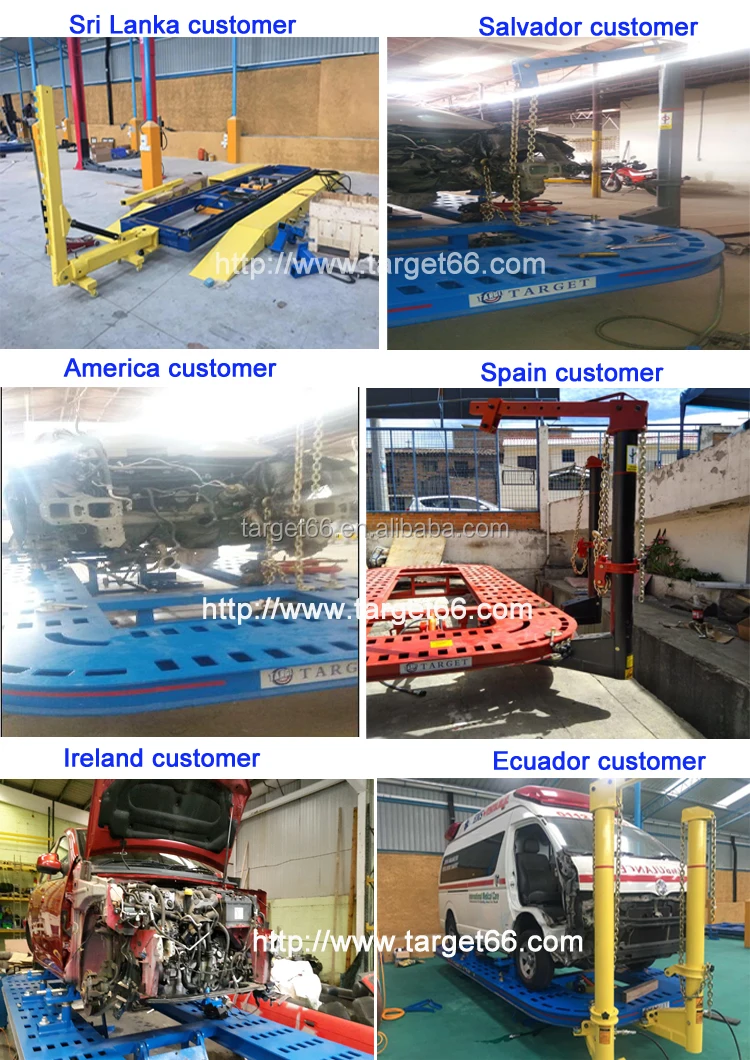

Customers all over the world

• Our services:


• OEM ODM service.


• Customized service: The color and size of the product can be customized.


• Two Years Quality warrant service, during the period spare part supplied free if you pay for shipping.


• Professional team supply service for life long time. Oversea service if need.


• Payment:


• T/T 30% deposit, 70% balance before shipping .


• Two Years Quality warrant service, during the period spare part supplied free if you pay for shipping.


• Alibaba Trade Assurance.


• others.

• Can you make the machine according to request ?


• Yes, we can customize the machine color and size accoriding to clients' requirements.


• What’s the Min. order for your company machine ?


• 1 set. Normally one standard model need 7 workdays .


• OEM is available ?


• Yes, we can put your logo on the machine .And make the machine structure as your design request.


• What kind of measuring system do you have ?


• We have the two dimension measuring,three dimension measuring and CHEIF electric measusing system for your choice.


• What’s the advantage of your company ?


• We have exported our machine to more than 23 countries. And have a professional team service for yo.We guarantee give feedback within 24 hours . Oversea service will supply uopn requests.
