4K HDMI HDBaseT Extender 70M 100M Distance HDMI1.4 Transmitter Receiver by Single Cat6 POE HDCP1.4 RS232 CEC ESD HDMI Extender
- Category: >>>
- Supplier: Ask Technology Co. Ltd.
Share on (1600545850901):
Product Overview
Description
Product Description

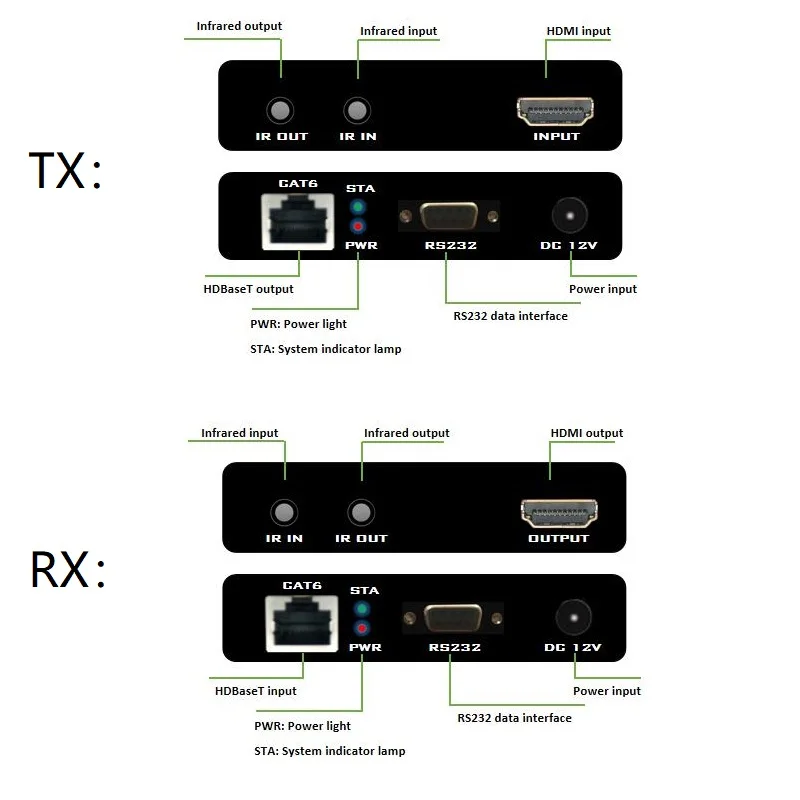

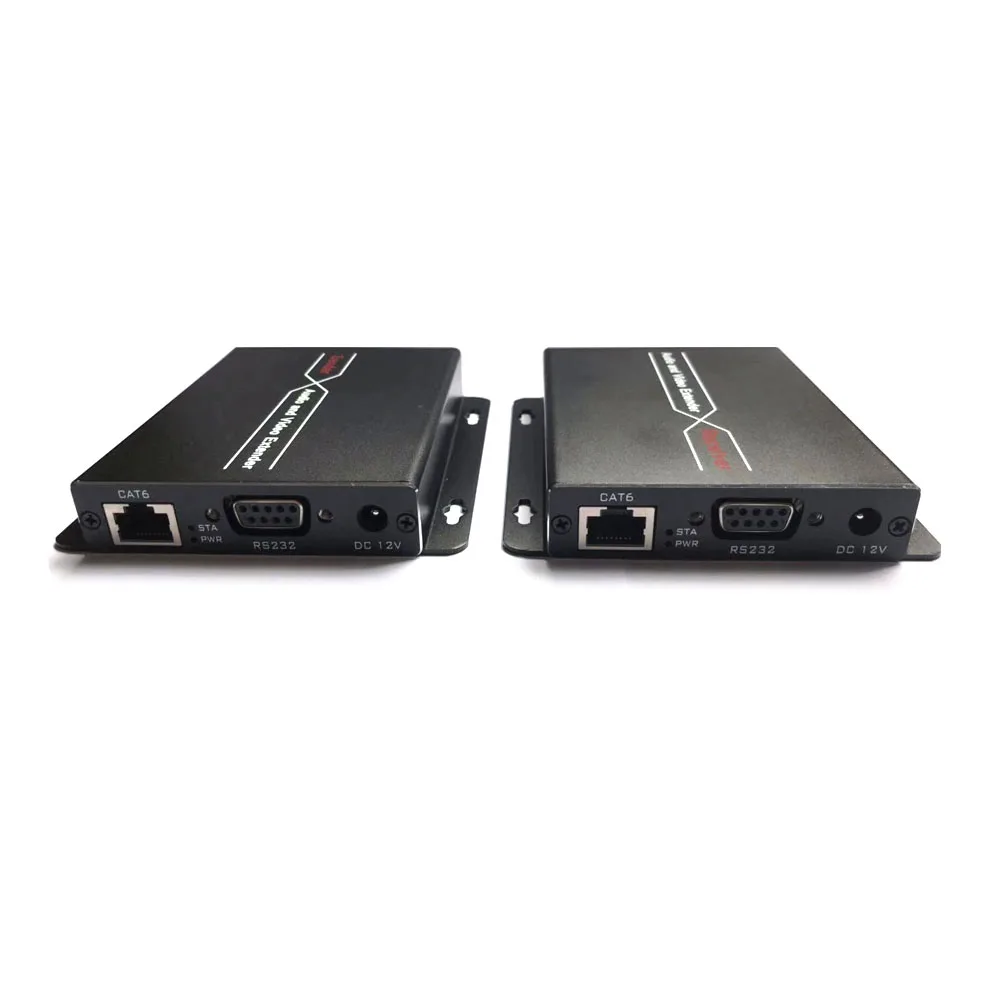

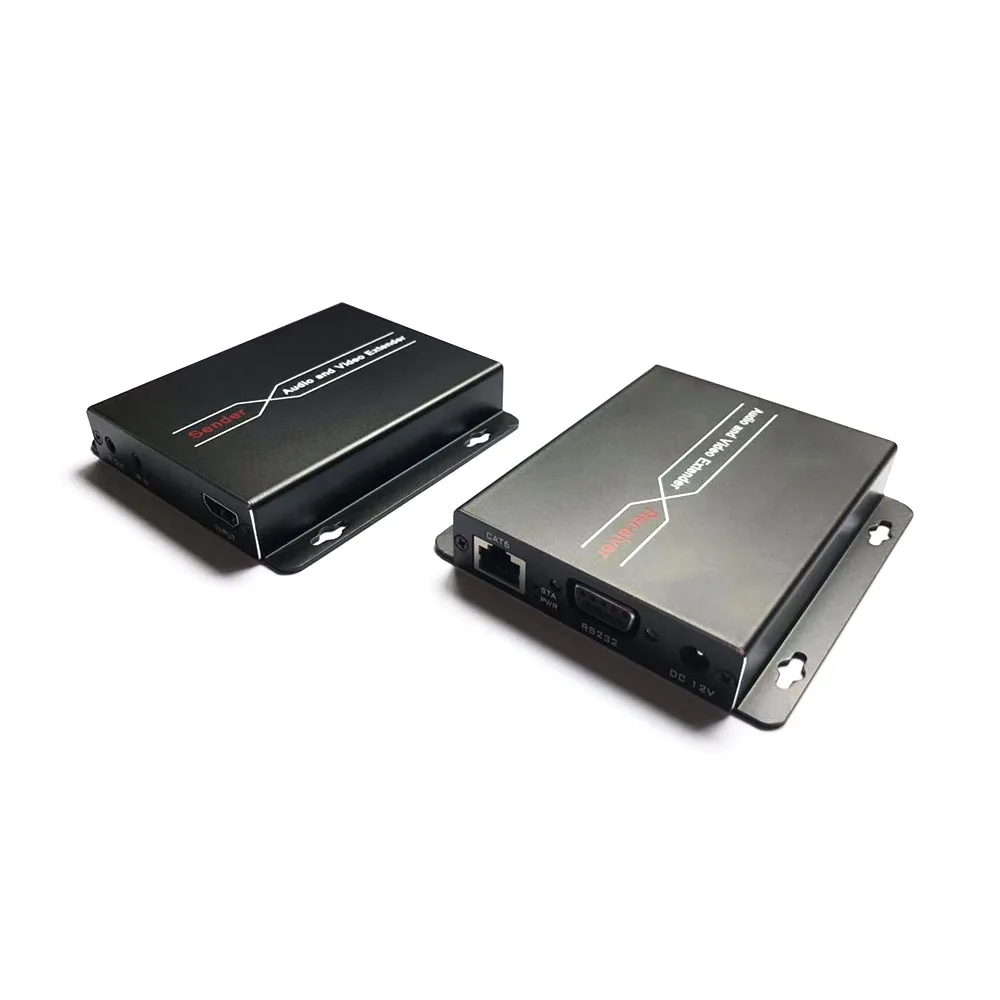

This HDMI Extender includes a transmitter unit(TX) and a receiver unit(RX), working as a pair. The HDBaseT HDMI extender provides extension of HDMI signals up to 70m over single CAT6 cable.

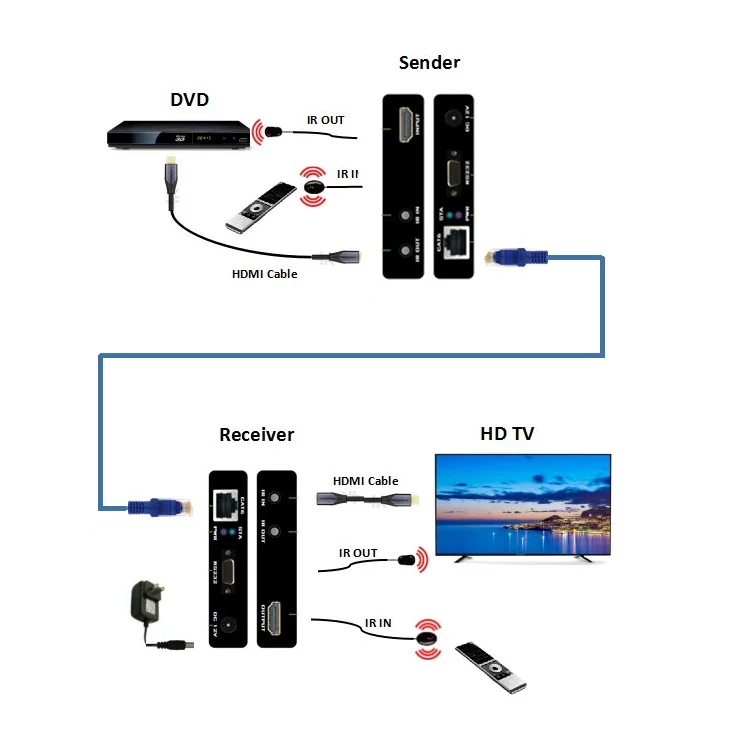

It supports high resolution up to 4K*2K HDMI signal via CAT6/6A/7 network cable to 40m with zero latency. At the same time, the signal is stable, and the built-in EDID greatly improves the compatibility of the device. It supports two way wide band IR remote control and RS232 , also it supports PoC to power the sender/receiver (Connect power supply to the transmitter /receiver, each unit will power up, as the unit through network cable). This product is perfect for AV transmission in applications of HD conference system, HD video shooting, HD multimedia education system, HD digital advertising and signage etc.
The device has a long transmission distance, low use cost, convenient installation and good compatibility, and it is a stable and efficient transmission method.
It supports high resolution up to 4K*2K HDMI signal via CAT6/6A/7 network cable to 40m with zero latency. At the same time, the signal is stable, and the built-in EDID greatly improves the compatibility of the device. It supports two way wide band IR remote control and RS232 , also it supports PoC to power the sender/receiver (Connect power supply to the transmitter /receiver, each unit will power up, as the unit through network cable). This product is perfect for AV transmission in applications of HD conference system, HD video shooting, HD multimedia education system, HD digital advertising and signage etc.
The device has a long transmission distance, low use cost, convenient installation and good compatibility, and it is a stable and efficient transmission method.
Video | Standards | HDMI 1.4, HDCP 1.2 |
Maximum pixel clock | 165MHz | |
Maximum data rate | 10.2Gbps | |
Resolution | UP to 3840X2160@30Hz | |
Connector | HDMI-A | |
Impedance | 100Ω | |
IR | Interface | 3.5mm earphone seat |
Signal type | Digital | |
Signal direction | Bidirectional | |
IR frequency | 20-60KHz | |
RS232 | Interface | Industrial terminal |
Signal direction | Bidirectional | |
Baud rate | Self-adaptive, Max: 115200bps | |
Data bits | 8 | |
HDBaseT | Interface | RJ45 |
Transmission distance | 1080P: CAT6 up to 70m 4K*2K: CAT6 up to 40m | |
Other | Power supply | The power adapter: DC 12V/2A |
Power dissipation | MAX 6W | |
Temperature | Operating: -5℃ ~ +70℃ | |
Humidity | Operating: 5% ~ 90% | |
Dimension | 100*97.5*18.6mm | |
The warranty | 1 year free warranty |
FEATURES

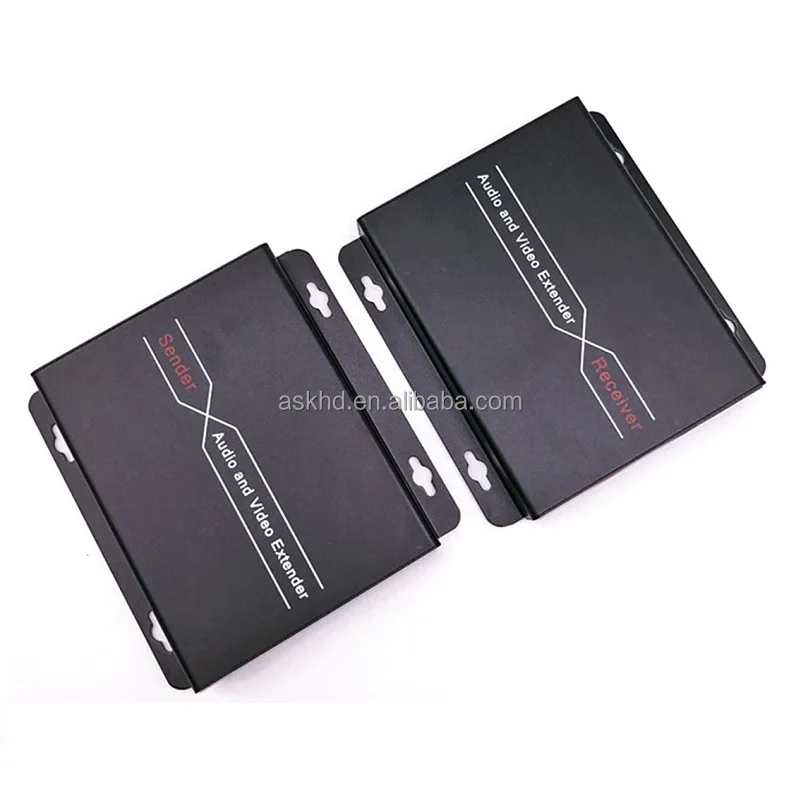

* Aluminum alloy housing design,stable and durable ;compact size and Slim ,strong anti-interference, Wall-mounted type is more convenient;
* HDBaseT technologSupports 3D signal
* Uncompressed transmits HDMI signals up to 40 meters for 4K×2K over one cat6 cable.;70 meters for 1080P over one cat6 cable.
* Support 2-way wide band infraredsignal transmission;
* Support RS232 & CEC pass-through
* Build-in EDID function, can match many kind display device;
* Support POC unilateral power supply, need 1pc 12V power to TX/RX
* Compliance with HDMI 1.4and HDCP 1.2 standard;
* Ethernet cables with a standard IEEE - 568b connection, convenient installation;
* High compatibility, can auto-match source and display device;
* Built-in automatic adjustment system, make the image smooth, clear and stable;
* HDBaseT technologSupports 3D signal
* Uncompressed transmits HDMI signals up to 40 meters for 4K×2K over one cat6 cable.;70 meters for 1080P over one cat6 cable.
* Support 2-way wide band infraredsignal transmission;
* Support RS232 & CEC pass-through
* Build-in EDID function, can match many kind display device;
* Support POC unilateral power supply, need 1pc 12V power to TX/RX
* Compliance with HDMI 1.4and HDCP 1.2 standard;
* Ethernet cables with a standard IEEE - 568b connection, convenient installation;
* High compatibility, can auto-match source and display device;
* Built-in automatic adjustment system, make the image smooth, clear and stable;
Packing&Shipping
Accessories
* HDMI extender transmitter x 1
* HDMI extender receiver x 1
* IR sender and receiver cables x 1
* Power adapter x 1
* Instruction manual x 1
* HDMI extender receiver x 1
* IR sender and receiver cables x 1
* Power adapter x 1
* Instruction manual x 1
