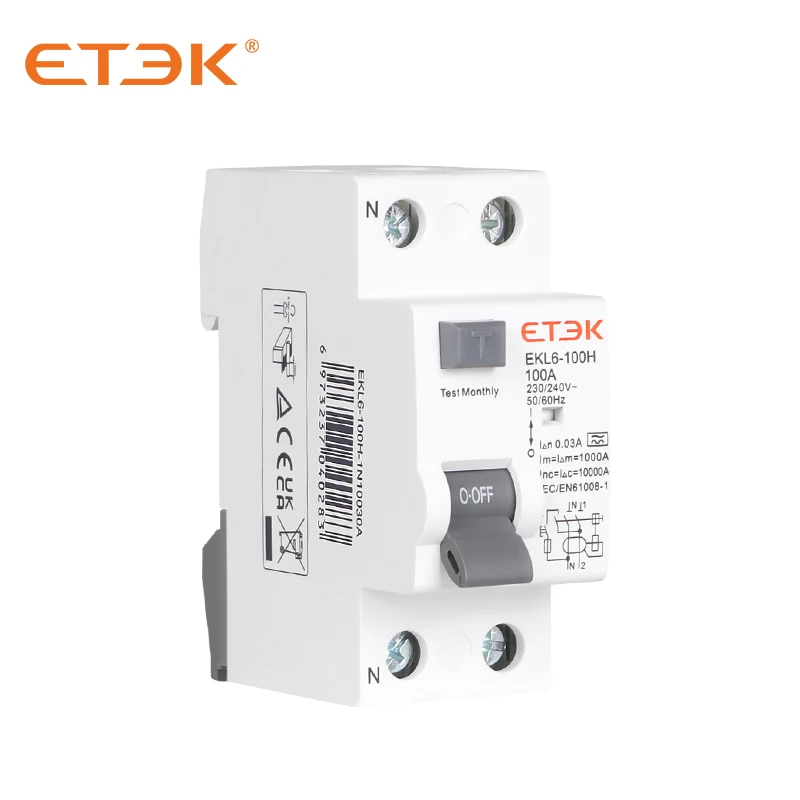

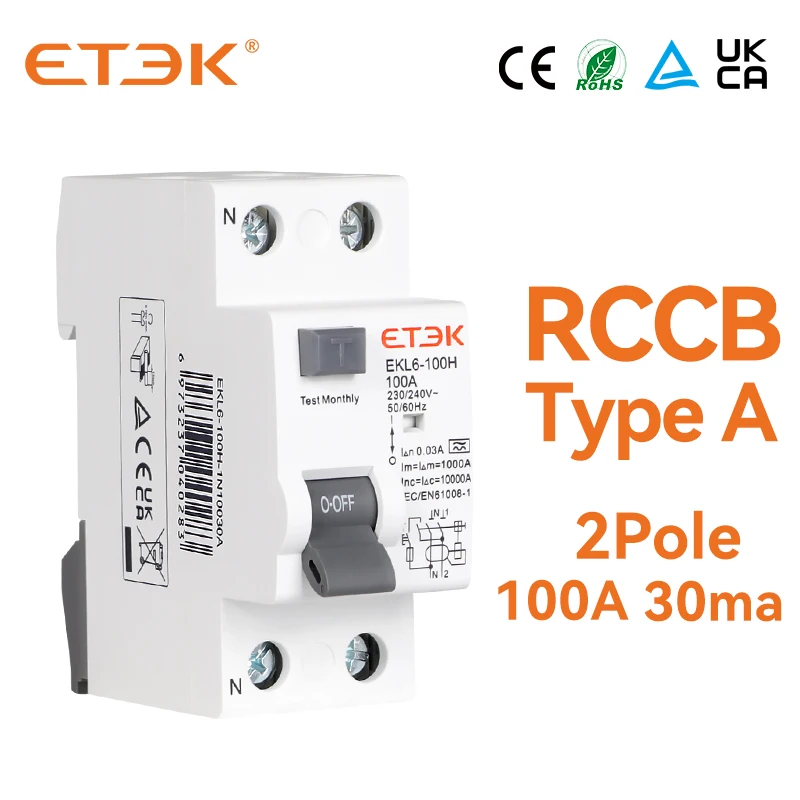

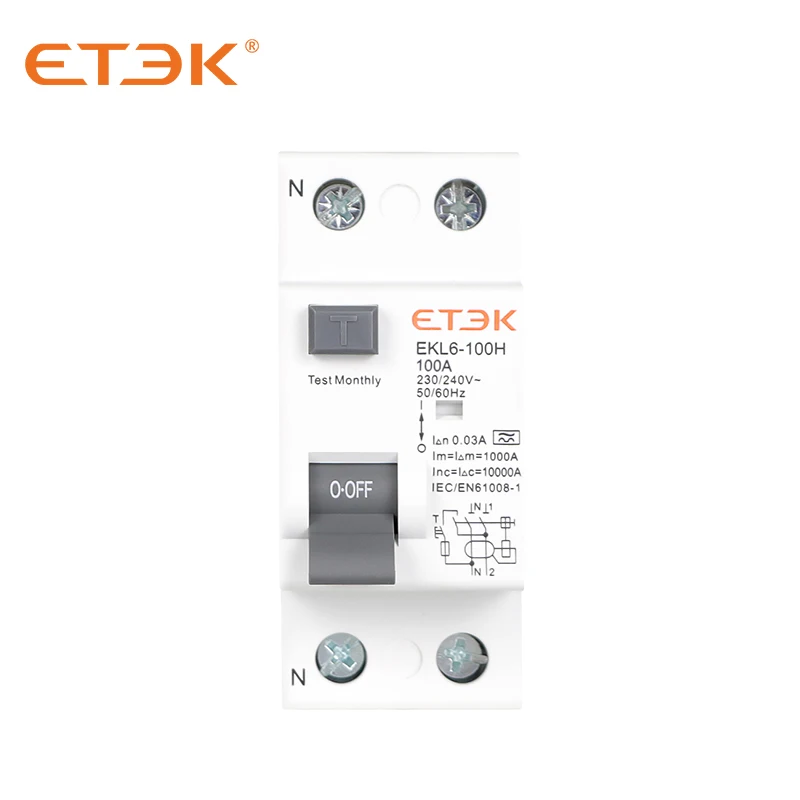

Устройство автоматического выключателя остаточного тока ETEK RCCB 100A 2 P 10KA 100A 30mA тип A RCCB 2 полюсный rccb Тип b
- Category: Circuit Breakers >>>
- Supplier: Zhejiang Etek Electrical Technology Co. Ltd.
Share on (1600545857506):
Product Overview
Description
Product Description
1.A Residual Current Circuit Breaker (RCCB) is an important safety measure when it comes to protection of electrical circuits. It is a current sensing device, which can automatically measure and disconnect the circuit whenever a fault occurs in the connected circuit or the current exceeds the rated sensitivity.
2.Aimed at protecting an individual from the risk of electric shocks as well as electrocution and fires, RCCB is particularly helpful in instances of sudden earth faults. The presence of RCCB ensures that in such cases, the circuit will trip immediately and the person is thus protected from an electric shock.
3.EKL6-100 earth leakage circuit breaker is suitable to the circuit of AC 50/60Hz.rated voltage 230V for 1P+N poles and 400V for 3P+N poles, and rated current up to 100A (When the RCCB handle is disconnected, L pole and N pole are both disconnected).when people come across the electric shock or the leakage current of the electrical network exceeds the fixed value, this product can cut off the fault current in short period so as to protect person and the equipment, it also can be used in the infrequent starting of the circuit and motors. The circuit breaker is suitable for industry, commerce, high-rise buildings, households and other kinds of places.
4.Features
*In compliance with IEC/EN61008-1.

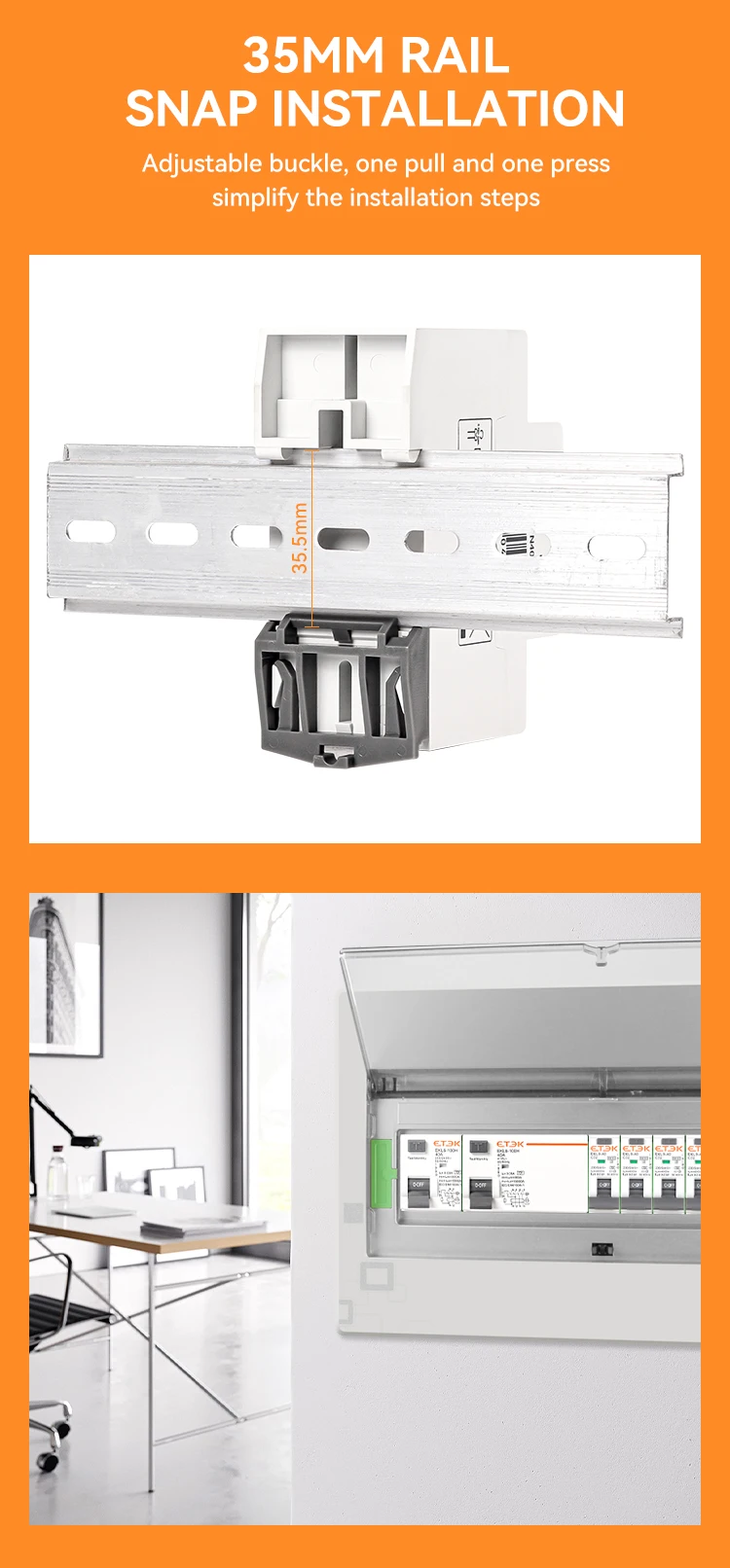

*Bilateral busbar wiring capabilities to adapt to the wider use of premises.
*Maximum connecting ability of 35mm, wiring torque 3.5Nm, applicable to a variety of installation equipment.
*Protection class: IP20.
2.Aimed at protecting an individual from the risk of electric shocks as well as electrocution and fires, RCCB is particularly helpful in instances of sudden earth faults. The presence of RCCB ensures that in such cases, the circuit will trip immediately and the person is thus protected from an electric shock.
3.EKL6-100 earth leakage circuit breaker is suitable to the circuit of AC 50/60Hz.rated voltage 230V for 1P+N poles and 400V for 3P+N poles, and rated current up to 100A (When the RCCB handle is disconnected, L pole and N pole are both disconnected).when people come across the electric shock or the leakage current of the electrical network exceeds the fixed value, this product can cut off the fault current in short period so as to protect person and the equipment, it also can be used in the infrequent starting of the circuit and motors. The circuit breaker is suitable for industry, commerce, high-rise buildings, households and other kinds of places.
4.Features
*In compliance with IEC/EN61008-1.
*Bilateral busbar wiring capabilities to adapt to the wider use of premises.
*Maximum connecting ability of 35mm, wiring torque 3.5Nm, applicable to a variety of installation equipment.
*Protection class: IP20.

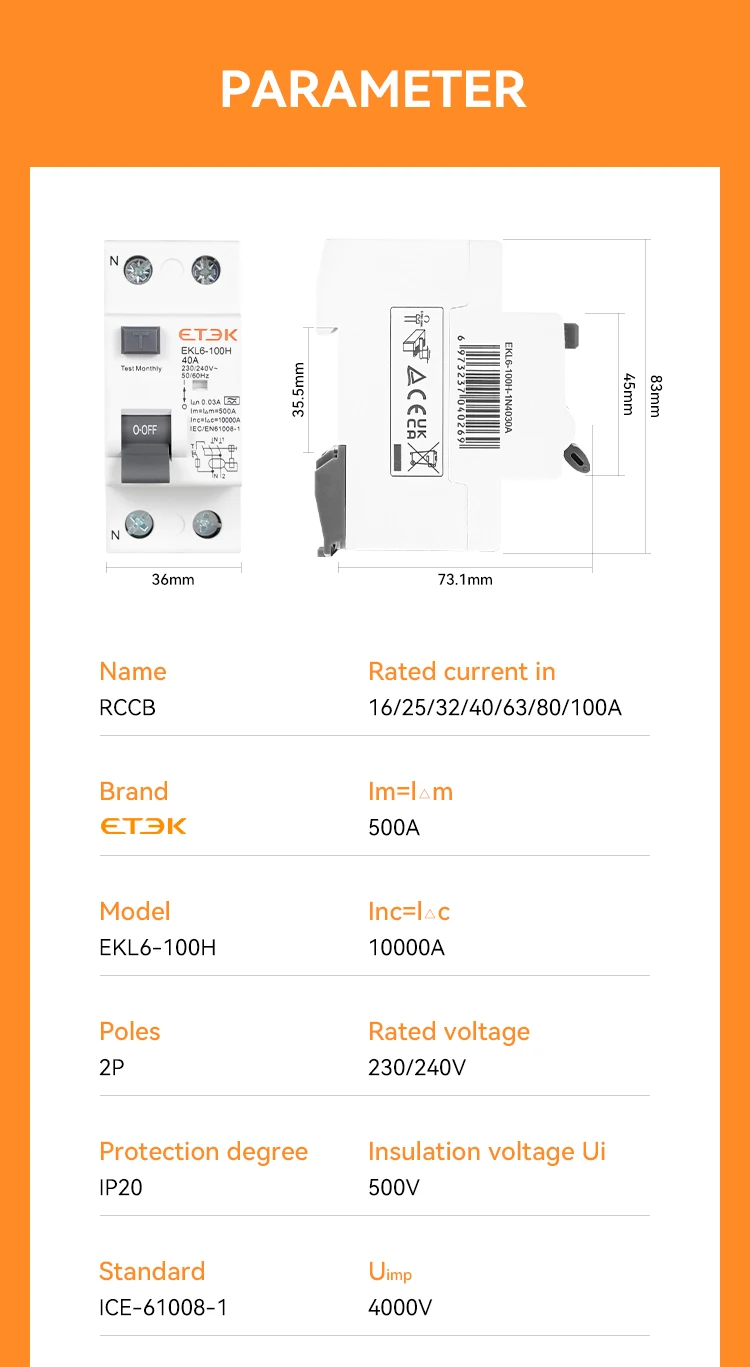

Specification
item | value |
Place of Origin | China |
Zhejiang | |
Brand Name | ETEK |

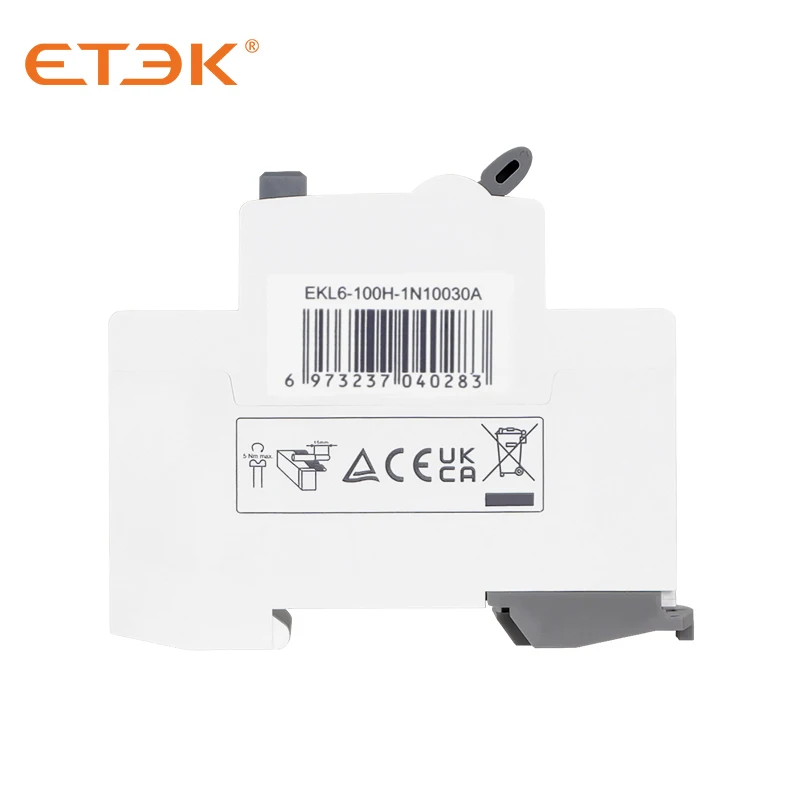

Model Number | EKL6-100H-1N10030A |
Rated Voltage | 230V |
Type | RCCB |
Protection | LSI |
Product name | Residual Current Circuit Breaker RCCB |
Application | Leakage Protection |
Pole | 1P+N, 2P |
Rated residual operating current (mA) | 30mA |
Rated current | 100A |
Rated breaking capacity | 10KA |
Mechanical Life | 4000 Cycles |
Electric life | 2000 Cycles |
Warranty | 2 Years |
Company Profile
FAQ
1. Who are you?
ETEK Electric is a professional manufacturing company dedicated to the research and development, production and sales of low-voltage electrical appliances. The company was established in 2011 and is located in Wenzhou City, Zhejiang Province.
2.What can I buy from you?
MCB, RCCB, RCBO, MCCB, AC contactor, SPD, Electric vehicle charging equipment, etc.
5. What services can you provide?
Accepted Delivery Terms: FOB, CFR, CIF, EXW, FCA, Express Delivery；
Accepted Payment Currency: USD, EUR, CNY;
Accepted Payment Type: T/T, L/C, D/P D/A, Money Gram, PayPal, Western Union, Cash;
Language Spoken: English, Chinese
ETEK Electric is a professional manufacturing company dedicated to the research and development, production and sales of low-voltage electrical appliances. The company was established in 2011 and is located in Wenzhou City, Zhejiang Province.
2.What can I buy from you?
MCB, RCCB, RCBO, MCCB, AC contactor, SPD, Electric vehicle charging equipment, etc.
3.How can I ensure good quality?
ETEK Electric has a series of certifications and ISO9001 quality management system certifications, as well as TUV, CE, SAA, ESV, CB and some international CNAS certification laboratory certificates, so the products meet the standards of the International Electrotechnical Commission.
4.How to guarantee the delivery time of production?
Before starting the order, we will confirm the delivery date with the clients, when production is halfway through that will
update the production status to clients again. (Unless it is a cause of force majeure, such as an epidemic, a natural disaster)
Before starting the order, we will confirm the delivery date with the clients, when production is halfway through that will
update the production status to clients again. (Unless it is a cause of force majeure, such as an epidemic, a natural disaster)
5. What services can you provide?
Accepted Delivery Terms: FOB, CFR, CIF, EXW, FCA, Express Delivery；
Accepted Payment Currency: USD, EUR, CNY;
Accepted Payment Type: T/T, L/C, D/P D/A, Money Gram, PayPal, Western Union, Cash;
Language Spoken: English, Chinese
