20223 HOT Sales High Quality LMK5 Series Electric Energy AC Current Sensor Transformer

Product Overview

Description

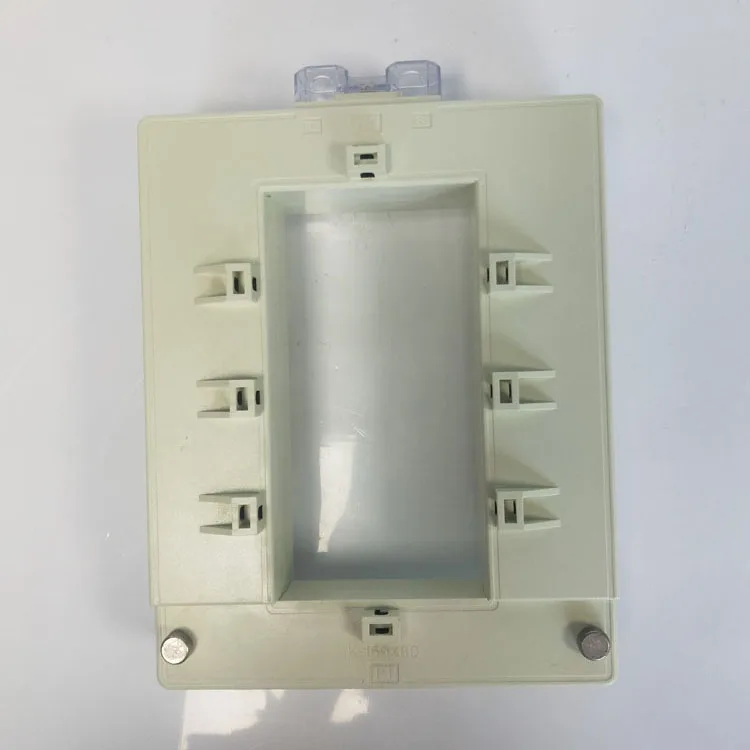

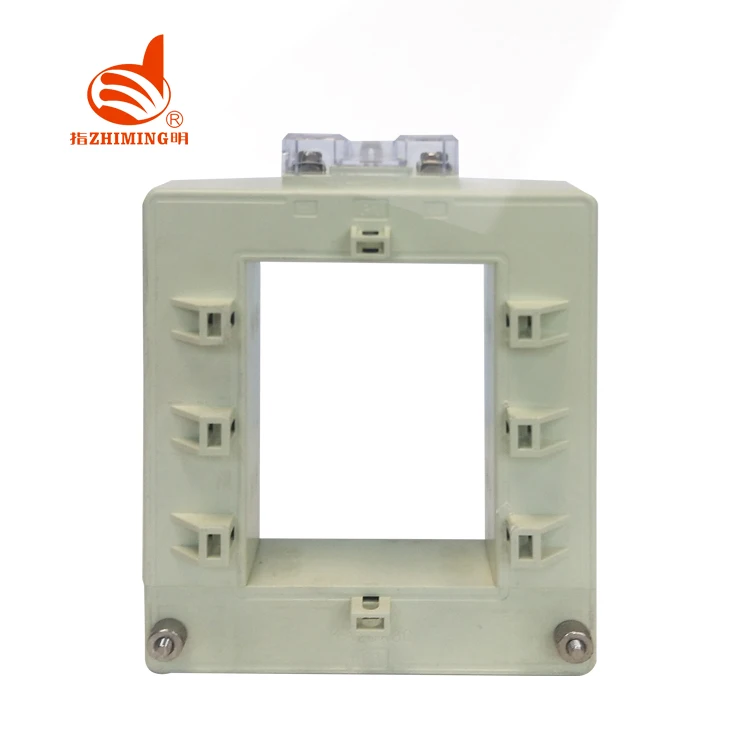

High Quality LMK5 Series Electric Energy AC Current Sensor Transformer

current sensor transformer





Application

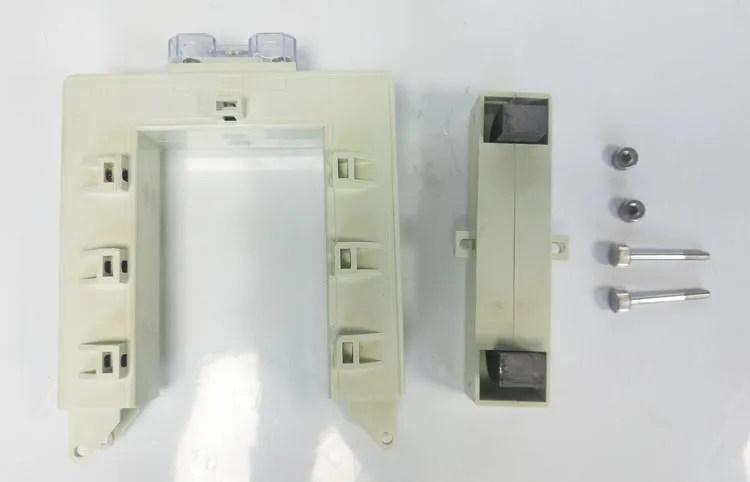

LMK5(BH)-0.66 type current transformer is mainly used for indoor, for rated voltage up to and including 0.66 kV, rated frequency 50Hz ac circuit as the electric current and electric energy measurement and relay protection. Product is a plastic shell type current transformer, are widely used in the complete sets of cabinet put oneself in another's position, its installation method can be used bus fixed and base plate fixed installation method.
Standard: GB/T 20840

Working And Installation Conditions



1.  Installation sites: Indoor
2.  Ambient temperature : (-5~40)℃
3. Ambient humidity: ≤80%
4. Altitude: ≤1000m
5. Atmospheric conditions: no serious impurity in the atmosphere.



Main Technical Data



Picture	Current Ratio(A)	Secondary Load(A)	Cross-core Turn Number
		Class 0.5 / Class 1
	800/5A	2.5	1
	1200/5A	5.0	1
	1500/5A	5.0	1
	2000/5A	5.0	1
	2500/5A	10.0	1
	3000/5A	10.0	1



Need More Information , Pls check , just give us the inquiry , you will get what your information.



Q1. What advantages do you have?

A1. ZHIMING GROUP CO, LTD located at Yueqing, Zhejiang, the Electric city, was established in the 1999. Exported to Southeast Asia, Middle America, Russia, Middle east and etc
Q2. Do you have a catalog?
A2. Yes, We have it. And i can send you
Q3. Could you print our own logo?
A3. Yes, Our company are available for retail Wholesale& oem ODM
Q4. How long is the quality guarantee?
A4. One year warranty, our products are passed the inspection
Q5. How long is the deliver time?
A5. It usually takes about 3-5 working days for sample order and 15-25 days for batch
Q6. What is your payment terms?
A6. Our Payment term is T/, Aliexpress, Western Union, PayPal, L/C
