100L 200L 300L Stainless Steel Used Second Hand Dish Wash Bar Soaps Making Machines
100L 200L 300L Stainless Steel Used Second Hand Dish Wash Bar Soaps Making Machines
100L 200L 300L Stainless Steel Used Second Hand Dish Wash Bar Soaps Making Machines
100L 200L 300L Stainless Steel Used Second Hand Dish Wash Bar Soaps Making Machines
100L 200L 300L Stainless Steel Used Second Hand Dish Wash Bar Soaps Making Machines
100L 200L 300L Stainless Steel Used Second Hand Dish Wash Bar Soaps Making Machines
100L 200L 300L Stainless Steel Used Second Hand Dish Wash Bar Soaps Making Machines

100L 200L 300L Stainless Steel Used Second Hand Dish Wash Bar Soaps Making Machines

Share on (1600545878170):


Price:$1,900.00 - $2,000.00

Quantity:


Product Overview

Description

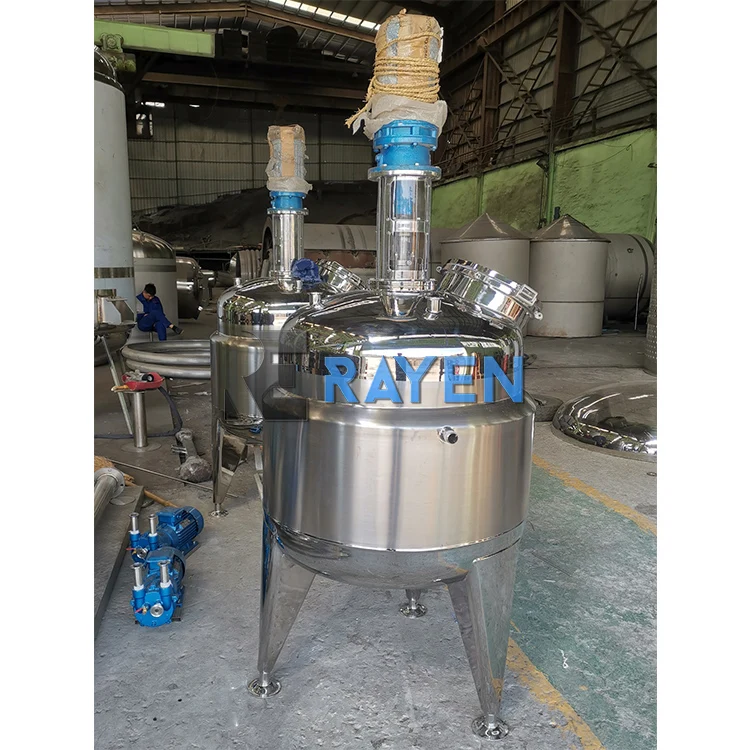

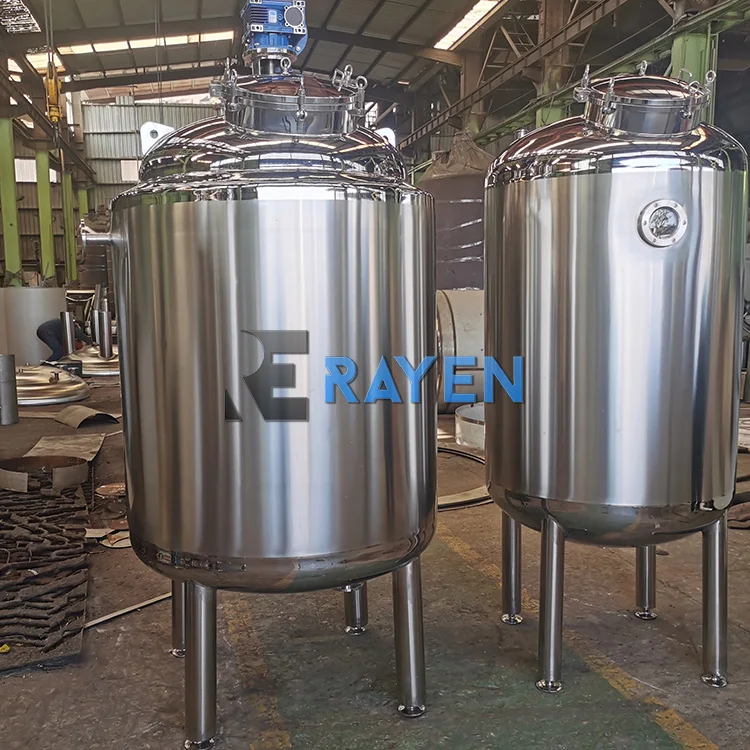

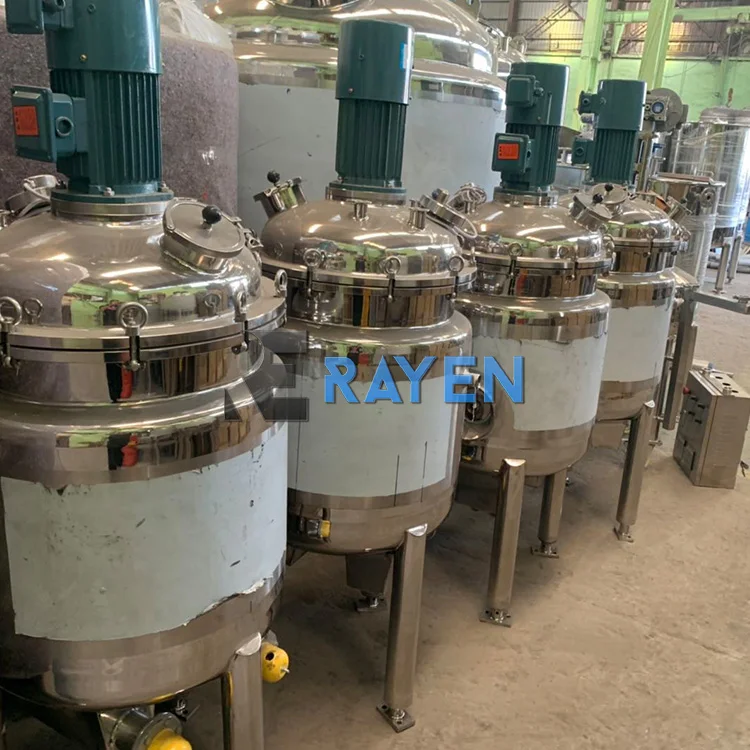

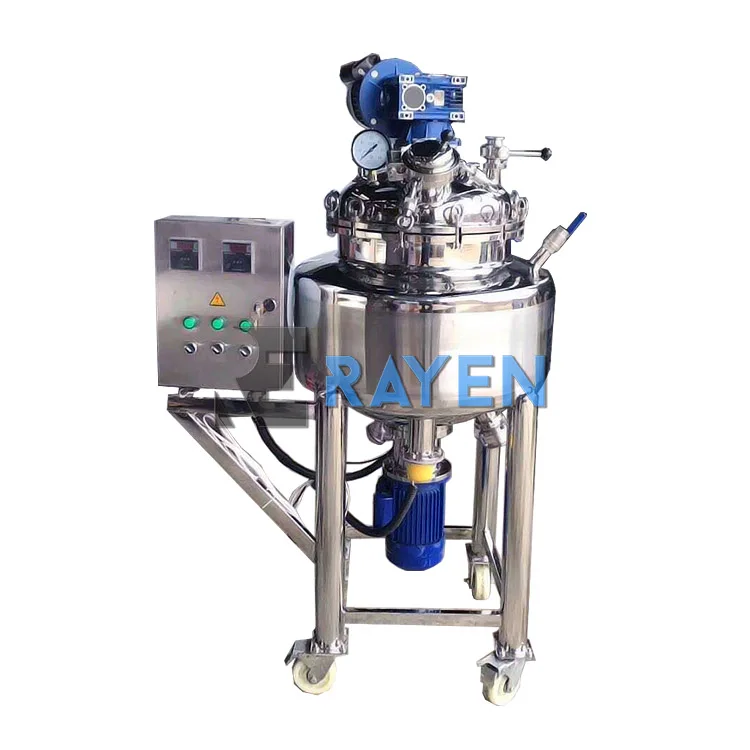

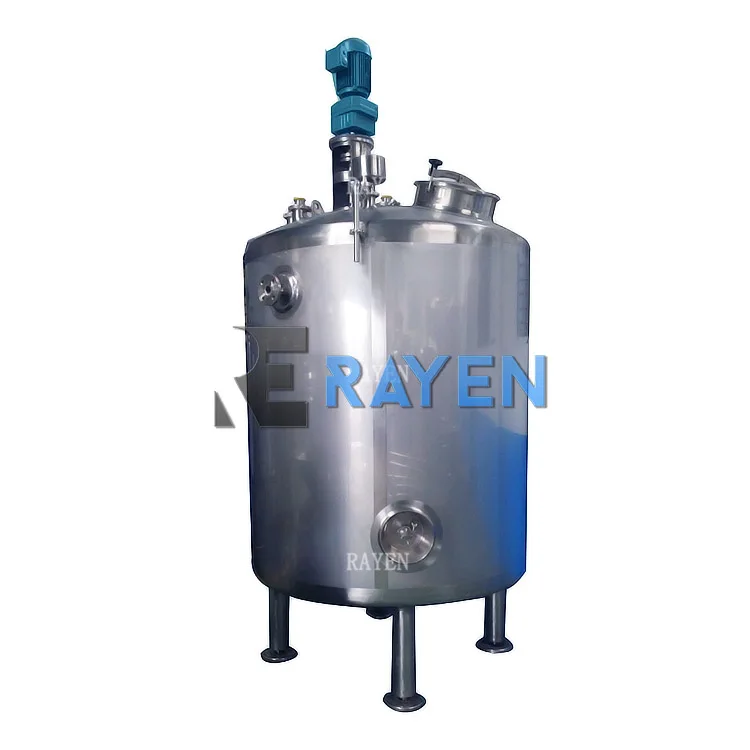

100L 200L 300L Stainless Steel Used Second Hand Dish Wash Bar Soaps Making Machines
Can be used as liquid storage tank, liquid mixing tank ,liquid heating or cooling tank and so on.It is suitable for food, dairy
products, fruit juice beverage, pharmaceutical and chemical and biological engineering.
Finish:Mirror or Matt Polish; Ra<0.4um
1. Material:Stainless steel, austenitic stainless steel 304, 316L etc, with insulating material or not
2. Tank shell thickness:3mm at least (according to the design or your required)
3. Design work pressure (MPa):-0.1~~1.6MPa (According to the China national standard, breakthroughs in the foregoing measurements
are allowed in special cases)
4. Design work temperature:-4~~+150C
5. General accessories(If required):Manhole, CIP, respirator, sight glass, mixing(Top side or bottom)
Certification: CE ISO9001:2000.

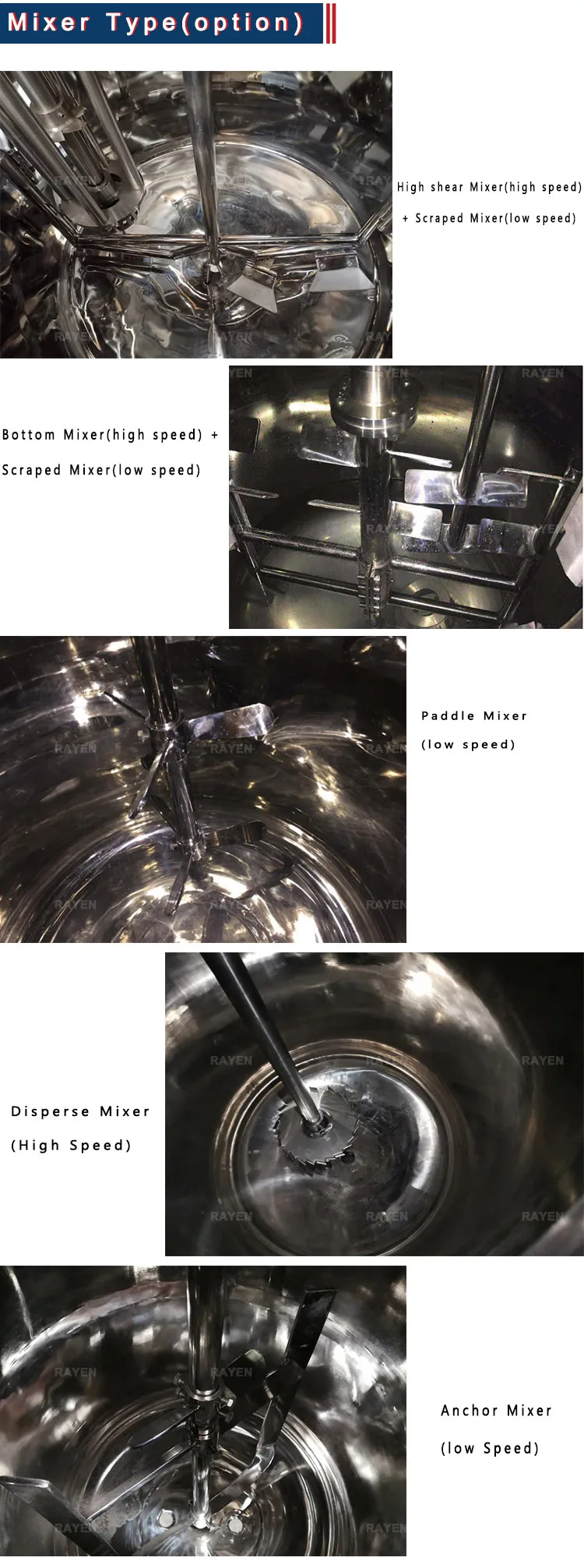

Have different kinds of agitators:
1, Bottom magnetic agitator with propeller impeller, speed from 50-400rpm or 50-800rpm. this kind of agitator is mixing thin
viscosity , such as eyedrop, injection, CIP liquid, water, etc.
2, Top mechancial agitator with propeller impeller, speed at fix 71rpm or adjustable 20-200rpm or special requirement. this kind
of agitator is mixing syrup, injection, blood, oral liquid, culture media, etc.
3, Top mechanical agitator with anchor or frame impeller, speed is from 10-70rpm. it is mixing higher viscosity , such as sediment
or viscosity oral liquid, etc.
4, Top emusification homogenizer, speed max 2900rpm for small vessel, 1480rpm for bigger tank. this kind of agitator is mixing
most high viscosity , such as suspension, oil, fat emulsification , etc.
5, Bottom emusification homogenizer, speed max 2900rpm for small vessel, 1480rpm for bigger tank. this kind of agitator is mixing
most high viscosity , such as suspension, oil, fat emulsification , etc.


Model
Equipment Volune(L)
Dimension Of Tank(MM)
Motor Power (KW)
Agitator Peed(R/Min)
Outine dimension
Length
Width
Height
RTS500
500
Φ800×900
0.55
63r/min
(According to customer requirements)
800
800
1700
RTS1000
1000
Φ1000×1220
0.75
1000
1000
2100
RTS2000
2000
Φ1200×1500
1.5
1200
1200
2500
RTS3000
3000
Φ1600×1500
2.2
1600
1600
2600
RTS4000
4000
Φ1600×1830
2.2
1600
1600
2900
RTS5000
5000
Φ1800×2000
3.0
1800
1800
3150
RTS6000
6000
Φ1800×2400
3.0
1800
1800
3600
RTS8000
8000
Φ2000×2400
4.0
2000
2000
3700
RTS10000
10000
Φ2100×3000
5.5
2100
2100
4300
We Can Design Drawing According To Your Requirement.












1.Q: Are you manufacturer or trading company?
A: RAYEN is a professional manufacturer.
2.Q: How could we confirm the details of the products?
A: RAYEN will provide the detail drawings for you to confirm.
3.Q: How long the warranty will be?
A: 1 Year warranty.
4.Q: Do you take L/C?
A: Yes, we accept Western Union, T/T and irrevocable L/C payable
5.Q: Can we become your distributor in our country?
A: Yes, we very welcome you! More details will be discussed if you are interested in being our agent.
