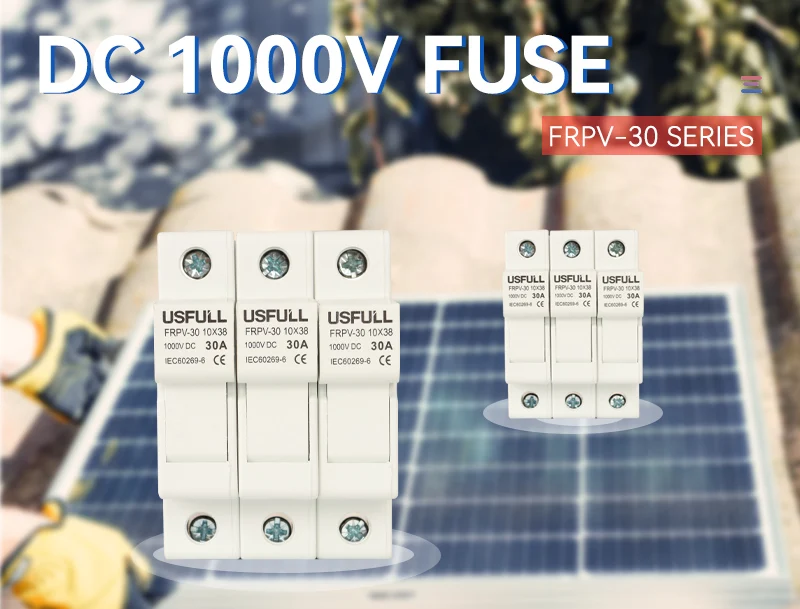

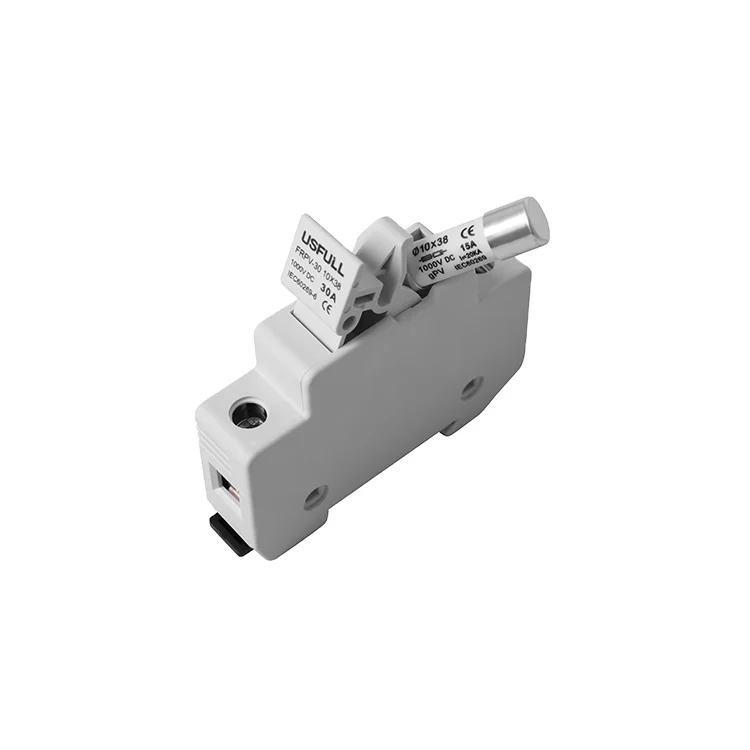

USFULL DC PV Solar fuse 1000V
- Category: >>>
- Supplier: Zhejiang Fullwill Electric Co. Ltd.
Share on (1600545885552):
Product Overview
Description

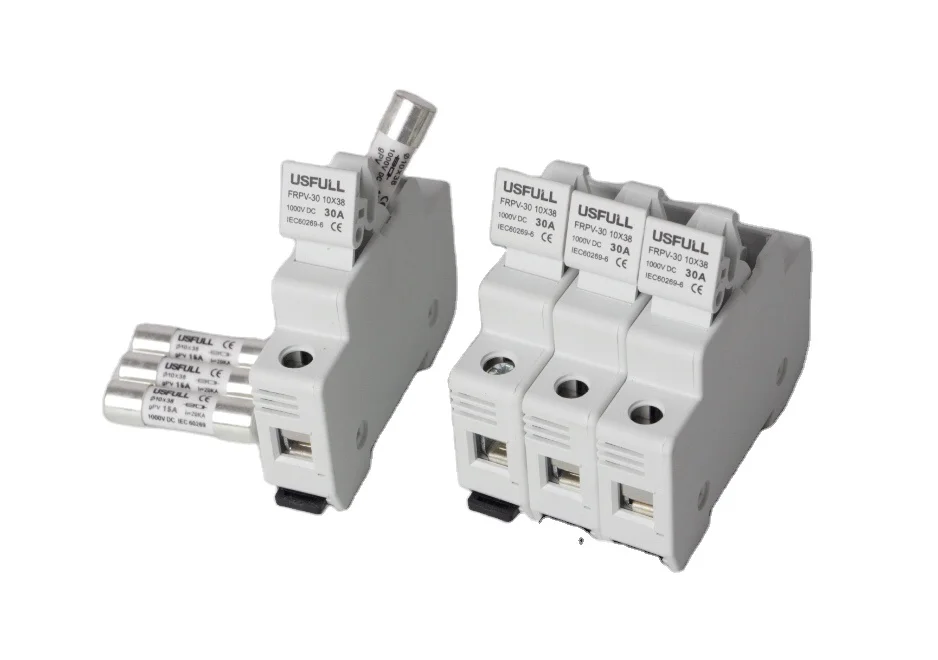

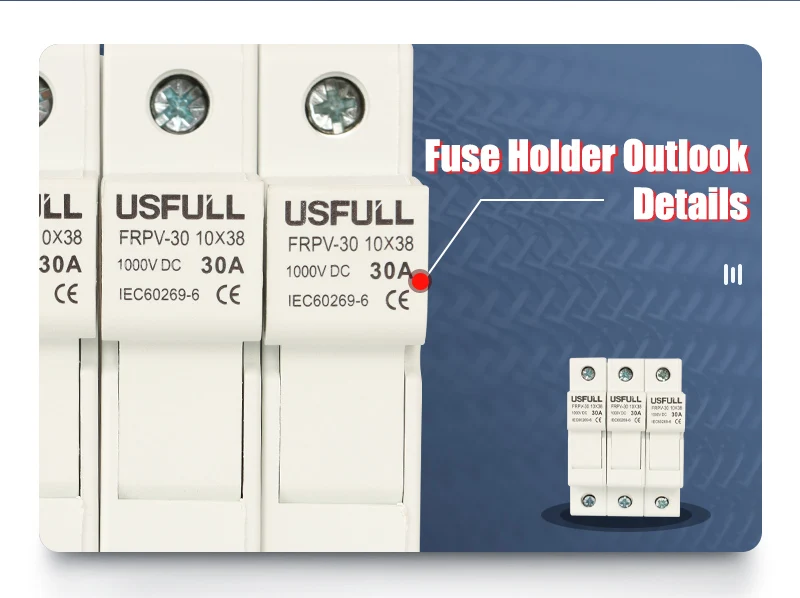

Photovoltaic Solar Electric 12v 24v 600v 1000v Thermal 1a 2a 3a 5a 10a 15a 20a 30a 250v DC Fuse Holder And Base
DC fuse Application:

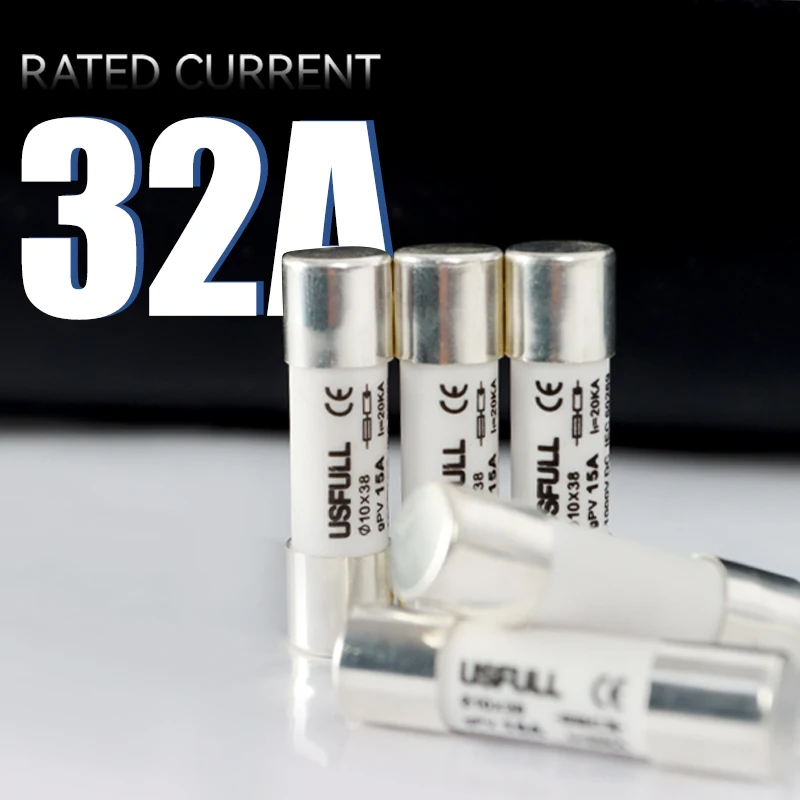

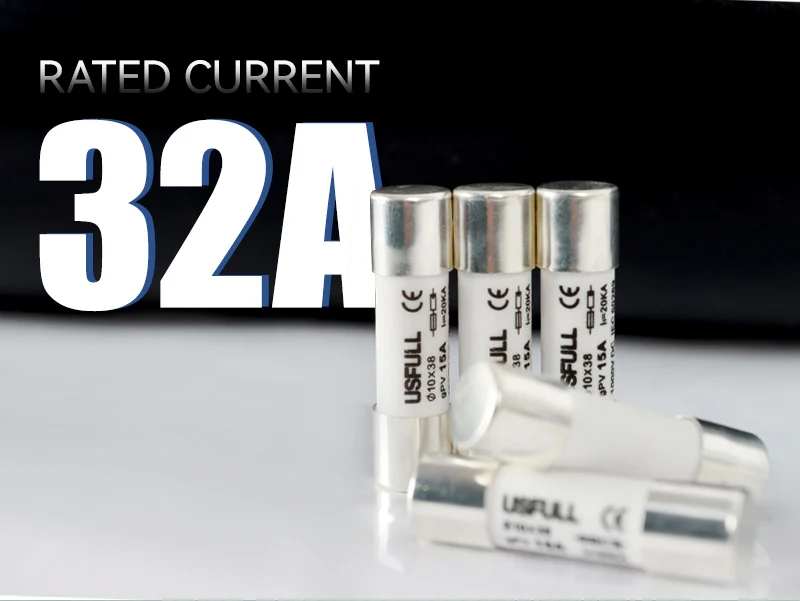

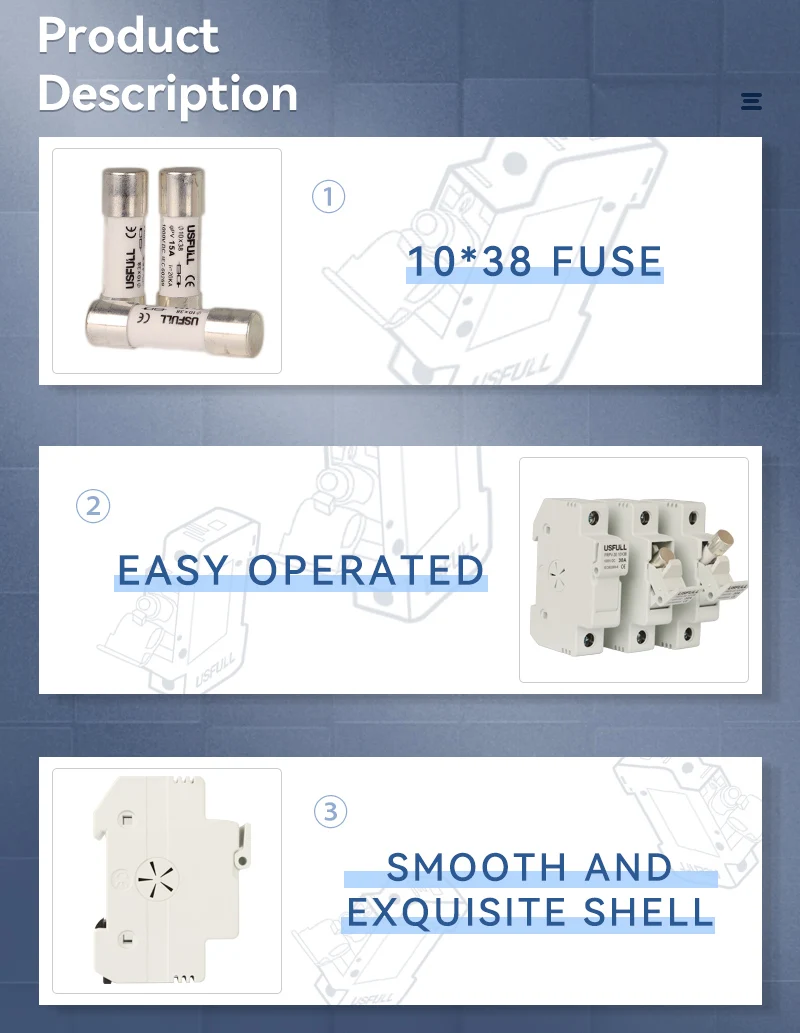

A range of 10x38mm fuse links specifically designed for protectin photovoltaic strings. These fuse links are capable of interrupting low overcurrents associated with faulted photovoltaic string arrays (reverse current, multi-array fault).
DC fuse Parameters:

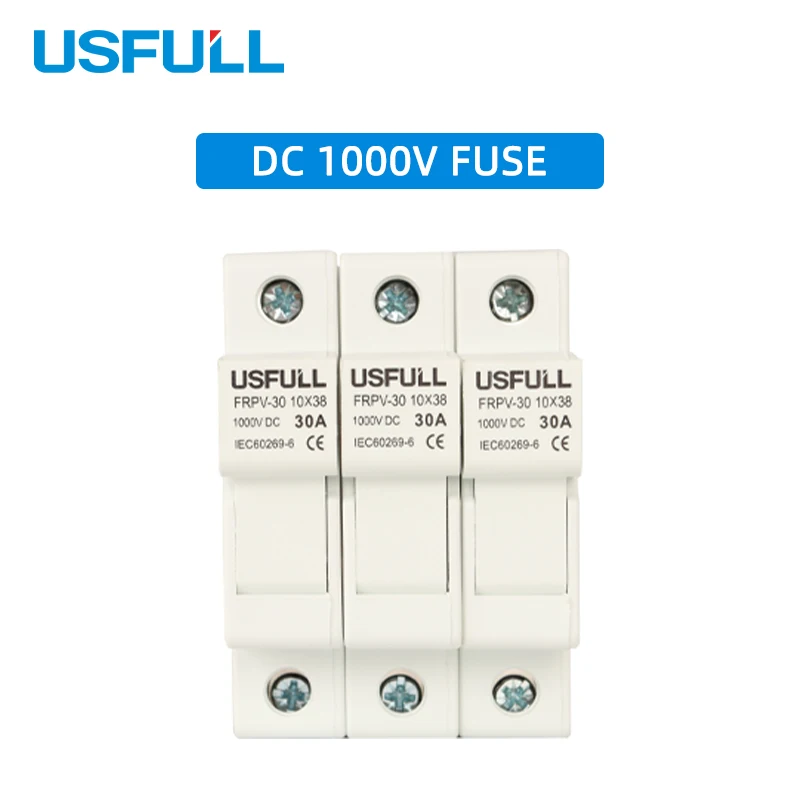

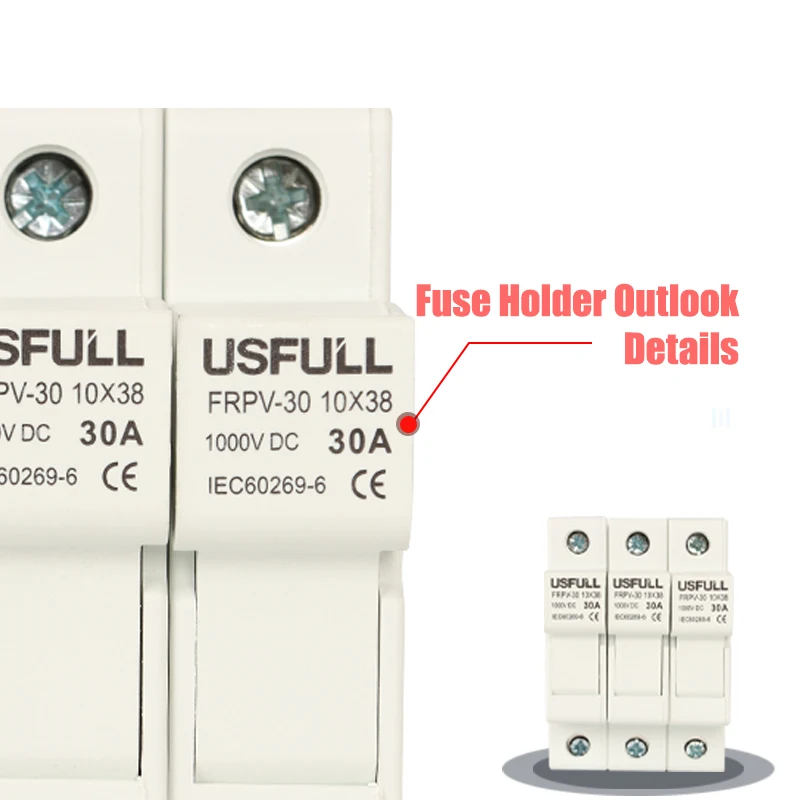

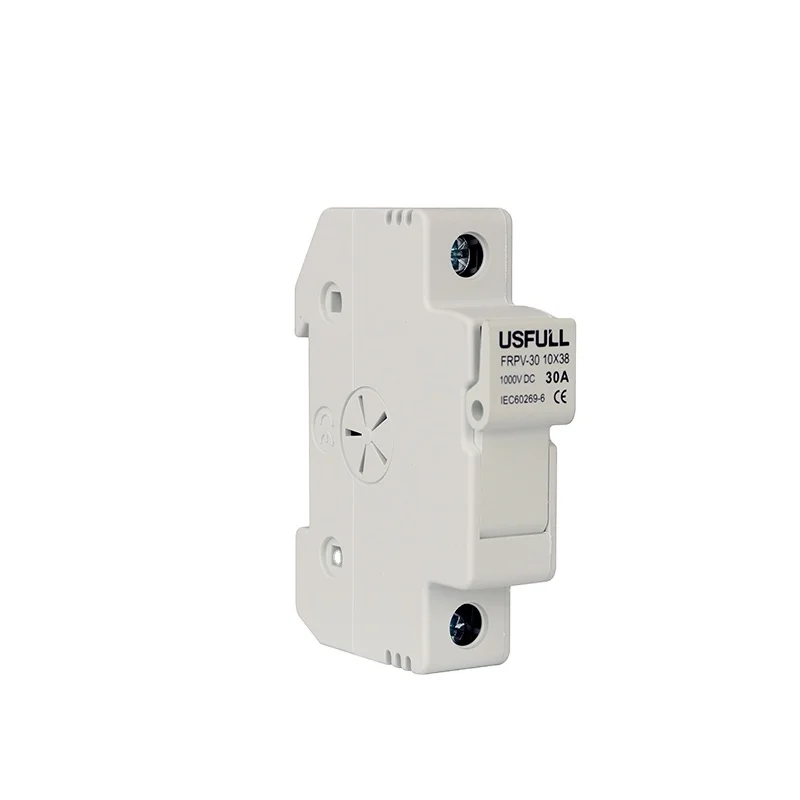

| Type | FRPV-30 | ||
| Fuse size1 | 10x38 | ||
| Poles | 1P | ||
| Rated voltage | DC 1000V | ||
| Rated current | 1,2,3,4,5,6,8,10,12,15,20,25,32 | ||
| Short-circuit breaking capacity | 33KA | ||
| Max power attenuation | 3.5W | ||
| Protection grade | IP20 | ||
| Connection | 2.5-10mm² | ||
| Operation ambient temperature | ’-30~+70°C‘ | ||
| Resistance and damp hot | Class2 | ||
| Elevation | ≤2000 | ||
| Installation way | TH35-7.5/DIN35 Rail installation | ||
| RH(relative air humidity) | when +20 °C,not exceed 95%;when +40 °C,not exceed 50% | ||
| Pollution class | 3 | ||
| Installation environment | the place of no abvious vibrate & impact | ||
| Installation class | III | ||
| Size | W18 x H89 x L90mm | ||
| Weight (kg) | 0.07 | ||
