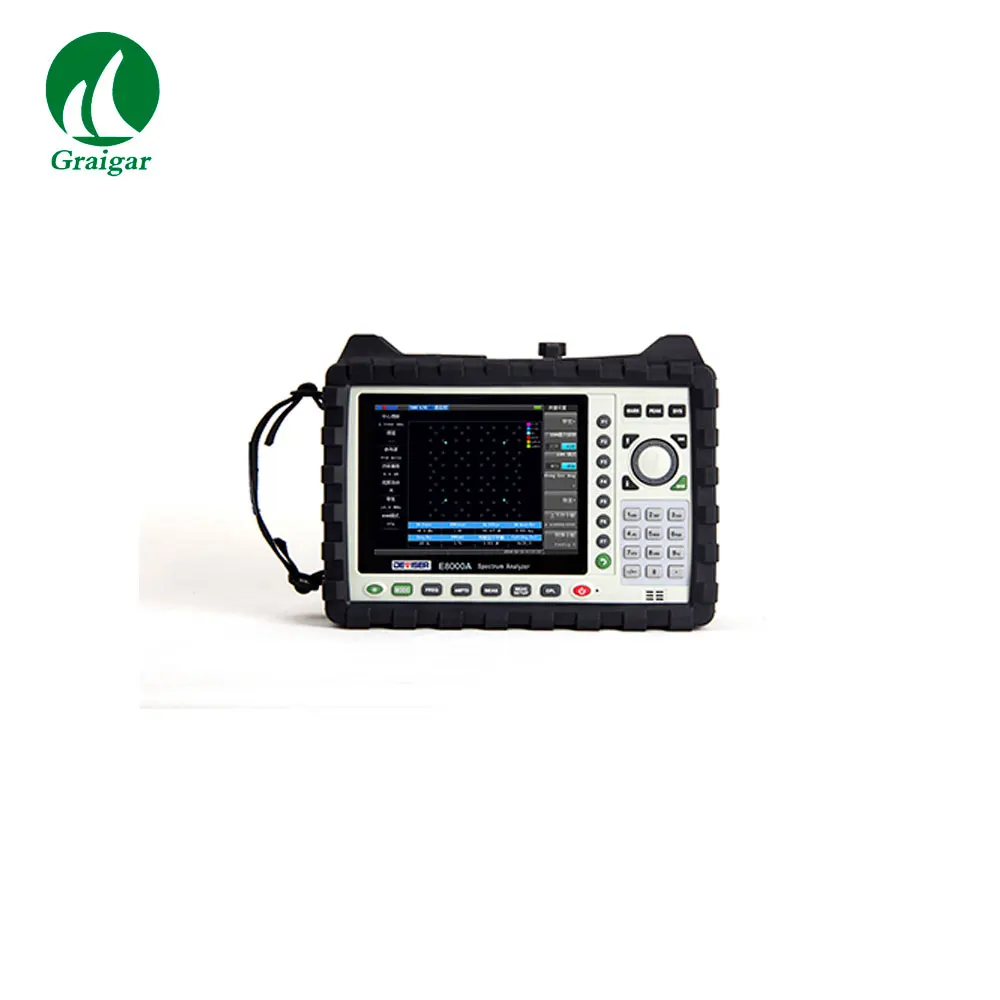

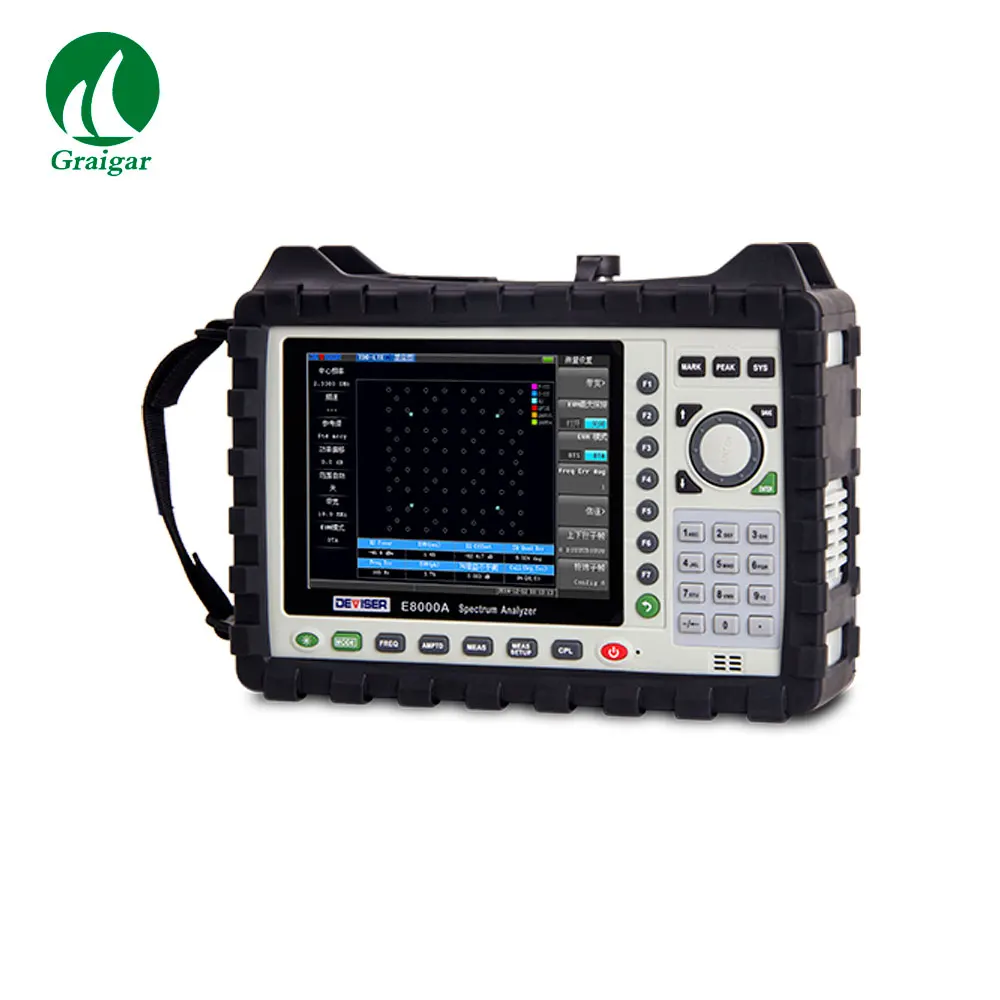

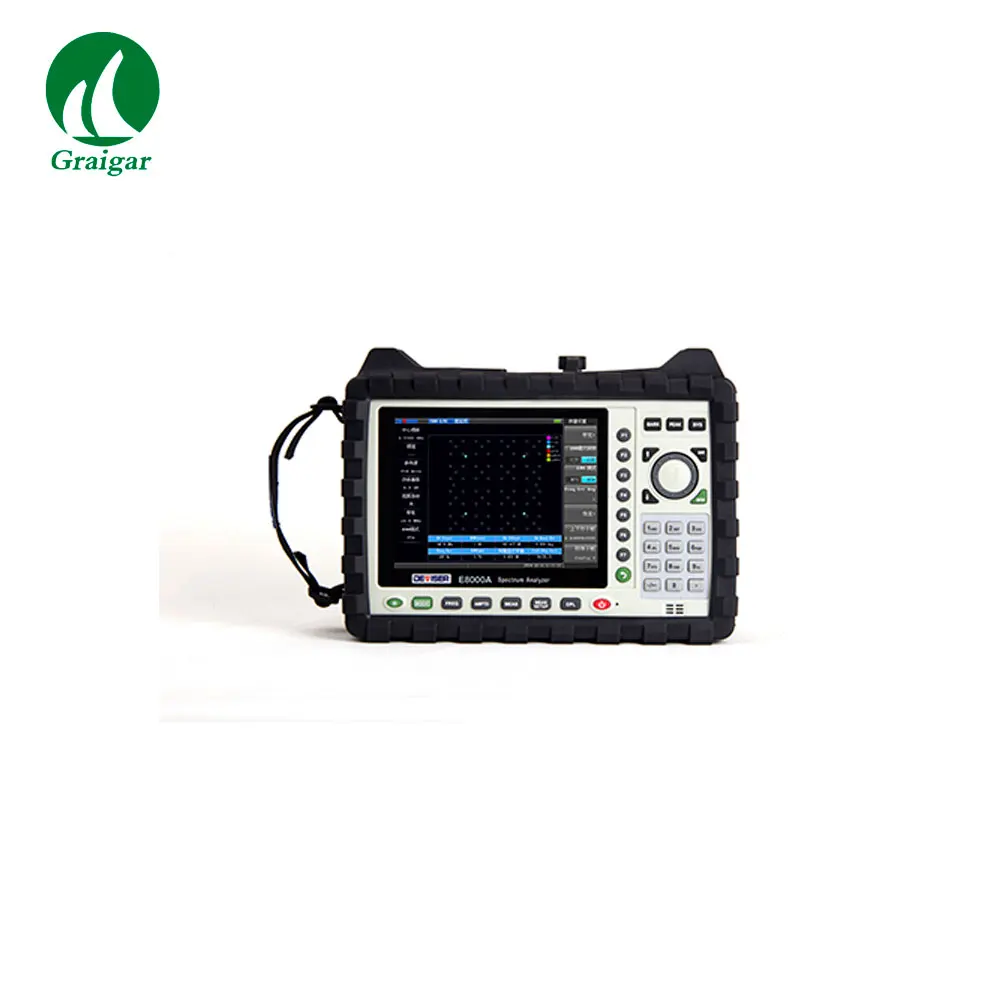

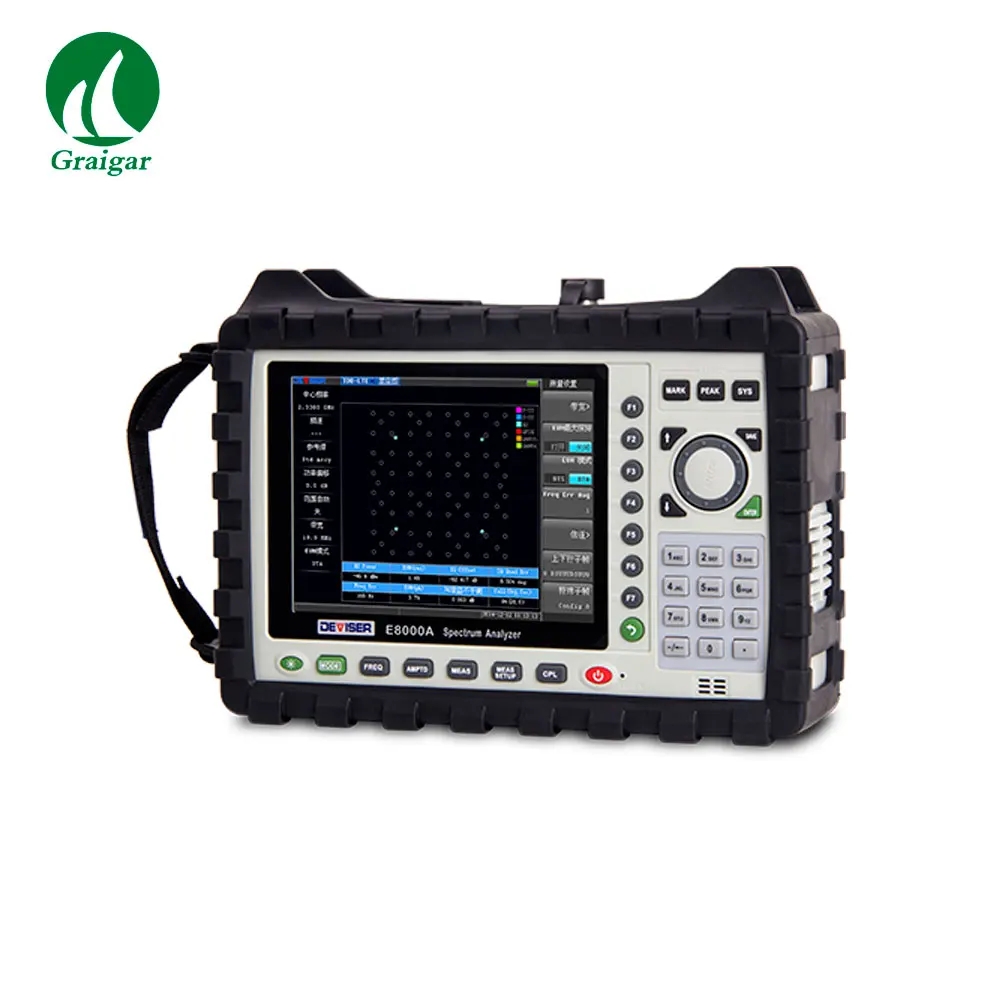

Анализатор спектра Deviser E8000A, диапазон частот 9 кГц 3,0 ГГц

Frequency

Frequency Range

9 kHz – 3.0 GHz

Tuning Resolution

1 Hz

Aging

<± 1.0ppm/yr

Frequency Span

1 kHz to 3GHz in 1-2-5 sequence (automode), and 0 Hz (zero span)

Bandwidth

Resolution Bandwidth (RBW)

10Hz to 3MHz in 1-3 sequence (auto or manually selectable)

Video Bandwidth (VBW)

10Hz to 1MHz in 1-3 sequence (auto or manually selectable)

Spectral Purity (Phase Noise)

@ 1 kHz Offset from carrier

-85 dBc/Hz

@ 10 kHz Offset from carrier

-95 dBc/Hz

@ 100 kHz Offset from carrier

-100 dBc/Hz

Amplitude

Dynamic Range

> 85 dB

Measurement Range

DANL to maximum safe input level

Maximum Safe Input

+30dBm (peak power, input attenuation > 15dB), 50VDC

Amplitude Accuracy

≤ ± 1.0 dB

Attenuator Range

0 dB to 55 dB in 5 dB steps

Displayed Average Noise Level (DANL)

(Input terminated, RBW = 10 kHz, Attn = 0 dBm, Sample Detector)

Preamp Off

≤ -142 dBm, typical (1MHz – 1GHz)

≤ -138 dBm, typical (1GHz – 3GHz)

Preamp On

≤ -155 dBm, typical (1MHz – 1GHz)

≤ -151 dBm, typical (1GHz – 3GHz)

Connectors

RF In

Type N, female, 50Ω

Connectivity

USB host

Type A, 1-Port (connect flash drive for data transfer)

USB client

5-pin mini-B (connect to PC for data transfer)

LAN

10M/100M LAN Port

Display

Type / Size

TFT LCD / 6.5” (640 x 480)

Data Storage

Internal

1 GB, > 2000 saved measurement files

External

Limited by size of USB flash drive

Battery

Type

Li-Ion, 11.1V, 5.2AH

Operation

> 4.5 hours, continuous; 8.0 hrs, idle

Environmental

Operating Temperature

-10°C to + 55 °C

Storage Temperature

-20 °C to + 75 °C

Shock

Mil-PRF-28800F Class 2

EMC

European EMC

IEC/EN 61326-1:2006

AC Power

AC Adapter Output

15-19 VDC

AC Adapter Input

100 – 240 VAC, 50-60 Hz

Size & Weight

Size

258 mm x 173 mm x 74 mm (10.2 in x 6.8 in x 2.9 in)
