Product Overview

Description

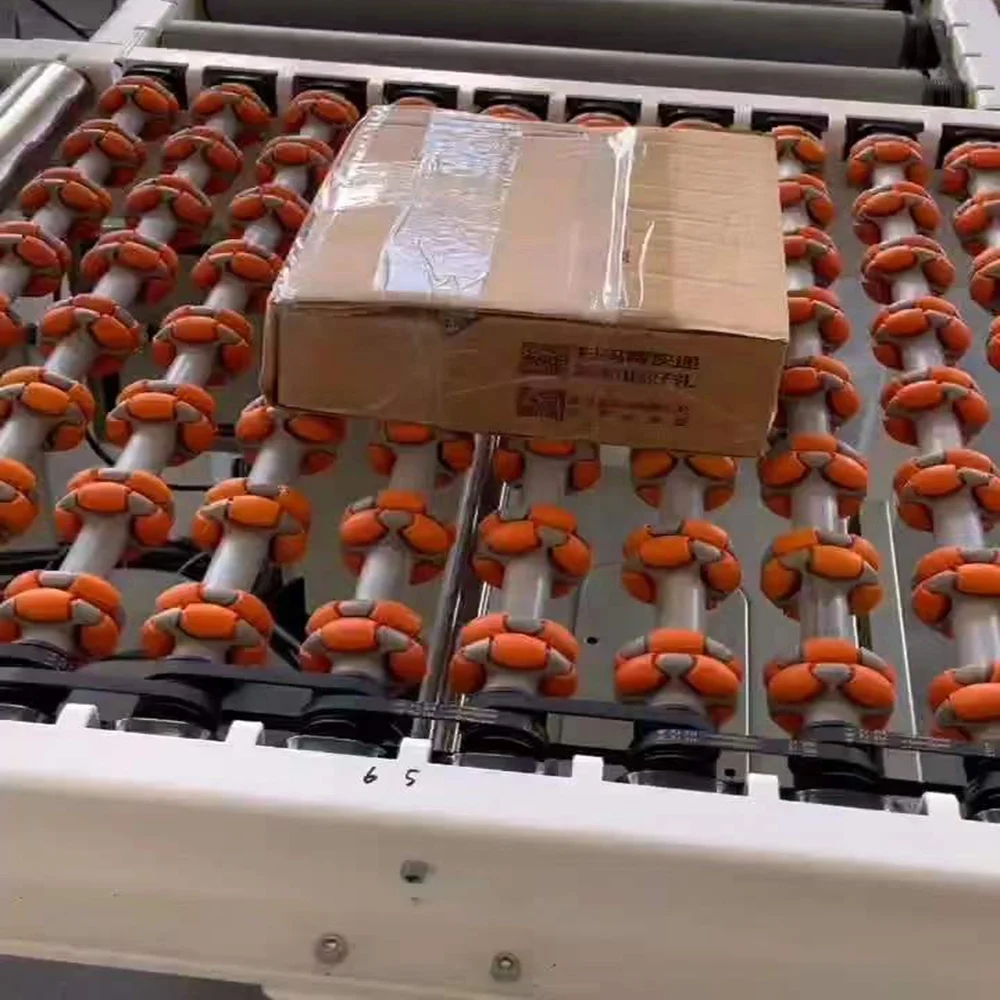

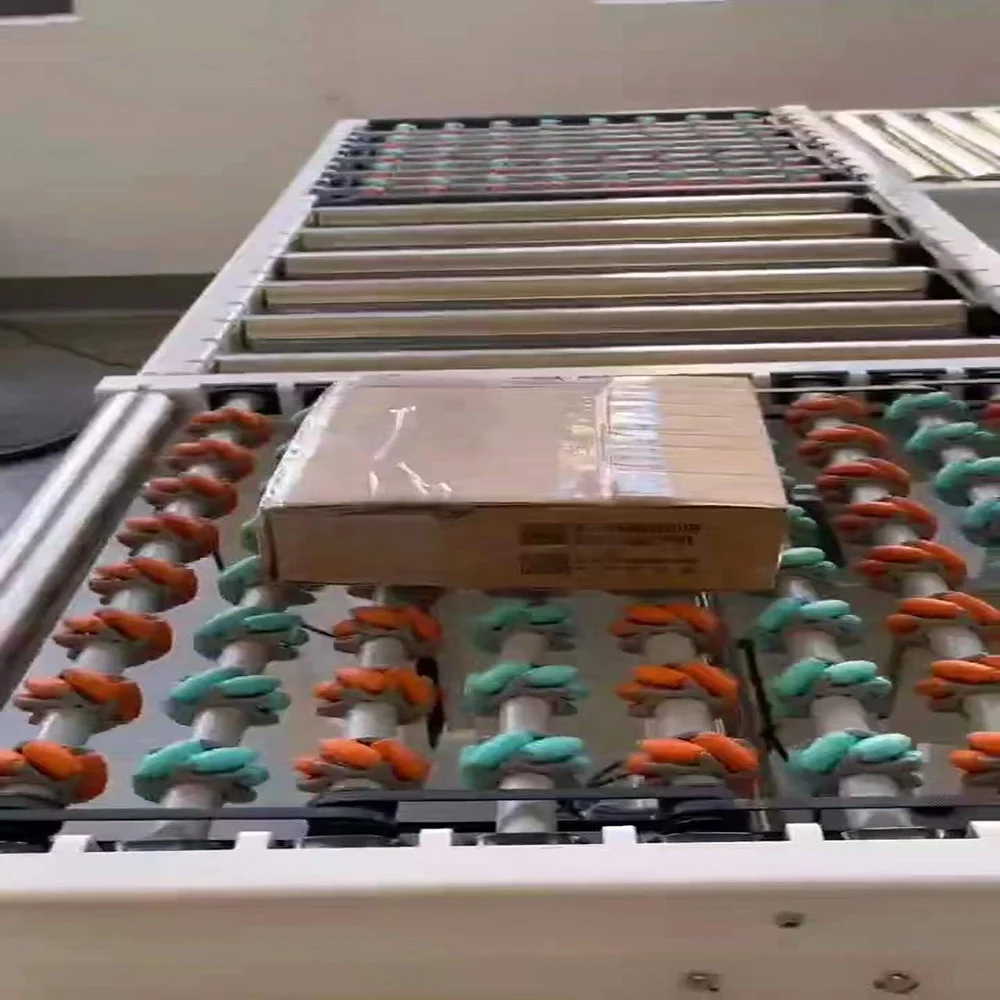

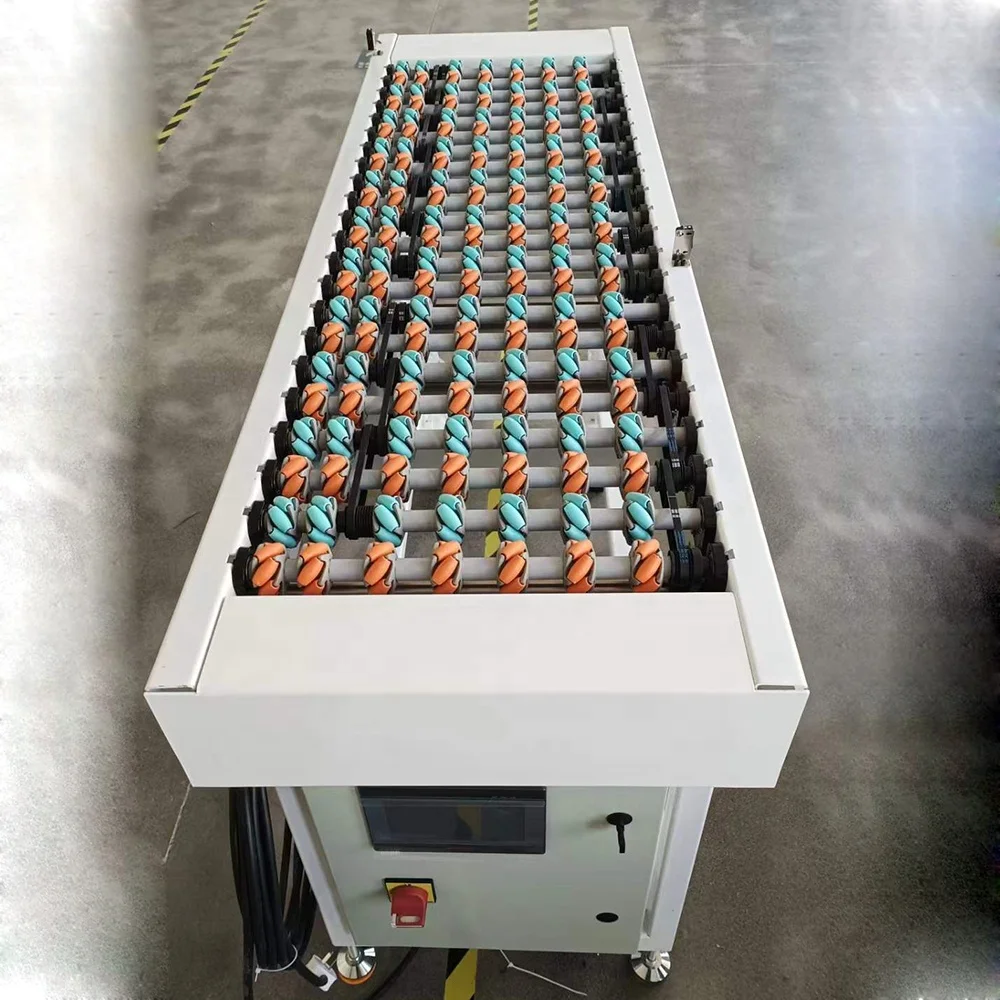

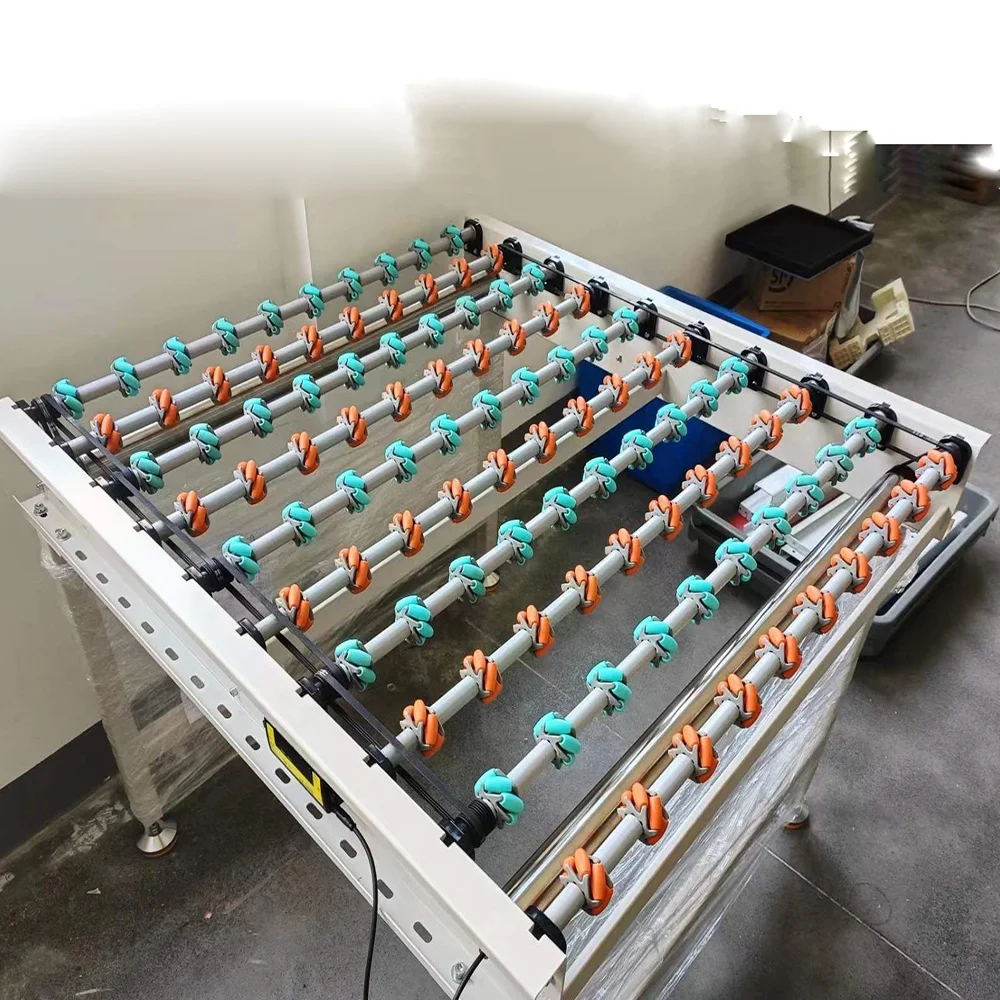

 Mecanum wheel conveyor  Mecanum wheel transfer conveyor

   Compared with the traditional transfer machine, Mecanum wheel transfer machine has the advantages of convenient installation and maintenance, simple structure, high efficiency and low cost. It is mainly suitable for carton packaging. Mecanum wheel, the frame is made of high-performance nylon, and the six small wheels are characterized by high friction coefficient and low noise. Due to the structure of Mecanum wheel, it is required to use left and right symmetrical pairs when transferring the load. Please pay attention to the left and right symmetrical pairs during use. The transfer machine uses two motors as the driving source, and operates in the same direction during normal transportation; When the load transfer is used, the left and right symmetrical wheel sets operate in forward and reverse directions. POM with high lubricating performance is covered with TPU rubber sleeve, which has long service life.



>>Technical data:



wheel diameter: 50;

Maximum shaft length: 1000;

Maximum load of wheel: 5kg;

Standard shaft length: 420520620720820

Maximum speed: 50m/min;

Voltage: AC220V;

Power: 40 60 90120w;

Driving mode: Poly-vee

PMaximum load: 50kg

>>Picture:

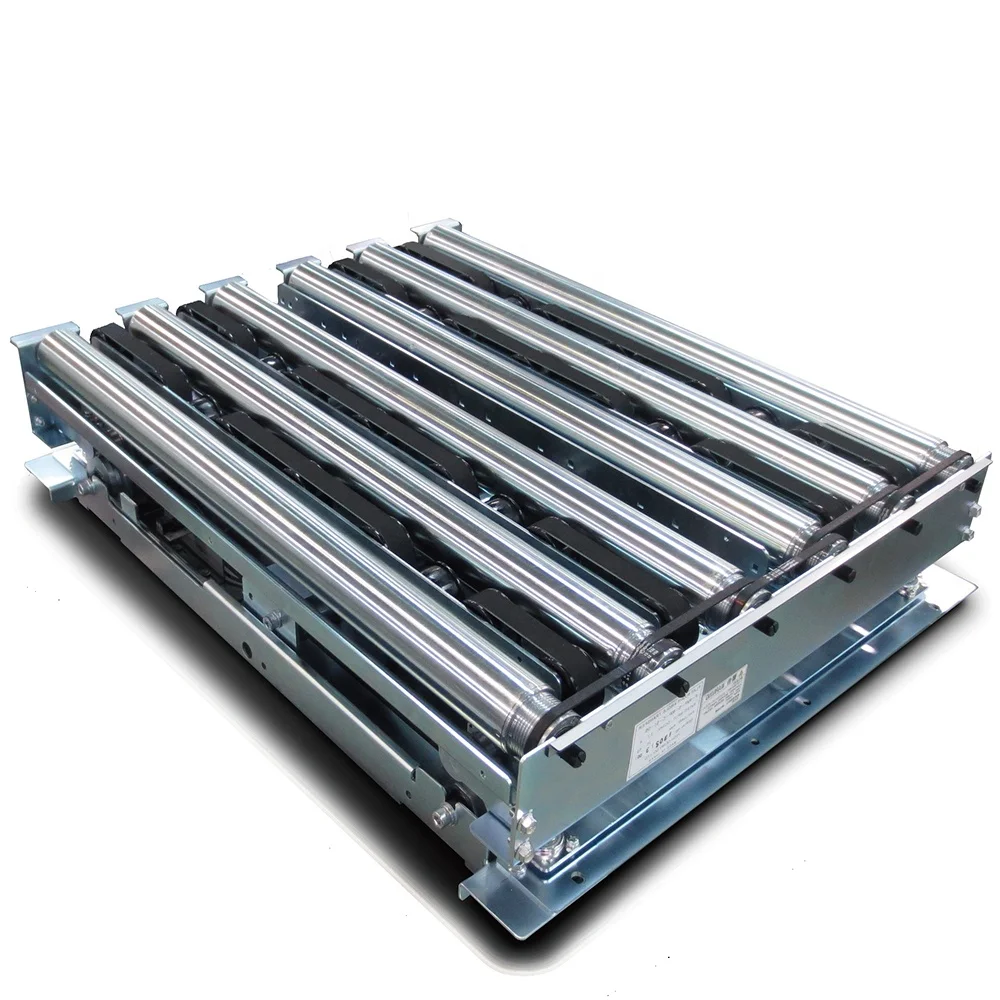

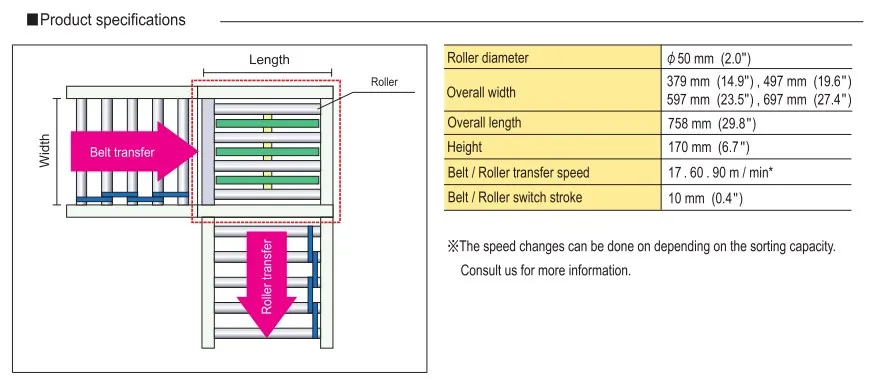

>>Technical parameter



Belt / Roller transfer speed:17.60.90M/MIN

Roller Diameter: Ø50

Belt / Roller switch stroke:10MM

Overal Width:379 497 597 697

Overal Length:758

Transfer rate:  2000 product/hour

Capability: Max50KG/P



>> Advantages:

1.      energy saving

 “Run-on-Demand”operation  of F-RAT and its unique using no pneumatic saves energy.

2.Creating Comfortable Environment

24V DC operation with no pneumatic creates comfortable environment.(Silent and less vibration)

 3.Space Saving

Low profile(170mm from the bottom to the con-veyor surface) design allows various applications, such as low floor line, the multi-layer line, and convevance of stacked products, etc.

 4.Simple Structure

Simple structure using only three MDRs. (Motor-Driven Roller)

5.Easy Installation / Wiring

Eliminates the need of the level adjustment with the adjacent conveyors, thanks to unique design transferring products without changing the con[1]veying level. Plug & play simplified wiring

 6. Expandable

Easy to expand the line because one module performs both straight forwarding and

diverting.

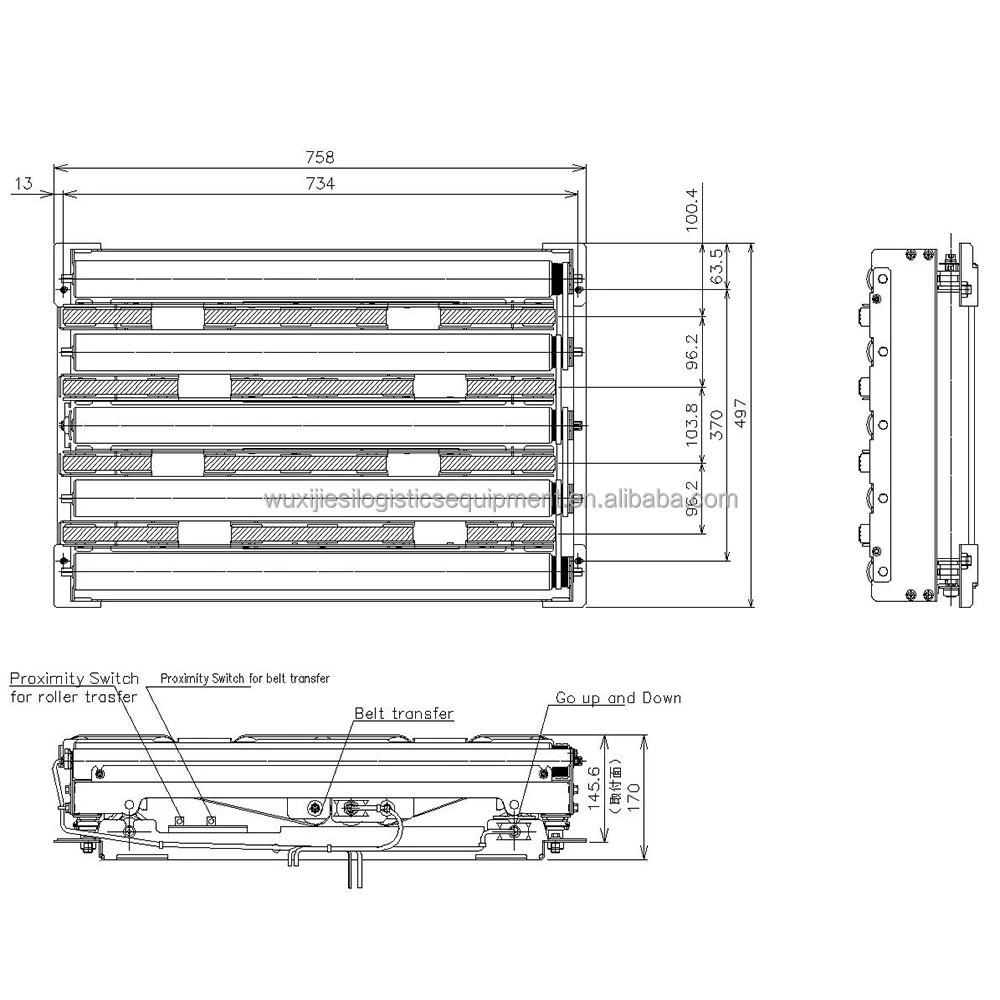

>>DWG:

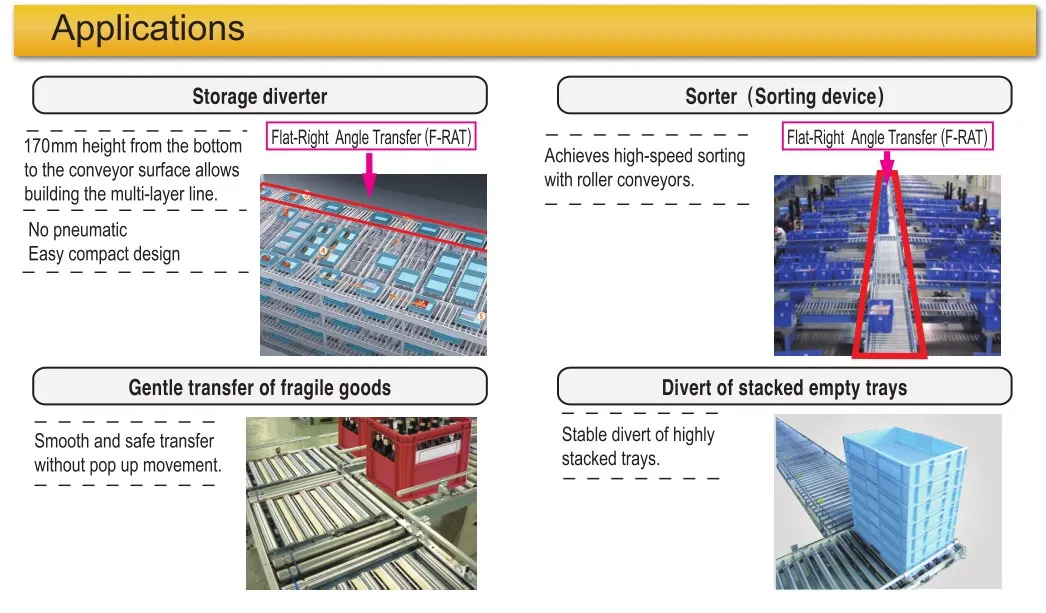

 >>Applicatins:
