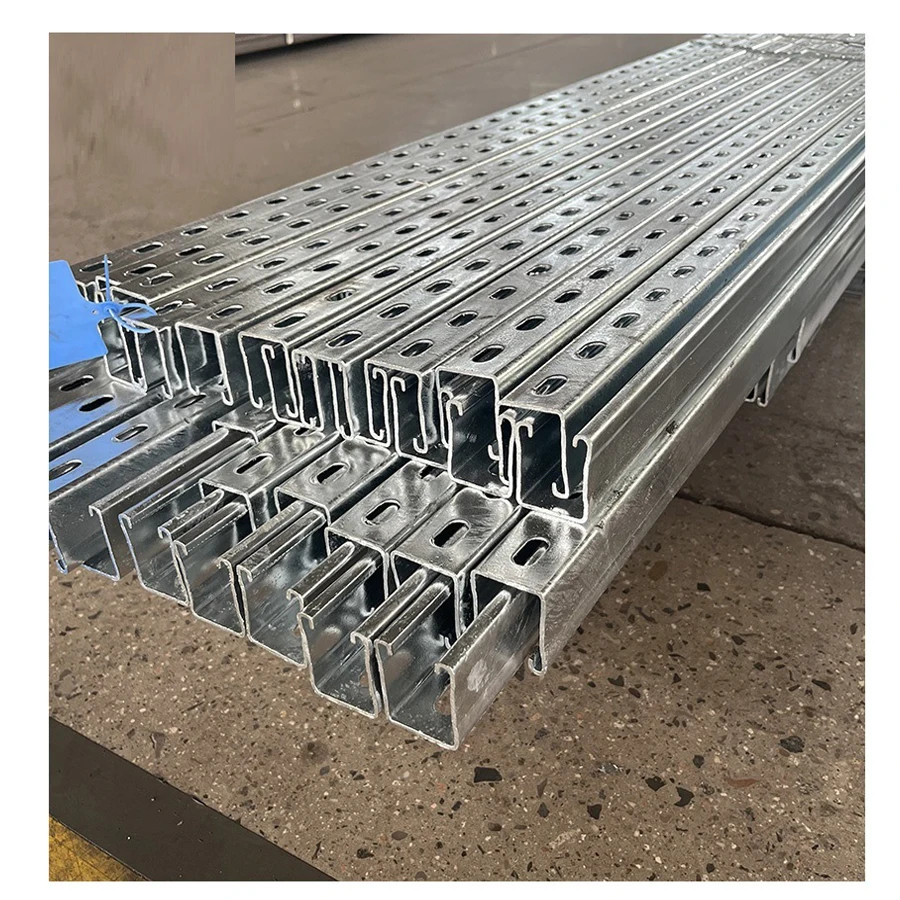

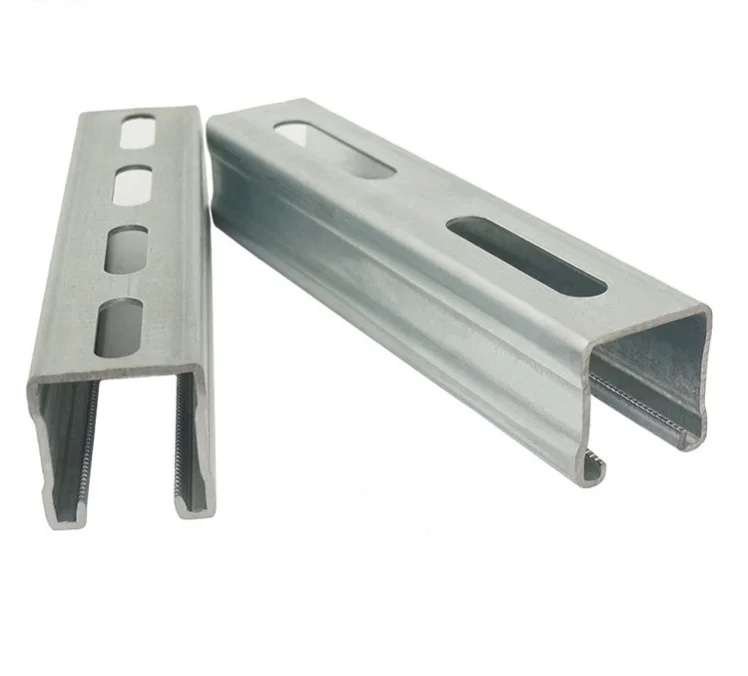

41x41 мм оцинкованная стойка C канал GI канал из нержавеющей стали для солнечных проектов
- Category: Steel Channels >>>
- Supplier: Tangshan,Runying,International,Trade,Co.,Ltd.
Share on:
Product Overview
Description

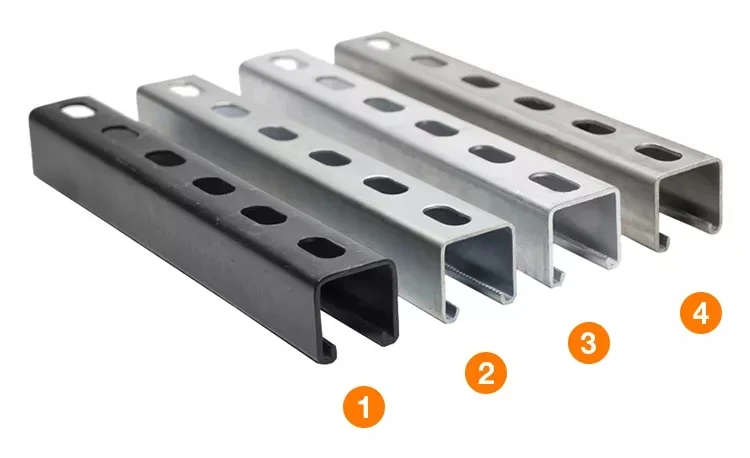

DIFFERENT KINDS OF STRUT CHANNEL SUPPORT SYSTEM
PLS CHOOSE ANYONE YOU NEED!
NO. | 1 | 2 | 3 | 4 |
Material | Carbon steel | Carbon steel | Carbon steel | Zinc aluminum magnesium |
Surface Treatment | Powder coating | Electrical galvanised | hot dip galvanized | bright |
ITEM | VALUE |
Brand Name | RunYing |

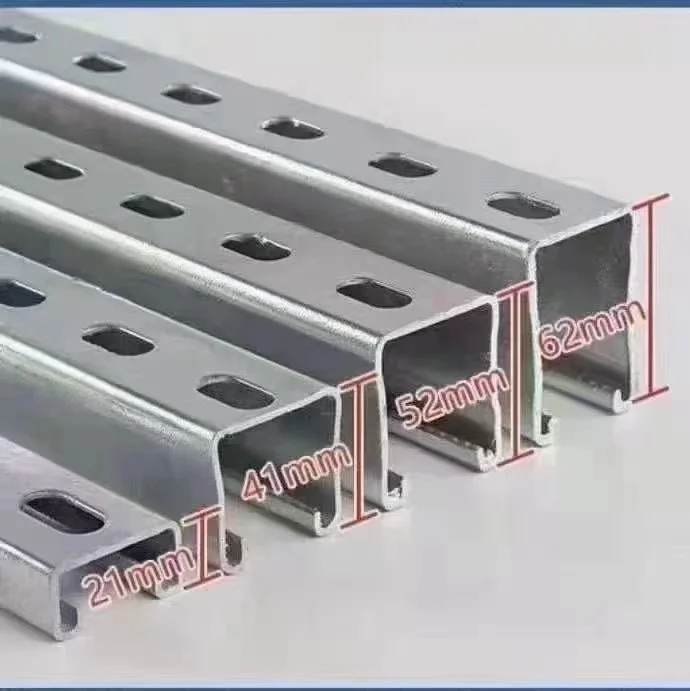

Product Name | 41 Series C channel |

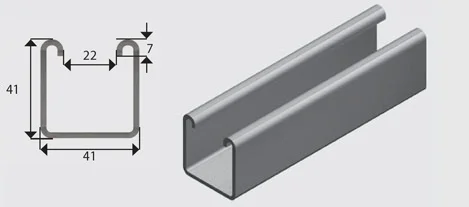

Specification | 41mmx21mm |
41mmx35mm | |

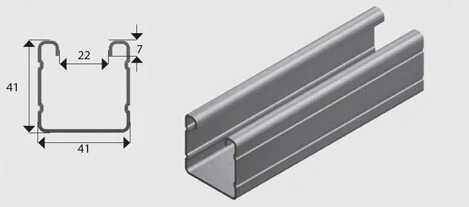

41mmx41mm | |
41mmx52mm | |
41mmx62mm | |
41mmx72mm | |
41mmx82mm | |
Thickness | 0.8mm to 3mm as customized |
Length | 1m to 12m as customized |

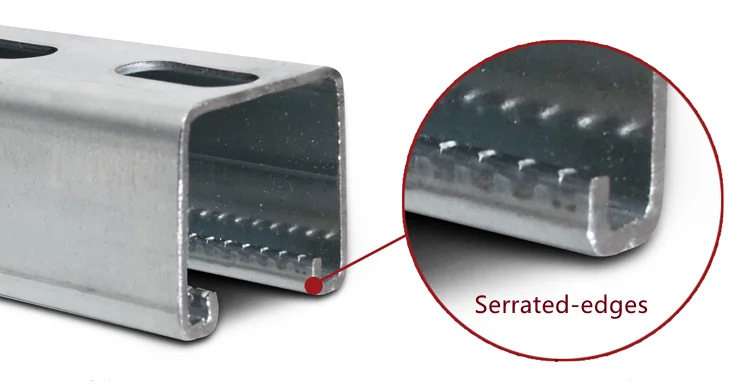

Edge | Serrated or smooth |
Hole size | Our standard size is 15mmx25mm, 50mm length between center of two neighbouring holes. Those size also can be customized. |

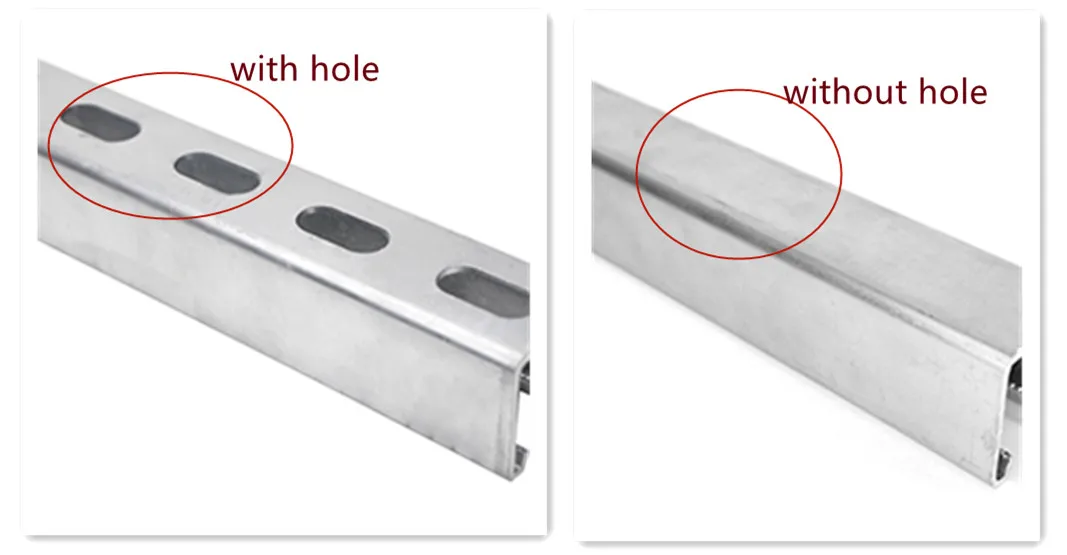

With hole / Plain | Either is OK |
Origin | Tangshan, Hebei, China |
Anti-Seismic or not | Either is OK |
Charge Mode | By Piece/By weight as your choice |
Surface Treatment | Black |
HD Galvanized / Electrogalvanizing/ Glavalume | |
Carbon Powder Coating | |
Material | Galvanized Plate (Zinc Coated) |
Cold Rolled Carbon Steel Q235, Q355, S235JR, A36, SS400, ect | |
Zinc Aluminum Magnesium |
THEORETICAL WEIGHT TABLE | ||||||||
No | Specification | Section area(cm2) | Theoretical weight(kg/m) | |||||
Size(mm) | Thickness( mm) | |||||||
1 | 41*21 | 0.8 | 0.89 | 0.65 | ||||
1 | 1.1 | 0.8 | ||||||
1.2 | 1.3 | 0.94 | ||||||
1.5 | 1.59 | 1.15 | ||||||
1.8 | 1.86 | 1.35 | ||||||
2 | 2.04 | 1.48 | ||||||
2 | 41*35 | 1.2 | 1.64 | 1.21 | ||||
1.5 | 2.02 | 1.49 | ||||||
1.8 | 2.38 | 1.76 | ||||||
2 | 2.62 | 1.93 | ||||||
2.5 | 3.18 | 2.34 | ||||||
2.75 | 3.44 | 2.54 | ||||||
3 | 3.7 | 2.72 | ||||||
3 | 41*41 | 1.2 | 1.79 | 1.33 | ||||
1.5 | 2.21 | 1.64 | ||||||
1.8 | 2.61 | 1.94 | ||||||
2 | 2.87 | 2.13 | ||||||
2.5 | 3.49 | 2.59 | ||||||
2.75 | 3.79 | 2.81 | ||||||
3 | 4.08 | 3.02 | ||||||
4 | 41*52 | 1.2 | 2.05 | 1.53 | ||||
1.5 | 2.53 | 1.89 | ||||||
1.8 | 2.99 | 2.24 | ||||||
2 | 3.3 | 2.46 | ||||||
2.5 | 4.03 | 3 | ||||||
2.75 | 4.38 | 3.26 | ||||||
3 | 4.72 | 3.52 | ||||||
5 | 41*62 | 1.2 | 2.29 | 1.72 | ||||
1.5 | 2.83 | 2.12 | ||||||
1.8 | 3.35 | 2.52 | ||||||
2 | 3.7 | 2.77 | ||||||
2.5 | 4.53 | 3.4 | ||||||
2.75 | 4.93 | 3.7 | ||||||
3 | 5.32 | 4 | ||||||
6 | 41*72 | 1.2 | 2.53 | 1.91 | ||||
1.5 | 3.13 | 2.36 | ||||||
1.8 | 3.71 | 2.8 | ||||||
2 | 4.1 | 3.09 | ||||||
2.5 | 5.03 | 3.78 | ||||||
2.75 | 5.48 | 4.12 | ||||||
3 | 5.92 | 4.45 | ||||||
7 | 41*82 | 1.2 | 2.77 | 2.09 | ||||
1.5 | 3.43 | 2.59 | ||||||
1.8 | 4.07 | 3.08 | ||||||
2 | 4.5 | 3.4 | ||||||
2.5 | 5.53 | 4.17 | ||||||
2.75 | 6.03 | 4.55 | ||||||
3 | 6.52 | 4.92 | ||||||

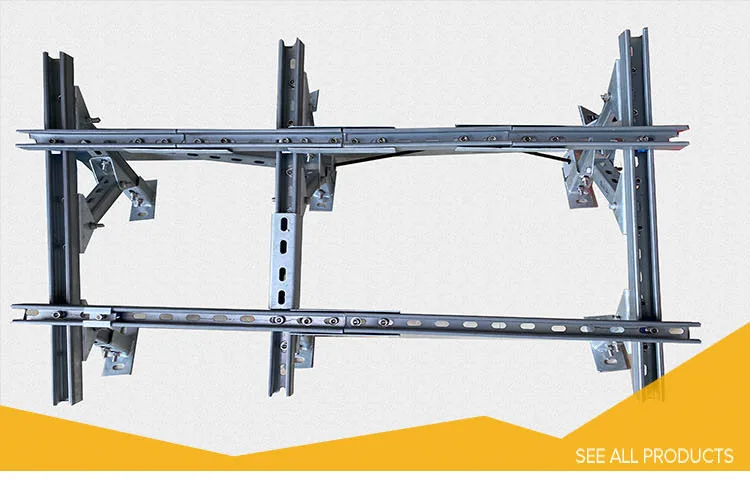

C Channels are mainly used to mount, brace, support and connect lightweight structural loads in structures. These include pipes, electrical and data wires, mechanical systems such as ventilation and air conditioning, solar panel mounting system.
It is also used for other applications that require a strong framework, such as equipment racks, workbenches, shelving systems etc.
Production Process and Supply Chain
1. Raw Material Steel Coil
2. Plate/Coil to be cold rolled by machine
3. Slotting and Cutting
4. Producing OK into piece
5. Mass Cargo in stock
6. Inspect size before shipment
7 Inspect Zinc coated before shipment
8. Packing into Wooden Box
9. Loading into container
PACKING
1. Packing in bundle
Packed by steel strips (with lifting belts for each bundle)
2. Packing in bundles
By steel strips, and then wrap in waterproof material each bundle

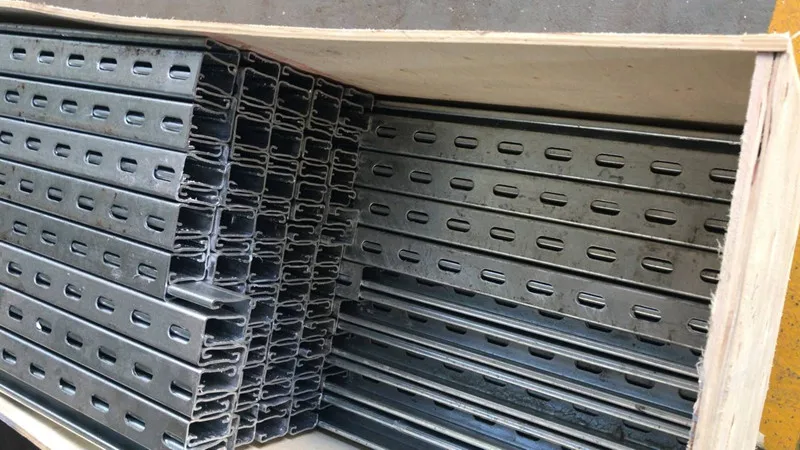

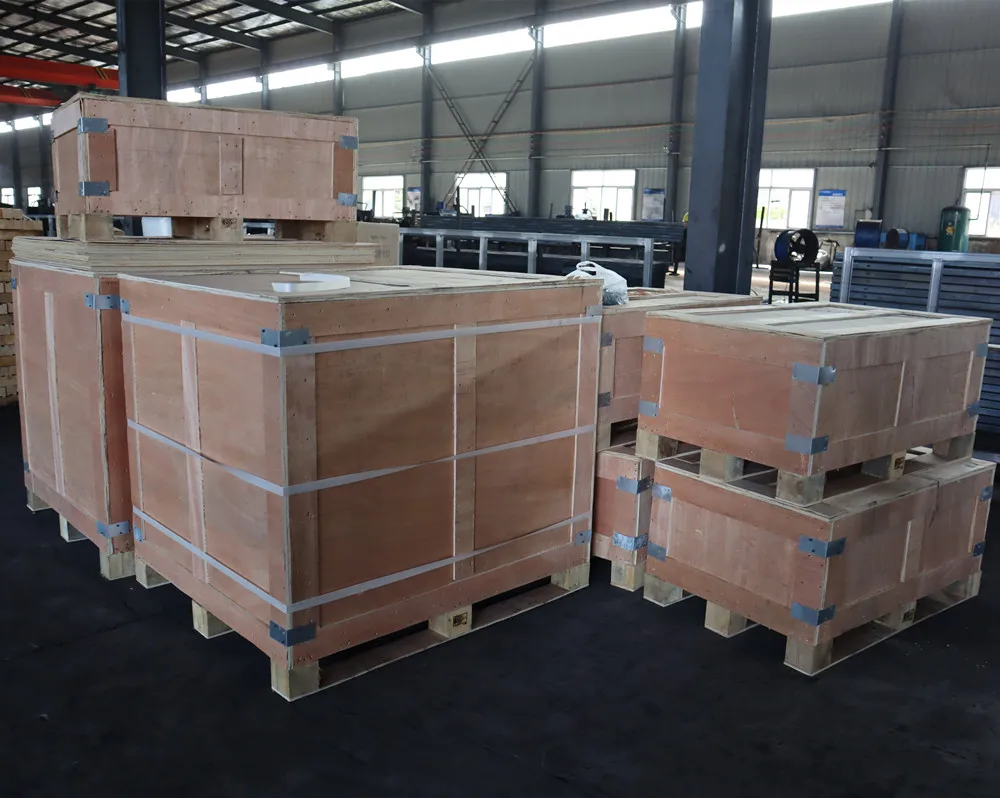

3. Packing in wooden box as photo shown
4. Package also can be customized as your requirement.
DELIVERY
Shipment by container vessel
Shipment by bulk vessel
Spark team is made up of different character person!
Customers visit our company
Discussing with customers
CUSTOMERS' FEEDBACK
