GC112A Gas Chromatography machine price with FID TCD Detector
- Category: >>>
- Supplier: Hangzhou Onilab Laboratory Instrument Co. Ltd.
Share on (1600545892364):
Product Overview
Description
Product Description

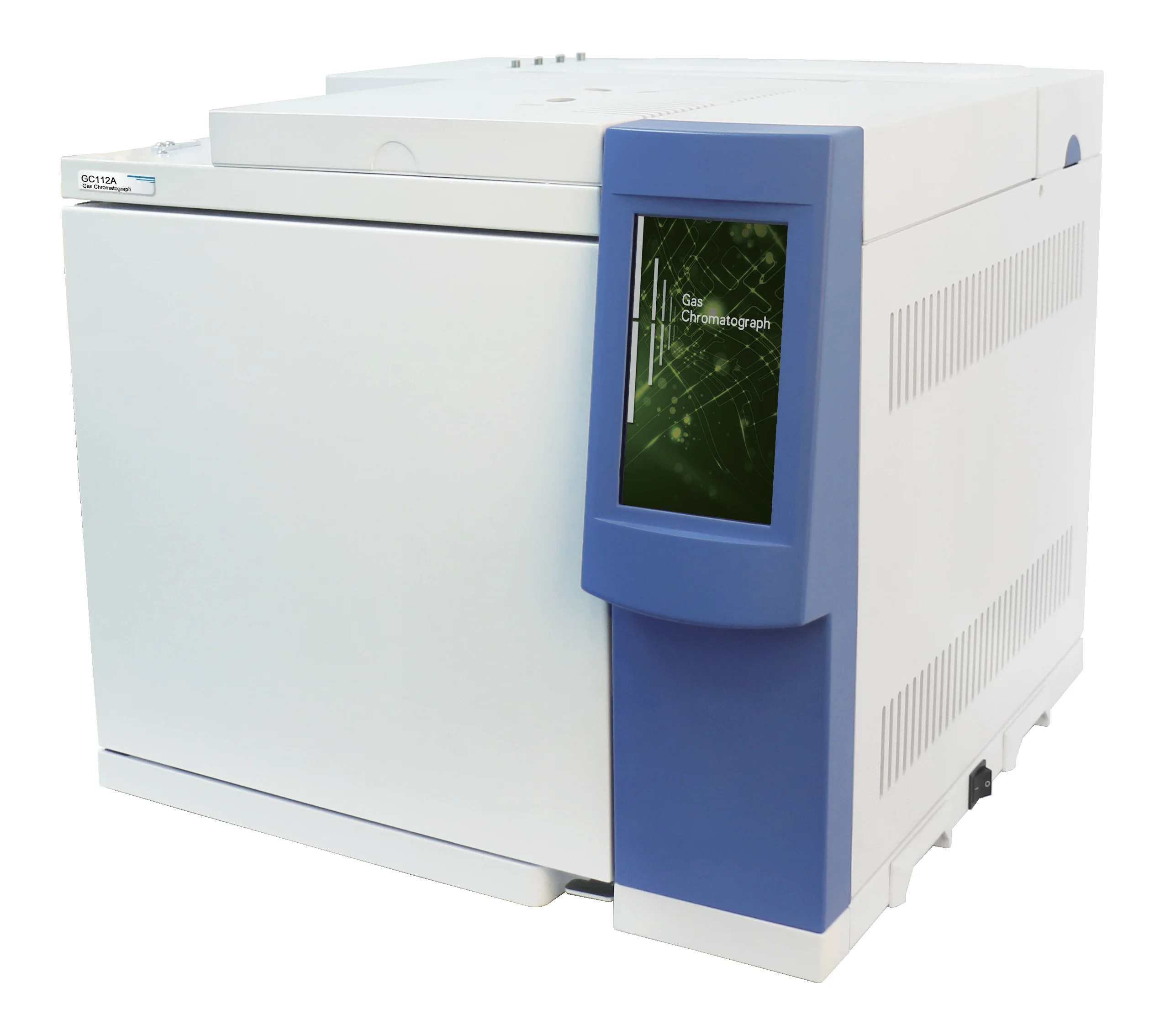

GC112A Gas Chromatography
Features:
* Synchronous bidirectional control with touch screen on the GC112A.
* The 7-inch color touch screen on the GC112A can display the flow rate and pressure value of the electronic gas path.
* The multi core, 32-bit embedded hardware system ensures the reliable operation of the instrument.
* One key start up function.
* The extendable synchronous external trigger function can initiate GC112A and workstation through external signals, such as automatic sampling device, thermal analyzer and so on.
* The instrument has sound system self-checking function and malfunction automatic identification function.
* The instrument has 8 external event interface with extendable functions, which can work with a variety of functional control valve, performing according to the set timing.
* The memory function can store 20-sample test modes.
* RS232 communication port and LAN port.
* N2000 chromatography workstation.
* The 7-inch color touch screen on the GC112A can display the flow rate and pressure value of the electronic gas path.
* The multi core, 32-bit embedded hardware system ensures the reliable operation of the instrument.
* One key start up function.
* The extendable synchronous external trigger function can initiate GC112A and workstation through external signals, such as automatic sampling device, thermal analyzer and so on.
* The instrument has sound system self-checking function and malfunction automatic identification function.
* The instrument has 8 external event interface with extendable functions, which can work with a variety of functional control valve, performing according to the set timing.
* The memory function can store 20-sample test modes.
* RS232 communication port and LAN port.
* N2000 chromatography workstation.
Specification
Oven: | ||
Inside capacity | 22L | |
Temperature range | room temperature up 5℃-400℃ | |
Temperature accuracy | ±0.1 ℃ | |
Temperature programming | 9 step | |
Program total time | 9999.9 min | |
Max heating rate | 0.1-60℃/min | |
Max cooling rate | ≦10mins(250℃-50℃) | |
Sample Injector | ||
Temperature range | room temperature up7℃~ 420 ℃ | |
Temp control type | independent | |
Carrier gas flow control type | constant pressure | |
Max quantity | 3Pcs | |
Type | Packed column or split | |
Split ratio | display | |
Pre column pressure range | 0-400kpa | |
Pre column pressure accuracy | 0.1kpa | |
Flow setting range | H2 0-200ml/min | |
N2 0-150ml/min | ||
Detector: | ||
Temperature Range | room temperature up 7℃~ 420 ℃ | |
Max installation Qty. | 2 | |
Ignition model | automatic | |
Hydrogen Flame lonization Detector (FID) | Logarithmic amplifier High Voltage Switch Control Baseline signal display Detection limit: ≦3x10 g/s( sample: n-hexadecane) Baseline noise: ≦5x10 A Baseline draft: ≦6x10 A Dynamic range: 10 RSD: ≦3% | |
Sencitivity:8000mV.ml/mg (sample: n-hexadecane) Baseline noise: ≦0.05mV Baseline draft: ≦0.15mV/ 30min Dynamic range: 10 ^5 | ||
Overall Dimension & Weight: | ||
Power | 220V±22V, 50Hz±0.5Hz, 3000W | |
Package size | 735mmx725mmx835mm | |
G.W. | 82kg | |
N.W. | 70kg | |
