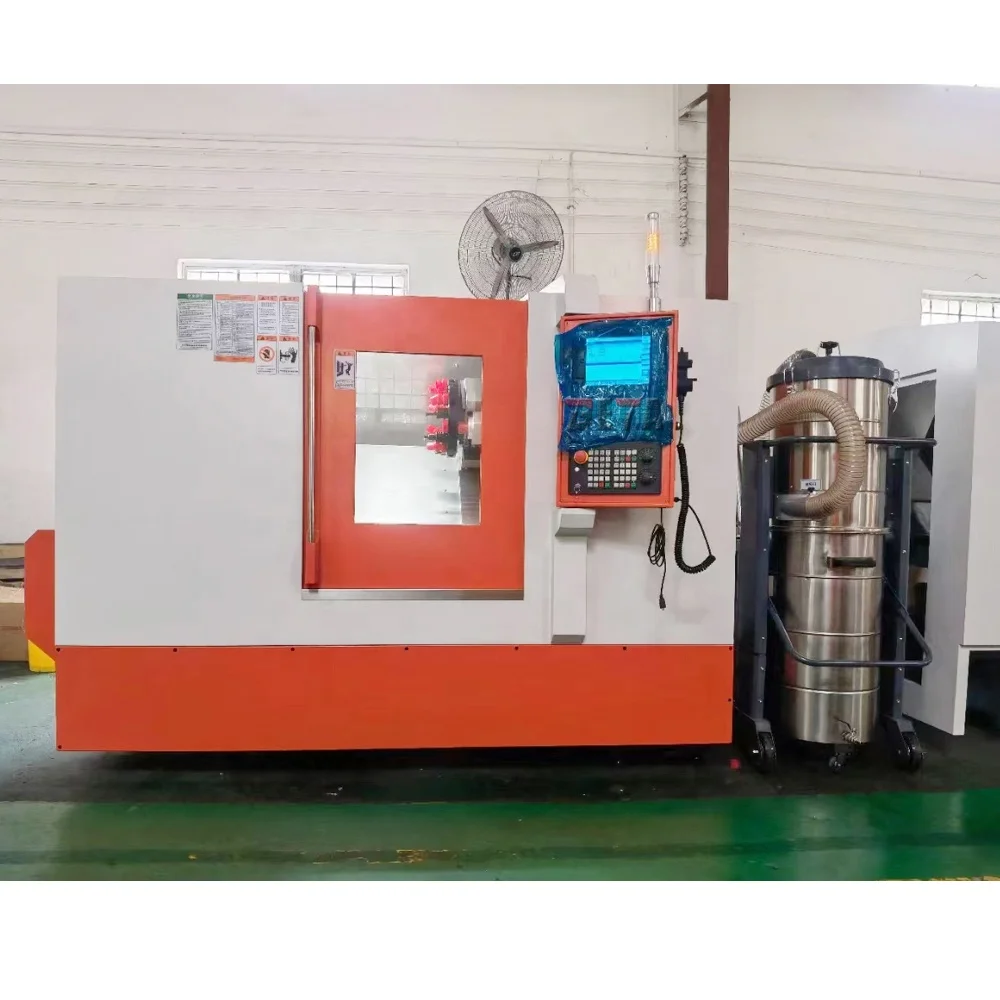

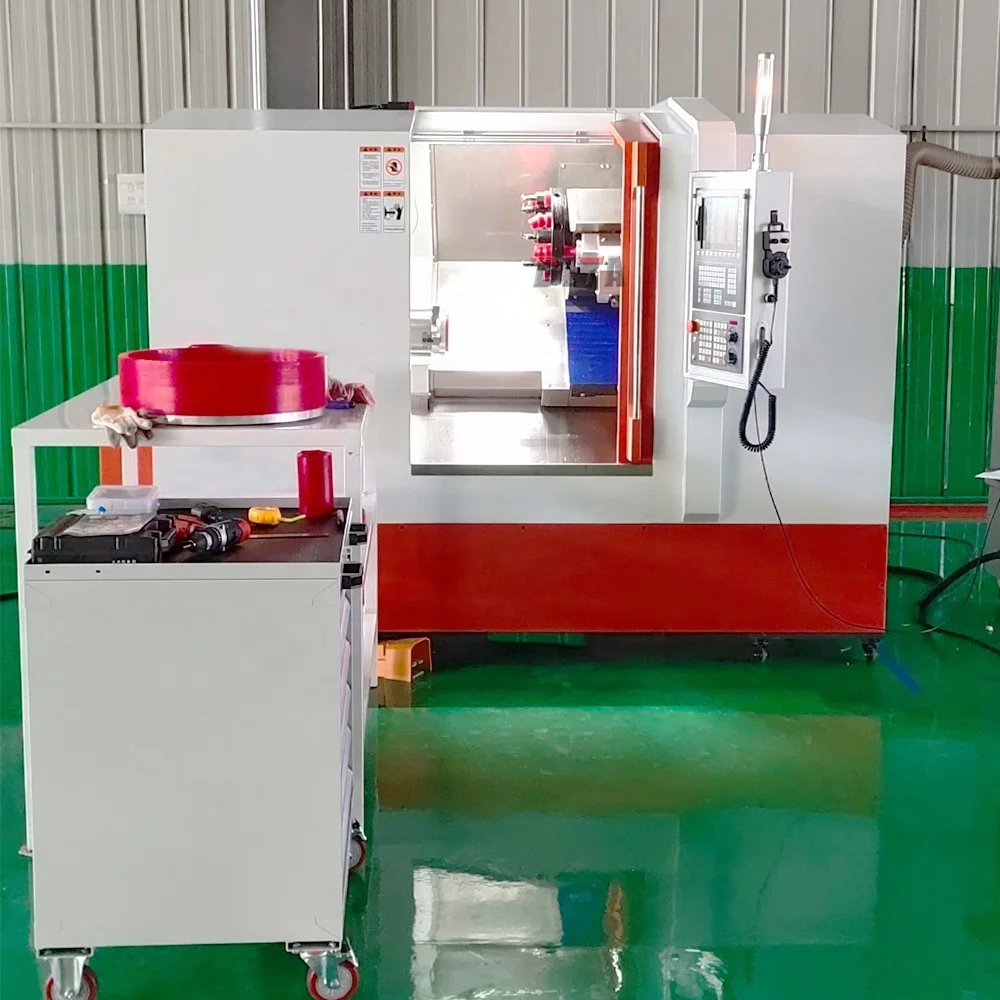

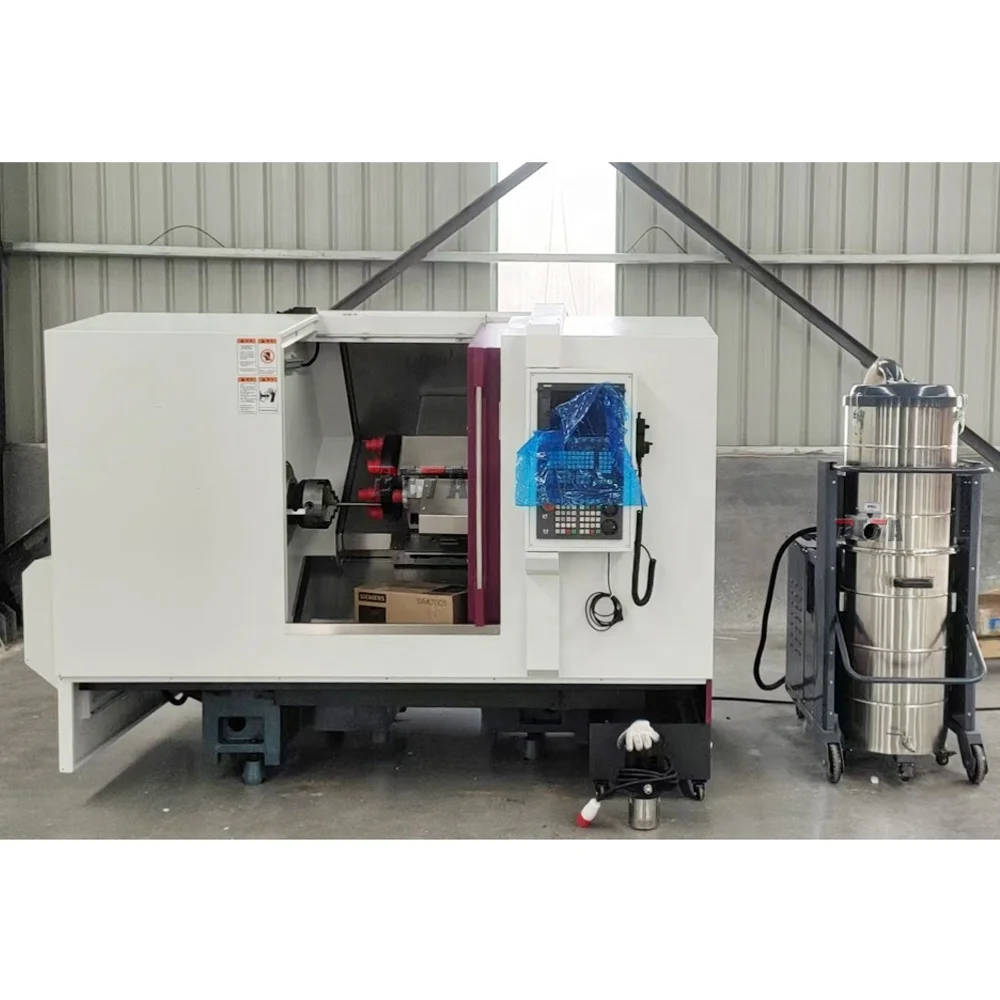

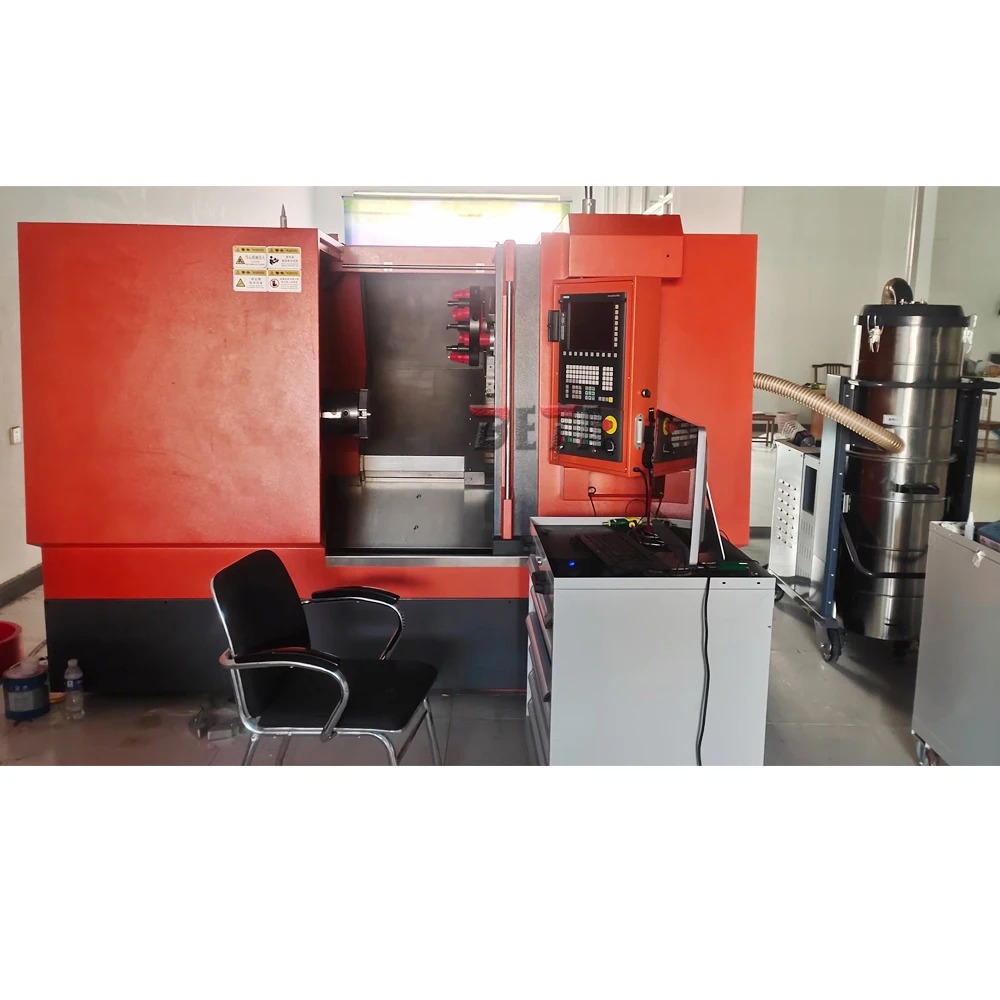

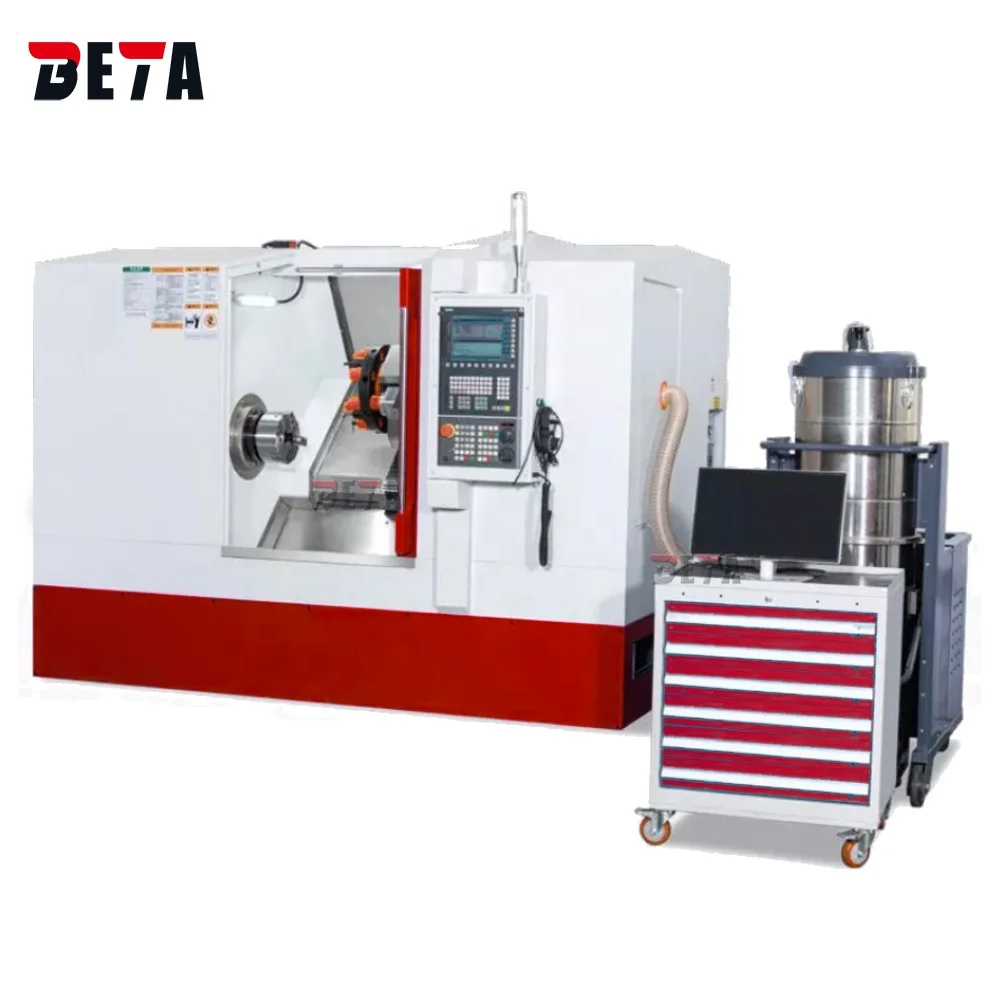

FANUC Siemens CNC Controller System 400mm Diameter PU O Ring CNC Seal Making Machine
Product Parameters
Specification | CS400 |
Max. Turning diameter over bed | 450 mm |
Max. Seal Turning diameter | 400 mm |
Spindle | A2-5 |
Spindle bore diameter | 56 mm |
Max. spindle speed | 5000 r/min |
Chuck size | Taiwan 6 inch hydraulic chuck |
X-axis rapid move speed | 24 m/min |
Z-axis rapid move speed | 24 m/min |
X-axis travel | 220 mm |
Z-axis travel | 450 mm |
X-axis motor (with brake) | Siemens 2.29 kw / 11Nm |
Z-axis motor | Siemens 2.29 kw / 11Nm |
X-axis guide | SKF 30 |
Z-axis guide | SKF 35 |

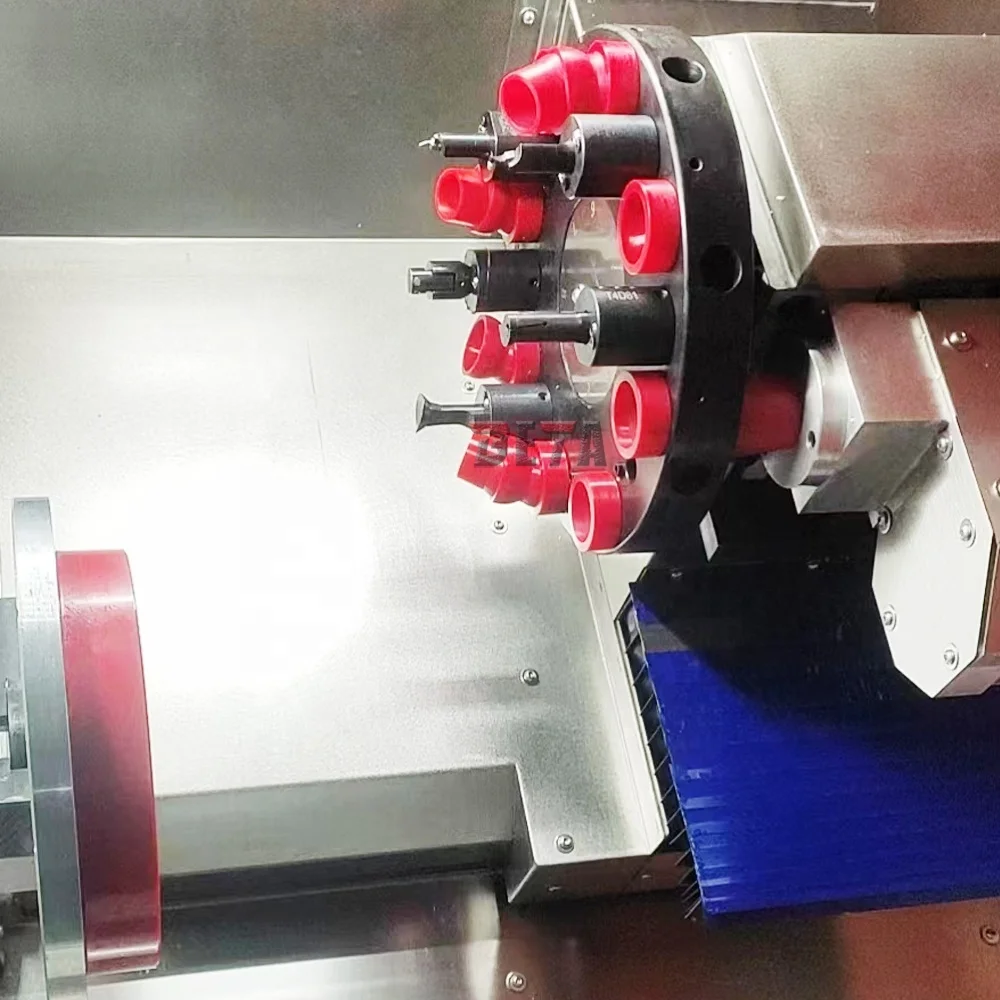

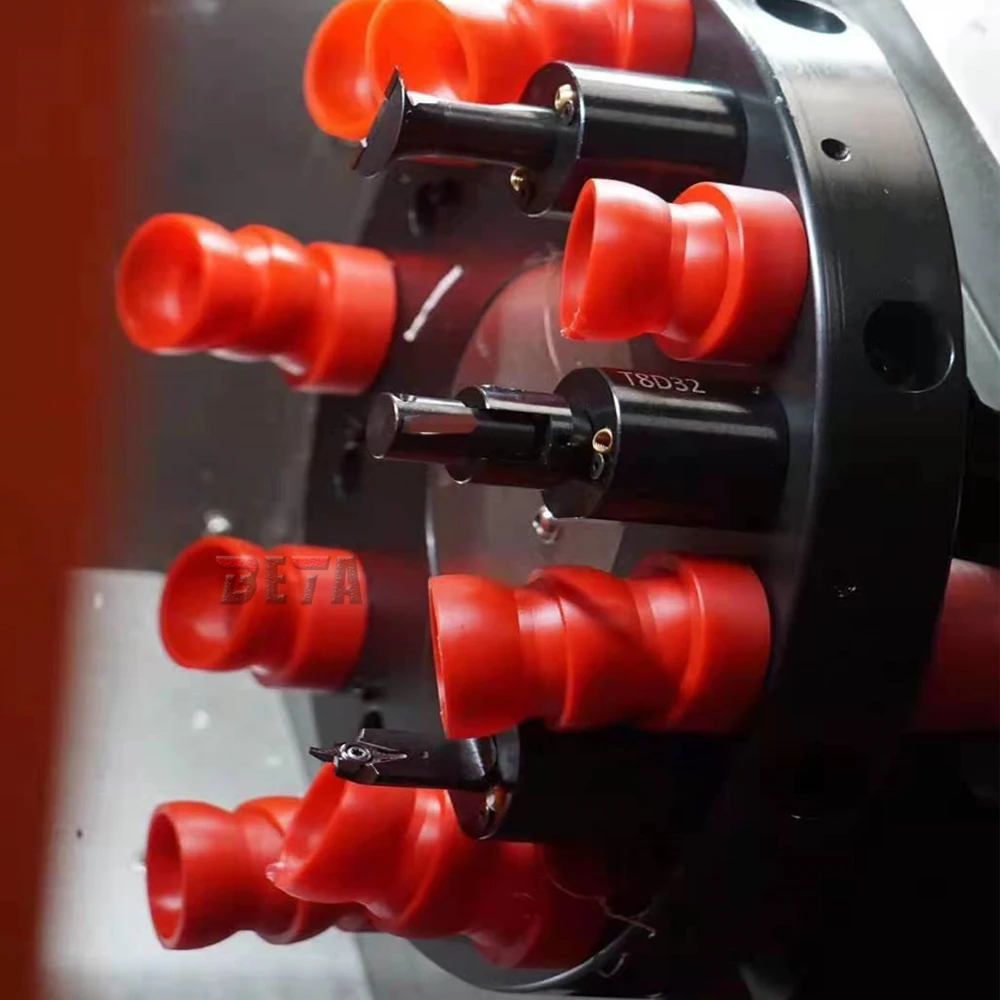

Turret type | VDI 8 station horizontal IEEP0 |
X/Z axis ball leadscrew | Taiwan HIWIN 3208 |
Leadscrew bearing | Germany FAG BSB2562 |
Spindle bearing | NSK |
Electrical components | Schneider |
Main motor power | 7.5 kw |

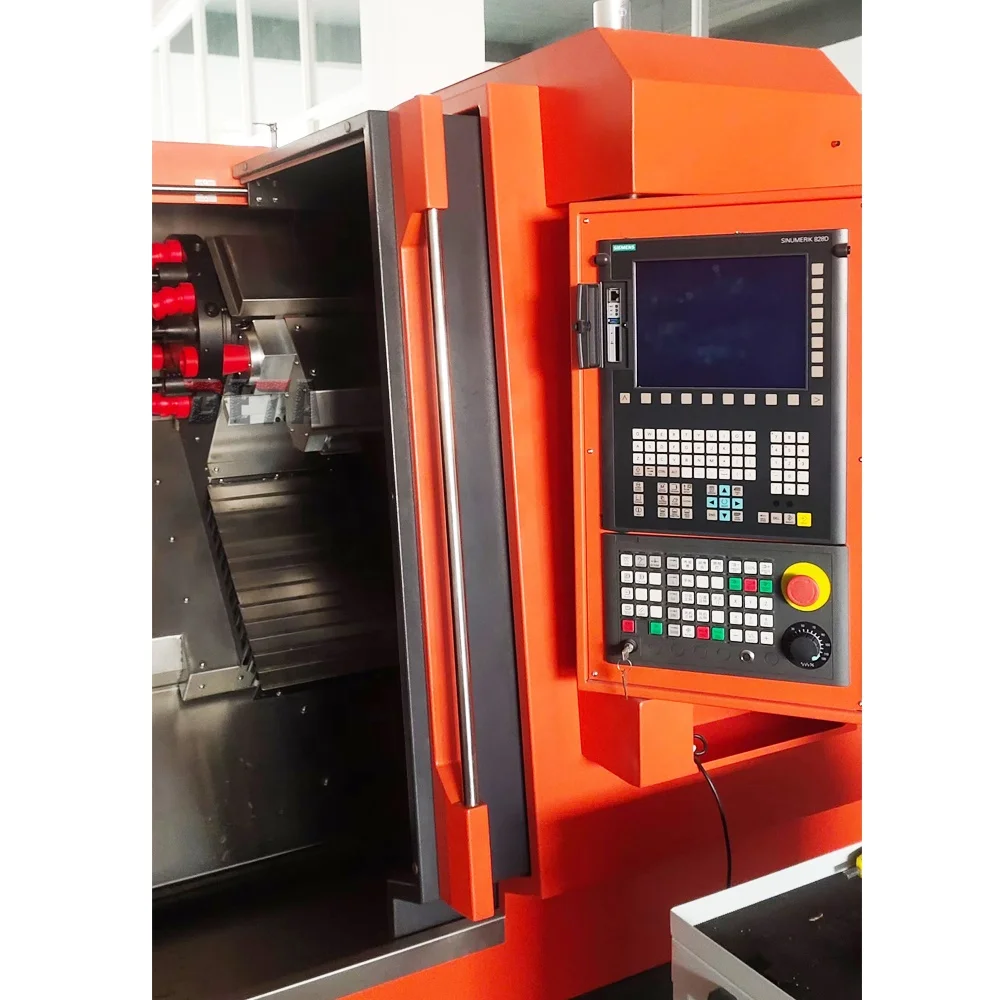

CNC Controller | Siemens 828D/FANUC |

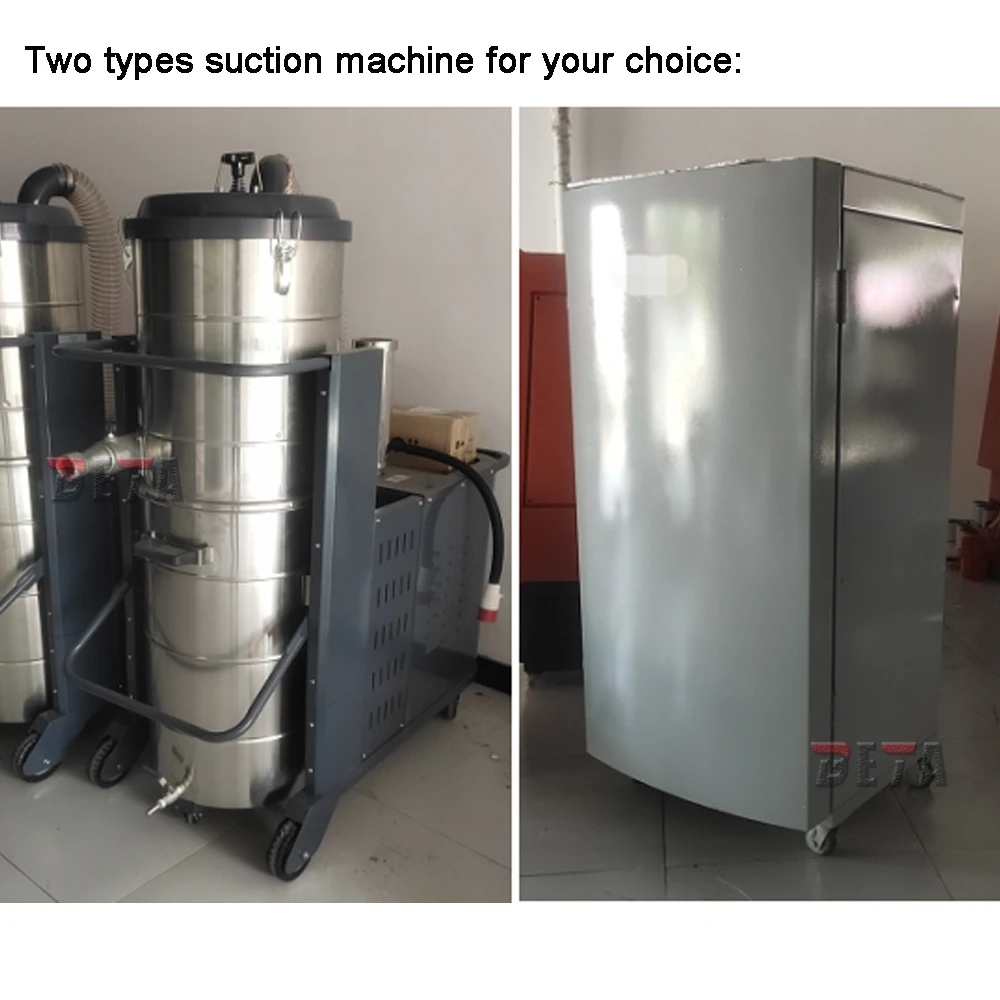

Motor power of suction machine | 5.5 kw |
Machine weight | 2800 kg |
Overall size of CNC lathe | 2750*1780*1920 mm |

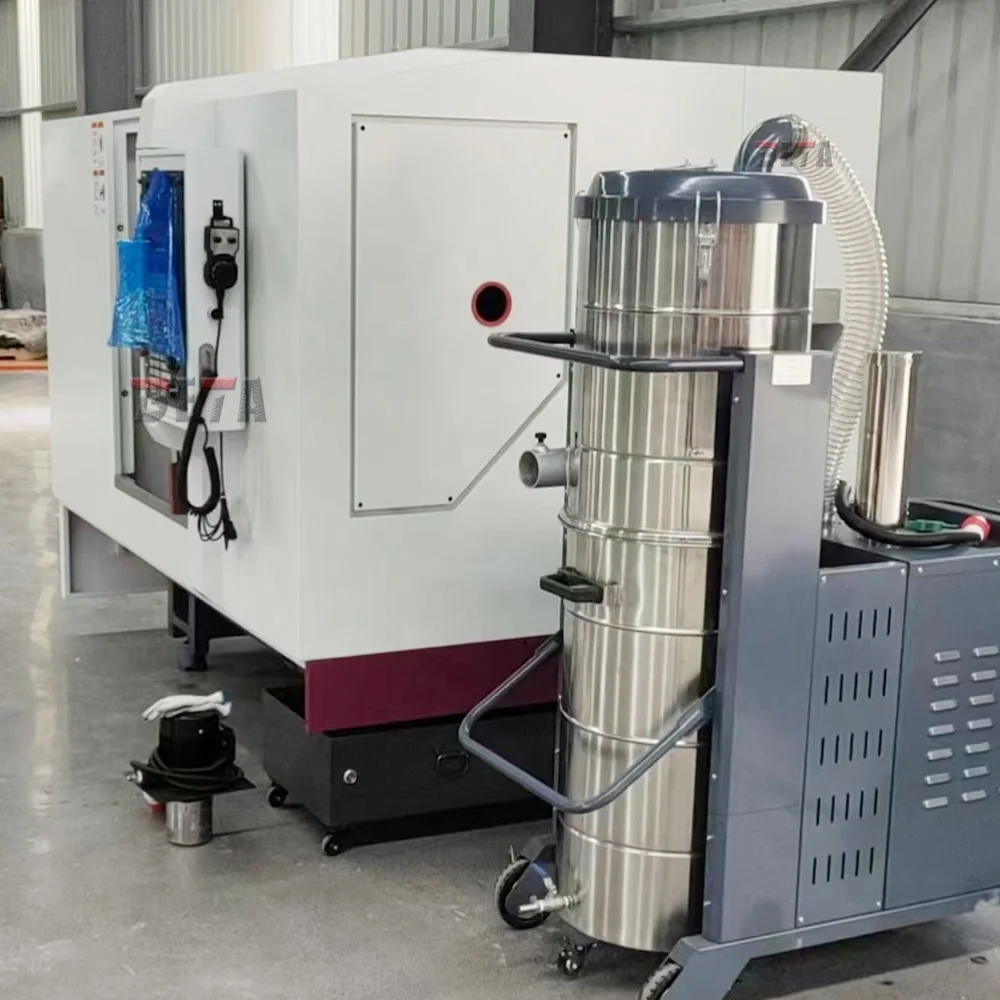

Overall size of Suction machine | 900*900*2000 mm |
Repeated positioning accuracy X-axis/Z-axis | 0.004mm/0.004mm |
Details Images
