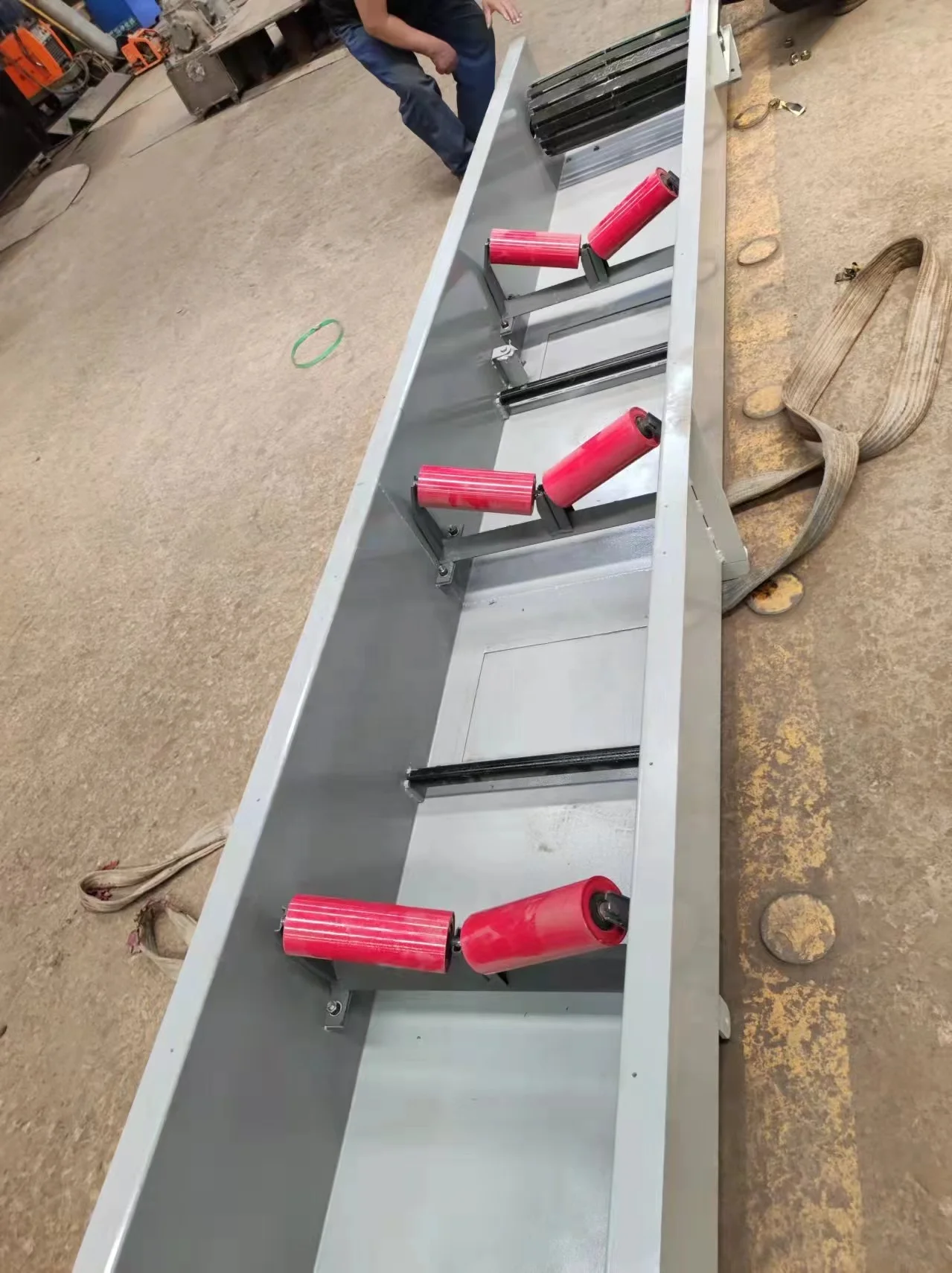

Mobile Belt Conveyor/ conveying machine
- Category: >>>
- Supplier: Zhengzhou Yizheng Heavy Machinery Equipment Co. Ltd.
Share on (1600545921832):
Product Overview
Description
Product Overview

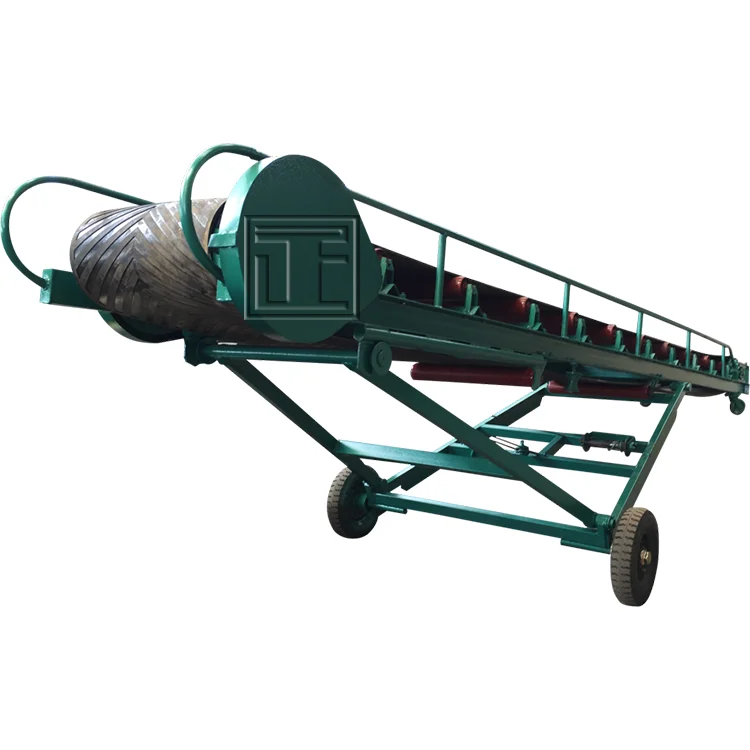

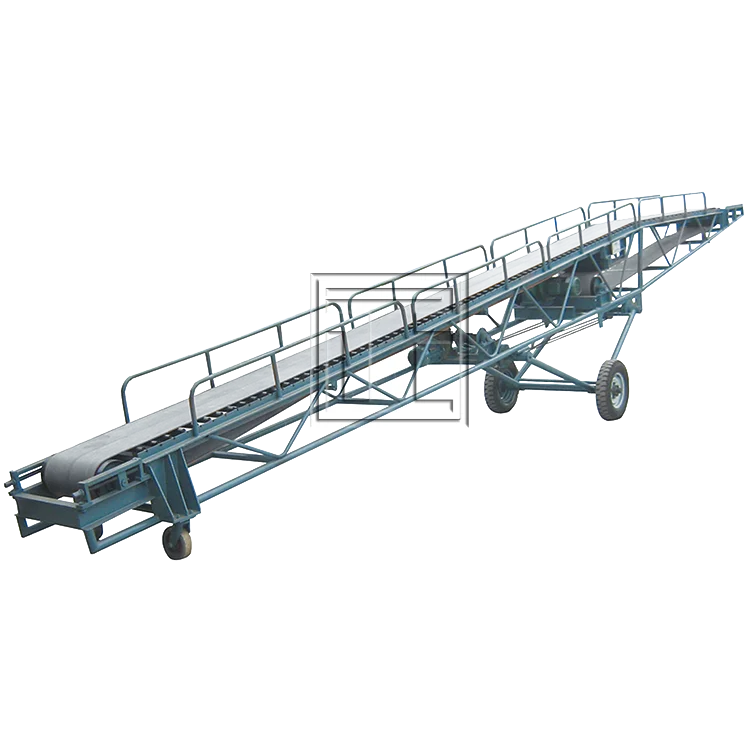

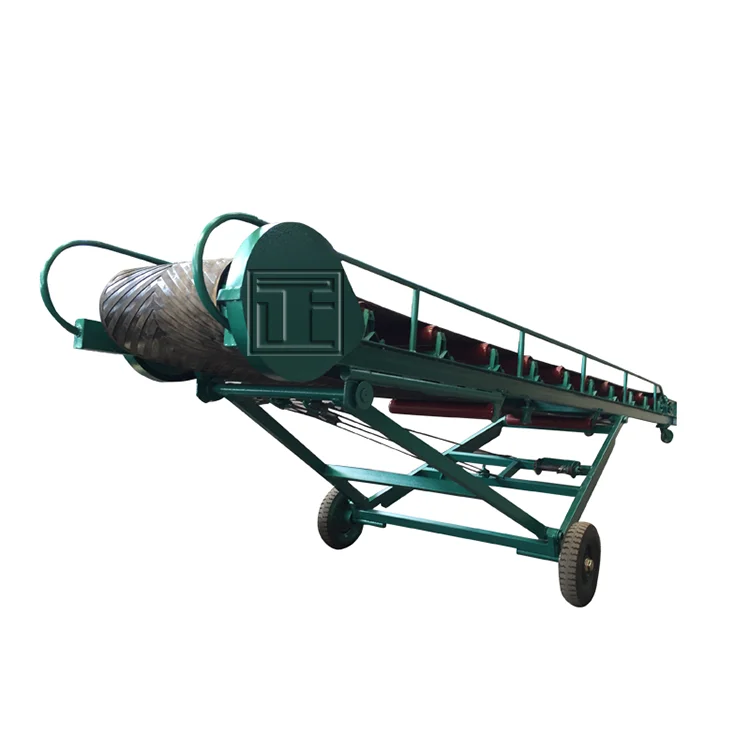

Hot Selling Adjustable Height Mobile Belt Conveyor for Fertilizer
Adjustable height mobile belt conveyor is a kind of the most commonly conveying equipment.It is especially suitable for delivering some scattered materials and irregular goods. The materials of conveyor belt are usually rubber, plastics, PVC, PU and other materials. The frame materials are carbon steel, stainless steel, aluminum. The driving mode is gear motor or electric roller. Through collocating constant speed operating system or adjustable speed operating system, the conveyor can transmit not only bulk
materials but also packed material and bags. In addition, the machine can delivery food, medication, chemical by adopting special belt for these industries.
materials but also packed material and bags. In addition, the machine can delivery food, medication, chemical by adopting special belt for these industries.
FEATURES AT A GLANCE
The adjustable height mobile belt conveyor can be used for horizontal transportation or inclined transportation, it is quite convenient and widely used in organic fertilizer, compound fertilizer, mining, metallurgy, coal and other fields. According to different conveying process requirements, it can be used for single transportation, or multiple transportation or combine with the other conveying equipment to form a horizontal or inclined transport system to meet the needs of different production line layout.

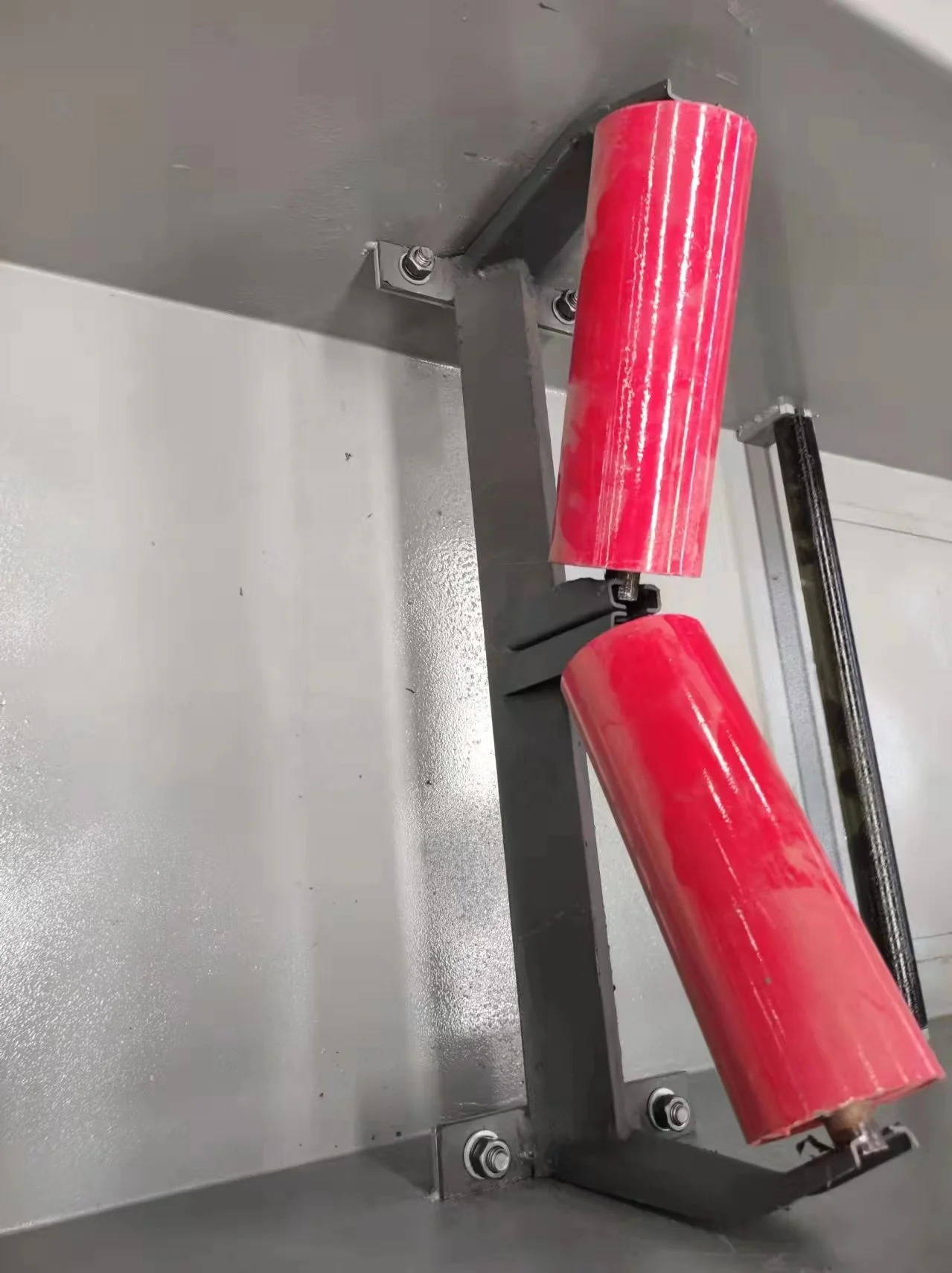

The adjustable height mobile belt conveyor uses friction drive to continuously transport materials. It is mainly composed of frame, conveyor belt, idler, drum, tensioning device and transmission. A material transfer process is formed from the initial feeding port to the final unloading port. It can be used to transport both bulk materials and finished products. It can also be matched with the requirements of various industrial production processes, and form a rhythmic production line.

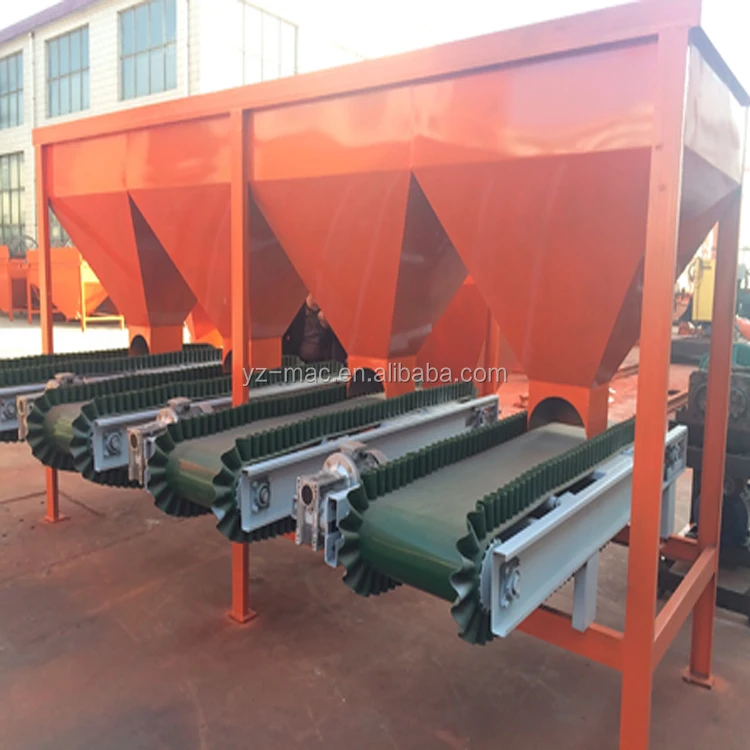

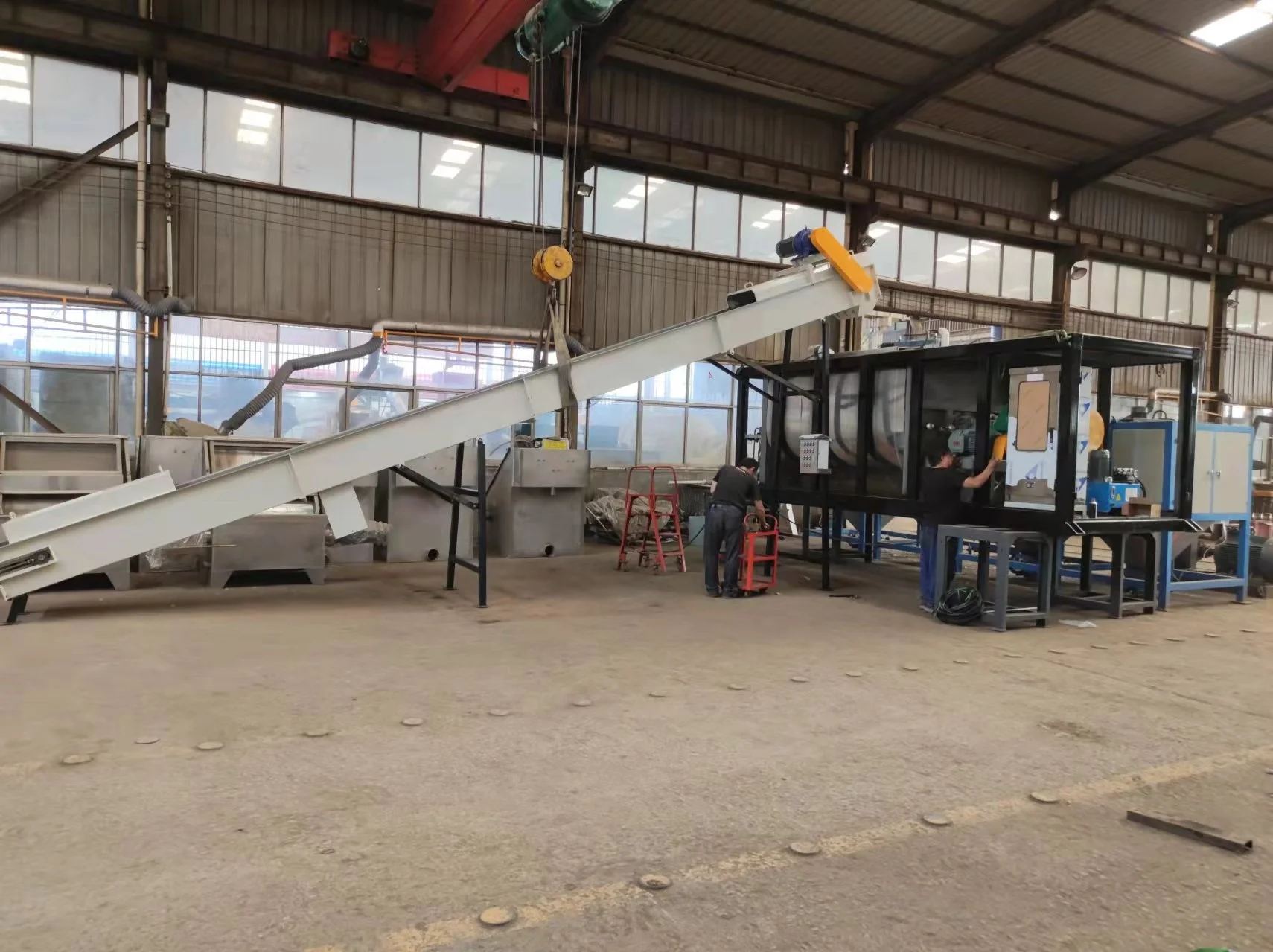

SUCCESSFUL PROJECT
PRODUCT SPECIFICATIONS
Tape width (mm) | Transmission Length (m)/Power (kw) | Conveying speed (m/s) | Throughput (t/h) | ||||
YZSSPD-400 | ≤12/1.5 | 12-20/2.2-4 | 20-25/4-7.5 | 1.3-1.6 | 40-80 | ||
YZSSPD-500 | ≤12/3 | 12-20/4-5.5 | 20-30/5.5-7.5 | 1.3-1.6 | 60-150 | ||
YZSSPD-650 | ≤12/4 | 12-20/5.5 | 20-30/7.5-11 | 1.3-1.6 | 130-320 | ||
YZSSPD-800 | ≤6/4 | 6-15/5.5 | 15-30/7.5-15 | 1.3-1.6 | 280-540 | ||
YZSSPD-1000 | ≤10/5.5 | 10-20/7.5-11 | 20-40/11-22 | 1.3-2.0 | 430-850 | ||
Characteristic
Belt conveyor has a simple structure, easy maintenance, less energy consumption and low cost characteristics, but also has the following characteristics:
1)Many kinds of material can be transported, also transport all kinds of bulk material , a variety of cartons, bags and other single-piece lightweight products, it can also be used to transport goods at a large supermarket cashier, etc.
2)Many diverse forms of structure, can also add other accessories to meet different process requirements.
3)Except for the delivery of ordinary materials, also works for special requirements, like corrosion resistance, anti-static materials etc.
4)Smooth transportation between the material and the conveyor belt there is no relative movement, to avoid damage to the transported material .
5)The noise is smaller than other kinds of conveyors , suitable for quiet work environment.
1)Many kinds of material can be transported, also transport all kinds of bulk material , a variety of cartons, bags and other single-piece lightweight products, it can also be used to transport goods at a large supermarket cashier, etc.
2)Many diverse forms of structure, can also add other accessories to meet different process requirements.
3)Except for the delivery of ordinary materials, also works for special requirements, like corrosion resistance, anti-static materials etc.
4)Smooth transportation between the material and the conveyor belt there is no relative movement, to avoid damage to the transported material .
5)The noise is smaller than other kinds of conveyors , suitable for quiet work environment.
PRODUCT CONFIGURATION
CHANGCHAI high power engine
Imported EATON control valve
Japan Shimadzu hydraulic motor
