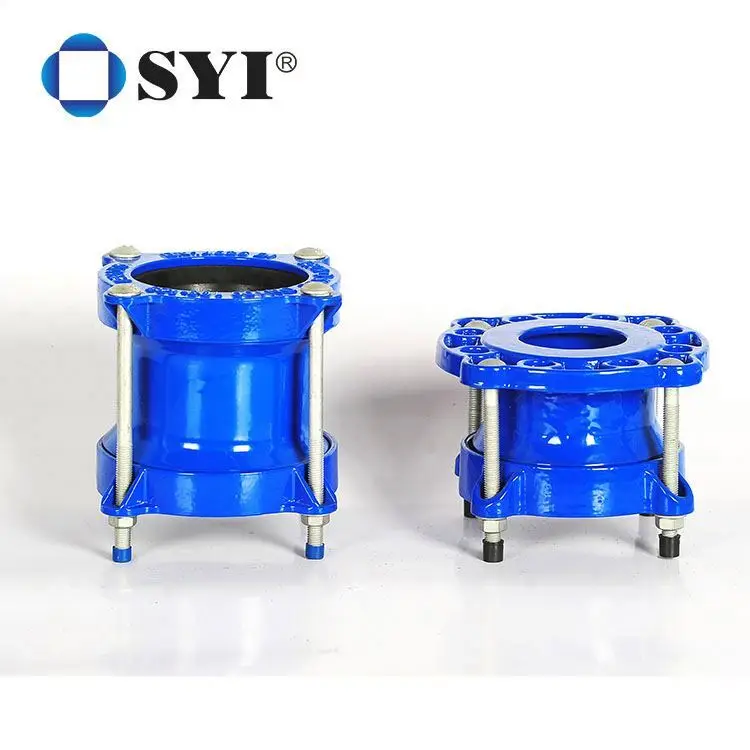

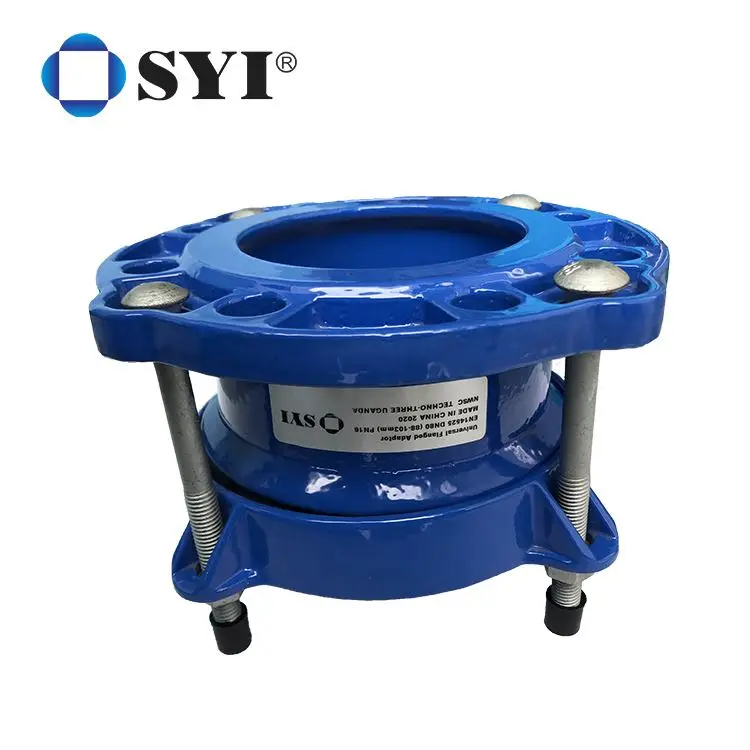

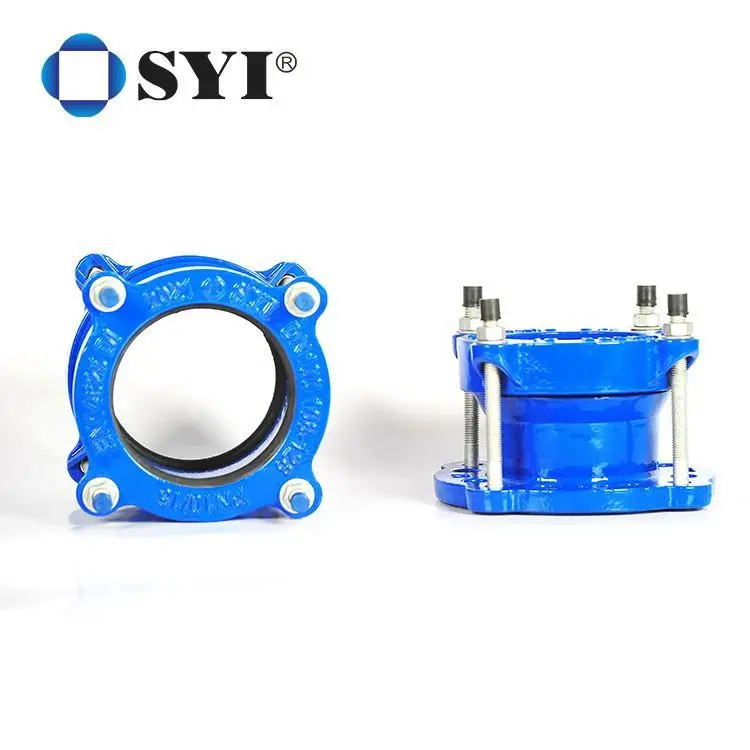

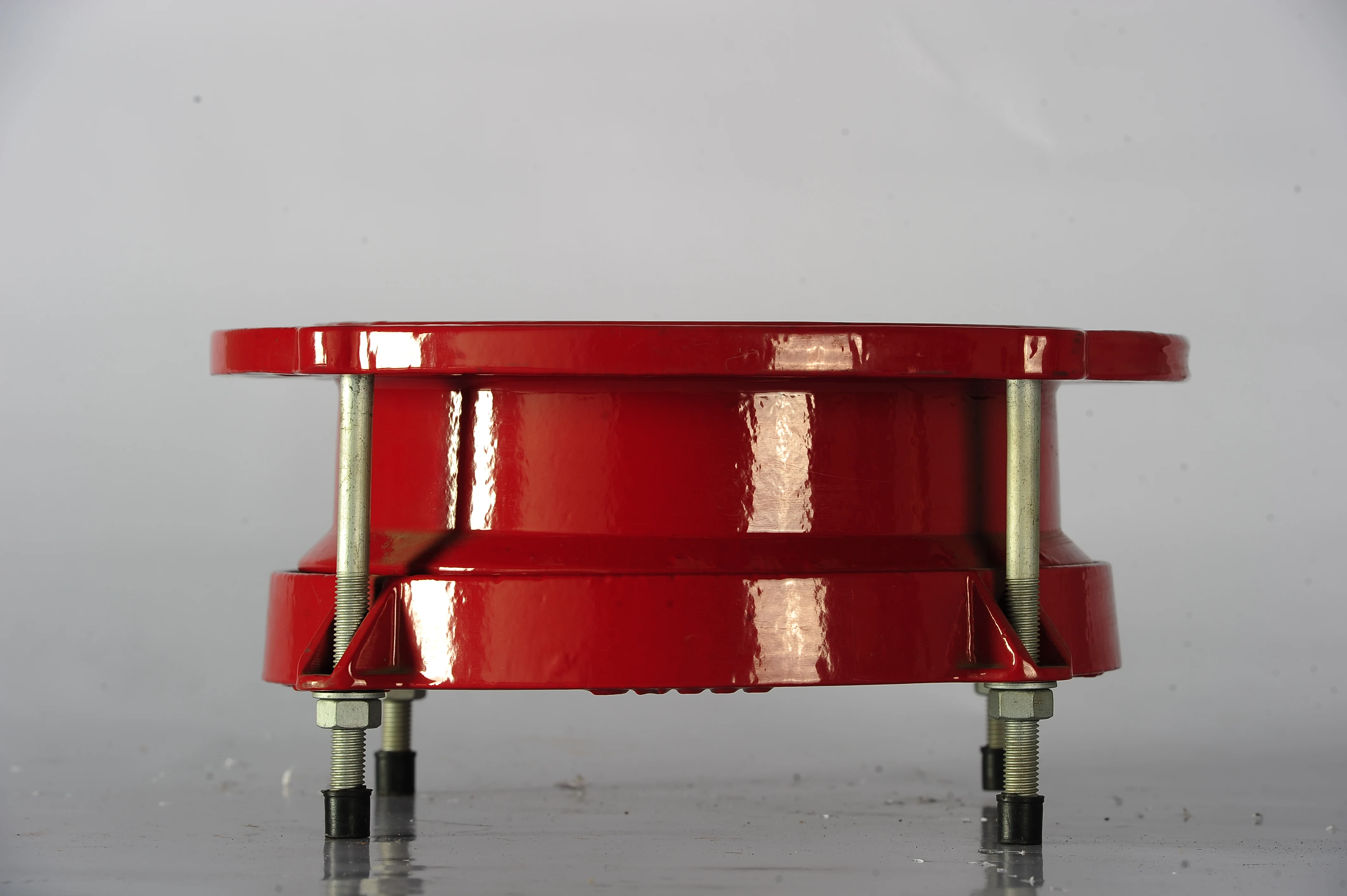

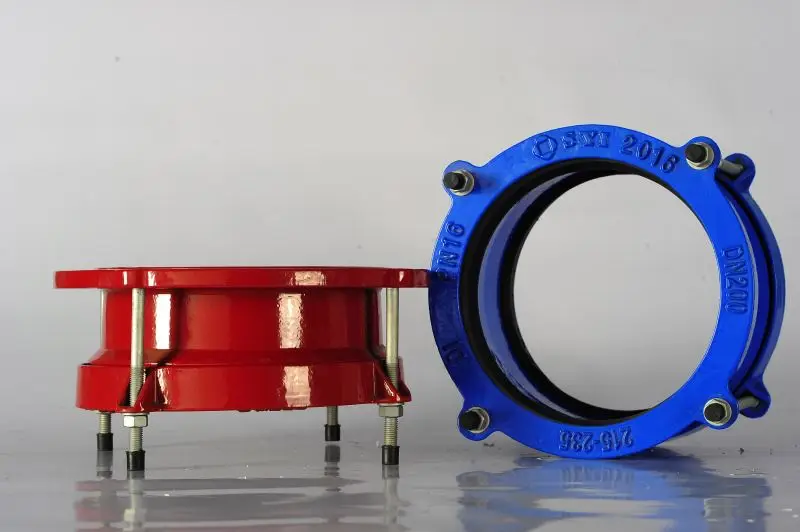

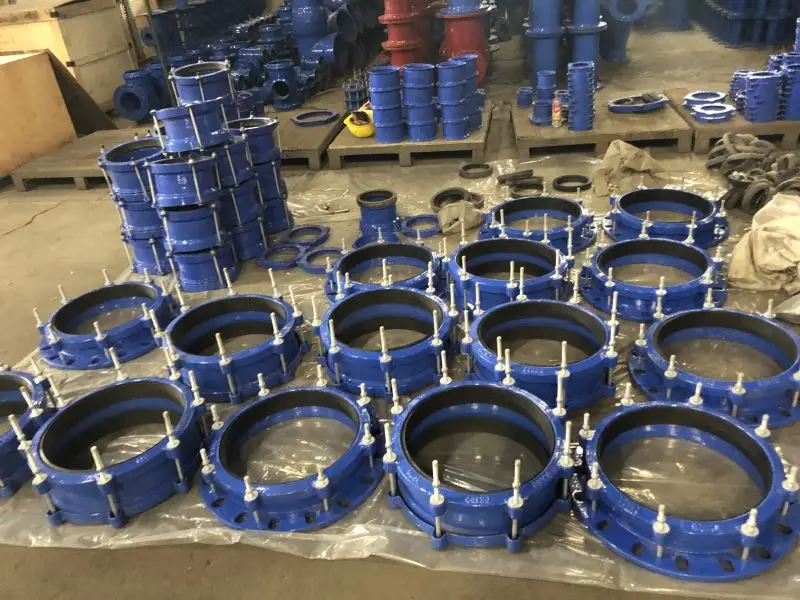

Ductile Iron Compact Universal Flexible Flange Adaptor EN 14525 ISO 2531 EN 545 EN598 For Water Or Sewerage Pipeline Projects
Product Description
SYI can supply Compact Universal Flanged Adaptors with the most reasonable design in the market, according to EN 14525, ISO2531,EN545, EN598, from DN40 to DN600. Universal flanged adaptors are suitable for jointing plain-ended pipes with same or different materials and same or different outside diameters within the pipe O.D. ranges.
Name | Compact Universal Flexible Flange Adaptor | |
Material | Body:Ductile iron grade 500-7/ 450-12 in accordance with ISO 1083 or 70-50-05/65-45-12 with ASTM A536 Gland: Ductile Iron grade 500-7/450-10 in accordance with ISO 1083 or 70-50-05/65-45-12 with ASTM A536 Gasket: Rubber E.P.D.M./SBR/NBR in accordance with EN 681.1 D-BOLTS AND NUTS: Carbon Steel Grade 8.8 with dacromet coating | |
Flange | PN10, PN16 or PN25 drilling in accordance with ISO 7005-2/EN 1092-2. | |
Working Pressure | 16 Bar or 250 PSI | |
Fluid Temperature | 0°C-50°C, excluding frost. | |
Allowed Angular Deflection | 3° | |
Joint Gap | 19mm | |
Coating | External Coatings: Liquid epoxy resin painting; Epoxy applied by FBE; According to customers’ requirements Internal Coatings: Liquid epoxy resin painting; Epoxy applied by FBE; According to customers’ requirements | |
Reference Rules | Designed and tested in accordance with EN14525, ANSI/AWWA C219 and EN545 | |

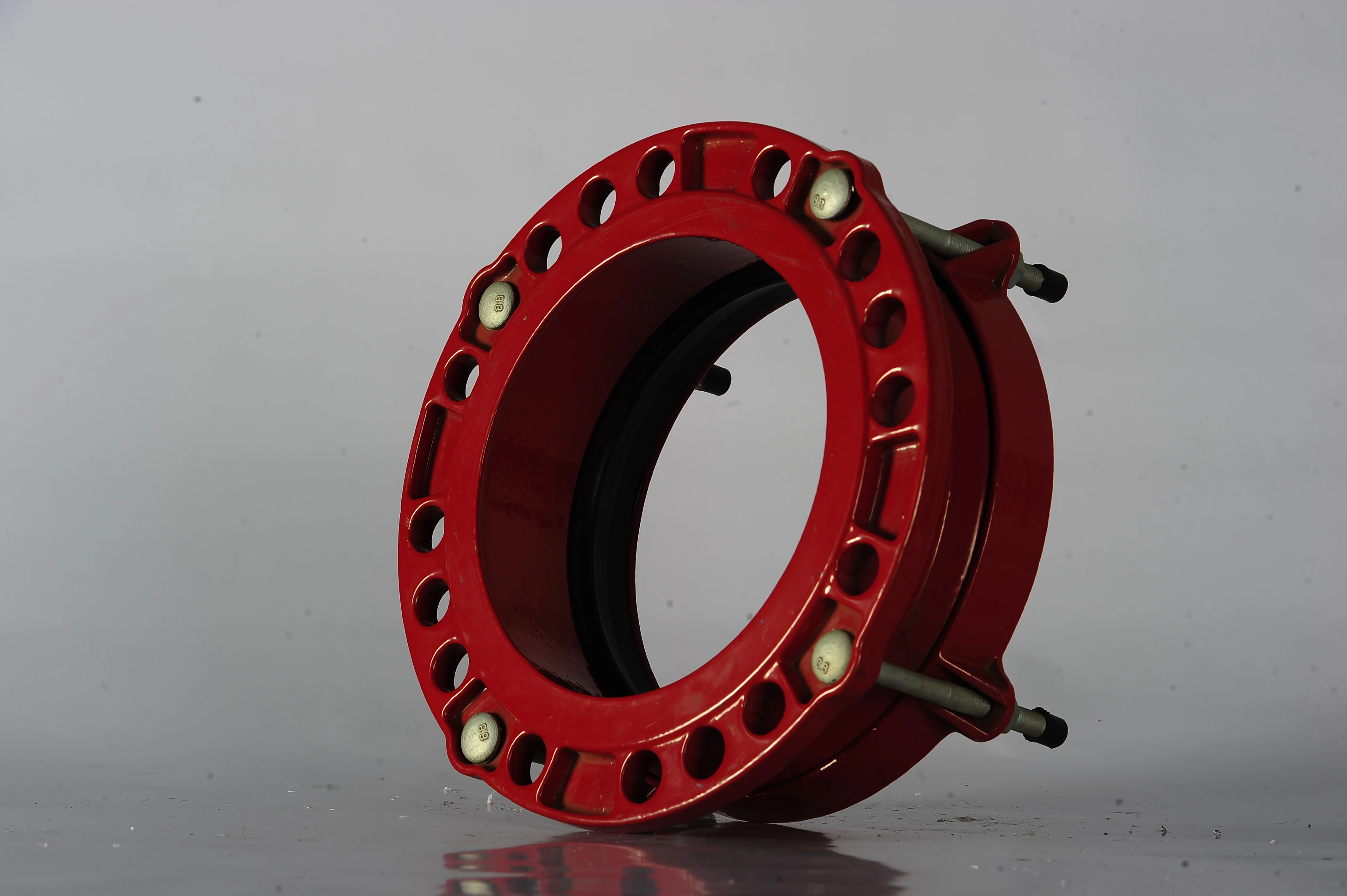

Universal Flanged Adaptors, designed by experienced engineers in SYI in 2010 and applied the patent,
with wide range tolerance on O.D. (up to 24mm).
with wide range tolerance on O.D. (up to 24mm).
Universal Flanged Adaptors are suitable for jointing plain-ended pipes with same or different materials and same or different outside diameters within the pipe O.D. ranges. It can be connected with a variety of pipes, as long as the OD of the pipe connected is within the range, especially the DI, CI and PVC pipes, which are considered during the designing.For example, If the connector range is 108-128, then you can connect all pipes within the outer diameter of the pipe, iron pipe, PVC, PE, steel pipe, cement pipe, etc.
The circumferential ribbed, specially profiled gaskets in the high quality material, provide for smooth installation by minimizing contact friction and restrict to pull out.
The gasket also provide a leak tight seal across the O.D. range per nominal size and still allow for thermal expansion and contraction of the pipe (up to 5mm per gasket), facilitated through gasket deformation.
Wide flange sealing surface.
D Bolts to avoid turning during tightening the bolts.
SYI FA with the further more reasonable sizes and ranges, can allow the main pipe sizes in the most reasonable location, and the gasket can be at the perfect situation after assembled, which reduced the risk of leakage when the pipe OD at the minimum range and reduced the workload of tightening the bolts hardly.
Accessories: including gland, gasket, bolt, etc.
Features: one ends are connected to the pipe socket, the other is connected with a flange, which can be connected to different materials in the range at the same time.
The circumferential ribbed, specially profiled gaskets in the high quality material, provide for smooth installation by minimizing contact friction and restrict to pull out.
The gasket also provide a leak tight seal across the O.D. range per nominal size and still allow for thermal expansion and contraction of the pipe (up to 5mm per gasket), facilitated through gasket deformation.
Wide flange sealing surface.
D Bolts to avoid turning during tightening the bolts.
SYI FA with the further more reasonable sizes and ranges, can allow the main pipe sizes in the most reasonable location, and the gasket can be at the perfect situation after assembled, which reduced the risk of leakage when the pipe OD at the minimum range and reduced the workload of tightening the bolts hardly.
Accessories: including gland, gasket, bolt, etc.
Features: one ends are connected to the pipe socket, the other is connected with a flange, which can be connected to different materials in the range at the same time.
Compact Universal Flanged Adaptors Dimensions
SYI S. N. | DN | pipe O.D. range | D2 | H | L | Bolt | ||||||||||
mm | inch | mm | no. | size | ||||||||||||
SYI-UC44-60 | 40 | 1.5" | 44-60 | 151 | 100 | 200 | 2 | M12x200 | ||||||||
SYI-UC48-64 | 50 | 2" | 48-64 | 155 | 100 | 200 | 2 | |||||||||
SYI-UC56-74 | 50 | 2" | 56-74 | 169 | 100 | 200 | 2 | |||||||||
SYI-UC72-88 | 65 | 2.5" | 72-88 | 183 | 100 | 200 | 4 | |||||||||
SYI-UC85-105 | 80 | 3" | 85-105 | 206 | 100 | 200 | 4 | |||||||||
SYI-UC98-118 | 100 | 4" | 98-118 | 219 | 100 | 200 | 4 | |||||||||
SYI-UC108-128 | 125 | 5" | 108-128 | 233 | 100 | 200 | 4 | |||||||||
SYI-UC123-145 | 125 | 5" | 123-145 | 250 | 100 | 200 | 4 | |||||||||
SYI-UC132-154 | 150 | 6" | 132-154 | 259 | 100 | 200 | 4 | |||||||||
SYI-UC157-181 | 150 | 6" | 157-181 | 289 | 115 | 220 | 4 | M12x220 | ||||||||
SYI-UC192-212 | 200 | 8" | 192-212 | 321 | 115 | 220 | 4 | |||||||||
SYI-UC215-235 | 200 | 8" | 215-235 | 344 | 115 | 220 | 4 | |||||||||
SYI-UC222-246 | 250 | 10" | 222-246 | 358 | 115 | 220 | 6 | |||||||||
SYI-UC246-268 | 250 | 10" | 246-268 | 380 | 115 | 220 | 6 | |||||||||
SYI-UC267-289 | 250 | 10" | 267-289 | 401 | 115 | 220 | 6 | |||||||||
SYI-UC276-298 | 250 | 10" | 276-298 | 410 | 115 | 220 | 6 | |||||||||
SYI-UC308-332 | 300 | 12" | 308-332 | 446 | 150 | 260 | 6 | M12x260 | ||||||||
SYI-UC322-346 | 300 | 12" | 322-346 | 462 | 150 | 260 | 6 | |||||||||
SYI-UC344-368 | 350 | 14" | 344-368 | 484 | 150 | 260 | 8 | |||||||||
SYI-UC367-391 | 350 | 14" | 367-391 | 507 | 150 | 260 | 8 | |||||||||
SYI-UC392-416 | 400 | 16" | 392-416 | 534 | 150 | 260 | 8 | |||||||||
SYI-UC417-439 | 400 | 16" | 417-439 | 556 | 150 | 260 | 8 | |||||||||
SYI-UC436-458 | 400 | 16" | 436-458 | 576 | 150 | 260 | 8 | |||||||||
SYI-UC474-496 | 450 | 18" | 474-496 | 614 | 150 | 260 | 10 | |||||||||
SYI-UC490-512 | 500 | 20" | 490-512 | 633 | 160 | 300 | 10 | M12x300 | ||||||||
SYI-UC524-546 | 500 | 20" | 524-546 | 667 | 160 | 300 | 10 | |||||||||
SYI-UC540-562 | 500 | 20" | 540-562 | 683 | 160 | 300 | 10 | |||||||||
SYI-UC597-617 | 600 | 24" | 597-617 | 739 | 160 | 300 | 10 | |||||||||
SYI-UC619-639 | 600 | 24" | 619-639 | 761 | 160 | 300 | 10 | |||||||||
SYI-UC628-650 | 600 | 24" | 628-650 | 772 | 160 | 300 | 10 | |||||||||
For other sizes not mentioned above, please contact us. We have right to change the data without further notice. | ||||||||||||||||
Quality Control
SYI Pipeline regards quality as an essential and integral part of our business success.
Until now, we are ISO9001:2015 TUV, BSI Kitemarked, SGS, BV, FM certified, and UL, WRAS listed. We are the approved supplier to many worldwide known countries and authorities.
Manufacturing "SYI" Brand products has evolved as a mark of quality!
Chemical Analyzing

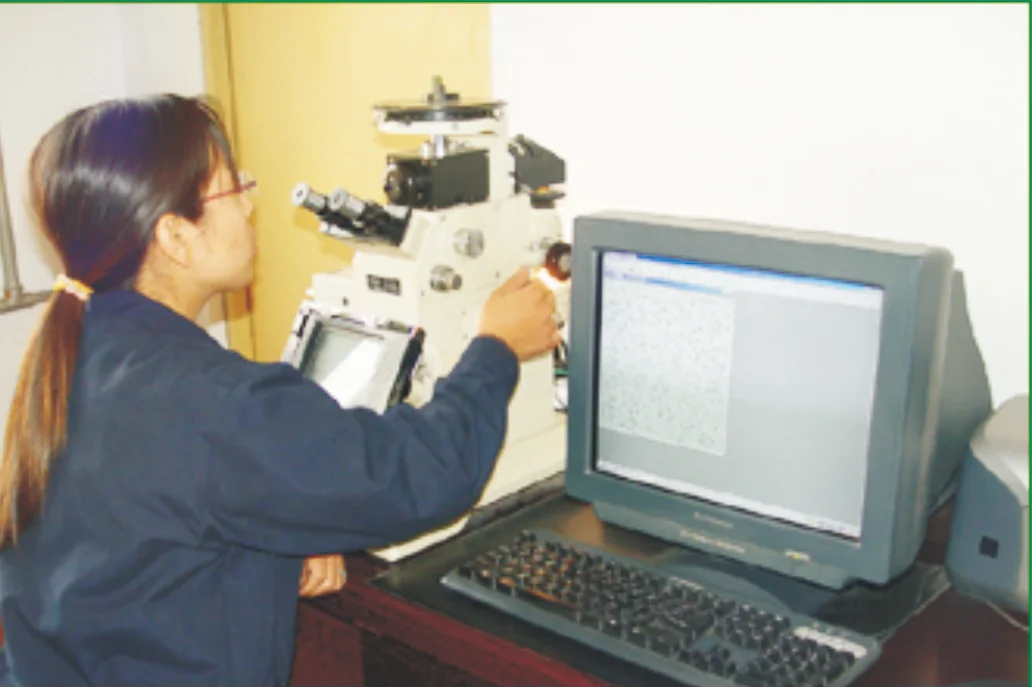

Microstructure Testing

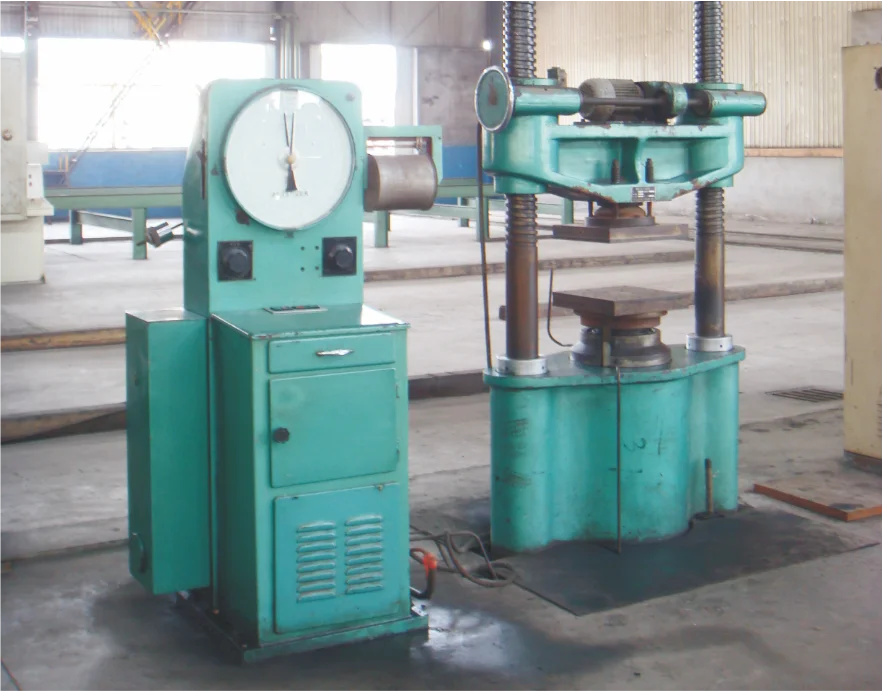

Press Ring Experiment

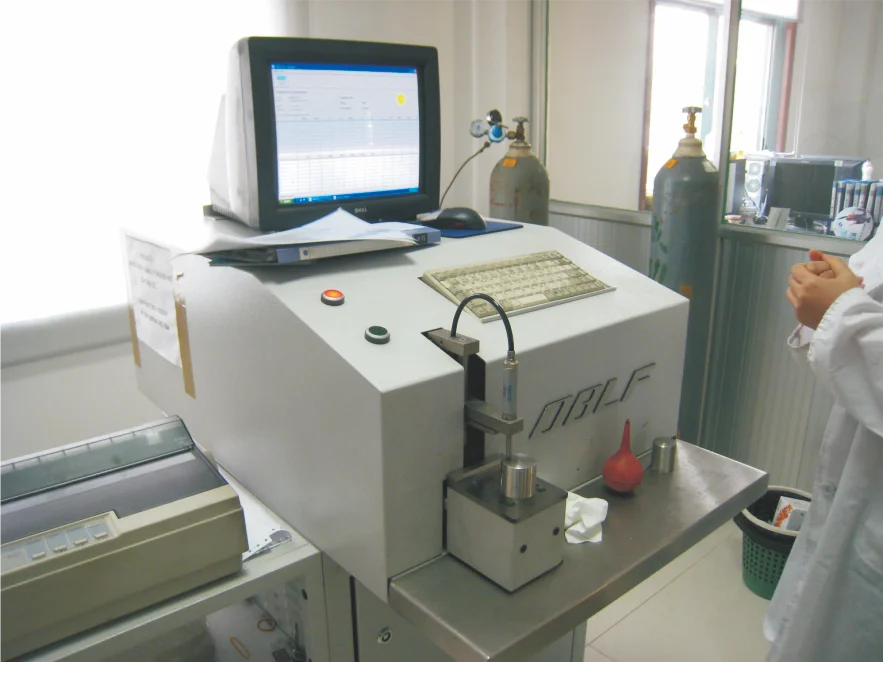

Spectrum Analyzing
Packing & Delivery

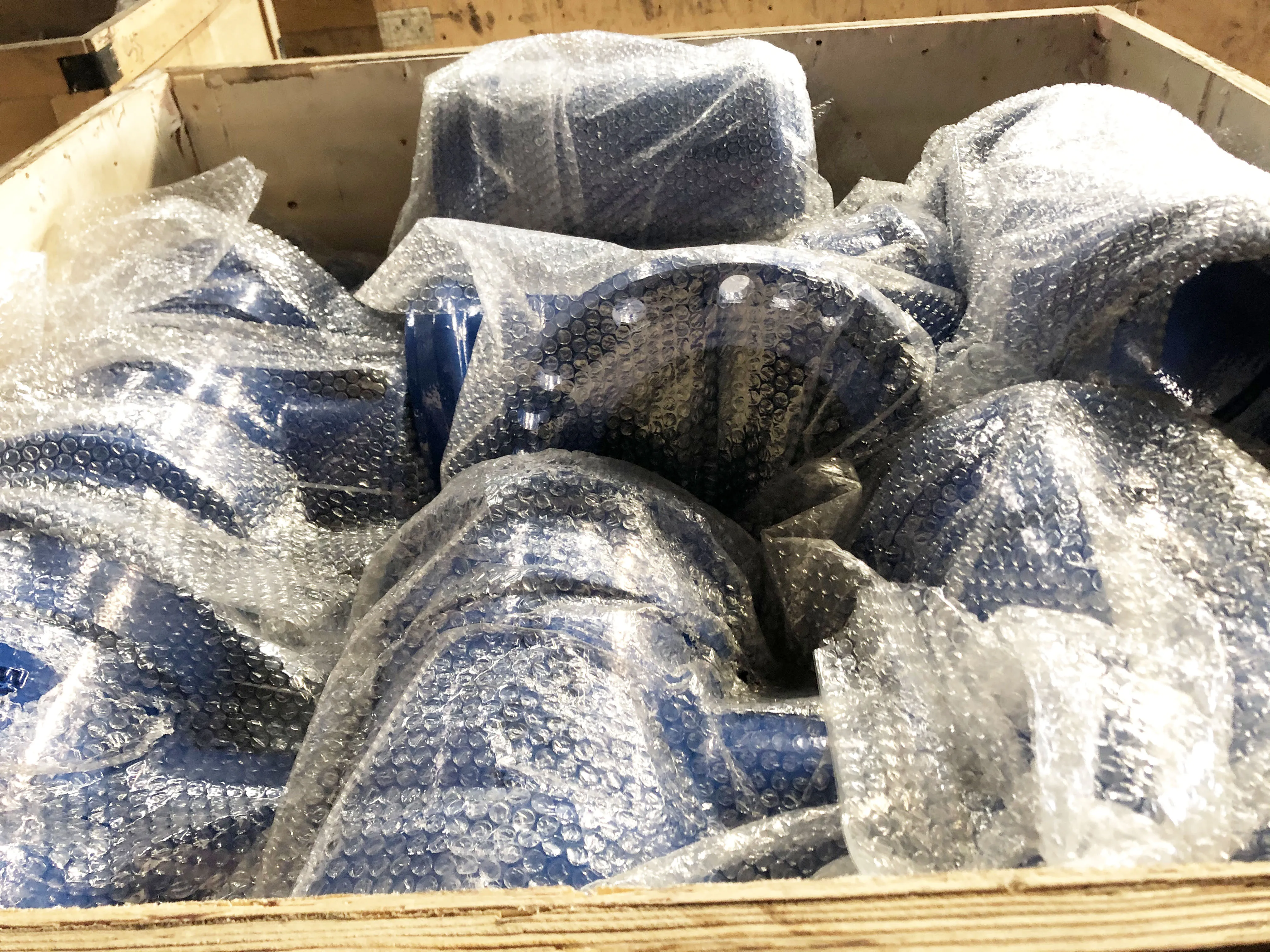

Packing: Different package upon your request,like wood cases&pallets,ply-wood crates&pallets,steel crates&pallets and etc.

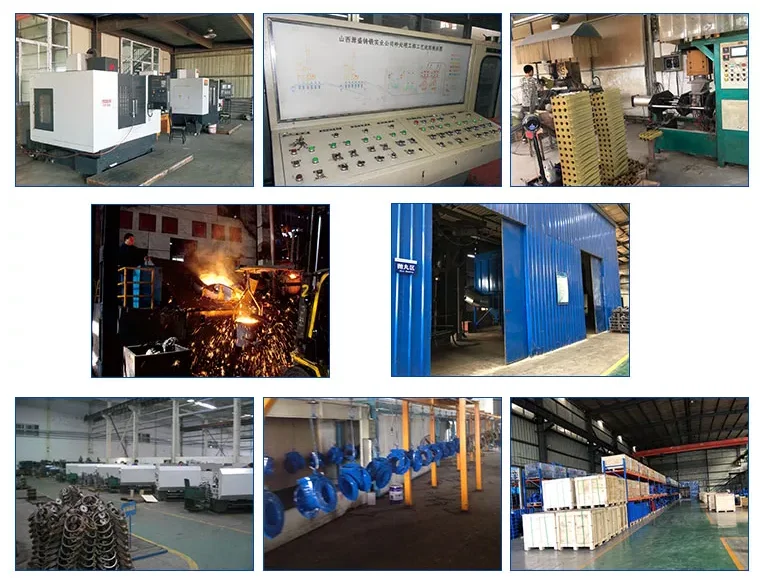

Company Profile
SYI Pipeline Corporation - a Proud Member of SYI Group - manufactures a full range of Pipeline products and accessories like Pipes, Fittings, Universal Couplings, Flanged Adaptors, Restrained Adaptors, Dismantling Joints, Clamps, Valves, Fire Hydrants and etc.
Since 2009, SYI Pipeline has developed from a single pipes & fittings seller to a professional project solution provider,
including One-Stop Shop of pipes, fittings, couplings & flanged adaptors, valves, fire hydrants, water meters and all kinds of accessories.
SYI Pipeline has an annual supply capability of 200,000 tons, and it is still developing all the time.
SYI Pipeline regards quality as an essential and integral part of our business success. Until now, we are ISO9001:2015 TUV, BSI Kitemarked, SGS, BV, FM certified, and UL, WRAS listed. We are the approved supplier of many worldwide known countries and authorities. Manufacturing "SYI" Brand products has evolved as a mark of quality!
Along with products themselves, SYI Pipeline also helps customers with products instructions and installation guide.
Since 2009, SYI Pipeline has developed from a single pipes & fittings seller to a professional project solution provider,
including One-Stop Shop of pipes, fittings, couplings & flanged adaptors, valves, fire hydrants, water meters and all kinds of accessories.
SYI Pipeline has an annual supply capability of 200,000 tons, and it is still developing all the time.
SYI Pipeline regards quality as an essential and integral part of our business success. Until now, we are ISO9001:2015 TUV, BSI Kitemarked, SGS, BV, FM certified, and UL, WRAS listed. We are the approved supplier of many worldwide known countries and authorities. Manufacturing "SYI" Brand products has evolved as a mark of quality!
Along with products themselves, SYI Pipeline also helps customers with products instructions and installation guide.
SYI products have served 118 countries worldwide up to now!
Most of these customers cooperated with SYI for more than 20 years!
We value long term cooperation relationship mostly!
Most of these customers cooperated with SYI for more than 20 years!
We value long term cooperation relationship mostly!
Value Added Services
A dedicated Customer Service team with 50 staff covering Marketing, Sales, Technical, Production, Inspection, Logistics and
Management.
80% have over 5 years working experiences.
100% of our sales can communicate in English fluently.
Free catalogues, certificates.
Individual QCP.
MTC with pictures and videos.
Free Extra Accessories and Repair Tools.
1 specialized Customer Service Staff to follow your each single project.
Professional Logistic Services.
Free Installation Instruction, Product Standards and Inspection Certificates.

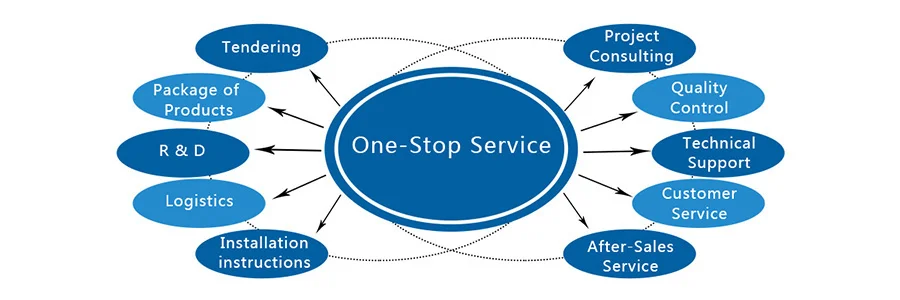

One-stop Service
