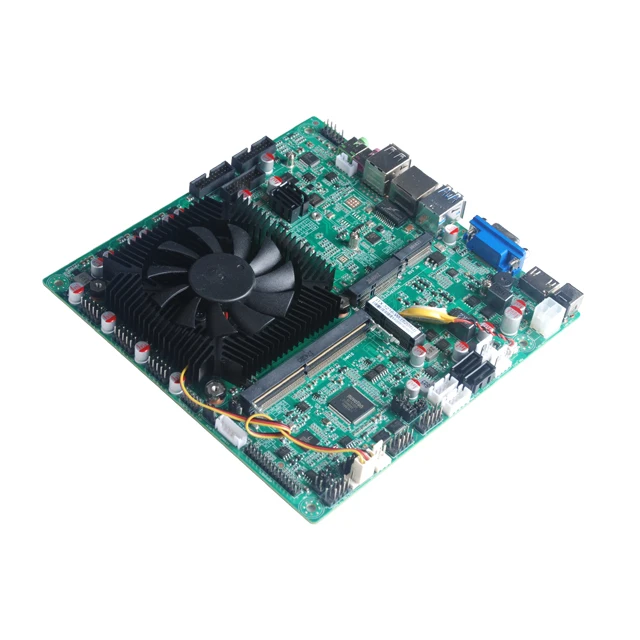

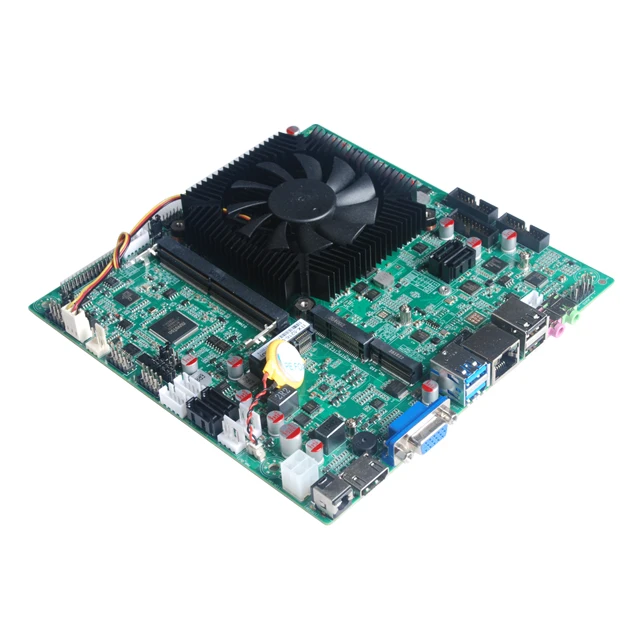

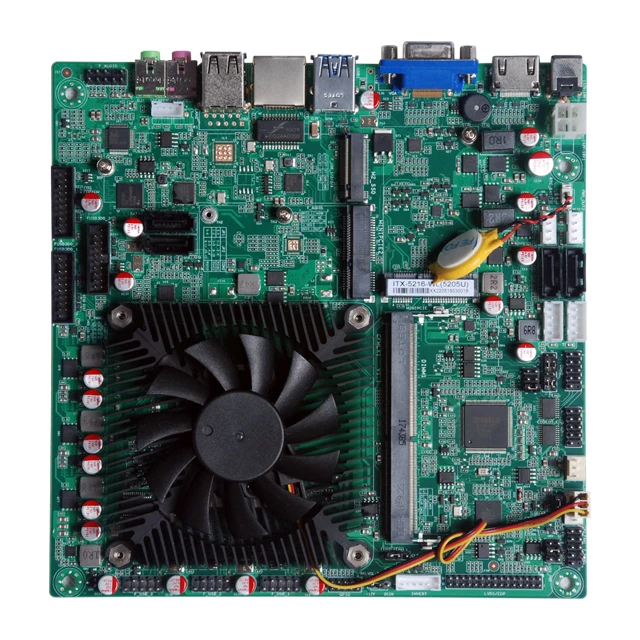

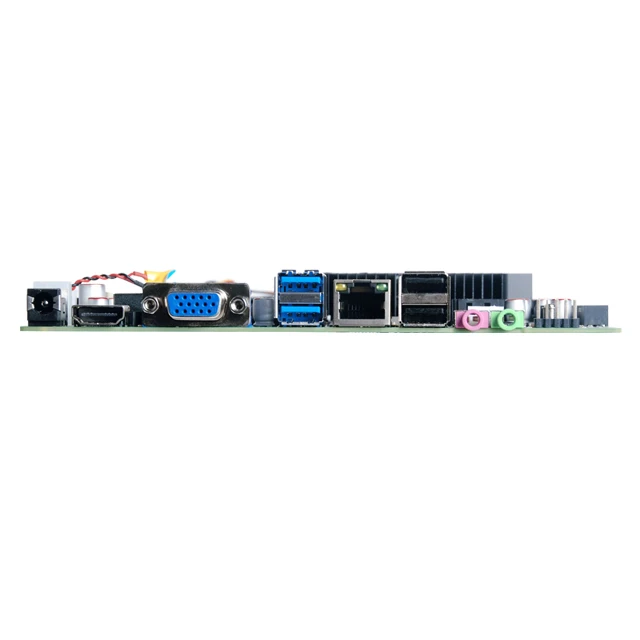

10th comet lake 5205u mini itx motherboard with 2 intel LAN 4 SATA 16 usb connectors
- Category: >>>
- Supplier: Shenzhen Hcsmart Technology Co. Ltd.
Share on (1600545963114):
Product Overview
Description

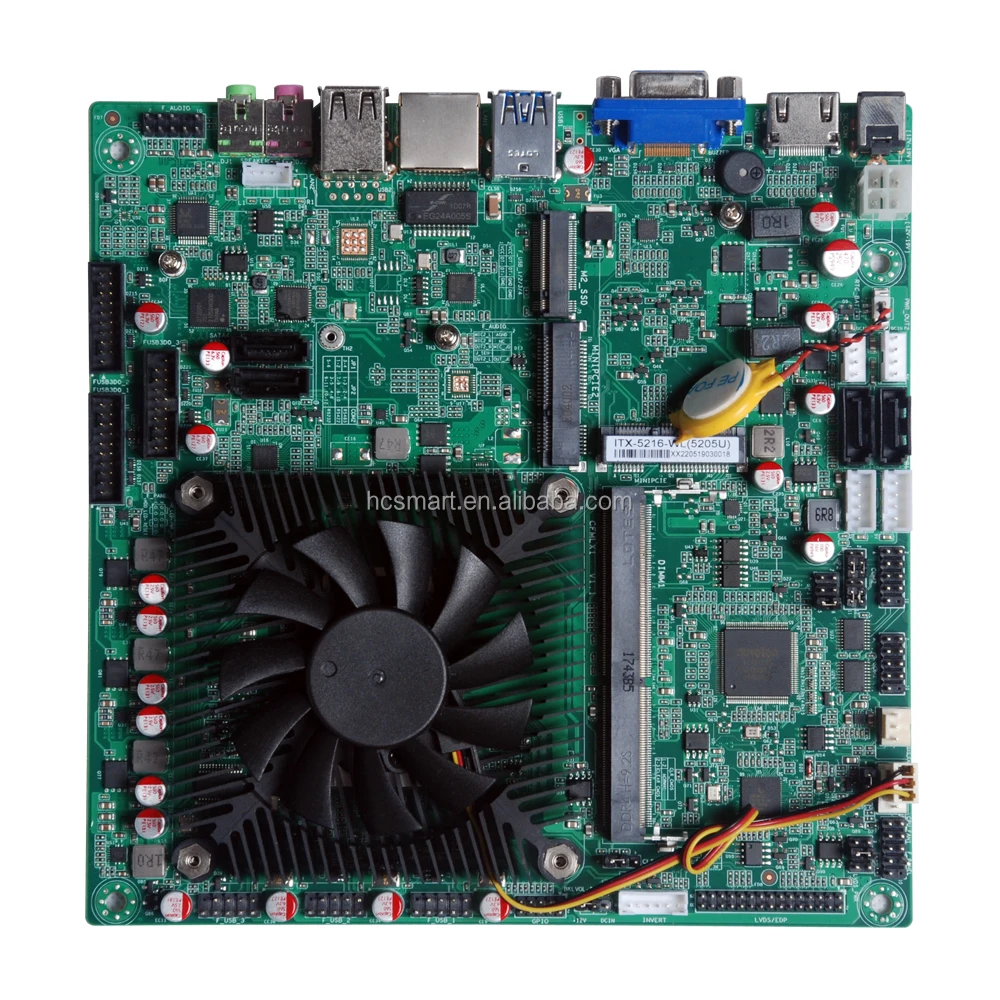

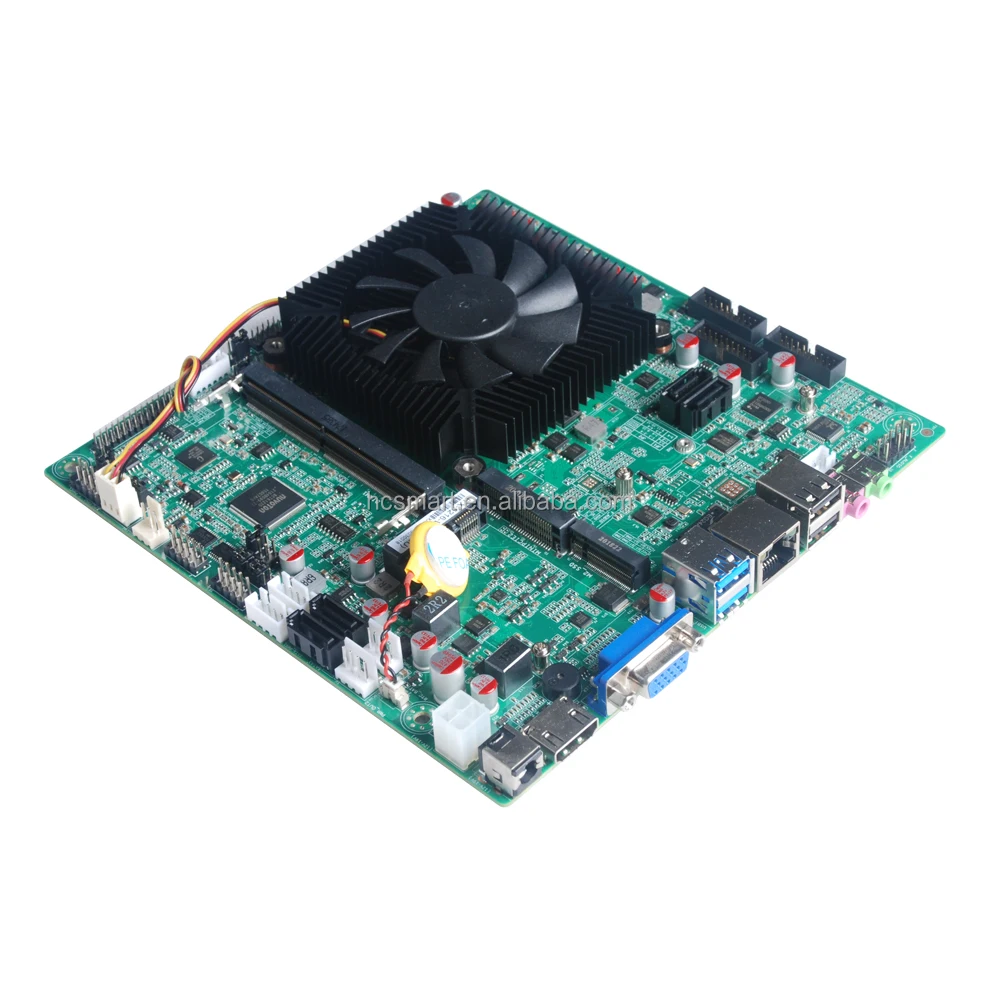

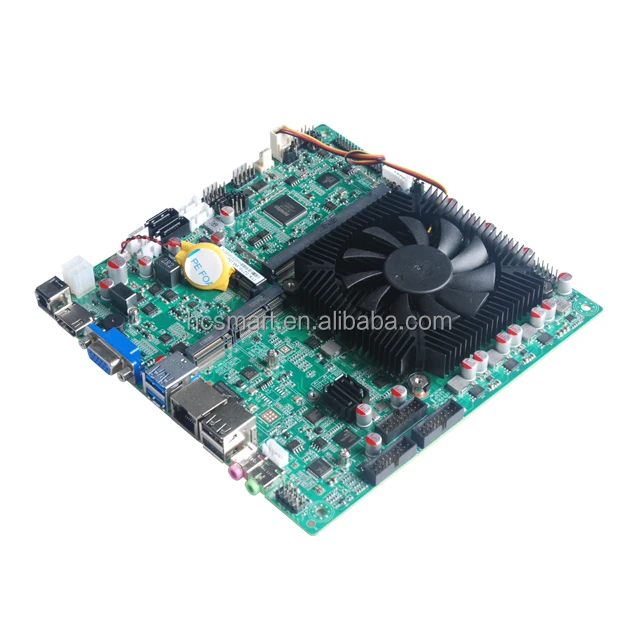

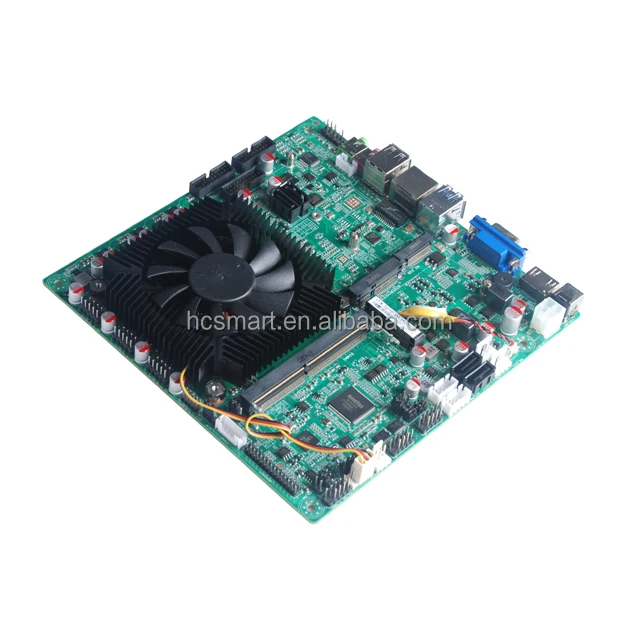

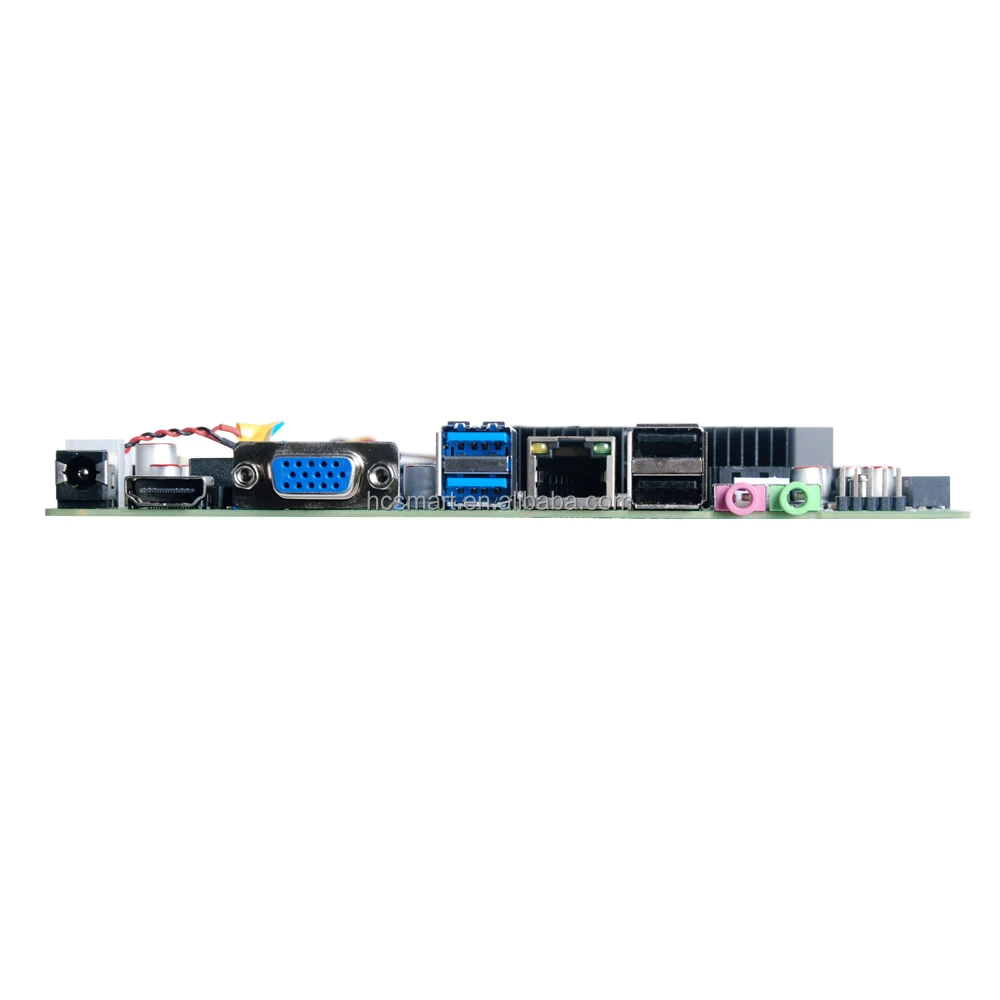

10th comet lake 5205u mini itx motherboard with 2*intel LAN 4* SATA 16*USB connectors
Model:ITX-5216
1.Comet lake 5205U cpu embedded
2.1*DDR 4 SO-DIMM slot,max support 16G
3.2*HD+1 *eDP/ LVDS
4.8*USB3.0+8 *USB2.0
5.4*SATA3.0;1*M.2(For Msata),1*MINIPCIE(For WIFI/4G/5G),1*MINIPCIE(For EX-COM)
6.2*Intel 1000M LAN
7. 6*COM(EX-COM Card) DC power supply
Product Description
| Model | ITX-5216 | |
Processor System | CPU | Comet Lake 10th 5205U |
| Max.speed | Dual core 2 threads Main Frequency 1.9GHz | |
| Chipset | SOC | |
| TDP | 15W | |
| Memory | Capacity | 1*SO-DIMM DDR4 2400MHz Memory,Max to 16G |
| Socket | 1*260-PIN SO-DIMM | |
| Storage | SATA | 4 *SATA3.0;1*M.2(For Msata),1*MINIPCIE(For EX-COM) |
| Expansion Slot | WIFI | 1*MINIPCIE(For WIFI/4G/5G) |
| Expansion Slot | PCI | 0 |
| PCIE X1 | 0 | |
| PCIE X4 |
| |
| PCIE X8 | 0 | |
| PCIE X16 | 0 | |
| Graphics | GPU | UHD Graphics |
| VGA | 0 | |
| HDMI | 2*HD (1*HD 1*VGA optional ) | |
| eDP/LVDS | 1*LVDS/eDP pin | |
| DP | 0 | |
| Ethernet | Controller | 2 *Intel LAN |
| Connector | 2*RJ45 | |
| Audio | Controller | 1*Realtek ALC897HD |
| Connector | 2*JACK(1*Line out,1*Mic in ) | |
| I/O | COM | 6 *COM(4*COM EX-COM),COM2 RS422//485 |
| LPT | 0 | |
| USB | 8*USB3.0+8 *USB2.0 | |
| GPIO | 1*GPIO(8bit) | |
| PS/2 | 0 | |
| PIN | 1*F-PANEL;1*AUDIO; 1*SPEAKER;1 * CLR_CMOS ;1*AUTO;4*SATA-PWR; 1*LVDS-PWR ;1*INVERT;1*CPU-FAN;1*SYS-FAN | |
| Watchdog Timer | Output | N/A |
| Interval | N/A | |
| Power Requirements | Power On | DC-IN (12-19V) |
| BIOS | AMI 64M | |
| OS | WIN7/8/10/Android | |
| Environment | Temperature | -15~60℃ |
| Operating Humidity | 0% ~ 95% Relative Humidity,Non-condensing | |
| Form Factor | Size | 170*170MM |
Packaging & Shipping
Carton bulk package
Our Services
1 year warranty
To assure the quality, we usually do full test before shippment to avoid the quality issue
24*7 hotline for inquiry, if you have any questions about our products, you can contact us any time.
Company Information
FAQ
1.What is your payment terms ?
T/T Paypal westunion money gram for sample or small order
Alibaba Trade Assurance
2.What is your lead time?
3-5 working days after receipt of payment
3.Do you have warranty about your products?
Yes, 1 year
4. Can you do customlized service?
Yes. We can add your logo on our products. or we can design as per your requirements
OEM and ODM service are available
