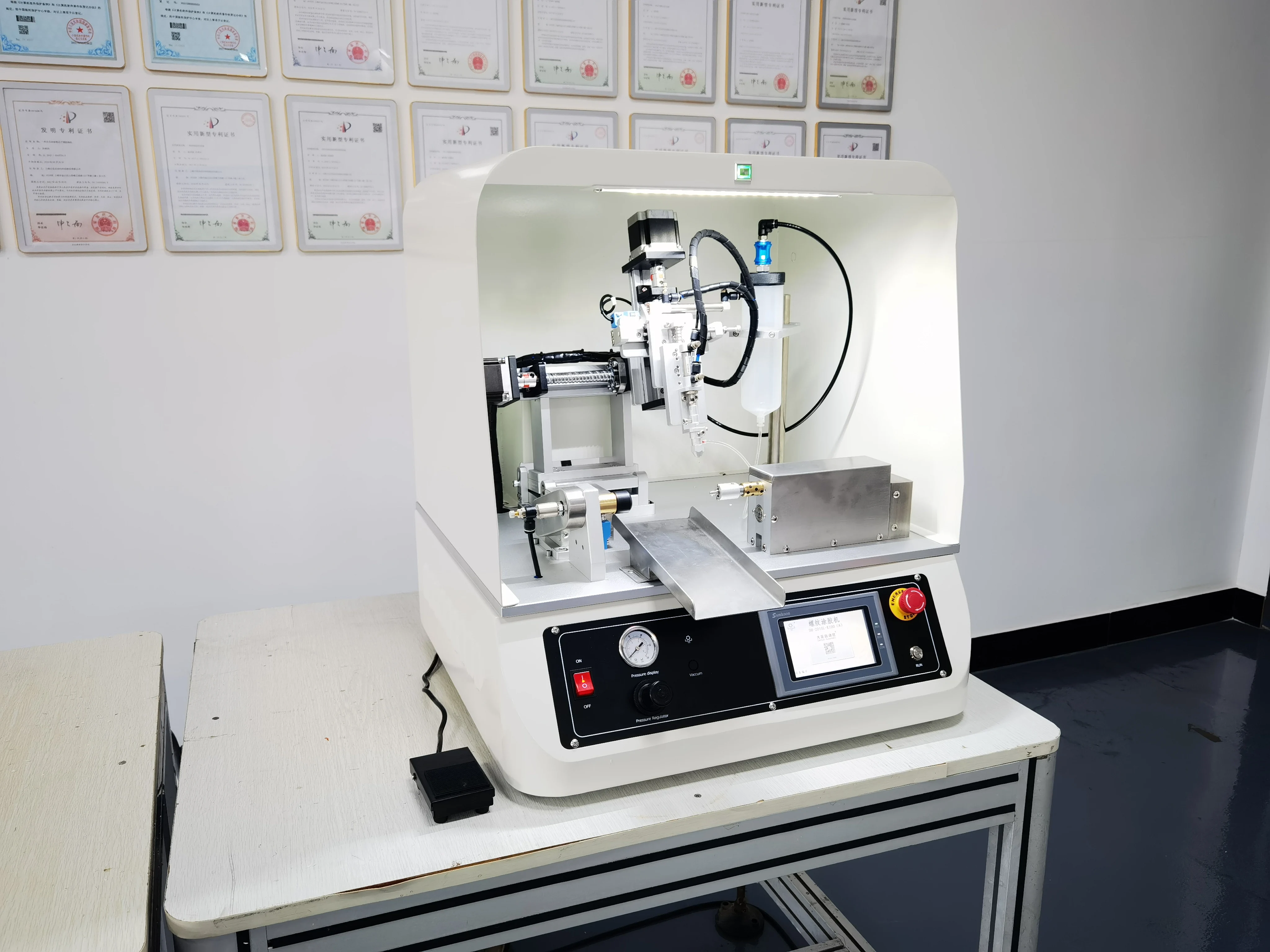

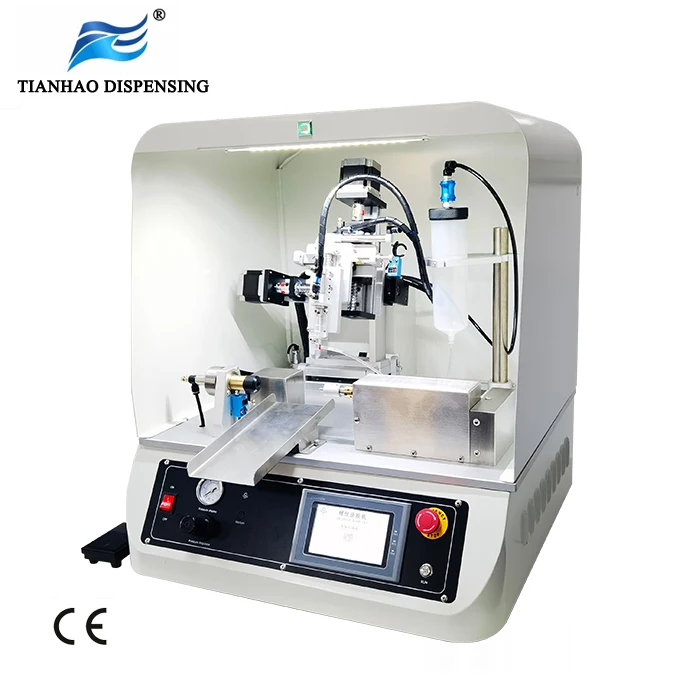

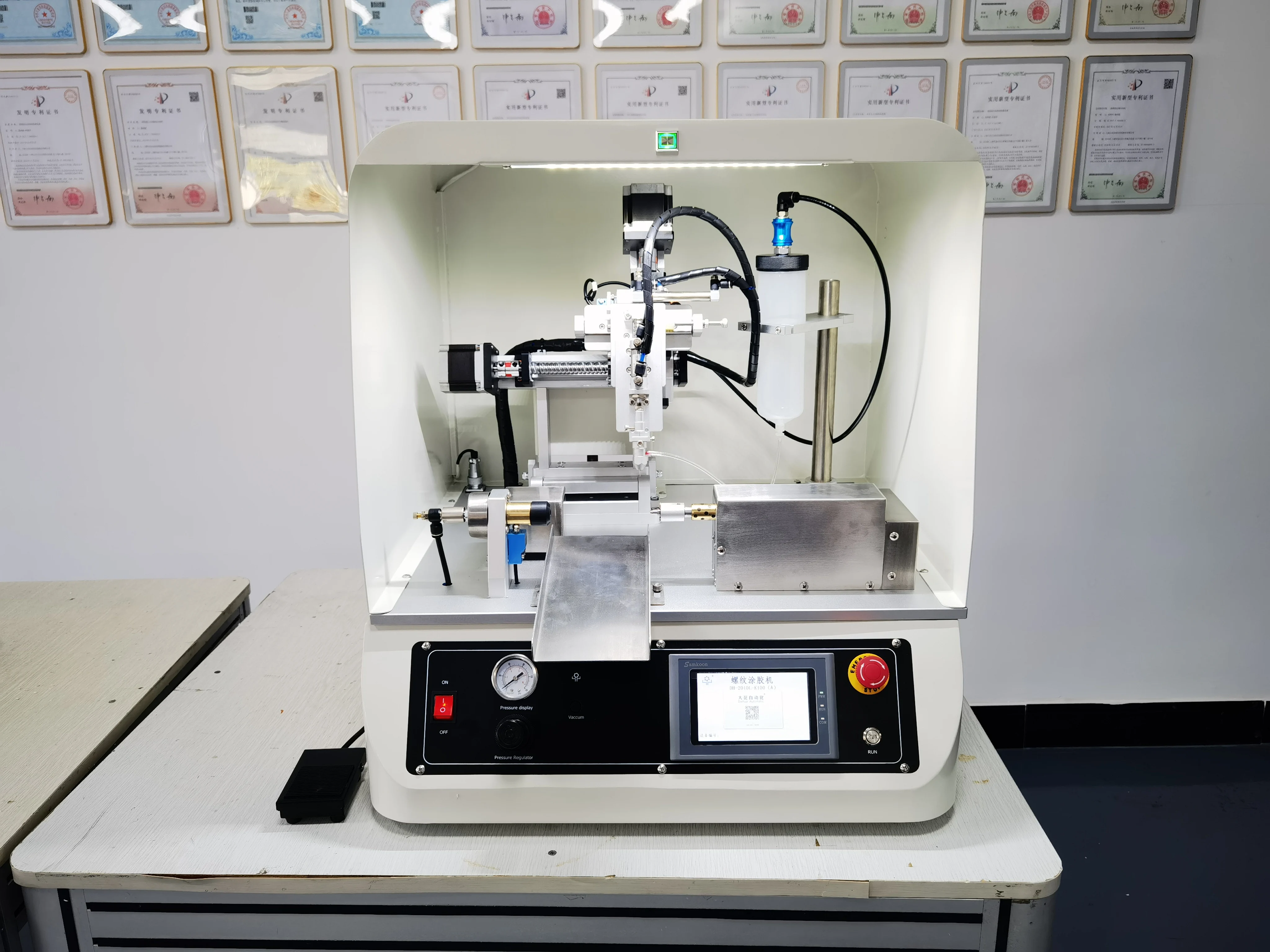

Anaerobic glue thread coating machine for different type screw and bolt coating
- Category: >>>
- Supplier: Cixi Tianhao Electric Technic Co. Ltd.
Share on (1600545966537):
Product Overview
Description
Product Overview
Anaerobic glue Thread coating machine with Touch screen
Function
The machine adopts multi-axis linkage technology, the gluing program can be edited and called through the touch screen. With program memory storage function, it can store up to 100 groups of files,Only select different programs for different products coating work for different thread ID and length,head type of bolts and screw, nut.
The machine is equipped with a touch-screen PLC gluing control system, which makes the operation more simple and convenient.All processing parameters can be set directly through the touch screen, with powerful functions and easy operation
The machine adopts multi-axis linkage technology, the gluing program can be edited and called through the touch screen. With program memory storage function, it can store up to 100 groups of files,Only select different programs for different products coating work for different thread ID and length,head type of bolts and screw, nut.
The machine is equipped with a touch-screen PLC gluing control system, which makes the operation more simple and convenient.All processing parameters can be set directly through the touch screen, with powerful functions and easy operation
Application:
Suitable for M1-M30 screw, bolt, nuts, Plug and various pneumatic connector, fastener thread coating
Liquid Material：
Thread locking adhesives, anaerobic adhesives, pipe thread adhesives, etc.
Suitable for M1-M30 screw, bolt, nuts, Plug and various pneumatic connector, fastener thread coating
Liquid Material：
Thread locking adhesives, anaerobic adhesives, pipe thread adhesives, etc.
FEATURES AT A GLANCE
Feed system: 300ML tank + special valve for anaerobic glue + s/s needle.that reduce waste during the glue addition process;
According to different glue characteristics be equipped with different special dispensing valves, which can easily solve that glue
be blocked during use process. dispensing glue is uniform and does not overflow, which can save more than 30% of glue.
According to different glue characteristics be equipped with different special dispensing valves, which can easily solve that glue
be blocked during use process. dispensing glue is uniform and does not overflow, which can save more than 30% of glue.
anaerobic glue valve
touch screen
PRODUCT SPECIFICATIONS
No | Item | Data |
1 | Speed | 0.3-0.8S/circle of thread |
2 | Length | ≤100 mm(can adjusting) |
3 | ID | M1-M30 |
4 | Date memory capacity | 100 groups progams |
5 | Max.Suction method | Vacuum adsorption |
6 | Power | ≤350W |
7 | Weight | 52kgs |
8 | size （L,W,H） | 63*60*68(cm) |
PRODUCT CONFIGURATION
1.The equipment is suitable for M1-M30 different model of screw,bolt,nut, connector fastener
2. The machine suitable for lengths within 100mm
3. Quote multi-axis linkage control technology, the gluing program can be edited and called through the touch screen, With
program memory storage function, it can store up to 100 groups of files
4. Through the unique teaching function, only fill the tooth pitch, starting gluing position, and the number of gluing circles
to achieve precise gluing
5. Semi-enclosed design, equipped with safety cover and LED work lights,
the whole machine is beautiful and neatly.
6. machine With vacuum suction function, good for small flat-head screws,and product be automatically unloaded with stainless
steel slides
7. Independent overall center offset adjustment function, one-button adjustment location for the production of large diameter
spans
8. Electric thimble device can be stretched and retracted freely, and the function of buffering and anti-collision
9. All processing parameters can be set directly through the touch screen, with powerful functions and easy operation
10. With external communication function, it can be connected with other devices
11. It can be matched with different diameter needles according to the size of the workpiece teeth to achieve perfect gluing
effect
12. Equipped with a voltage stabilization control module, dispensing glue evenly, without drawing, dripping, and leaking glue
13.The product be glued product by machine, greatly improves reliability and durability.sealing
2. The machine suitable for lengths within 100mm
3. Quote multi-axis linkage control technology, the gluing program can be edited and called through the touch screen, With
program memory storage function, it can store up to 100 groups of files
4. Through the unique teaching function, only fill the tooth pitch, starting gluing position, and the number of gluing circles
to achieve precise gluing
5. Semi-enclosed design, equipped with safety cover and LED work lights,
the whole machine is beautiful and neatly.
6. machine With vacuum suction function, good for small flat-head screws,and product be automatically unloaded with stainless
steel slides
7. Independent overall center offset adjustment function, one-button adjustment location for the production of large diameter
spans
8. Electric thimble device can be stretched and retracted freely, and the function of buffering and anti-collision
9. All processing parameters can be set directly through the touch screen, with powerful functions and easy operation
10. With external communication function, it can be connected with other devices
11. It can be matched with different diameter needles according to the size of the workpiece teeth to achieve perfect gluing
effect
12. Equipped with a voltage stabilization control module, dispensing glue evenly, without drawing, dripping, and leaking glue
13.The product be glued product by machine, greatly improves reliability and durability.sealing
