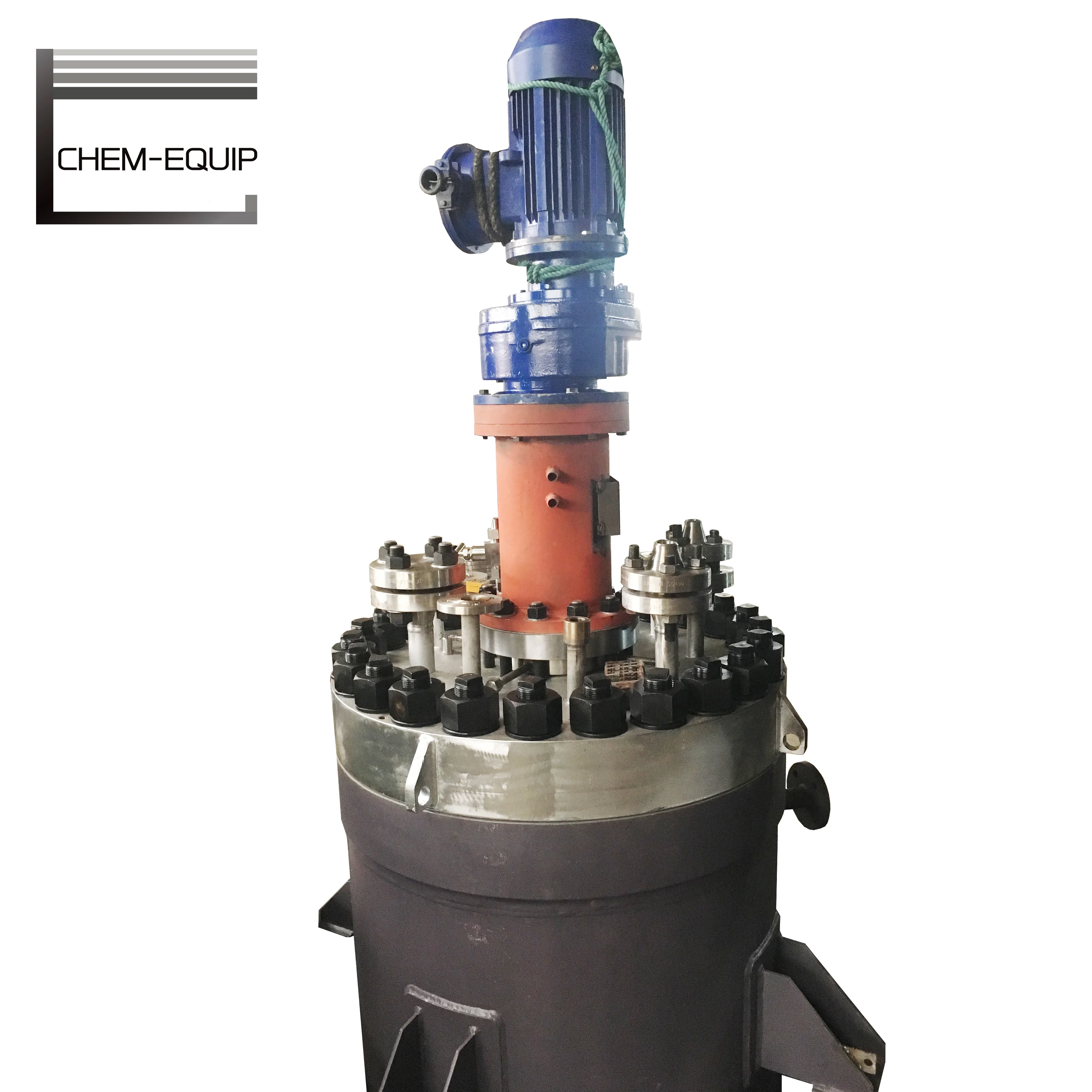

continuously stirred tank reactor 100 000 l/ mixing reactor/ stirred reactor
- Category: >>>
- Supplier: Weihai Chem-Equip Machinery Co. Ltd.
Share on (1600545968934):
Product Overview
Description
Product Description

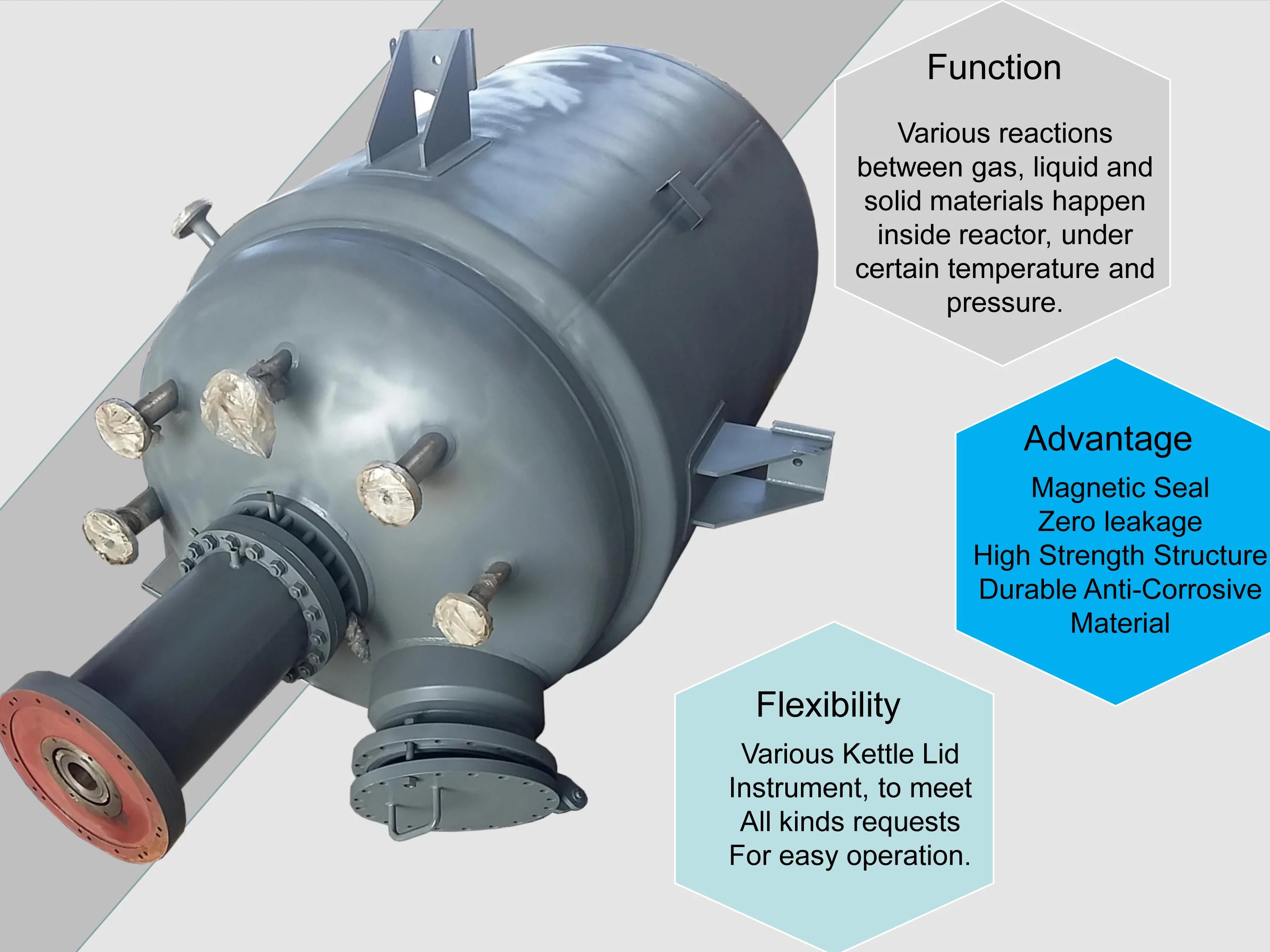

Chem-Equip Reactor helps various reactions between gas, liquid and solid materials happen inside tank, under certain temperature and pressure. It can mix and heat material, the whole process is monitored by PID or PLC controller.
Therefore they have ports for sensors and material input and output, widely used in many industrial range. To speed up reaction rate, a pressure reactor is commonly used.
Therefore they have ports for sensors and material input and output, widely used in many industrial range. To speed up reaction rate, a pressure reactor is commonly used.
Chem-Equip reactor is widely used in a big range, like Medical Industrial, Food Industrial, Chemical Industrial, Raw Material Industrial, Petroleum Industrial, Energy Industrial, New Material and Polymolecular Industrial.
Specification
Technical Parameters | ||
Model No. | CIR500~20,000L | |
Scale | Industrial Reactor | |
Volume (L) | 500~20,000L | |
Working pressure (MPa) | Negative pressure -0.1~9.8 | |
Working temperature (°C) | -196~350 | |
Stirring speed (r/min) | 0~1000 | |
Motor power (KW) | 5.5~45 | |
Heating power (KW) | 48~90 | |
Heating type | Electric heating, far infrared heating, high frequency heating. Water recycling, thermal oil or steam through jacket by constant temperature slot. | |
Seal type | Magnetic seal, mechanical seal, packing seal. | |
1. With controllable mixing and heating device, the reactor can achieve various reactions under high pressure and high temperature.
.
.
2. Closed vessel with static magnetic seal (or other sealing style for low pressure) can ensure both zero leakage and a safety operation.
3. Various Kettle Lid Instrument, to meet all kinds requests for easy operation. An Auto controller will achieve a continuous reaction as per request.
Tips: Pressure can speed up the desired reaction and only impacts decomposition when it involves the release of a gas or a reaction with a gas in the vessel. When the desired reaction is accelerated, competing reactions are minimized. Pressure generally enables faster reactions with cleaner reaction profiles.
For easy operation, each reactor equips with many instruments.
The reactor lid and reactor body are connected by bolts and nuts on flanges, for bigger scale, kettle head and kettle body are welded together, open Man Hole on top head for assembly repair and maintain.
Various open lid ports give reactor useful functions for easy operation and multi-functional.
Kinds of mixer style for different working mediums, can be custom made as per request.

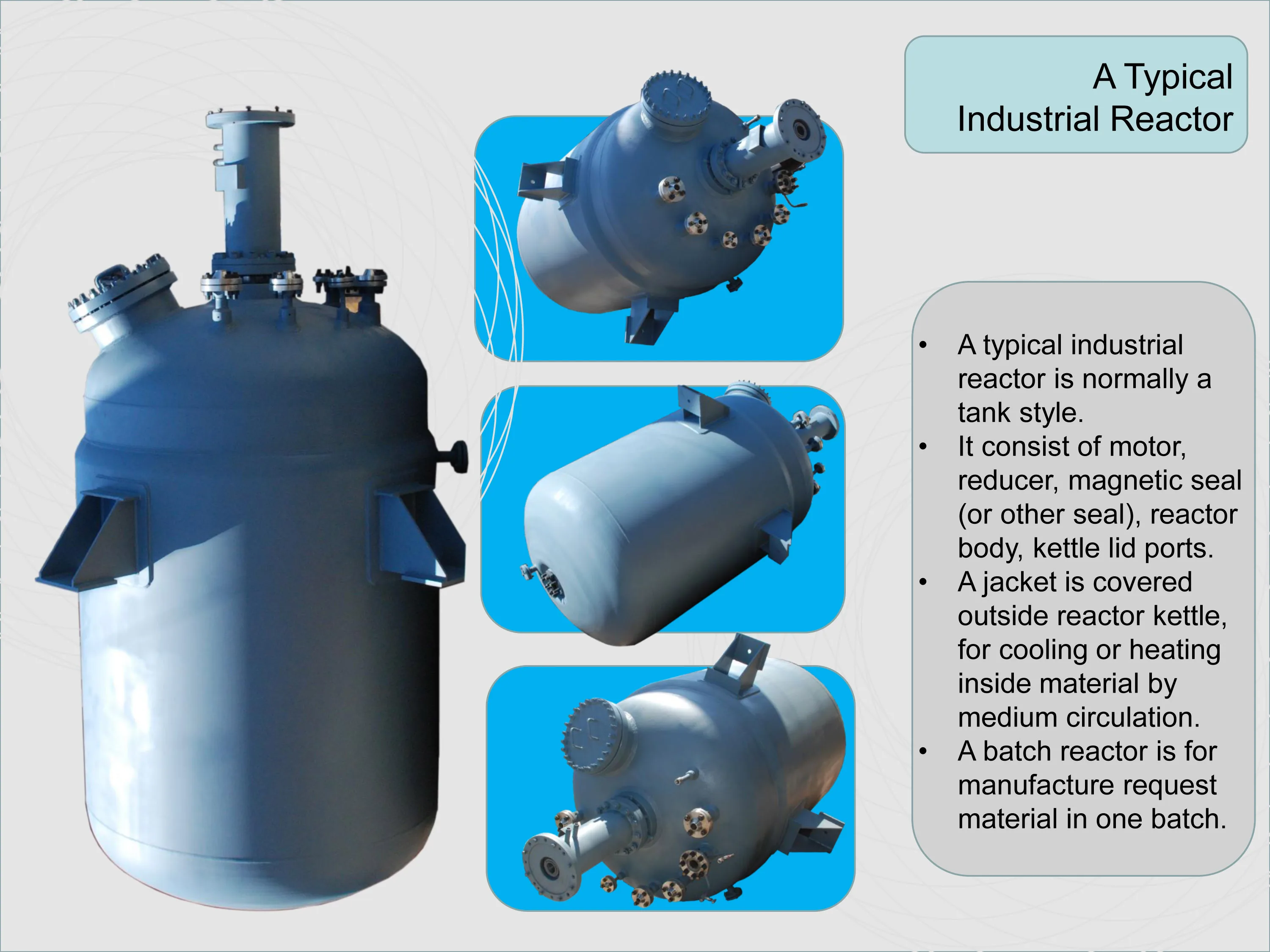

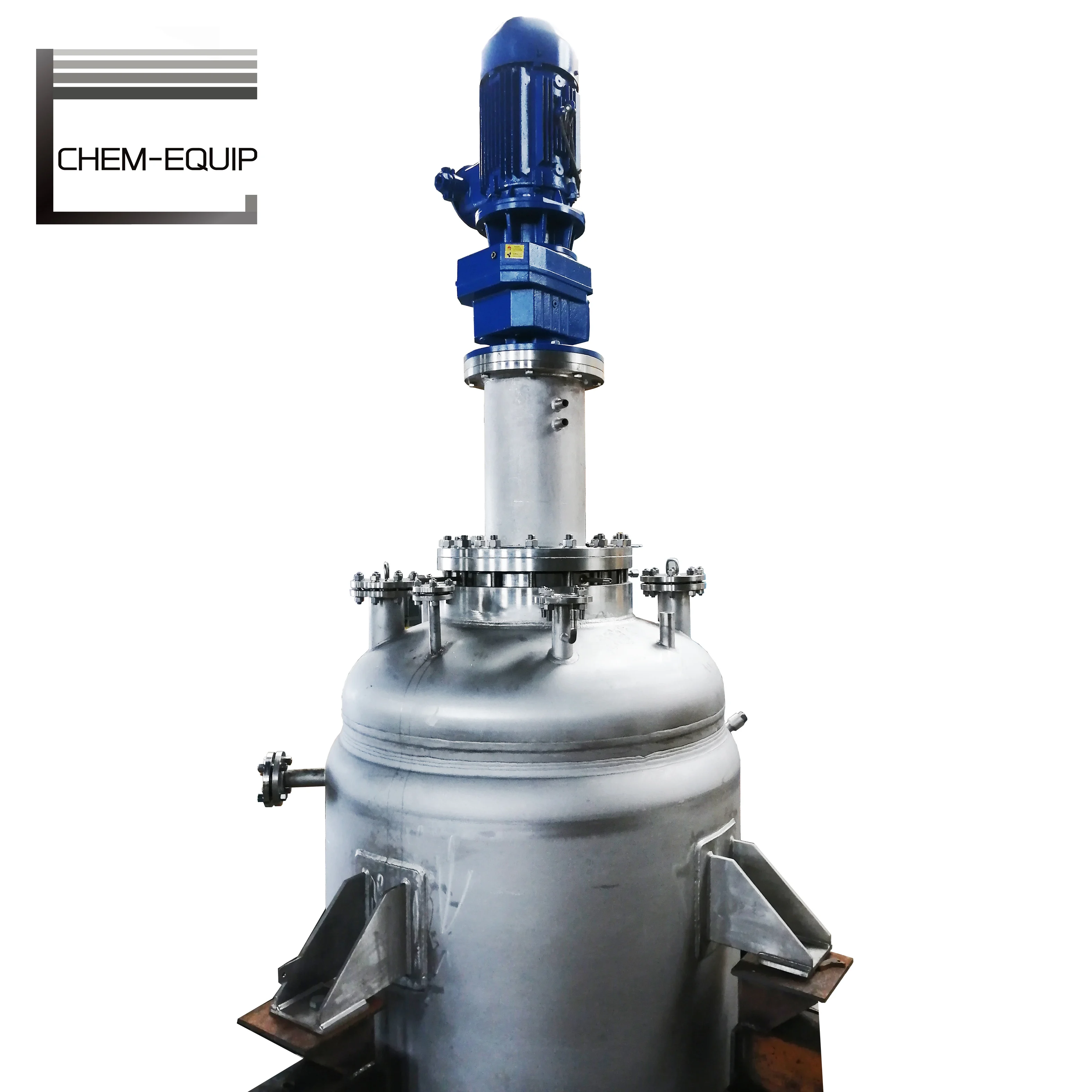

It's normally a tank style, consists of motor, reducer, magnetic seal (or other seal) kettle lid ports (with valves and sensors). A jacket is covered outside reactor kettle for cooling and heating purpose. Discharging usually happens on bottom through a valve in pneumatic or electric type.

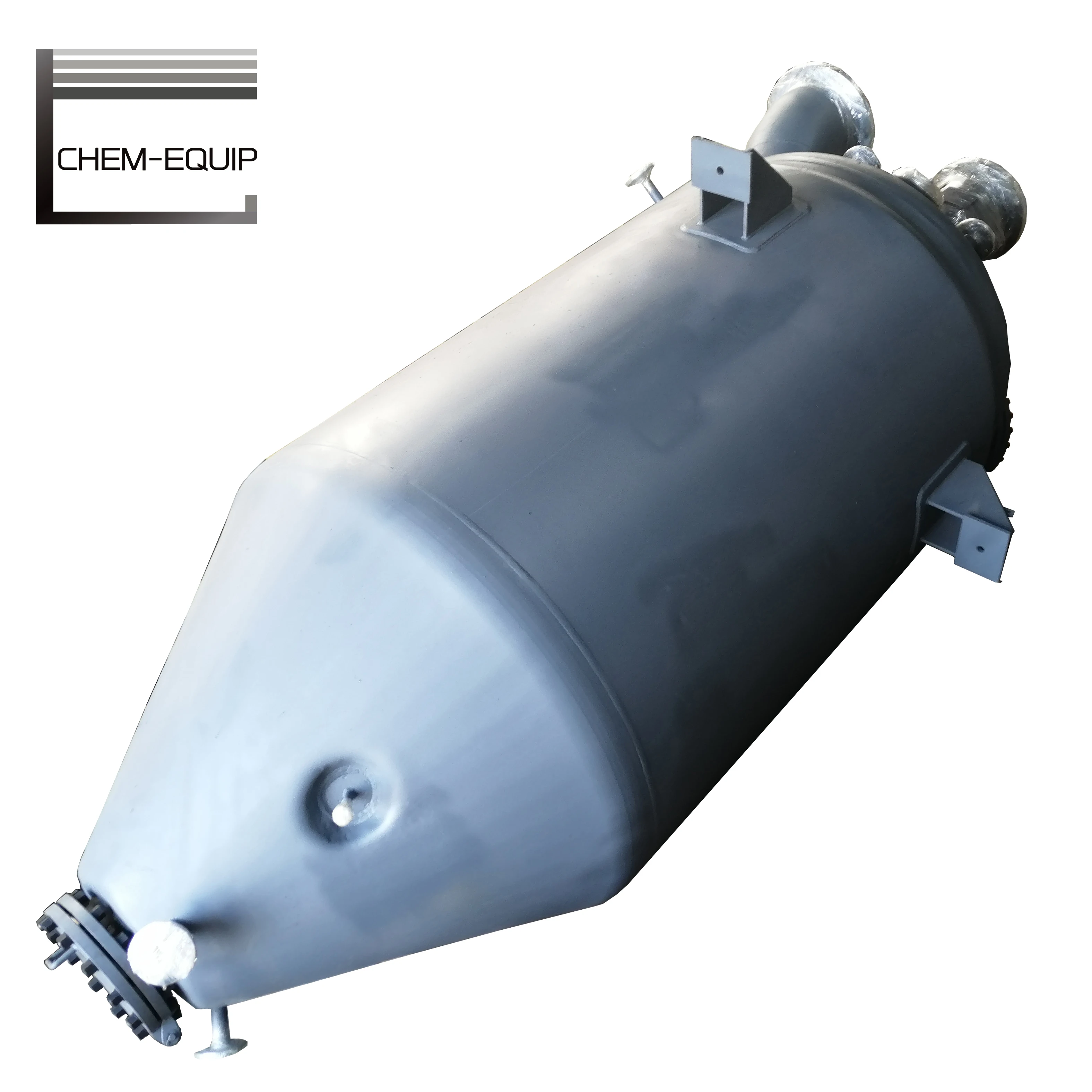

For different reaction process, the reactor structure have much different, like cone bottom reactor, spherical head reactor, half-coil jacket reactor, etc.
Packing & Delivery
Plastic film wrapping against moisture;
Steel frame or wood frame inside for necessary support;
Strong fixture against container for whole set equipment;
Fumigation free wood box for spare parts, no need extra inspection during custom.
Company Profile
With 10 years experience in chemical industry,
Weihai Chem-Equip Machinery Co., Ltd is a professional supplier in various chemical equipment, we help customer design, develop and fabricate suitable production lines, from initial chemical process design, to workshop building and long term maintaince.
We have own factories in Weihai and Laizhou area, product covers Reactor, Pressure Vessel, Mixer, Kneader, Sand Miller, Filter, Dryer etc, almost cover all chemical industry.
With our Chemical Process Designer, ASME AI (Authorized Inspector), American CWI (Certified Welding Inspector), we dedicate in a Turn-Key solution for customers who wants to build up new factory or expand new production lines, in an efficient and safety way.
We have own factories in Weihai and Laizhou area, product covers Reactor, Pressure Vessel, Mixer, Kneader, Sand Miller, Filter, Dryer etc, almost cover all chemical industry.
With our Chemical Process Designer, ASME AI (Authorized Inspector), American CWI (Certified Welding Inspector), we dedicate in a Turn-Key solution for customers who wants to build up new factory or expand new production lines, in an efficient and safety way.
FAQ
Pre-Sale Stage
Provide Chemical Process , Project Drawing and Suitable Equipment Model according to customer's request, for accurate design and quote, please kindly advise below:
Whole time report for manufacture status;
Inspection video for quality checking;
Full set Engineering Documents, include User Manual, General Drawing, Electric Circuit Drawing, All Related Test Report, Approval Certificate.
Life long service for all equipment;
Free spare parts in warranty period;
Discount price for all spare parts after warranty period;
Technical consulting is always for free.
Arrange engineer to assist customer in equipment assembly and installation;
Training workers to use machine properly.
