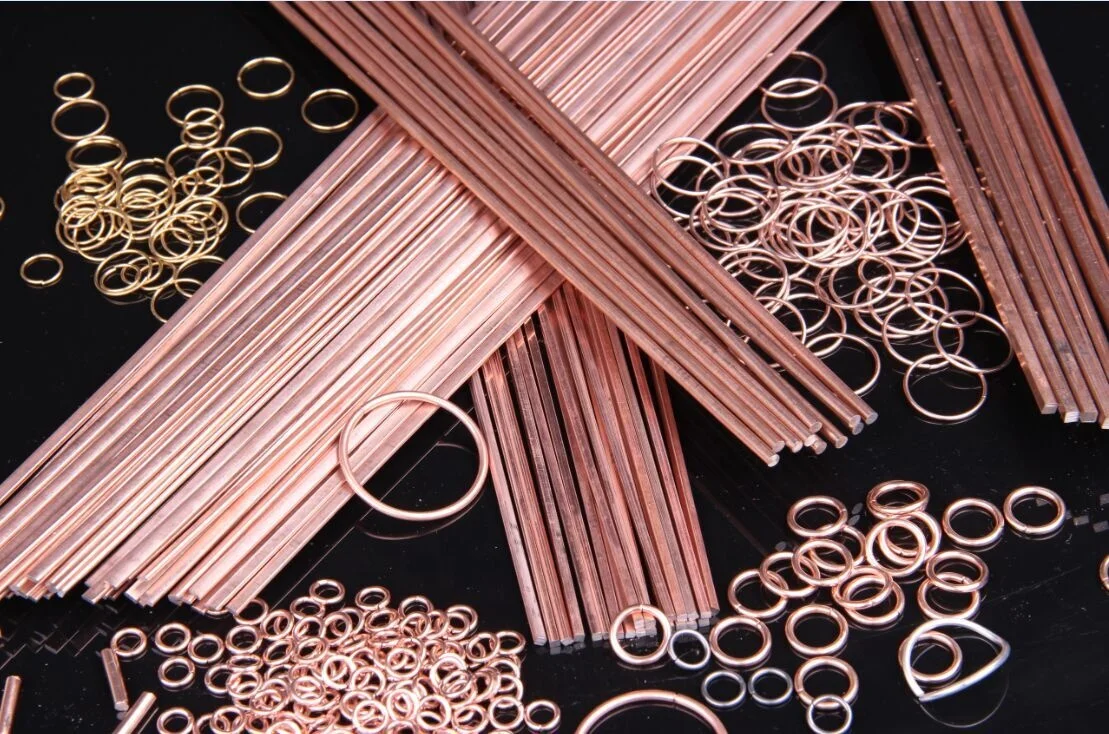

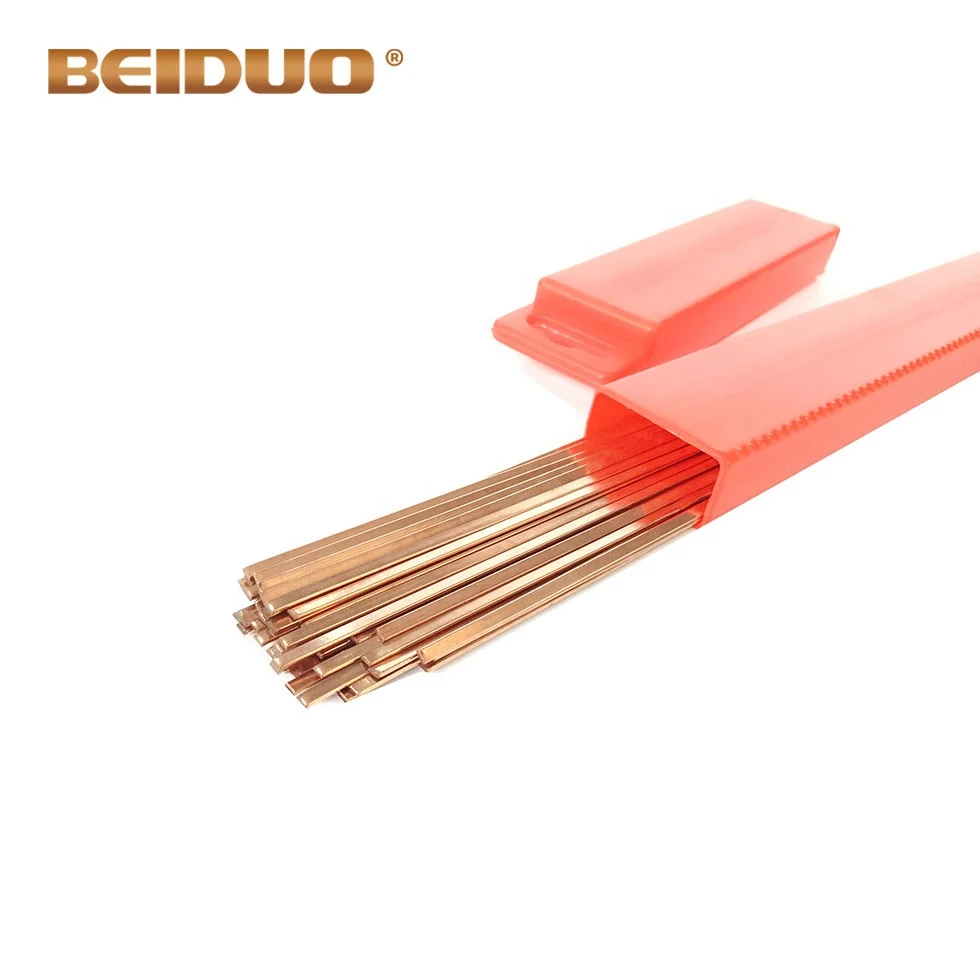

CP202 copper phos brazing rod AWS A5.8 BCu93P

Product Overview

Description



 Brazing alloy rod AWS A5.8 BCuP-2   DIN-EN 1044  CP202



Phos-Copper brazing alloys are easy-flow, low cost ones and shows perfect perfomance in contact brazing, oxy-acetylene brazing,induction brazing and furnace brazing. The joint strength is higher and the conductivity is better. A flux is required while brazing brass to brass. Phos-Copper-Sliver brazing alloys have good wettability, higher strength and toughness of brazing seam and lower melting point. The beating speed should be as quick as possible while brazing. The joint is to be bright grey and will return to the orginal color of bronze while dipped into 10% sulphuric acid.



AWS Code

Chemical composition

Melting temperature

Applications

Ag

P

Sn

Cu

Solid      °F / °C

Liquid   °F / °C

BCuP-2

-

6.5-7.5

-

Rem.

1310/710

1455/790

For copper-copper and copper brass application

BCuP-4

5.8-6.2

6.8-7.5

-

Rem.

1190/643

1370/745

For brazing copper parts in airconditioners,freezers,refrigerator and motors.The brazing performance is excellent.

BCuP-5

14.5-15.5

4.8-5.3

-

Rem.

1190/643

1470/800

BCuP-6

1.8-2.2

6.8-7.5

-

Rem.

1190/643

1455/790

BCuP-7

4.6-5.2

6.5-7.0

-

Rem.

1190/643

1445/785



We can supply sizes1.6mmx1000mm,  2.0mmx1000mm, 2.5mmx1000mm, 3.0mmx1000mm, 4.0mmx1000mm, 5.0mmx1000mm.



Our normal packing is 5kg or 10kg/polybag, 50kg/wooden case, 1000kgs/pallet.



As a manufacturer and exporter with more than 10 years exporting experience, we know which products can meet different markets requirement. We are confidence for our quality and competitive price.
